Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

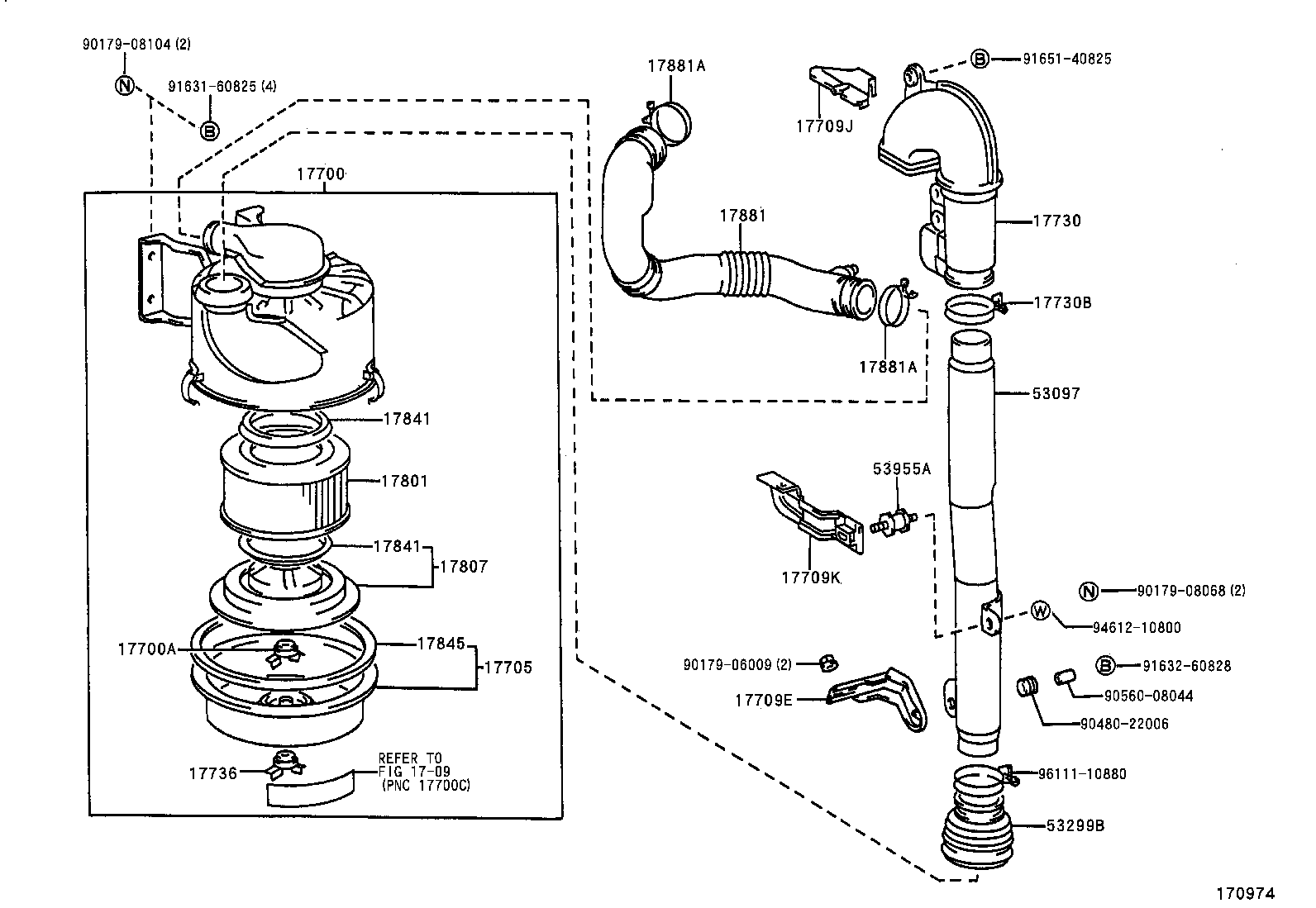

Exploded illustration 170974 9017908104 — not listed in this catalogue 9165140825 — not listed in this catalogue 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (20 parts) 9163160825 — not listed in this catalogue 17709J — BRACKET, AIR CLEANER INLET, NO.3 (2 parts) 17700 — CLEANER ASSY, AIR (31 parts) 17881 — HOSE, AIR CLEANER, NO.1 (14 parts) 17730 — PRECLEANER ASSY, AIR W/HOSE (1 parts) 17730B — CLAMP, HOSE(FOR PRECLEANER HOSE) (1 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (20 parts) 53097 — INLET SUB-ASSY (12 parts) 17841 — GASKET, FILTER ELEMENT (4 parts) 53955A — CUSHION, AIR CLEANER INLET NO.1 (3 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (7 parts) 17841 — GASKET, FILTER ELEMENT (4 parts) 17807 — PLATE SUB-ASSY, AIR CLEANER FILTER SET (7 parts) 17709K — BRACKET, AIR CLEANER INLET, NO.4 (2 parts) 9017908068 — not listed in this catalogue 9461210800 — not listed in this catalogue 17845 — GASKET, AIR CLEANER CAP (3 parts) 17700A — NUT, WING(FOR AIR CLEANER) (3 parts) 9017906009 — not listed in this catalogue 9163260828 — not listed in this catalogue 17705 — CAP SUB-ASSY, AIR CLEANER (7 parts) 9056008044 — not listed in this catalogue 17709E — BRACKET, AIR CLEANER INLET, NO.2 (1 parts) 9048022006 — not listed in this catalogue 1709 — not listed in this catalogue 17736 — NUT, AIR CLEANER CASE (3 parts) 9611110880 — not listed in this catalogue 53299B — DUCT, COOL AIR INTAKE (1 parts)
170974 · 20 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
122 parts on this figure
Part number Description Fitment Price
17700 — Cleaner Assy, Air
17700-58410 Cleaner Assy, Air
1995-05 → 1996-10 ended
15BF BU102,112,122,132,142,172 03S,05S,06S ¥58,900
17700-58410 Cleaner Assy, Air
1995-05 → 1996-10 ended
3RZFE RZU100 ¥58,900
17700-58411 Cleaner Assy, Air
1996-10 → 1997-03 ended
3RZFE RZU100 ¥59,100
17700-58411 Cleaner Assy, Air
1996-10 → 1997-03 ended
15BF BU132 T3,T4;15BF BU102,107,112,122,137,142,147,172 +1 ¥59,100
17700-58412 Cleaner Assy, Air
1997-03 → 1999-06 ended
15BF BU132 T3,T4;15BF BU102,107,112,122,137,142,147,172 +1 ¥59,100
17700-58412 Cleaner Assy, Air
1997-03 → —
3RZFE RZU100,140 ¥59,100
17700-58420 Cleaner Assy, Air
1995-05 → 1996-10 ended
3B BU100,120,140 ¥58,900
17700-58421 Cleaner Assy, Air
1996-10 → 1997-03 ended
3B BU100,120,140 ¥59,100
17700-58422 Cleaner Assy, Air
1997-03 → 1999-06 ended
3B BU100,105,120,140,145 ¥59,100
17700-58450 Cleaner Assy, Air
1995-05 → 1997-03 ended
15BF BU162,172,182 02S,03S ¥59,100
17700-58451 Cleaner Assy, Air
1997-03 → 1999-06 ended
15BF BU162,172,182 02S,03S ¥59,100
17700-58480 Cleaner Assy, Air
1995-05 → 1997-03 ended
15BFT BU212,222 ¥59,100
17700-58481 Cleaner Assy, Air
1997-03 → 1998-08 ended
15BFT BU212,222 ¥59,100
17700-58482 Cleaner Assy, Air
1998-08 → 1999-05 ended
15BFT BU212,222 ¥59,100
17700-58490 Cleaner Assy, Air
1995-05 → 1997-03 ended
15BF BU202,212,222 03S ¥59,100
17700-58491 Cleaner Assy, Air
1997-03 → 1999-06 ended
15BF BU202,212,222 03S ¥59,100
17700-58500 Cleaner Assy, Air
1995-05 → 1997-03 ended
15BF BU212 06S,07S ¥59,100
17700-58501 Cleaner Assy, Air
1997-03 → 1999-05 ended
15BF BU212 06S,07S ¥59,100
17700-58590 Cleaner Assy, Air
1997-01 → 1997-02 ended
15BFT BU297 ¥21,900
17700-58591 Cleaner Assy, Air
1997-02 → 1999-05 ended
15BFT BU297 ¥21,900
17700-58600 Cleaner Assy, Air
1997-02 → 1997-03 ended
15BF BU132 TL4 ¥32,400
17700-58601 Cleaner Assy, Air
1997-03 → 1999-05 ended
15BF BU132 TL4 ¥32,400
17700-75140 Cleaner Assy, Air
1995-05 → 1996-10 ended
3RZFP RZU100 ¥31,000
17700-75140 Cleaner Assy, Air
1996-05 → 1996-10 ended
15BFP BU142 ¥31,000
17700-75141 Cleaner Assy, Air
1996-10 → 1997-03 ended
15BFP BU142 ¥31,100
17700-75141 Cleaner Assy, Air
1996-10 → 1997-03 ended
3RZFP RZU100 ¥31,100
17700-75142 Cleaner Assy, Air
1997-03 → 1999-05 ended
15BFP BU102,142 ¥31,100
17700-75142 Cleaner Assy, Air
1997-03 → —
15BFP,3RZFP RZU100 ¥31,100
17700-78020 Cleaner Assy, Air
1995-10 → 1996-10 ended
J05C XZU130 ¥21,700
17700-78021 Cleaner Assy, Air
1996-10 → 1997-03 ended
J05C XZU130 ¥21,900
17700-78022 Cleaner Assy, Air
1997-03 → 1999-05 ended
J05C XZU130,140 ¥21,900
17700A — Nut, Wing(FOR AIR CLEANER)
90175-08008 Nut, Wing(FOR AIR CLEANER)
1995-10 → 1999-05 ended
J05C XZU130,140 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1995-05 → —
15BFP,3RZ# RZU100,140 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1995-05 → —
15B#,3B BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 —
17705 — Cap Sub-assy, Air Cleaner
17705-58300 Cap Sub-assy, Air Cleaner
1995-05 → 1997-03 ended
3RZ# RZU100 —
17705-58300 Cap Sub-assy, Air Cleaner
1995-05 → 1997-03 ended
15BF BU132 T3,T4;15B#,3B BU10#,112,12#,137,14#,162,172,182,202,212,222 —
17705-58300 Cap Sub-assy, Air Cleaner
1995-10 → 1999-05 ended
J05C XZU130,140 —
17705-58320 Cap Sub-assy, Air Cleaner
1997-03 → —
15BFP,3RZ# RZU100,140 —
17705-58320 Cap Sub-assy, Air Cleaner
1997-03 → —
15BF,15BFP,3B BU10#,112,12#,13#,14#,172 03S,05S,06S —
17705-58330 Cap Sub-assy, Air Cleaner
1997-03 → —
15BF,15BFT BU202,212,222,297 —
17705-58340 Cap Sub-assy, Air Cleaner
1997-03 → —
15BF BU162,172,182 02S,03S —
17709E — Bracket, Air Cleaner Inlet, NO.2
53773-95401 Bracket, Air Cleaner Inlet, NO.2
1995-05 → —
15BF,15BFT BU162,172,182,202,212,222 02S,03S ¥2,060
17709J — Bracket, Air Cleaner Inlet, NO.3
53764-95404 Bracket, Air Cleaner Inlet, NO.3
1995-05 → 1999-05 ended
15BFT BU212,222 ¥940
53764-95406 Bracket, Air Cleaner Inlet, NO.3
1995-05 → —
15BF BU162,172,182 02S,03S ¥760
17709K — Bracket, Air Cleaner Inlet, NO.4
53765-37010 Bracket, Air Cleaner Inlet, NO.4
1995-05 → —
15BF BU162,172,182 02S,03S ¥1,470
53765-95402 Bracket, Air Cleaner Inlet, NO.4
1995-05 → —
15BF,15BFT BU202,212,222 03S ¥740
17730 — Precleaner Assy, Air W/Hose
17730-56041 Precleaner Assy, Air W/Hose
1995-05 → —
15BF BU162,172,182 02S,03S ¥10,600
17730B — Clamp, Hose(FOR PRECLEANER HOSE)
96111-10880 Clamp, Hose(FOR PRECLEANER HOSE)
1995-05 → —
15BF BU162,172,182 02S,03S ¥520
17736 — Nut, Air Cleaner Case
90175-06003 Nut, Air Cleaner Case
1995-10 → 1999-05 ended
J05C XZU130,140 —
90175-06003 Nut, Air Cleaner Case
1995-05 → —
15B#,3B BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 —
90175-06003 Nut, Air Cleaner Case
1995-05 → —
15BFP,3RZ# RZU100,140 —
17801 — Element Sub-assy, Air Cleaner Filter
17801-56020 Element Sub-assy, Air Cleaner Filter
1995-05 → —
3B BU100,105,120,140,145 ¥4,100
17801-58030 Element Sub-assy, Air Cleaner Filter
1995-05 → 1999-05 ended
15BFT BU212,222,297 ¥4,520
17801-66030 Element Sub-assy, Air Cleaner Filter
1995-10 → 1999-05 ended
J05C XZU130,140 ¥4,410
17801-68020 Element Sub-assy, Air Cleaner Filter
1995-05 → —
15BF BU102,107,112,122,13#,142,147,162,172,182,202,212,222 ¥3,990
17801-68020 Element Sub-assy, Air Cleaner Filter
1995-05 → —
3RZFE RZU100,140 ¥3,990
17801-73020 Element Sub-assy, Air Cleaner Filter
1996-05 → 1999-05 ended
15BFP BU102,142 ¥2,210
17801-73020 Element Sub-assy, Air Cleaner Filter
1995-05 → —
15BFP,3RZFP RZU100 ¥2,210
17807 — Plate Sub-assy, Air Cleaner Filter Set
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
1996-05 → —
3RZFE RZU100,140 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
1995-05 → —
15BFT BU297;15BF BU102,107,112,122,13#,142,147,162,172,182,202,212,222 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
1995-05 → 1996-05 ended
3RZ# RZU100 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
1995-10 → 1999-05 ended
J05C XZU130,140 —
17807-58030 Plate Sub-assy, Air Cleaner Filter Set
1995-05 → —
3B BU100,105,120,140,145 —
17807-68010 Plate Sub-assy, Air Cleaner Filter Set
1995-05 → 1999-05 ended
15BFP,15BFT BU102,142,212,222 —
17807-68010 Plate Sub-assy, Air Cleaner Filter Set
1996-05 → —
15BFP,3RZFP RZU100 —
17841 — Gasket, Filter Element
17841-44030 Gasket, Filter Element
1995-05 → —
3B BU100,105,120,140,145 —
17841-68010 Gasket, Filter Element
1995-10 → 1999-05 ended
J05C XZU130,140 ¥0
17841-68010 Gasket, Filter Element
1995-05 → —
15B# BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297 ¥0
17841-68010 Gasket, Filter Element
1995-05 → —
15BFP,3RZ# RZU100,140 ¥0
17845 — Gasket, Air Cleaner Cap
17845-58010 Gasket, Air Cleaner Cap
1995-05 → —
15BFP,3RZ# RZU100,140 —
17845-58010 Gasket, Air Cleaner Cap
1995-05 → —
15B#,3B BU10#,112,12#,13#,14#,162,172,182,202,212,222,297 —
17845-58010 Gasket, Air Cleaner Cap
1995-10 → 1999-05 ended
J05C XZU130,140 —
17881 — Hose, Air Cleaner, NO.1
17880-58110 Hose, Air Cleaner, NO.1
1995-05 → —
15BF BU202,212,222 ¥5,400
17880-58130 Hose, Air Cleaner, NO.1
1995-05 → 1999-05 ended
15BF BU172 05S ¥5,400
17880-58160 Hose, Air Cleaner, NO.1
1997-01 → 1999-05 ended
15BFT BU297 ¥7,200
17881-58140 Hose, Air Cleaner, NO.1
1995-05 → 1999-06 ended
3B BU100,105,120,140,145 ¥4,150
17881-58240 Hose, Air Cleaner, NO.1
1995-05 → 1996-05 ended
15BF BU162,172,182 02S,03S ¥5,400
17881-58241 Hose, Air Cleaner, NO.1
1996-05 → —
15BF BU162,172,182 02S,03S ¥5,400
17881-58250 Hose, Air Cleaner, NO.1
1995-05 → 1998-05 ended
15BFT BU212,222 ¥6,300
17881-58251 Hose, Air Cleaner, NO.1
1998-05 → 1999-05 ended
15BFT BU212,222 ¥6,300
17881-58270 Hose, Air Cleaner, NO.1
1995-05 → 1999-06 ended
15BF BU102,107,112,122,13#,142,147 ¥4,510
17881-58280 Hose, Air Cleaner, NO.1
1995-05 → —
3RZFE RZU100,140 ¥4,130
17881-58290 Hose, Air Cleaner, NO.1
1995-05 → —
3RZFP RZU100 ¥4,940
17881-58360 Hose, Air Cleaner, NO.1
1996-05 → 1999-05 ended
15BFP BU102,142 ¥3,310
17881-58360 Hose, Air Cleaner, NO.1
1999-05 → —
15BFP RZU100 ¥3,310
17881-78030 Hose, Air Cleaner, NO.1
1995-10 → 1999-05 ended
J05C XZU130,140 ¥4,940
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
90460-96001 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-05 → —
15BFT BU297 ¥610
90460-96001 Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-05 → 1999-06 ended
15BF BU202,212,222 ¥610
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-05 → —
3RZFP RZU100 ¥160
96111-10690 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-05 → 1999-06 ended
3B BU100,105,120,140,145 ¥160
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1997-11 → —
15BFT BU212,222;15BF BU162,172,182 02S,03S ¥190
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1996-05 → 1999-05 ended
15BFP BU102,142 ¥190
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.1)
1999-05 → —
15BFP RZU100 ¥190
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1996-05 → 1997-11 ended
15BFT BU212,222,297;15BF BU162,172,182 02S,03S ¥190
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-05 → 1996-05 ended
15BF BU162,172,182 02S,03S ¥190
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-12 → 1999-05 ended
J05C XZU130,140 ¥410
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1996-05 → 1999-05 ended
15BF BU172 05S ¥410
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-05 → 1996-05 ended
15BF BU172 05S;15BFT BU212,222 ¥410
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-10 → 1995-12 ended
J05C XZU130 ¥160
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-05 → —
3RZFE RZU100,140 ¥160
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1997-11 → 1999-05 ended
15BFT BU297 ¥180
96111-10850 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-05 → 1999-06 ended
15BF,3B BU10#,112,12#,13#,14#,172 03S,05S,06S ¥240
96111-10850 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-05 → —
3RZ# RZU100,140 ¥240
96111-10880 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-05 → 1999-06 ended
15BF BU102,107,112,122,13#,142,147,162,172,182 ¥520
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-10 → 1999-05 ended
J05C XZU130,140 ¥410
96111-10930 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1995-05 → 1999-05 ended
15BFT BU212,222 ¥120
53097 — Inlet Sub-assy
53097-37080 Inlet Sub-assy
1995-05 → —
BU202,212,222 03S DSL ¥4,130
53097-37090 Inlet Sub-assy
1995-05 → 1997-11 ended
RZU100,140 ¥4,620
53097-37090 Inlet Sub-assy
1997-11 → —
RZU100,140 EFI,LPGB ¥4,620
53097-37090 Inlet Sub-assy
1995-05 → —
BU132 T3,T4;BU10#,112,12#,137,14#,172 03S,05S,06S ¥4,620
53097-37090 Inlet Sub-assy
1995-10 → 1999-05 ended
XZU130,140 ¥4,620
53097-37120 Inlet Sub-assy
1995-05 → —
BU162,172,182 02S,03S ¥14,600
53097-37170 Inlet Sub-assy
1997-01 → 1999-05 ended
BU297 ¥9,200
53097-37180 Inlet Sub-assy
1997-02 → 1999-05 ended
BU132 TL4 ¥3,520
53097-37210 Inlet Sub-assy
1997-11 → 1999-01 ended
RZU100 LPG ¥9,400
53097-37211 Inlet Sub-assy
1999-01 → —
RZU100 LPG ¥9,400
53097-92601 Inlet Sub-assy
1995-05 → 1999-05 ended
BU212 06S,07S ¥9,200
53097-95409 Inlet Sub-assy
1995-05 → 1999-05 ended
BU212,222 TD ¥11,900
53299B — Duct, Cool Air Intake
53299-95401 Duct, Cool Air Intake
1995-05 → —
BU162,172,182,202,212,222 02S,03S ¥1,820
53955A — Cushion, Air Cleaner Inlet NO.1
53955-95402 Cushion, Air Cleaner Inlet NO.1
1995-05 → 1999-05 ended
BU212,222 TD ¥310
53955-95402 Cushion, Air Cleaner Inlet NO.1
1995-05 → —
BU162,172,182 02S,03S ¥310
53955-95402 Cushion, Air Cleaner Inlet NO.1
1995-05 → —
BU202,212,222 03S DSL ¥310
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
