Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

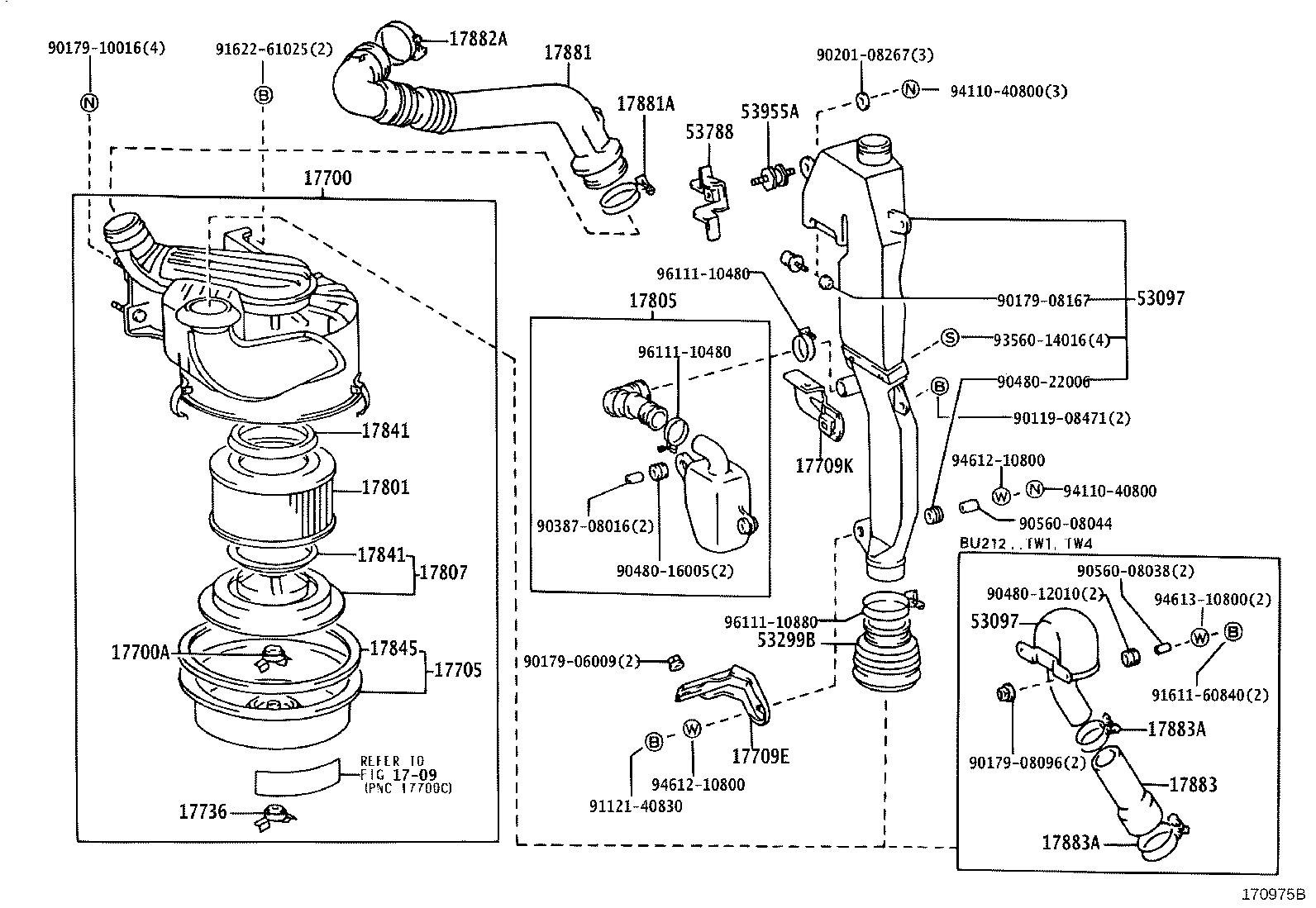

149 parts on this figure

Part number	Description	Fitment	Price
17700 — Cleaner Assy, Air
17700-58410	Cleaner Assy, Air 1995-05 → 1996-10 ended	15BF BU102,112,122,132,142,172 03S,05S,06S	¥58,900
17700-58410	Cleaner Assy, Air 1995-05 → 1996-10 ended	3RZFE RZU100	¥58,900
17700-58411	Cleaner Assy, Air 1996-10 → 1997-03 ended	15BF BU132 T3,T4;15BF BU102,107,112,122,137,142,147,172 +1	¥59,100
17700-58411	Cleaner Assy, Air 1996-10 → 1997-03 ended	3RZFE RZU100	¥59,100
17700-58412	Cleaner Assy, Air 1997-03 → —	3RZFE RZU100,140	¥59,100
17700-58412	Cleaner Assy, Air 1997-03 → 1999-06 ended	15BF BU132 T3,T4;15BF BU102,107,112,122,137,142,147,172 +1	¥59,100
17700-58420	Cleaner Assy, Air 1995-05 → 1996-10 ended	3B BU100,120,140	¥58,900
17700-58421	Cleaner Assy, Air 1996-10 → 1997-03 ended	3B BU100,120,140	¥59,100
17700-58422	Cleaner Assy, Air 1997-03 → 1999-06 ended	3B BU100,105,120,140,145	¥59,100
17700-58450	Cleaner Assy, Air 1995-05 → 1997-03 ended	15BF BU162,172,182 02S,03S	¥59,100
17700-58451	Cleaner Assy, Air 1997-03 → 1999-06 ended	15BF BU162,172,182 02S,03S	¥59,100
17700-58480	Cleaner Assy, Air 1995-05 → 1997-03 ended	15BFT BU212,222	¥59,100
17700-58481	Cleaner Assy, Air 1997-03 → 1998-08 ended	15BFT BU212,222	¥59,100
17700-58482	Cleaner Assy, Air 1998-08 → 1999-05 ended	15BFT BU212,222	¥59,100
17700-58490	Cleaner Assy, Air 1995-05 → 1997-03 ended	15BF BU202,212,222 03S	¥59,100
17700-58491	Cleaner Assy, Air 1997-03 → 1999-06 ended	15BF BU202,212,222 03S	¥59,100
17700-58500	Cleaner Assy, Air 1995-05 → 1997-03 ended	15BF BU212 06S,07S	¥59,100
17700-58501	Cleaner Assy, Air 1997-03 → 1999-05 ended	15BF BU212 06S,07S	¥59,100
17700-58590	Cleaner Assy, Air 1997-01 → 1997-02 ended	15BFT BU297	¥21,900
17700-58591	Cleaner Assy, Air 1997-02 → 1999-05 ended	15BFT BU297	¥21,900
17700-58600	Cleaner Assy, Air 1997-02 → 1997-03 ended	15BF BU132 TL4	¥32,400
17700-58601	Cleaner Assy, Air 1997-03 → 1999-05 ended	15BF BU132 TL4	¥32,400
17700-75140	Cleaner Assy, Air 1995-05 → 1996-10 ended	3RZFP RZU100	¥31,000
17700-75140	Cleaner Assy, Air 1996-05 → 1996-10 ended	15BFP BU142	¥31,000
17700-75141	Cleaner Assy, Air 1996-10 → 1997-03 ended	15BFP BU142	¥31,100
17700-75141	Cleaner Assy, Air 1996-10 → 1997-03 ended	3RZFP RZU100	¥31,100
17700-75142	Cleaner Assy, Air 1997-03 → 1999-05 ended	15BFP BU102,142	¥31,100
17700-75142	Cleaner Assy, Air 1997-03 → —	15BFP,3RZFP RZU100	¥31,100
17700-78020	Cleaner Assy, Air 1995-10 → 1996-10 ended	J05C XZU130	¥21,700
17700-78021	Cleaner Assy, Air 1996-10 → 1997-03 ended	J05C XZU130	¥21,900
17700-78022	Cleaner Assy, Air 1997-03 → 1999-05 ended	J05C XZU130,140	¥21,900
17700A — Nut, Wing(FOR AIR CLEANER)
90175-08008	Nut, Wing(FOR AIR CLEANER) 1995-10 → 1999-05 ended	J05C XZU130,140	—
90175-08008	Nut, Wing(FOR AIR CLEANER) 1995-05 → —	15B#,3B BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	—
90175-08008	Nut, Wing(FOR AIR CLEANER) 1995-05 → —	15BFP,3RZ# RZU100,140	—
17705 — Cap Sub-assy, Air Cleaner
17705-58300	Cap Sub-assy, Air Cleaner 1995-05 → 1997-03 ended	3RZ# RZU100	—
17705-58300	Cap Sub-assy, Air Cleaner 1995-05 → 1997-03 ended	15BF BU132 T3,T4;15B#,3B BU10#,112,12#,137,14#,162,172,182,202,212,222	—
17705-58300	Cap Sub-assy, Air Cleaner 1995-10 → 1999-05 ended	J05C XZU130,140	—
17705-58320	Cap Sub-assy, Air Cleaner 1997-03 → —	15BFP,3RZ# RZU100,140	—
17705-58320	Cap Sub-assy, Air Cleaner 1997-03 → —	15BF,15BFP,3B BU10#,112,12#,13#,14#,172 03S,05S,06S	—
17705-58330	Cap Sub-assy, Air Cleaner 1997-03 → —	15BF,15BFT BU202,212,222,297	—
17705-58340	Cap Sub-assy, Air Cleaner 1997-03 → —	15BF BU162,172,182 02S,03S	—
17709E — Bracket, Air Cleaner Inlet, NO.2
53773-95401	Bracket, Air Cleaner Inlet, NO.2 1995-05 → —	15BF,15BFT BU162,172,182,202,212,222 02S,03S	¥2,060
17709K — Bracket, Air Cleaner Inlet, NO.4
53765-37010	Bracket, Air Cleaner Inlet, NO.4 1995-05 → —	15BF BU162,172,182 02S,03S	¥1,470
53765-95402	Bracket, Air Cleaner Inlet, NO.4 1995-05 → —	15BF,15BFT BU202,212,222 03S	¥740
17736 — Nut, Air Cleaner Case
90175-06003	Nut, Air Cleaner Case 1995-10 → 1999-05 ended	J05C XZU130,140	—
90175-06003	Nut, Air Cleaner Case 1995-05 → —	15B#,3B BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	—
90175-06003	Nut, Air Cleaner Case 1995-05 → —	15BFP,3RZ# RZU100,140	—
17801 — Element Sub-assy, Air Cleaner Filter
17801-56020	Element Sub-assy, Air Cleaner Filter 1995-05 → —	3B BU100,105,120,140,145	¥4,100
17801-58030	Element Sub-assy, Air Cleaner Filter 1995-05 → 1999-05 ended	15BFT BU212,222,297	¥4,520
17801-66030	Element Sub-assy, Air Cleaner Filter 1995-10 → 1999-05 ended	J05C XZU130,140	¥4,410
17801-68020	Element Sub-assy, Air Cleaner Filter 1995-05 → —	15BF BU102,107,112,122,13#,142,147,162,172,182,202,212,222	¥3,990
17801-68020	Element Sub-assy, Air Cleaner Filter 1995-05 → —	3RZFE RZU100,140	¥3,990
17801-73020	Element Sub-assy, Air Cleaner Filter 1996-05 → 1999-05 ended	15BFP BU102,142	¥2,210
17801-73020	Element Sub-assy, Air Cleaner Filter 1995-05 → —	15BFP,3RZFP RZU100	¥2,210
17805 — Connector Sub-assy, Intake Air
17805-48040	Connector Sub-assy, Intake Air 1996-05 → 1999-05 ended	15BFP BU102,142	¥16,800
17805-48040	Connector Sub-assy, Intake Air 1999-05 → 2000-05 ended	15BFP RZU100	¥16,800
17805-75060	Connector Sub-assy, Intake Air 1995-05 → 1996-10 ended	3RZFP RZU100	¥10,600
17805-75060	Connector Sub-assy, Intake Air 1997-08 → 2000-05 ended	3RZFP RZU100	¥10,600
17805-75070	Connector Sub-assy, Intake Air 1995-05 → 2000-05 ended	3RZFE RZU100,140	¥16,900
17805-75120	Connector Sub-assy, Intake Air 1996-10 → 1997-08 ended	3RZFP RZU100	¥10,600
17805-95400	Connector Sub-assy, Intake Air 1995-05 → —	15BF BU202,212,222 03S	¥5,400
17807 — Plate Sub-assy, Air Cleaner Filter Set
17807-58020	Plate Sub-assy, Air Cleaner Filter Set 1995-05 → 1996-05 ended	3RZ# RZU100	—
17807-58020	Plate Sub-assy, Air Cleaner Filter Set 1995-10 → 1999-05 ended	J05C XZU130,140	—
17807-58020	Plate Sub-assy, Air Cleaner Filter Set 1995-05 → —	15BFT BU297;15BF BU102,107,112,122,13#,142,147,162,172,182,202,212,222	—
17807-58020	Plate Sub-assy, Air Cleaner Filter Set 1996-05 → —	3RZFE RZU100,140	—
17807-58030	Plate Sub-assy, Air Cleaner Filter Set 1995-05 → —	3B BU100,105,120,140,145	—
17807-68010	Plate Sub-assy, Air Cleaner Filter Set 1995-05 → 1999-05 ended	15BFP,15BFT BU102,142,212,222	—
17807-68010	Plate Sub-assy, Air Cleaner Filter Set 1996-05 → —	15BFP,3RZFP RZU100	—
17841 — Gasket, Filter Element
17841-44030	Gasket, Filter Element 1995-05 → —	3B BU100,105,120,140,145	—
17841-68010	Gasket, Filter Element 1995-10 → 1999-05 ended	J05C XZU130,140	¥0
17841-68010	Gasket, Filter Element 1995-05 → —	15B# BU102,107,112,122,13#,142,147,162,172,182,202,212,222,297	¥0
17841-68010	Gasket, Filter Element 1995-05 → —	15BFP,3RZ# RZU100,140	¥0
17845 — Gasket, Air Cleaner Cap
17845-58010	Gasket, Air Cleaner Cap 1995-05 → —	15BFP,3RZ# RZU100,140	—
17845-58010	Gasket, Air Cleaner Cap 1995-10 → 1999-05 ended	J05C XZU130,140	—
17845-58010	Gasket, Air Cleaner Cap 1995-05 → —	15B#,3B BU10#,112,12#,13#,14#,162,172,182,202,212,222,297	—
17881 — Hose, Air Cleaner, NO.1
17880-58110	Hose, Air Cleaner, NO.1 1995-05 → —	15BF BU202,212,222	¥5,400
17880-58130	Hose, Air Cleaner, NO.1 1995-05 → 1999-05 ended	15BF BU172 05S	¥5,400
17880-58160	Hose, Air Cleaner, NO.1 1997-01 → 1999-05 ended	15BFT BU297	¥7,200
17881-58140	Hose, Air Cleaner, NO.1 1995-05 → 1999-06 ended	3B BU100,105,120,140,145	¥4,150
17881-58240	Hose, Air Cleaner, NO.1 1995-05 → 1996-05 ended	15BF BU162,172,182 02S,03S	¥5,400
17881-58241	Hose, Air Cleaner, NO.1 1996-05 → —	15BF BU162,172,182 02S,03S	¥5,400
17881-58250	Hose, Air Cleaner, NO.1 1995-05 → 1998-05 ended	15BFT BU212,222	¥6,300
17881-58251	Hose, Air Cleaner, NO.1 1998-05 → 1999-05 ended	15BFT BU212,222	¥6,300
17881-58270	Hose, Air Cleaner, NO.1 1995-05 → 1999-06 ended	15BF BU102,107,112,122,13#,142,147	¥4,510
17881-58280	Hose, Air Cleaner, NO.1 1995-05 → —	3RZFE RZU100,140	¥4,130
17881-58290	Hose, Air Cleaner, NO.1 1995-05 → —	3RZFP RZU100	¥4,940
17881-58360	Hose, Air Cleaner, NO.1 1996-05 → 1999-05 ended	15BFP BU102,142	¥3,310
17881-58360	Hose, Air Cleaner, NO.1 1999-05 → —	15BFP RZU100	¥3,310
17881-78030	Hose, Air Cleaner, NO.1 1995-10 → 1999-05 ended	J05C XZU130,140	¥4,940
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
90460-96001 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → —	15BFT BU297	¥610
90460-96001	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → 1999-06 ended	15BF BU202,212,222	¥610
96111-10690 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → —	3RZFP RZU100	¥160
96111-10690 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → 1999-06 ended	3B BU100,105,120,140,145	¥160
96111-10750 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1997-11 → —	15BFT BU212,222;15BF BU162,172,182 02S,03S	¥190
96111-10750 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1996-05 → 1999-05 ended	15BFP BU102,142	¥190
96111-10750	Clamp(FOR AIR CLEANER HOSE, NO.1) 1999-05 → —	15BFP RZU100	¥190
96111-10750 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1996-05 → 1997-11 ended	15BFT BU212,222,297;15BF BU162,172,182 02S,03S	¥190
96111-10750 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → 1996-05 ended	15BF BU162,172,182 02S,03S	¥190
96111-10780 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-12 → 1999-05 ended	J05C XZU130,140	¥410
96111-10780 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1996-05 → 1999-05 ended	15BF BU172 05S	¥410
96111-10780 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → 1996-05 ended	15BF BU172 05S;15BFT BU212,222	¥410
96111-10800 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-10 → 1995-12 ended	J05C XZU130	¥160
96111-10800 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → —	3RZFE RZU100,140	¥160
96111-10830 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1997-11 → 1999-05 ended	15BFT BU297	¥180
96111-10850 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → 1999-06 ended	15BF,3B BU10#,112,12#,13#,14#,172 03S,05S,06S	¥240
96111-10850 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → —	3RZ# RZU100,140	¥240
96111-10880 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → 1999-06 ended	15BF BU102,107,112,122,13#,142,147,162,172,182	¥520
96111-10900 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-10 → 1999-05 ended	J05C XZU130,140	¥410
96111-10930 note	Clamp(FOR AIR CLEANER HOSE, NO.1) 1995-05 → 1999-05 ended	15BFT BU212,222	¥120
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
96111-10750	Clamp(FOR AIR CLEANER HOSE, NO.2) 1995-05 → 1997-04 ended	15BF,15BFP,3B BU10#,112,12#,13#,14#,172 03S,05S,06S	¥190
96111-10750	Clamp(FOR AIR CLEANER HOSE, NO.2) 1995-10 → 1999-05 ended	J05C XZU130,140	¥190
96111-10750	Clamp(FOR AIR CLEANER HOSE, NO.2) 1995-05 → —	15BFP,3RZFP RZU100	¥190
96111-10750	Clamp(FOR AIR CLEANER HOSE, NO.2) 1997-04 → 1999-06 ended	15BF BU132 T3,T4;15BF,15BFP,3B BU10#,112,12#,137,14#,172 +1	¥190
96111-10750 note	Clamp(FOR AIR CLEANER HOSE, NO.2) 1995-05 → —	3RZFE RZU100,140	¥190
96111-10780	Clamp(FOR AIR CLEANER HOSE, NO.2) 1997-04 → 1999-05 ended	15BF BU132 TL4	¥410
96111-10800 note	Clamp(FOR AIR CLEANER HOSE, NO.2) 1995-05 → —	3RZFE RZU100,140	¥160
96111-10880	Clamp(FOR AIR CLEANER HOSE, NO.2) 1995-05 → 1999-06 ended	15BF BU202,212,222	¥520
96111-10900 note	Clamp(FOR AIR CLEANER HOSE, NO.2) 1995-05 → —	3RZFE RZU100,140	¥410
17883 — Hose, Air Cleaner, NO.3
17883-75020	Hose, Air Cleaner, NO.3 1995-10 → 1999-05 ended	J05C XZU130,140	¥3,710
17883-75020	Hose, Air Cleaner, NO.3 1995-05 → —	15BFP,3RZ# RZU100,140	¥3,710
17883-75020	Hose, Air Cleaner, NO.3 1995-05 → —	15BF,15BFP,3B BU10#,112,12#,13#,14#,172 03S,05S,06S	¥3,710
17883-92600	Hose, Air Cleaner, NO.3 1995-05 → 1999-05 ended	15BF,15BFT BU212,297 TW1,TW4	¥3,330
17883A — Clamp(FOR AIR CLEANER HOSE, NO.3)
96111-10750 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1995-10 → 1999-05 ended	J05C XZU130,140	¥190
96111-10750 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1995-05 → —	3RZ# RZU100,140	¥190
96111-10750 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1995-05 → —	15BF,15BFP,3B BU10#,112,12#,13#,14#,172 03S,05S,06S	¥190
96111-10750 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1999-05 → —	15BFP RZU100	¥190
96111-10780 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1995-05 → 1999-05 ended	15BF BU212 06S,07S	¥410
96111-10800 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1995-10 → 1999-05 ended	J05C XZU130,140	¥160
96111-10800 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1999-05 → —	15BFP RZU100	¥160
96111-10800 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1995-05 → —	15BF,15BFP,3B BU10#,112,12#,13#,14#,172 03S,05S,06S	¥160
96111-10800 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1995-05 → —	3RZ# RZU100,140	¥160
96111-10930 note	Clamp(FOR AIR CLEANER HOSE, NO.3) 1995-05 → 1999-05 ended	15BF BU212 06S,07S	¥120
53097 — Inlet Sub-assy
53097-37080	Inlet Sub-assy 1995-05 → —	BU202,212,222 03S DSL	¥4,130
53097-37090	Inlet Sub-assy 1995-05 → 1997-11 ended	RZU100,140	¥4,620
53097-37090	Inlet Sub-assy 1997-11 → —	RZU100,140 EFI,LPGB	¥4,620
53097-37090	Inlet Sub-assy 1995-05 → —	BU132 T3,T4;BU10#,112,12#,137,14#,172 03S,05S,06S	¥4,620
53097-37090	Inlet Sub-assy 1995-10 → 1999-05 ended	XZU130,140	¥4,620
53097-37120	Inlet Sub-assy 1995-05 → —	BU162,172,182 02S,03S	¥14,600
53097-37170	Inlet Sub-assy 1997-01 → 1999-05 ended	BU297	¥9,200
53097-37180	Inlet Sub-assy 1997-02 → 1999-05 ended	BU132 TL4	¥3,520
53097-37210	Inlet Sub-assy 1997-11 → 1999-01 ended	RZU100 LPG	¥9,400
53097-37211	Inlet Sub-assy 1999-01 → —	RZU100 LPG	¥9,400
53097-92601	Inlet Sub-assy 1995-05 → 1999-05 ended	BU212 06S,07S	¥9,200
53097-95409	Inlet Sub-assy 1995-05 → 1999-05 ended	BU212,222 TD	¥11,900
53299B — Duct, Cool Air Intake
53299-95401	Duct, Cool Air Intake 1995-05 → —	BU162,172,182,202,212,222 02S,03S	¥1,820
53788 — Bracket, Air Cleaner Inlet, NO.6
53788-95400	Bracket, Air Cleaner Inlet, NO.6 1995-05 → —	BU202,212,222 03S DSL	¥410
53955A — Cushion, Air Cleaner Inlet NO.1
53955-95402	Cushion, Air Cleaner Inlet NO.1 1995-05 → 1999-05 ended	BU212,222 TD	¥310
53955-95402	Cushion, Air Cleaner Inlet NO.1 1995-05 → —	BU162,172,182 02S,03S	¥310
53955-95402	Cushion, Air Cleaner Inlet NO.1 1995-05 → —	BU202,212,222 03S DSL	¥310

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
