Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 14 illustrations

Illustrations

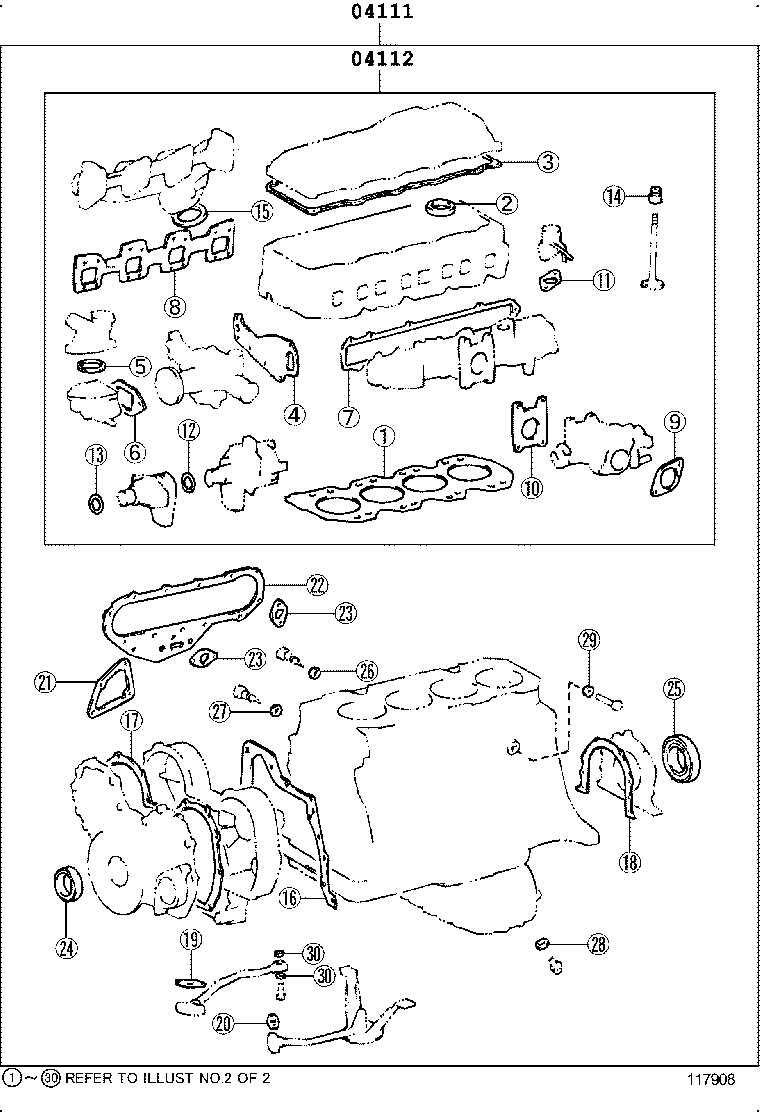

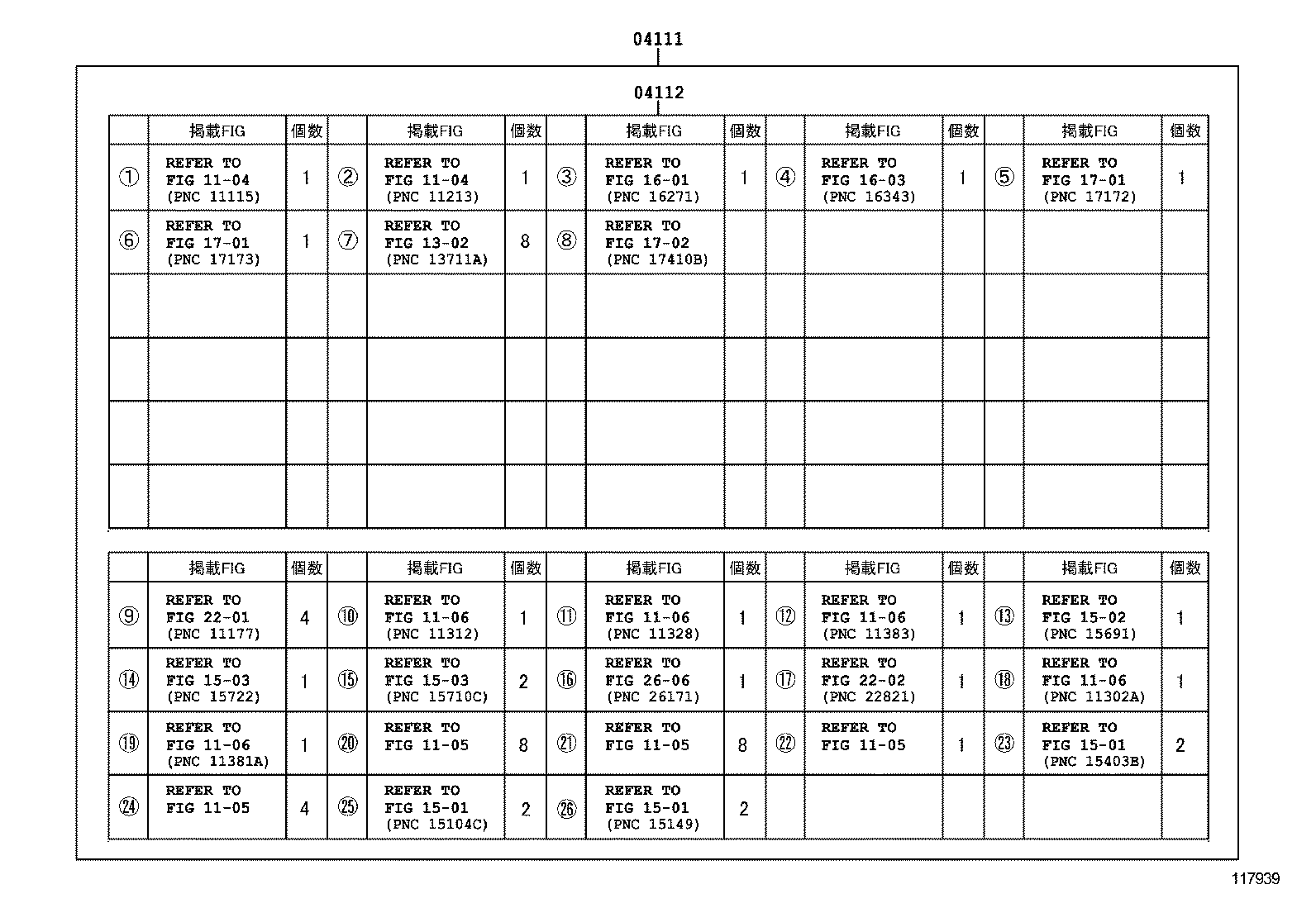

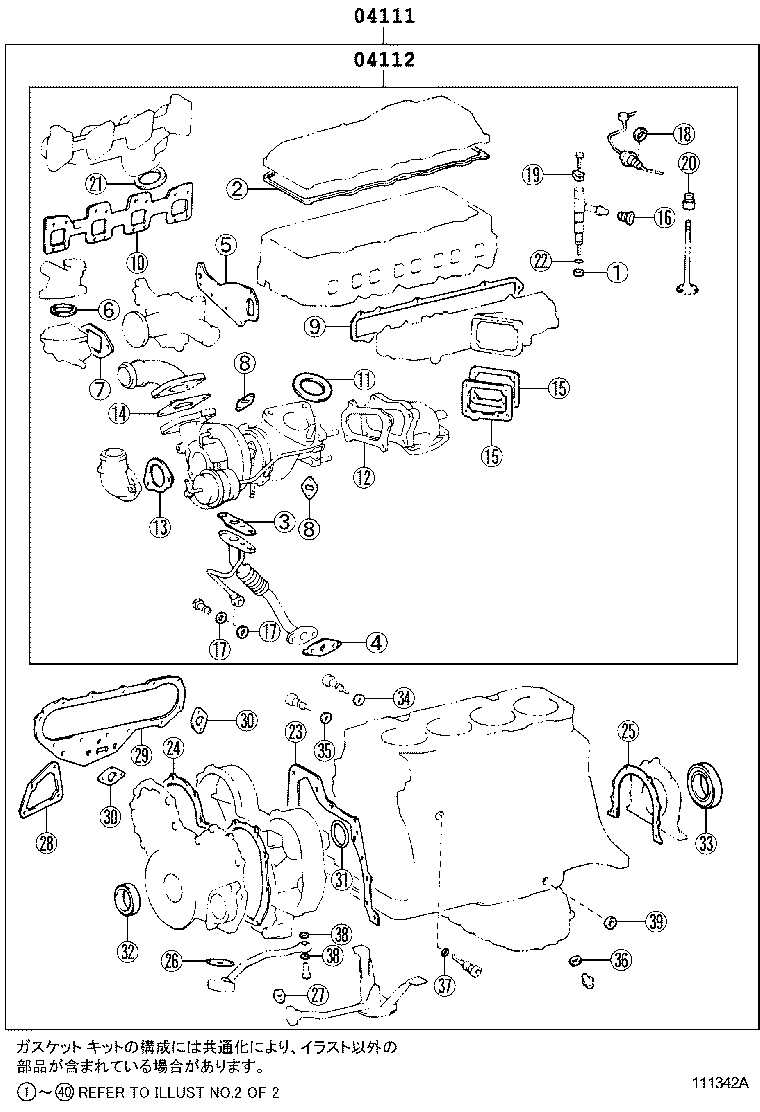

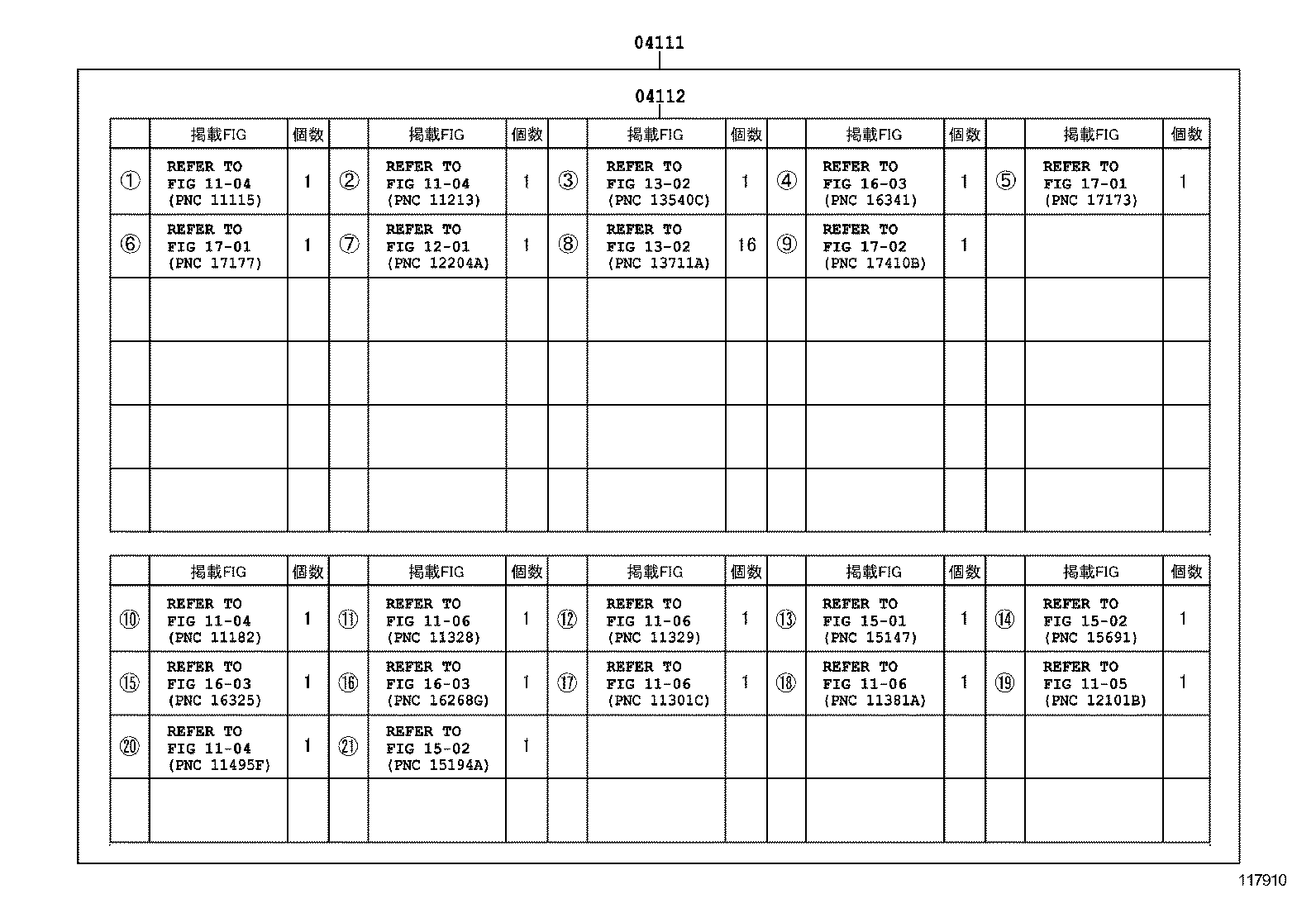

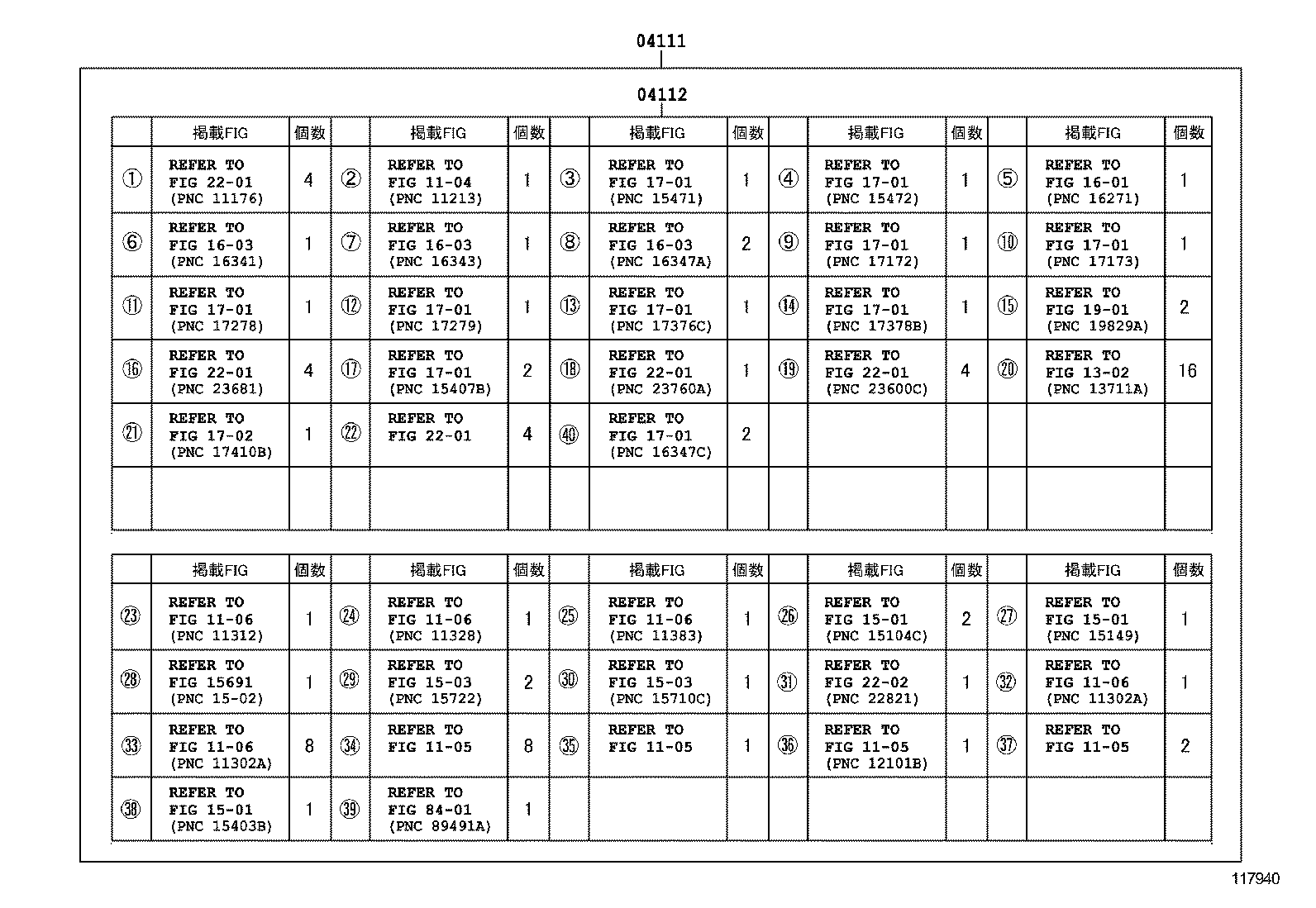

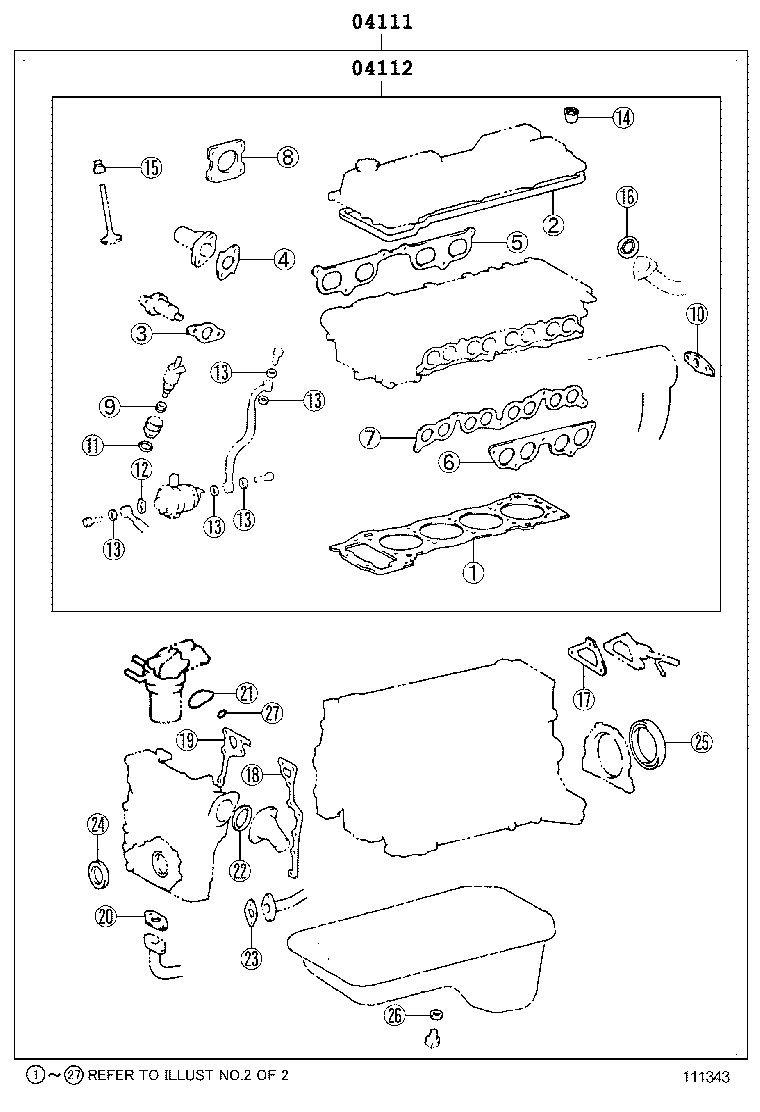

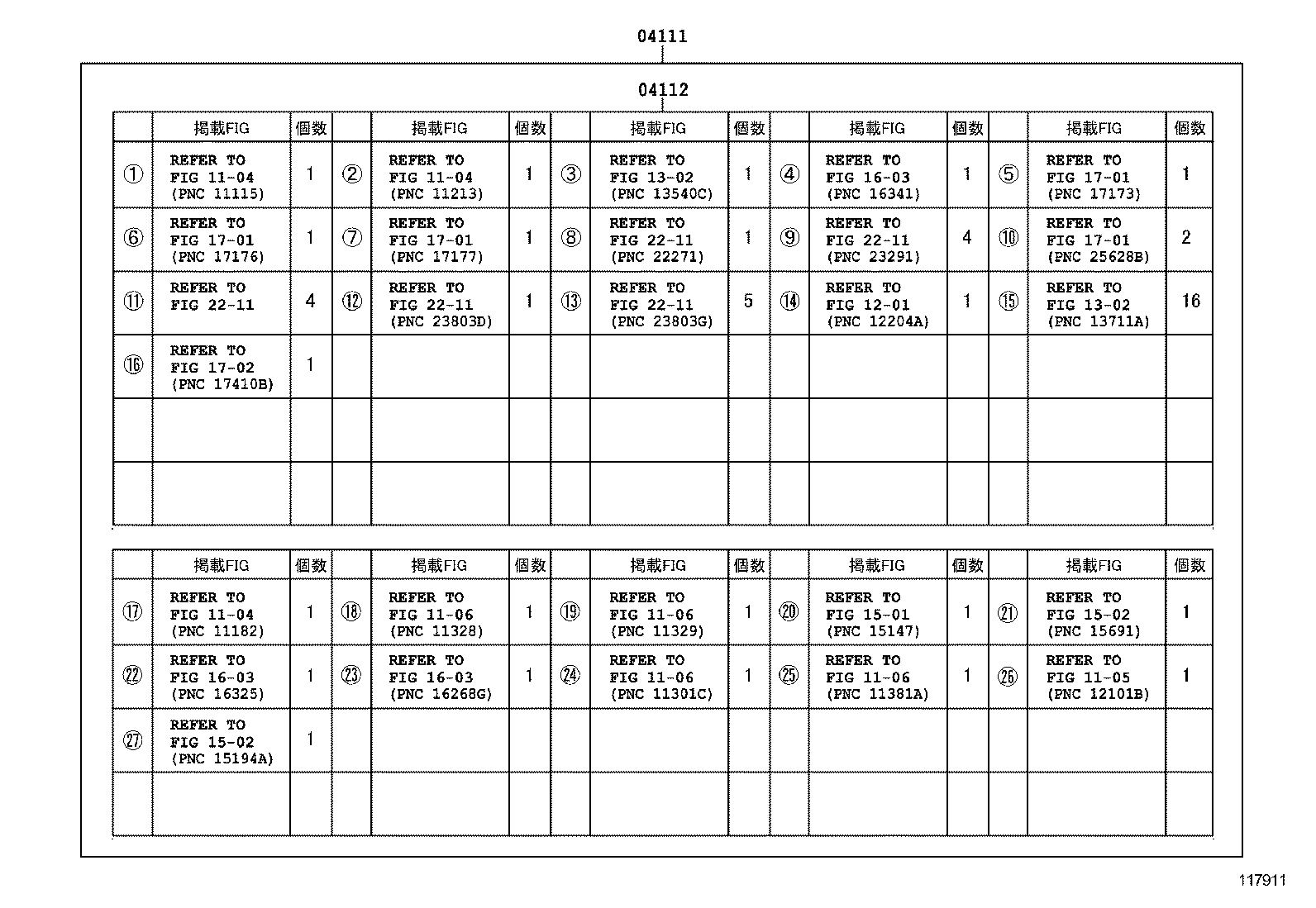

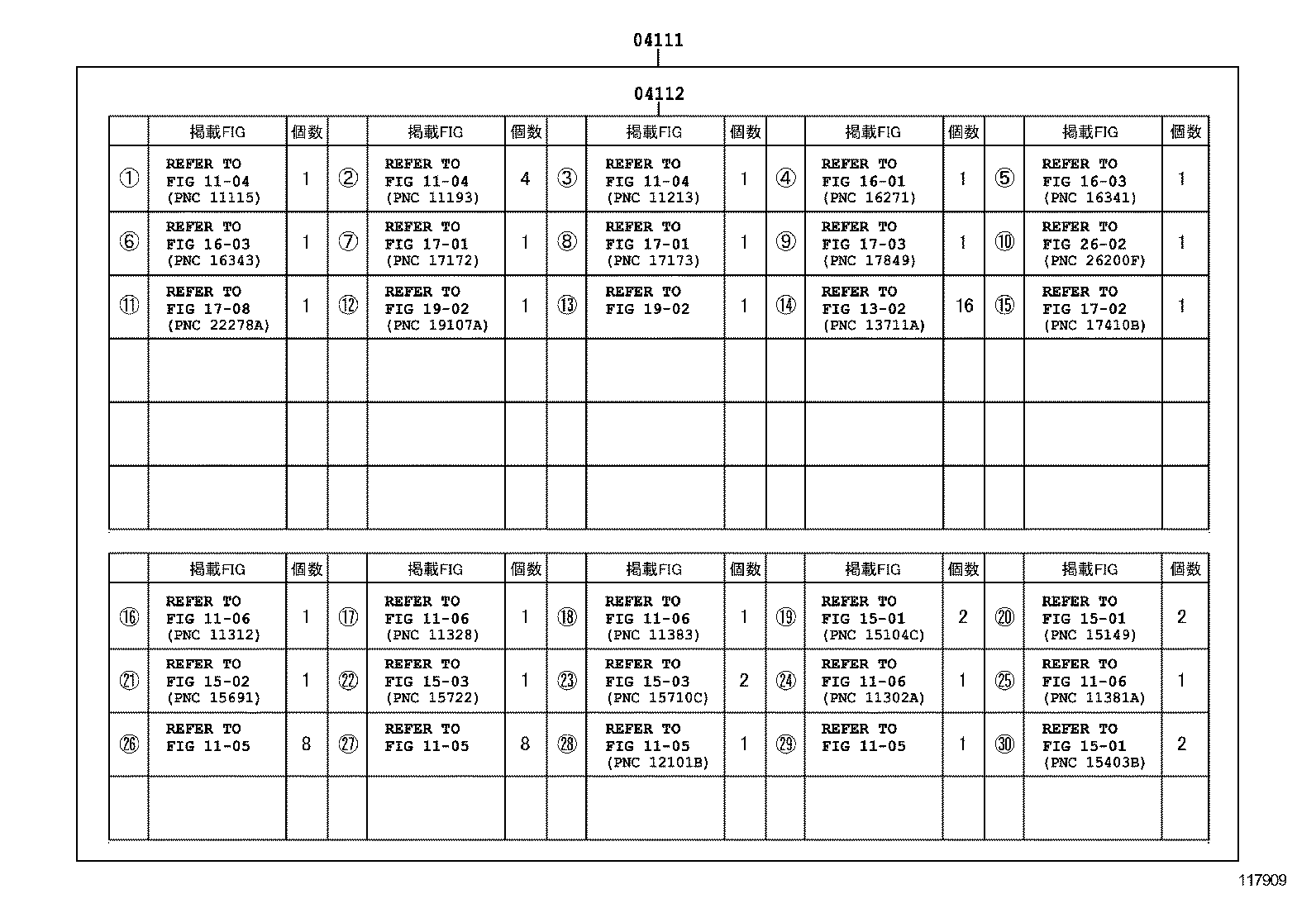

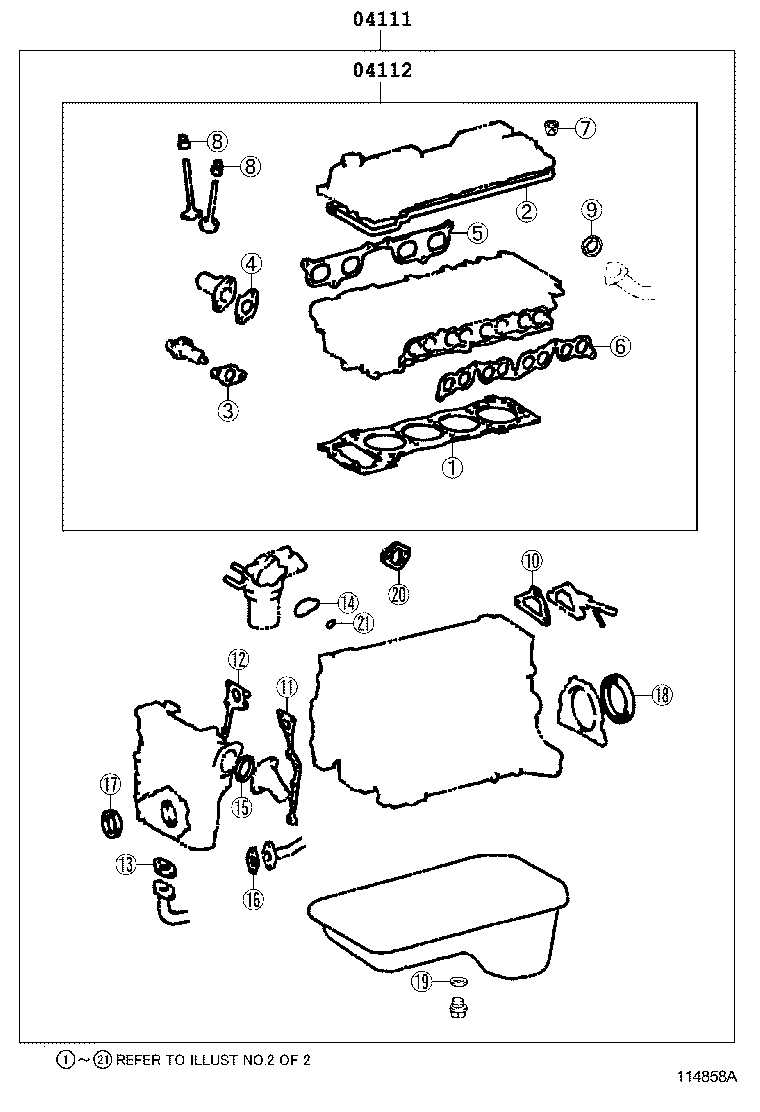

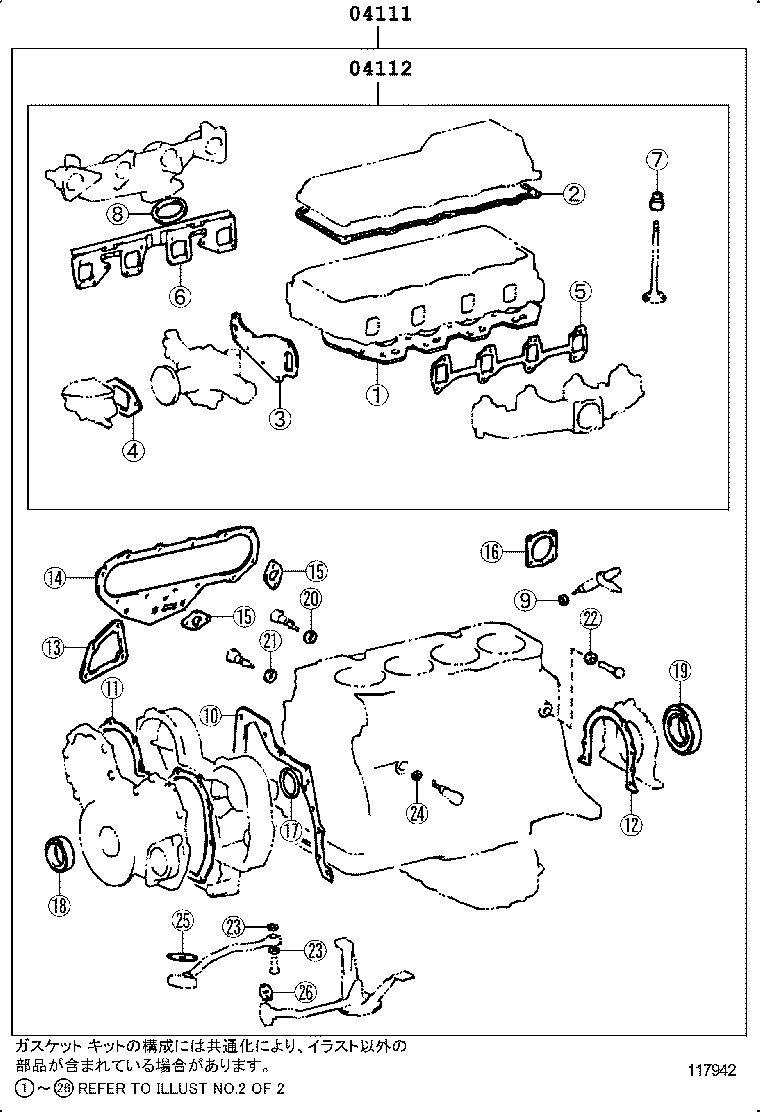

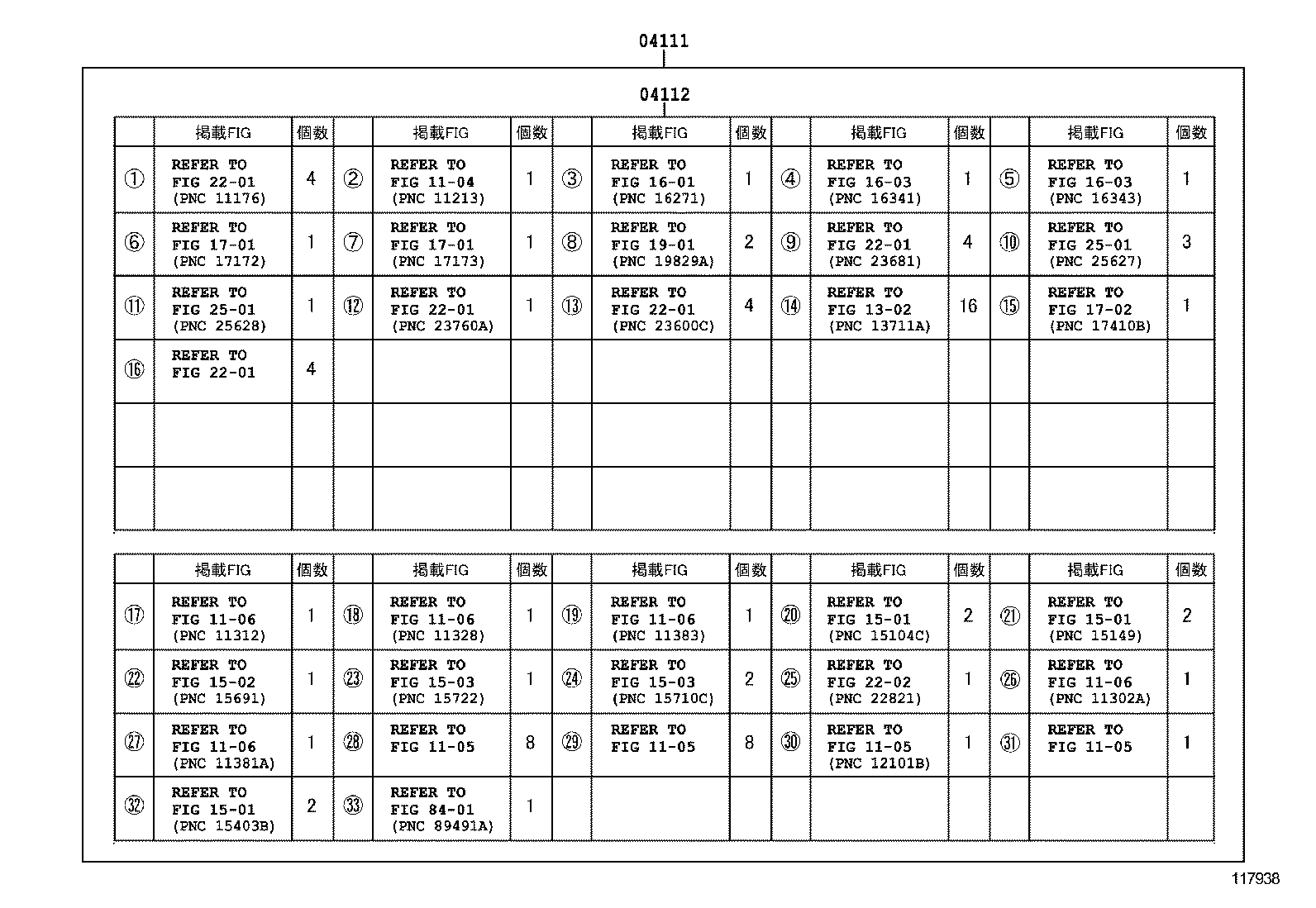

Figure 111341A 111341A 1995-05 → 1999-06 Figure 111342A 111342A 1995-05 → 1999-05 Figure 117942 117942 1995-05 → 1999-06 Figure 117908 117908 1996-05 → 1999-05 Figure 117938 117938 1995-05 → 1999-06 Figure 117940 117940 1995-05 → 1999-06 Figure 117939 117939 1995-05 → 1999-05 Figure 117909 117909 1996-05 → 1999-05 Figure 117908 117908 1999-05 → — Figure 111343B 111343B 1995-05 → — Figure 114858A 114858A 1995-05 → — Figure 117909 117909 1999-05 → — Figure 117911 117911 1995-05 → — Figure 117910 117910 1995-05 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
