Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

18 part groups · 7 illustrations

Illustrations

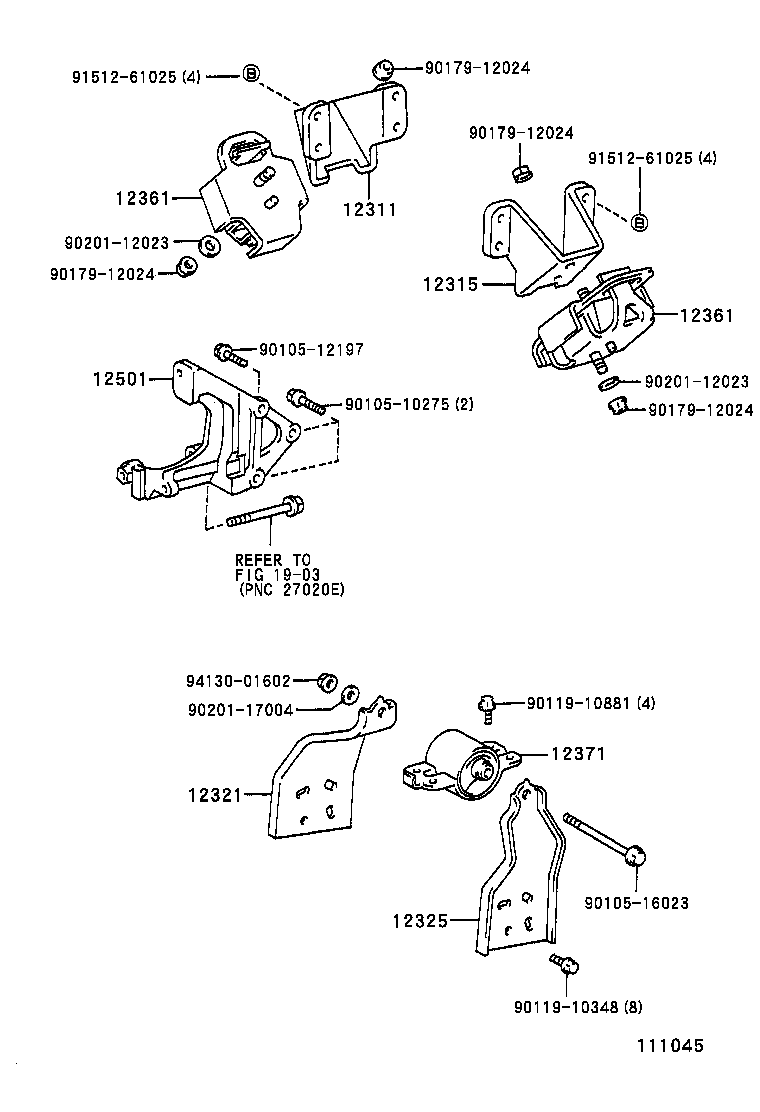

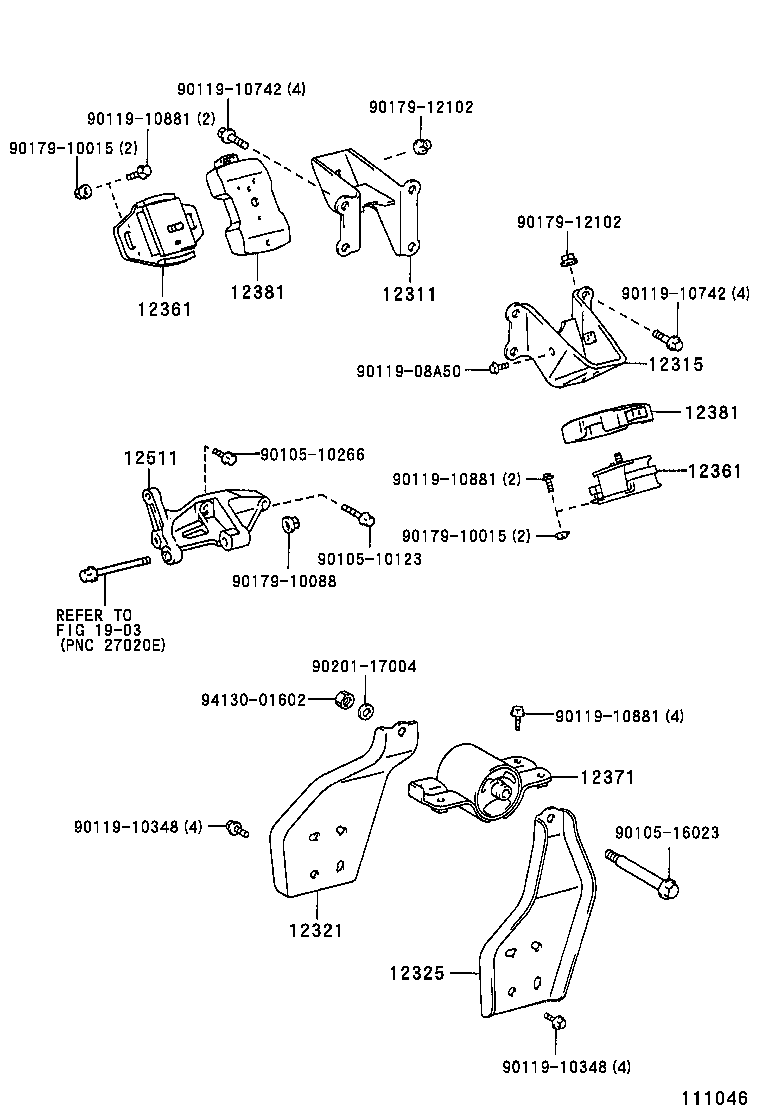

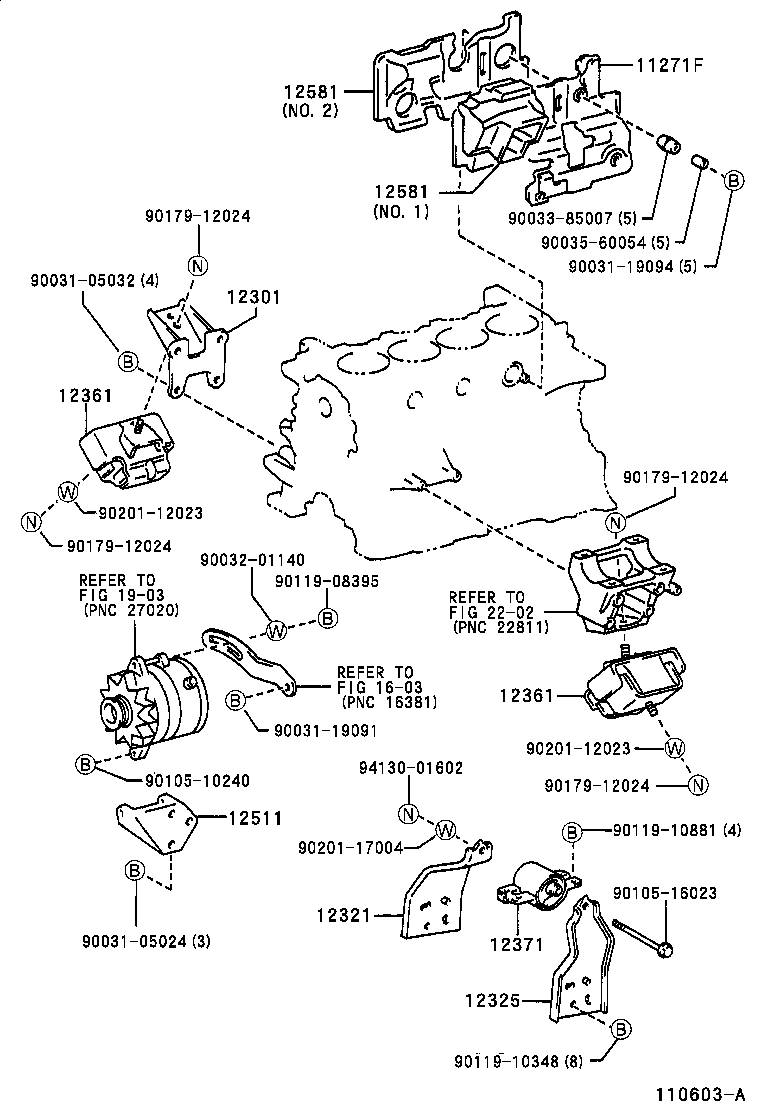

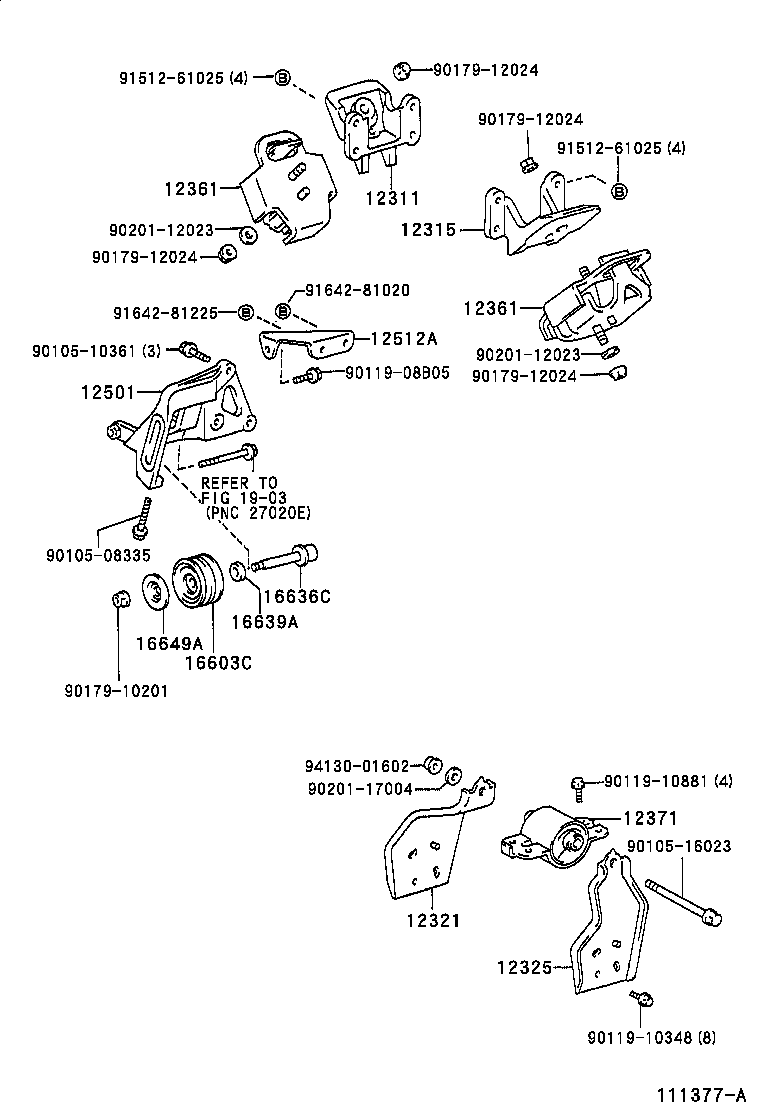

Figure 111044 111044 1995-05 → 1999-05 Figure 111044 111044 1999-05 → 1999-06 Figure 111045 111045 1995-05 → 1999-06 Figure 110599 110599 1997-01 → 1999-05 Figure 111377A 111377A 1999-05 → — Figure 111046 111046 1995-05 → — Figure 110603A 110603A 1995-10 → —

Part groups

PNCDescription
11271F Cover, Cylinder Block Side
12301 Bracket Sub-assy, Engine Mounting, Front RH
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12325 Bracket, Engine Mounting, NO.3
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12501 Bracket Sub-assy, Alternator
12511 Bracket, Alternator, NO.1
12512A Bracket, Alternator, NO.2
12581 Insulator, Cylinder Block, NO.1
16603C Pulley Sub-assy, Idler
16636C Shaft, Idler Pulley, NO.1
16639A Spacer, Idler Pulley
16649A Plate, Idler Pulley Cover
16659A Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
