Toyota Dyna 200/Toyoace G25
1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan
Discontinued model
Data version 2001-01

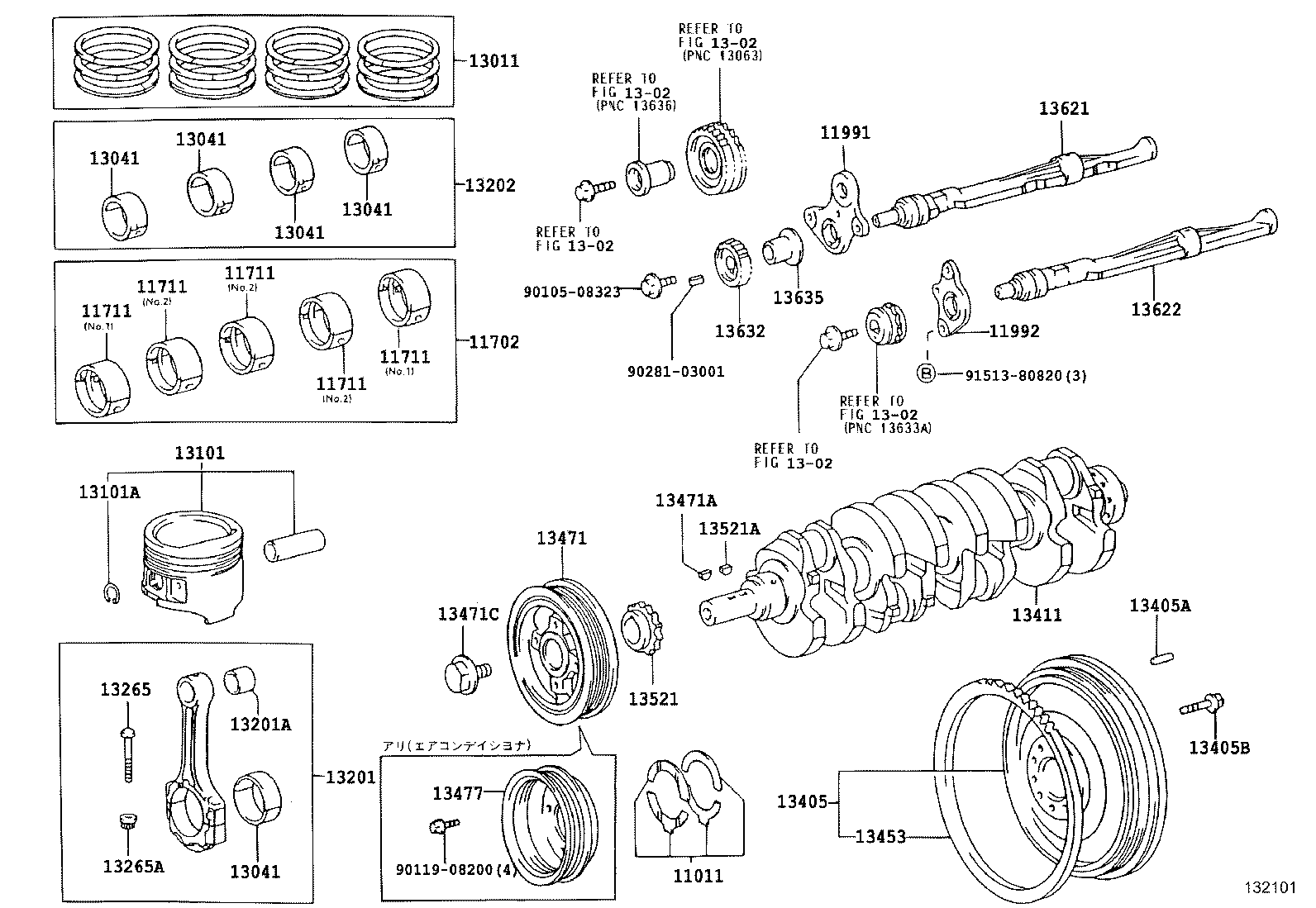

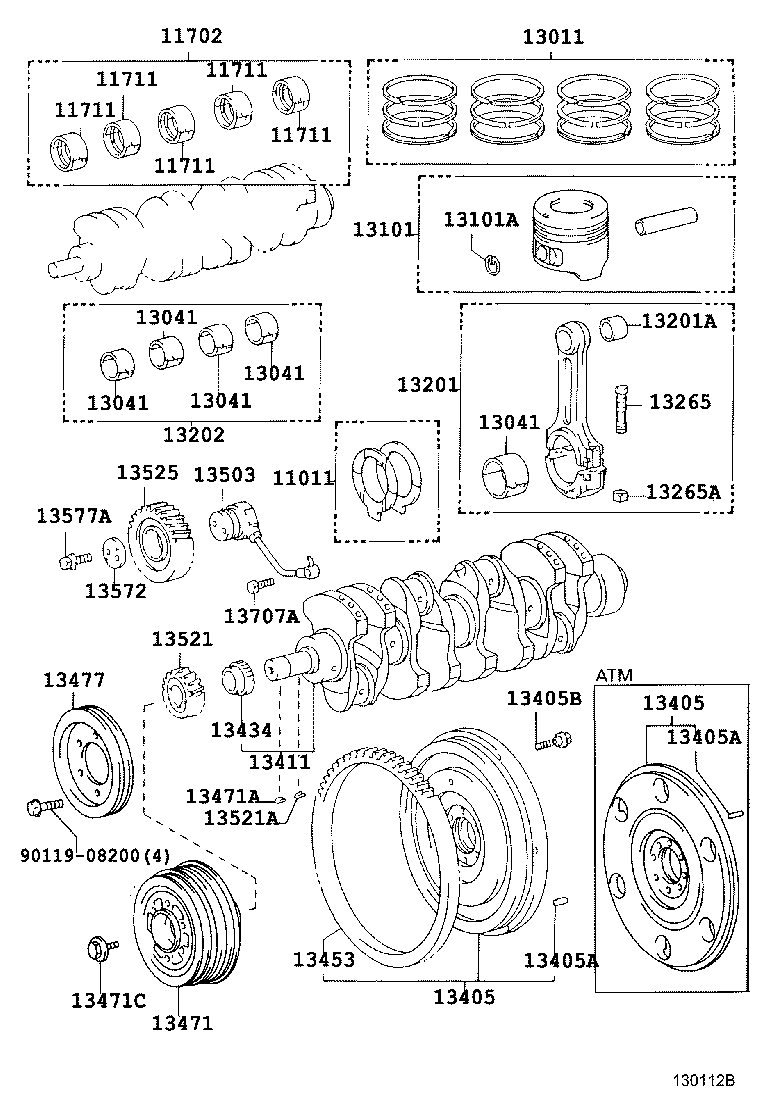

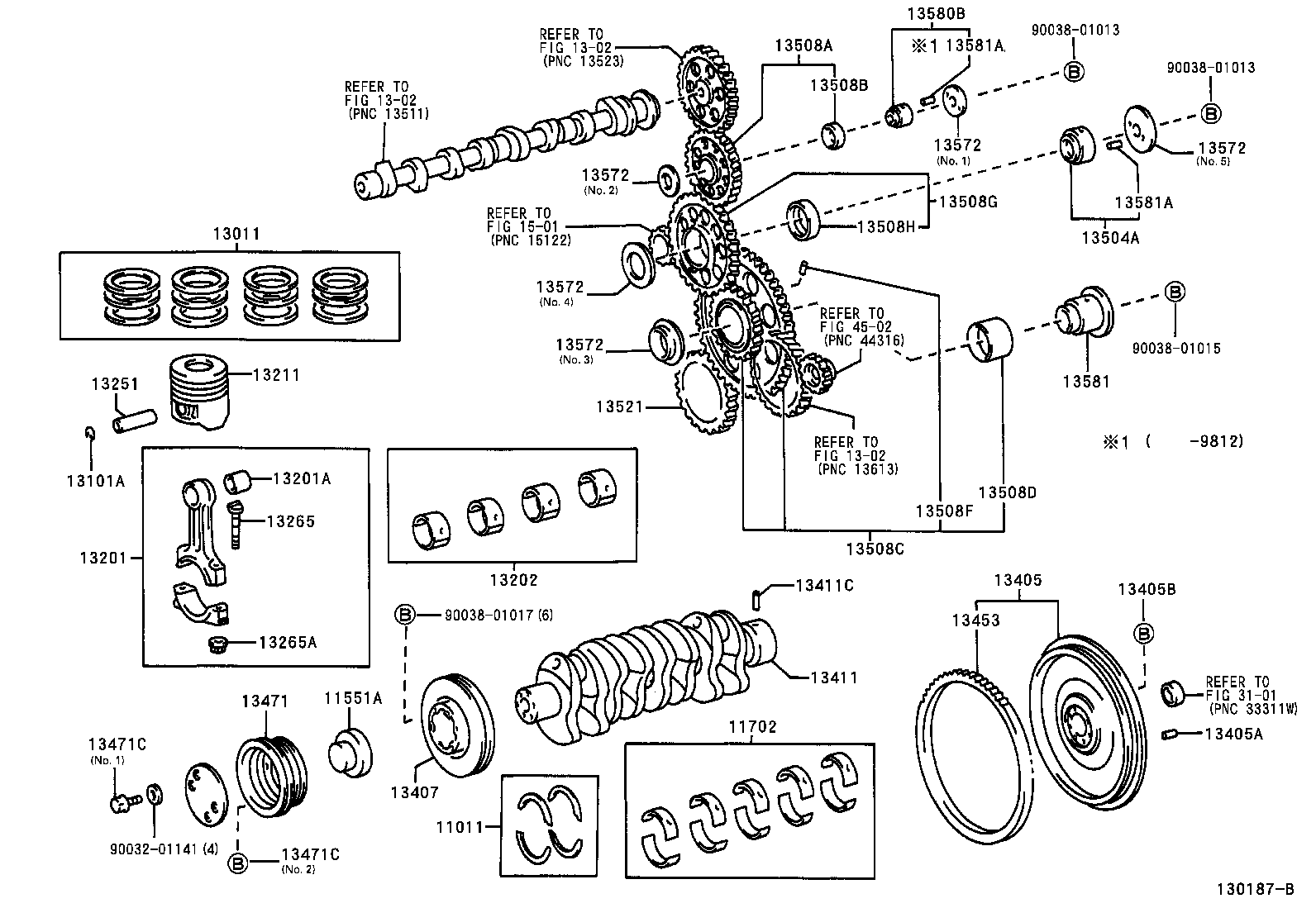

Crankshaft & Piston
51 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11011 | Washer Set, Crankshaft Thrust |
| 11551A | Seal, Crankshaft Oil |
| 11702 | Bearing Set, Crankshaft |
| 11711 | Bearing, Crankshaft |
| 11991 | Washer, Balanceshaft Thrust |
| 11992 | Washer, Balanceshaft Thrust, NO.2 |
| 13011 | Ring Set, Piston |
| 13041 | Bearing, Connecting Rod |
| 13101 | Piston Sub-assy, W/Pin |
| 13101A | Ring, Hole Snap(FOR PISTON PIN) |
| 13201 | Rod Sub-assy, Connecting |
| 13201A | Bush(FOR CONNECTING ROD SMALL END) |
| 13202 | Bearing Set, Connecting Rod |
| 13211 | Piston |
| 13251 | Pin, Piston |
| 13265 | Bolt, Connecting Rod |
| 13265A | Nut, Hexagon(FOR CONNECTING ROD BOLT) |
| 13405 | Flywheel Sub-assy |
| 13405A | Pin, Straight(FOR FLYWHEEL) |
| 13405B | Bolt, Flywheel Setting |
| 13407 | Damper Sub-assy, Crankshaft |
| 13411 | Crankshaft |
| 13411C | Pin, Straight(FOR CRANKSHAFT) |
| 13434 | Spline, Oil Pump Drive |
| 13453 | Gear, Flywheel Ring |
| 13471 | Pulley, Crankshaft |
| 13471A | Key, Crankshaft(FOR CRANKSHAFT PULLEY SET) |
| 13471C | Bolt(FOR CRANKSHAFT PULLEY SET) |
| 13477 | Pulley, Crankshaft, NO.2 |
| 13503 | Shaft Sub-assy, Idle Gear |
| 13504A | Shaft Sub-assy, Idle Gear |
| 13508A | Gear Sub-assy, Idle |
| 13508B | Bush, Idle Gear |
| 13508C | Gear Sub-assy, Idle, NO.2 |
| 13508D | Bush, Idle Gear, NO.2 |
| 13508F | Pin, Straight(FOR IDLE GEAR) |
| 13508G | Gear Sub-assy, Idle, NO.3 |
| 13508H | Bush, Idle Gear, NO.3 |
| 13521 | Gear OR Sprocket, Crankshaft Timing |
| 13521A | Key(FOR CRANKSHAFT TIMING GEAR) |
| 13525 | Gear, Idle, NO.1 |
| 13572 | Plate, Idle Gear Thrust |
| 13577A | Bolt, Hexagon(FOR IDLE GEAR BOLT LOCK) |
| 13580B | Idle Assy, V-ribbed, NO.2 |
| 13581 | Shaft, Idle Gear, NO.1 |
| 13581A | Pin, Straight(FOR IDLE GEAR SHAFT) |
| 13621 | Balanceshaft, NO.1 |
| 13622 | Balanceshaft, NO.2 |
| 13632 | Gear, Balanceshaft Driven, NO.1 |
| 13635 | Spacer, Balanceshaft Thrust |
| 13707A | Union(FOR OIL PIPE, NO.1) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
