Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

15 part groups · 6 illustrations

Illustrations

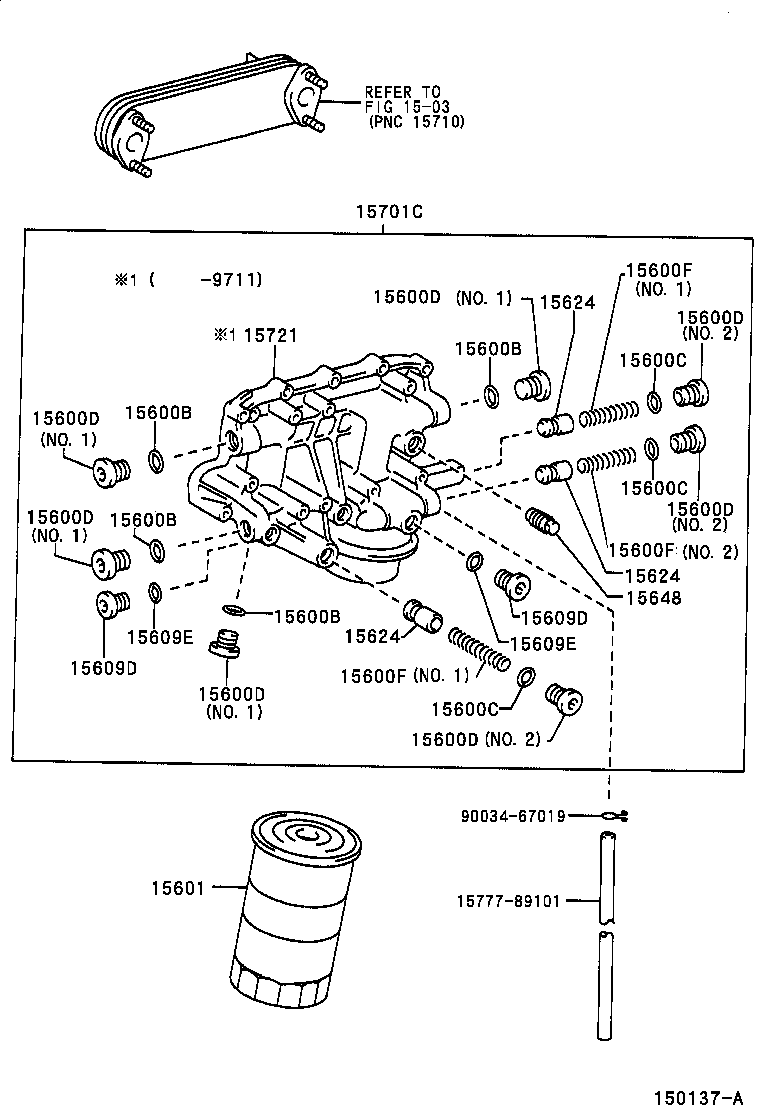

Figure MAH897 MAH897 1995-05 → 1999-05 Figure MAH897 MAH897 1999-05 → 1999-06 Figure 150268 150268 1997-01 → 1999-05 Figure 150325 150325 1999-05 → — Figure 150323 150323 1995-05 → — Figure 150137A 150137A 1995-10 → —

Part groups

PNCDescription
15194A Ring, O
15600A Union(FOR OIL FILTER)
15600B Ring, O, NO.1(FOR OIL FILTER)
15600C Ring, O, NO.2(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15609 Bracket Sub-assy, Oil Filter
15609D Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
15609E Gasket, W/Head Straight Screw Plug
15624 Valve, Filter, NO.1
15648 Plug, Oil Filter Drain
15691 Gasket, Oil Filter
15701C Cover Sub-assy, Oil Cooler
15721 Cover, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
