Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

13 part groups · 6 illustrations

Illustrations

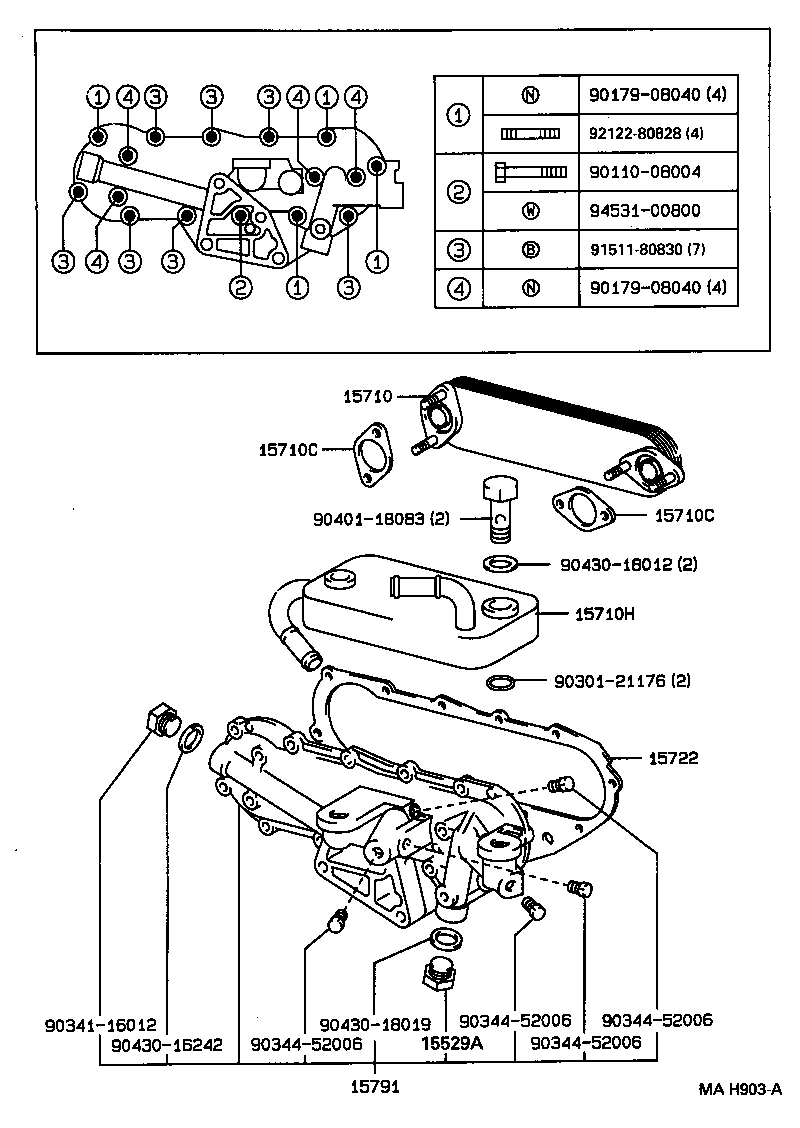

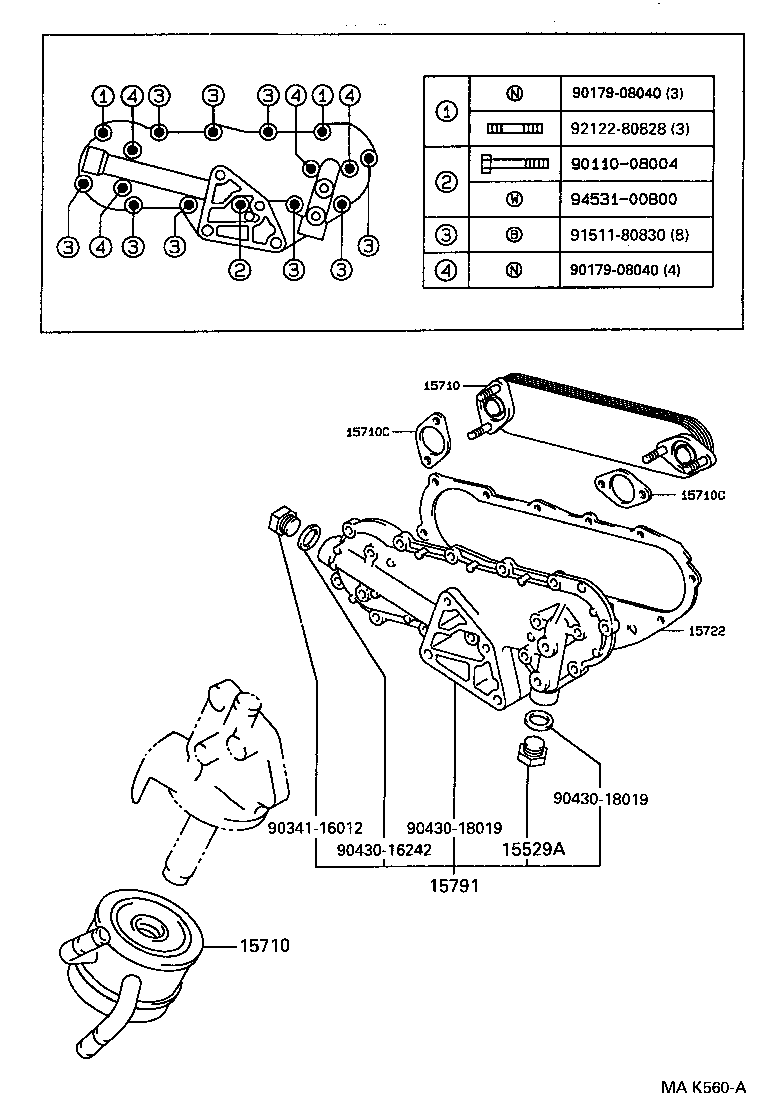

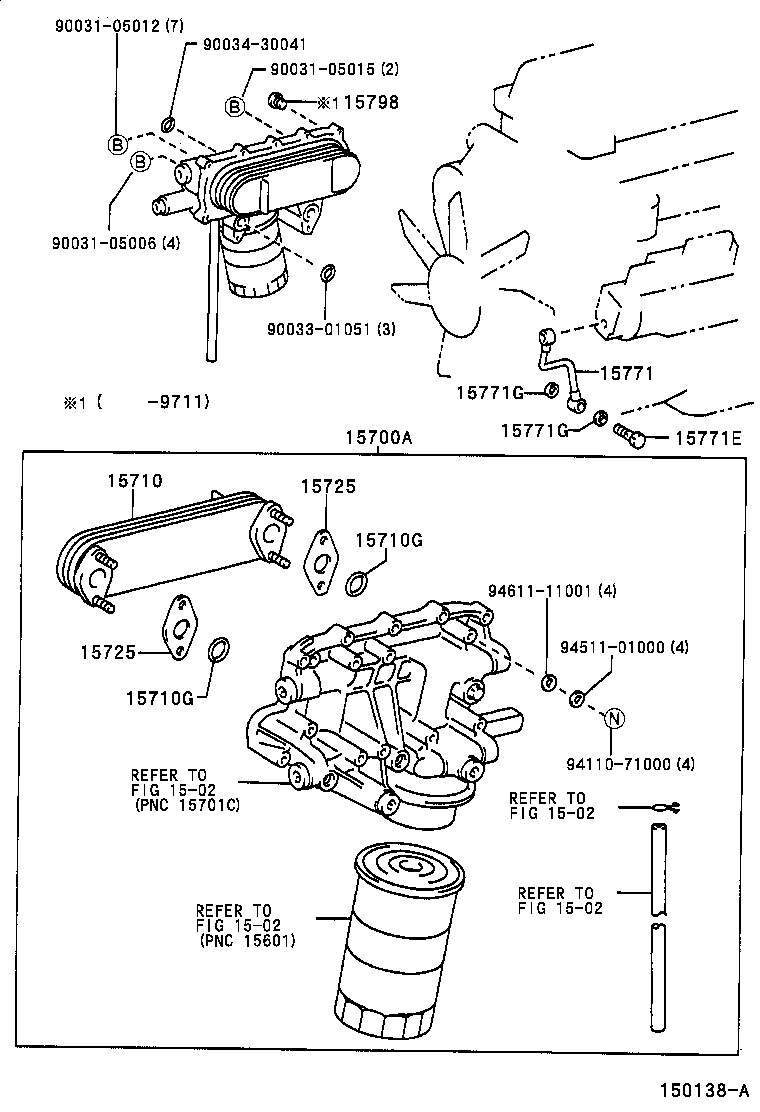

Figure MAH734C MAH734C 1995-05 → 1999-05 Figure MAH734C MAH734C 1999-05 → 1999-06 Figure MAH903A MAH903A 1995-07 → 1999-05 Figure MAK560A MAK560A 1997-01 → 1999-05 Figure MAH734C MAH734C 1999-05 → — Figure 150138A 150138A 1995-10 → —

Part groups

PNCDescription
15529A Plug
15700A Cooler Assy, Oil W/Bracket
15710 Cooler Assy, Oil
15710C Gasket(FOR OIL COOLER)
15710G Ring, O, NO.2
15710H Cooler Assy, Oil, NO.2
15722 Gasket, Oil Cooler
15725 Gasket, Oil Cooler Cover
15771 Pipe, Oil, NO.1
15771E Bolt, Union(FOR OIL PIPE)
15771G Gasket
15791 Case, Oil Cooler
15798 Plug, Oil Nozzle Union Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
