Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

55 part groups · 10 illustrations

Illustrations

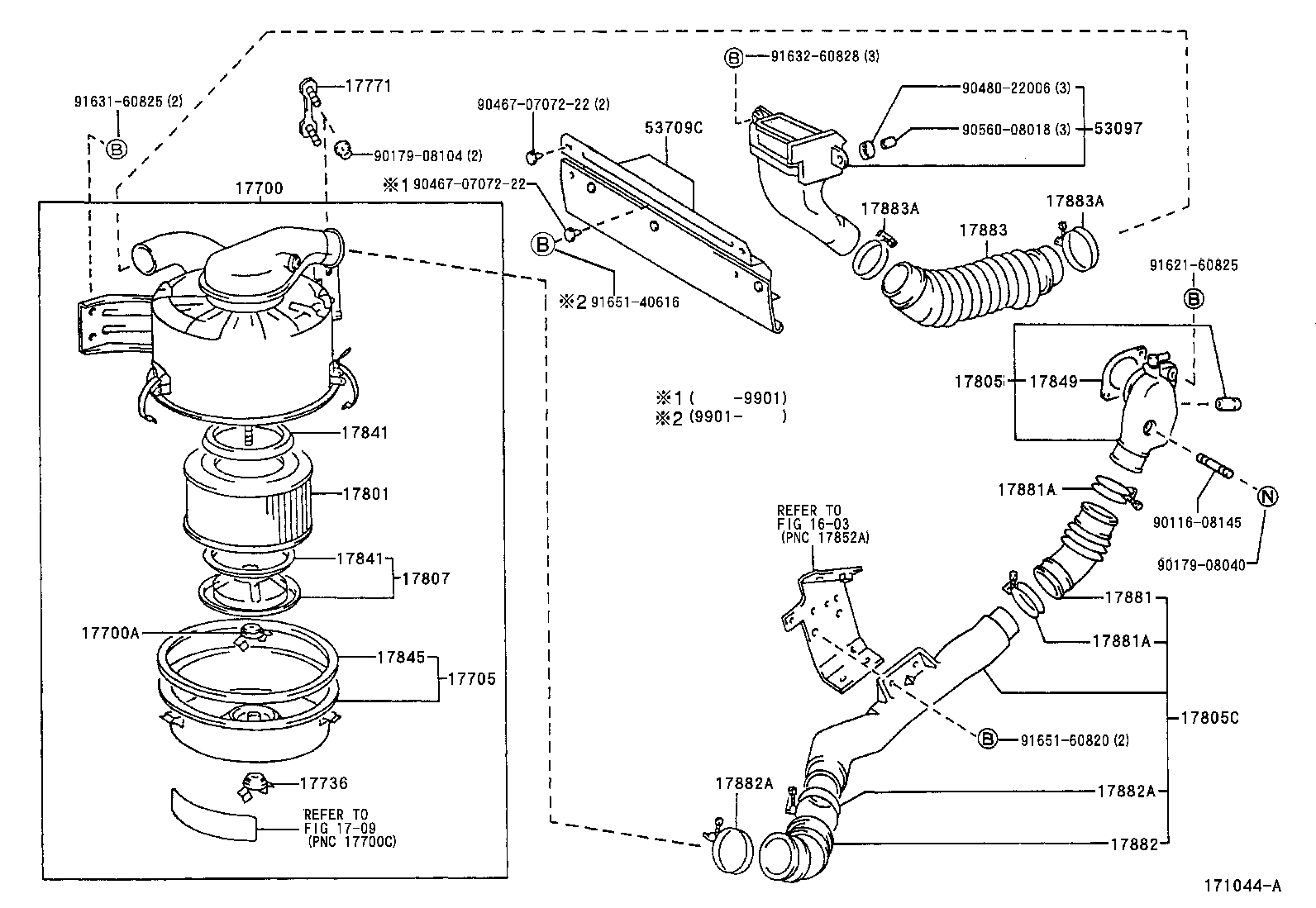

Figure 170973D 170973D 1995-05 → 1999-06 Figure 170974 170974 1995-05 → 1999-06 Figure 170975B 170975B 1995-05 → 1999-06 Figure 170976E 170976E 1995-05 → 1999-05 Figure 171044A 171044A 1996-05 → 1999-05 Figure 170977B 170977B 1995-05 → 1999-05 Figure 171044A 171044A 1999-05 → — Figure 172006 172006 1995-05 → — Figure 170931A 170931A 1995-05 → — Figure 170978 170978 1995-10 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17361J Tube, Air, NO.1
17368B Support, Air Tube
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17709E Bracket, Air Cleaner Inlet, NO.2
17709J Bracket, Air Cleaner Inlet, NO.3
17709K Bracket, Air Cleaner Inlet, NO.4
17730 Precleaner Assy, Air W/Hose
17730B Clamp, Hose(FOR PRECLEANER HOSE)
17736 Nut, Air Cleaner Case
17771 Bracket, Air Cleaner Inlet Duct
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805C Pipe Sub-assy, Air Cleaner, NO.1
17805J Nut, Wing(FOR AIR CONNECTOR)
17805K Bolt, Stud(FOR AIR CONNECTOR)
17805M Cushion(FOR AIR CONNECTOR)
17805N Bush(FOR AIR CONNECTOR)
17806 Pipe Sub-assy, Air Cleaner, NO.2
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17849 Gasket, Intake Air Connector
17861 Connector, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881B Hose, Air Cleaner, NO.1
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17940D Intercooler Assy
17945 Bracket, Intercooler Support
22250 Meter Assy, Intake Air Flow
22255 Bracket, Air Flow Meter
22275 Gasket, Air Flow Meter
53067 Bracket Sub-assy, Air Cleaner Inlet
53097 Inlet Sub-assy
53285K Seal, Radiator Side Air, NO.1
53294E Seal, Cool Air Intake Pipe
53299B Duct, Cool Air Intake
53709C Cover Sub-assy, Air Cleaner Inlet
53788 Bracket, Air Cleaner Inlet, NO.6
53955A Cushion, Air Cleaner Inlet NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
