Toyota Dyna 200/Toyoace G25
1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan
Discontinued model
Data version 2001-01

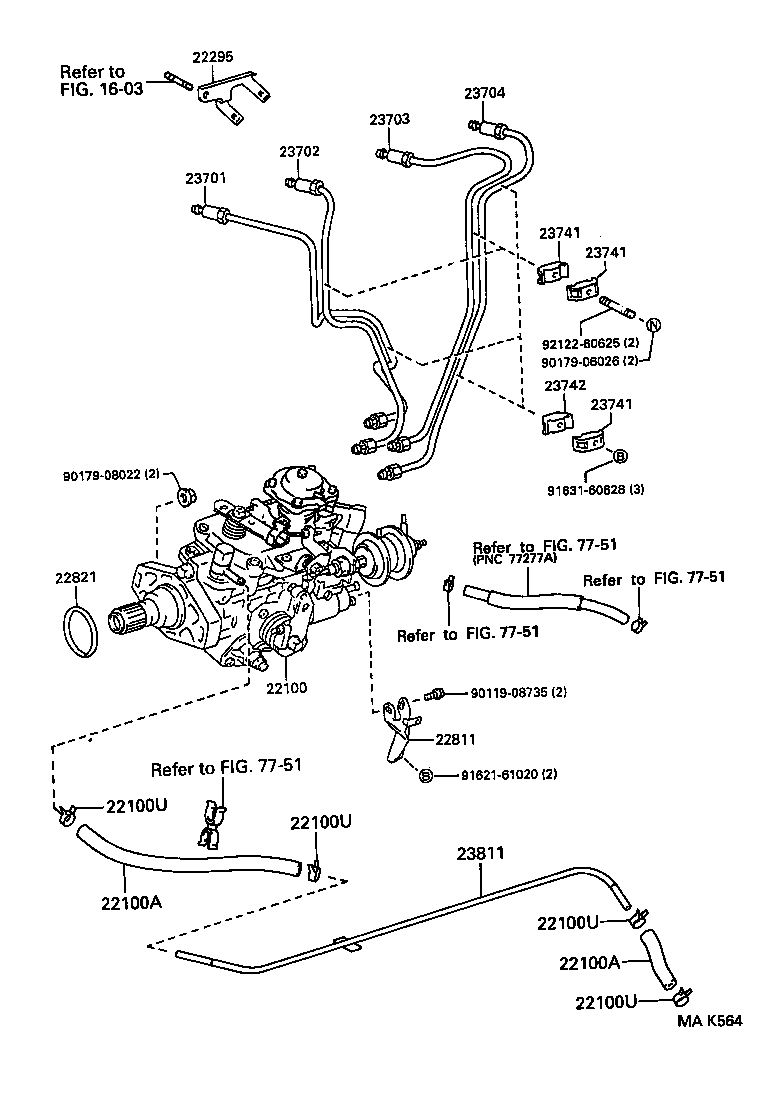

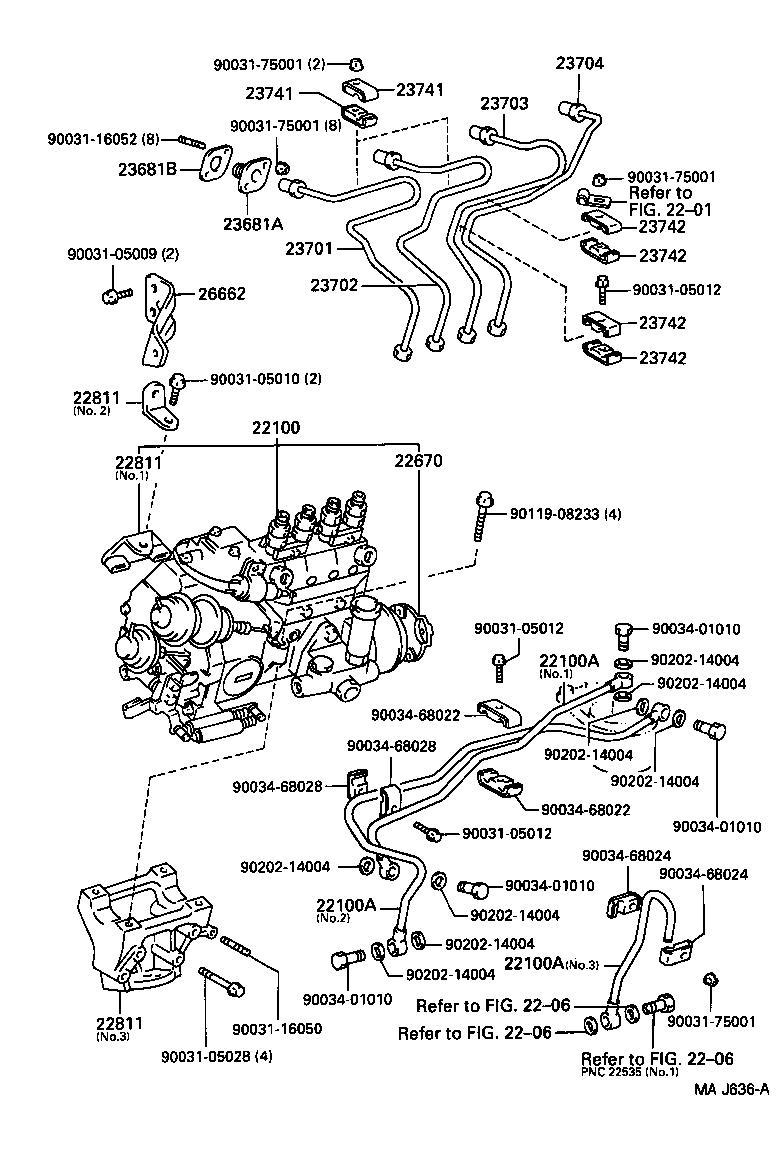

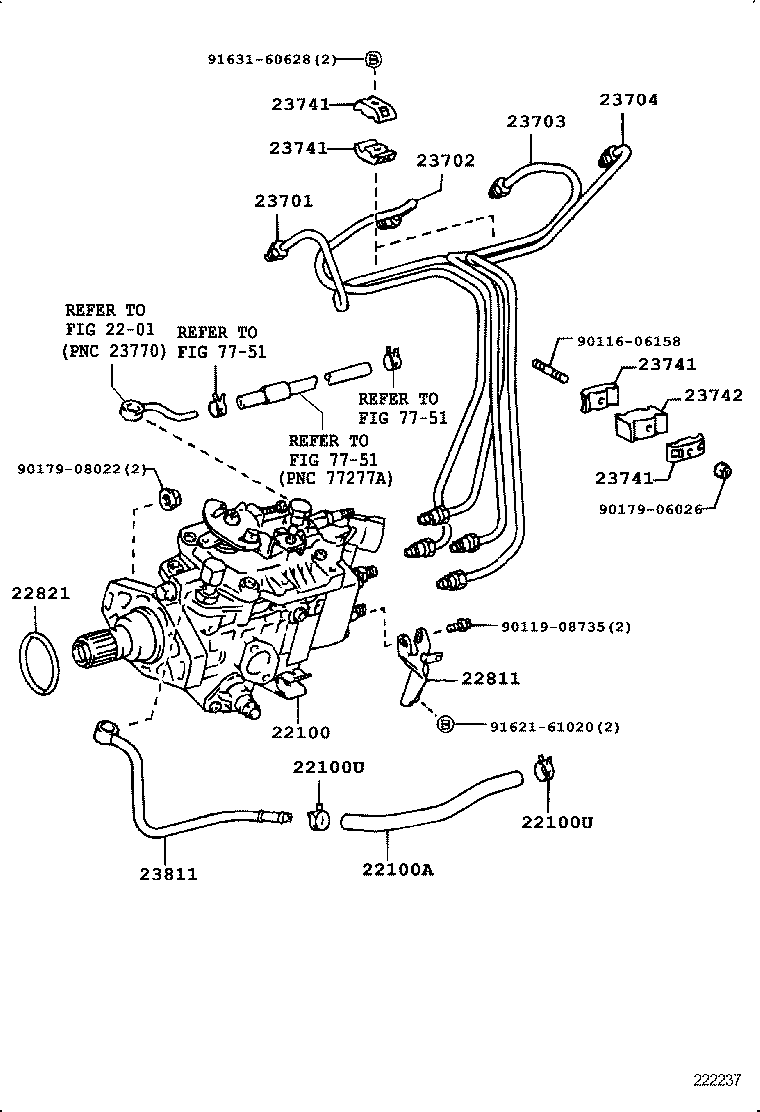

Injection Pump Assembly
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 22100 | Pump Assy, Injection OR Supply |
| 22100A | Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER) |
| 22100U | Clip, Hose Fuel(FOR INJECTION PUMP) |
| 22295 | Bracket, Injection Pump Connector |
| 22670 | Coupling Assy, Injection Pump |
| 22811 | Stay, Injection Pump, NO.1 |
| 22821 | Gasket, Injection Pump |
| 23681A | Seal, Nozzle Holder |
| 23681B | Seal, Nozzle Holder, NO.2 |
| 23701 | Pipe Sub-assy, Injection, NO.1 |
| 23702 | Pipe Sub-assy, Injection, NO.2 |
| 23703 | Pipe Sub-assy, Injection, NO.3 |
| 23704 | Pipe Sub-assy, Injection, NO.4 |
| 23741 | Clamp, Injection Pipe, NO.1 |
| 23742 | Clamp, Injection Pipe, NO.2 |
| 23811 | Pipe, Fuel(FOR FUEL FILTER TO INJECTION PUMP) |
| 26662 | Bracket, Accelerator Wire |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
