Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

12 part groups · 4 illustrations

Illustrations

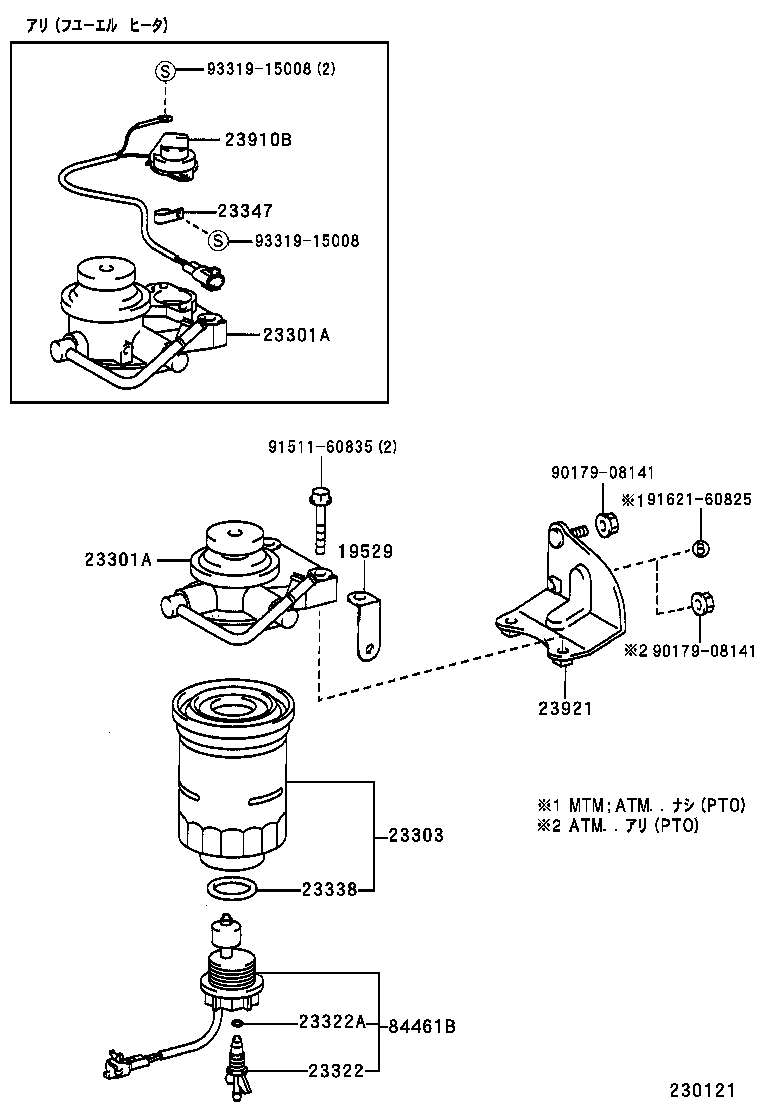

Figure 230055A 230055A 1995-05 → — Figure 230056A 230056A 1995-05 → — Figure 230121 230121 1995-05 → — Figure 230054 230054 1995-10 → —

Part groups

PNCDescription
19529 Clamp
23300 Filter Assy, Fuel
23301 Body Sub-assy, Fuel Filter
23301A Cap Assy, Fuel Filter
23303 Element Sub-assy, Fuel Filter
23322 Plug, Drain(FOR FUEL FILTER)
23322A Ring, O(FOR DRAIN PLUG)
23338 Gasket(FOR WARNING SWITCH)
23347 Clip, Cord
23910B Heater Assy, Fuel
23921 Support, Fuel Filter
84461B Switch, Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
