Toyota Dyna 200/Toyoace G25
1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan
Discontinued model
Data version 2001-01

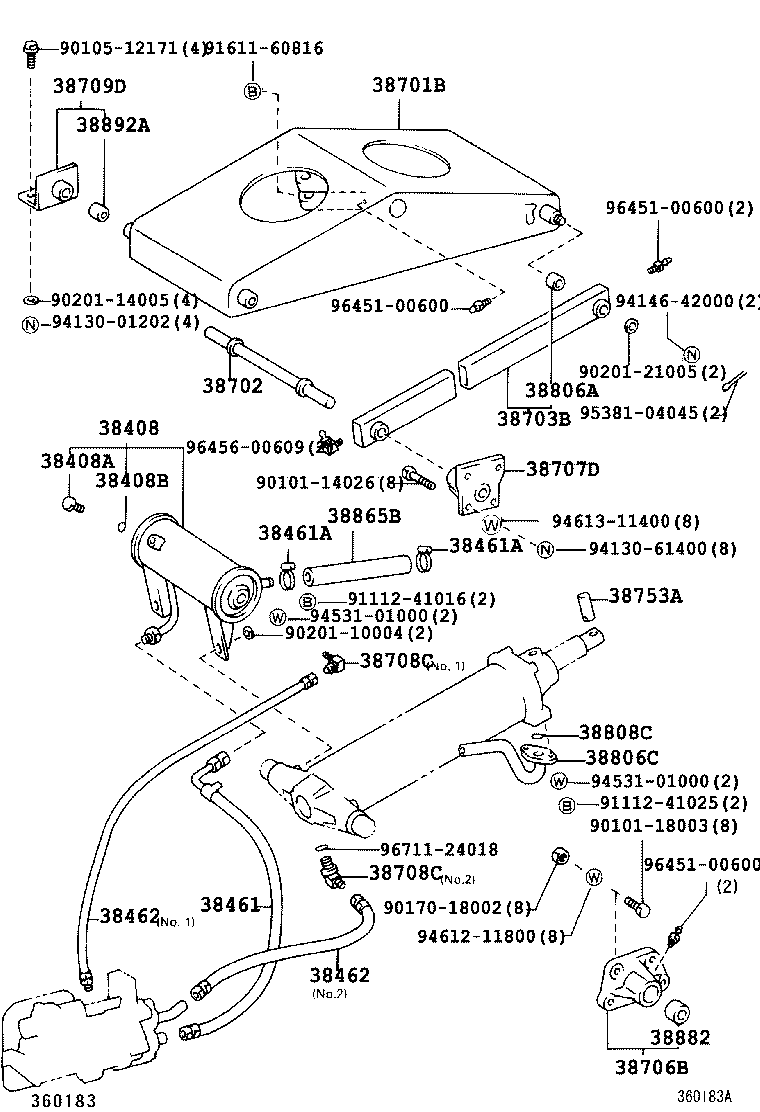

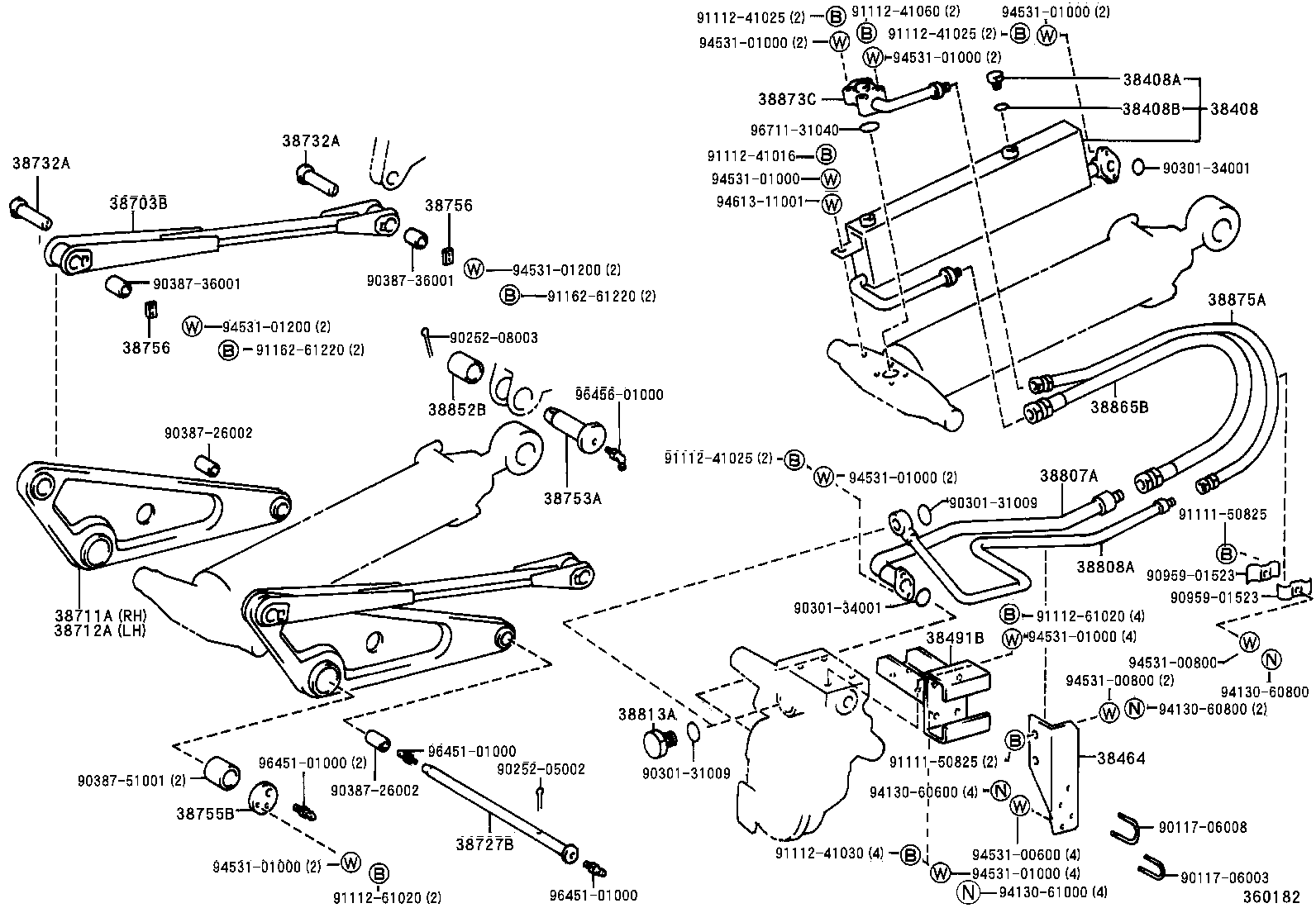

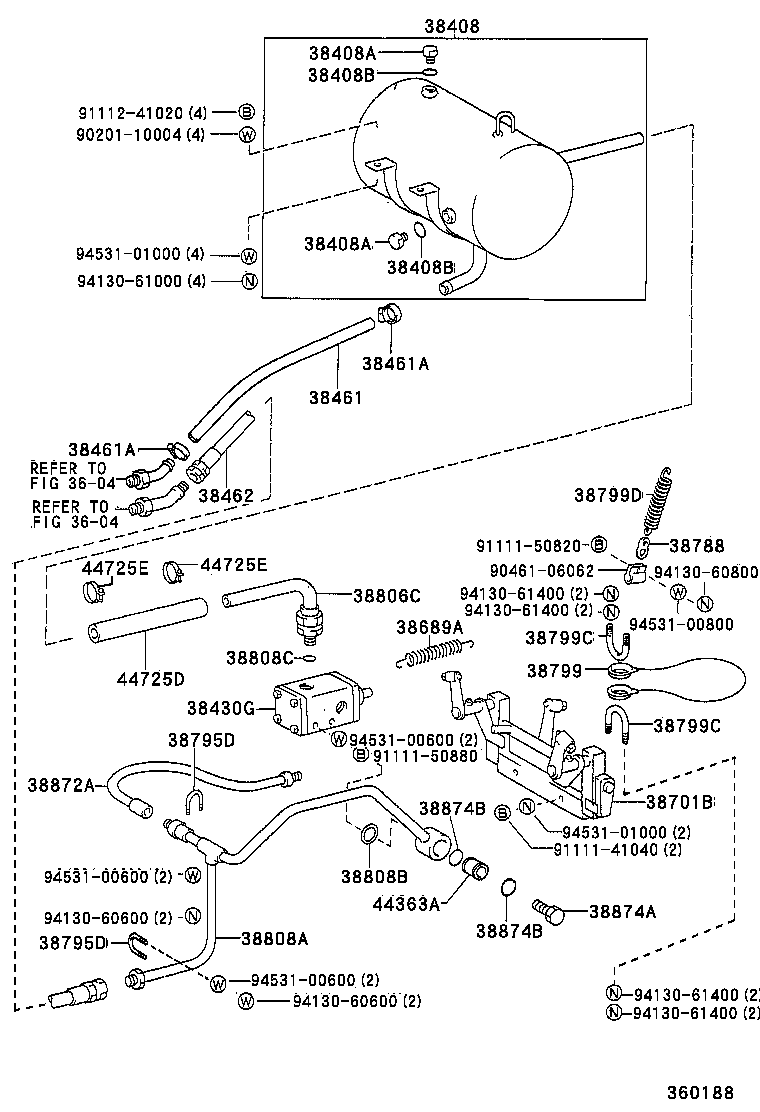

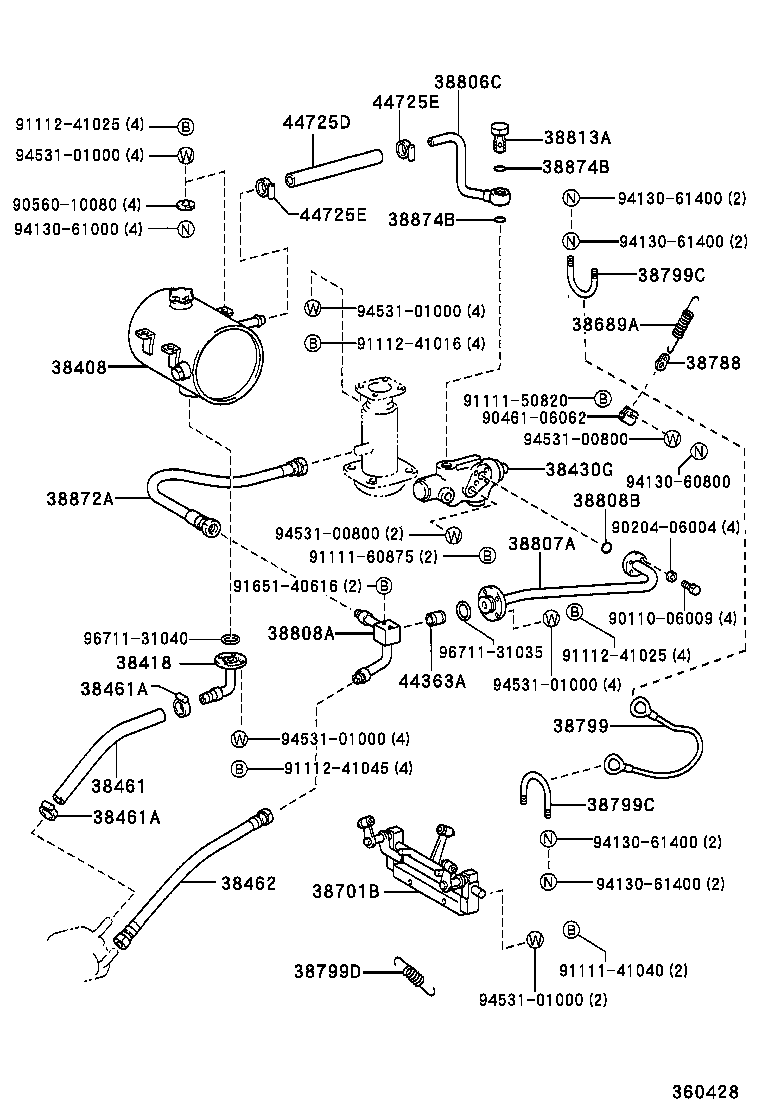

Hoist Cylinder Trunnion & Lift Arm
49 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 38408 | Tank Sub-assy, Power |
| 38408A | Plug (FOR POWER TANK) |
| 38408B | Ring, O (FOR POWER TANK PLUG) |
| 38418 | Pipe, Oil Tank Outlet |
| 38430G | Valve Assy, Power |
| 38461 | Hose, Power Oil Pump Suction |
| 38461A | Clamp (FOR POWER OIL PUMP SUCTION) |
| 38462 | Hose, Power Oil Pump Delivery |
| 38464 | Stay, Power Oil Pump Hose Clamp |
| 38491B | Bracket,Power Oil Pump,NO.1 |
| 38689A | Spring, Tension (FOR STOP LEVER RETURN) |
| 38701B | Arm Sub-assy, Lift |
| 38702 | Shaft Sub-assy, Tension Arm |
| 38703B | Arm Sub-assy, Tension |
| 38706B | Bracket Sub-assy, Trunnion |
| 38707D | Bracket Sub-assy, Tension Arm Shaft |
| 38708C | Union (FOR DELIVERY HOSE) |
| 38709D | Bracket Sub-assy, Lift Arm |
| 38711A | Arm, Lift, RH |
| 38712A | Arm, Lift, LH |
| 38727B | Shaft, Lift Arm NO.1 |
| 38732A | Pin, Tension Arm |
| 38753A | Pin, Crosshead |
| 38755B | Plate, Trunnion Shaft Stopper |
| 38756 | Plate, Tension Arm Pin Stopper |
| 38788 | Hook, Wire Joint |
| 38795D | Bolt, U (FOR DELIVERY PIPE) |
| 38799 | Rope, Wire |
| 38799C | Bolt, U (FOR LIFT ARM) |
| 38799D | Spring, Tension (FOR LIFT ARM) |
| 38806A | Bush, Tension Arm Head |
| 38806C | Pipe Sub-assy, Hoist Cylinder Suction, NO.1 |
| 38807A | Pipe Sub-assy, Hoist Cylinder Suction, NO.2 |
| 38808A | Pipe Sub-assy, Hoist Cylinder Delivery |
| 38808B | Ring, 0 (FOR HOIST CYLINDER DELIVERY) |
| 38808C | Ring, O (FOR HOIST CYLINDER SUCTION) |
| 38813A | Flange, Hoist Cylinder Bottom |
| 38852B | Bushing, Cylinder Head |
| 38865B | Hose, Hoist Cylinder Suction |
| 38872A | Pipe, Hoist Cylinder |
| 38873C | Pipe, Hoist Cylinder Delivery, NO.2 |
| 38874A | Nipple, Hoist Cylinder |
| 38874B | Ring O (FOR HOIST CYLINDER NIPPLE) |
| 38875A | Hose, Hoist Cylinder Delivery |
| 38882 | Bush, Trunnion |
| 38892A | Bush (FOR LINK ARM BODY BRACKET) |
| 44363A | Strainer, Oil(FOR HOIST CYLINDER PIPE) |
| 44725D | Hose, Suction(FOR POWER OIL PUMP) |
| 44725E | Clamp(FOR POWER OIL PUMP SUCTION HOSE) |
