Toyota Dyna 200/Toyoace G25
1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan
Discontinued model
Data version 2001-01

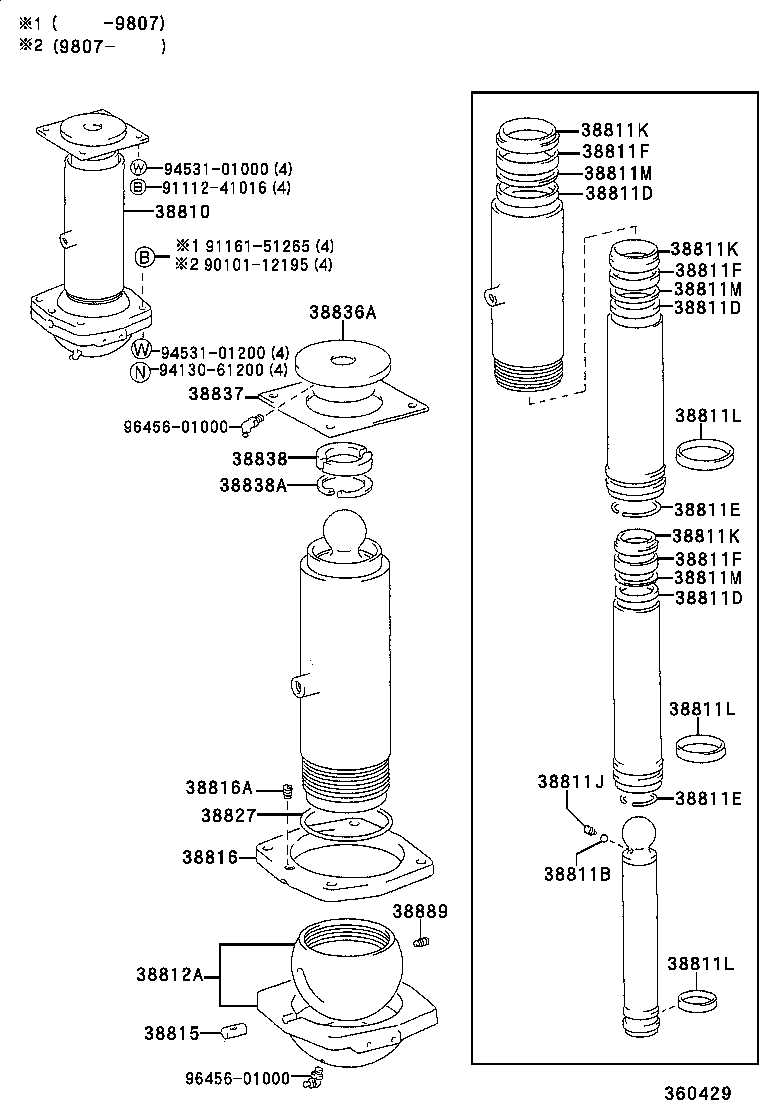

Hoist Cylinder
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 38470 | Valve Assy, Dump Flow Control |
| 38801 | Cylinder Sub-assy, Hoist |
| 38806B | Head Sub-assy, Hoist Cylinder |
| 38810 | Cylinder Assy, Hoist |
| 38810A | Plug, NO.1 (FOR HOIST CYLINDER) |
| 38810C | Ring, O (FOR HOIST CYLINDER) |
| 38811B | Ball (FOR HOIST CYLINDER) |
| 38811C | Seal, Dust, NO.1 (FOR HOIST CYLINDER) |
| 38811D | Seal, Dust, NO.2 (FOR HOIST CYLINDER) |
| 38811E | Ring, Hole Snap (FOR HOIST CYLINDER) |
| 38811F | Ring Wear, NO.1 |
| 38811J | Plug, Straight Screw (FOR HOIST CYLINDER) |
| 38811K | Seal, Dust, NO.3 (FOR HOIST CYLINDER) |
| 38811L | Ring (FOR HOIST CYLINDER) |
| 38811M | Ring (FOR HOIST CYLINDER) |
| 38812A | Bottom, Hoist Cylinder |
| 38815 | Support, Hoist Cylinder |
| 38816 | Cover, Hoist Cylinder |
| 38816A | Plug, Straight (FOR HOIST CYLINDER COVER) |
| 38827 | Ring, O (FOR HOIST CYLINDER) |
| 38831A | Piston, Hoist Cylinder |
| 38832A | Ring, Hoist Cylinder Piston |
| 38833 | Rod, Hoist Cylinder Piston |
| 38836A | Support, Hoist Cylinder |
| 38837 | Cover, Hoist Cylinder |
| 38838 | Ring, Hoist Cylinder |
| 38838A | Ring, Hole Snap |
| 38842 | Ring, Hoist Cylinder Piston |
| 38882A | Valve, Slow Return |
| 38883A | Spindle, Slow Return Valve |
| 38887A | Valve, Hoist Cylinder Poppet |
| 38889 | Plug, Screw (FOR HOIST CYLINDER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
