Toyota Dyna 200/Toyoace G25
1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan
Discontinued model
Data version 2001-01

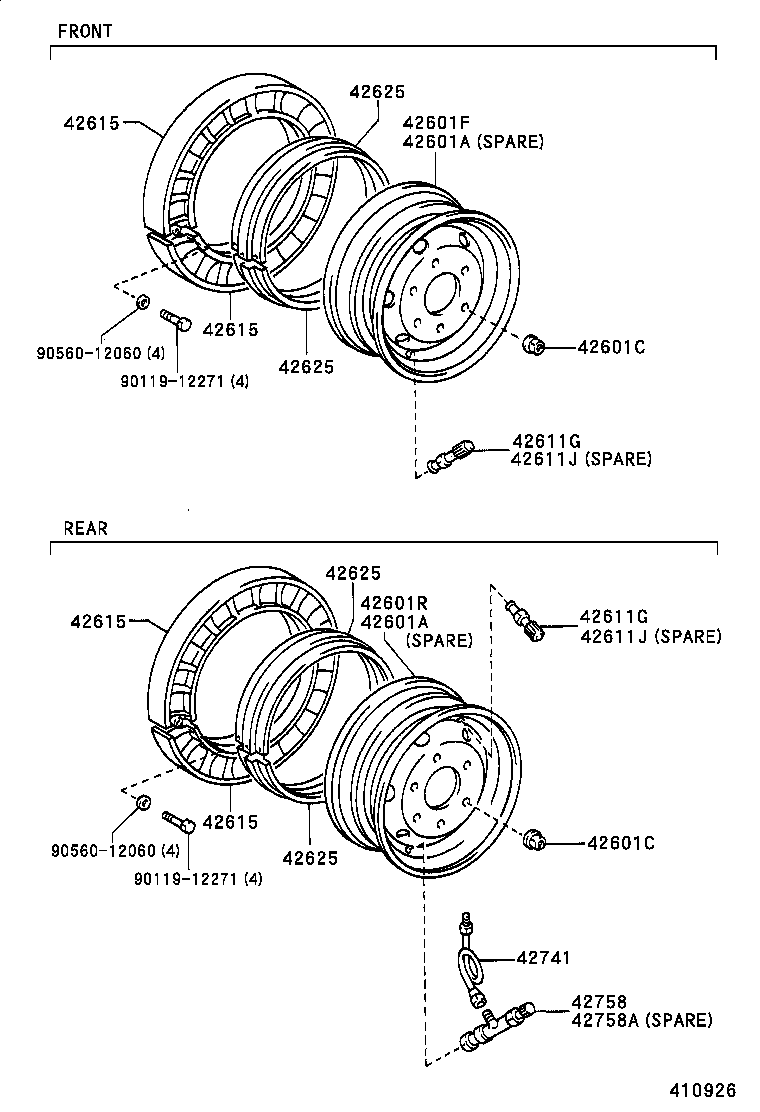

Disc Wheel & Wheel Cap
19 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601 | Wheel, Disc |
| 42601A | Wheel, Disc (FOR SPARE) |
| 42601C | Nut, Hub (FOR AXLE) |
| 42601F | Wheel, Disc (FOR FRONT) |
| 42601R | Wheel, Disc (FOR REAR) |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42611H | Extension, Valve |
| 42611J | Valve (FOR TUBELESS TIRE SPARE) |
| 42611Q | Clip (FOR TUBE) |
| 42611T | Washer (FOR TUBE) |
| 42611U | Cap, Tire Valve |
| 42613A | Ring, Disc Wheel Side |
| 42615 | Insert, Tire |
| 42621 | Cap, Wheel |
| 42622 | Holder, Wheel Cap |
| 42625 | Spacer, Tire Insert |
| 42741 | Tube, Tire Air Control, NO.1 |
| 42758 | Valve, Tire Air Control |
| 42758A | Valve, Tire Air Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
