Toyota Dyna 200/Toyoace G25
1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan
Discontinued model
Data version 2001-01

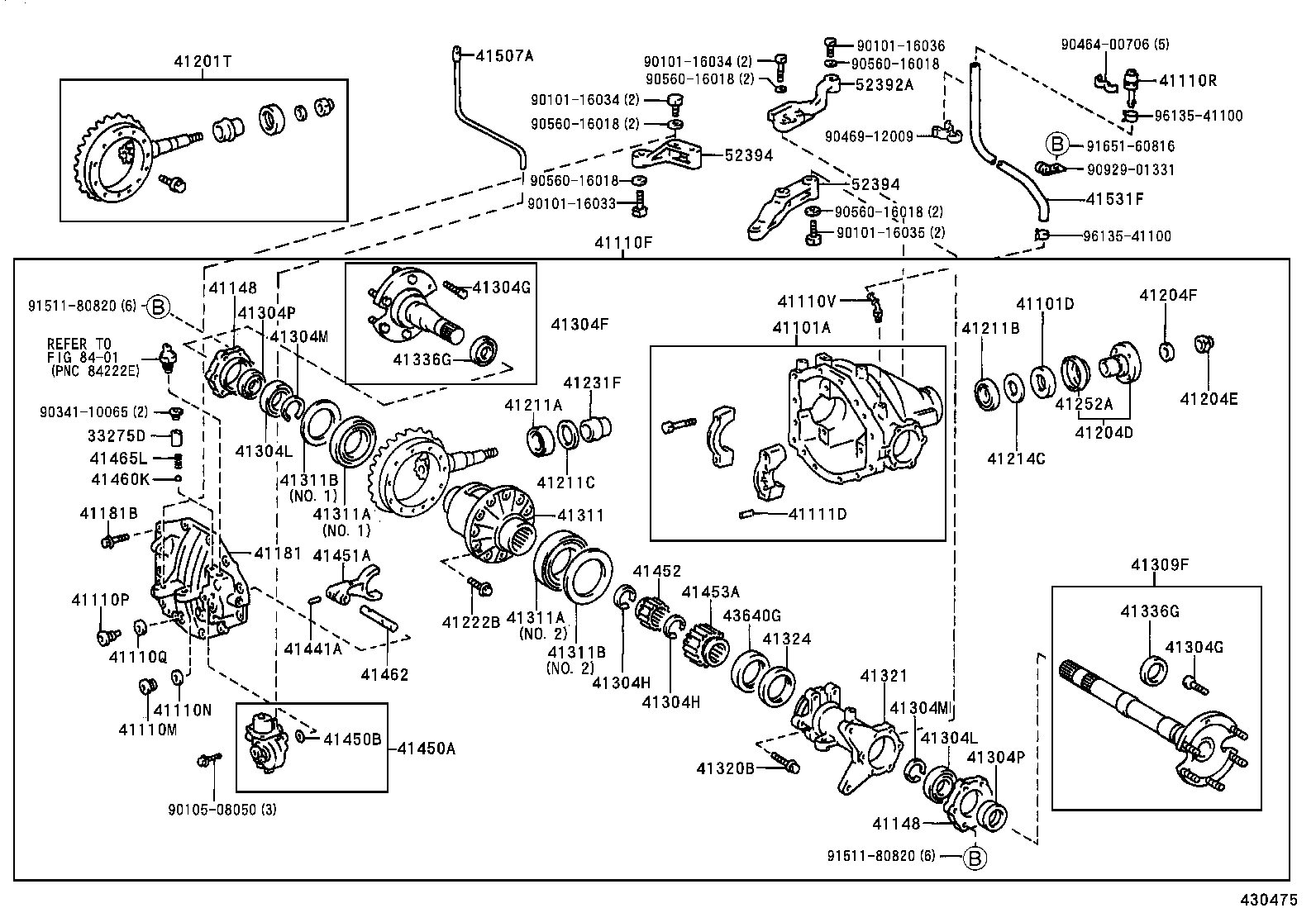

Front Axle Housing & Differential
74 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33275D | Seat, Shift Detent Ball Spring |
| 41101A | Carrier Sub-assy, Differential, Front |
| 41101D | Seal, Oil (FOR FRONT DIFFERENTIAL CARRIER) |
| 41110F | Carrier Assy, Differential, Front |
| 41110M | Plug, Front Differential Filler |
| 41110N | Gasket, Front Differential Filler Plug |
| 41110P | Plug, Front Differential Drain |
| 41110Q | Gasket, Front Differential Drain Plug |
| 41110R | Plug, Breather (FOR FRONT DIFFERENTIAL) |
| 41110V | Union (FOR FRONT DIFFERENTIAL) |
| 41111D | Pin, Straight (FOR FRONT DIFFERENTIAL CARRIER) |
| 41114B | Bolt, Front Differential Bearing Cap |
| 41114C | Pin, Ring, Front Differential Bearing Cap Bolt |
| 41148 | Retainer, Differential Bearing |
| 41181 | Cover, Front Differential Carrier |
| 41181B | Bolt (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING) |
| 41201T | Final Gear Kit, Differential, Front |
| 41201U | Shim (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST) |
| 41201V | Shim (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST) |
| 41204D | Flange Sub-assy, Front Drive Pinion Companion, Front |
| 41204E | Nut (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT) |
| 41204F | Washer, Plate (FOR DRIVE PINION COMPANION FLANGE FRONT) |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41211C | Gear, Differential Ring |
| 41214C | Slinger, Front Differential Drive Pinion Oil |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41222F | Plate, Fornt Differential Ring Gear Set Bolt Lock |
| 41231F | Spacer, Front Differential Drive Pinion Bearing |
| 41252A | Deflector, Dust (FOR FRONT DIFFERENTIAL) |
| 41302H | Bolt(FOR FRONT DIFFERENTIAL CASE) |
| 41304F | Shaft Sub-assy, Differential Side Gear, RH |
| 41304G | Bolt, Serration (FOR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41304H | Ring, Hole Snap (FOR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41304L | Bearing (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH) |
| 41304M | Ring, Shaft Snap (FOR DIFFERENTIAL SIDE GEAR SHAFT RH) |
| 41304P | Seal, Oil (FOR DIFFERENTIAL SIDE GEAR SHAFT) |
| 41309F | Shaft Sub-assy, Differential Side Gear, LH |
| 41311 | Case, Front Differential |
| 41311A | Bearing (FOR FRONT DIFFERENTIAL CASE) |
| 41311B | Washer, Plate (FOR FRONT DIFFERENTIAL CASE) |
| 41315A | Nut, Front Differential Bearing Adjusting |
| 41320B | Bolt (FOR FRONT DIFFERENTIAL TUBE) |
| 41321 | Tube, Differential Extension Flange |
| 41324 | Guide, Front Differential Oil Seal |
| 41331F | Gear, Front Differential Side |
| 41336G | Cover, Dust(FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT) |
| 41341F | Pinion, Front Differential |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361C | Lock, Front Differential Bearing Adjusting Nut |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
| 41371A | Spider, Front Differential |
| 41441A | Pin, Slotted Spring (FOR DIFFERENTIAL SHIFT FORK) |
| 41450A | Actuator, Differential Lock Shift, NO.2 |
| 41450B | Ring, O (FOR DIFFERENTIAL LOCK SHAFT RETAINER) |
| 41451A | Fork, Front Differential Lock Shift |
| 41452 | Piece, Differential Lock Spline |
| 41453A | Sleeve, Front Differential Lock |
| 41460K | Ball (FOR FRONT DIFFERENTIAL LOCK CYLINDER) |
| 41462 | Shaft, Front Differential Lock Shift Fork |
| 41465L | Spring, Compression(FOR FRONT DIFFERENTIAL LOCK RETAINER) |
| 41507A | Tube, Front Differential Lock Actuator Breather, NO.2 |
| 41531F | Hose, Front Differential Vacuum, NO.1 |
| 43110 | Housing Assy, Front Axle |
| 43110A | Plug Sub-assy, Drain |
| 43110B | Gasket, Drain |
| 43110C | Plug (FOR FRONT AXLE HOUSING) |
| 43110D | Gasket (FOR FRONT AXLE HOUSING PLUG) |
| 43110E | Plug, Breather (FOR FRONT AXLE HOUSING) |
| 43600A | Bolt, Stud (FOR FRONT AXLE DIFFERENTIAL CARRIER SETTING) |
| 43611 | Gasket, Front Axle Differential Carrier |
| 43640G | Seal, Type T Oil (FOR FRONT AXLE DIFFERENTIAL CARRIER) |
| 52392A | Support, Front Differential, NO.1 |
| 52394 | Support, Front Differential, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
