Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

42 part groups · 12 illustrations

Illustrations

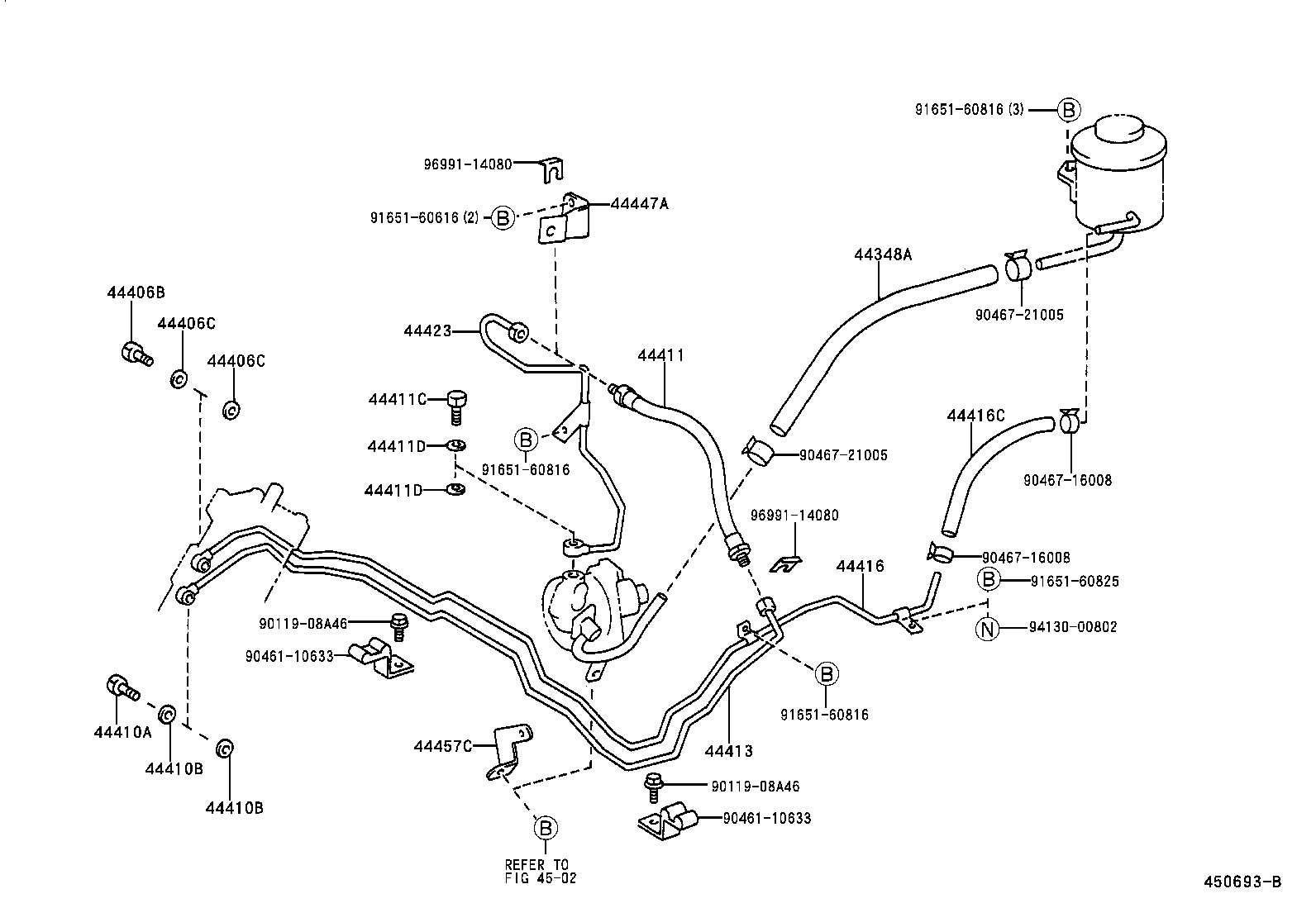

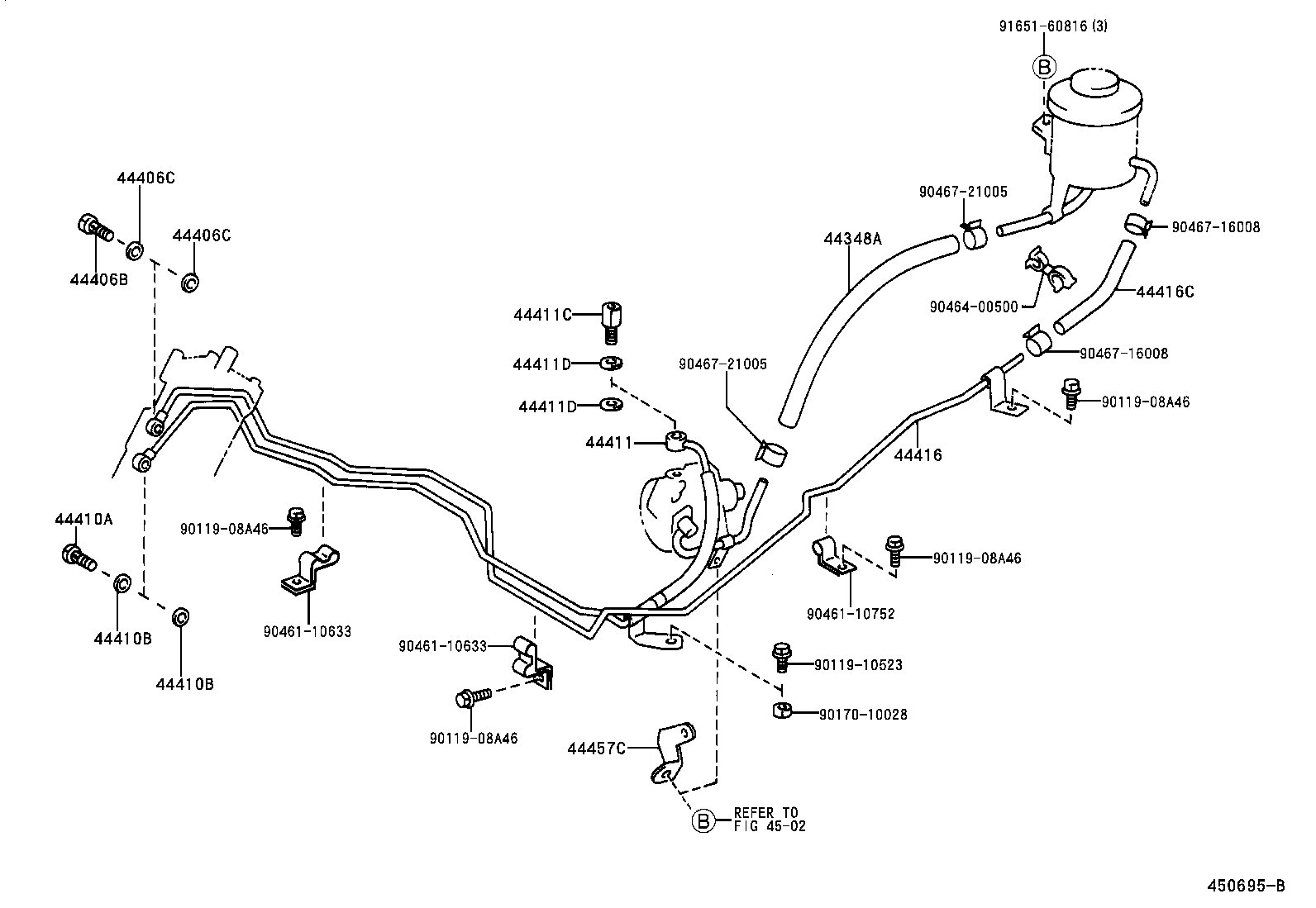

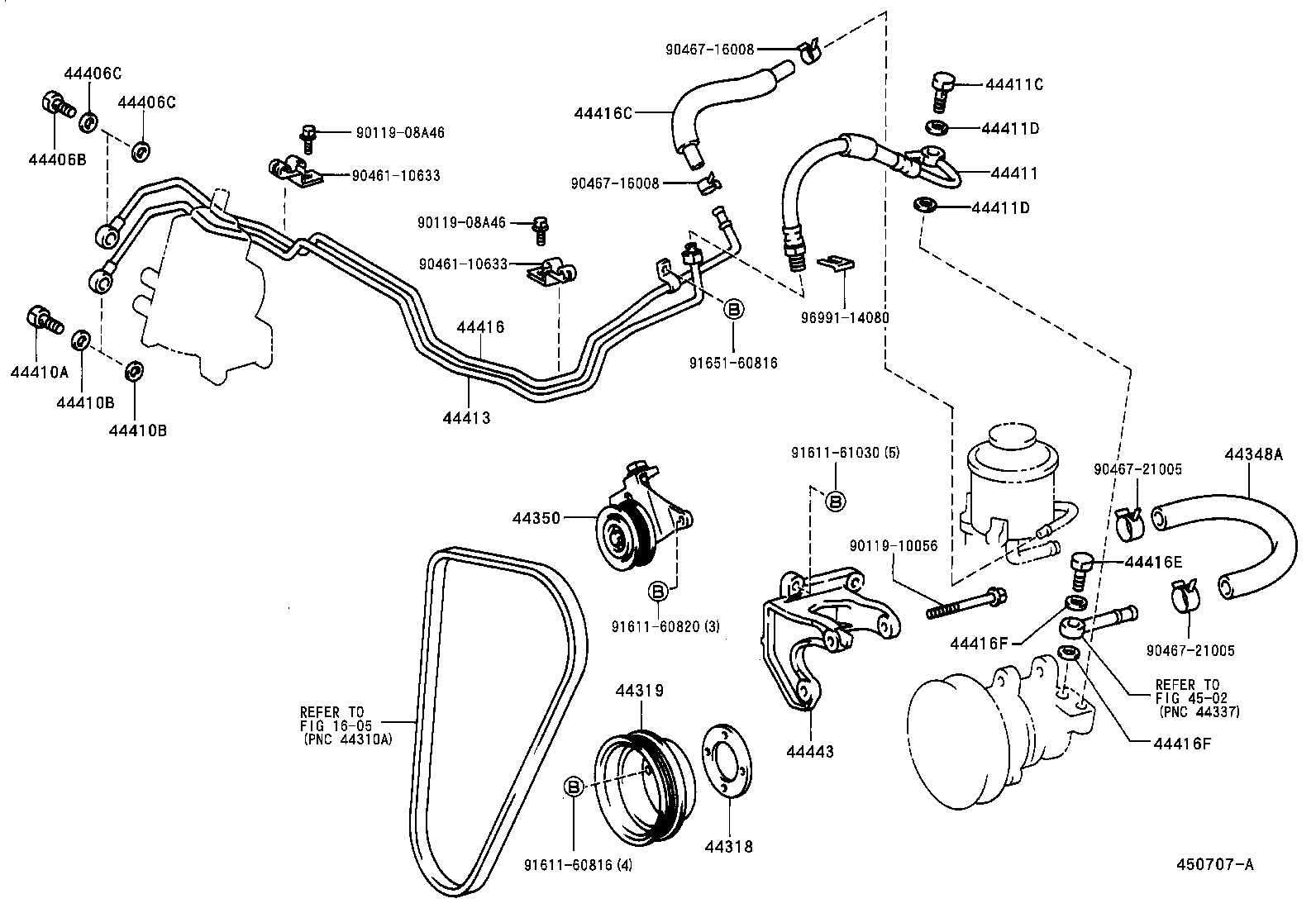

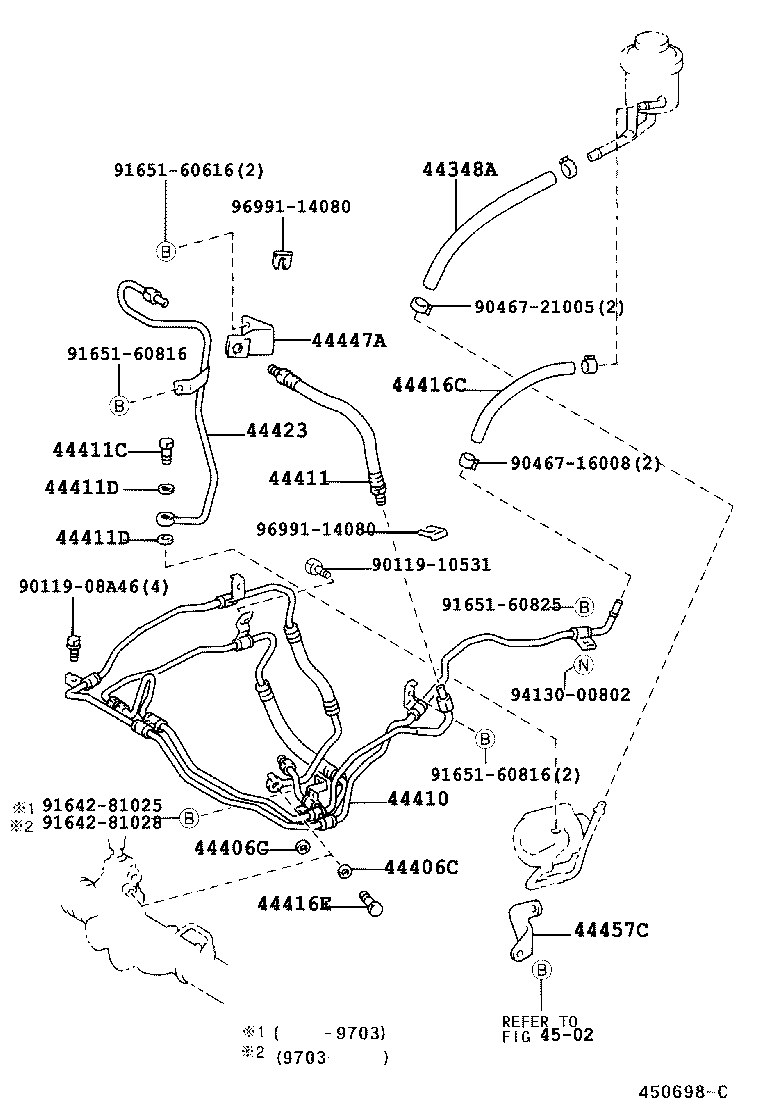

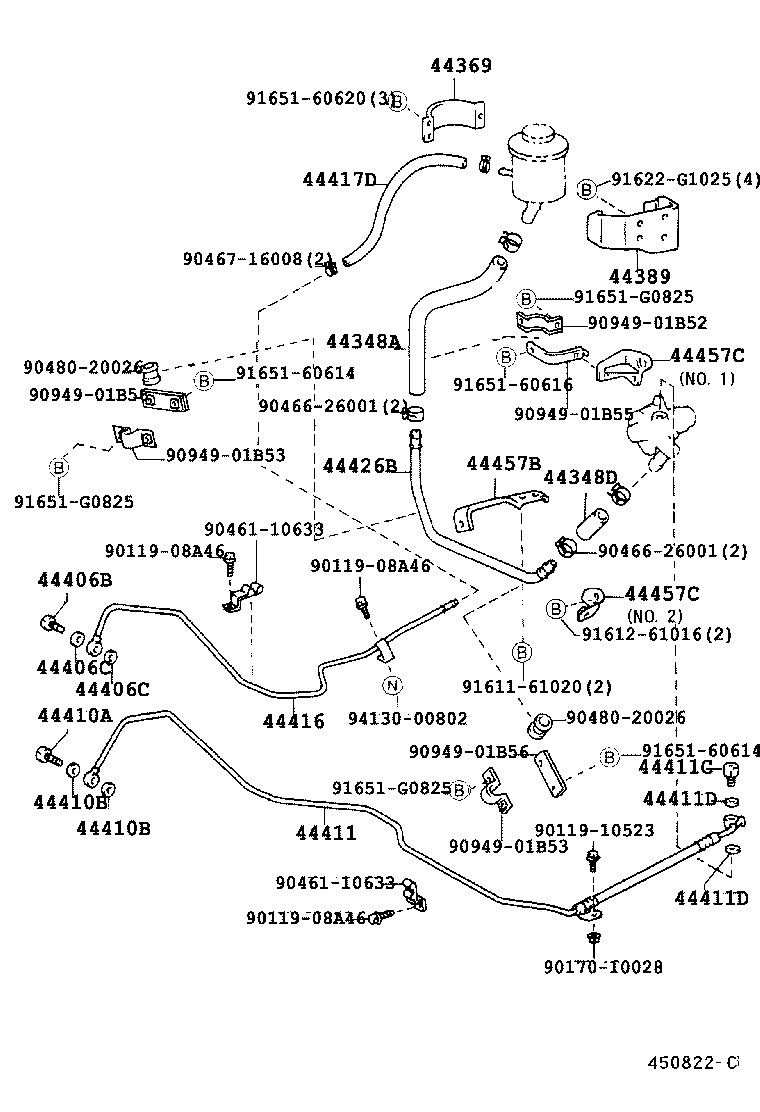

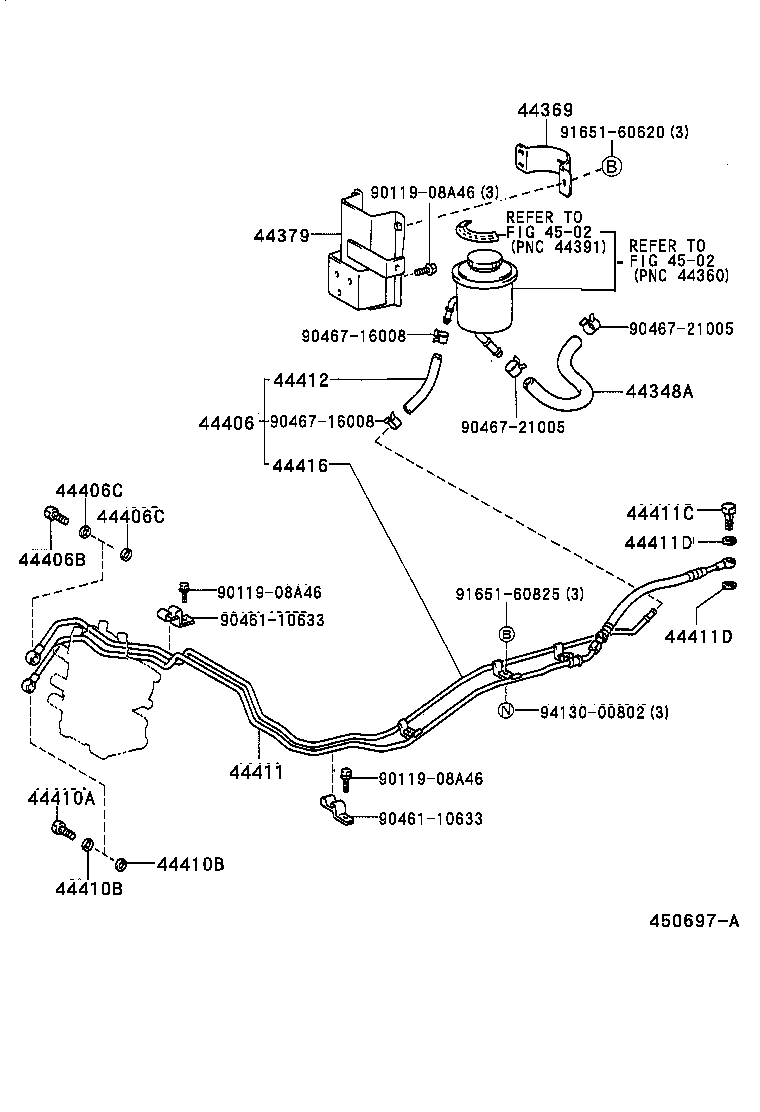

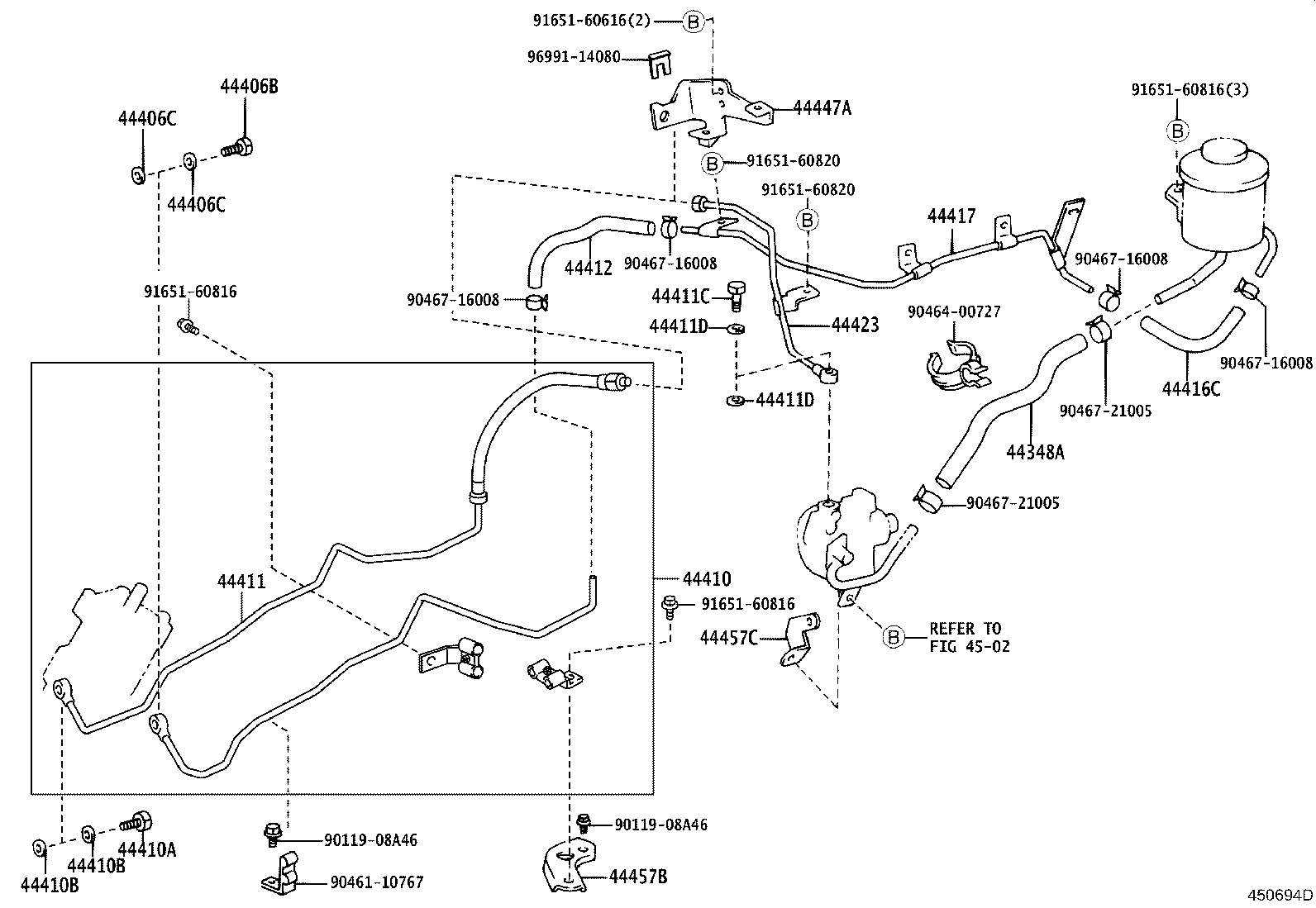

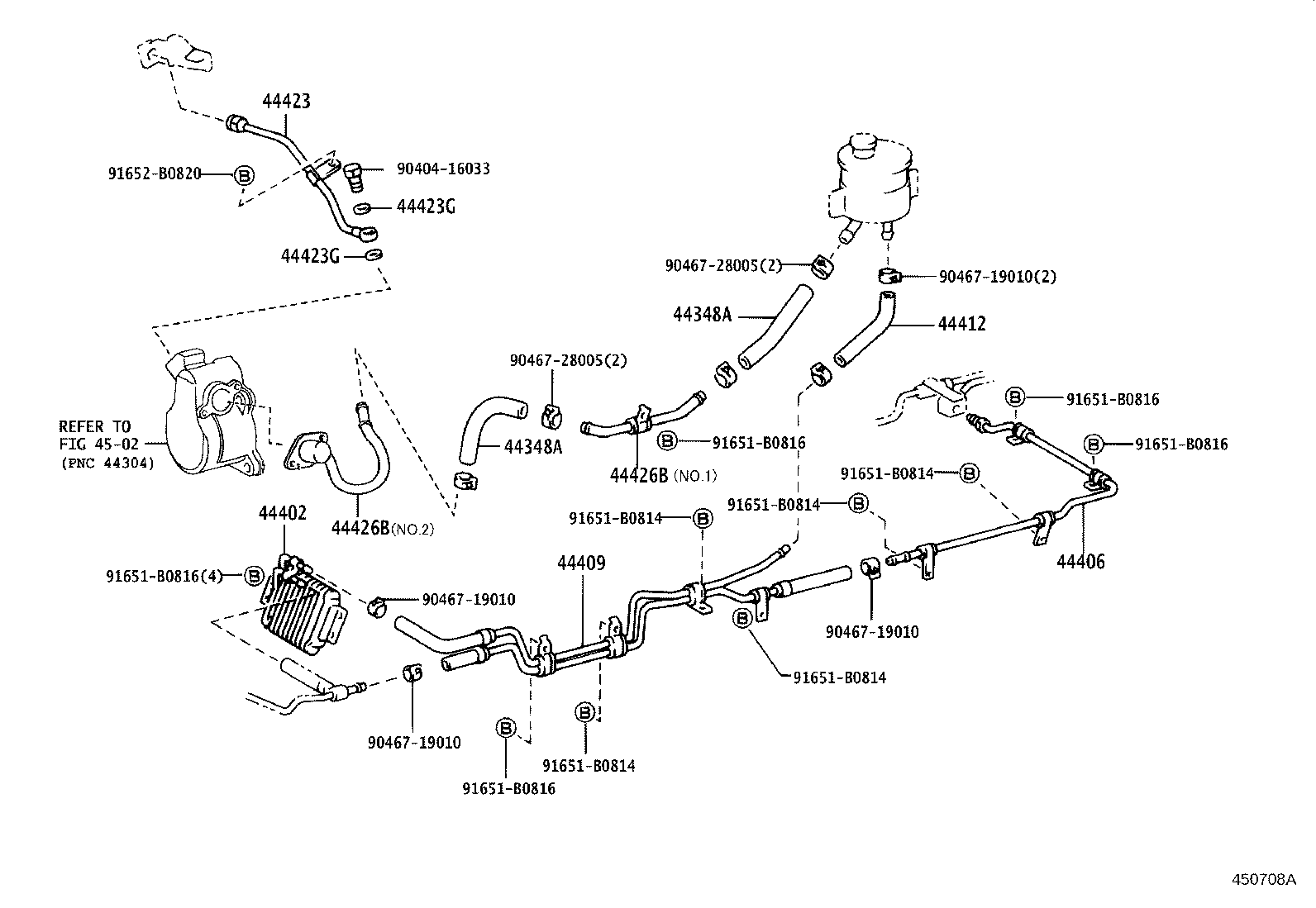

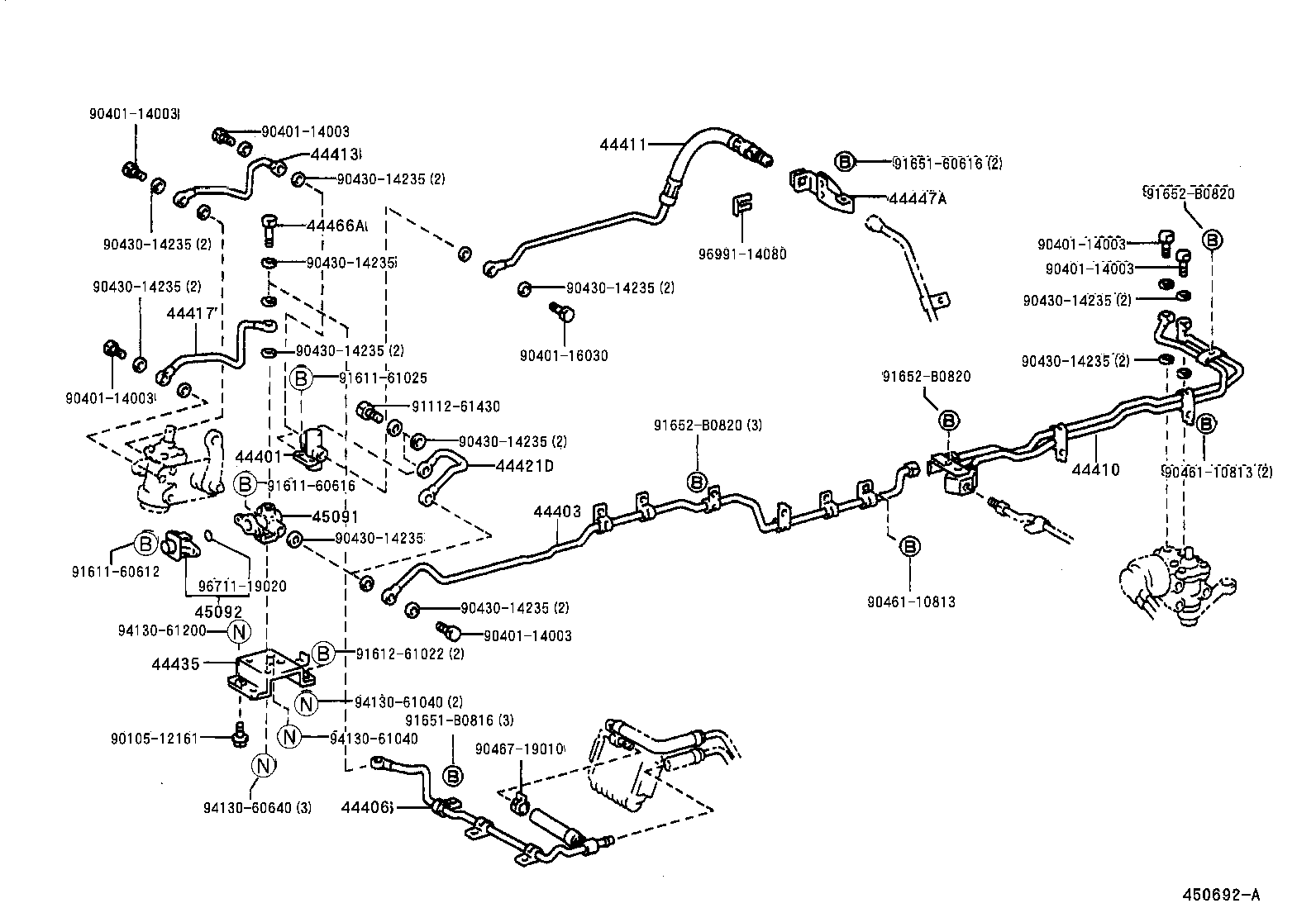

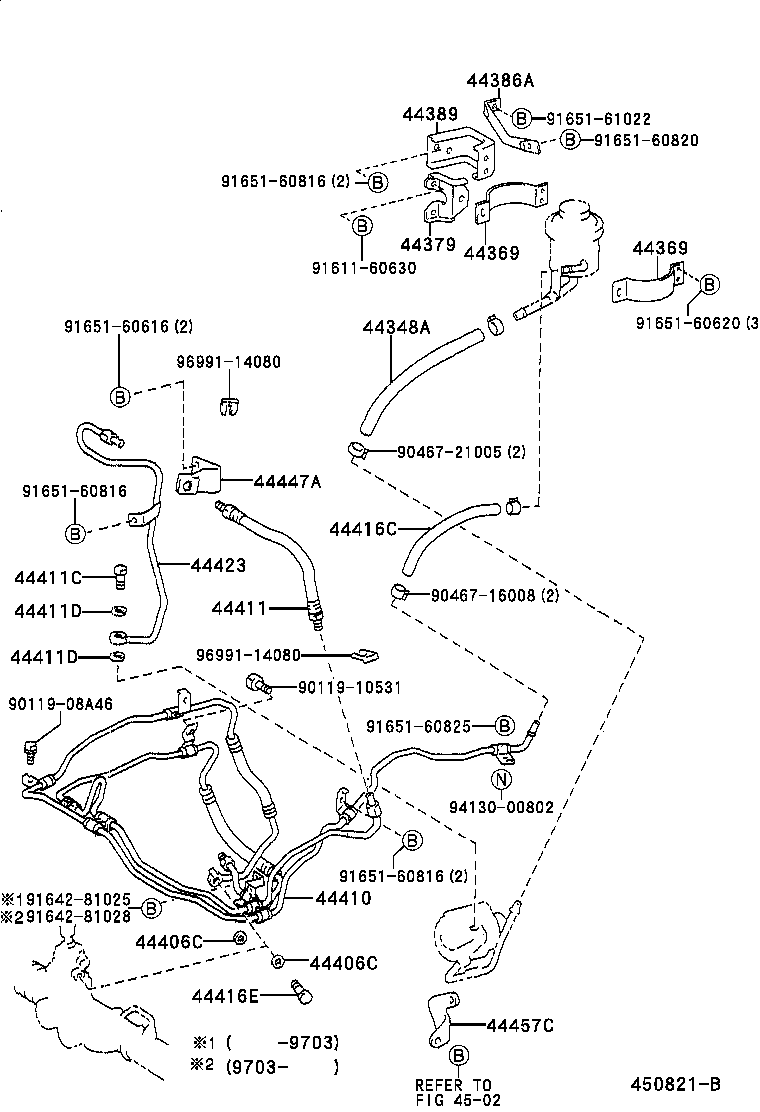

Figure 450836A 450836A 1995-05 → — Figure 450693B 450693B 1995-05 → — Figure 450694D 450694D 1995-05 → — Figure 450695B 450695B 1995-05 → — Figure 450707A 450707A 1995-05 → — Figure 450697A 450697A 1995-10 → — Figure 450698D 450698D 1996-10 → — Figure 450692A 450692A 1997-01 → — Figure 450708A 450708A 1997-01 → — Figure 450821B 450821B 1997-08 → — Figure 450823C 450823C 1997-08 → — Figure 450822C 450822C 1997-08 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44348A Hose, Oil Reservoir TO Pump, NO.1
44348D Hose, Oil Reservoir TO Pump, NO.2
44350 Pulley Assy, Power Steering Idle
44369 Bracket, Oil Reservoir, NO.1
44379 Bracket, Oil Reservoir, NO.2
44386A Support, Oil Reservoir
44389 Bracket, Oil Reservoir, NO.3
44401 Valve Sub-assy, Power Steering Flow Divider
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44403 Tube Sub-assy, Pressure Feed, NO.1
44406 Tube Sub-assy, Return
44406B Bolt, Union(FOR RETURN TUBE)
44406C Gasket(FOR RETURN TUBE)
44409 Cooler Sub-assy, Oil, NO.2
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44410B Gasket(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416C Hose(FOR RETURN TUBE TO RESERVIOR)
44416E Bolt, Union(FOR RETURN TUBE)
44416F Gasket(FOR RETURN TUBE)
44417 Tube, Return, NO.2
44417D Hose(FOR RETURN TUBE TO RESERVOIR)
44421D Tube, Control Valve TO Power Cylinder, NO.1
44423 Tube, Oil Pump TO Gear Box
44423G Gasket, Union Bolt
44426B Tube, Oil Reservoir TO Pump
44435 Bracket, Power Steering Oil Flow Divider
44443 Bracket, Pump
44447A Bracket, Hose Support, NO.1
44457B Bracket, Power Steering Tube Support, NO.2
44457C Bracket, Power Steering Tube Support, NO.1
44466A Retainer, Tube Support, NO.2
45091 Valve Sub-assy, Rear Steering Control Actuator
45092 Actuator Sub-assy, Rear Steering Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
