Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

39 part groups · 5 illustrations

Illustrations

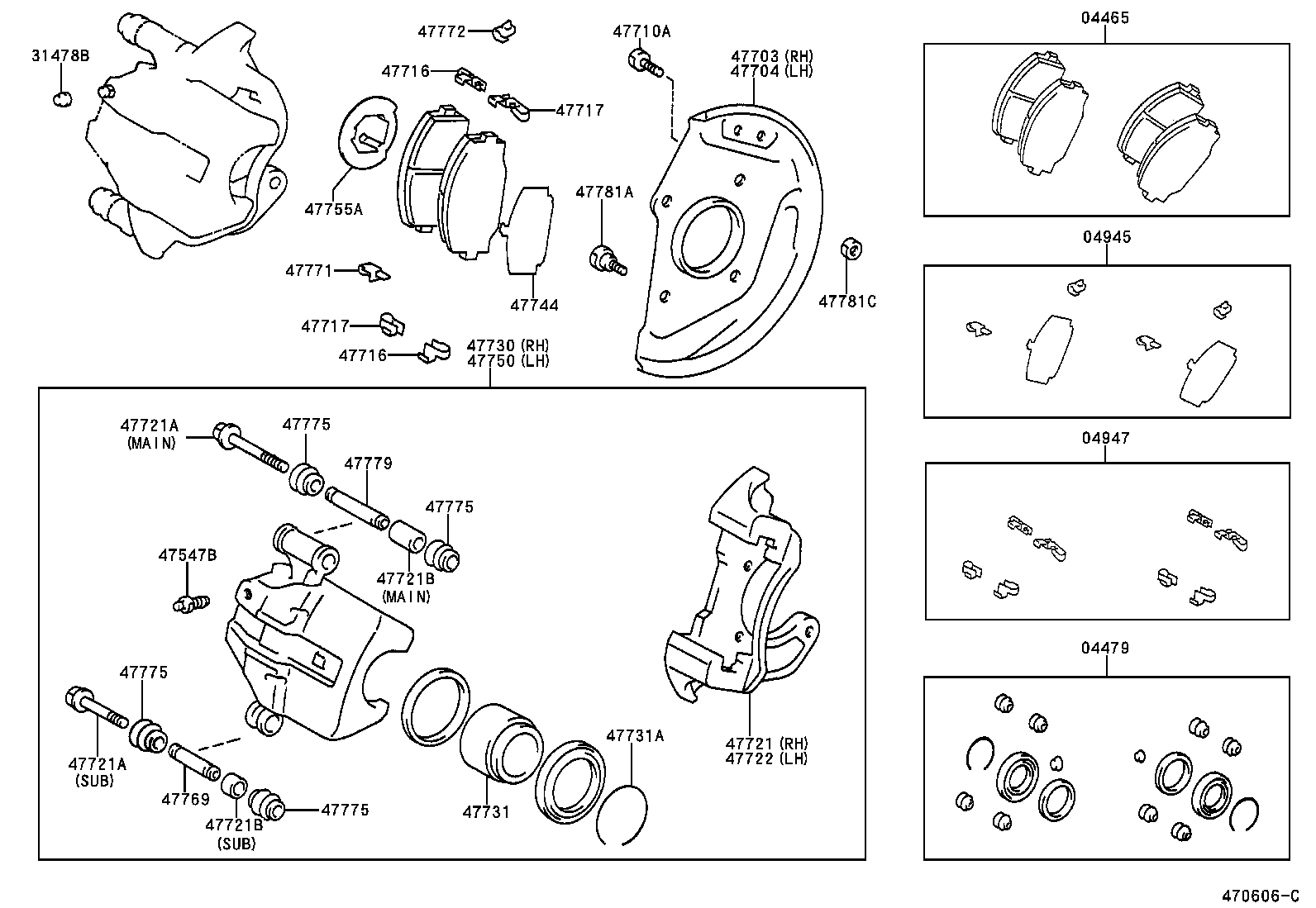

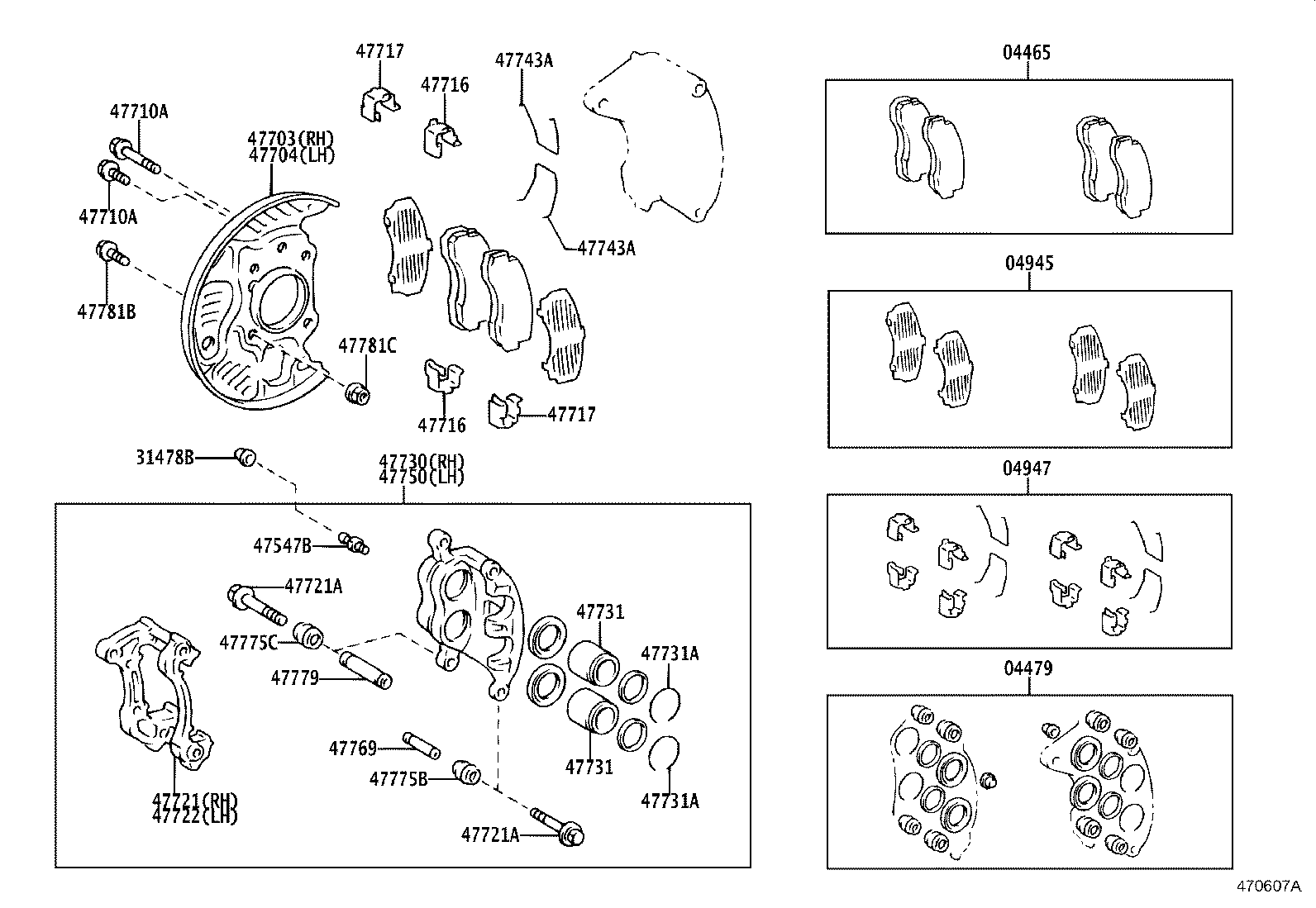

Figure MCS625B MCS625B 1995-05 → — Figure MCS625B MCS625B 1995-05 → — Figure 470606C 470606C 1995-05 → — Figure 470607A 470607A 1996-10 → 1999-05 Figure MCU616A MCU616A 1997-01 → 1999-05

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04479 Cylinder Kit, Disc Brake, Front
04945 Shim Kit, Anti Squeal, Front
04947 Fitting Kit, Disc Brake, Front
31478B Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
43512H Disc, Front
47547B Plug, Bleeder(FOR FRONT DISC BRAKE)
47703 Cover Sub-assy, Disc Brake Dust, Front RH
47704 Cover Sub-assy, Disc Brake Dust, Front LH
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47710B Bolt, Union(FOR FRONT DISC BRAKE CALIPER)
47710C Union(FOR FRONT DISC BRAKE CALIPER)
47710D Gasket(FOR FRONT DISC BRAKE CALIPER UNION)
47716 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47717 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47721 Mounting, Front Disc Brake Cylinder, RH
47721A Bolt(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47721B Collar(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
47722 Mounting, Front Disc Brake Cylinder, LH
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47731A Ring, Set(FOR FRONT DISC BRAKE PISTON)
47743A Spring, Anti-squeal(FOR FRONT DISC BRAKE)
47744 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
47748 Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
47748A Clip(FOR FRONT DISC BRAKE ANTI-RATTLE)
47748B Pin, W/Hole(FOR FRONT DISC BRAKE ANTI-RATTLE)
47750 Cylinder Assy, Disc Brake, LH
47755A Insulator, Disc Brake Heat
47769 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47771 Plate, Pad Wear Indicator, NO.1
47772 Plate, Pad Wear Indicator, NO.2
47775 Boot, Bush Dust(FOR FRONT DISC BRAKE)
47775B Boot, Bush Dust, NO.1
47775C Boot, Bush Dust, NO.2
47779 Bush, Cylinder Slide, NO.2(FOR FRONT DISC BRAKE)
47781A Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47781B Bolt(FOR DUST COVER SETTING)
47781C Nut(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
