Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

8 part groups · 10 illustrations

Illustrations

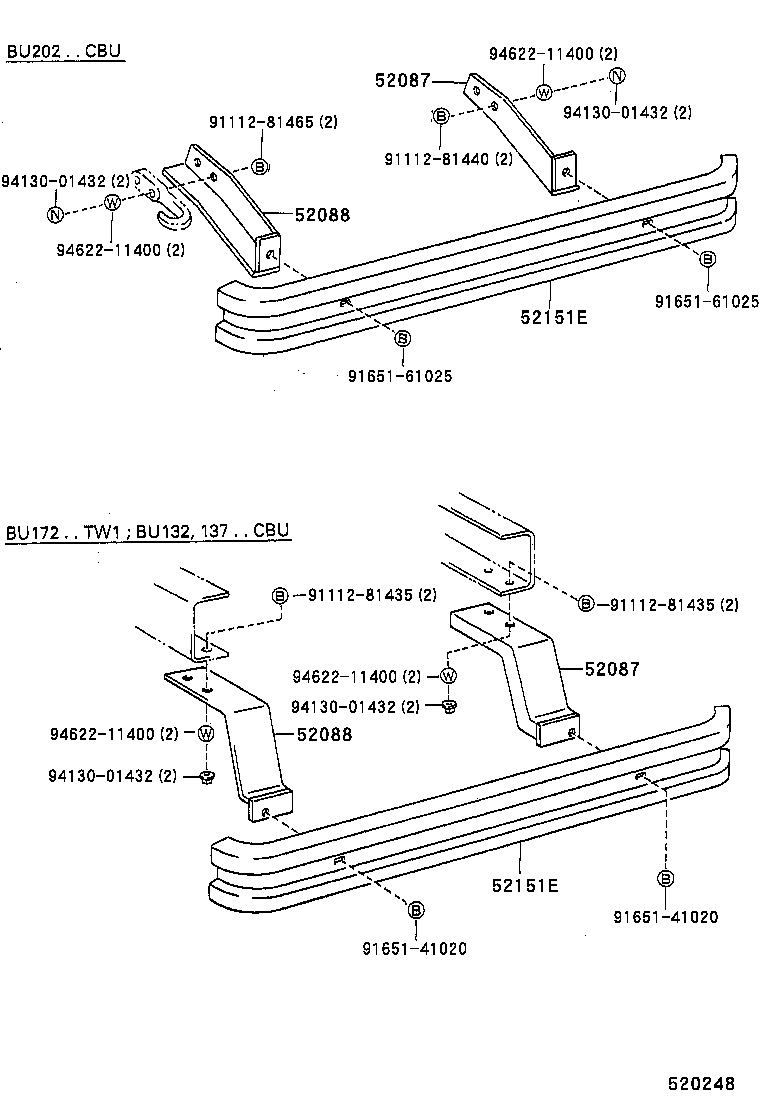

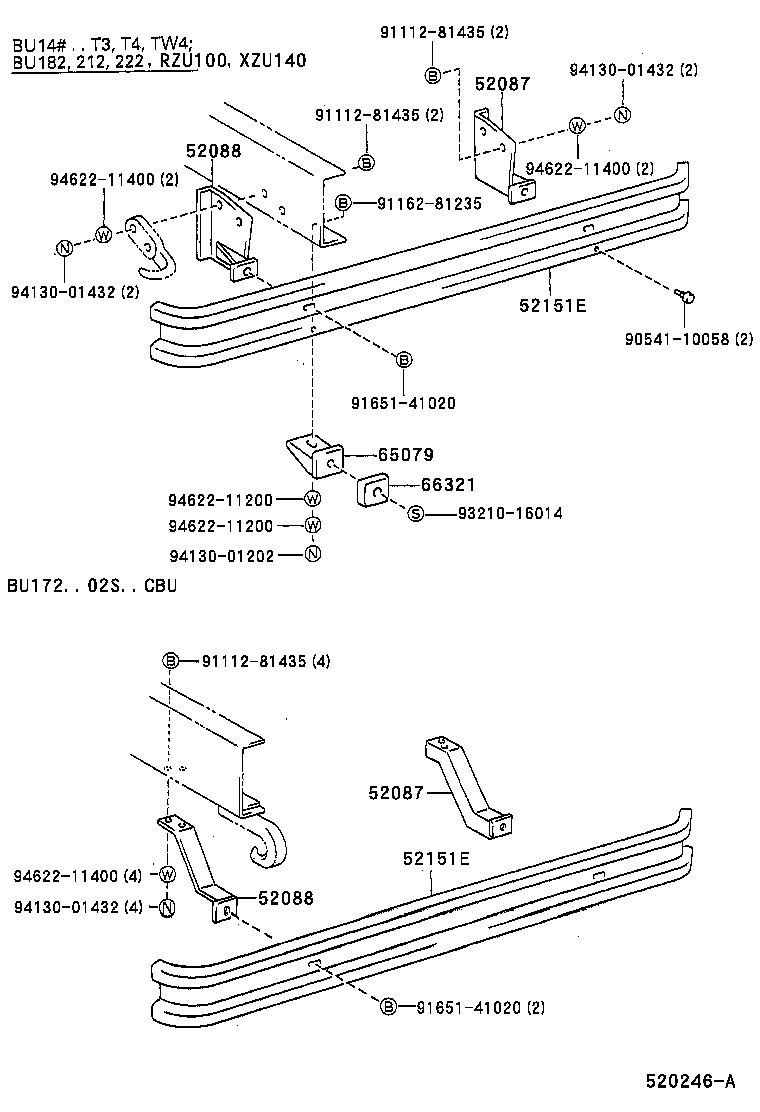

Figure MBY828 MBY828 1995-05 → — Figure MBY829 MBY829 1995-05 → — Figure MBY829 MBY829 1995-10 → — Figure 520246A 520246A 1995-05 → — Figure 520247 520247 1995-05 → — Figure MBY832A MBY832A 1995-05 → — Figure MBY833A MBY833A 1995-05 → — Figure 520248 520248 1995-05 → — Figure 520245 520245 1995-05 → — Figure 520262 520262 1997-08 → —

Part groups

PNCDescription
52087 Stay Sub-assy, Rear Bumper Side, RH
52088 Stay Sub-assy, Rear Bumper Side, LH
52150 Bumper Assy, Rear RH
52151E Bar, Rear Bumper
52160 Bumper Assy, Rear LH
52175B Reinforcement, Rear Bumper, NO.5
65079 Bracket Sub-assy, Tail Gate Bumper Stop
66321 Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
