Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

54 part groups · 18 illustrations

Illustrations

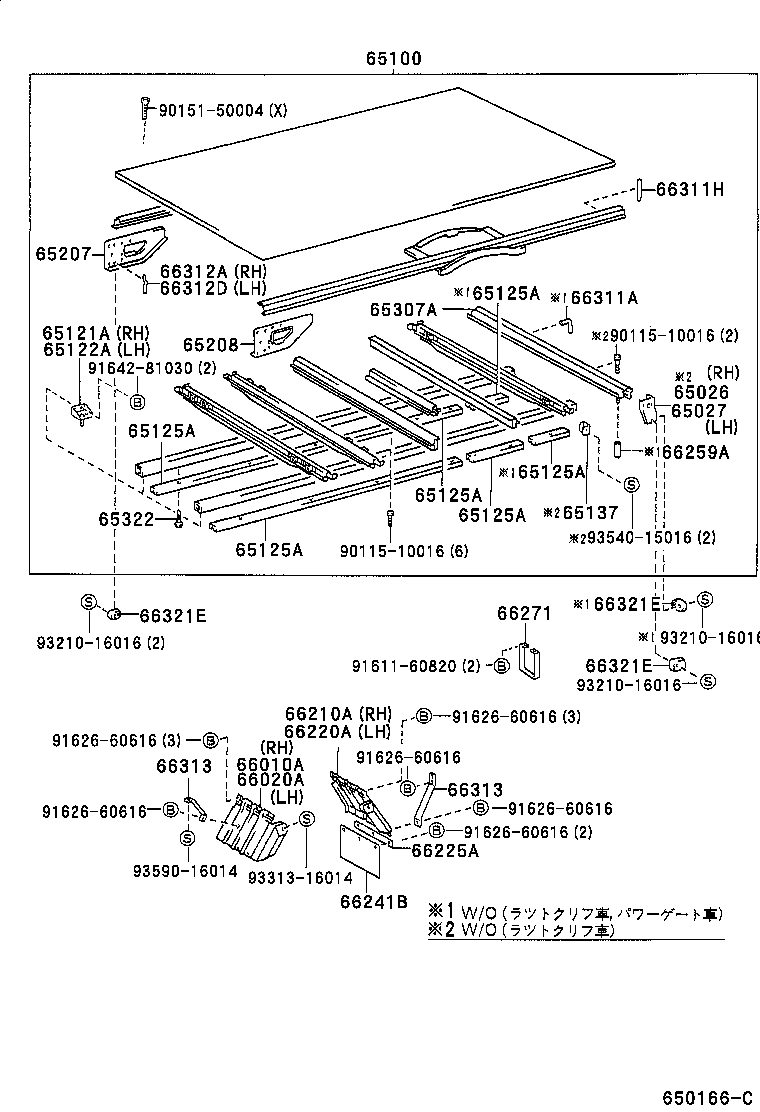

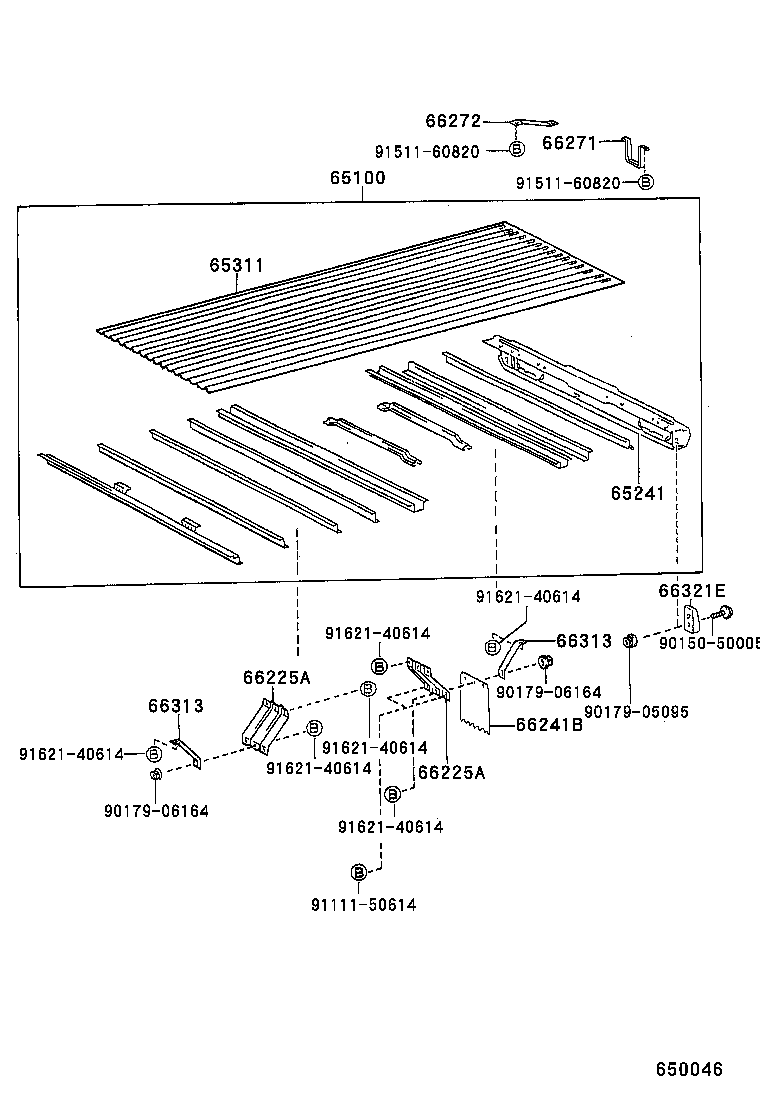

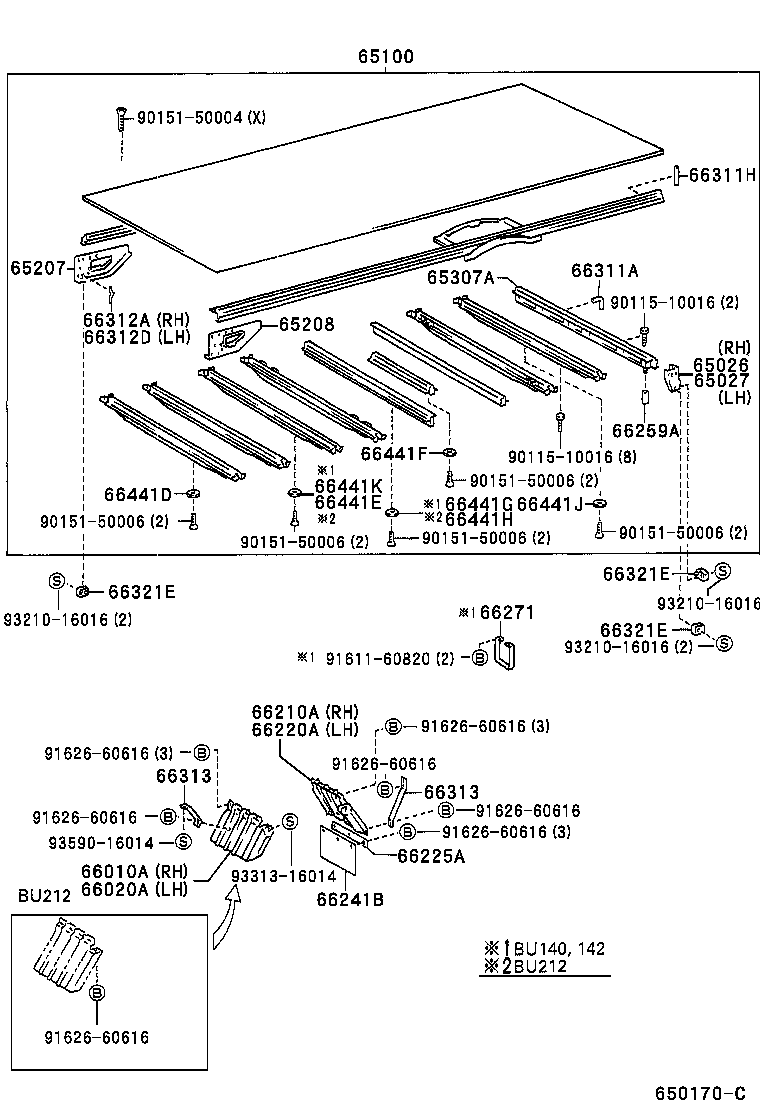

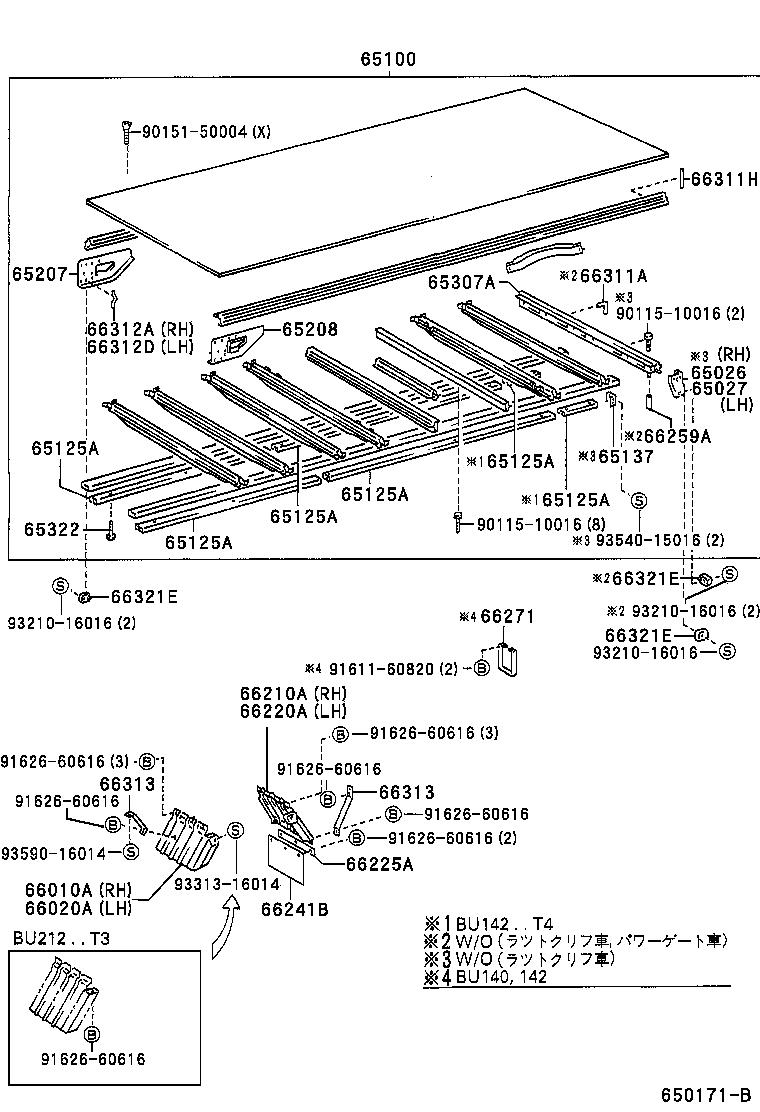

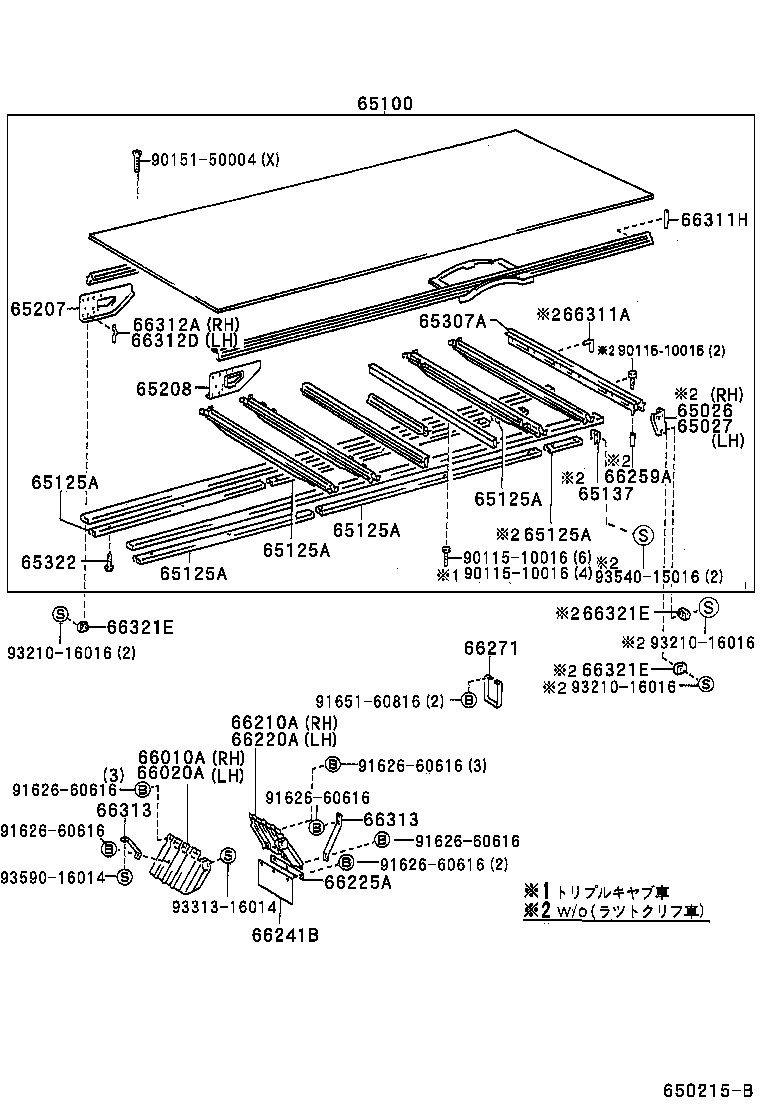

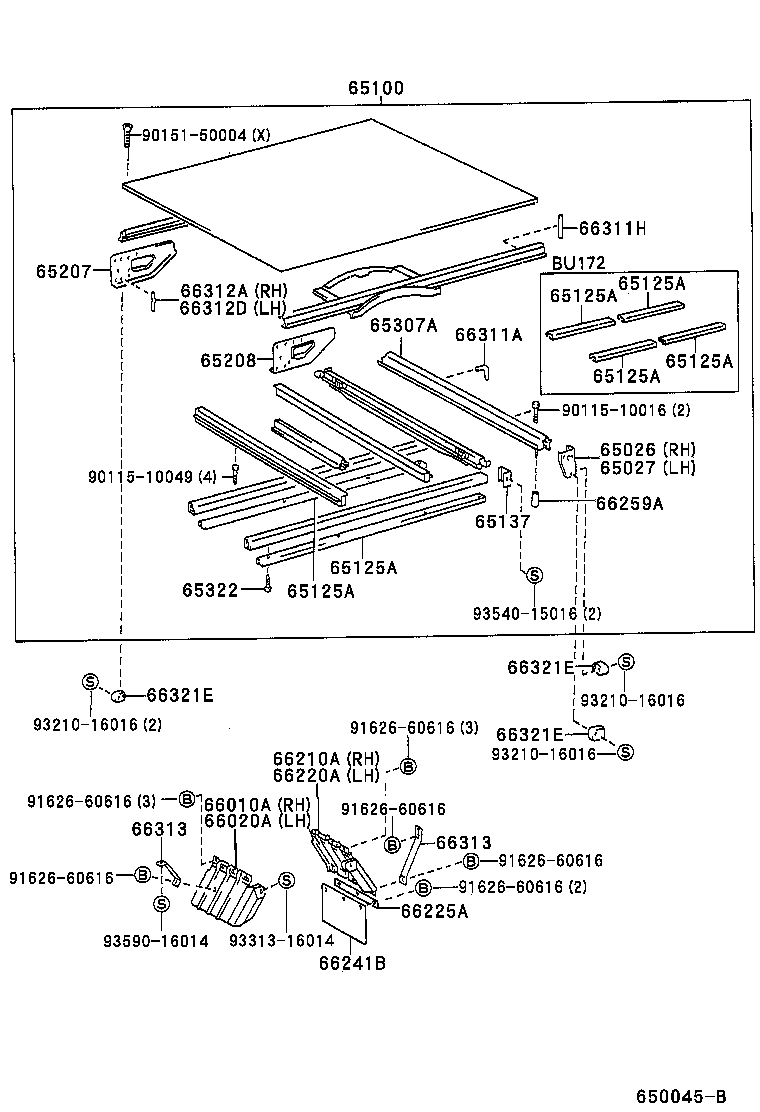

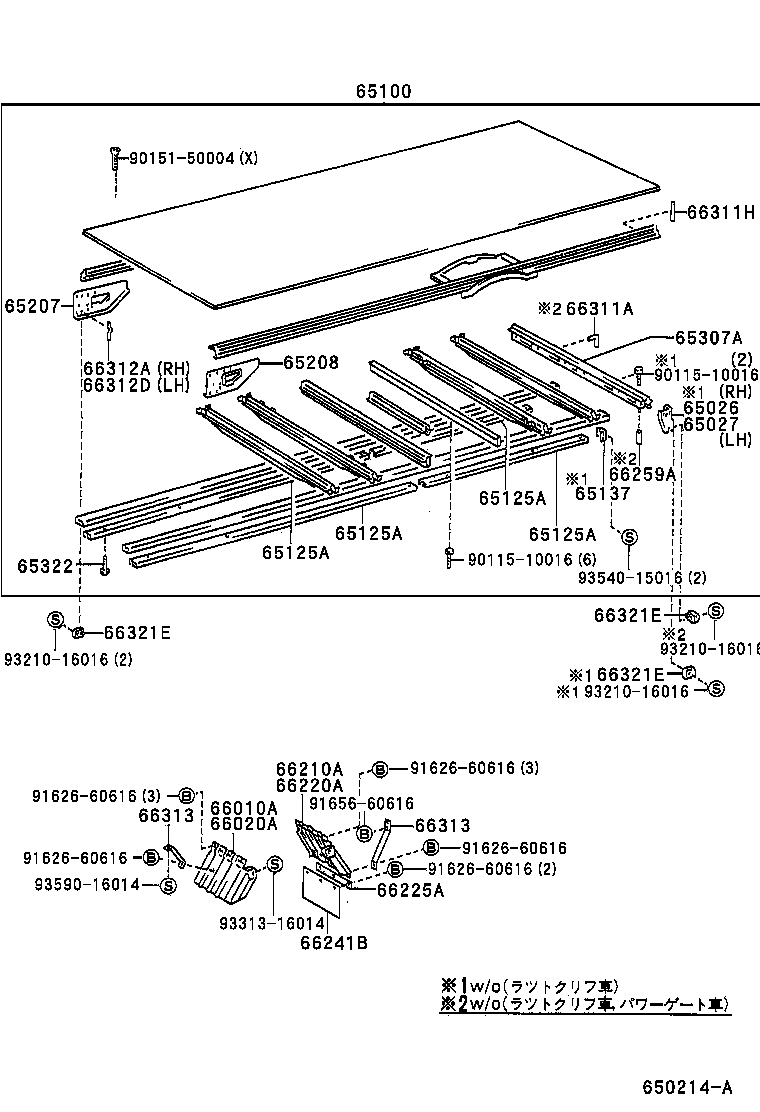

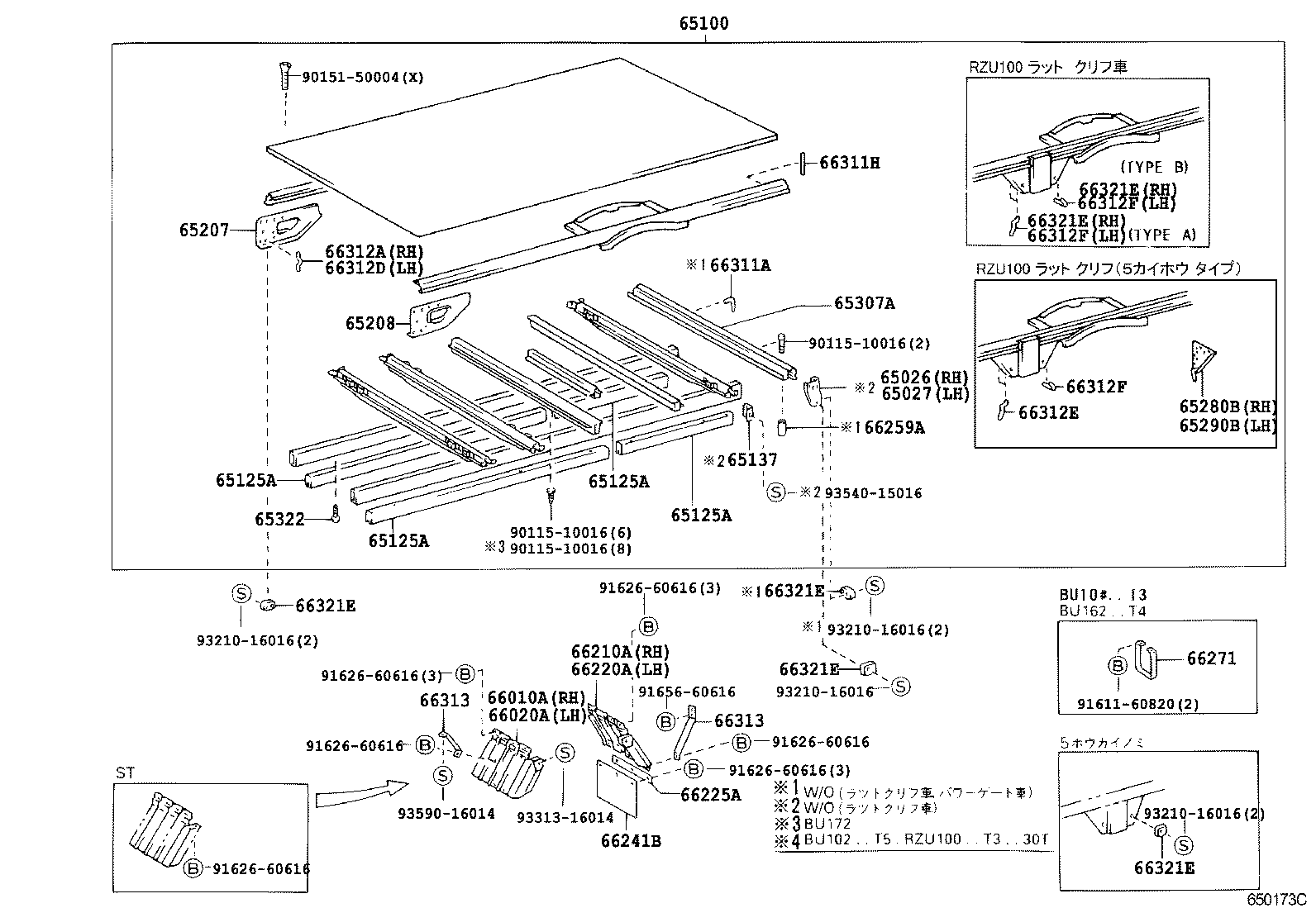

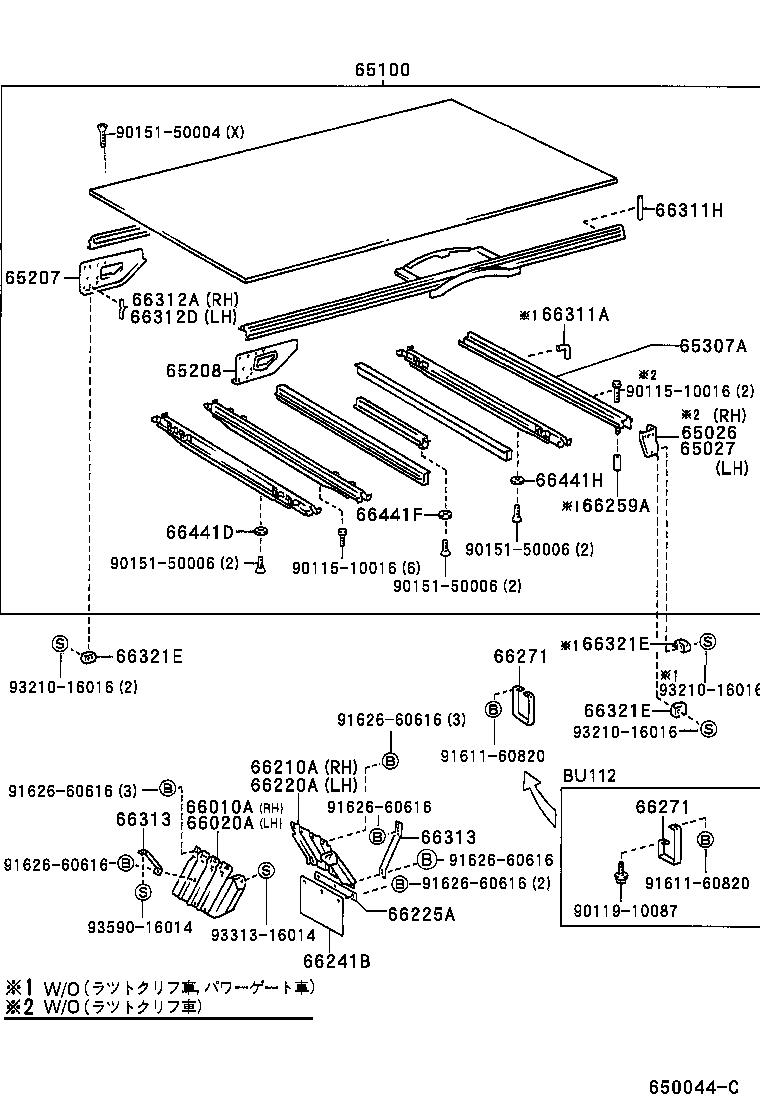

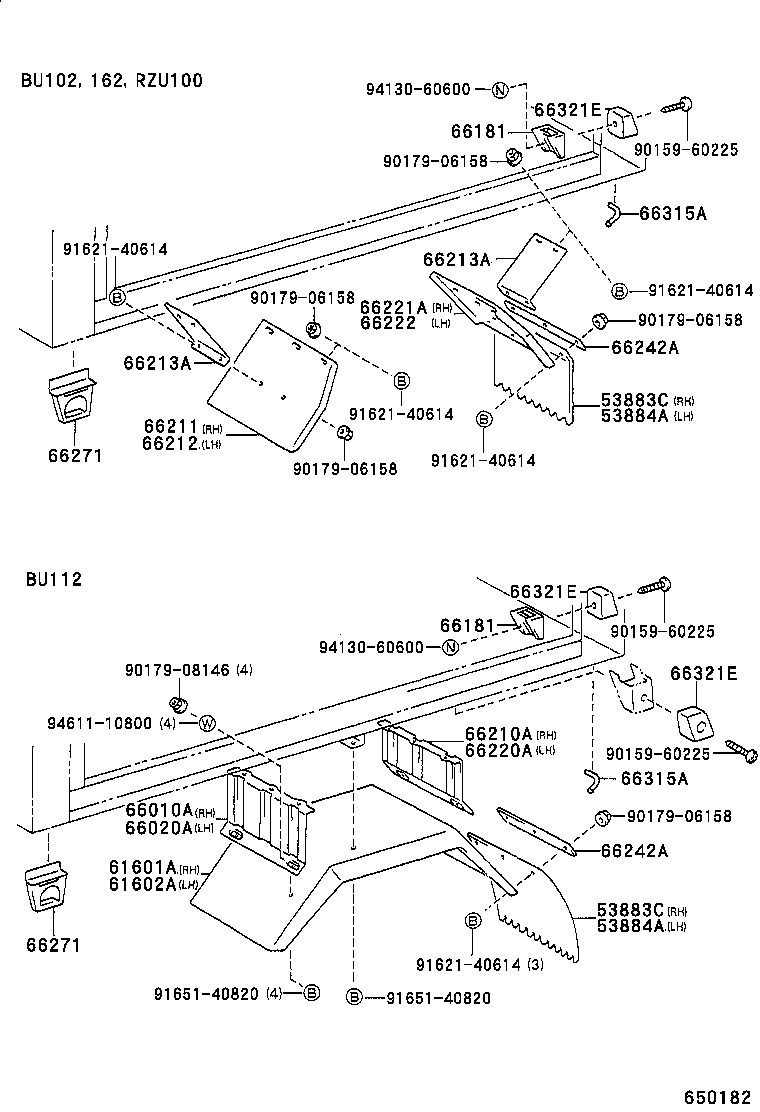

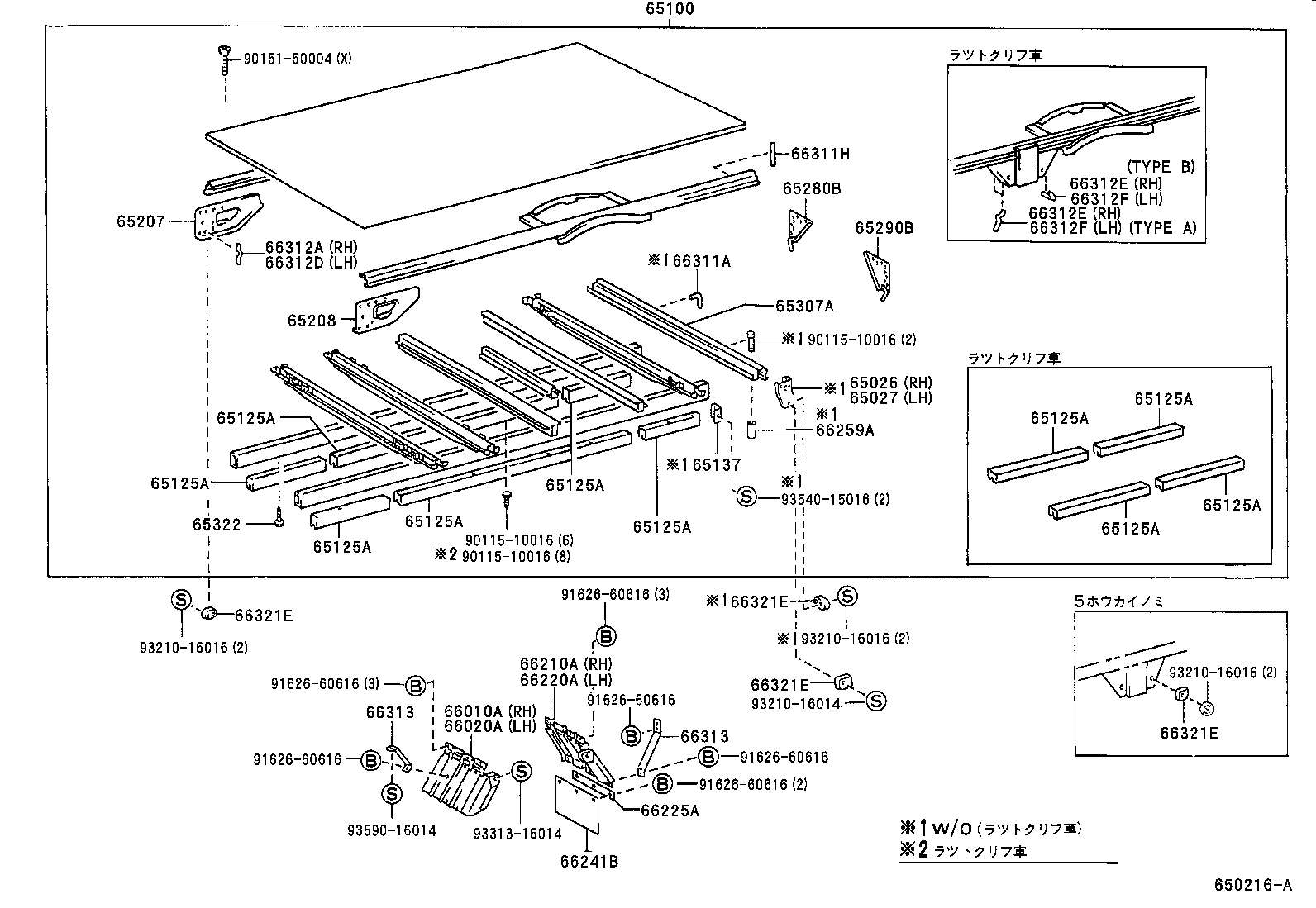

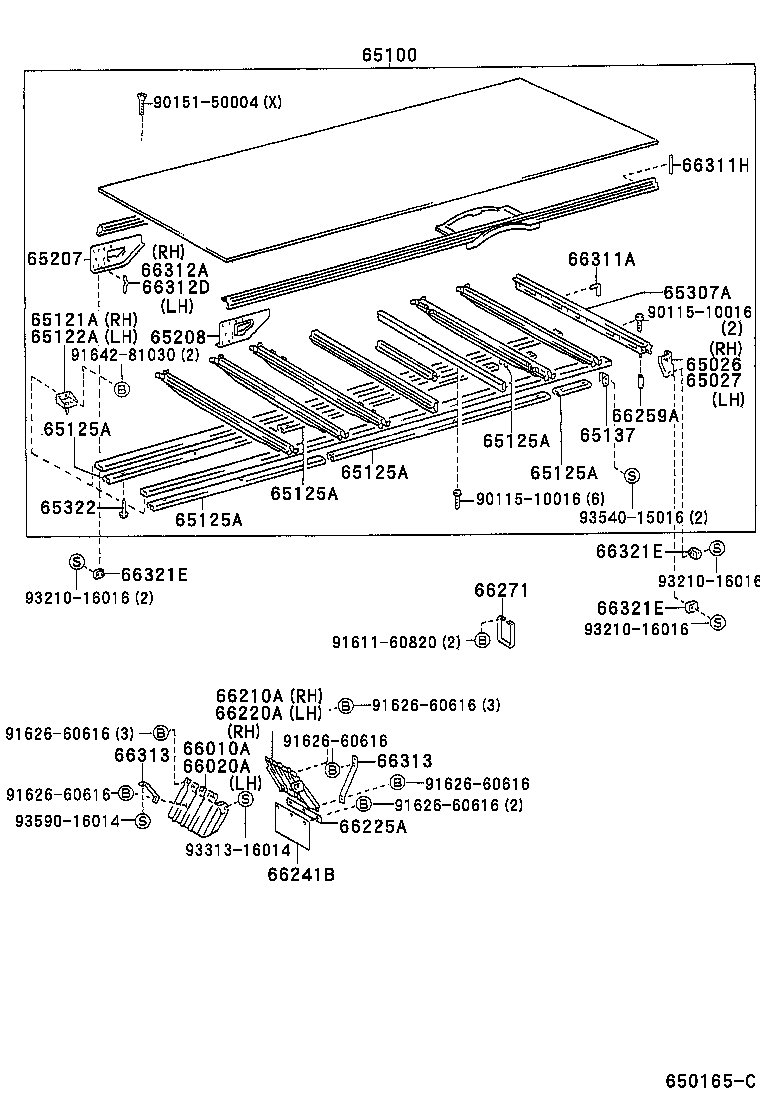

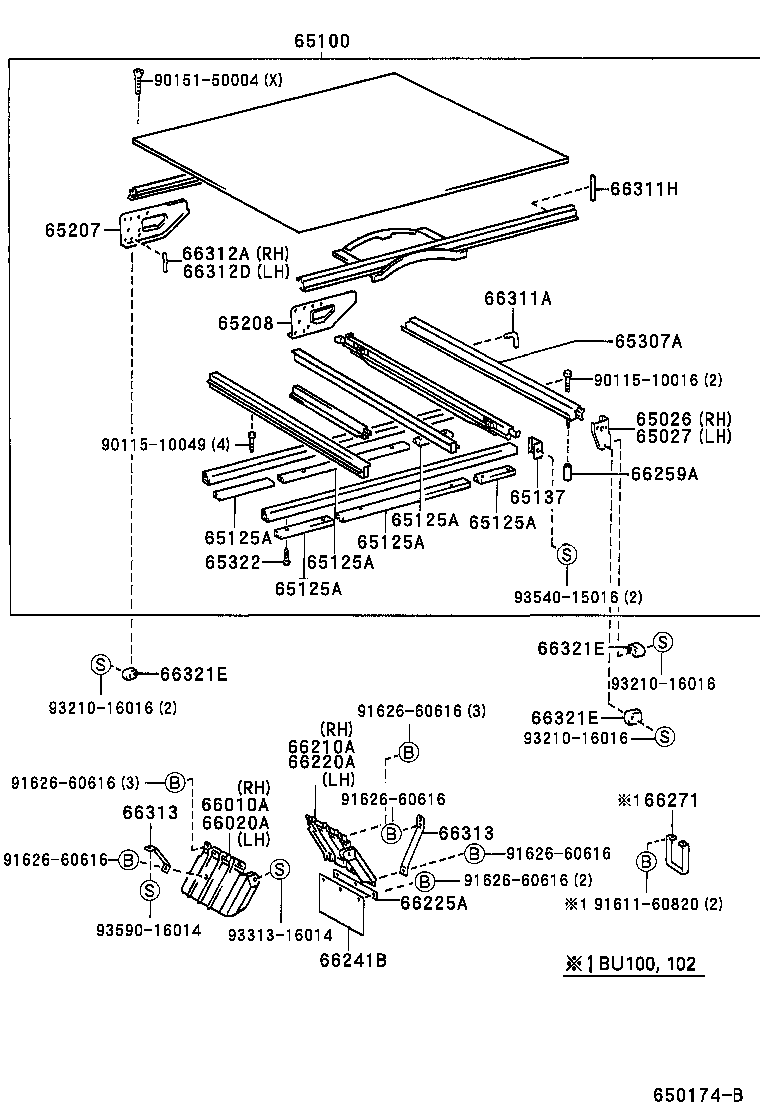

Figure 650168B 650168B 1995-05 → — Figure 650044C 650044C 1995-05 → — Figure 650170C 650170C 1995-05 → — Figure 650171B 650171B 1995-05 → — Figure 650214A 650214A 1995-05 → — Figure 650045B 650045B 1995-05 → — Figure 650173C 650173C 1995-05 → — Figure 650174B 650174B 1995-05 → — Figure 650165C 650165C 1995-05 → — Figure 650215B 650215B 1995-05 → — Figure 650215B 650215B 1996-10 → — Figure 650166C 650166C 1995-05 → — Figure 650216A 650216A 1995-05 → — Figure 650046 650046 1995-05 → — Figure 650182 650182 1995-05 → — Figure MBY822A MBY822A 1995-05 → 1998-07 Figure 650195 650195 1998-07 → — Figure MBZ817A MBZ817A 1995-10 → —

Part groups

PNCDescription
53883C Mudguard, Fender, RH
53884A Mudguard, Fender, LH
61601A Fender Sub-assy, Rear, RH
61602A Fender Sub-assy, Rear, LH
65026 Bracket Sub-assy, Gate Rubber Bumper, RH
65027 Bracket Sub-assy, Gate Rubber Bumper, LH
65100 Floor Assy, Rear Body
65121A Bracket, Main Sill Mounting, NO.1
65122A Bracket, Main Sill Mounting, NO.2
65125A Shim, Main Sill, Lower NO.1
65137 Cover, Main Sill End
65207 Bracket Sub-assy, Guard Frame, RH
65208 Bracket Sub-assy, Guard Frame, LH
65241 Sill, Rear Cross
65280B Bracket Assy, Center Post, RH
65290B Bracket Assy, Center Post, LH
65307A Frame Sub-assy, Floor, Rear
65311 Panel, Floor, Center
65322 Nail
66010A Fender Assy, Rear NO.2 RH
66020A Fender Assy, Rear NO.2 LH
66181 Bracket, Tail Gate Stopper
66210A Fender Assy, Rear NO.1 RH
66211 Plate, Rear Fender, NO.1
66212 Plate, Rear Fender, NO.2
66213A Stay, Rear Fender, NO.1
66220A Fender Assy, Rear NO.1 LH
66221A Plate, Rear Fender, Rear RH
66222 Plate, Rear Fender, Rear LH
66225A Support, Baffle Rubber
66236A Stay, Rear Fender, NO.2
66237 Bracket, Rear Fender, NO.1
66238A Bracket, Rear Fender, NO.2
66241B Baffle, Rubber
66242A Plate, Baffle Rubber
66259A Cover, Rear Body Floor, Rear
66271 Step, Rear Body
66272 Stay, Rear Body Step
66311A Hook, Rope, NO.1
66311H Hook, Rope
66312A Hook, Rope, NO.2
66312D Hook, Rope, NO.2
66312E Hook, Rope, NO.2
66312F Hook, Rope, NO.2
66313 Support, Rear Fender
66315A Hook, Rope
66321E Bumper, Gate Rubber
66441D Shim, Mounting, NO.1
66441E Shim, Mounting, NO.1
66441F Shim, Mounting, NO.1
66441G Shim, Mounting, NO.1
66441H Shim, Mounting, NO.1
66441J Shim, Mounting, NO.1
66441K Shim, Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
