Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

32 part groups · 9 illustrations

Illustrations

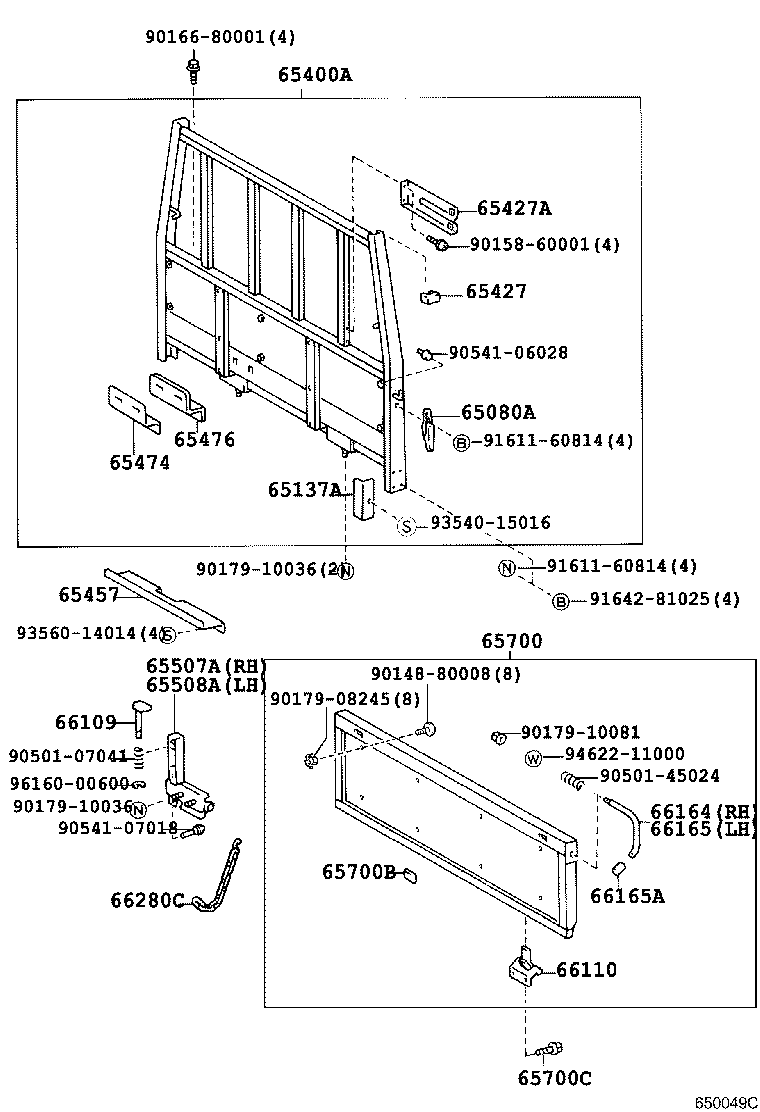

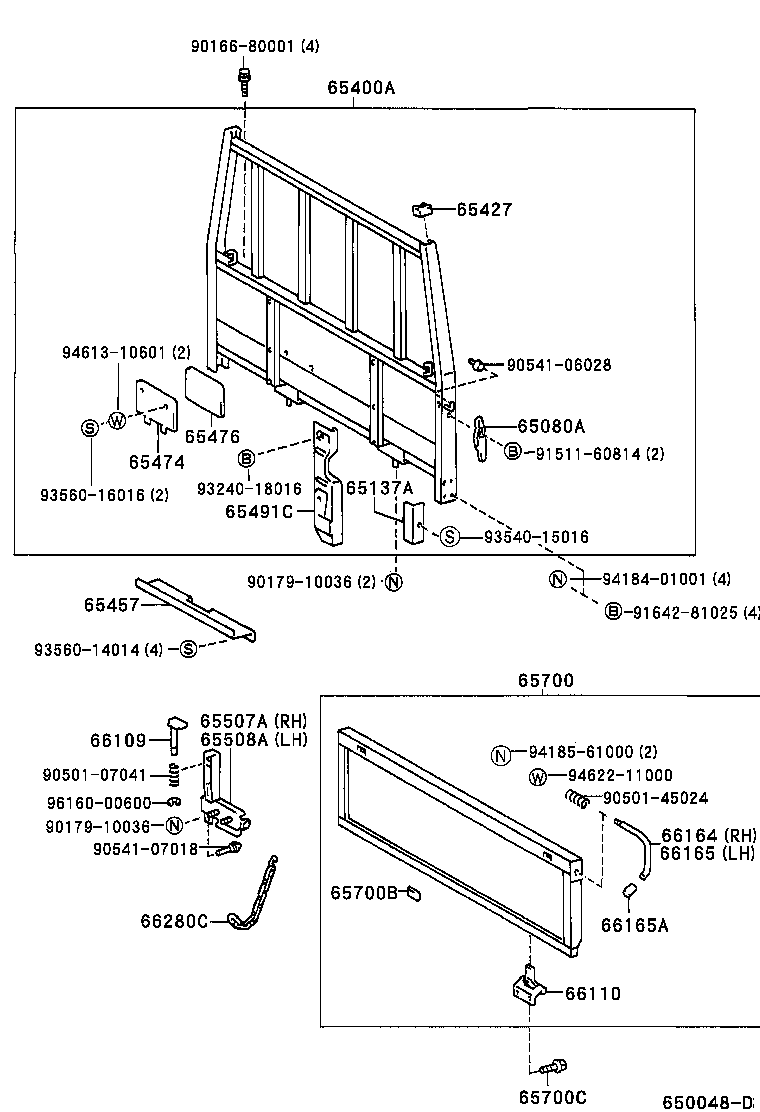

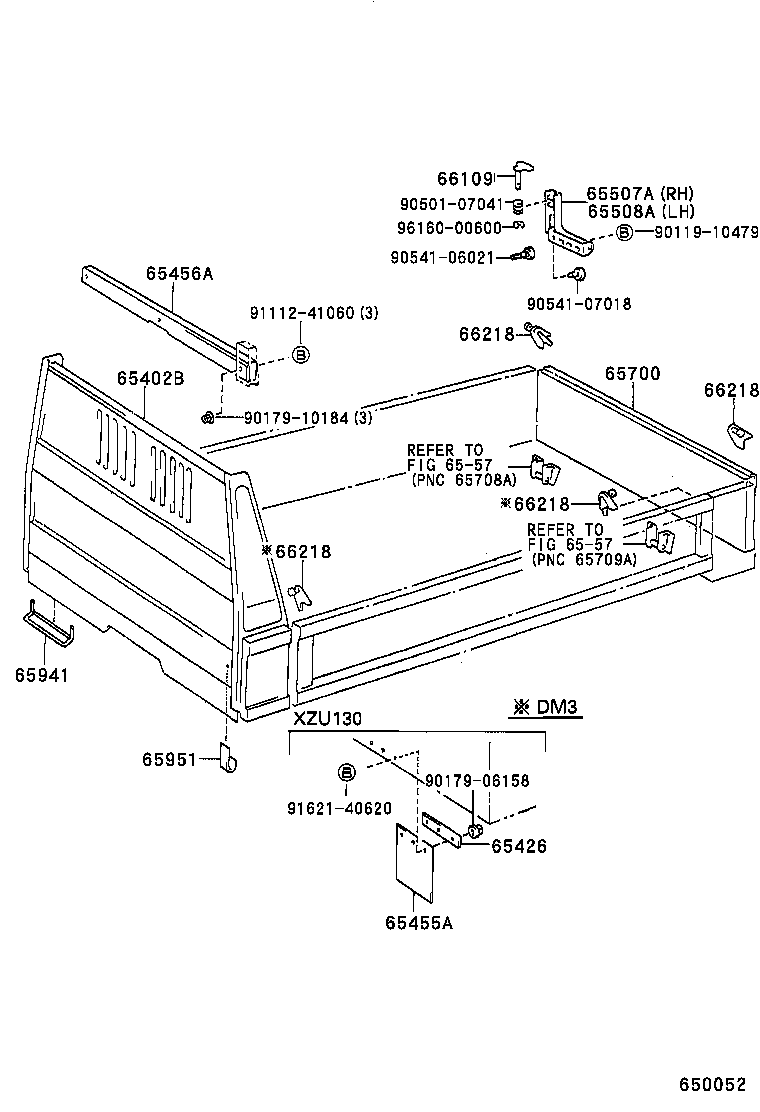

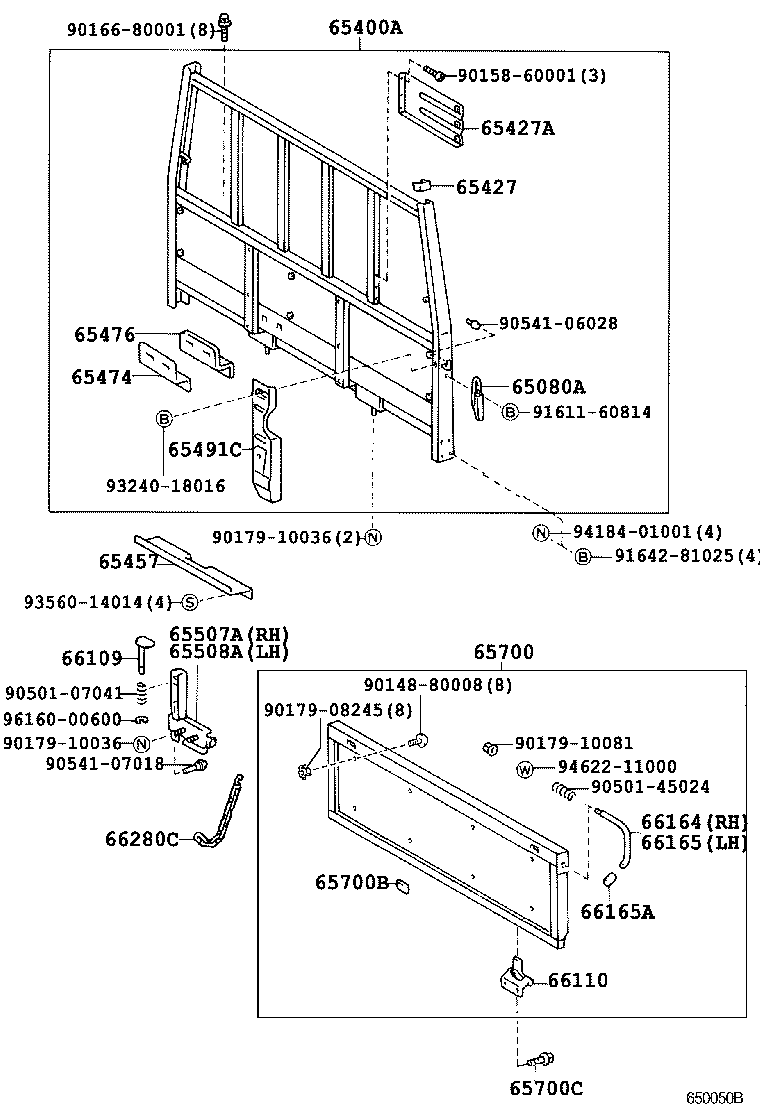

Figure 650047B 650047B 1995-05 → — Figure 650047B 650047B 1995-05 → — Figure 650047B 650047B 1996-10 → — Figure 650048D 650048D 1995-05 → — Figure 650048D 650048D 1996-10 → — Figure 650049C 650049C 1995-05 → — Figure 650050B 650050B 1995-05 → — Figure 650051A 650051A 1995-05 → — Figure 650052 650052 1995-05 → —

Part groups

PNCDescription
65080A Handle Assy, Side Gate Latch
65137A Cover, Main Sill End
65400A Guard Assy, Rear Body
65402B Frame Sub-assy, Rear Body
65426 Plate, Rear Body Guard
65427 Cover, Guard Frame
65427A Plate, Rear Body Guard, LH
65455A Baffle, Dust Rear Body
65456A Protector, Header Bord
65457 Plate, Baffle Dust Rear Body
65474 Insulator, Header
65476 Insulator, Header Board, NO.2
65491A Stop, Guard Frame Load Slide, RH
65491C Protector, Guard Flame, Lower
65492A Stop, Guard Frame Load Slide, LH
65507A Support Sub-assy, Corner, RH
65508A Support Sub-assy, Corner, LH
65700 Gate Assy, Rear Body Tail
65700B Plug, Hole(FOR TAIL GATE)
65700C Bolt, W/Washer(FOR TAIL GATE)
65941 Stopper, Shovel
65951 Clamp, Shovel
66109 Handle Sub-assy, Side Gate Support Corner
66110 Hinge Assy, Tail Gate
66121A Bolt, Tail Gate Male
66164 Handle, Tail Gate Latch, RH
66165 Handle, Tail Gate Latch, LH
66165A Cap, Gate Latch Handle
66170 Latch Assy, Rear Body Tail Gate
66218 Bracket, Tail Gate Latch Pin
66280C Chain Assy, Tail Gate
66311D Hook, Rope
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
