Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01

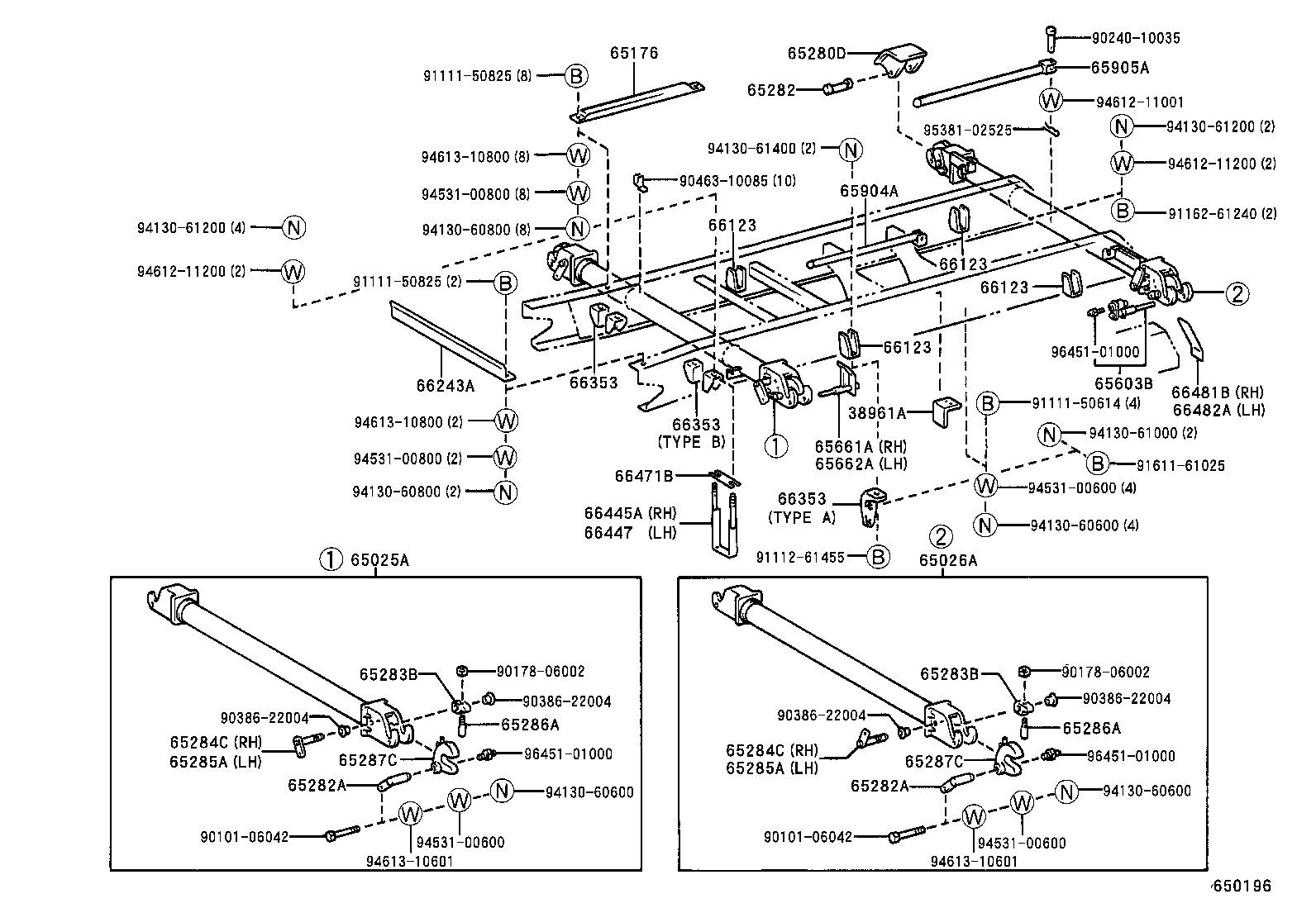

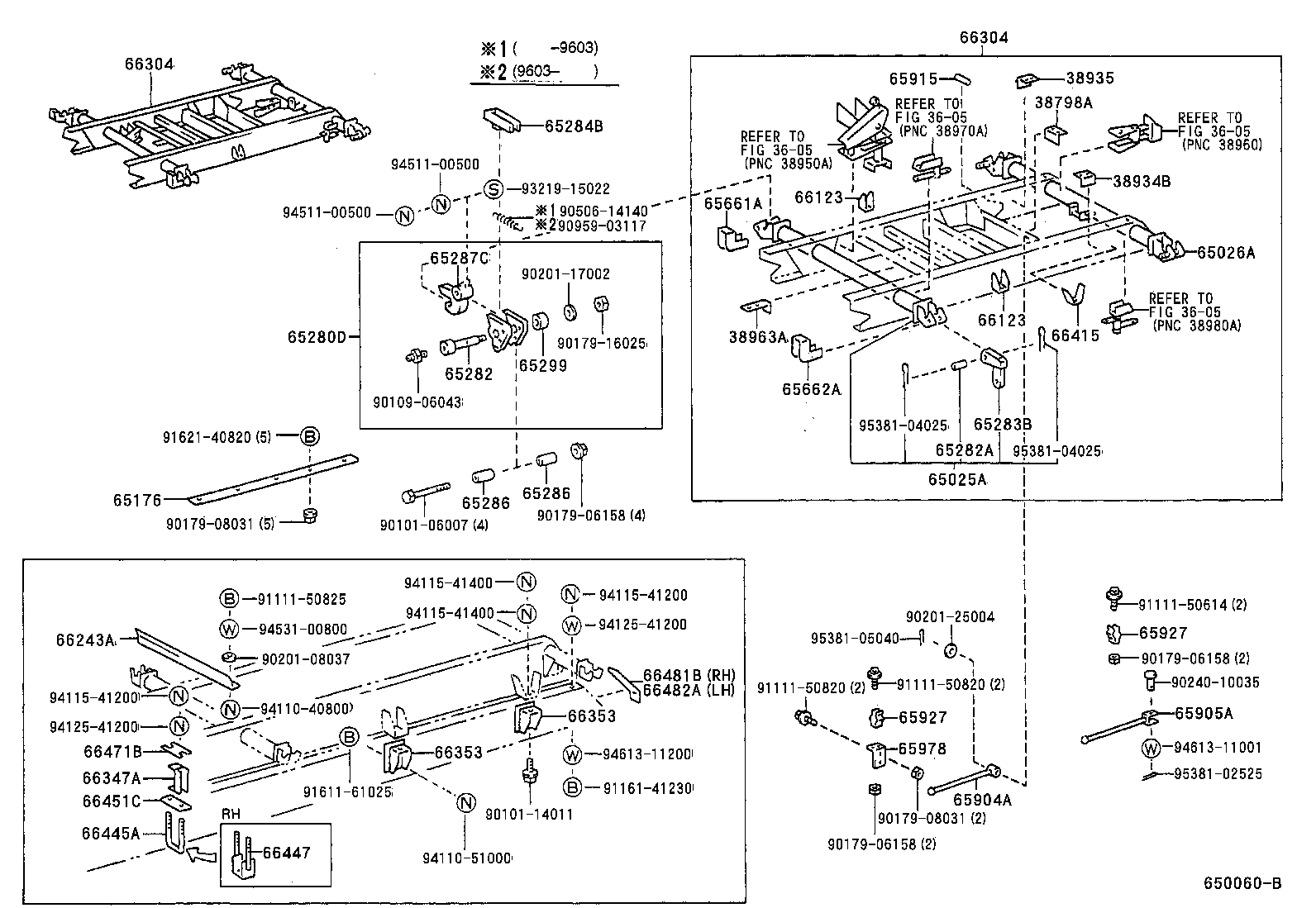

Rear Body Sub Frame

47 part groups · 4 illustrations

PNC	Description
38798A	Bracket, U Bolt Support
38934B	Stay, Valve Control Lever Bracket
38935	Stay, Valve Control Lever Bracket, NO.2
38961A	Bracket, Cable Clamp, NO.1
38963A	Bracket, Cable Clamp, NO.8
51221A	Crossmember, Frame, NO.2
65025A	Hinge Sub-assy, Vessel, Front
65026A	Hinge Sub-assy, Vessel
65176	Sill, Bessel Rail, Front
65178	Sill, Bessel Rail, Rear
65280D	Hinge Sub-assy, Vessel, Front
65281	Bracket, Bezel Hinge
65282	Shaft, Bezel Hinge
65282A	Shaft, Vessel Hinge Stopper
65283	Stopper, Bezel Hinge Shaft
65283B	Stopper, Vessel Hinge Hook
65284B	Suppoter, Hinge Bracket, Rear
65284C	End, Vessel Hinge Shaft, NO.1
65285A	End, Vessel Hinge Shaft, NO.2
65286	Pipe, Vessel Hinge Shaft
65286A	Pin, Vessel Hinge Stopper
65287C	Hook, Vessel Hinge
65299	Collar, Vessel Hinge
65603B	Roller Sub-assy, Lock
65661A	Guide, Roller, RH
65662A	Guide, Roller, LH
65663A	Guide, Vessel
65904A	Bar Sub-assy, Vessel Stand
65905A	Bar Sub-assy, Vessel
65915	Pin, Bezel Stand
65927	Clip, Bar
65977	Bracket, Vessel Stand
65978	Bracket, Vessel Stand
66123	Bracket, Sub-frame Mounting
66243A	Protector, Rear Body, NO.1
66304	Frame Sub-assy, Sub
66347A	Gusset, Chassis Rail
66353	Bracket, Sub Frame
66357	Bracket, Sub Frame Set, NO.1
66358A	Bracket, Sub Frame Set, NO.2
66415	Bracket, Shim Mounting
66445A	Brace, Frame TO RR
66447	Brace, Frame TO Rear Body Floor
66451C	Plate, U Bolt
66471B	Reinforcement, Frame U Bolt
66481B	Plate, Blank, RH
66482A	Plate, Blank, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
