Toyota Dyna 200/Toyoace G25
1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan
Discontinued model
Data version 2001-01

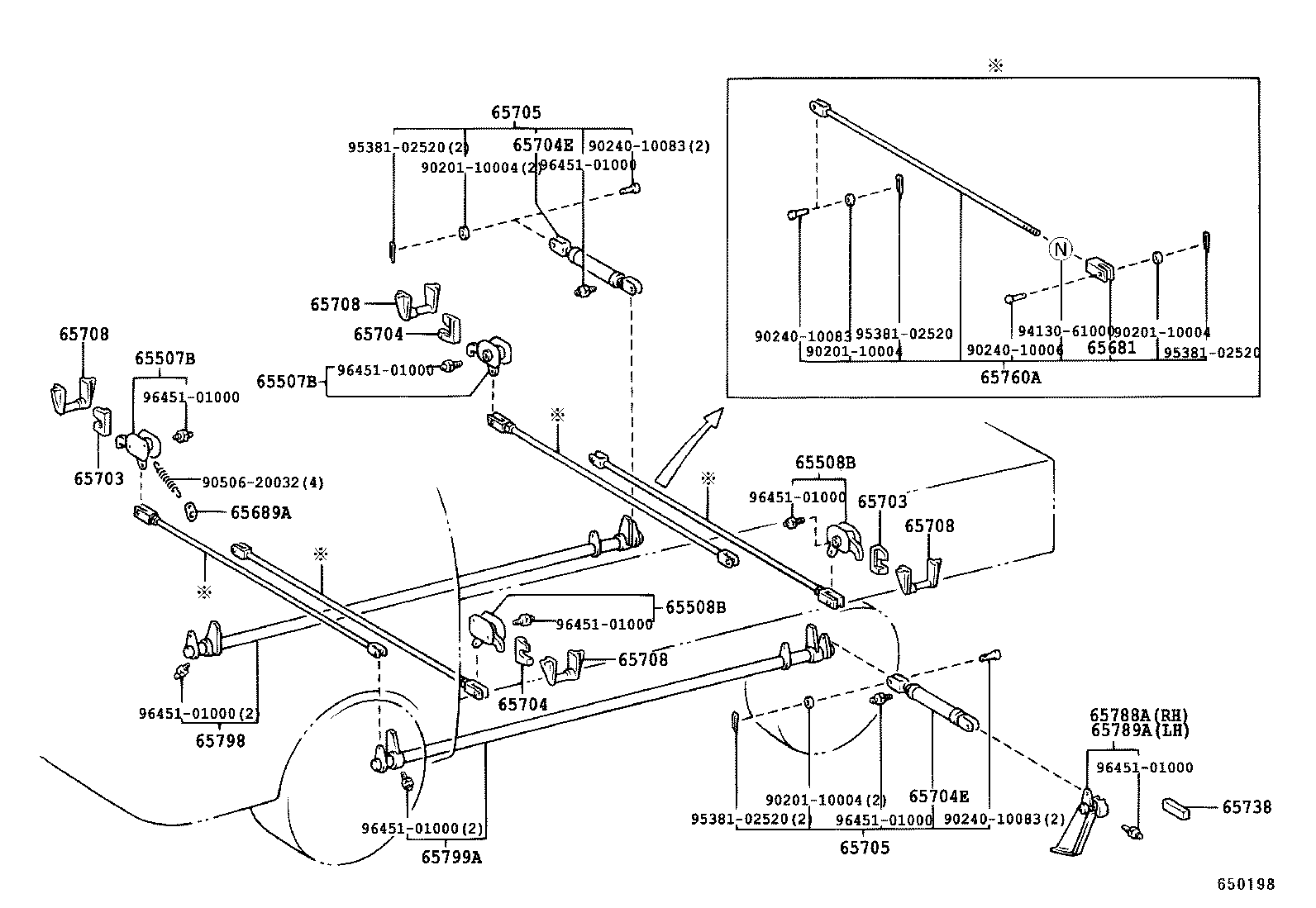

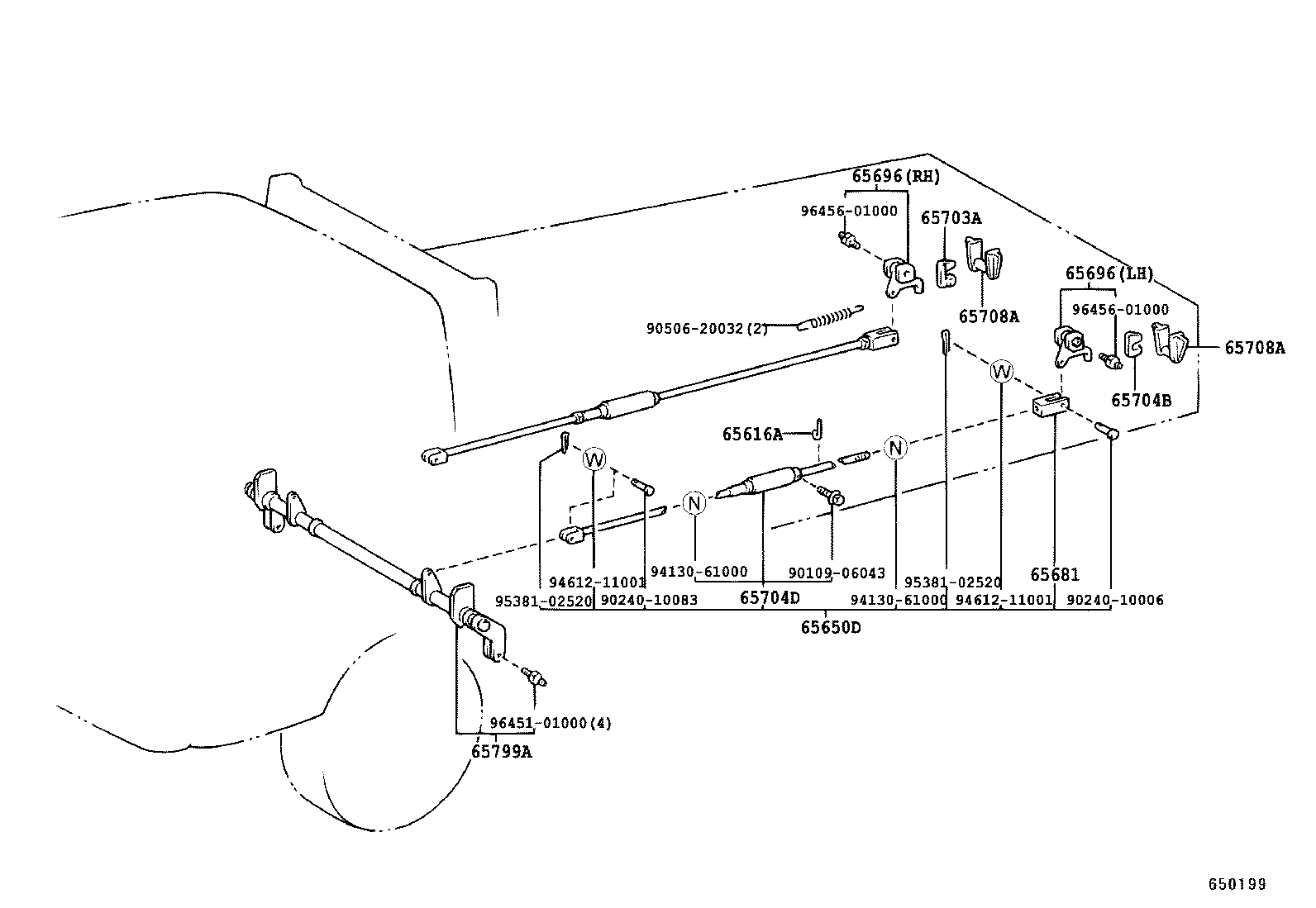

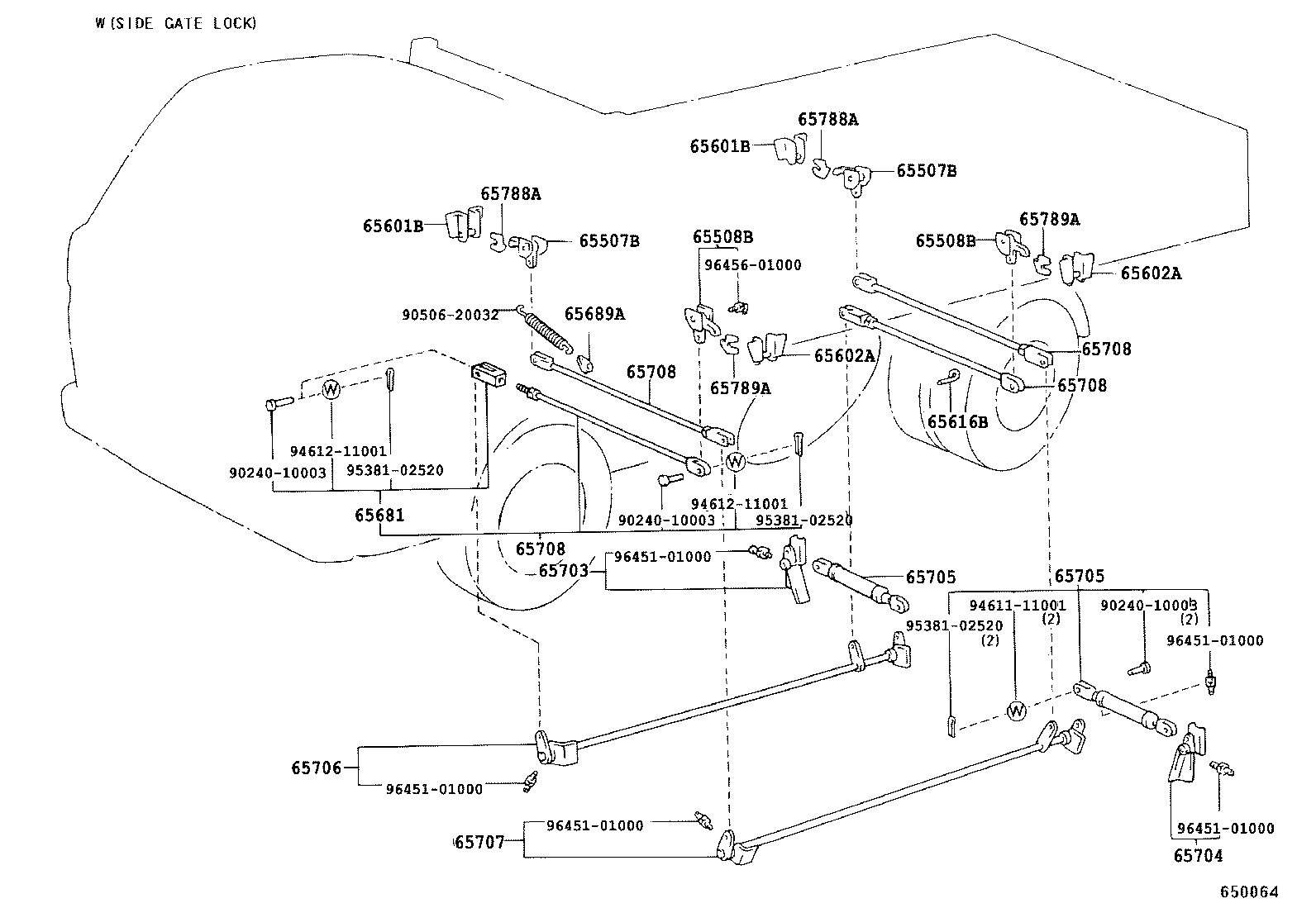

Rear Body Side Gate Lock & Tail Gate Lock
38 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 65305 | Lock Sub-assy, Bezel, RH |
| 65306 | Lock Sub-assy, Bezel, LH |
| 65365 | Guide, Vessel Lock, RH |
| 65366 | Guide, Vessel Lock, |
| 65507B | Support, Corner, RH |
| 65508B | Support, Corner, LH |
| 65601B | Skirt Sub-assy, Side Panel |
| 65602A | Skirt Sub-assy, Side |
| 65603A | Arm Assy, Tail Gate Lock Roller, RH |
| 65604B | Arm Assy, Tail Gate Lock Roller, LH |
| 65605H | Link Sub-assy, Tail Gate Lock W/ Spring |
| 65616A | Guide, Rod Assy Support |
| 65616B | Guide |
| 65650D | Shaft Assy, Tail Gate C |
| 65651B | Shaft, Tail Gate Lock |
| 65672E | Roller, Tail Gate Lock |
| 65681 | End, Tail Gate Lock Link |
| 65689A | Bracket |
| 65696 | Latch, Tail Gate Lock |
| 65703 | Com Lever Assy, Side Gate Auto Lock Mechanism, RH |
| 65703A | Guide Sub-assy, Tail Gate Lock Hinge, RH |
| 65704 | Com Lever Assy, Side Gate Auto Lock Mechanism, LH |
| 65704B | Guide Sub-assy, Tail Gate Lock Hinge, LH |
| 65704D | Link Sub-assy, Tail Gate Lock Control |
| 65704E | Link Sub-assy, Tail Gate Lock Control |
| 65705 | Link Sub-assy, Side Gate Lock |
| 65706 | Shaft Assy, Side Gate Link Control, RH |
| 65707 | Shaft Assy, Side Gate Link Control, LH |
| 65708 | Rod Assy, Side Gate Rod Control |
| 65708A | Bar Sub-assy, Tail Gate Lock, RH |
| 65709A | Bar Sub-assy, Tail Gate Lock, LH |
| 65738 | Stopper, Tail Gate Lock Hinge |
| 65760A | Control Sub-assy, Tail Gate |
| 65788 | Spring, Tail Gate Control Rod Return |
| 65788A | Base, Tail Gate Lock |
| 65789A | Base, Tail Gate Lock |
| 65798 | Link, Tail Gate Lock Control, NO.1 |
| 65799A | Link, Tail Gate Lock Control, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
