Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

28 part groups · 8 illustrations

Illustrations

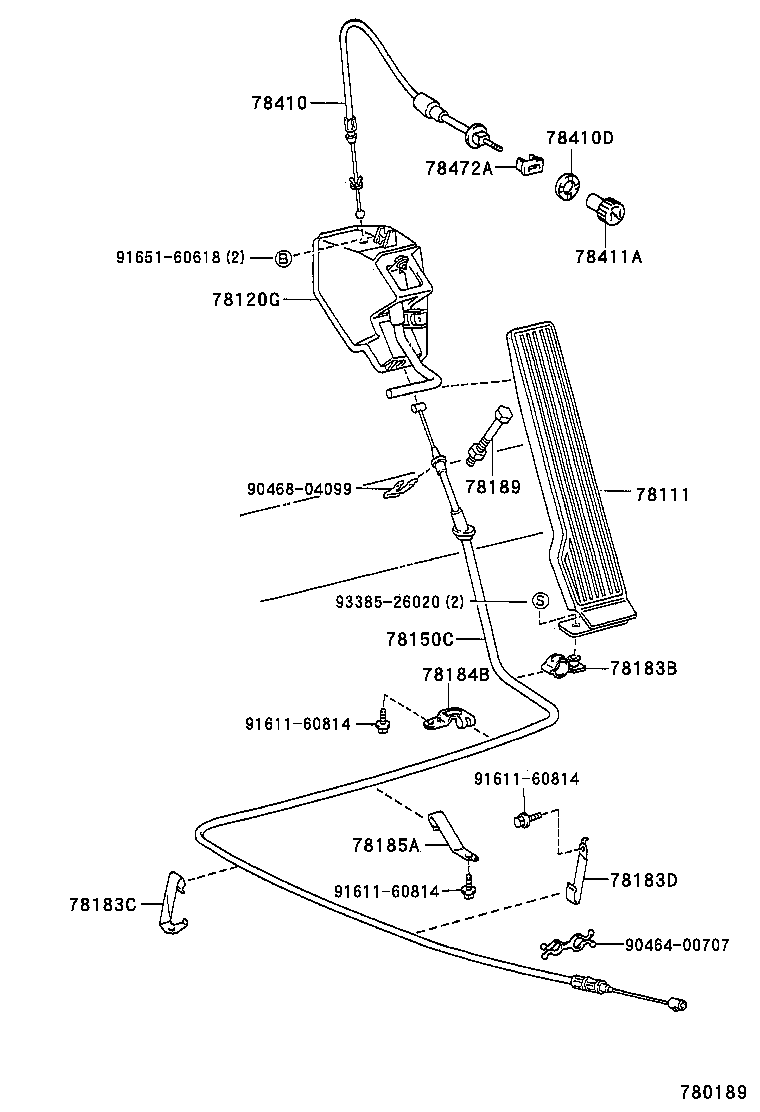

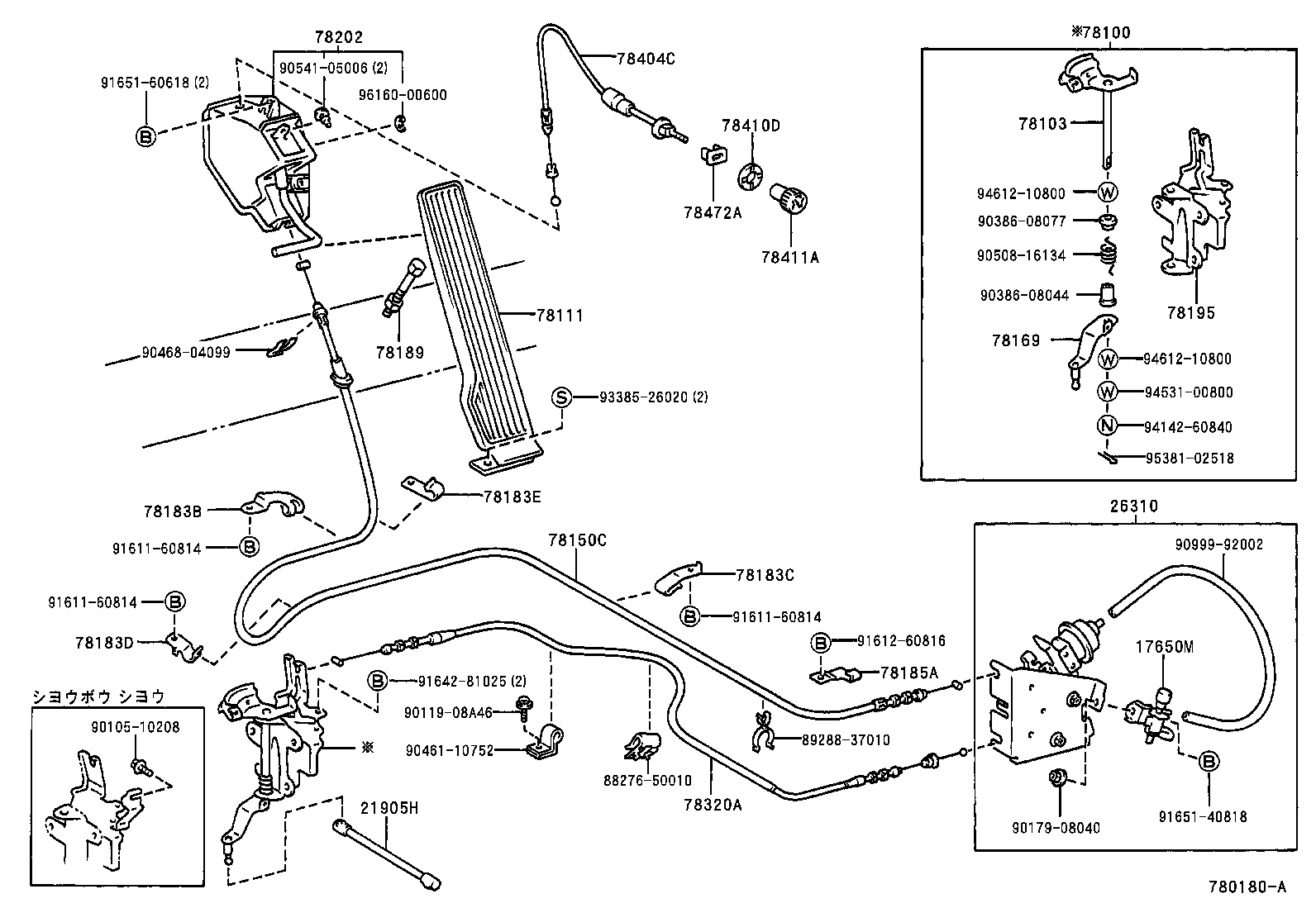

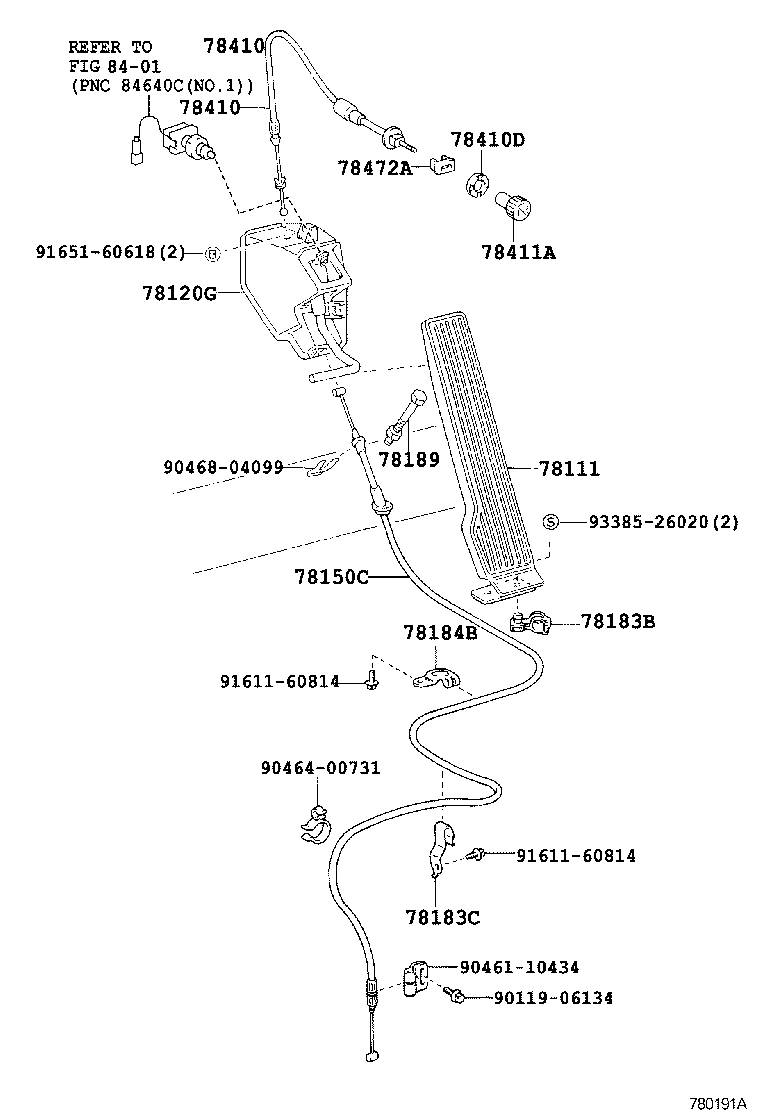

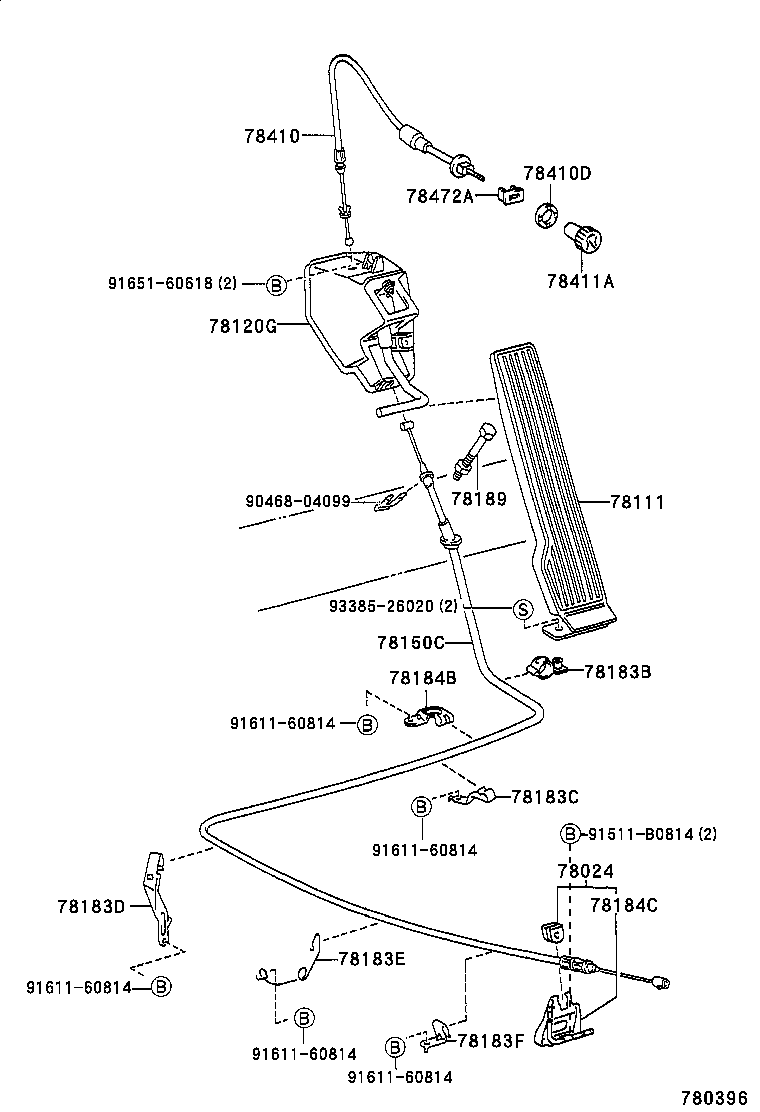

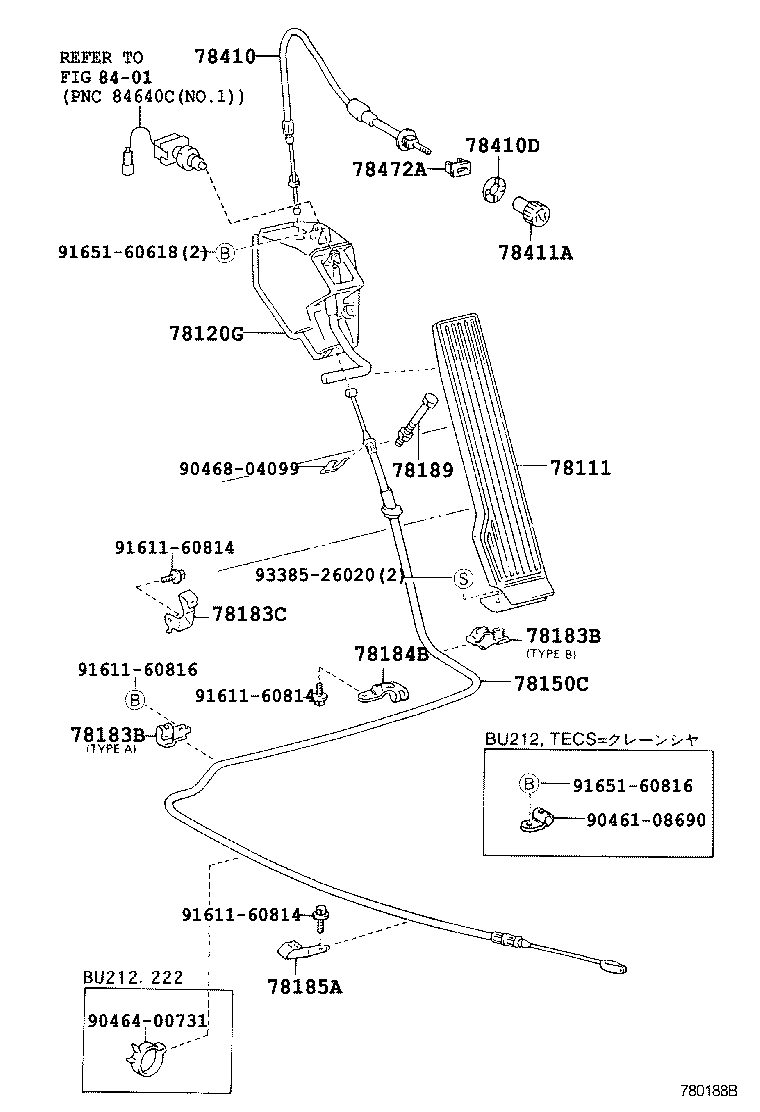

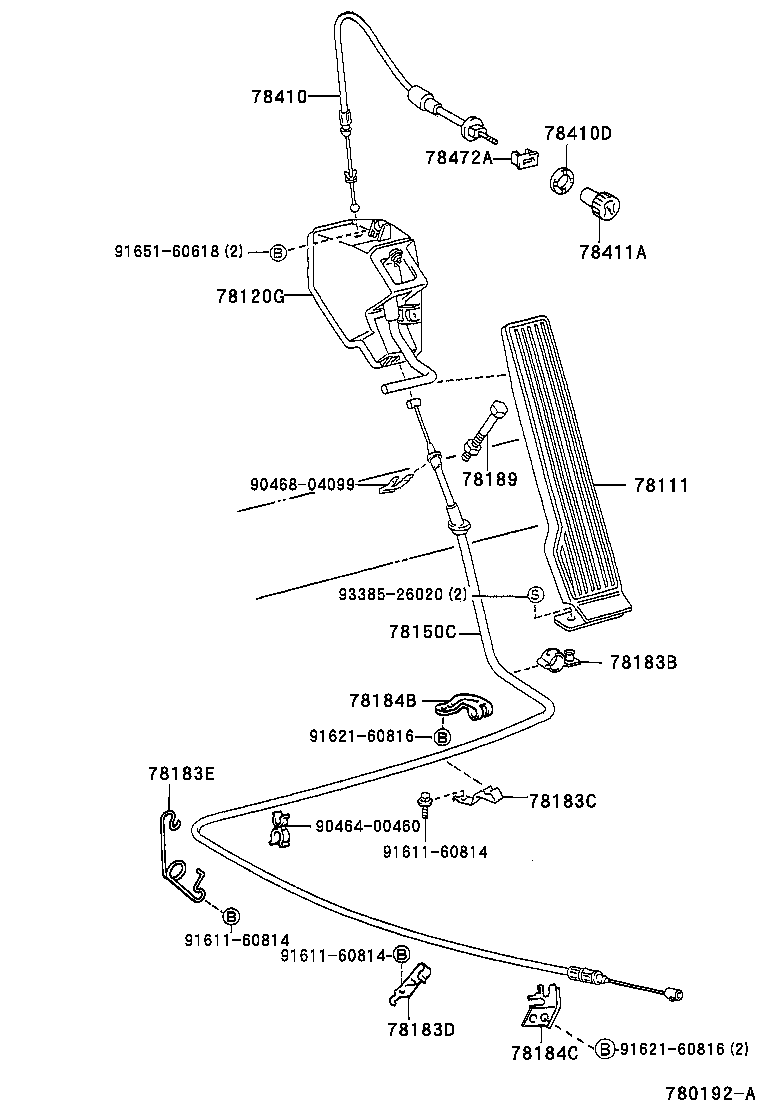

Figure 780187A 780187A 1995-05 → — Figure 780188B 780188B 1995-05 → — Figure 780189 780189 1995-05 → — Figure 780190 780190 1995-05 → — Figure 780396 780396 1995-05 → — Figure 780191A 780191A 1995-10 → — Figure 780192A 780192A 1996-05 → — Figure 780180A 780180A 1997-01 → —

Part groups

PNCDescription
17650M Valve, Vacuum Switching(FOR GOVERNOR)
21905H Rod Sub-assy, Accelerator Connecting
26310 Governor Assy
78024 Bracket Sub-assy, Accelerator Control Cable
78100 Link Assy, Accelerator
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78111 Pedal, Accelerator
78120G Rod Assy, Accelerator Pedal
78129B Seal, Accelerator Pedal Arm
78150C Wire Assy, Accelerator Flexible
78169 Hanger, Accelerator Spring
78183B Clamp, Accelerator Control Cable
78183C Clamp, Accelerator Control Cable
78183D Clamp, Accelerator Control Cable
78183E Clamp, Accelerator Control Cable
78183F Clamp, Accelerator Control Cable
78184B Bracket, Accelerator Control Cable
78184C Bracket, Accelerator Control Cable
78185A Clamp, Accelerator Control Cable, NO.2
78189 Bolt, Accelerator Pedal Stopper
78195 Bracket, Accelerator Link
78202 Link Sub-assy, Accelerator
78320A Cable Assy, Governor Control
78404C Rod Sub-assy, Throttle
78410 Cable Assy, Throttle Control
78410D Nut, Throttle
78411A Knob, Throttle Control Cable
78472A Support, Throttle Control Cable
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
