Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

35 part groups · 21 illustrations

Illustrations

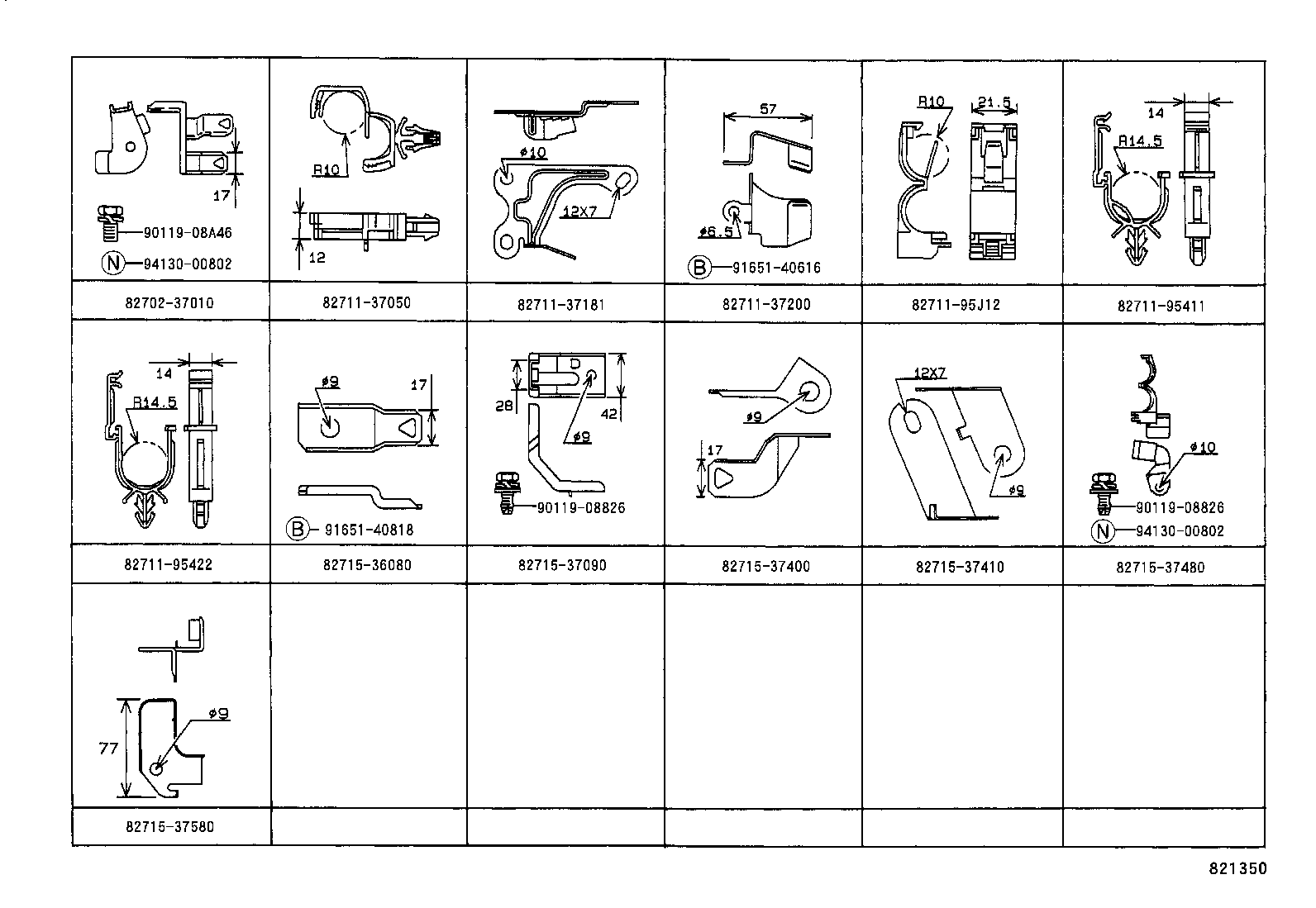

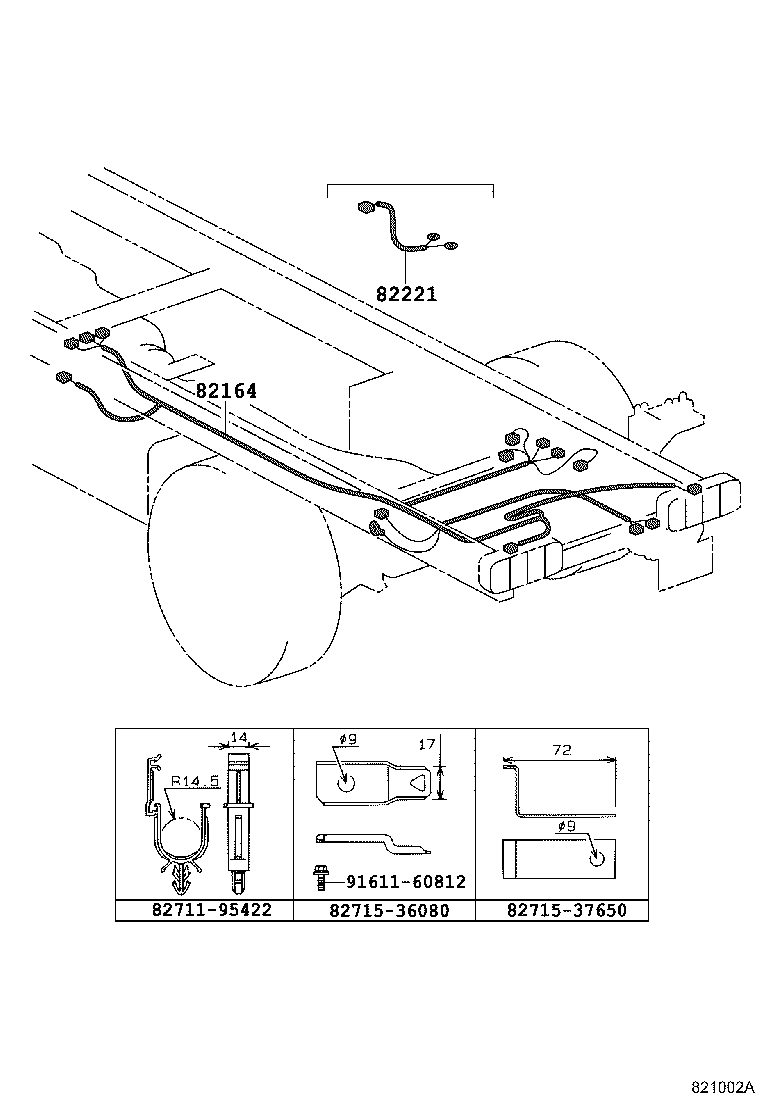

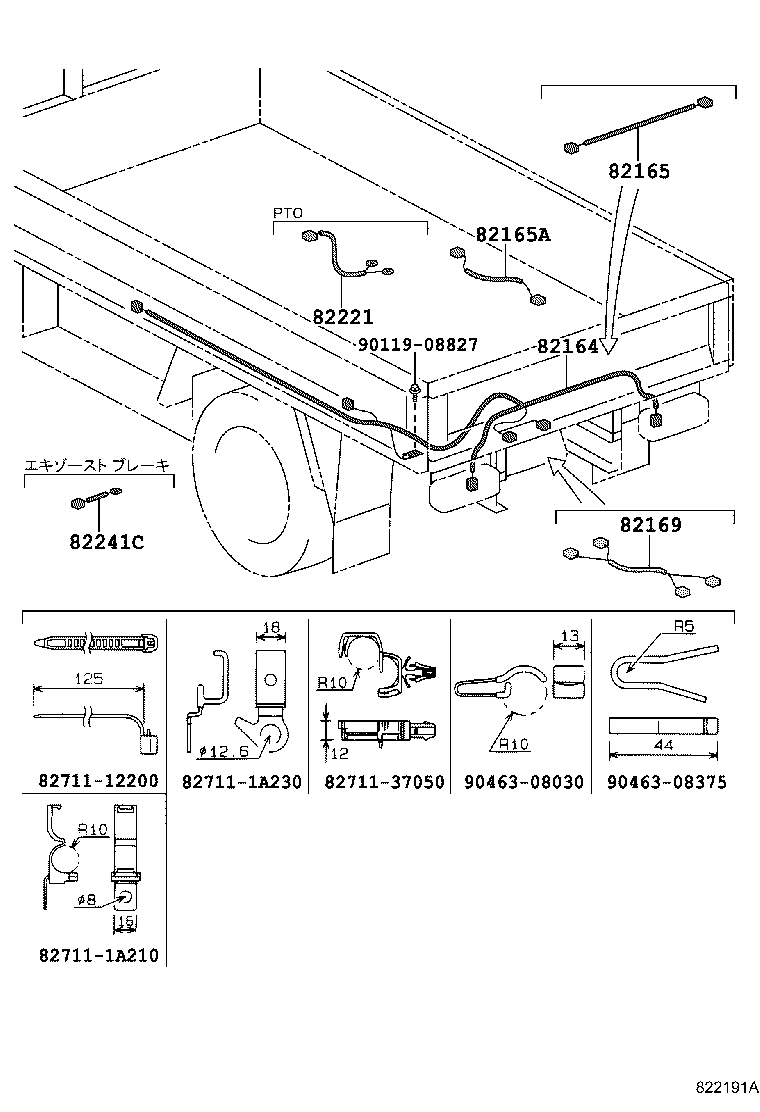

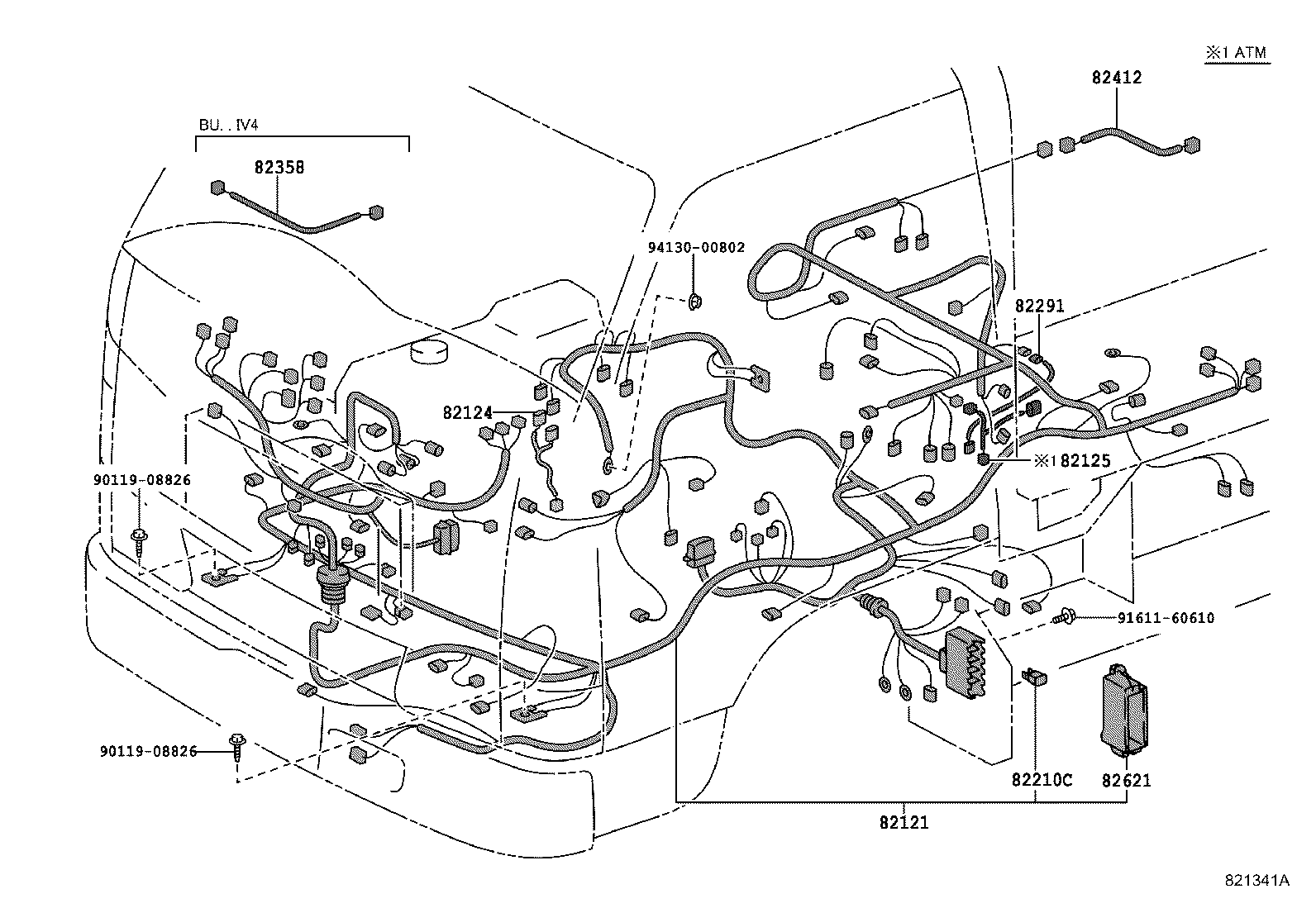

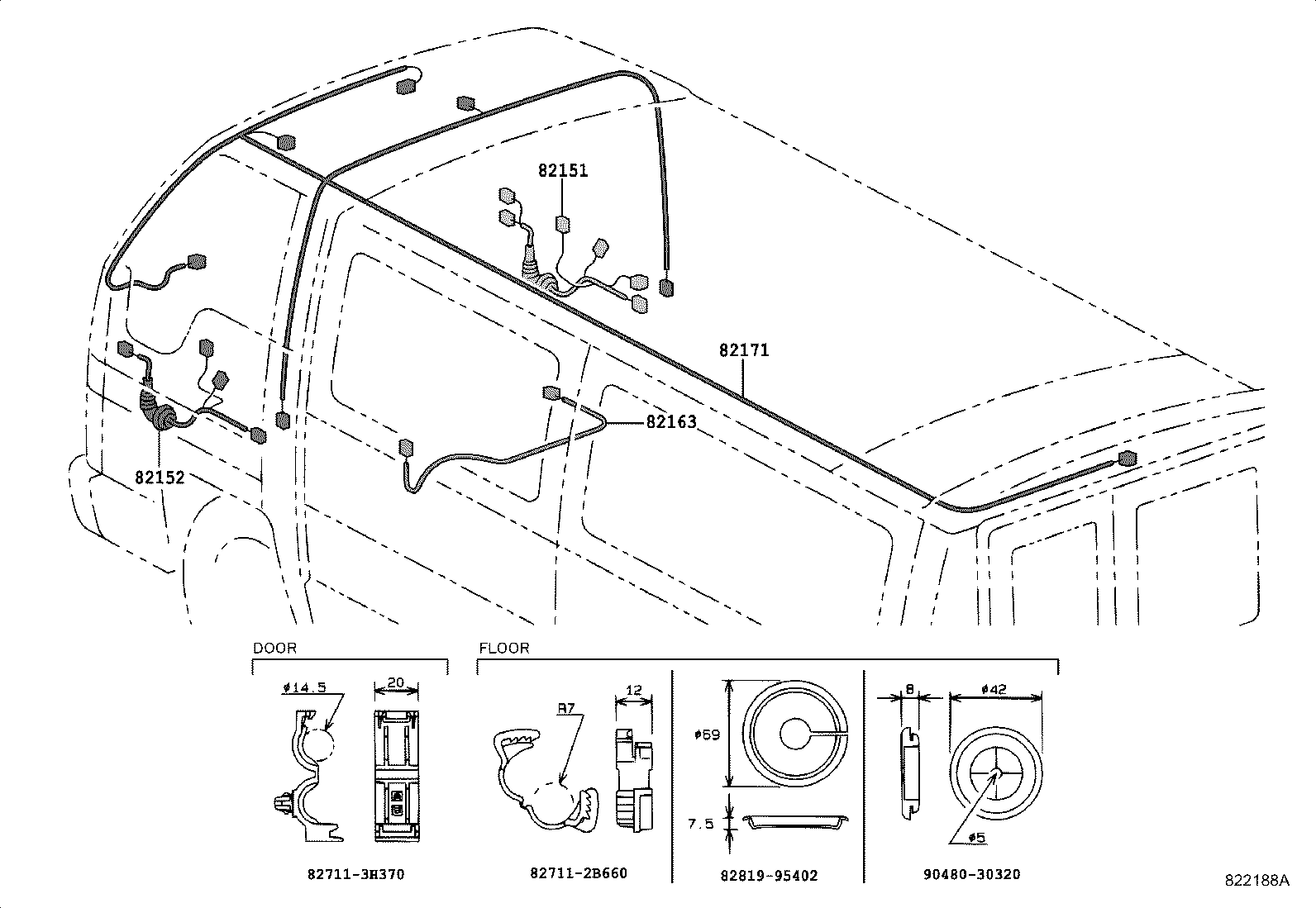

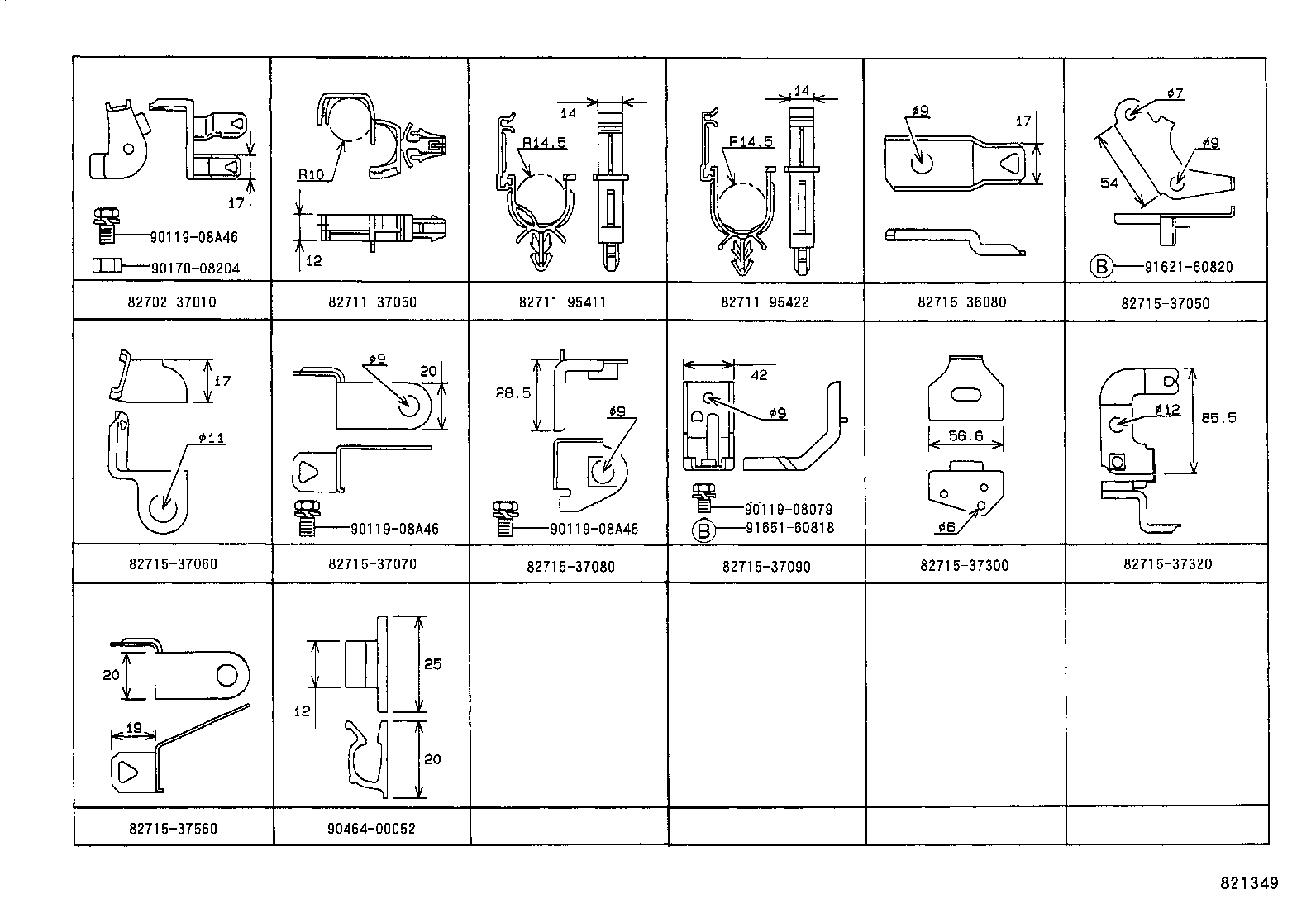

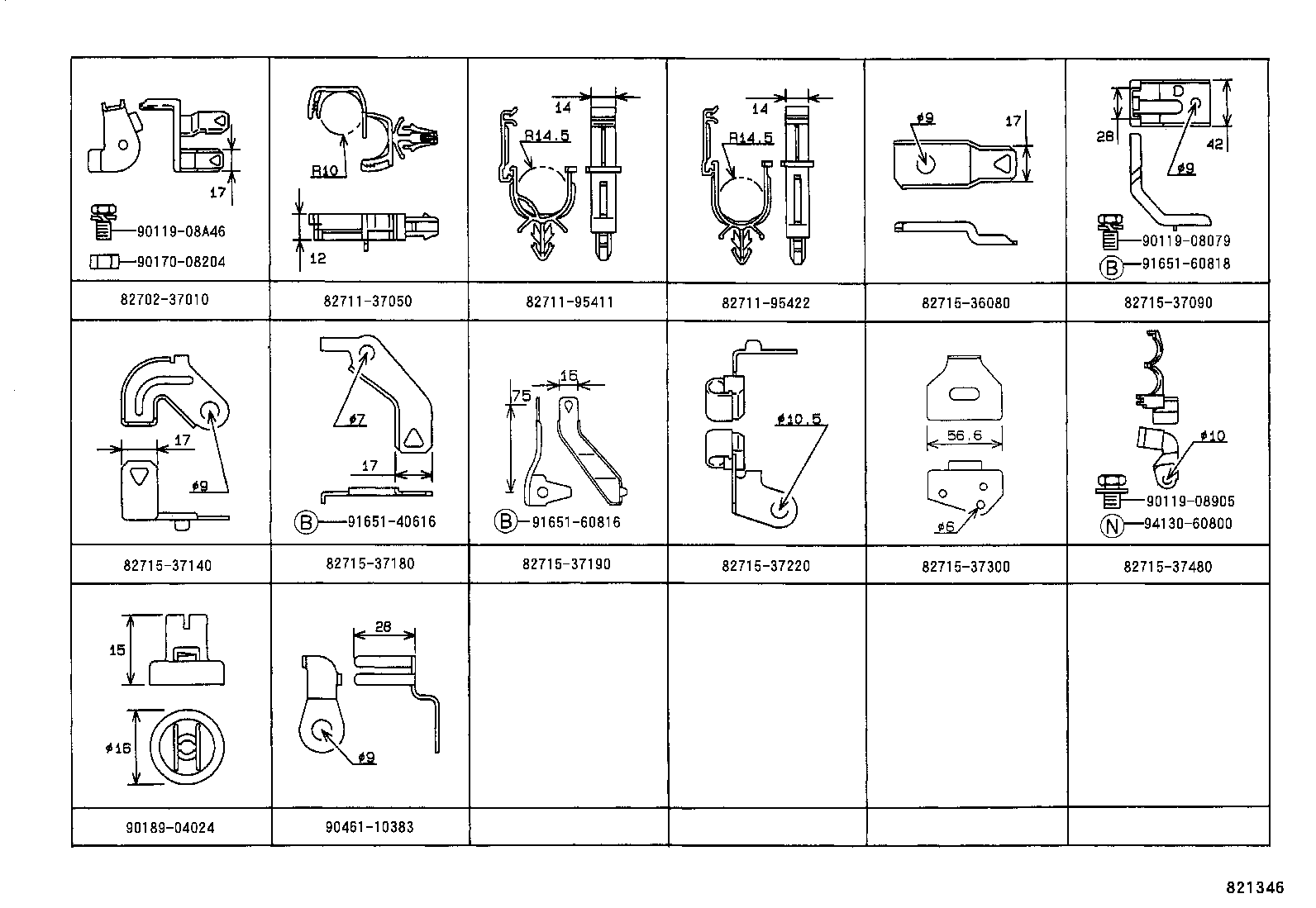

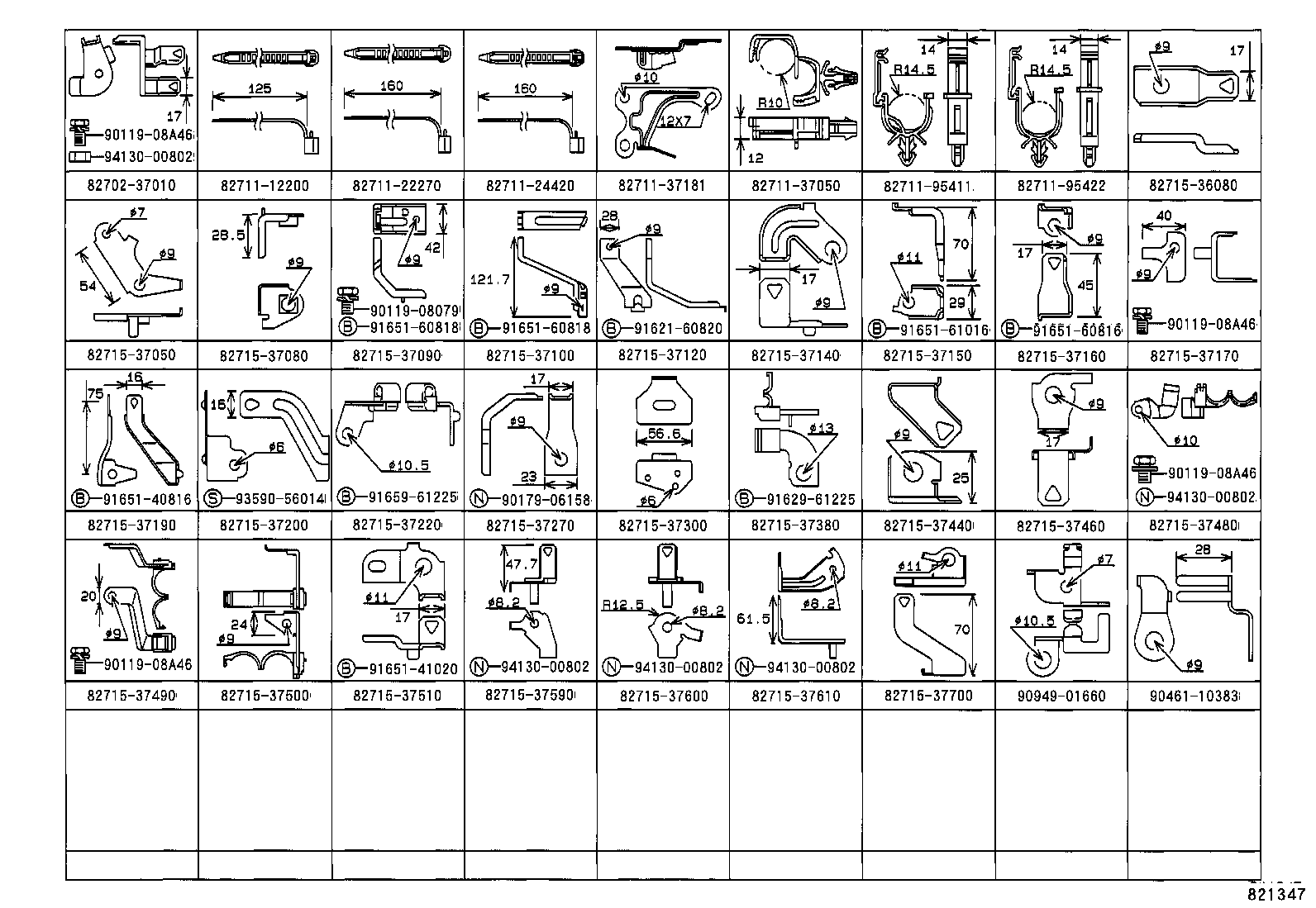

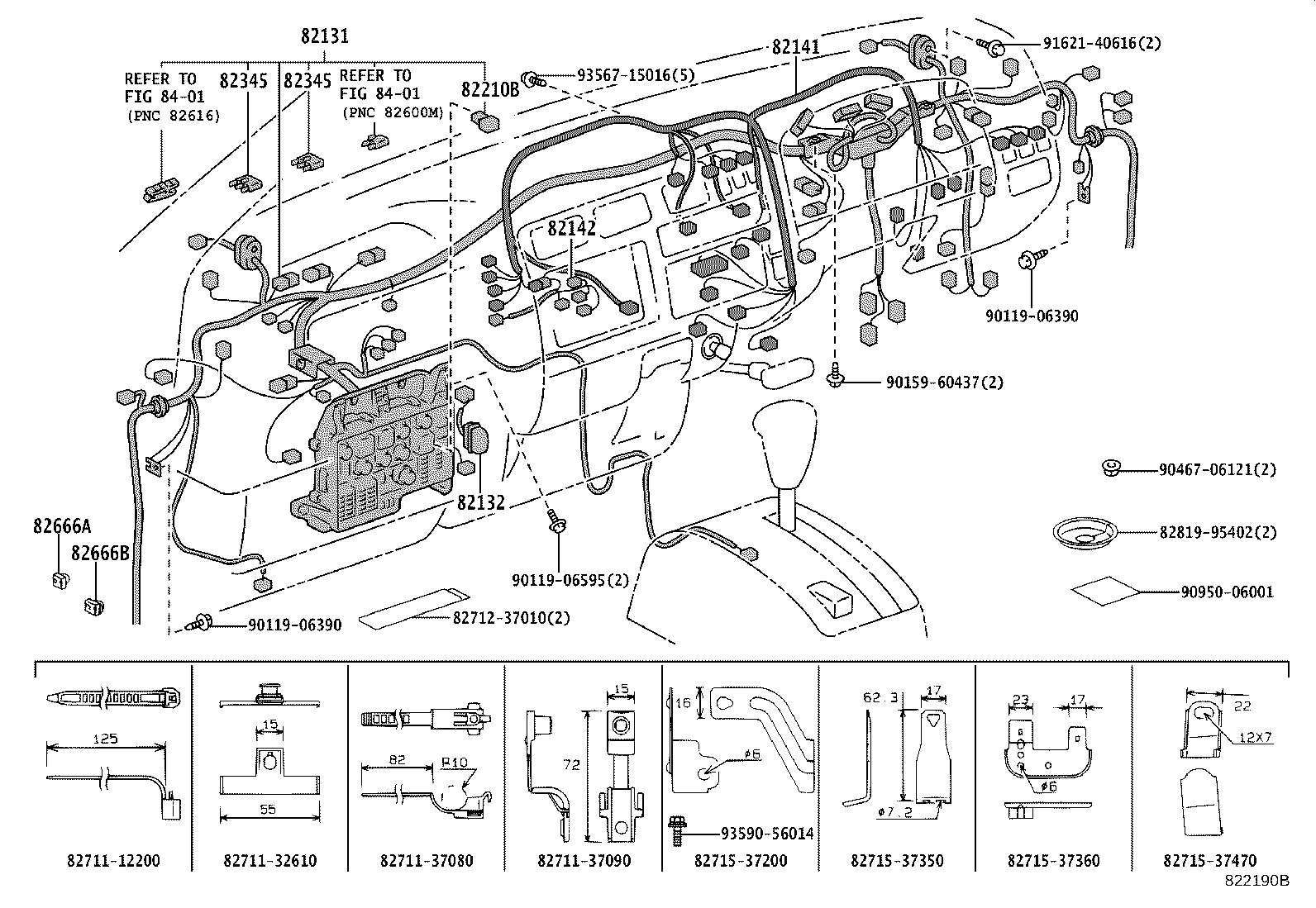

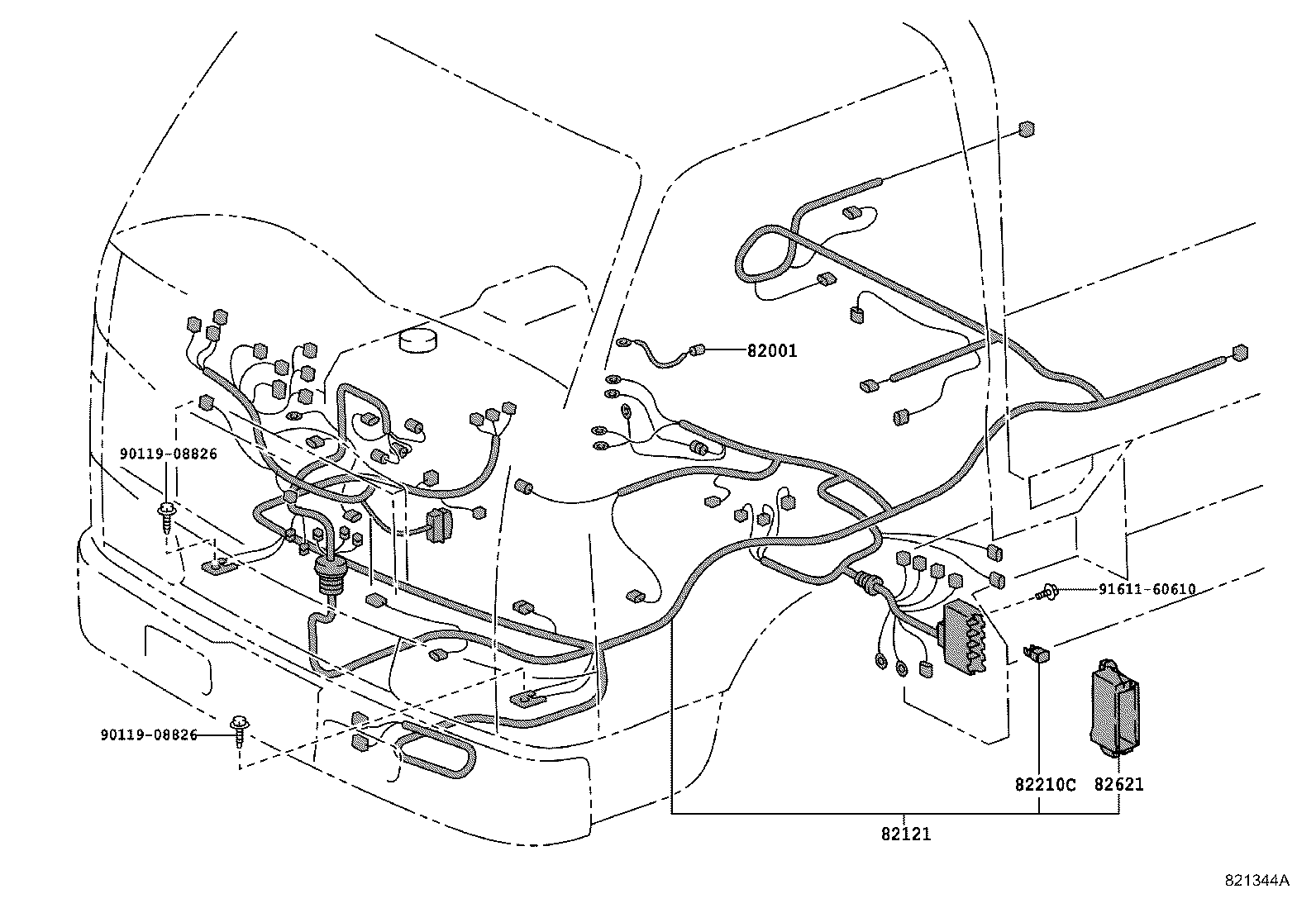

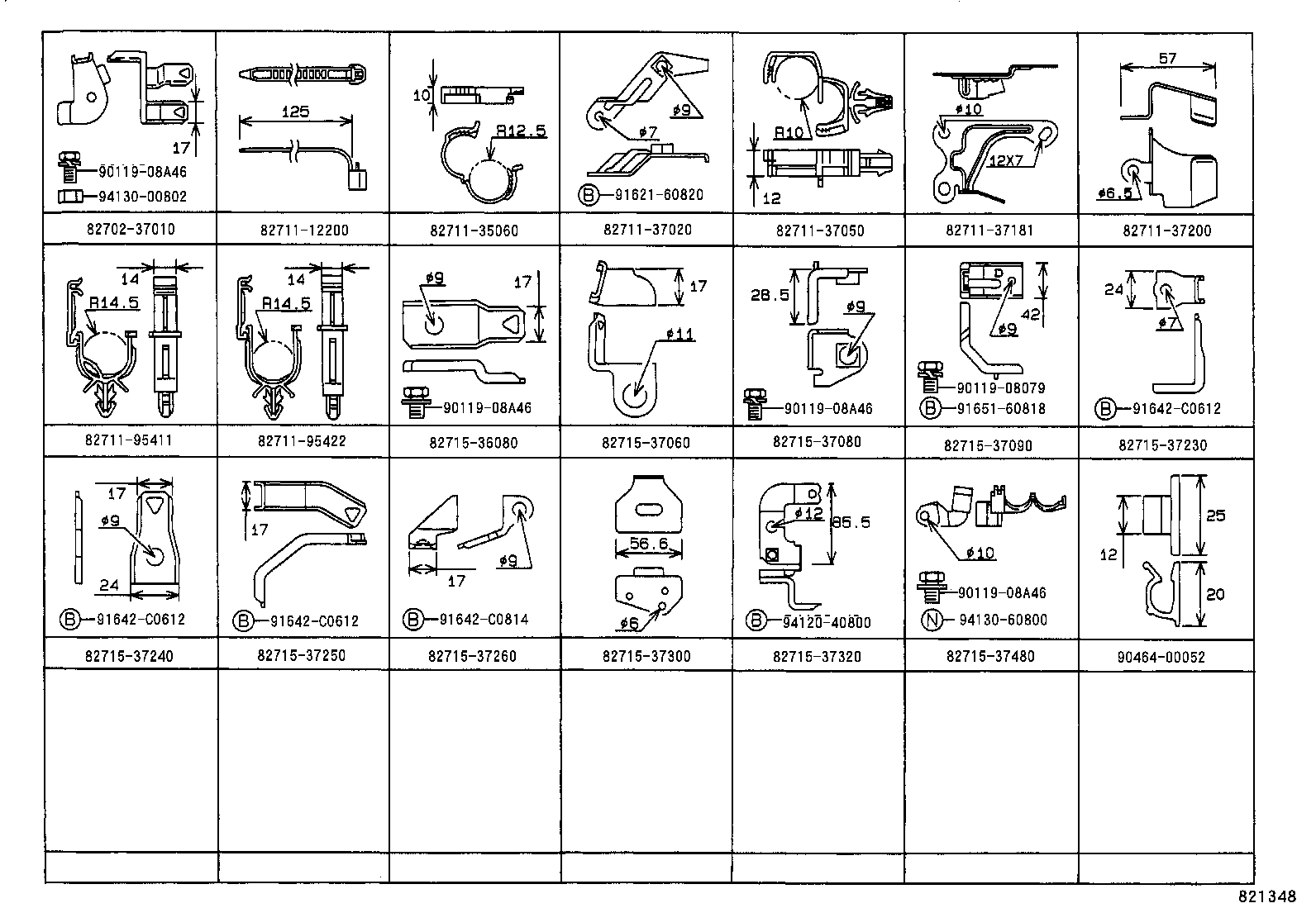

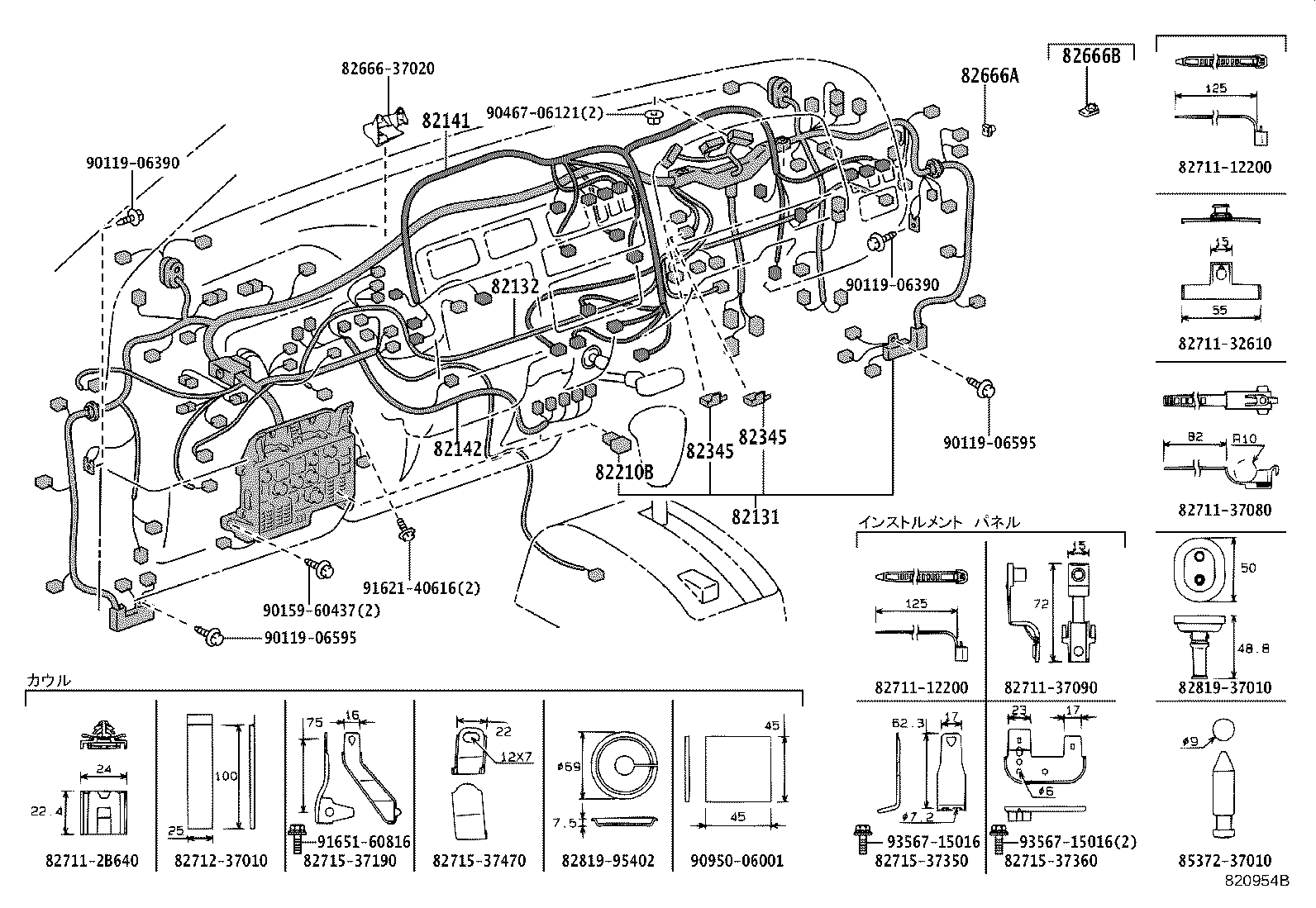

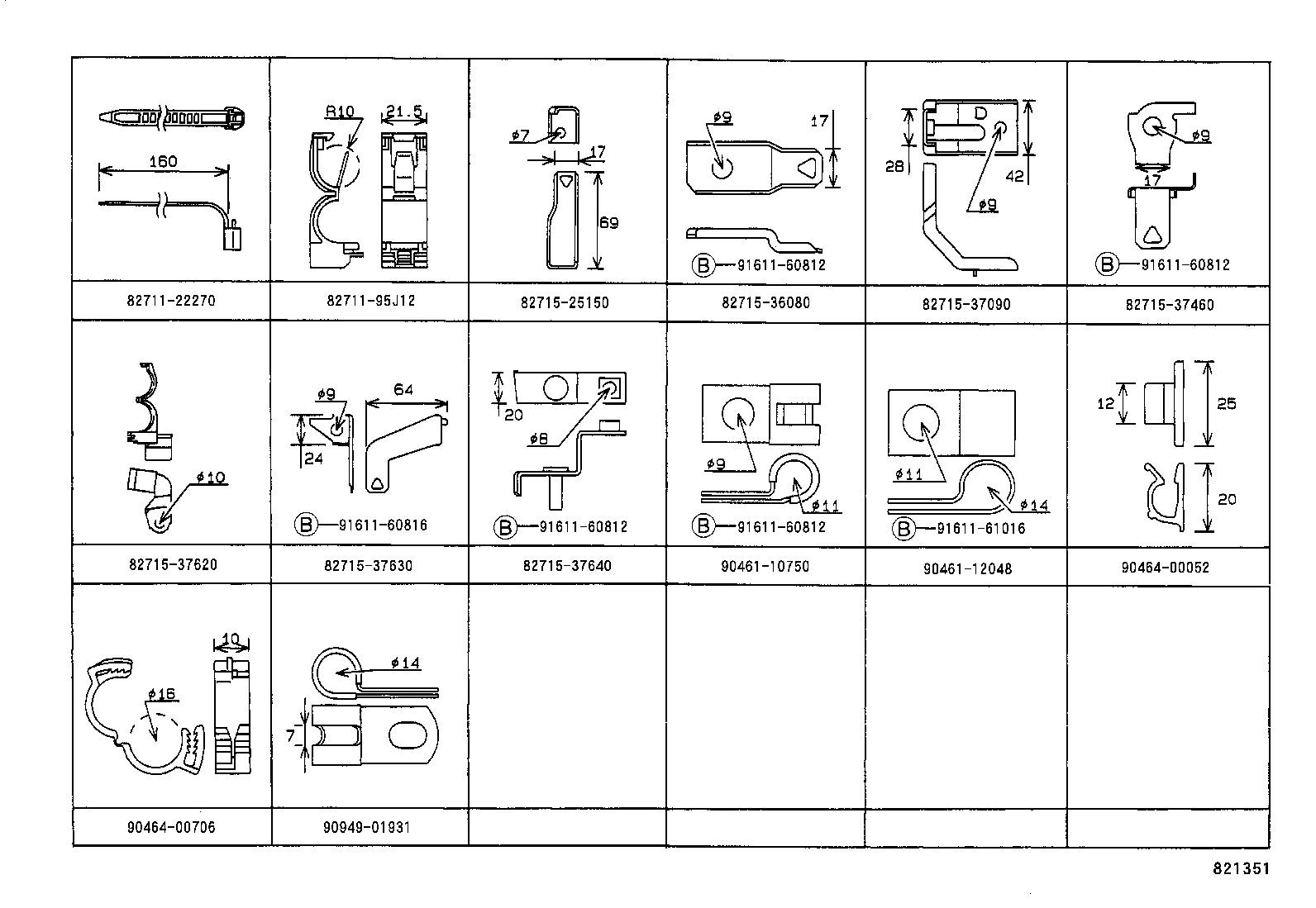

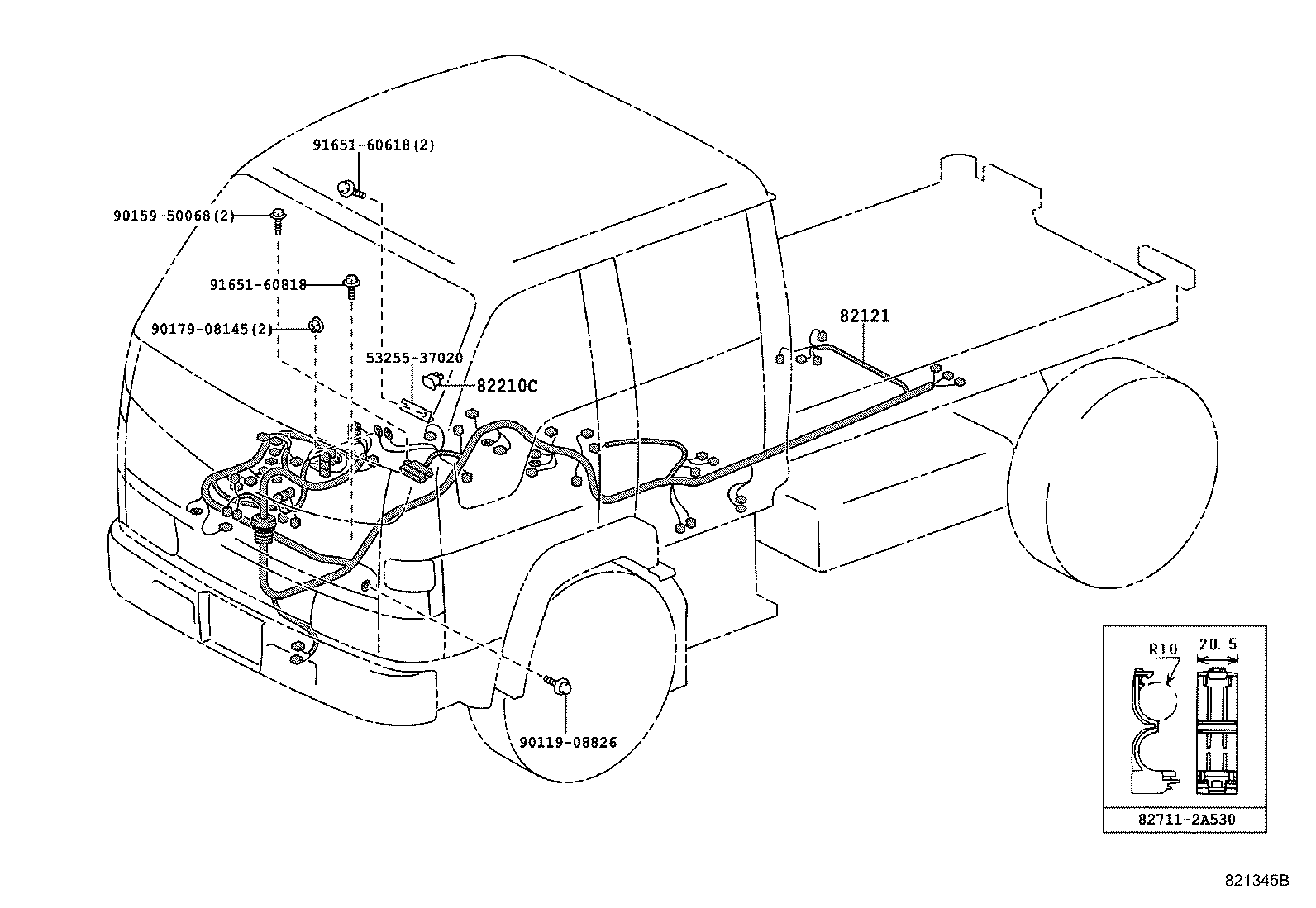

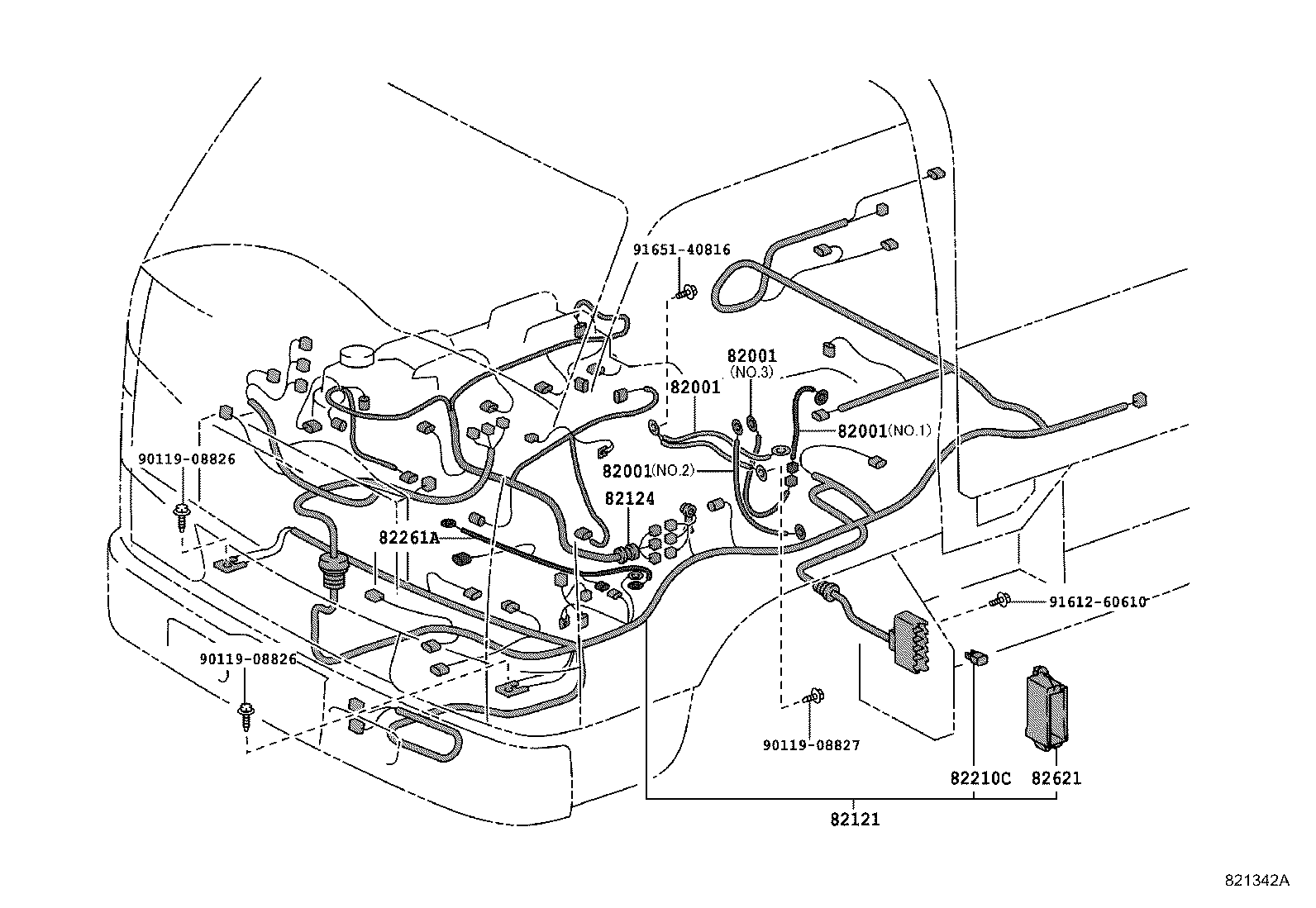

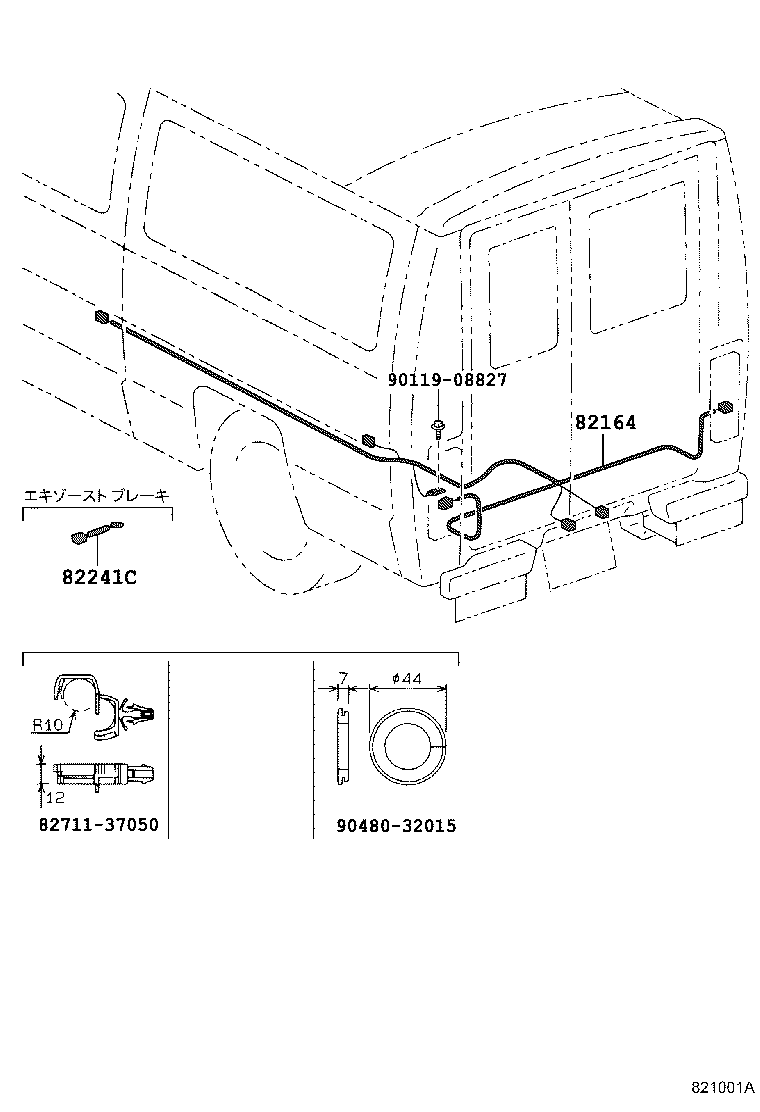

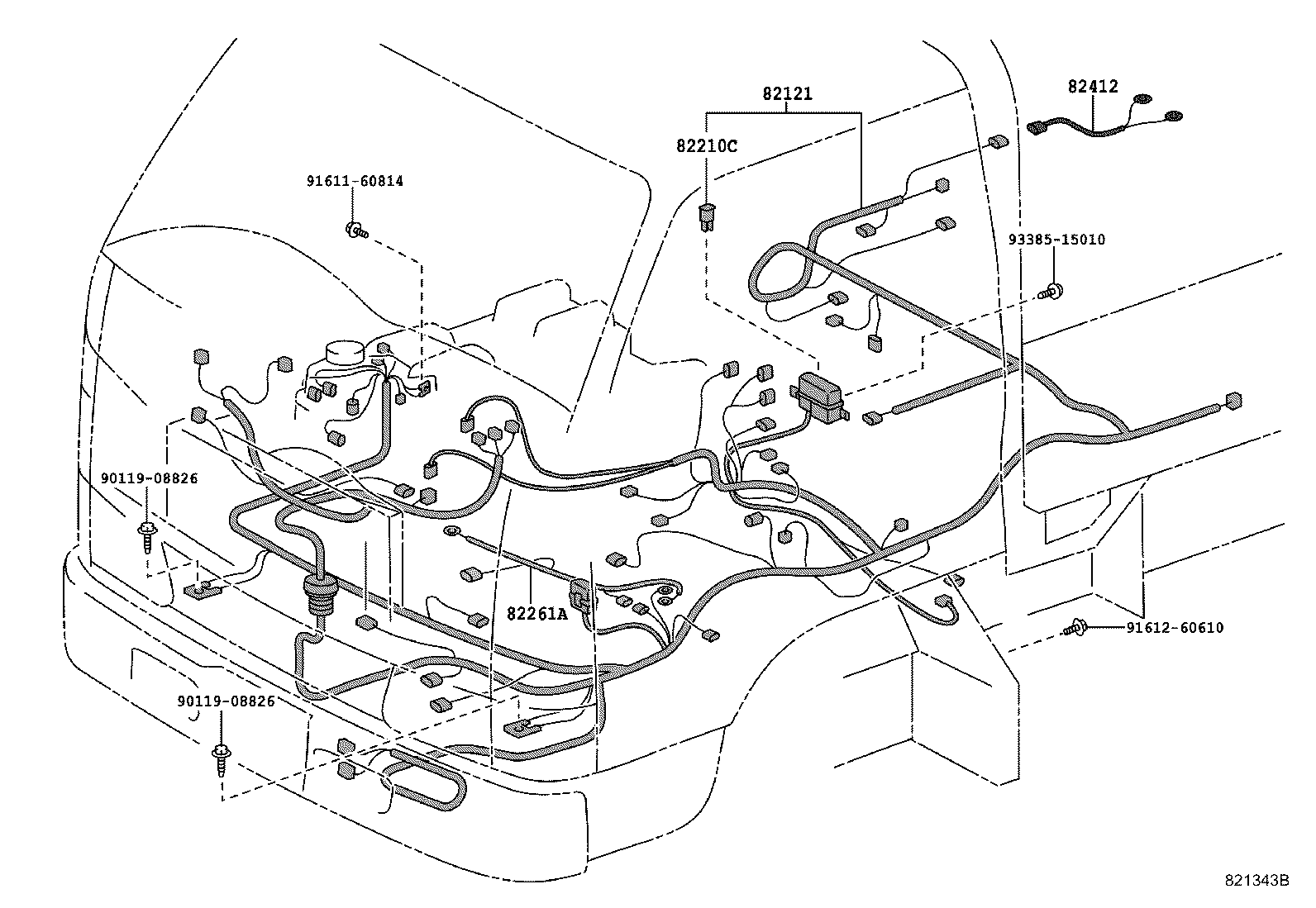

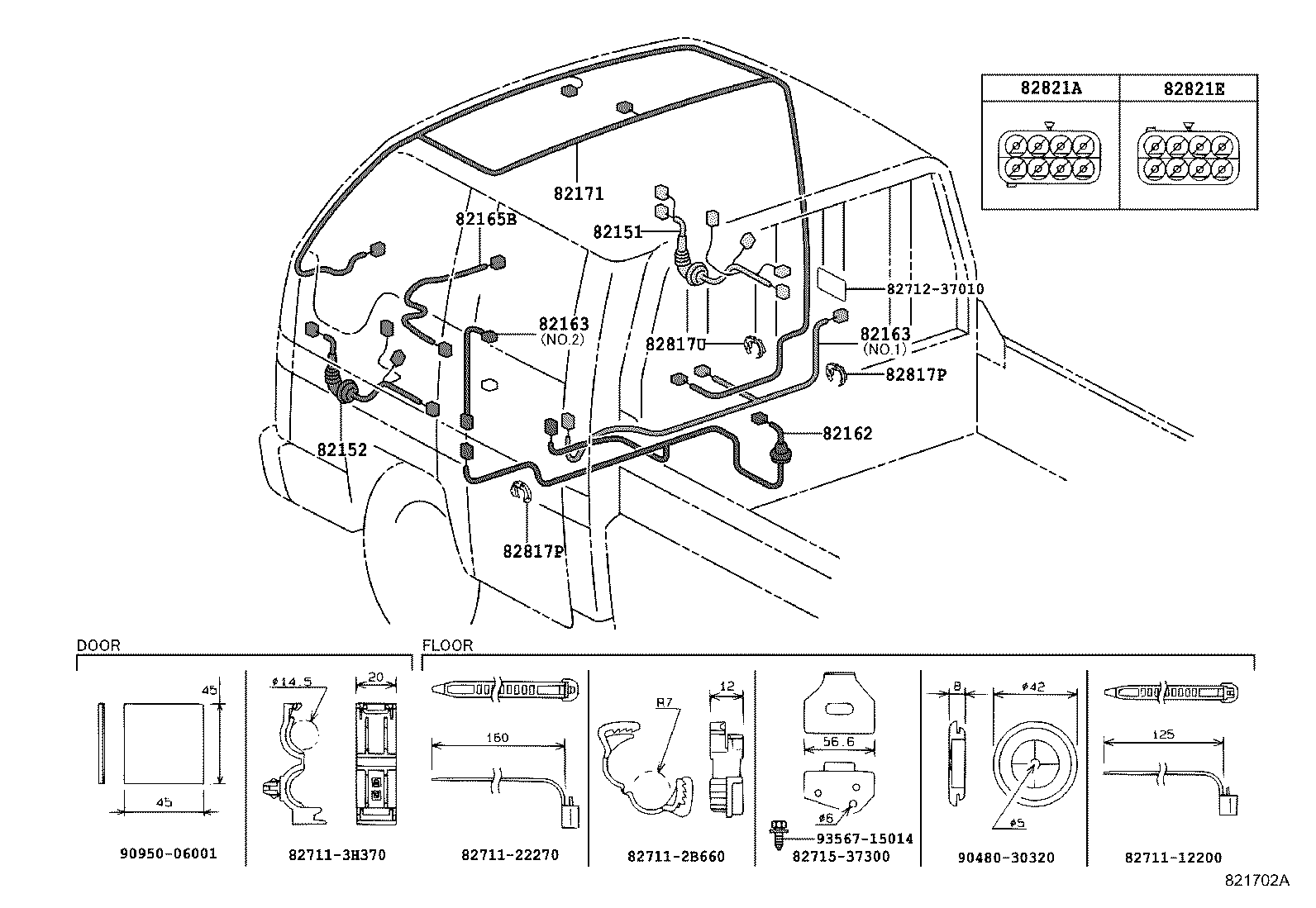

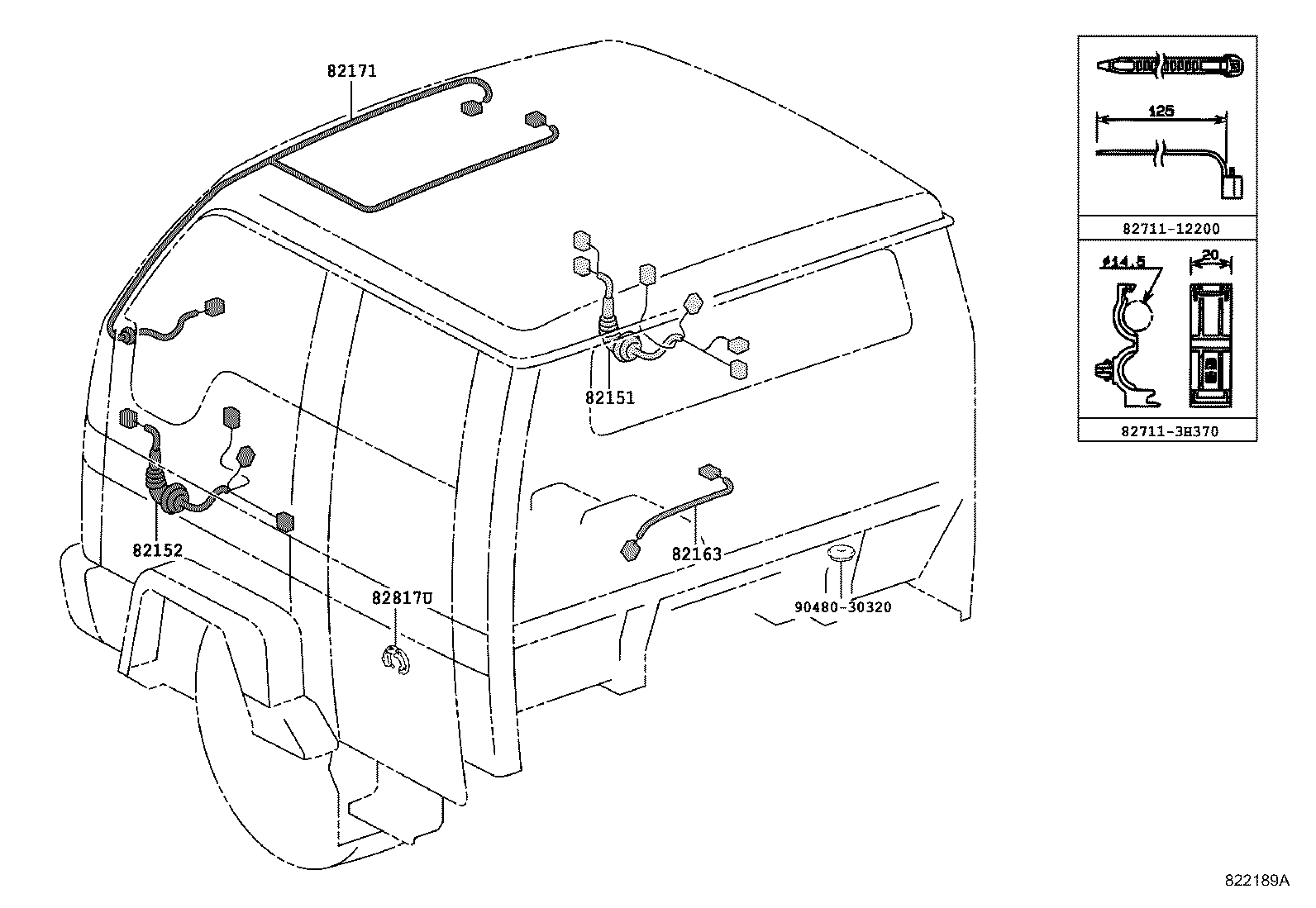

Figure 821340A 821340A 1995-05 → — Figure 821341A 821341A 1995-05 → — Figure 821342A 821342A 1995-05 → — Figure 821343B 821343B 1995-05 → — Figure 821344A 821344A 1995-10 → — Figure 821345B 821345B 1997-01 → — Figure 820841A 820841A 1995-05 → — Figure 821702A 821702A 1995-05 → — Figure 822188A 822188A 1995-05 → — Figure 822189A 822189A 1997-01 → — Figure 820954B 820954B 1995-05 → — Figure 822190B 822190B 1997-01 → — Figure 822191A 822191A 1995-05 → — Figure 821001A 821001A 1995-05 → — Figure 821002A 821002A 1997-01 → — Figure 821346 821346 1995-05 → — Figure 821347 821347 1995-05 → — Figure 821348 821348 1995-05 → — Figure 821349 821349 1995-05 → — Figure 821350 821350 1995-10 → — Figure 821351 821351 1997-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82165A Wire, Frame, NO.2
82165B Wire, Frame, NO.2
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82210B Fusible Link
82210C Fusible Link
82221 Wire, Oil Pressure Switch
82241C Wire, Relay
82261A Wire, Alternator
82291 Wiring, TO Solenoid
82345 Diode
82358 Wire, Oil Temperature Sender
82412 Wire, Fuel Gage
82621 Cover, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82817P Protector, Wiring Harness, NO.14
82817U Protector, Wiring Harness, NO.16
82821A Cover, Connector
82821E Cover, Connector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
