Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

151 part groups · 14 illustrations

Illustrations

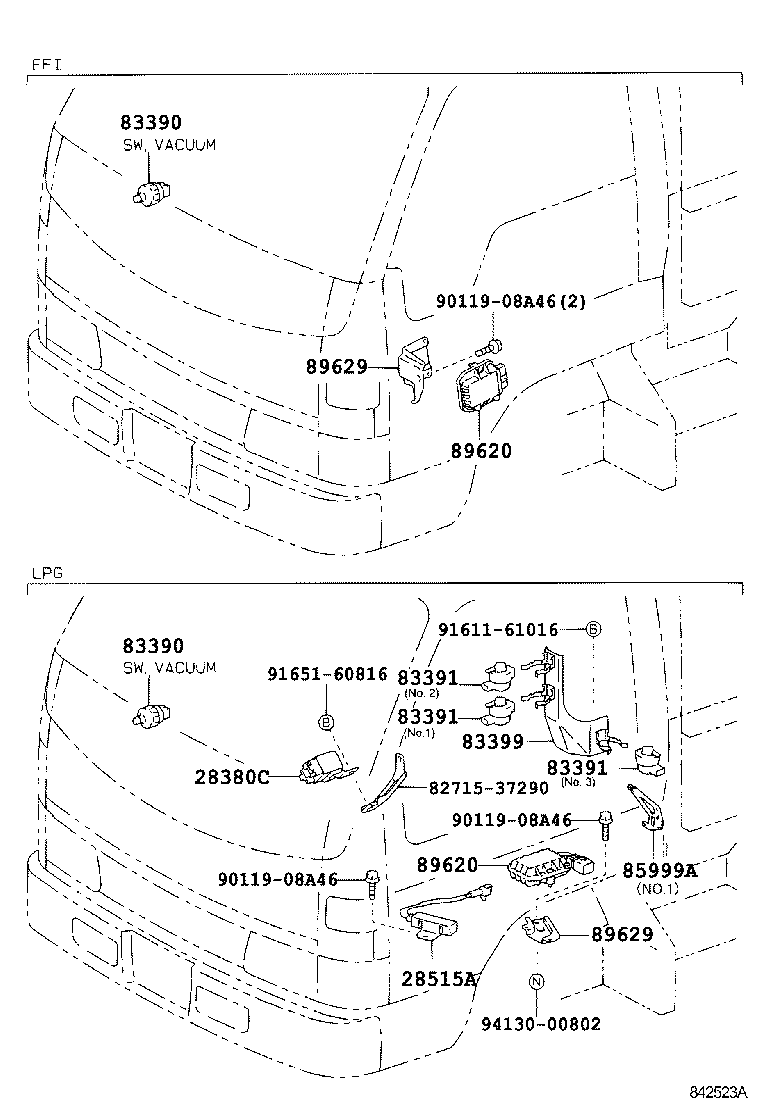

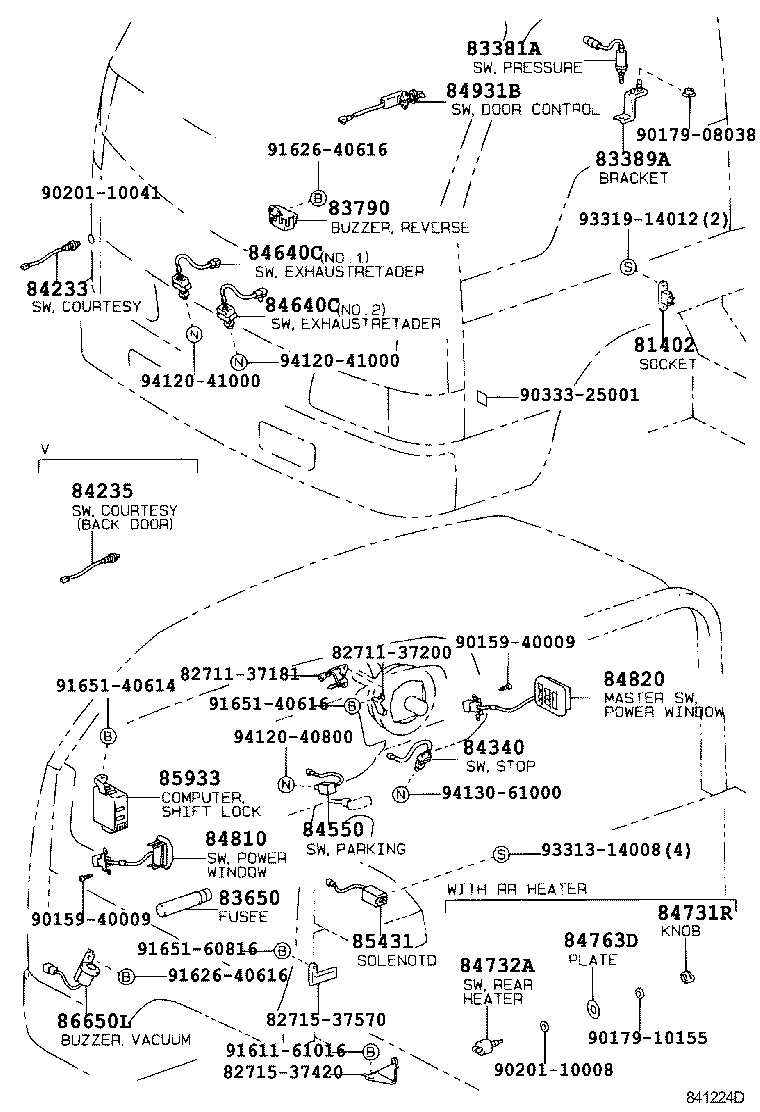

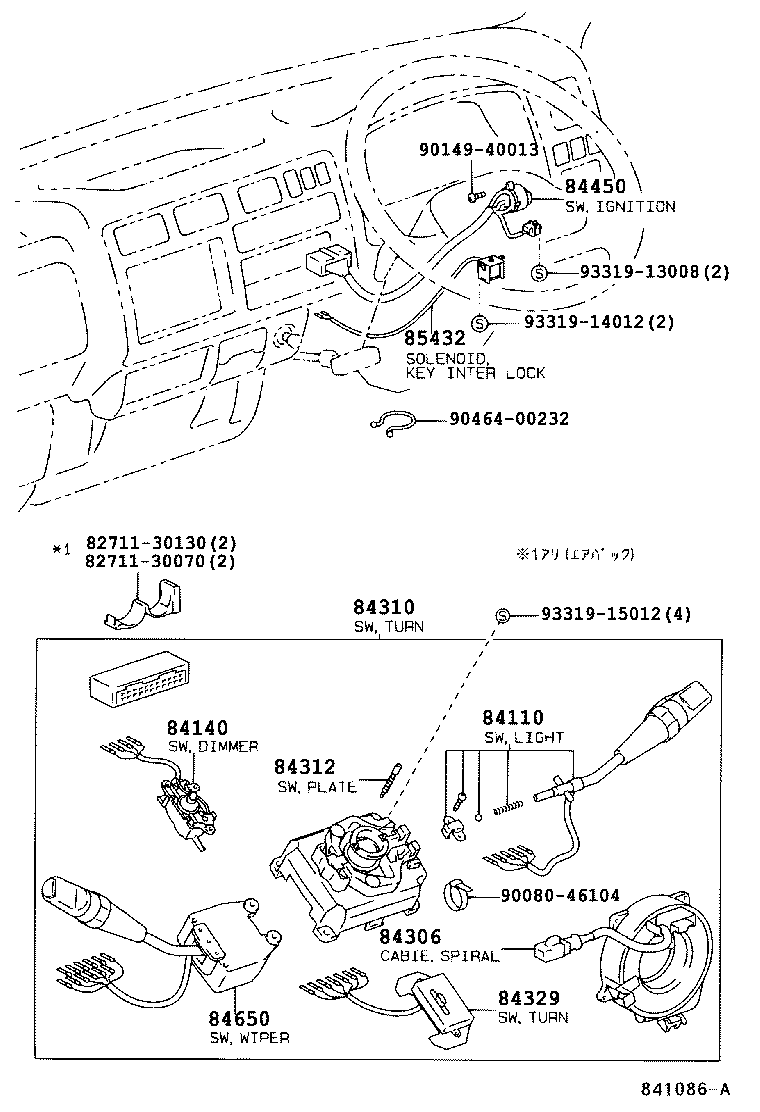

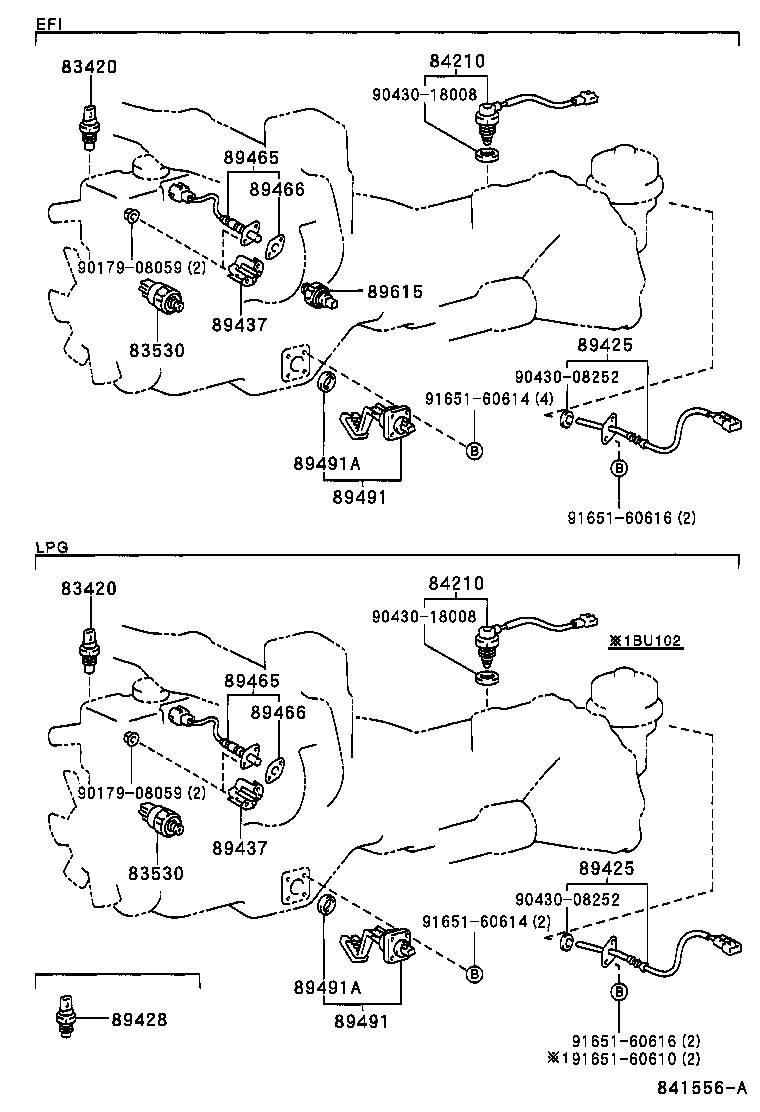

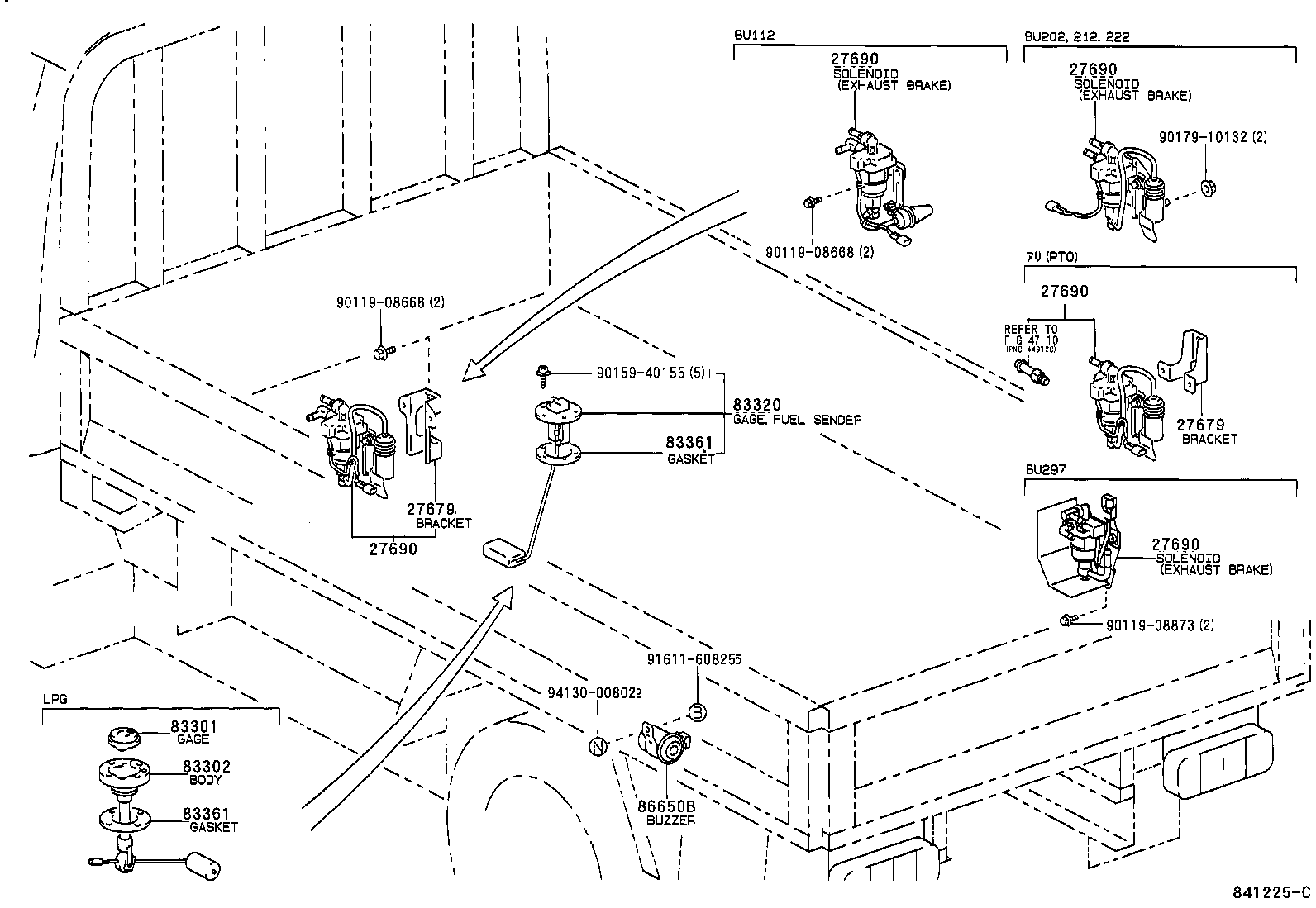

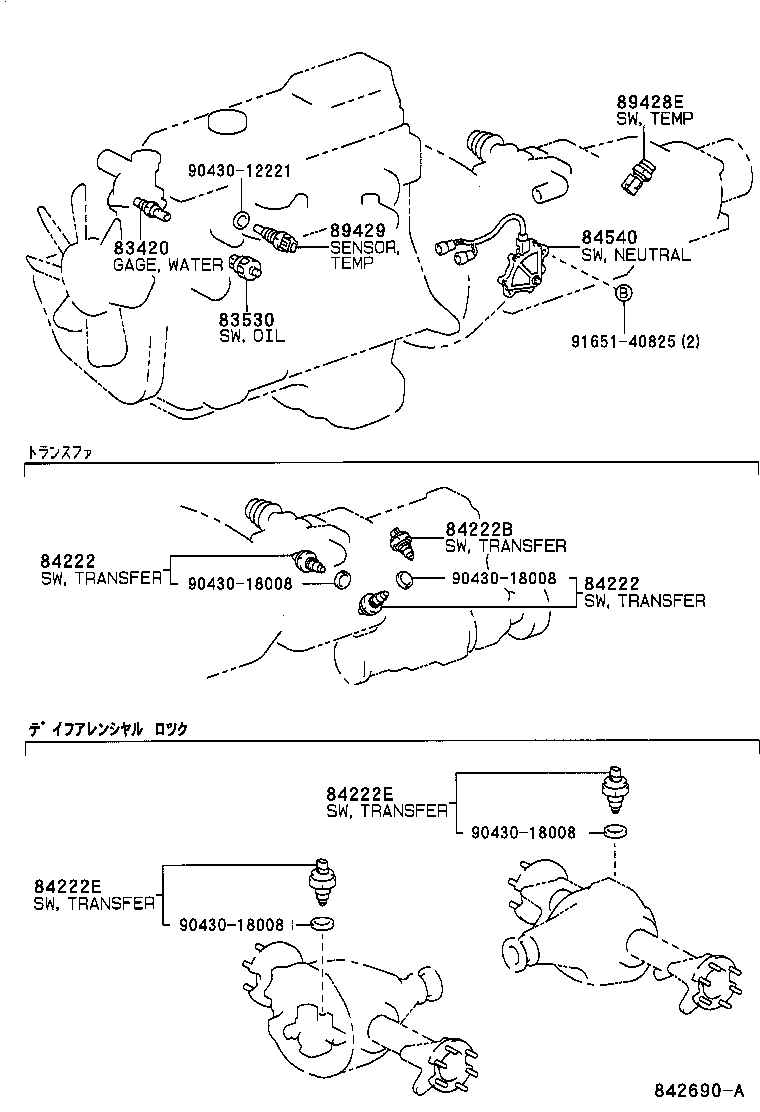

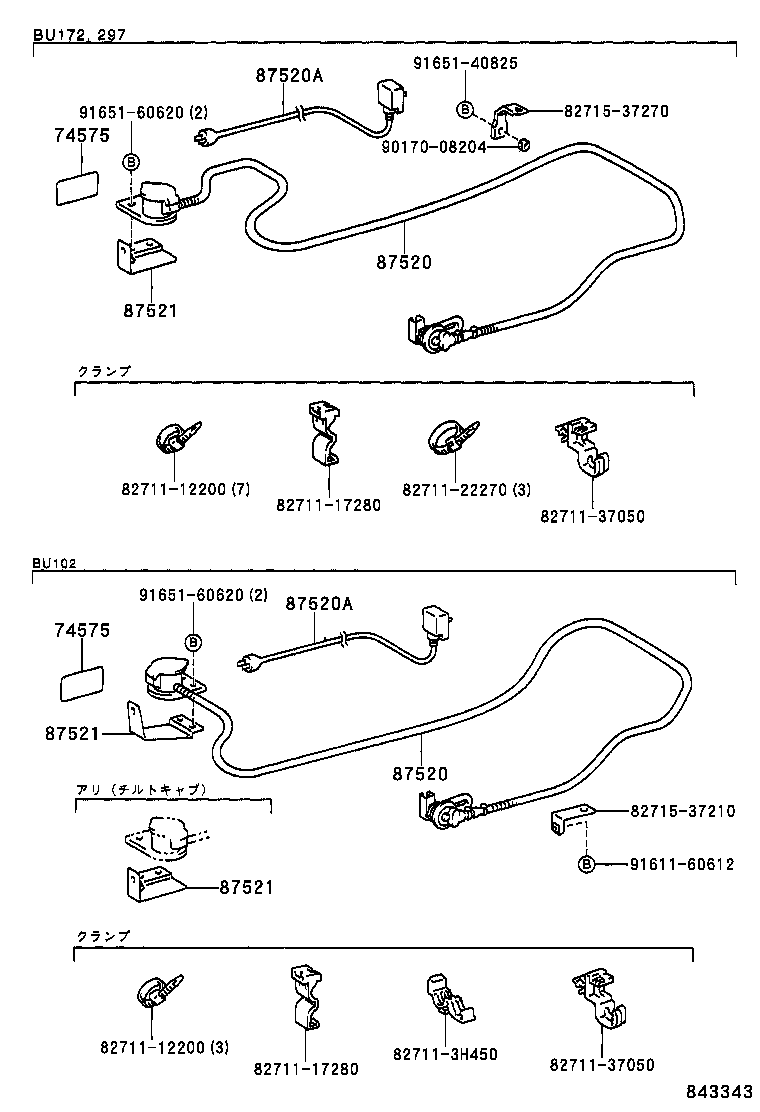

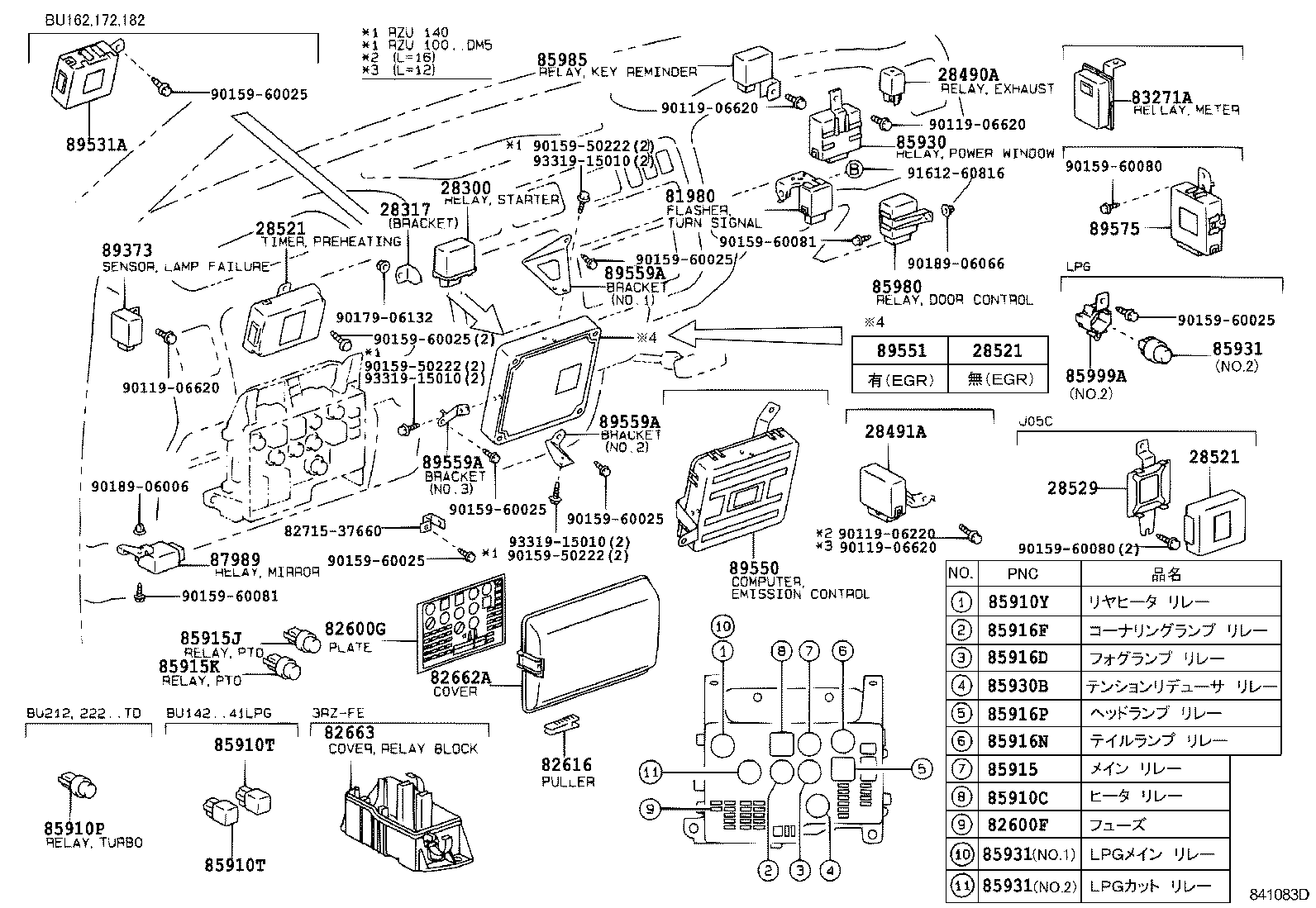

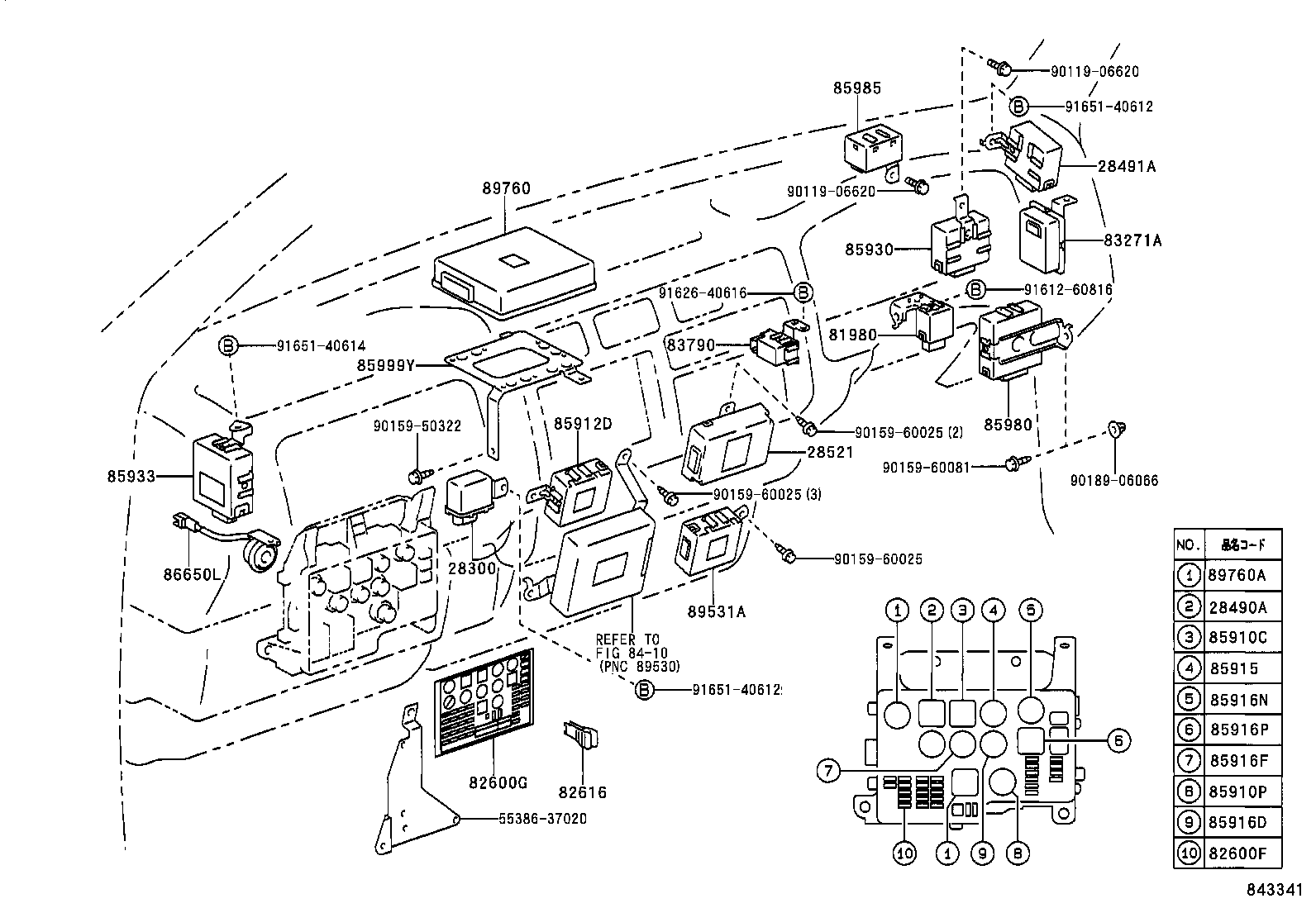

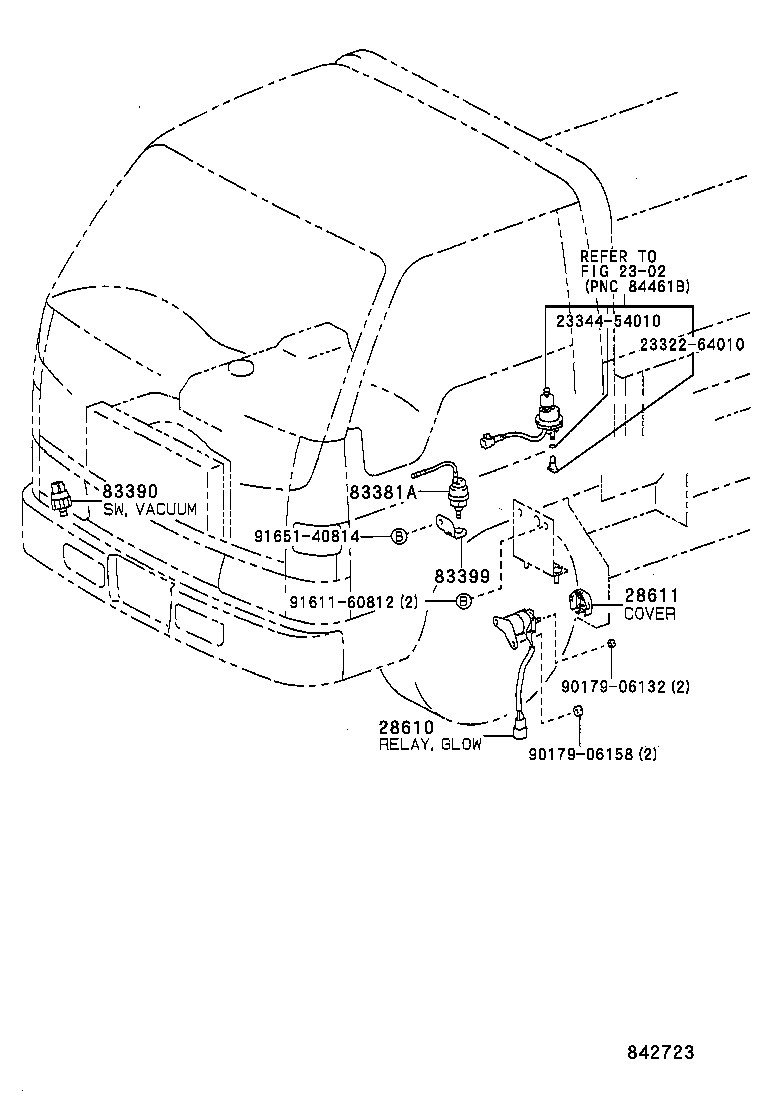

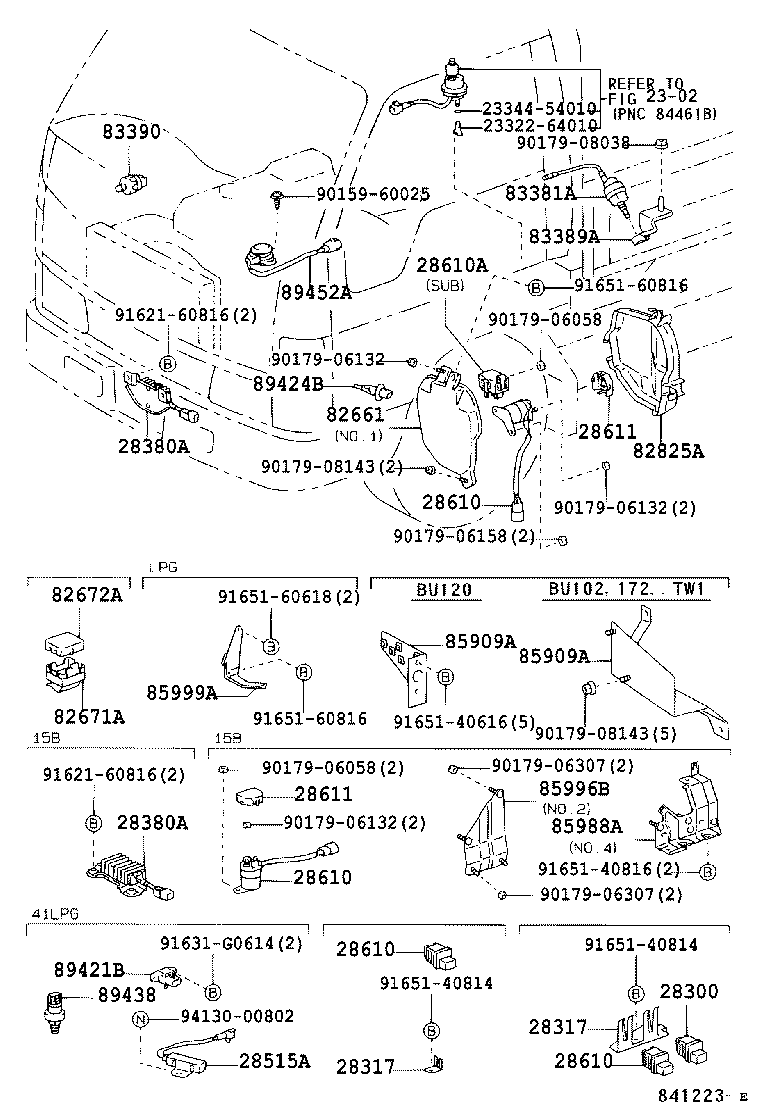

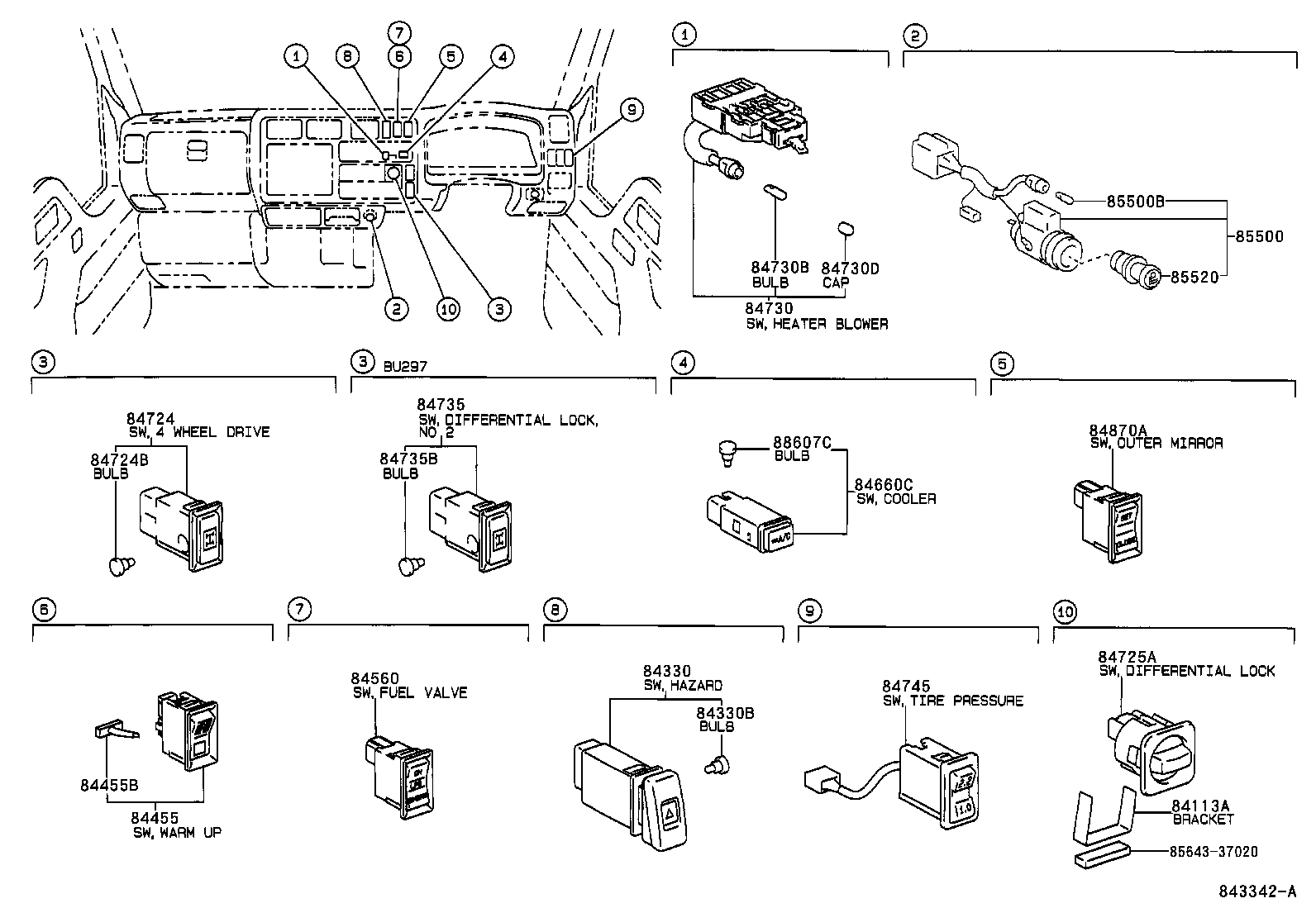

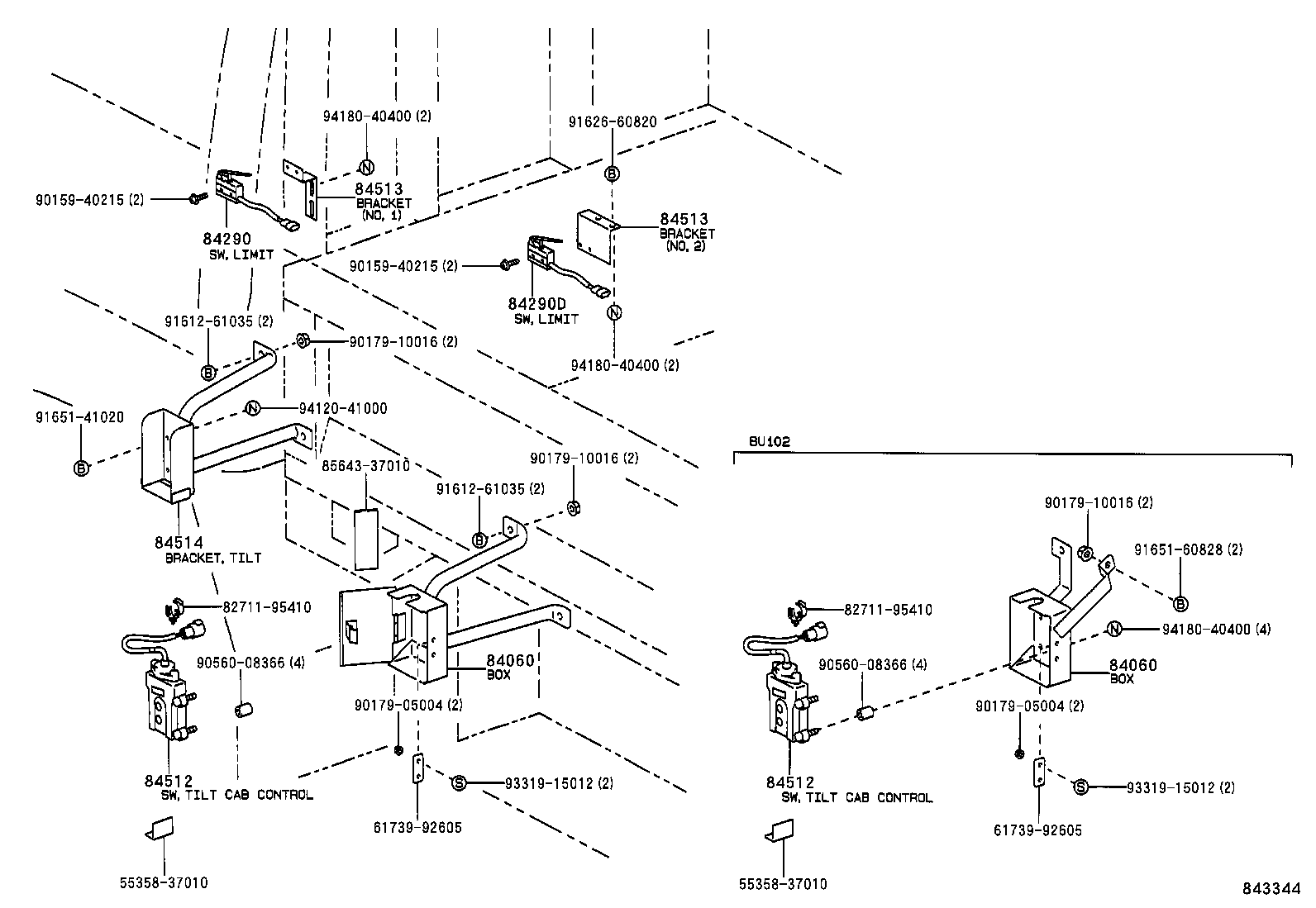

Figure 841222E 841222E 1995-05 → — Figure 842690A 842690A 1997-01 → — Figure 841556A 841556A 1995-05 → — Figure 841223E 841223E 1995-05 → — Figure 842723 842723 1997-01 → — Figure 842523A 842523A 1995-05 → — Figure 841083D 841083D 1995-05 → — Figure 843341 843341 1997-01 → — Figure 843342A 843342A 1995-05 → — Figure 841086A 841086A 1995-05 → — Figure 841224D 841224D 1995-05 → — Figure 841225C 841225C 1995-05 → — Figure 843343 843343 1995-05 → — Figure 843344 843344 1995-05 → —

Part groups

PNCDescription
27679 Bracket, Exhaust Brake(FOR SOLENOID)
27690 Solenoid Assy, W/Bracket(FOR EXHAUST BRAKE)
28300 Relay Assy, Starter
28317 Bracket, Starter Relay
28380A Resister, Fuel Pump
28380C Relay Assy, Fuel Pump
28490A Relay Assy, Exhaust Retarder
28491A Computer, Exhaust Retarder
28515A Resistor, Solenoid
28521 Timer, Preheating
28529 Bracket, Preheating Timer, NO.1
28610 Relay Assy, Intake Heater OR Glow Plug
28610A Relay Assy, Glow Plug(SUB)
28611 Cover, Glow Plug Relay
28621 Resistor, Glow Plug
74575 Plate, Block Heater
81402 Socket Sub-assy, Inspection Lamp, NO.1
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)
82616 Puller, Fuse
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82663 Cover, Relay Block, Lower
82671A Block, Junction
82672A Cover, Junction Block
82825A Cover, Relay
83271A Relay, Meter Control
83301 Gage Sub-assy, Fuel Sender (FOR LPG TANK)
83302 Body Sub-assy, Fuel Sender Gage
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83381A Switch, Pressure
83389A Bracket, Pressure Switch
83390 Switch Assy, Vacuum Warning
83391 Switch, Vacuum
83399 Bracket, Vacuum Switch
83420 Gage Assy, Water Temperature Sender
83420A Gage Assy, Oil Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
83790 Buzzer Assy, Reverse Warning
84060 Box Assy, Tilt Cab Control Switch
84110 Switch Assy, Light Control, NO.1
84113A Bracket, Switch, NO.1
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84222 Switch, Transfer Indicator, NO.1
84222B Switch, Transfer Indicator, NO.2
84222E Switch, Differential Lock Indicator
84225A Switch, Shift Position
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84290 Switch Assy, Limit
84290D Switch Assy, Limit
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84455 Switch, Warm UP
84455B Bulb (FOR WARM UP SWITCH)
84512 Switch, Tilt Cab Control
84513 Bracket, Tilt Cab Starter Switch
84514 Bracket, Tilt Cab Control Switch
84540 Switch Assy, Neutral Start
84540C Switch Assy, Neutral (FOR EXHAUST BRAKE)
84550 Switch Assy, Parking Brake
84560 Switch Assy, Fuel Valve Control
84640C Switch Assy, Exhaust Retarder
84650 Switch Assy, Windshield Wiper
84660C Switch, Cooler
84724 Switch, 4 Wheel Drive Control
84724B Bulb, 4 Wheel Drive Control Switch
84725A Switch, Differential Lock
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84730D Cap, Heater Blower Switch Bulb
84731R Knob, Rear Heater Blower Switch
84732A Switch, Rear Heater Blower
84735 Switch, Differential Lock, NO.2
84735B Bulb, Differential Lock NO.2 Switch
84745 Switch, Tire Pressure Control
84763D Plate, Switch
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84931B Switch, Door Control
85431 Solenoid, Shift Lock
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85909A Bracket Sub-assy, Relay Block
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910P Relay, Turbo Indicator
85910T Relay, Lpg
85910Y Relay, Rear Heater
85912D Relay
85915 Relay, Main
85915J Relay, Power Take-off Control, NO.1
85915K Relay, Power Take-off Control, NO.2
85916D Relay, Fog Lamp
85916F Relay, Cornering Lamp
85916N Relay, Taillamp
85916P Relay, Headlamp
85930 Relay Assy, Power Window
85930B Relay, Tension Reducer
85931 Relay, Emission Control
85933 Computer, Shift Lock Control
85980 Relay Assy, Door Control
85985 Relay, Key Reminder
85988A Bracket, Relay, NO.4
85996B Bracket, Relay, NO.2
85999A Bracket, Relay, NO.2
85999Y Bracket,Relay
86650B Buzzer Assy, Reverse Warning
86650L Buzzer Assy, Vacuum Warning
87520 Heater Assy, Engine Block
87520A Wire Assy, Extension, Block Heater
87521 Bracket, Engine Block Heater
87989 Relay, Mirror Control
88607C Lamp Sub-assy, Indicator
89373 Sensor, Lamp Failure Indicator
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89424B Switch, Inlet Air Temperature
89425 Sensor, Exhaust Gas Temperature
89428 Switch, Temperature Detect, NO.2
89428E Switch, Temperature, NO.2 (FOR TRANSMISSION)
89429 Sensor, Oil Temperature
89437 Cover, Sensor
89438 Switch, Power Steering Oil Pressure
89452A Sensor, Throttle Position
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89531A Relay, Transmission Control
89550 Computer Assy, Emission Control
89551 Computer, Emission Control
89559A Bracket, Emission Control Computer
89575 Computer, Injection Control
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
89760 Computer Assy, Tire Pressure Control
89760A Relay, Tire Pressure Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
