Toyota Dyna 200/Toyoace G25
1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan
Discontinued model
Data version 2001-01

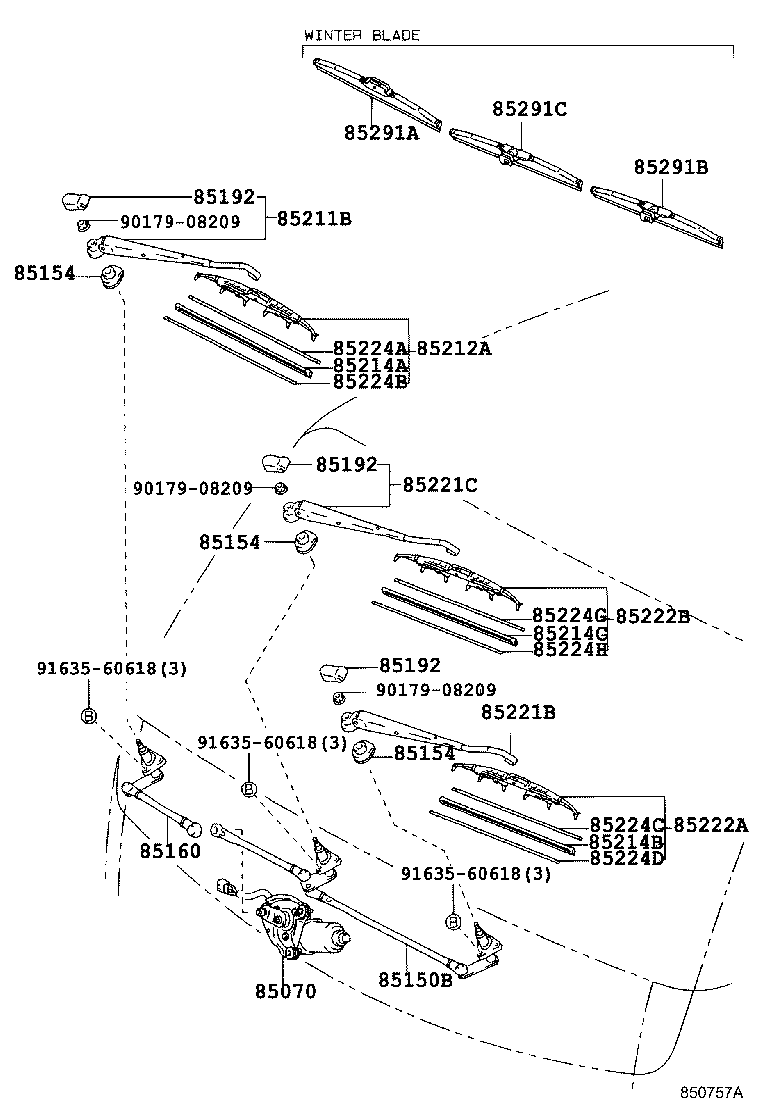

Windshield Wiper
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85070 | Motor & Bracket Assy, Front Wiper |
| 85150B | Link Assy, Wiper |
| 85154 | Packing, Front Wiper Shaft |
| 85160 | Link Assy, Windshield Wiper |
| 85192 | Cover, Windshield Wiper Arm |
| 85211B | Arm, Front Wiper, RH |
| 85212A | Blade, FR Wiper, RH |
| 85214A | Rubber, Wiper, RH |
| 85214B | Rubber, Wiper, LH |
| 85214C | Rubber, Wiper Blade, Center |
| 85221B | Arm, Front Wiper, LH |
| 85221C | Arm, Front Wiper, Center |
| 85222A | Blade, FR Wiper, LH |
| 85222B | Blade, FR Wiper, Center |
| 85224A | Plate, Wiper Rubber Backing, NO.1 |
| 85224B | Plate, Wiper Rubber Backing, NO.2 |
| 85224C | Plate, Wiper Rubber Backing, NO.3 |
| 85224D | Plate, Wiper Rubber Backing, NO.4 |
| 85224G | Plate, Wiper Blade Rubber Backing, NO.5 |
| 85224H | Plate, Wiper Blade Rubber Backing, NO.6 |
| 85291A | Blade, Front Wiper, Winter, RH |
| 85291B | Blade, Front Wiper, Winter, LH |
| 85291C | Blade, Front Wiper, Winter, Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
