Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

25 part groups · 16 illustrations

Illustrations

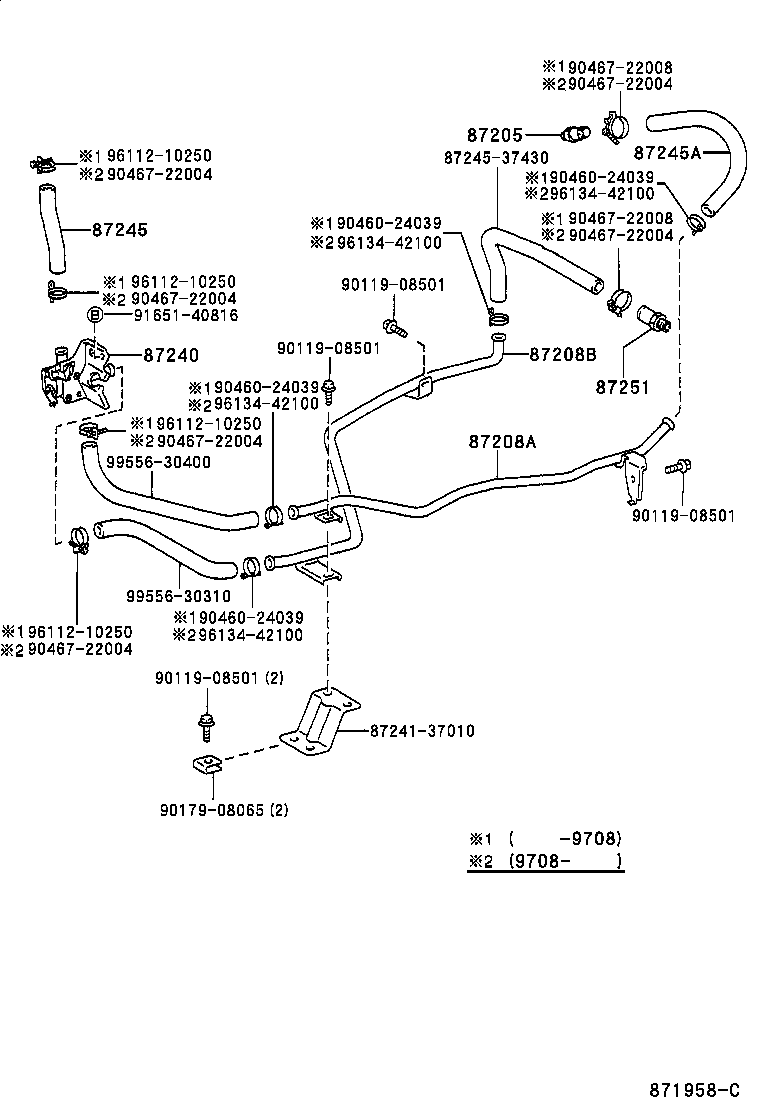

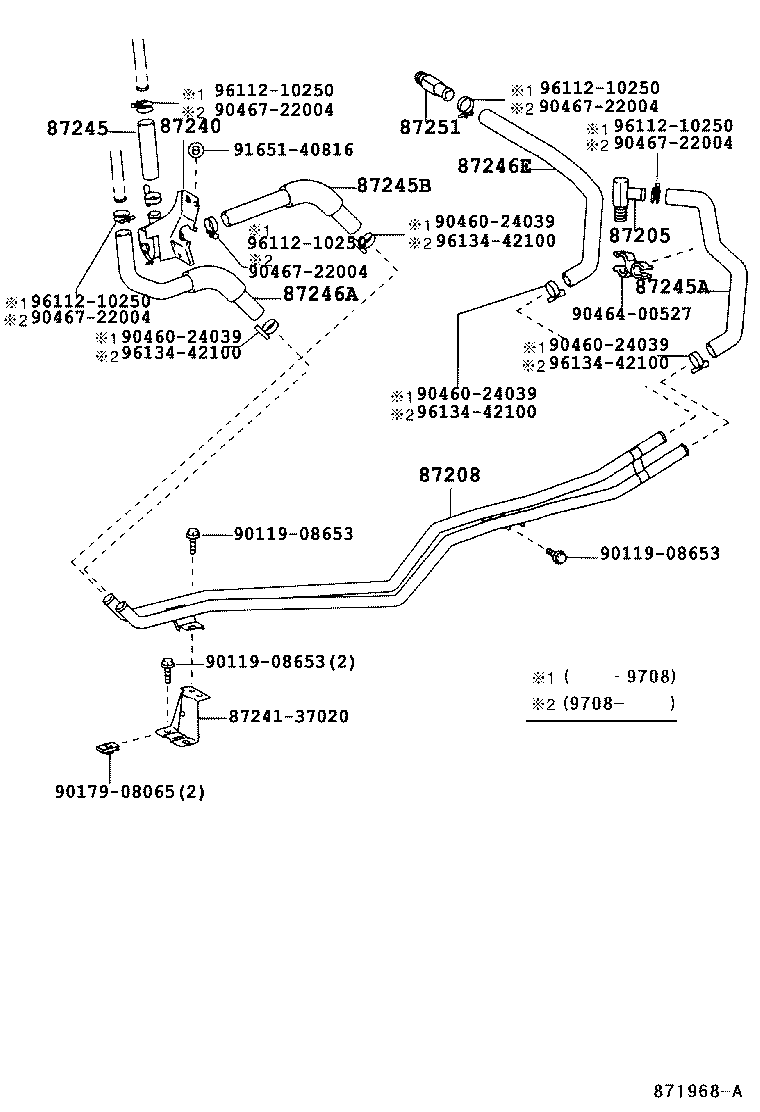

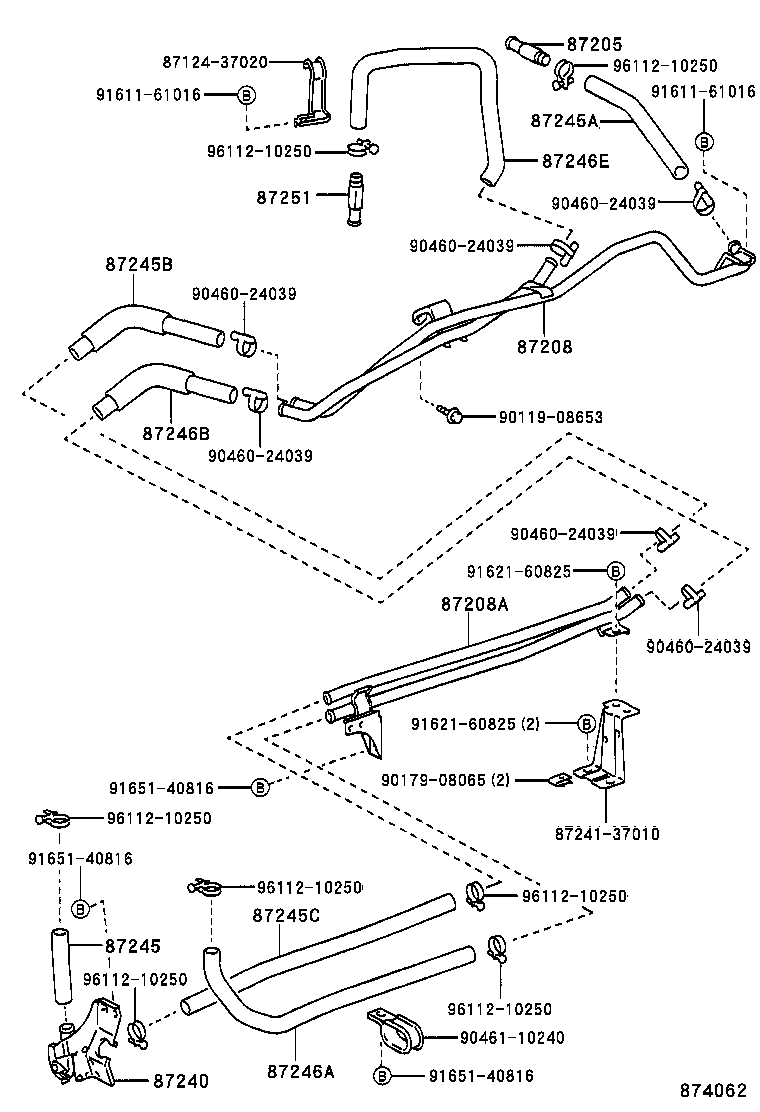

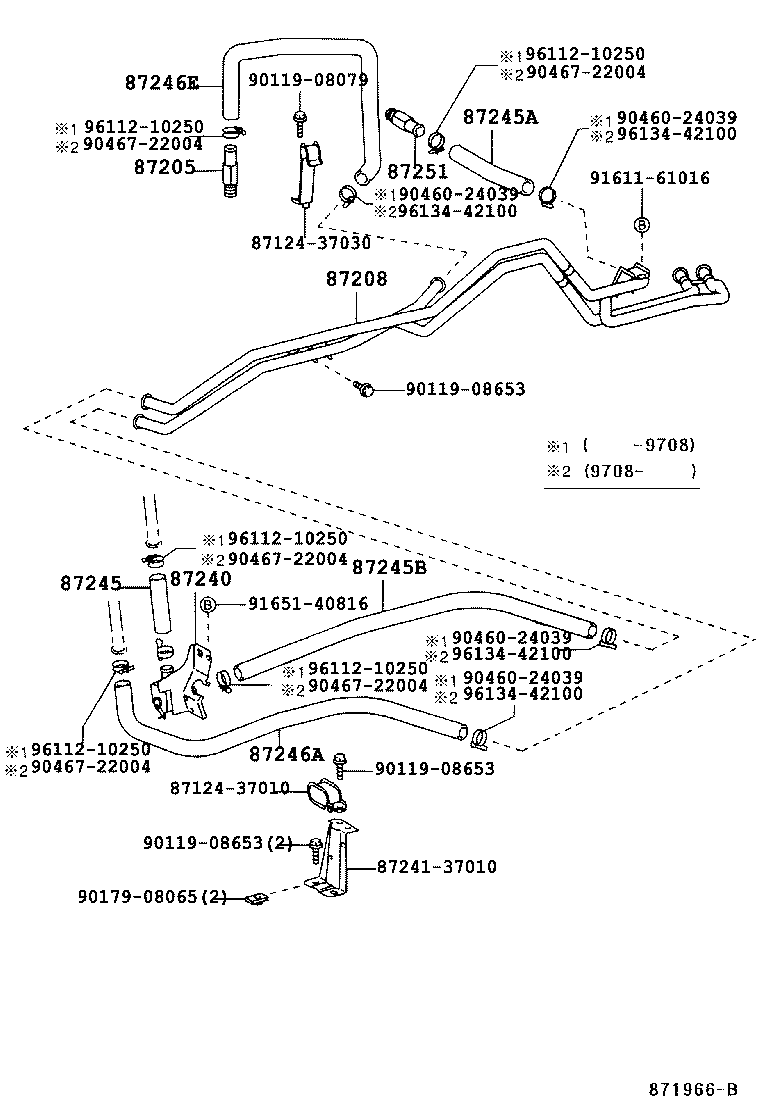

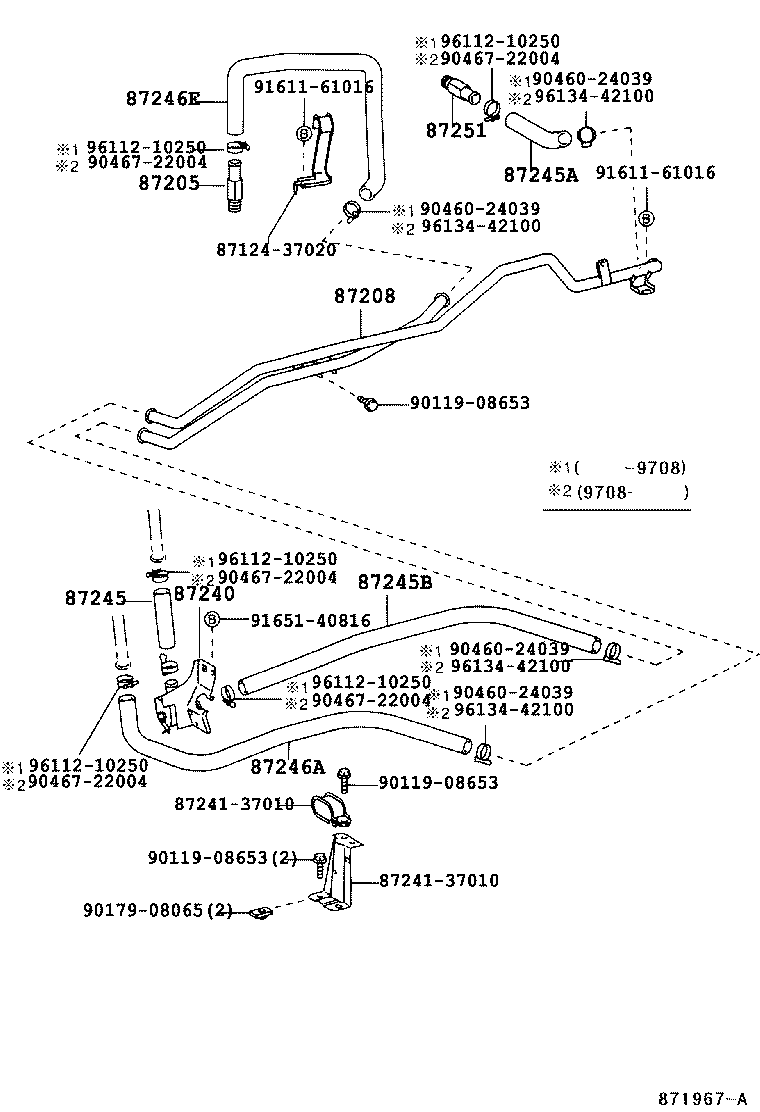

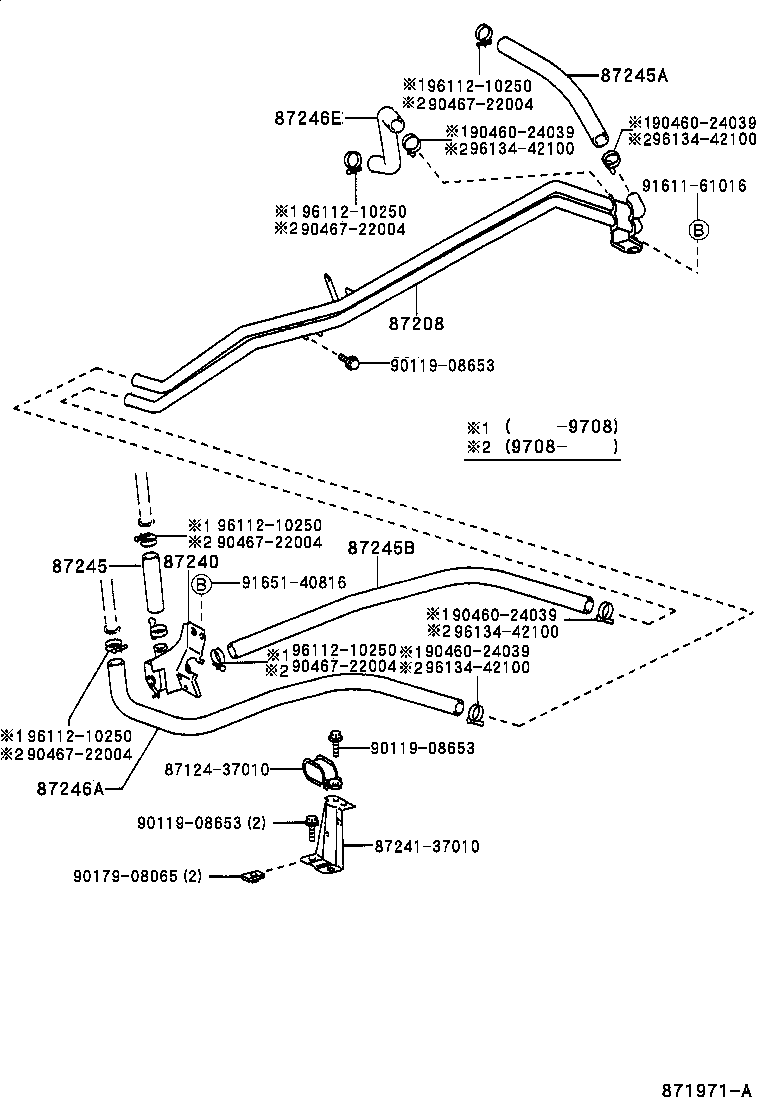

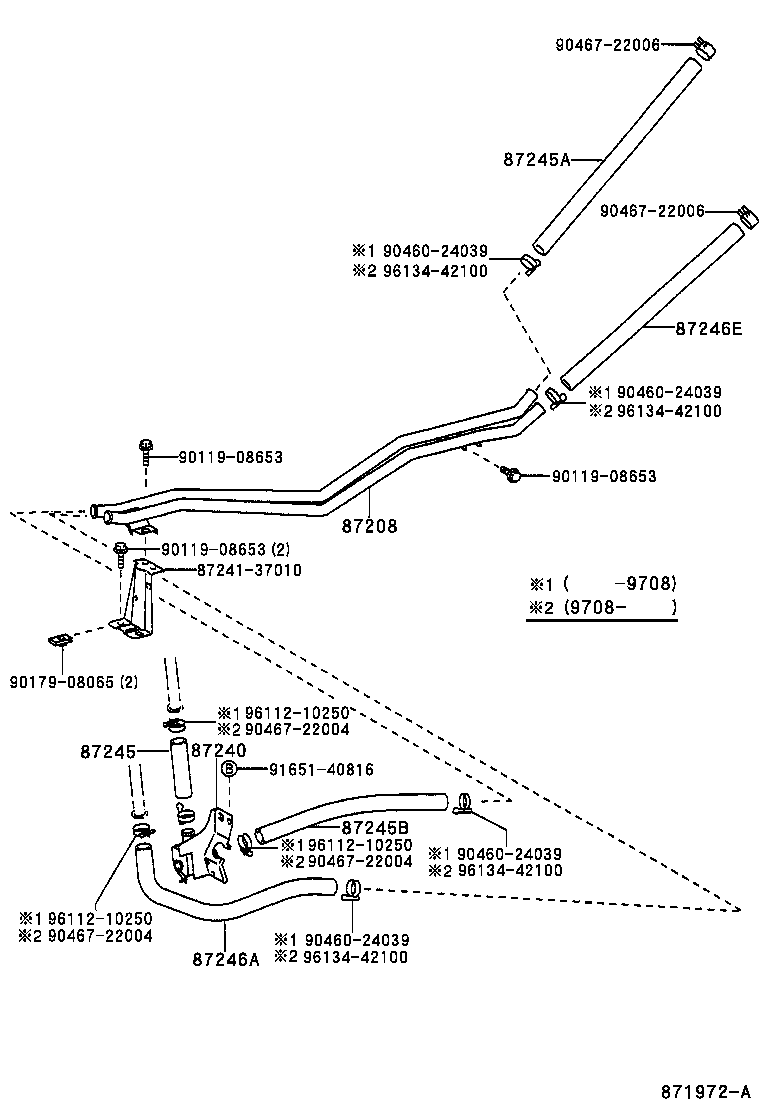

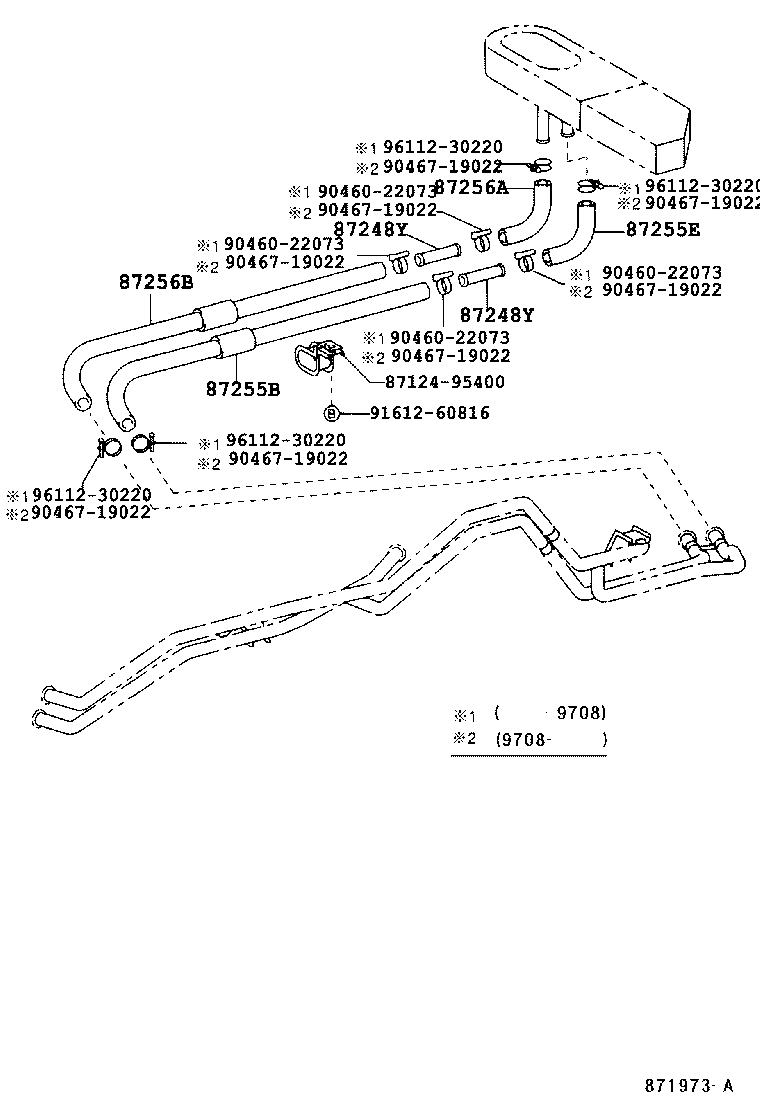

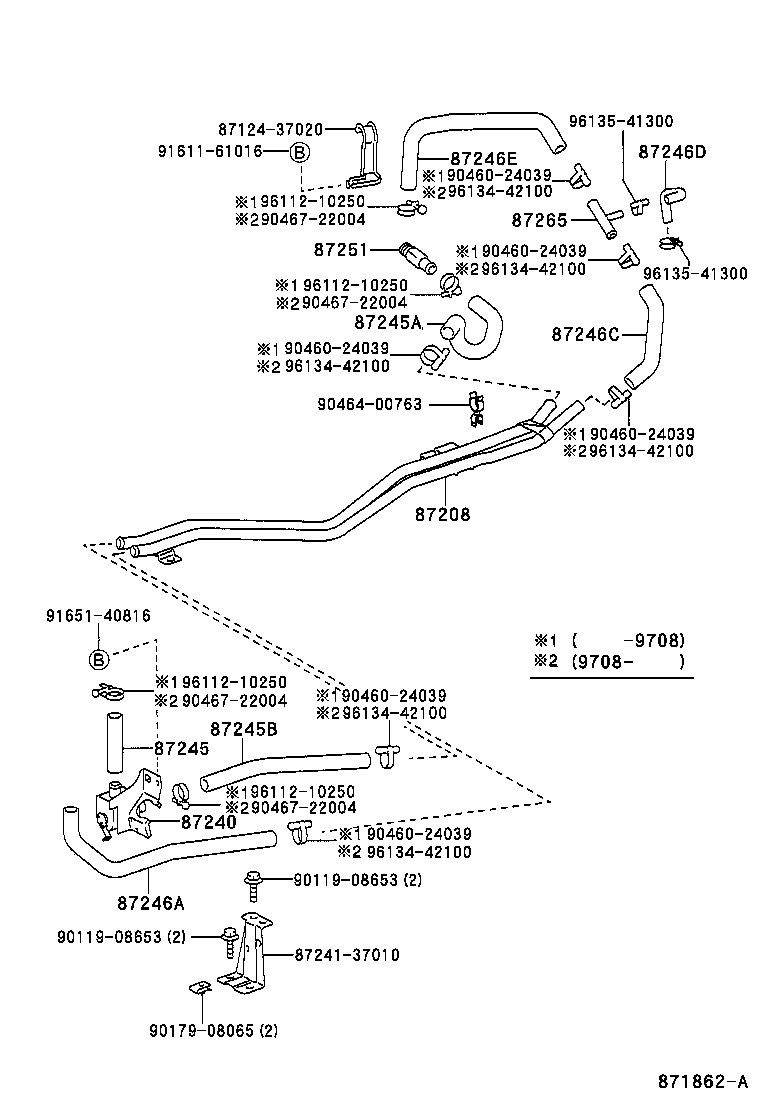

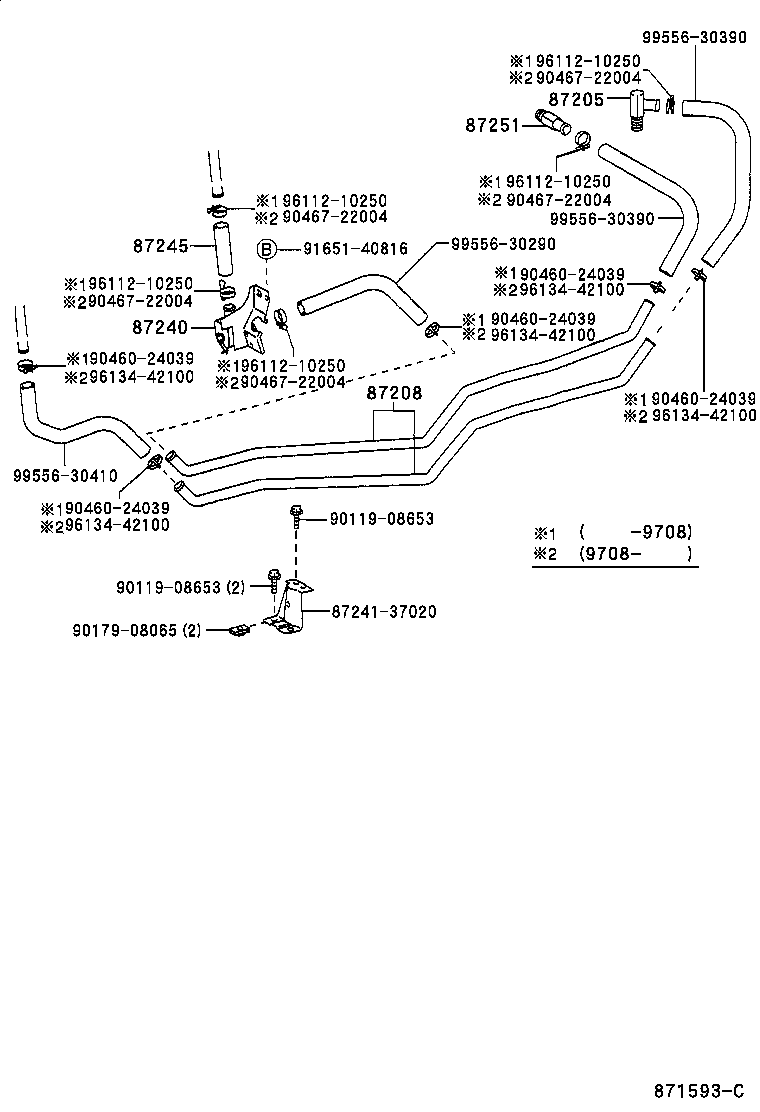

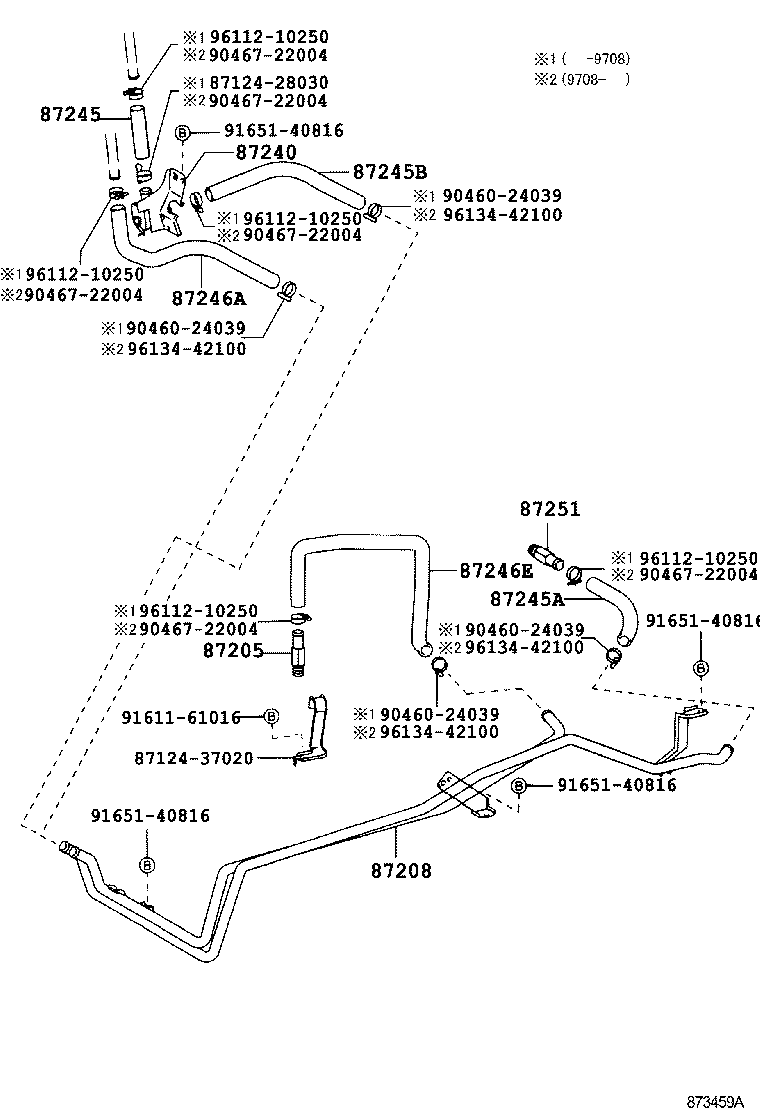

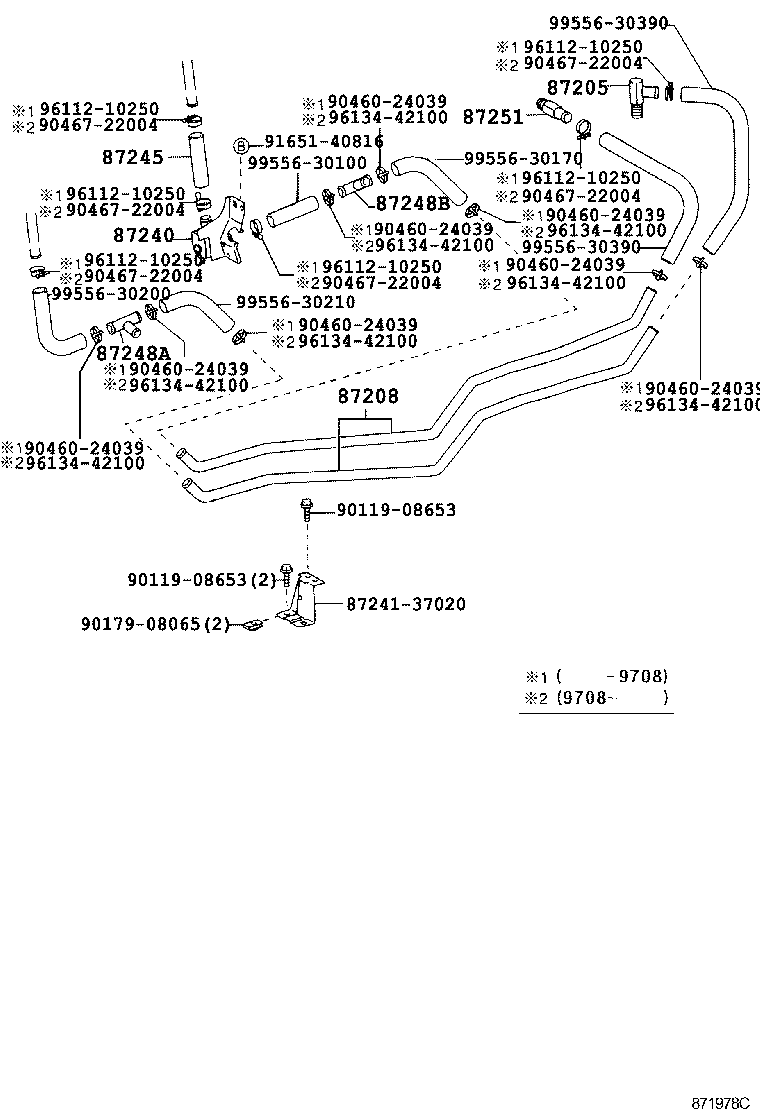

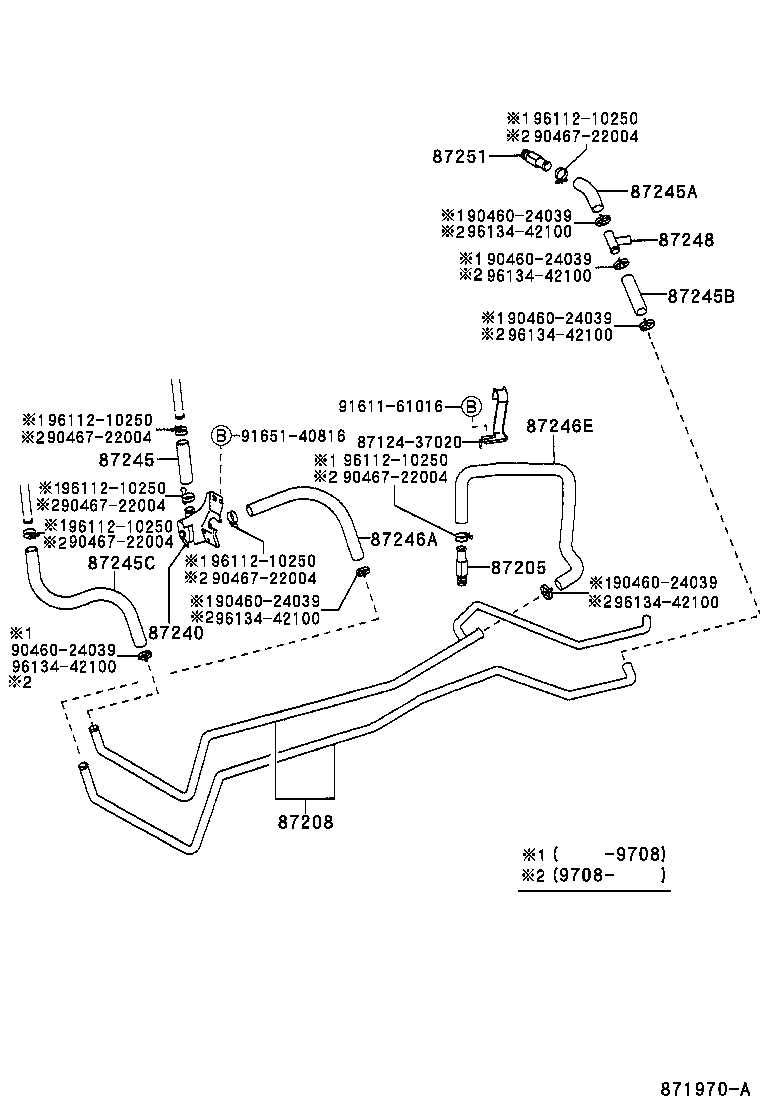

Figure 871965A 871965A 1995-05 → — Figure 874062 874062 1997-01 → — Figure 871862A 871862A 1995-05 → — Figure 871966B 871966B 1995-05 → — Figure 871967A 871967A 1995-05 → — Figure 871968A 871968A 1995-05 → — Figure 871593C 871593C 1995-05 → — Figure 871978C 871978C 1995-05 → — Figure 873459A 873459A 1995-05 → — Figure 871970A 871970A 1995-05 → — Figure 874063 874063 1997-01 → — Figure 871971A 871971A 1995-05 → — Figure 871972A 871972A 1995-05 → — Figure 871958C 871958C 1995-10 → — Figure 871973A 871973A 1995-05 → — Figure 871974B 871974B 1995-05 → —

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87208C Pipe Sub-assy, Heater Water, C
87240 Valve Assy, Heater Water
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87248 Pipe Sub-assy, Water
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248Y Pipe, Heater Water, NO.2
87251 Joint OR Union, Water Hose Through
87255B Hose, Rear Heater Water Inlet, B
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87265 Connector, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
