Toyota Dyna 200/Toyoace G25

1995-05 → 2000-05 · chassis BU1##,2##,RZU100,140,XZU130,140 · catalogue 751160 · Japan

Discontinued model Data version 2001-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

6 part groups · 2 illustrations

Illustrations

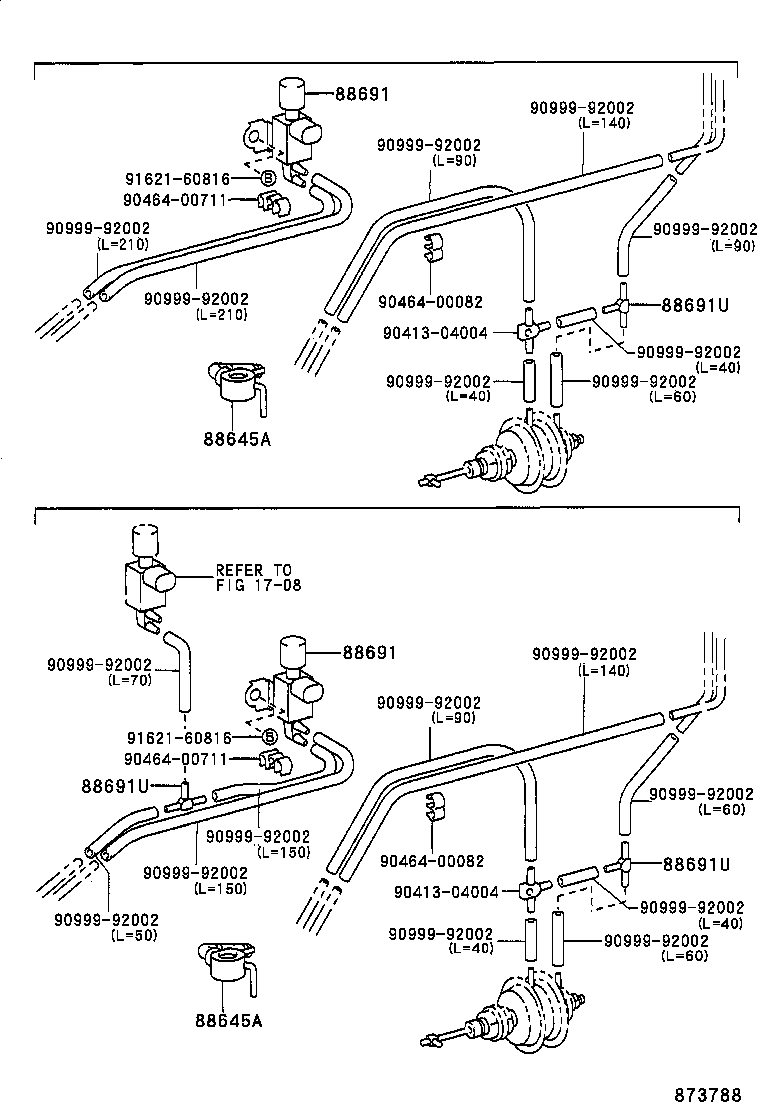

Figure 871856 871856 1995-05 → — Figure 873788 873788 1995-05 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88645A Union (FOR IDLE UP DEVICE)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691D Hose, Vacuum (FOR IDLE UP DIVICE), NO.2
88691U Way(FOR VACUUM HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
