Toyota Dyna/Toyoace
1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan
Discontinued model
Data version 2007-10
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

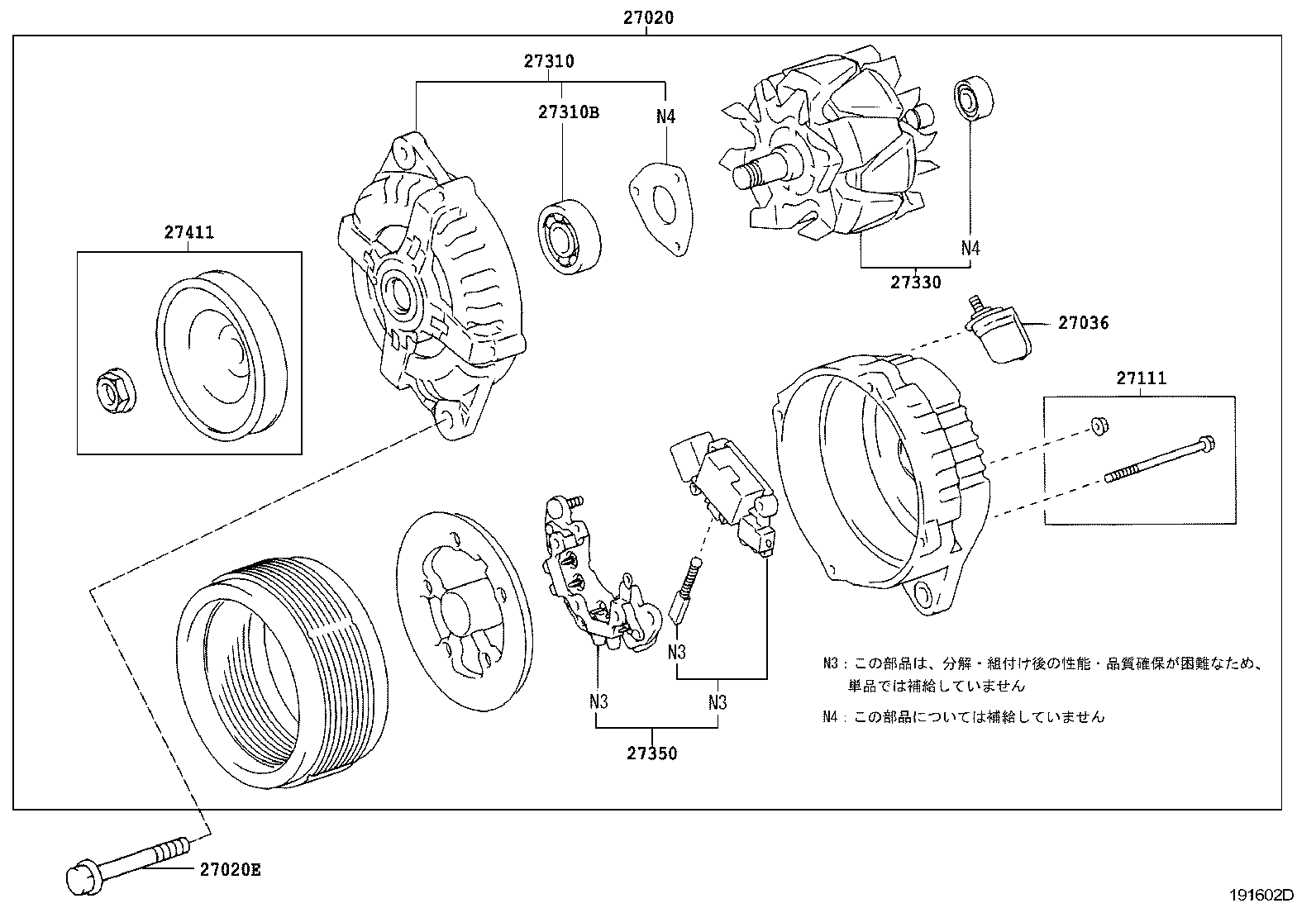

| 27020 — Alternator Assy | ||||
| 27060-58320 note |
Alternator Assy
2000-05 → 2002-06
ended
|
15B# XZU301,302,341,342 | ¥134,000 | |
| 27060-58360 note |
Alternator Assy
1999-05 → 2004-06
ended
|
4B BU30#,346 | ¥111,000 | |
| 27060-58370 note |
Alternator Assy
1999-05 → 2000-11
ended
|
4B BU30#,346 | ¥135,000 | |
| 27060-58400 note |
Alternator Assy
2000-05 → 2004-06
ended
|
4B BU30#,346 | ¥145,000 | |
| 27060-58420 note |
Alternator Assy
2002-08 → 2003-06
ended
|
15B# XZU301,302,341,342 | ¥112,000 | |
| 27060-58440 note |
Alternator Assy
2003-06 → 2004-06
ended
|
1BZ# BZU300,340 | ¥112,000 | |
| 27060-75150 note |
Alternator Assy
2000-05 → 2002-06
ended
|
3RZ# RZU300,340 | ¥117,000 | |
| 27060-75270 note |
Alternator Assy
2002-06 → 2003-06
ended
|
3RZ# RZU300,340 | ¥129,000 | |
| 27060-75300 note |
Alternator Assy
2003-06 → 2004-06
ended
|
3RZ# RZU30#,340 | ¥162,000 | |
| 27060-78010 note |
Alternator Assy
1999-05 → 2001-03
ended
|
S05D XZU301,331 IV4 | ¥135,000 | |
| 27060-78010 note |
Alternator Assy
2002-10 → 2004-06
ended
|
S05D XZU306 5F DSLL +5 | ¥135,000 | |
| 27060-78010 note |
Alternator Assy
1999-05 → 2004-06
ended
|
S05D 1,306 ,340,341,342,346,347,35# XZU306 +17 | ¥135,000 | |
| 27060-78010 note |
Alternator Assy
1999-05 → 2002-06
ended
|
S05D XZU301,306 (DM6,T3,T4) DSLL +1 | ¥135,000 | |
| 27060-78020 note |
Alternator Assy
1999-07 → 2004-06
ended
|
S05C XZU362,372,382 | ¥135,000 | |
| 27060-78020 note |
Alternator Assy
1999-07 → 2001-03
ended
|
S05D XZU371 | ¥135,000 | |
| 27060-78050 note |
Alternator Assy
2000-11 → 2002-06
ended
|
J05C,S05C XZU300,322,330,340 (T3,T4,T5) IV3 | ¥161,000 | |
| 27060-78060 note |
Alternator Assy
2000-11 → 2002-06
ended
|
S05C XZU362,372,382 SCB (T3,T4) +1 | ¥161,000 | |
| 27060-78070 note |
Alternator Assy
2001-03 → 2004-06
ended
|
S05D XZU301,331 DSL IV4 | ¥203,000 | |
| 27060-78070 note |
Alternator Assy
2002-06 → 2004-06
ended
|
S05D ,307,331,337,342,346,347 XZU341 SCB +11 | ¥203,000 | |
| 27060-78070 note |
Alternator Assy
2002-10 → 2004-06
ended
|
S05D XZU306 5F DSLL +5 | ¥203,000 | |
| 27060-78070 note |
Alternator Assy
2001-01 → 2002-06
ended
|
S05D XZU301 30T DSLL +1 | ¥203,000 | |
| 27060-78070 note |
Alternator Assy
2001-01 → 2004-06
ended
|
S05D (20T,30T) XZU306 DSLL +10 | ¥203,000 | |
| 27060-78080 note |
Alternator Assy
2001-03 → 2004-06
ended
|
S05D XZU371 | ¥168,000 | |
| 27060-78080 note |
Alternator Assy
2002-06 → 2004-06
ended
|
S05C XZU362,372,382 SCB (T3,T4) +1 | ¥168,000 | |
| 27060-78100 note |
Alternator Assy
2003-10 → 2004-03
ended
|
N04C XZU304,305,344 | ¥160,000 | |
| 27060-78101 note |
Alternator Assy
2004-03 → 2004-06
ended
|
N04C XZU304,305,344 | ¥161,000 | |
| 27060-78110 note |
Alternator Assy
2003-10 → 2004-06
ended
|
N04C XZU304,344 (T3,T4,T5) IV3 | ¥185,000 | |
| 27060-58440 note |
Alternator Assy
2004-06 → 2007-05
ended
|
1BZ# BZU300,340 | ¥112,000 | |
| 27060-75300 note |
Alternator Assy
2004-06 → 2007-05
ended
|
3RZ# RZU30#,340 | ¥162,000 | |
| 27060-78101 note |
Alternator Assy
2004-06 → 2006-11
ended
|
N04C XZU304,305,308,314,334,338,344,348,354,368,378,388 CBU,IV3,IV6,IV7 | ¥161,000 | |
| 27060-78110 note |
Alternator Assy
2004-06 → 2006-10
ended
|
N04C .(T2,T3,T4,T5) XZU378 (IV3,IV4) +5 | ¥185,000 | |
| 27060-78120 note |
Alternator Assy
2004-06 → 2006-10
ended
|
S05D XZU301,306,331,336,341,346 SCB (T2,T3,T4,T5) +1 | ¥198,000 | |
| 27060-78130 note |
Alternator Assy
2004-06 → 2006-10
ended
|
S05D XZU301,306,311,321,331,336,341,346,351 | ¥161,000 | |
| 27060-78140 note |
Alternator Assy
2006-11 → 2007-05
ended
|
N04C XZU304 | ¥167,000 | |
| 27020E — Bolt(FOR ALTERNATOR) | ||||
| 90031-05027 |
Bolt(FOR ALTERNATOR)
1999-05 → 2001-03
ended
|
S05D XZU301,331,371 IV4 | ¥310 | |
| 90031-05027 |
Bolt(FOR ALTERNATOR)
1999-05 → 2002-06
ended
|
S05D XZU301,306 (DM6,T3,T4) DSLL +1 | ¥310 | |
| 90031-05027 note |
Bolt(FOR ALTERNATOR)
2000-11 → 2002-06
ended
|
J05C XZU300,330,340 IV3 | ¥310 | |
| 90031-05027 |
Bolt(FOR ALTERNATOR)
1999-05 → 2002-12
ended
|
S05D 1,306 341,342,346,347,351,352,362,372,382 XZU306 +17 | ¥310 | |
| 90031-05027 |
Bolt(FOR ALTERNATOR)
2002-10 → 2002-12
ended
|
S05D XZU301 DSLL IV3 +1 | ¥310 | |
| 90031-05093 |
Bolt(FOR ALTERNATOR)
2002-12 → 2004-06
ended
|
S05D 1,302,307,31#,32#,331,337,341,342,346,347,351,352 XZU306 CBU,IV3,IV6,IV7 +9 | ¥190 | |
| 90031-05093 |
Bolt(FOR ALTERNATOR)
2002-12 → 2003-04
ended
|
S05C XZU362,372,382 | ¥190 | |
| 90031-05093 note |
Bolt(FOR ALTERNATOR)
1999-06 → 2004-06
ended
|
J05C XZU300,320,330,340,350 | ¥190 | |
| 90031-05159 note |
Bolt(FOR ALTERNATOR)
2001-01 → 2004-06
ended
|
S05D 05D B XZU306 +18 | ¥310 | |
| 90031-05159 note |
Bolt(FOR ALTERNATOR)
2002-10 → 2004-06
ended
|
S05D XZU306 5F DSLL +6 | ¥310 | |
| 90031-05159 |
Bolt(FOR ALTERNATOR)
2002-10 → 2004-06
ended
|
S05D XZU301,331 DSLL IV4 | ¥310 | |
| 90031-05159 |
Bolt(FOR ALTERNATOR)
2001-03 → 2004-06
ended
|
S05D 4FC XZU301 DSL +10 | ¥310 | |
| 90031-05159 |
Bolt(FOR ALTERNATOR)
2001-03 → 2002-06
ended
|
S05D XZU301,331 4FC DSLL +1 | ¥310 | |
| 90031-05159 note |
Bolt(FOR ALTERNATOR)
2001-01 → 2002-06
ended
|
S05D XZU301,306 (T3,T4) DSLL +1 | ¥310 | |
| 90031-05166 |
Bolt(FOR ALTERNATOR)
2001-03 → 2004-06
ended
|
S05D XZU371 | ¥310 | |
| 90031-05166 note |
Bolt(FOR ALTERNATOR)
2002-06 → 2004-06
ended
|
S05C XZU362,372,382 SCB (T3,T4) +1 | ¥310 | |
| 90031-05166 note |
Bolt(FOR ALTERNATOR)
2003-04 → 2004-06
ended
|
S05C XZU362,372,382 | ¥310 | |
| 90105-10221 |
Bolt(FOR ALTERNATOR)
2000-05 → 2004-06
ended
|
3RZ# RZU30#,340 | ¥430 | |
| 90148-10001 |
Bolt(FOR ALTERNATOR)
1999-05 → 2004-06
ended
|
15B#,1BZ#,4B BU30#,346,BZU300,340,XZU301,302,341,342 | ¥70 | |
| 90031-05093 |
Bolt(FOR ALTERNATOR)
2003-10 → 2004-06
ended
|
N04C XZU304,305,344 | ¥190 | |
| 90031-05093 |
Bolt(FOR ALTERNATOR)
2004-06 → 2007-05
ended
|
N04C XZU304,305,308,314,334,338,344,348,354,368,378,388 | ¥190 | |
| 90031-05165 |
Bolt(FOR ALTERNATOR)
2004-06 → 2006-10
ended
|
S05D XZU301,306,311,321,331,336,341,346,351 | ¥410 | |
| 90105-10221 |
Bolt(FOR ALTERNATOR)
2004-06 → 2007-05
ended
|
3RZ# RZU30#,340 | ¥430 | |
| 90148-10001 |
Bolt(FOR ALTERNATOR)
2004-06 → 2007-05
ended
|
1BZ# BZU300,340 | ¥70 | |
| 27036 — Terminal Sub-assy, Lead Wire, Alternator | ||||
| 27036-89103 |
Terminal Sub-assy, Lead Wire, Alternator
2001-03 → 2004-06
ended
|
S05D L XZU306 IV4;S05D +14 | ¥660 | |
| 27036-89103 |
Terminal Sub-assy, Lead Wire, Alternator
2002-10 → 2004-06
ended
|
S05D XZU306 5F DSLL +5 | ¥660 | |
| 27036-89103 |
Terminal Sub-assy, Lead Wire, Alternator
2002-06 → 2004-06
ended
|
S05D 1,302,306,307,33#,340,342,346,347,362,372,382 XZU341 SCB +11 | ¥660 | |
| 27111 — Bolt, Alternator | ||||
| 27111-89101 |
Bolt, Alternator
2001-03 → 2004-06
ended
|
S05D L XZU306 IV4;S05D +14 | ¥1,160 | |
| 27111-89101 |
Bolt, Alternator
2002-06 → 2004-06
ended
|
S05D 1,302,306,307,33#,340,342,346,347,362,372,382 XZU341 SCB +11 | ¥1,160 | |
| 27111-89101 |
Bolt, Alternator
2002-10 → 2004-06
ended
|
S05D XZU306 5F DSLL +5 | ¥1,160 | |
| 27310 — Frame Assy, Drive End, Alternator | ||||
| 27310-58350 note |
Frame Assy, Drive End, Alternator
2000-05 → 2002-06
ended
|
15B# XZU301,302,341,342 | — | |
| 27310-58390 note |
Frame Assy, Drive End, Alternator
2000-05 → 2004-06
ended
|
4B BU30#,346 | — | |
| 27310-58400 note |
Frame Assy, Drive End, Alternator
1999-05 → 2000-11
ended
|
4B BU30#,346 | — | |
| 27310-58410 note |
Frame Assy, Drive End, Alternator
1999-05 → 2004-06
ended
|
4B BU30#,346 | — | |
| 27310-58460 note |
Frame Assy, Drive End, Alternator
2003-06 → 2004-06
ended
|
1BZ# BZU300,340 | — | |
| 27310-72280 |
Frame Assy, Drive End, Alternator
2002-06 → 2003-06
ended
|
3RZ# RZU300,340 | — | |
| 27310-75160 note |
Frame Assy, Drive End, Alternator
2000-05 → 2002-06
ended
|
3RZ# RZU300,340 | — | |
| 27310-75250 note |
Frame Assy, Drive End, Alternator
2003-06 → 2004-06
ended
|
3RZ# RZU30#,340 | — | |
| 27310-89104 note |
Frame Assy, Drive End, Alternator
2000-11 → 2002-06
ended
|
J05C,S05C XZU300,322,330,340,362,372,382 SCB (T3,T4,T5) +1 | ¥32,800 | |
| 27310-89105 note |
Frame Assy, Drive End, Alternator
2001-03 → 2004-06
ended
|
S05D L XZU306 IV4;S05D +14 | ¥51,900 | |
| 27310-89105 note |
Frame Assy, Drive End, Alternator
2002-10 → 2004-06
ended
|
S05D XZU306 5F DSLL +5 | ¥51,900 | |
| 27310-89105 note |
Frame Assy, Drive End, Alternator
2002-06 → 2004-06
ended
|
S05D L SL XZU346 +16 | ¥51,900 | |
| 27310-89105 |
Frame Assy, Drive End, Alternator
2002-06 → 2004-06
ended
|
S05D XZU346 T3 IV3;J05C +2 | ¥51,900 | |
| 27310-58460 note |
Frame Assy, Drive End, Alternator
2004-06 → —
|
1BZ# BZU300,340 | — | |
| 27310-75250 note |
Frame Assy, Drive End, Alternator
2004-06 → —
|
3RZ# RZU30#,340 | — | |
| 27310B — Bearing(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 28252-89103 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2003-01 → 2004-06
ended
|
S05C XZU372,382 SCB IV3;S05# +3 | ¥1,070 | |
| 28252-89103 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2002-10 → 2004-06
ended
|
S05D XZU306 5F DSLL +5 | ¥1,070 | |
| 28252-89103 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2001-01 → 2002-06
ended
|
S05D XZU301 30T DSLL +1 | ¥1,070 | |
| 28252-89103 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2002-06 → 2004-06
ended
|
S05D L XZU346 IV3;S05# +15 | ¥1,070 | |
| 28252-89103 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2002-06 → 2004-06
ended
|
S05D XZU346 T3 IV3;J05C +2 | ¥1,070 | |
| 28252-89103 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2001-03 → 2004-06
ended
|
S05D XZU301,331 DSL IV4 | ¥1,070 | |
| 28252-89103 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2001-01 → 2004-06
ended
|
S05D (20T,30T) XZU306 DSLL +10 | ¥1,070 | |
| 90099-10142 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2003-06 → 2004-06
ended
|
1BZ#,3RZ# BZU300,340,RZU30#,340 | — | |
| 90099-10178 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1999-05 → 2004-06
ended
|
4B BU30#,346 | — | |
| 90099-10192 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1999-05 → 2002-06
ended
|
S05D XZU301,306 (DM6,T3,T4) DSLL +1 | — | |
| 90099-10192 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2002-10 → 2004-06
ended
|
S05D XZU306 5F DSLL +5 | — | |
| 90099-10192 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2002-08 → 2003-06
ended
|
15B# XZU301,302,341,342 | — | |
| 90099-10192 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2002-06 → 2003-06
ended
|
3RZ# RZU300,340 | — | |
| 90099-10192 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2000-11 → 2002-06
ended
|
J05C,S05C XZU300,330,340,362,372,382 SCB (T3,T4) +1 | — | |
| 90099-10192 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2000-05 → 2002-06
ended
|
15B# XZU301,302,341,342 | — | |
| 90099-10192 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1999-05 → 2001-03
ended
|
S05D XZU301,331 IV4 | — | |
| 90099-10192 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1999-05 → 2004-06
ended
|
S05D 1,306 ,322,331,337,341,342,346,347,351,352 XZU306 +17 | — | |
| 90099-10199 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2000-05 → 2002-06
ended
|
3RZ# RZU300,340 | — | |
| 90099-10142 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2004-06 → 2006-11
ended
|
1BZ#,3RZ# BZU300,340,RZU30#,340 | — | |
| 90099-10223 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2006-12 → —
|
1BZ#,3RZ# BZU300,340,RZU30#,340 | ¥0 | |
| 27330 — Rotor Assy, Alternator | ||||
| 27330-17240 note |
Rotor Assy, Alternator
2000-05 → 2004-06
ended
|
4B BU30#,346 | — | |
| 27330-17240 note |
Rotor Assy, Alternator
2000-11 → 2002-06
ended
|
J05C,S05C XZU300,322,330,340,362,372,382 SCB (T3,T4,T5) +1 | — | |
| 27330-20070 note |
Rotor Assy, Alternator
2002-08 → 2003-06
ended
|
15B# XZU301,302,341,342 | — | |
| 27330-28050 note |
Rotor Assy, Alternator
2000-07 → 2002-06
ended
|
15B# XZU301,302,341,342 | — | |
| 27330-42020 note |
Rotor Assy, Alternator
2000-05 → 2000-07
ended
|
15BLPG XZU301,341 | — | |
| 27330-58040 note |
Rotor Assy, Alternator
1999-05 → 2004-06
ended
|
4B BU30#,346 | — | |
| 27330-58050 |
Rotor Assy, Alternator
2002-10 → 2004-06
ended
|
S05D XZU306 5F DSLL +5 | — | |
| 27330-58050 |
Rotor Assy, Alternator
1999-05 → 2002-06
ended
|
S05D XZU301,306 (DM6,T3,T4) DSLL +1 | — | |
| 27330-58050 |
Rotor Assy, Alternator
1999-05 → 2001-03
ended
|
S05D XZU301,331 IV4 | — | |
| 27330-58050 note |
Rotor Assy, Alternator
1999-05 → 2000-11
ended
|
4B BU30#,346 | — | |
| 27330-58460 note |
Rotor Assy, Alternator
2003-06 → 2004-06
ended
|
1BZ#,3RZ# BZU300,340,RZU30#,340 | — | |
| 27330-67100 note |
Rotor Assy, Alternator
2000-05 → 2002-06
ended
|
3RZ# RZU300,340 | — | |
| 27330-74550 note |
Rotor Assy, Alternator
2002-06 → 2003-06
ended
|
3RZ# RZU300,340 | — | |
| 27330-89104 note |
Rotor Assy, Alternator
2001-03 → 2004-06
ended
|
S05D XZU301,331 DSL IV4 | ¥96,400 | |
| 27330-89104 |
Rotor Assy, Alternator
2002-06 → 2004-06
ended
|
S05D XZU346 T3 IV3;J05C +2 | ¥96,400 | |
| 27330-89104 note |
Rotor Assy, Alternator
2002-06 → 2004-06
ended
|
S05D L XZU346 IV3;S05# +15 | ¥96,400 | |
| 27330-89104 note |
Rotor Assy, Alternator
2001-01 → 2004-06
ended
|
S05D (20T,30T) XZU306 DSLL +10 | ¥96,400 | |
| 27330-89104 note |
Rotor Assy, Alternator
2002-10 → 2004-06
ended
|
S05D XZU306 5F DSLL +5 | ¥96,400 | |
| 27330-89104 note |
Rotor Assy, Alternator
2001-01 → 2002-06
ended
|
S05D XZU301 30T DSLL +1 | ¥96,400 | |
| 27330-89105 note |
Rotor Assy, Alternator
2001-03 → 2004-06
ended
|
S05D XZU371 | ¥22,300 | |
| 27330-89105 note |
Rotor Assy, Alternator
2002-06 → 2004-06
ended
|
S05C XZU362,372,382 SCB (T3,T4) +1 | ¥22,300 | |
| 27330-17240 note |
Rotor Assy, Alternator
2004-03 → 2004-06
ended
|
N04C XZU304,305,344 | — | |
| 27330-89108 note |
Rotor Assy, Alternator
2003-10 → 2004-06
ended
|
N04C XZU304,344 (T3,T4,T5) IV3 | — | |
| 27330-17240 |
Rotor Assy, Alternator
2005-05 → 2006-10
ended
|
S05D XZU306 IV6;S05D XZU301 +2 | — | |
| 27330-17240 note |
Rotor Assy, Alternator
2004-06 → 2007-05
ended
|
N04C U304,305,306,308,31#,321,33#,34#,351,368,378,388 XZU354;S05D CBU,IV3,IV7 +6 | — | |
| 27330-58460 note |
Rotor Assy, Alternator
2004-06 → 2007-05
ended
|
1BZ#,3RZ# BZU300,340,RZU30#,340 | — | |
| 27330-89108 note |
Rotor Assy, Alternator
2004-06 → 2006-10
ended
|
S05D XZU301,306,331,336,341,346 SCB (T2,T3,T4,T5) +1 | — | |
| 27350 — Frame Assy, Rectifier End | ||||
| 27360-89101 |
Frame Assy, Rectifier End
2001-03 → 2004-06
ended
|
S05D L XZU306 IV4;S05D +14 | ¥36,300 | |
| 27360-89101 |
Frame Assy, Rectifier End
2002-06 → 2004-06
ended
|
S05D 1,302,306,307,33#,340,342,346,347,362,372,382 XZU341 SCB +11 | ¥36,300 | |
| 27360-89101 |
Frame Assy, Rectifier End
2002-10 → 2004-06
ended
|
S05D XZU306 5F DSLL +5 | ¥36,300 | |
| 27411 — Pulley, Alternator | ||||
| 27230-89101 note |
Pulley, Alternator
2001-03 → 2004-06
ended
|
S05D XZU301,331 DSL IV4 | ¥7,800 | |
| 27230-89101 note |
Pulley, Alternator
2002-10 → 2004-06
ended
|
S05D XZU306 5F DSLL +5 | ¥7,800 | |
| 27230-89101 note |
Pulley, Alternator
2002-06 → 2004-06
ended
|
S05D L XZU346 IV3;S05# +15 | ¥7,800 | |
| 27230-89101 |
Pulley, Alternator
2002-06 → 2004-06
ended
|
S05D XZU346 T3 IV3;J05C +2 | ¥7,800 | |
| 27230-89101 note |
Pulley, Alternator
2001-01 → 2004-06
ended
|
S05D (20T,30T) XZU306 DSLL +10 | ¥7,800 | |
| 27230-89101 note |
Pulley, Alternator
2001-01 → 2002-06
ended
|
S05D XZU301 30T DSLL +1 | ¥7,800 | |
| 27230-89102 note |
Pulley, Alternator
2001-03 → 2004-06
ended
|
S05D XZU371 | ¥7,800 | |
| 27230-89102 note |
Pulley, Alternator
2002-06 → 2004-06
ended
|
S05C XZU362,372,382 SCB (T3,T4) +1 | ¥7,800 | |
| 27411-16150 note |
Pulley, Alternator
2000-05 → 2002-06
ended
|
3RZ# RZU300,340 | — | |
| 27411-42030 note |
Pulley, Alternator
2002-06 → 2003-06
ended
|
3RZ# RZU300,340 | — | |
| 27411-58050 note |
Pulley, Alternator
1999-07 → 2004-06
ended
|
S05C XZU362,372,382 | — | |
| 27411-58050 note |
Pulley, Alternator
1999-07 → 2001-03
ended
|
S05D XZU371 | — | |
| 27411-58220 note |
Pulley, Alternator
1999-05 → 2004-06
ended
|
4B BU30#,346 | — | |
| 27411-58290 note |
Pulley, Alternator
2000-05 → 2002-06
ended
|
15B# XZU301,302,341,342 | — | |
| 27411-58330 note |
Pulley, Alternator
1999-05 → 2004-06
ended
|
4B BU30#,346 | — | |
| 27411-58440 note |
Pulley, Alternator
2002-08 → 2003-06
ended
|
15B# XZU301,302,341,342 | — | |
| 27411-58460 note |
Pulley, Alternator
2003-06 → 2004-06
ended
|
1BZ# BZU300,340 | — | |
| 27411-75250 note |
Pulley, Alternator
2003-06 → 2004-06
ended
|
3RZ# RZU30#,340 | — | |
| 27411-89102 note |
Pulley, Alternator
1999-05 → 2001-03
ended
|
S05D XZU301,331 IV4 | ¥7,800 | |
| 27411-89102 note |
Pulley, Alternator
2002-10 → 2004-06
ended
|
S05D XZU306 5F DSLL +5 | ¥7,800 | |
| 27411-89102 note |
Pulley, Alternator
1999-05 → 2002-06
ended
|
S05D XZU301,306 (DM6,T3,T4) DSLL +1 | ¥7,800 | |
| 27411-89102 note |
Pulley, Alternator
1999-05 → 2004-06
ended
|
S05D 1,306 341,342,346,347,351,352 XZU306 +17 | ¥7,800 | |
| 27411-89106 note |
Pulley, Alternator
2000-11 → 2002-06
ended
|
J05C,S05C XZU300,322,330,340 (T3,T4,T5) IV3 | ¥4,910 | |
| 27411-89108 note |
Pulley, Alternator
2004-03 → 2004-06
ended
|
N04C XZU304,305,344 | ¥4,280 | |
| 27411-89109 note |
Pulley, Alternator
2003-10 → 2004-06
ended
|
N04C XZU304,344 (T3,T4,T5) IV3 | ¥4,280 | |
| 27411-58460 note |
Pulley, Alternator
2004-06 → 2007-05
ended
|
1BZ# BZU300,340 | — | |
| 27411-75250 note |
Pulley, Alternator
2004-06 → 2007-05
ended
|
3RZ# RZU30#,340 | — | |
| 27411-89108 note |
Pulley, Alternator
2004-06 → 2007-05
ended
|
N04C XZU304,305,308,314,334,338,344,348,354,368,378,388 CBU,IV3,IV6,IV7 | ¥4,280 | |
| 27411-89109 note |
Pulley, Alternator
2004-06 → 2006-10
ended
|
N04C .(T2,T3,T4,T5) XZU378 (IV3,IV4) +5 | ¥4,280 | |
| 27411-89110 note |
Pulley, Alternator
2004-06 → 2006-10
ended
|
S05D XZU301,306,331,336,341,346 SCB (T2,T3,T4,T5) +1 | ¥7,400 | |
| 27411-89111 note |
Pulley, Alternator
2004-06 → 2006-10
ended
|
S05D 36,341,346,351 XZU301 CBU,IV3 +5 | ¥7,400 | |
| 27411-89111 |
Pulley, Alternator
2005-05 → 2006-10
ended
|
S05D XZU306 IV6;S05D XZU301 +2 | ¥7,400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
