Timing Gear Cover & Rear End Plate

50 part groups · 19 illustrations

Illustrations

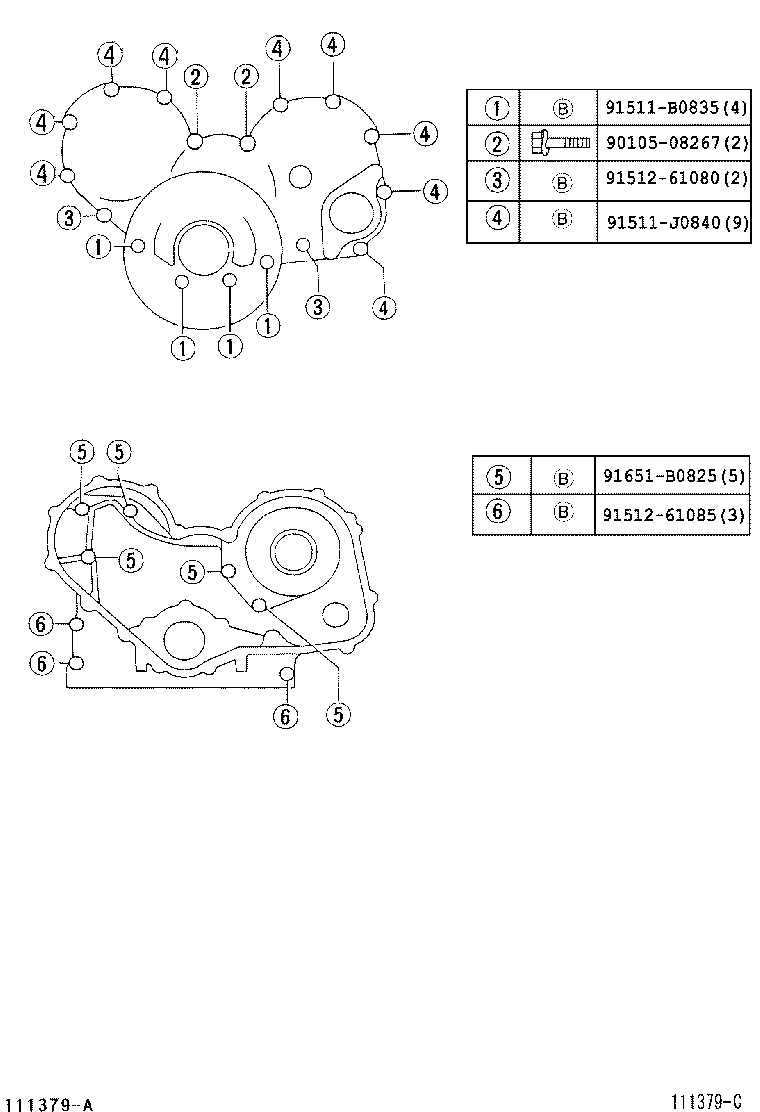

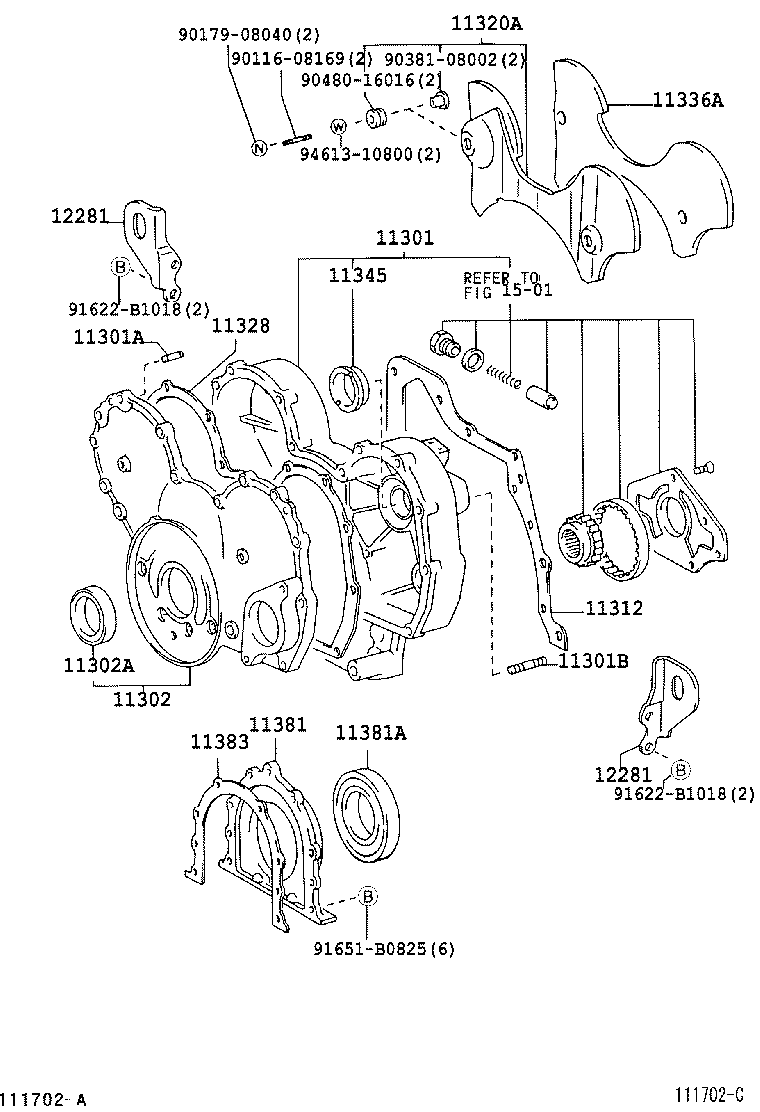

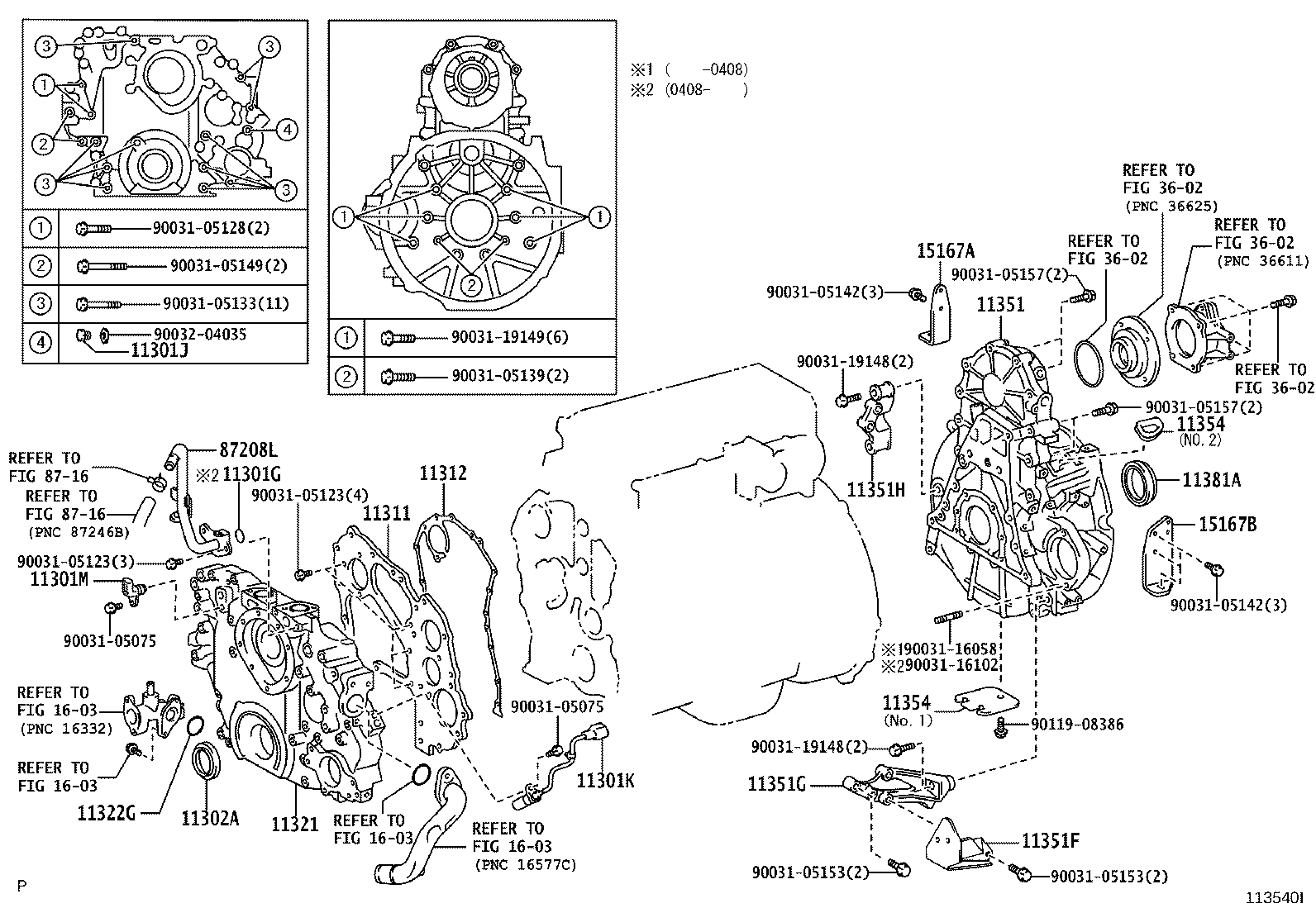

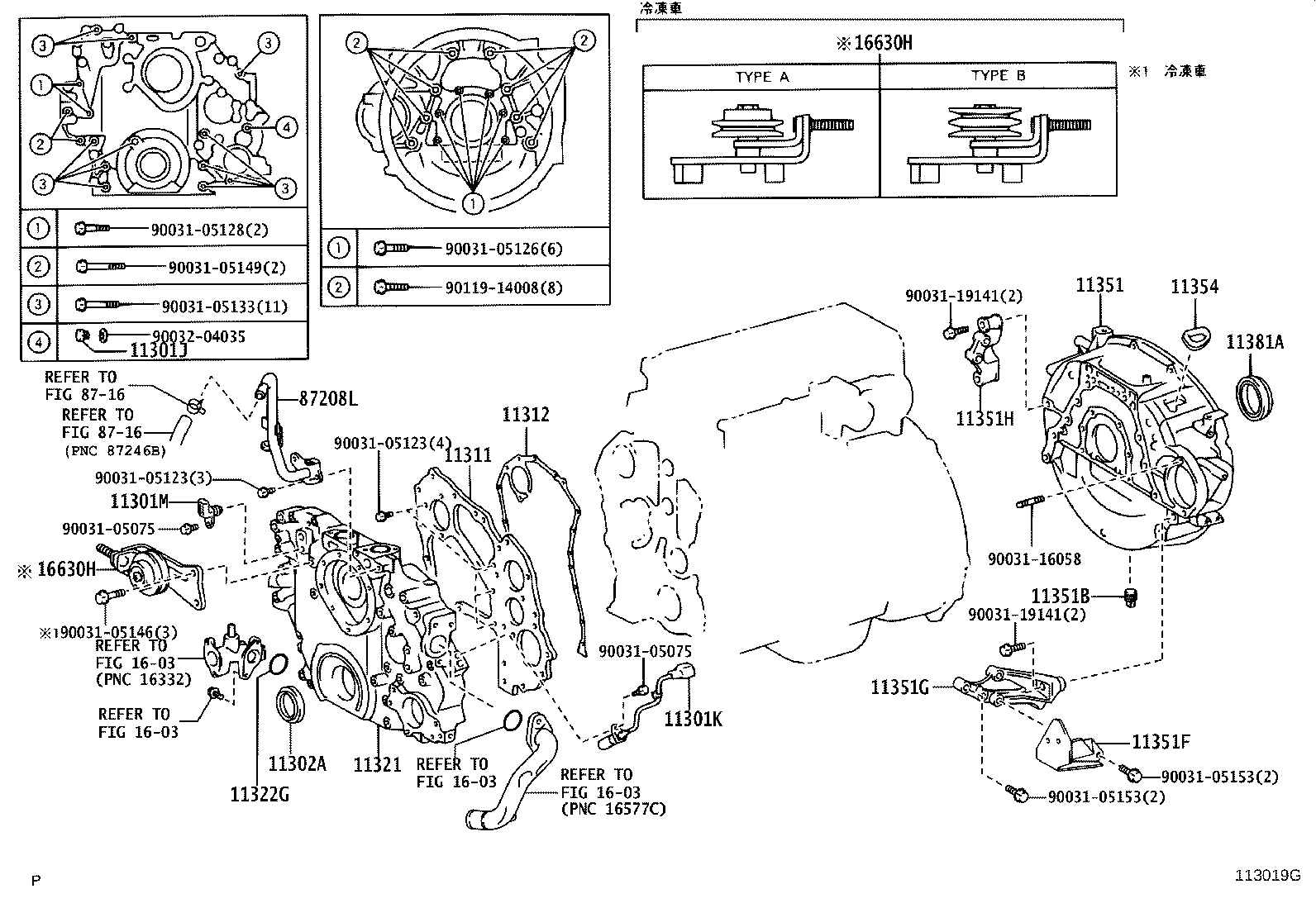

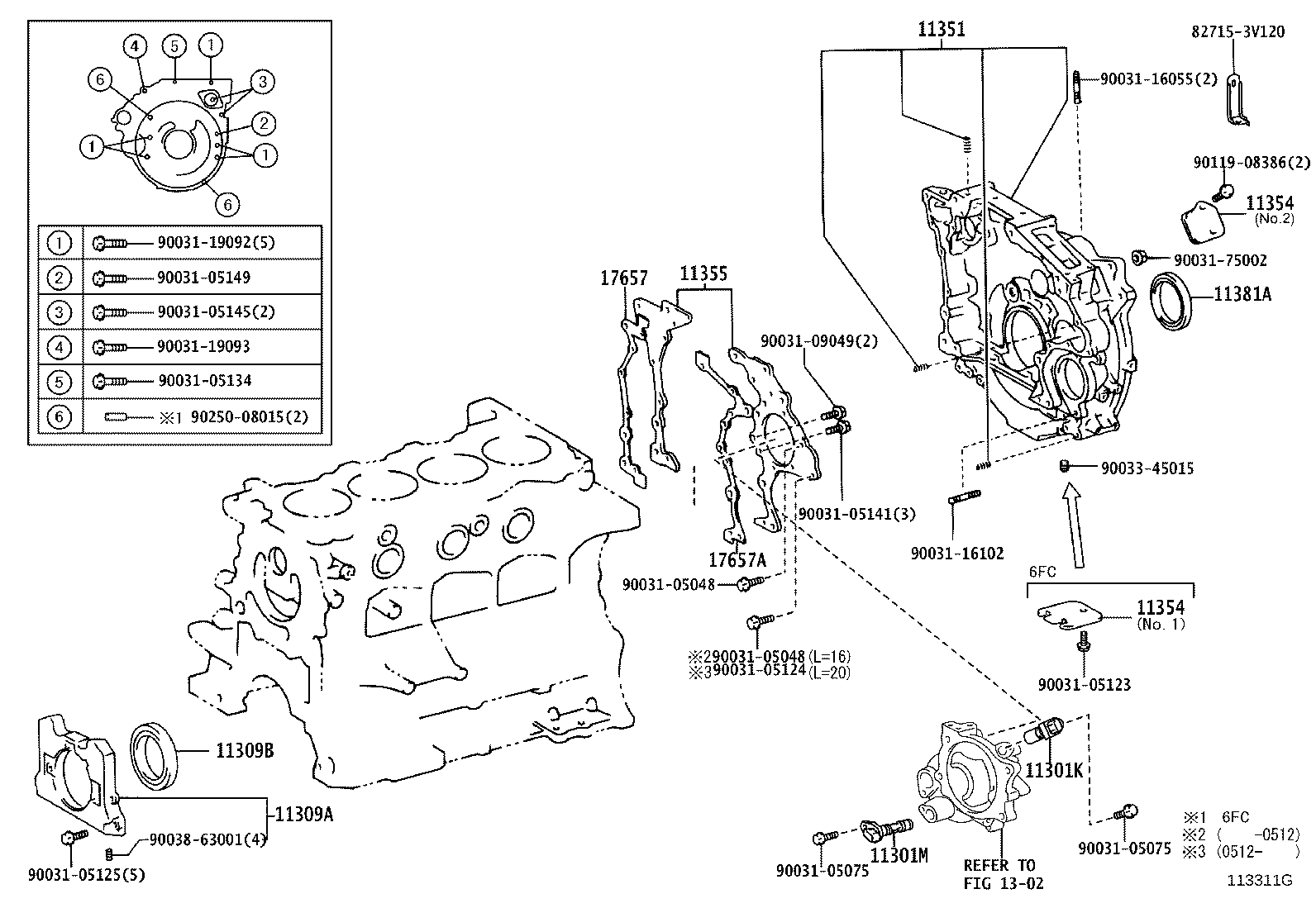

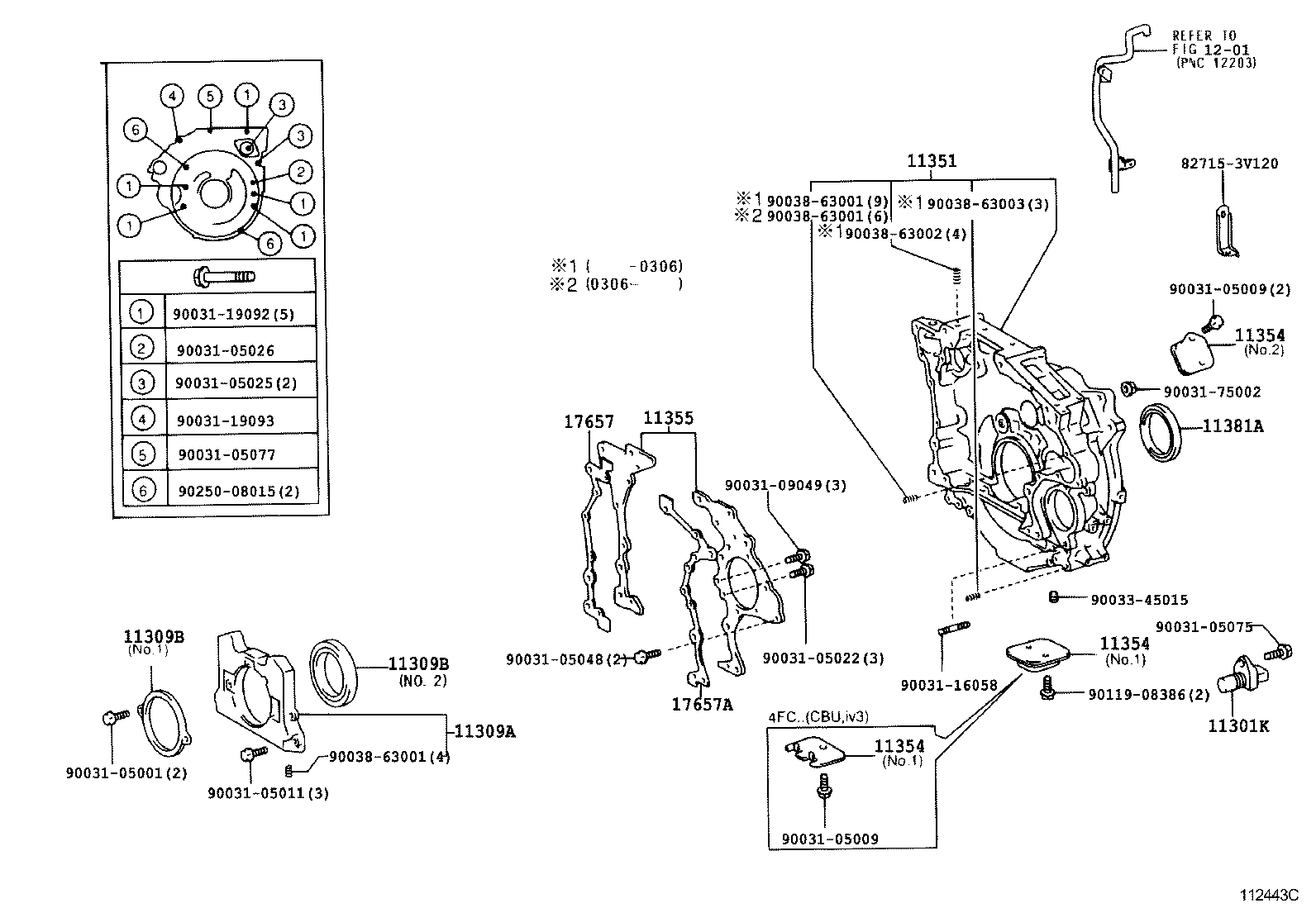

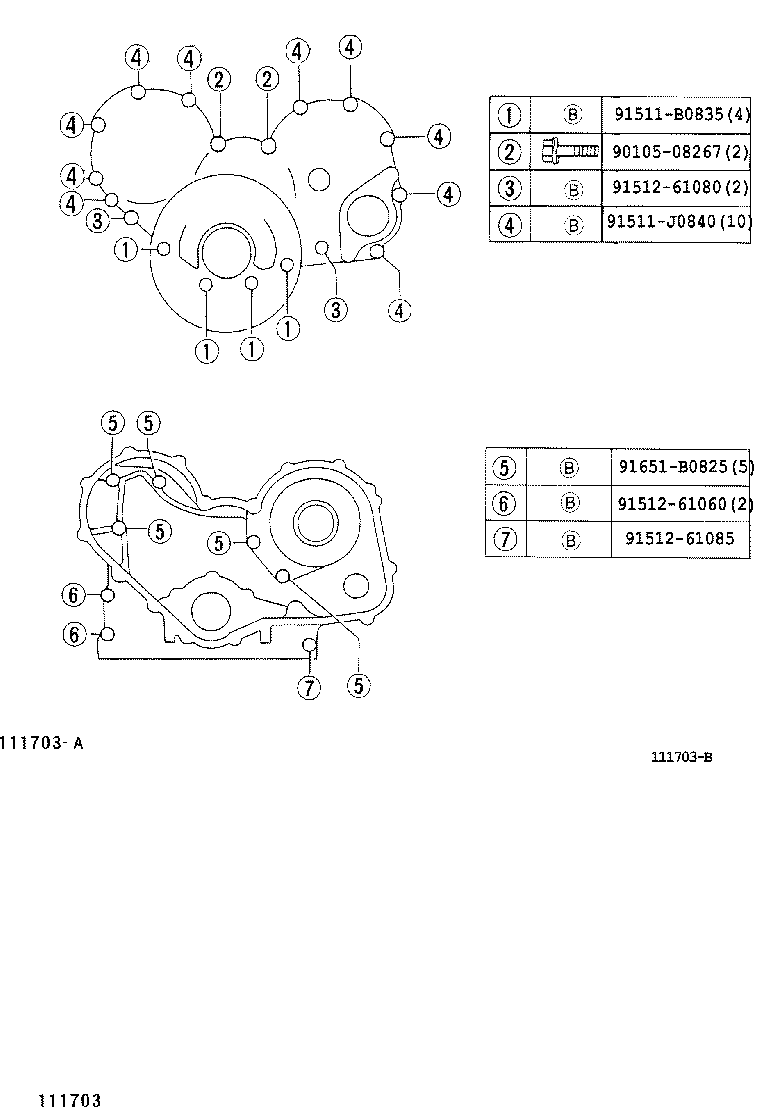

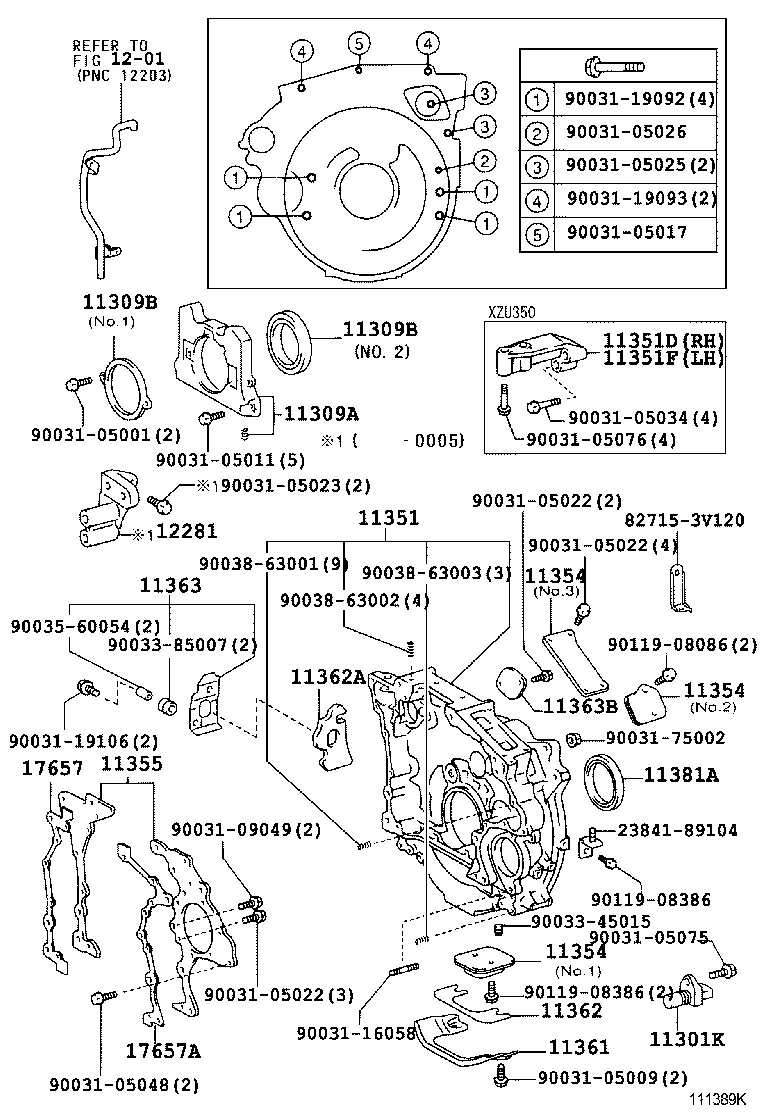

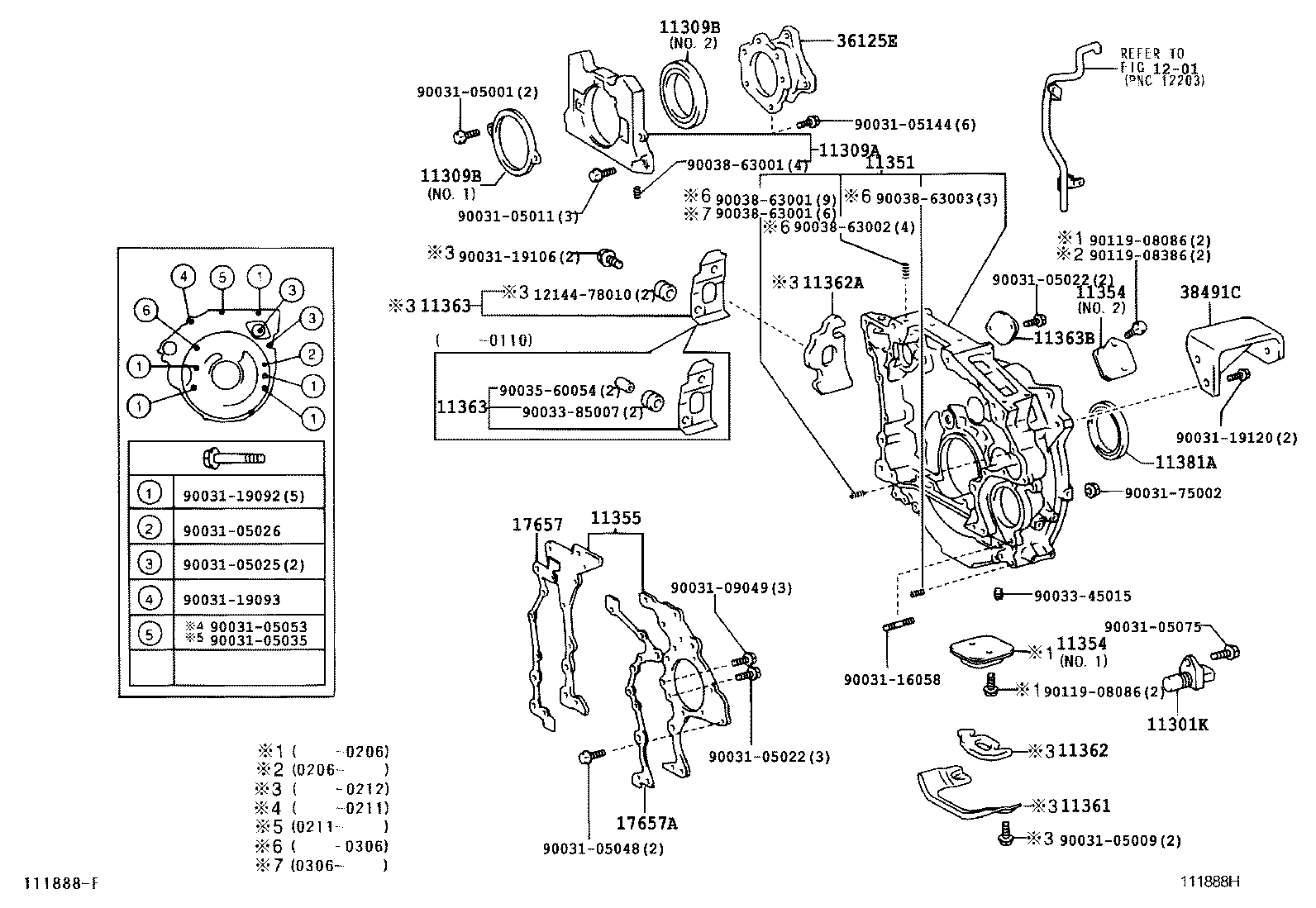

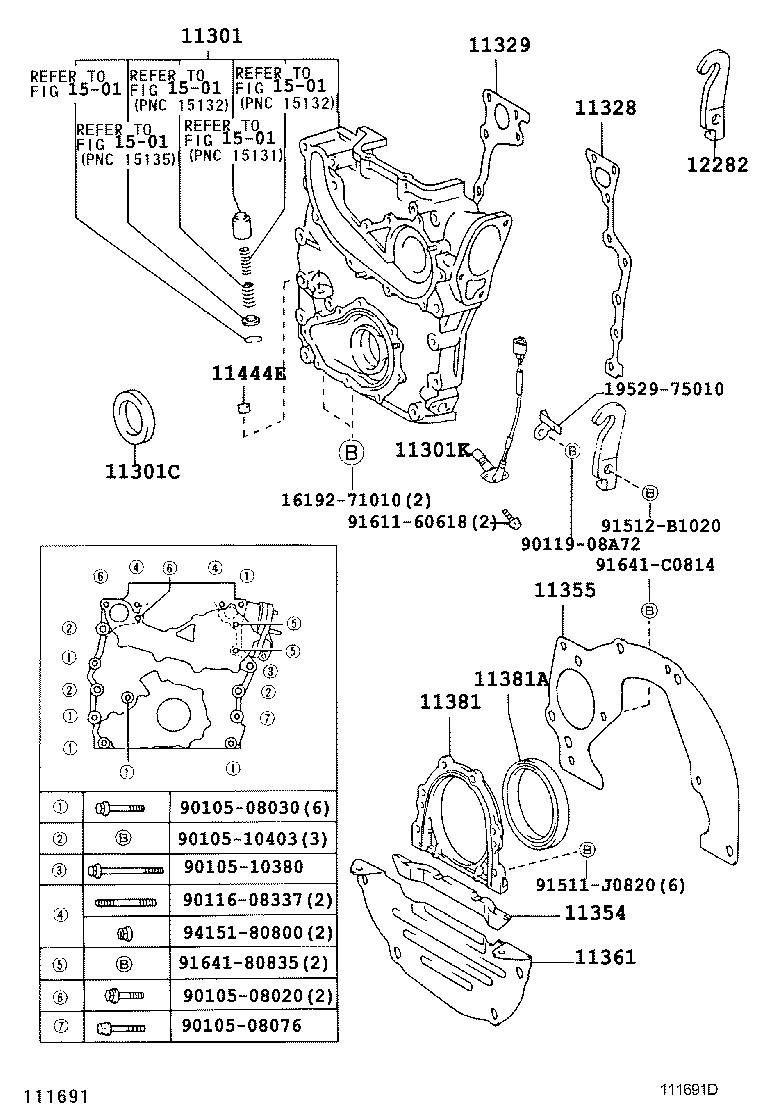

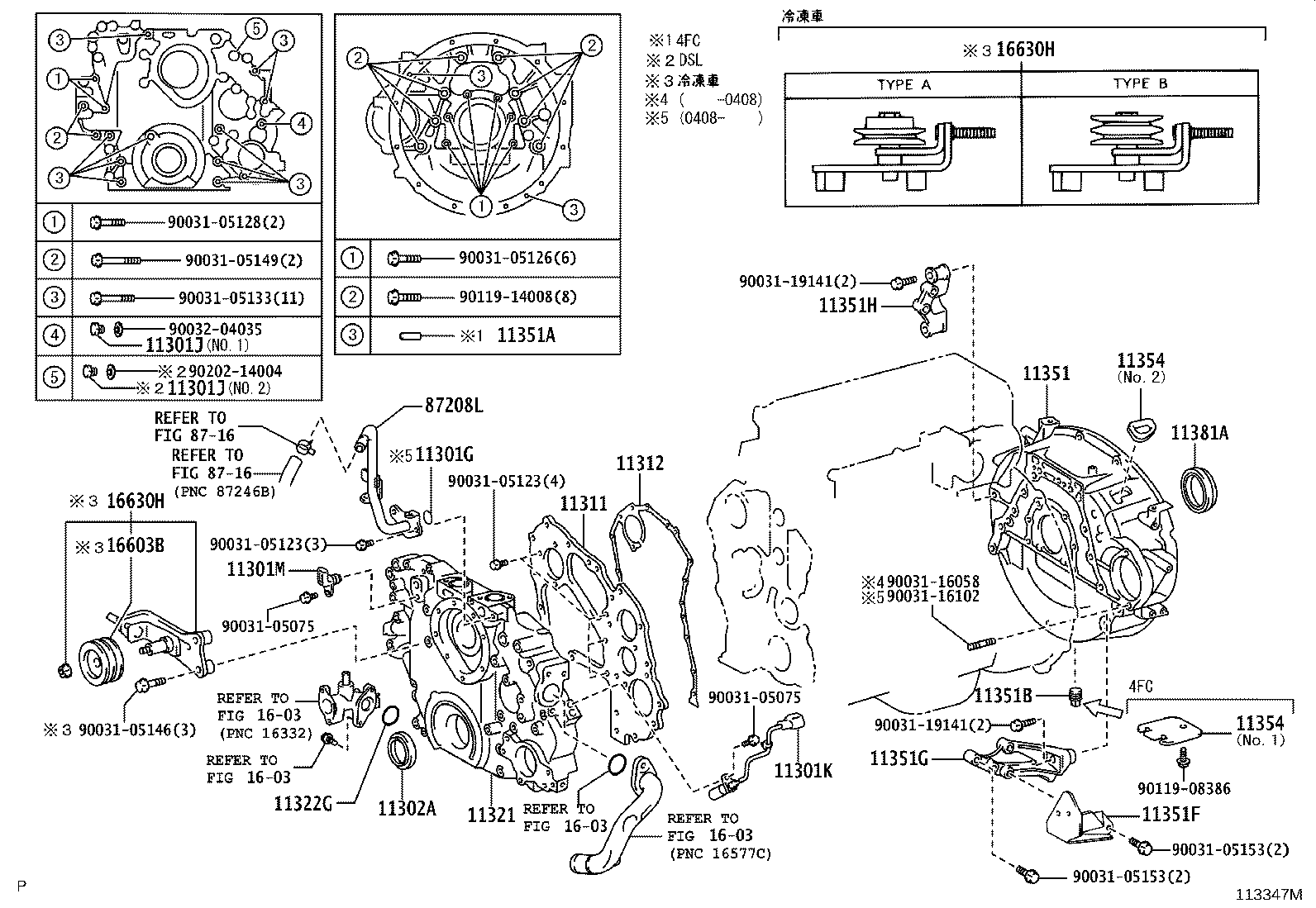

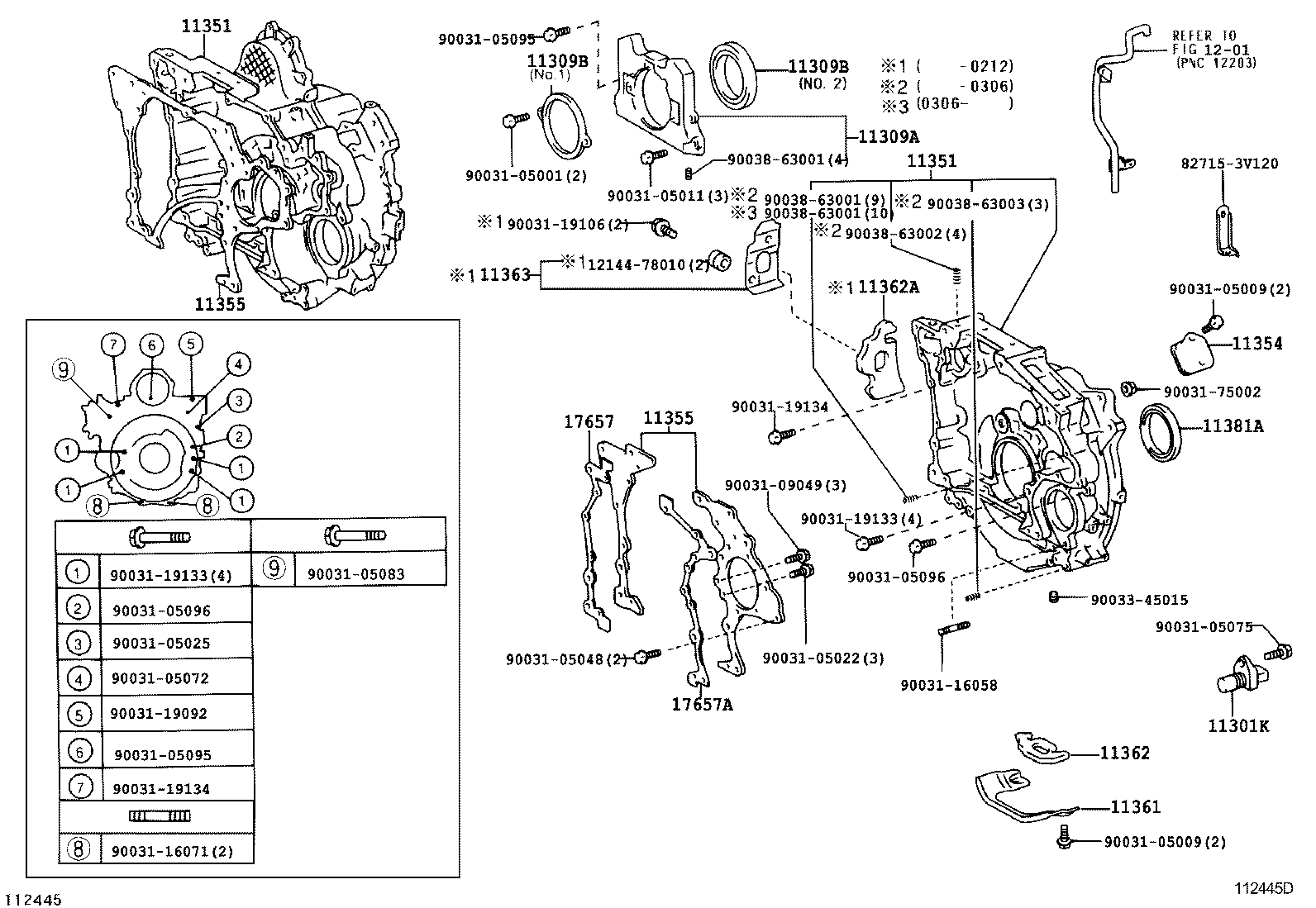

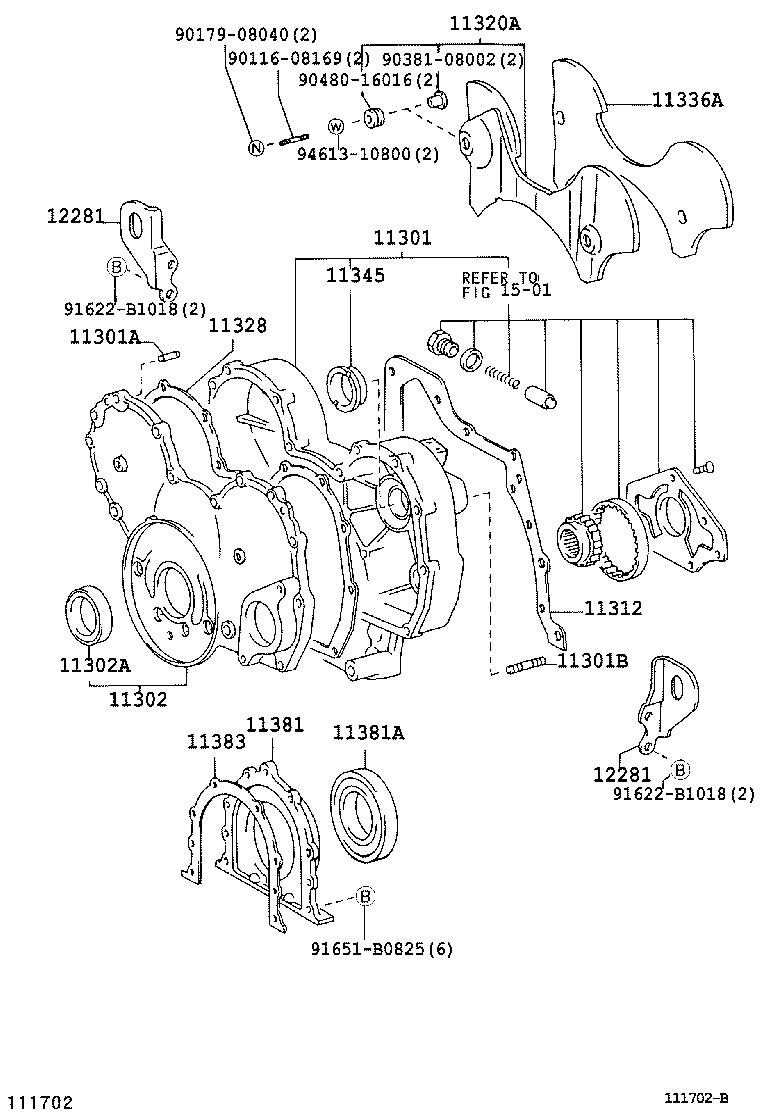

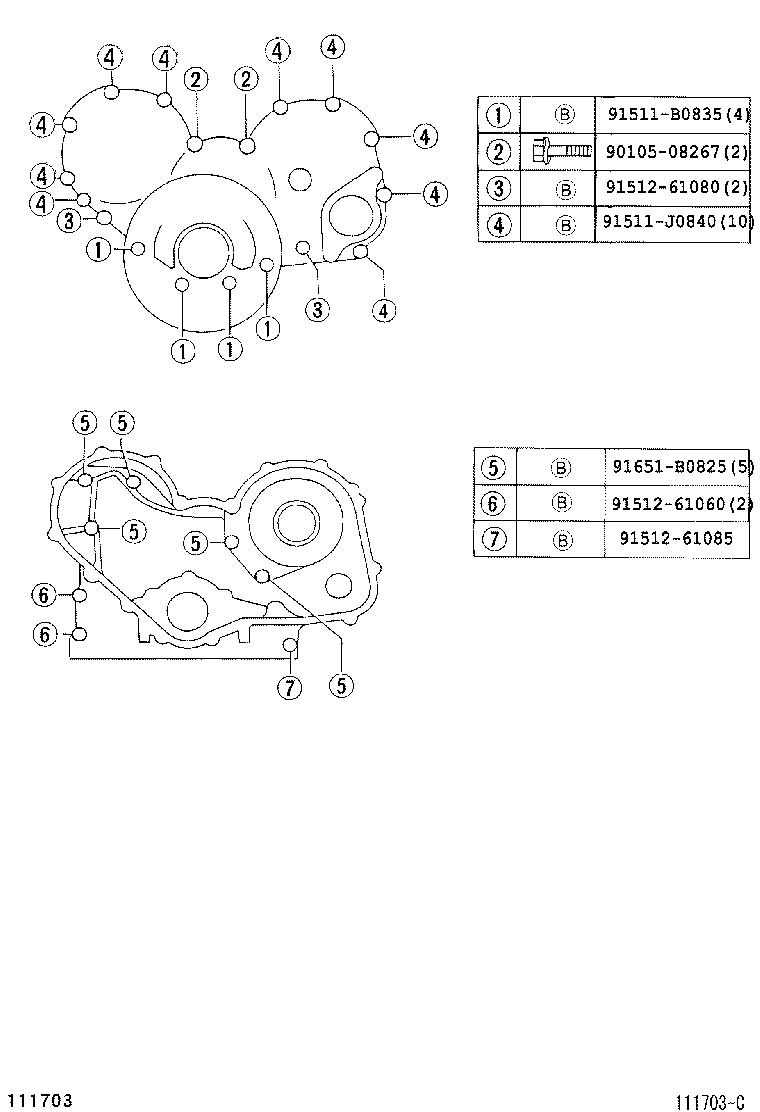

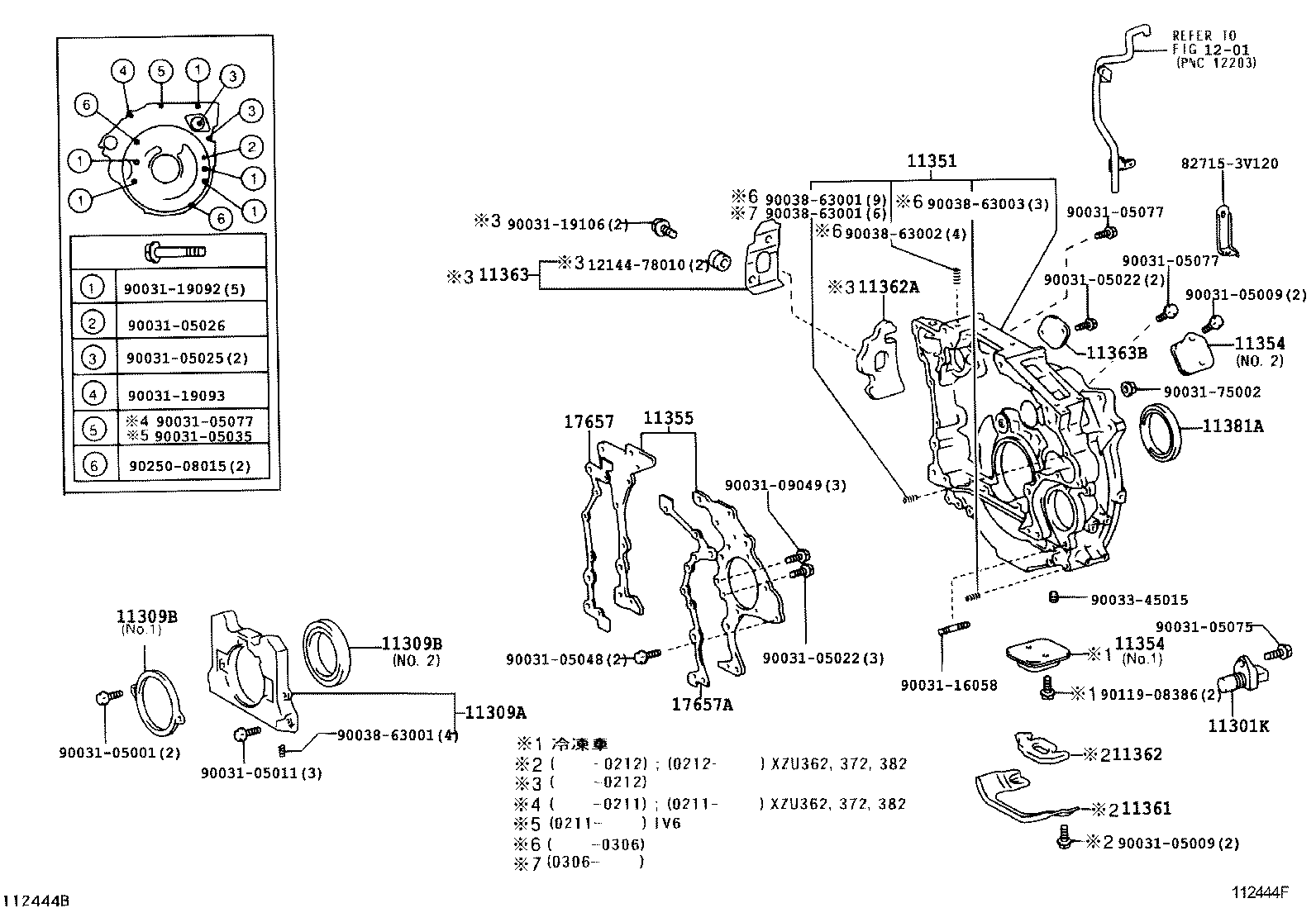

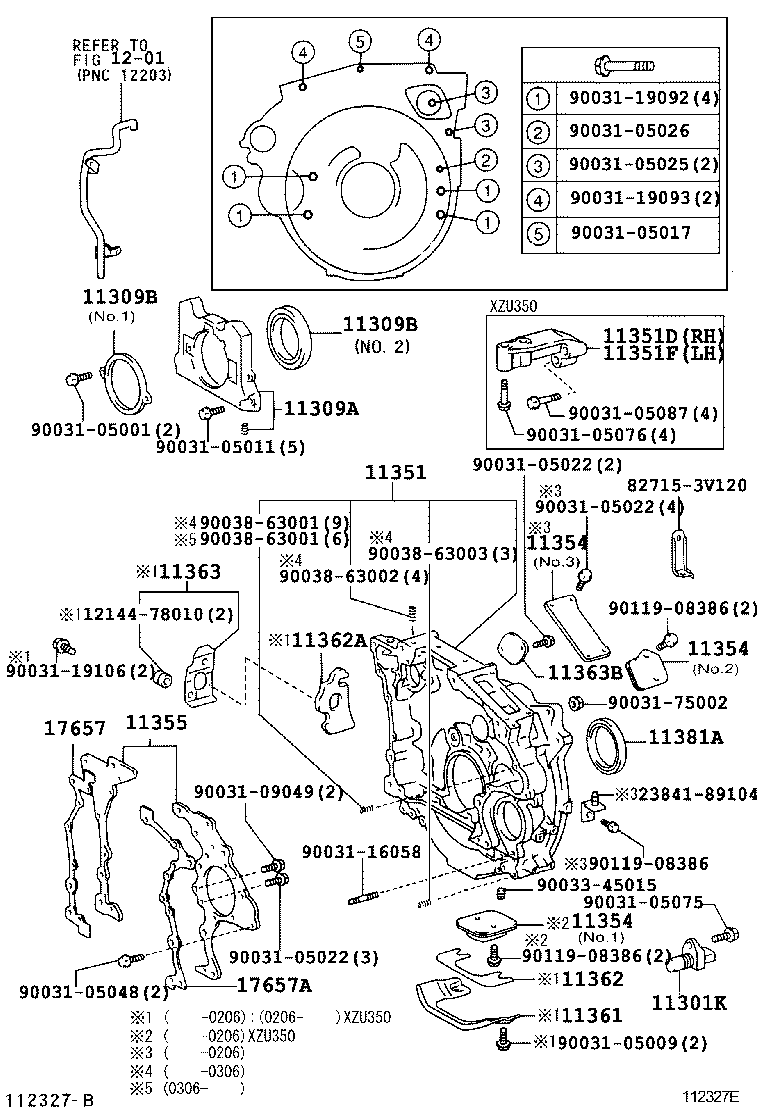

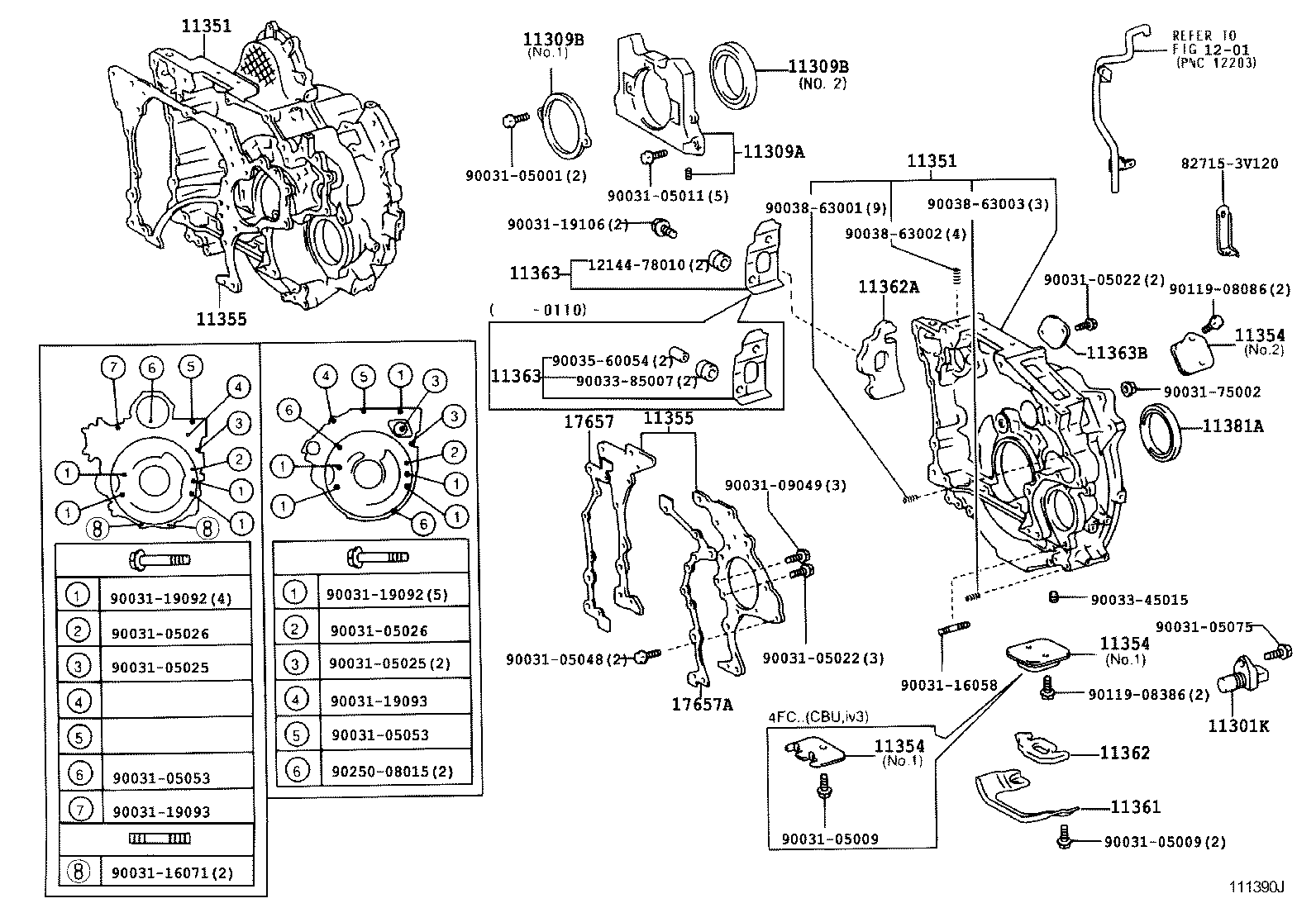

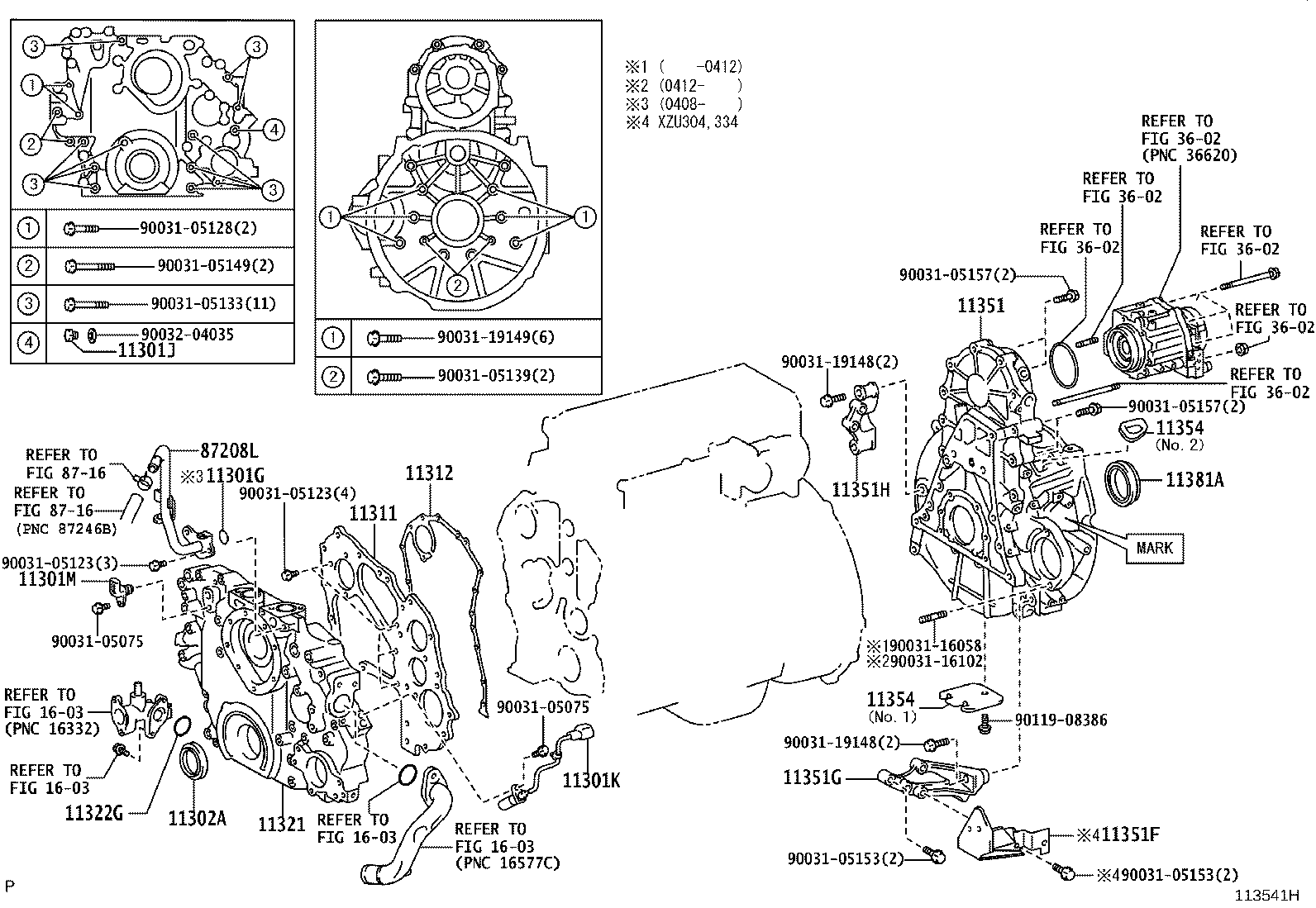

Figure 111368A 111368A 1999-05 → — Figure 111379C 111379C 1999-05 → — Figure 111702C 111702C 2003-06 → — Figure 111703C 111703C 2003-06 → — Figure 111691D 111691D 2000-05 → — Figure 111389K 111389K 1999-05 → 2001-10 Figure 112327E 112327E 2001-10 → 2004-06 Figure 111390J 111390J 1999-05 → 2002-06 Figure 112443C 112443C 2002-06 → 2004-06 Figure 112444F 112444F 2002-06 → 2004-06 Figure 112445D 112445D 2002-06 → 2004-06 Figure 111888H 111888H 1999-07 → 2004-06 Figure 113311G 113311G 2004-06 → 2006-10 Figure 111702B 111702B 2000-05 → 2003-06 Figure 111703B 111703B 2000-05 → 2003-06 Figure 113019G 113019G 2003-10 → 2004-06 Figure 113347M 113347M 2004-06 → — Figure 113540I 113540I 2004-06 → 2006-10 Figure 113541H 113541H 2004-06 → 2006-10

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301B Bolt,Stud(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301G Ring, O(FOR TIMING GEAR CASE, UPPER)
11301J Plug, W/Head Straight Screw(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11301M Sensor, Cam Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11309A Retainer Sub-assy, Oil Seal
11309B Seal(FOR OIL SEAL RETAINER)
11311 Plate, Front End
11312 Gasket, Front End Plate
11320A Cover Assy, Timing Gear, NO.2
11321 Case, Timing Gear
11322G Ring, O(FOR TIMING GEAR COVER)
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11336A Insulator, Timing Gear Cover
11345 Bearing, Injection Pump Gear Thrust
11351 Housing, Flywheel
11351A Pin, Straight(FOR FLYWHEEL HOUSING)
11351B Plug, Hole(FOR FLYWHEEL HOUSING)
11351D Plate, Stiffener, RH(FOR FLYWHEEL HOUSING)
11351F Plate, Stiffener, LH(FOR FLYWHEEL HOUSING)
11351G Stay, LH(FOR FLYWHEEL HOUSING)
11351H Stay, RH(FOR FLYWHEEL HOUSING)
11354 Seal, Flywheel Housing Dust
11355 Plate, Rear End
11361 Cover, Flywheel Housing Under
11362 Insulator, Flywheel Housing(FOR UNDER COVER)
11362A Insulator, Flywheel Housing(FOR SIDE COVER)
11363 Cover, Flywheel Side
11363B Cover, Flywheel Housing NO.2
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
11444E Plug, Hole
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
15167A Bracket, Oil Pump, RH
15167B Bracket, Oil Pump, LH
16603B Pulley Sub-assy, Idler
16630H Pulley Assy, Idler
17657 Gasket, Rear Plate
17657A Gasket, Rear Plate, NO.2
36125E Adapter, Power Take-off
38491C Bracket, Power Oil Pump, NO.1
87208L Pipe Sub-assy, Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
