Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

23 part groups · 21 illustrations

Illustrations

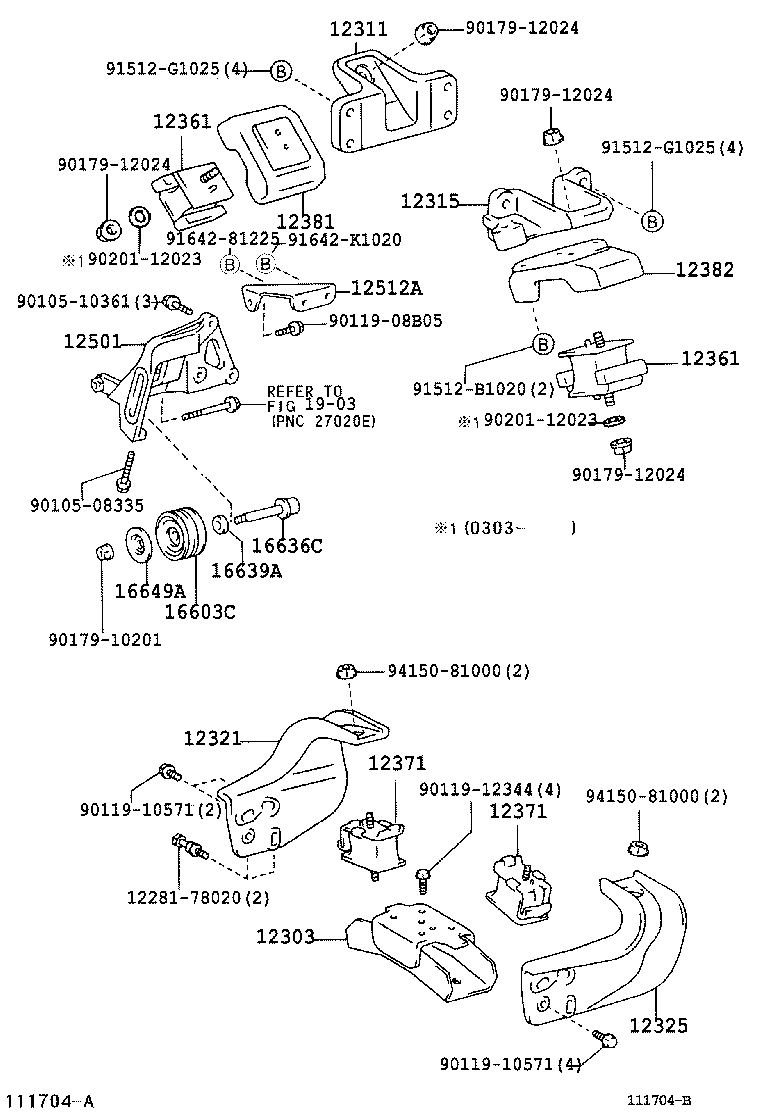

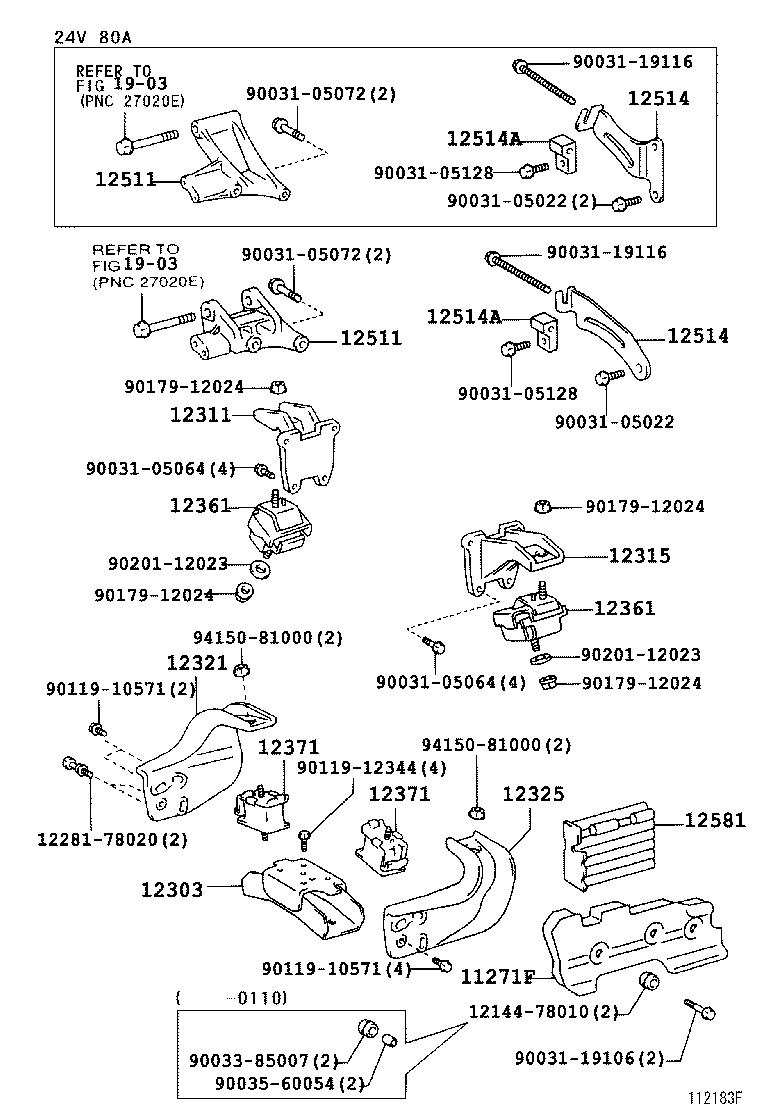

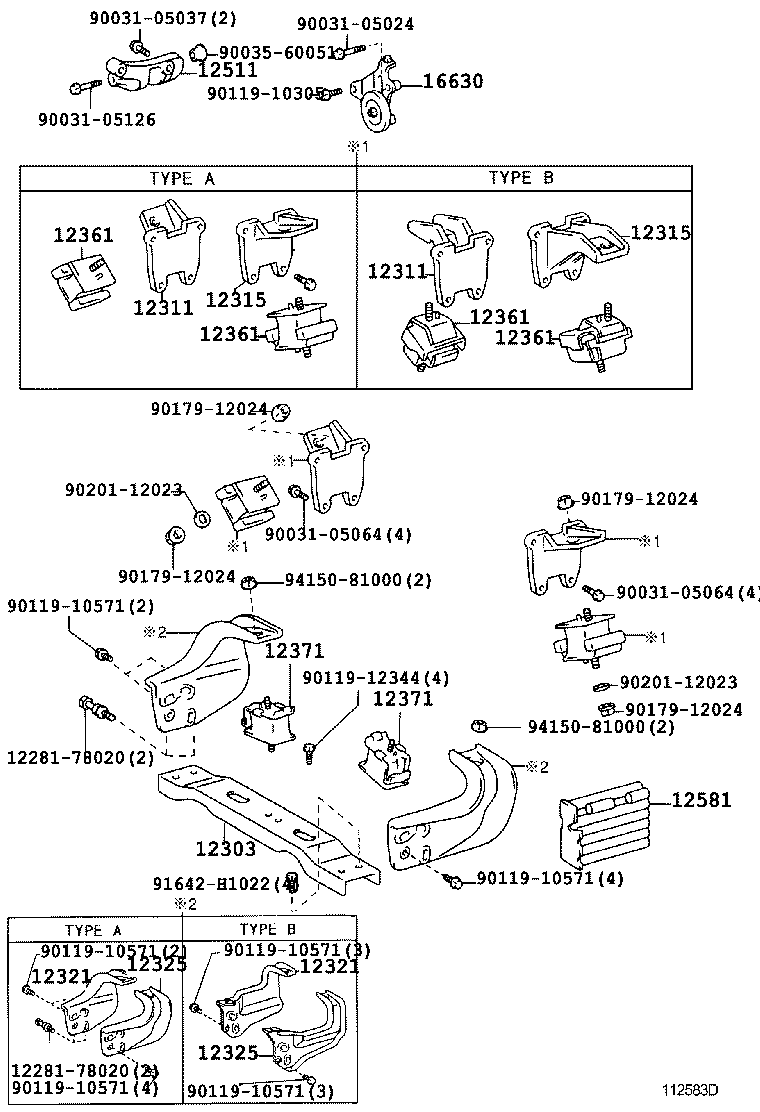

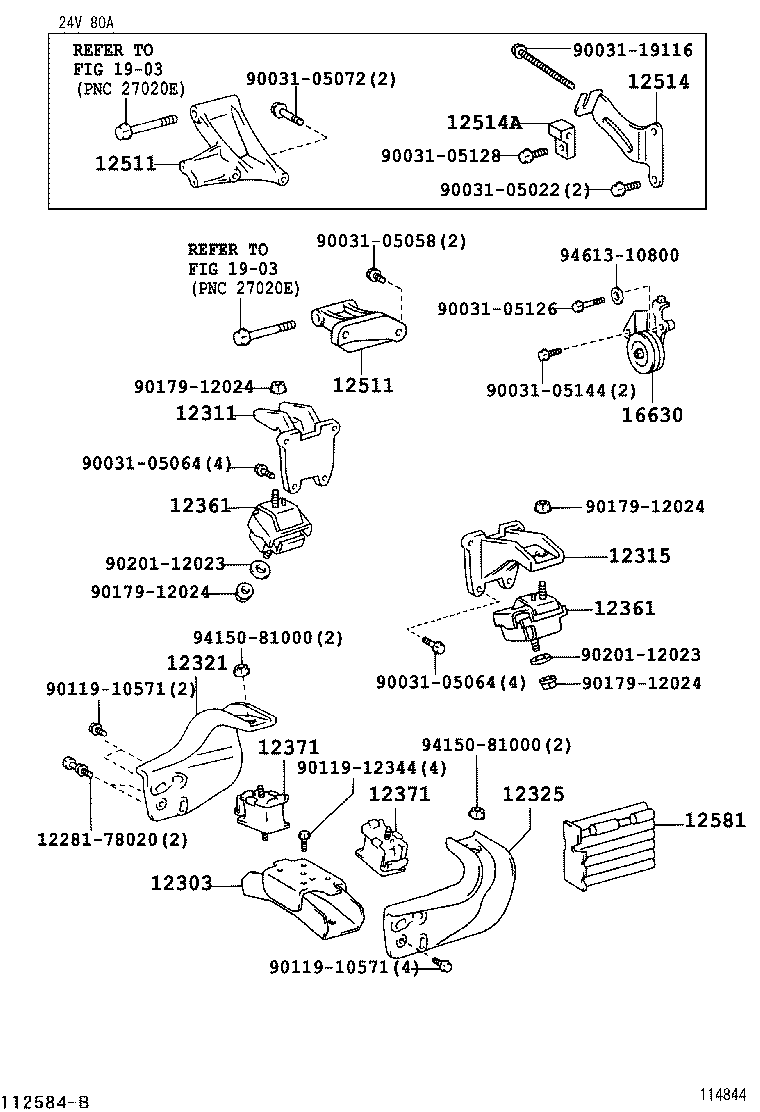

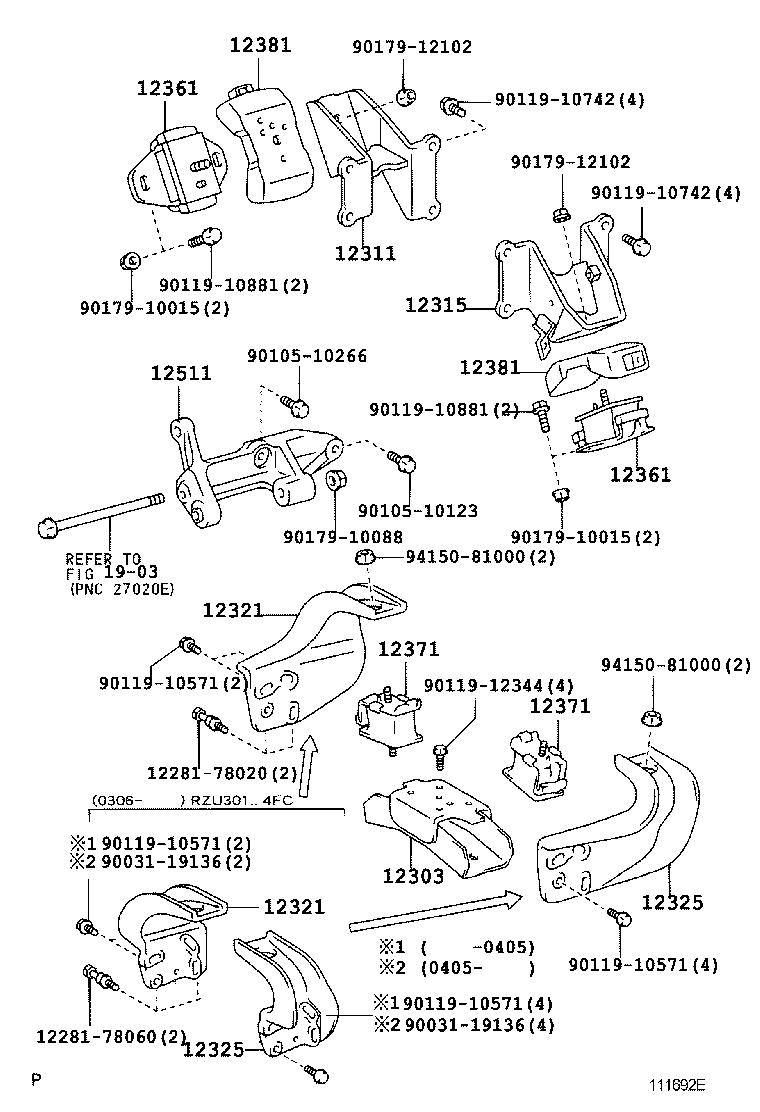

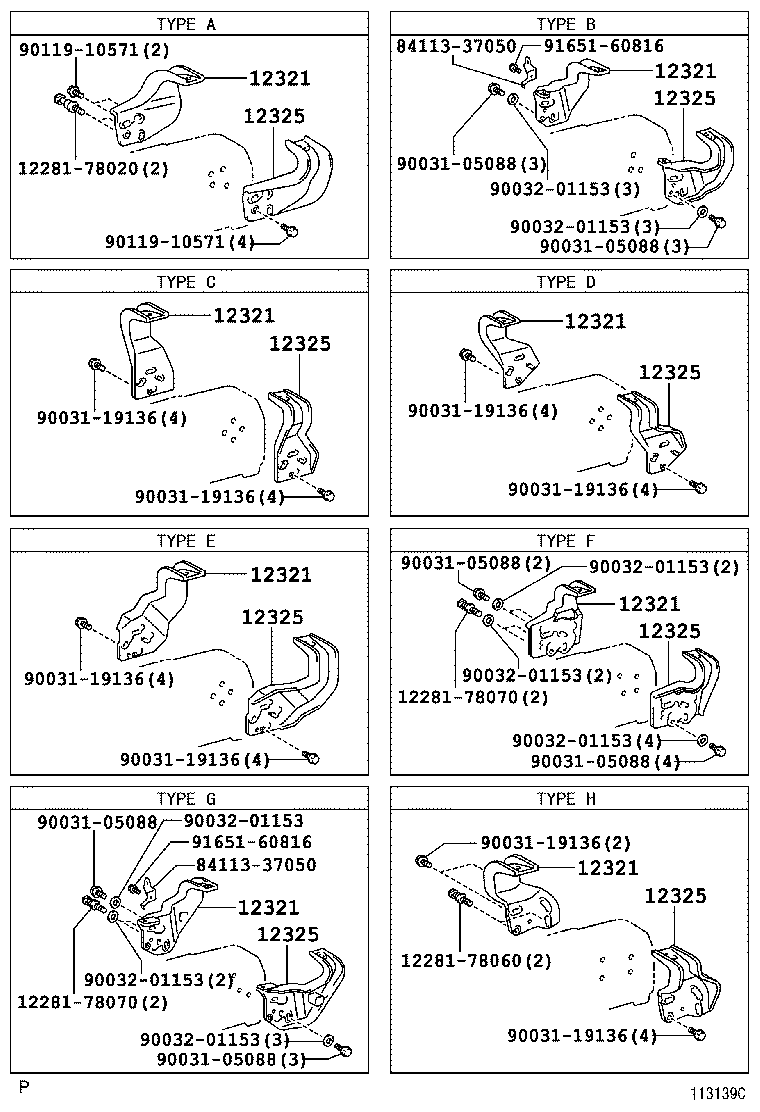

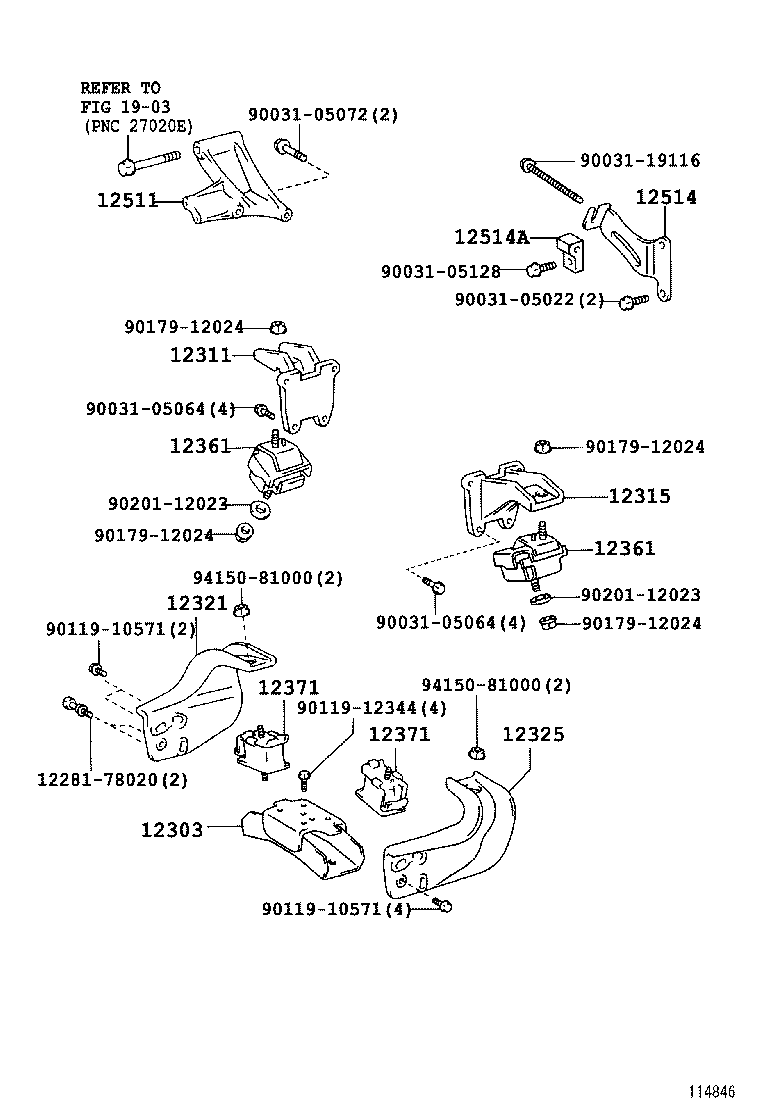

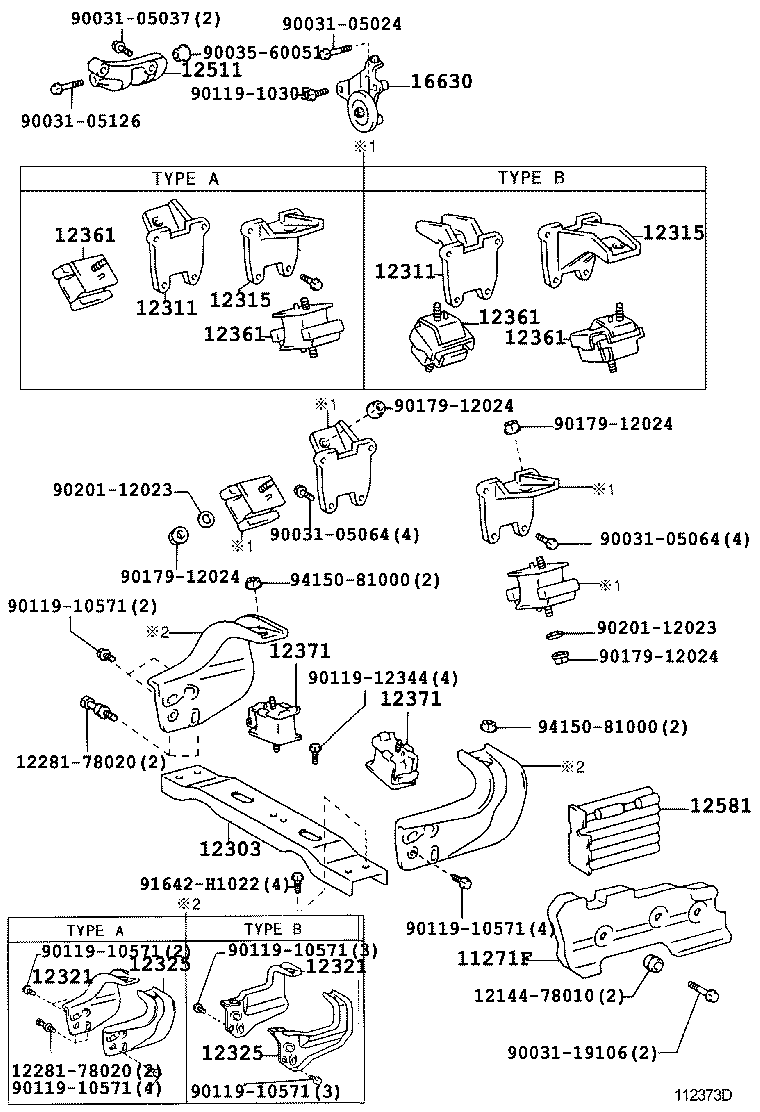

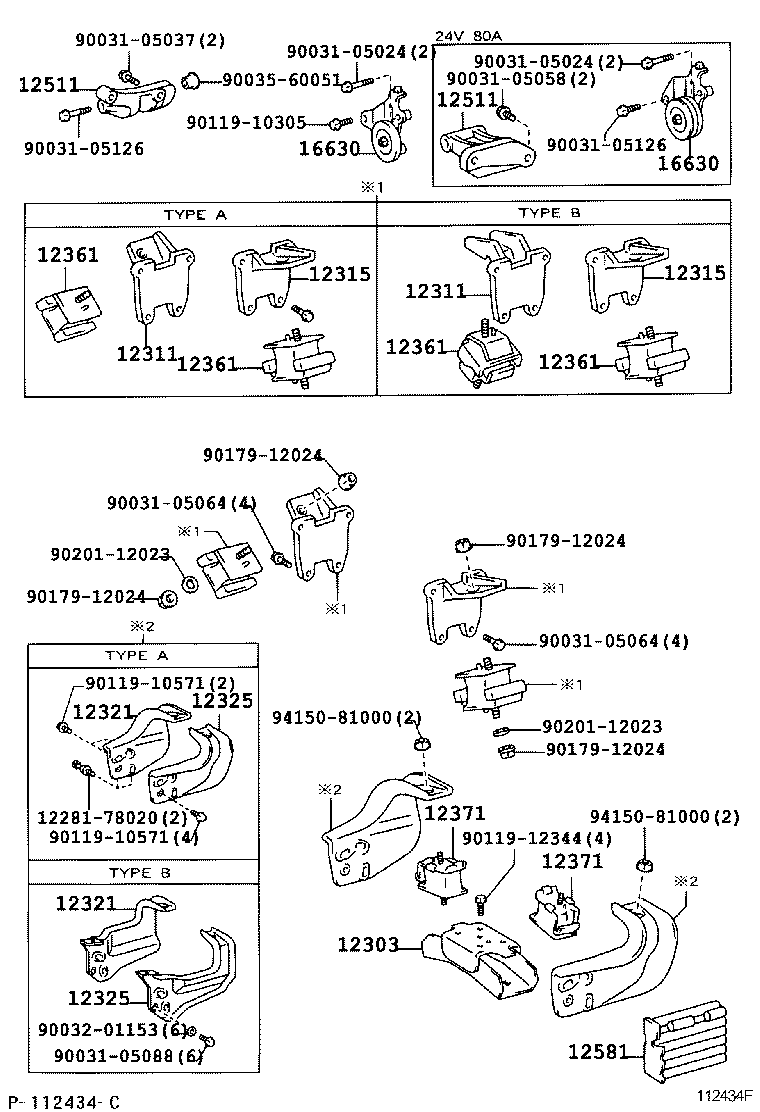

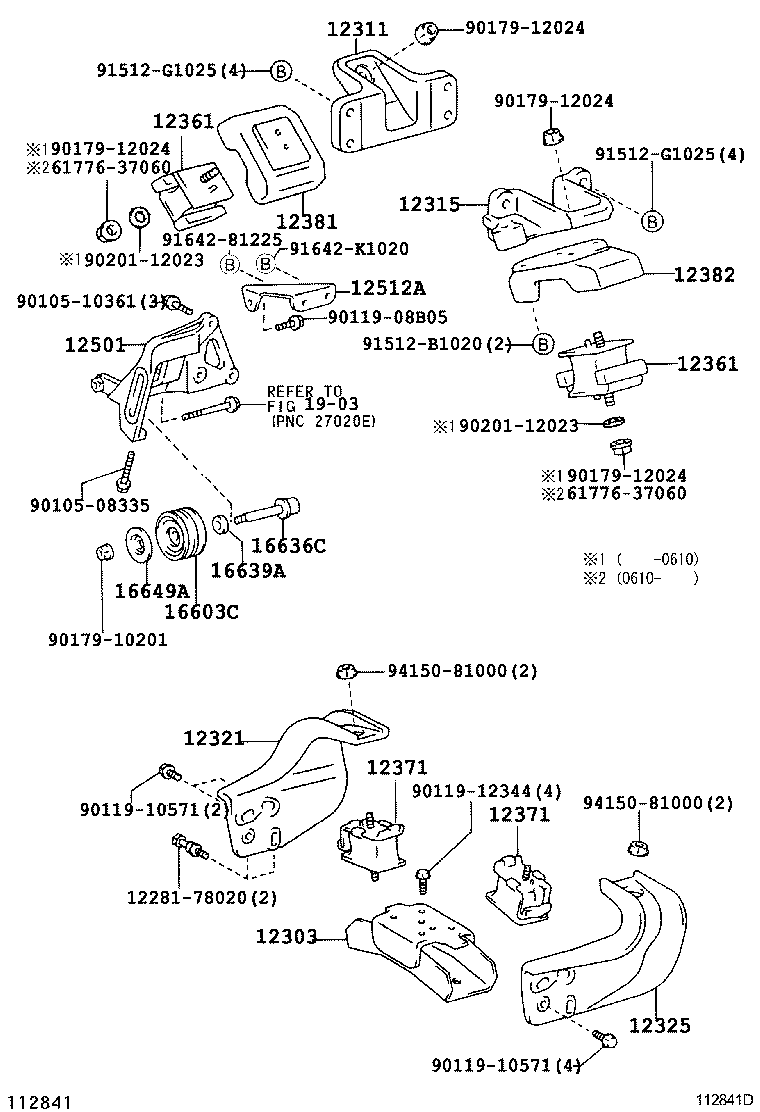

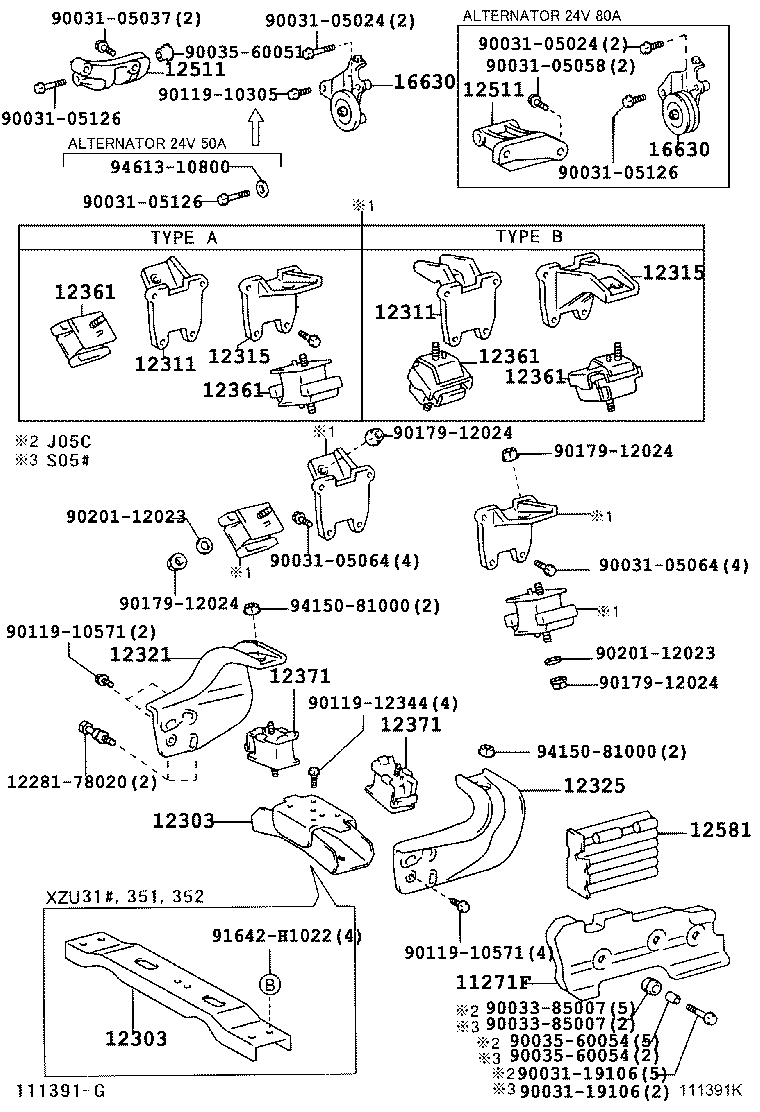

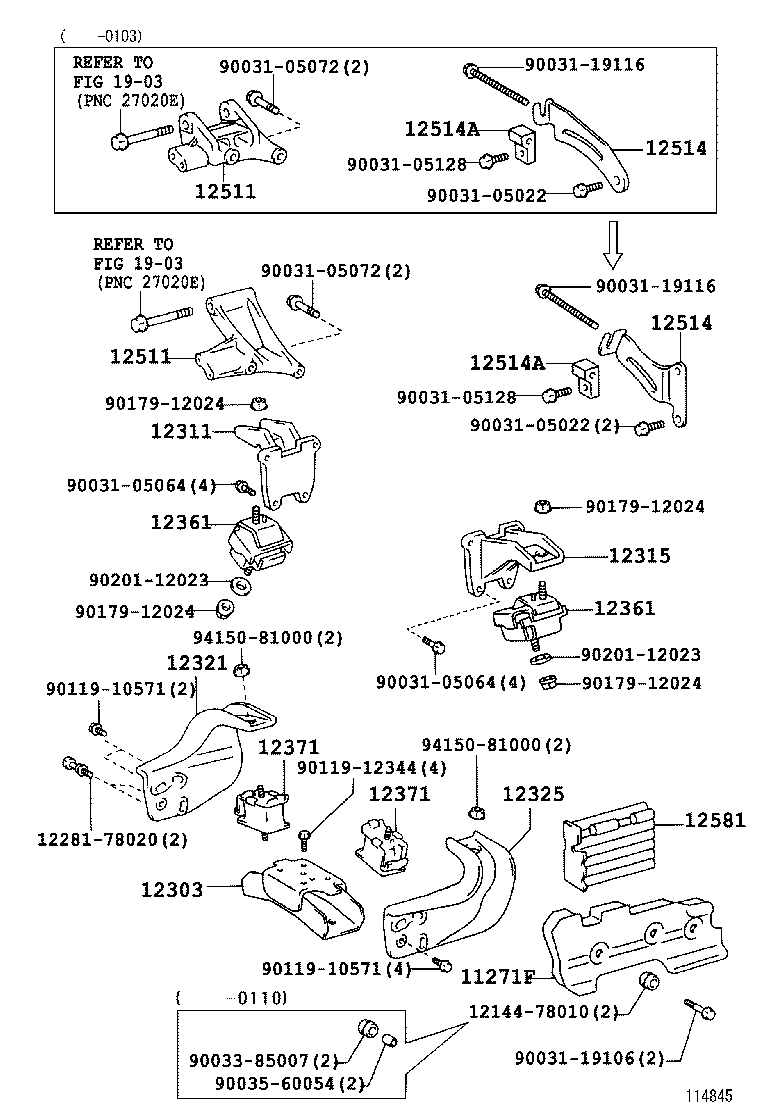

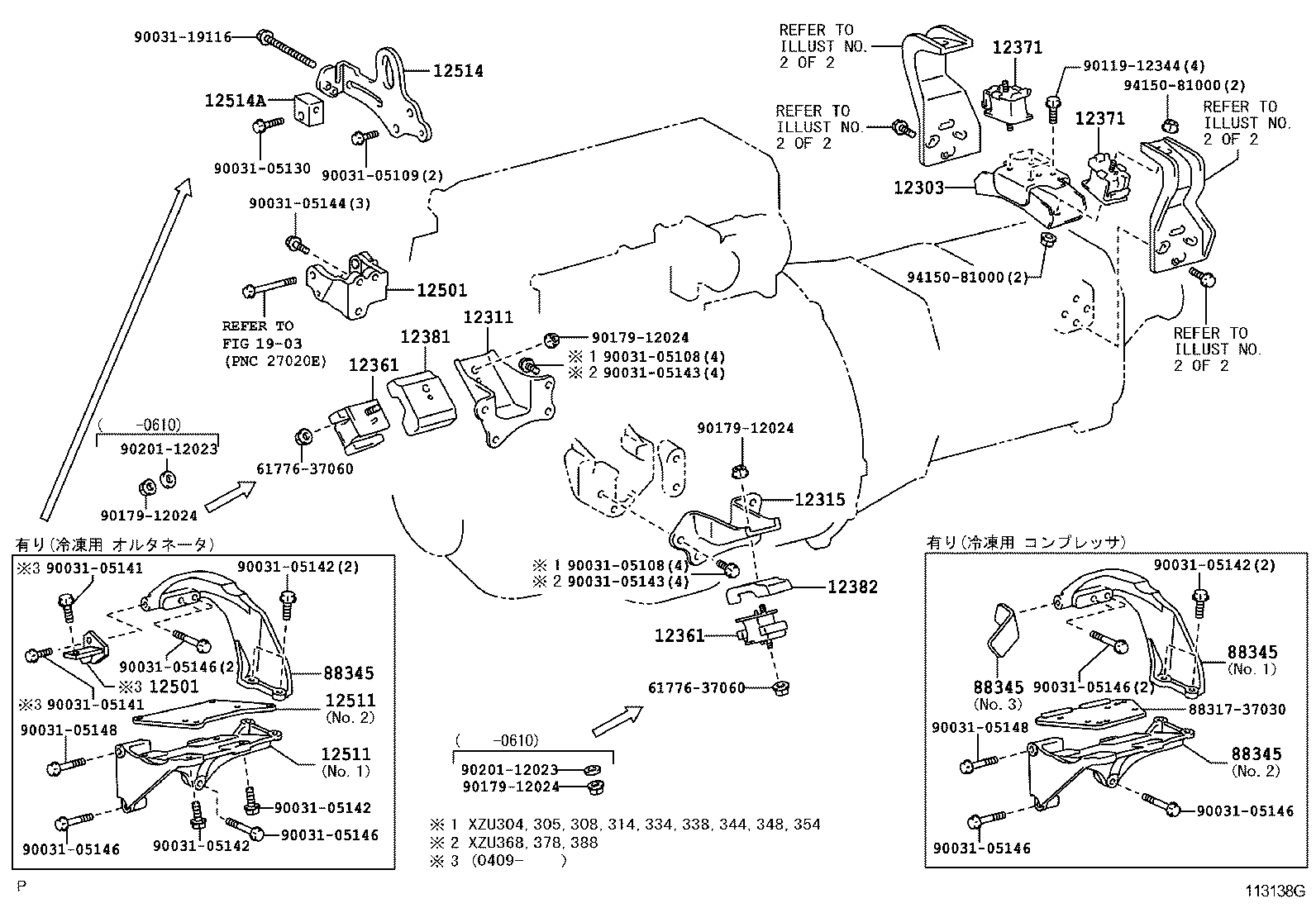

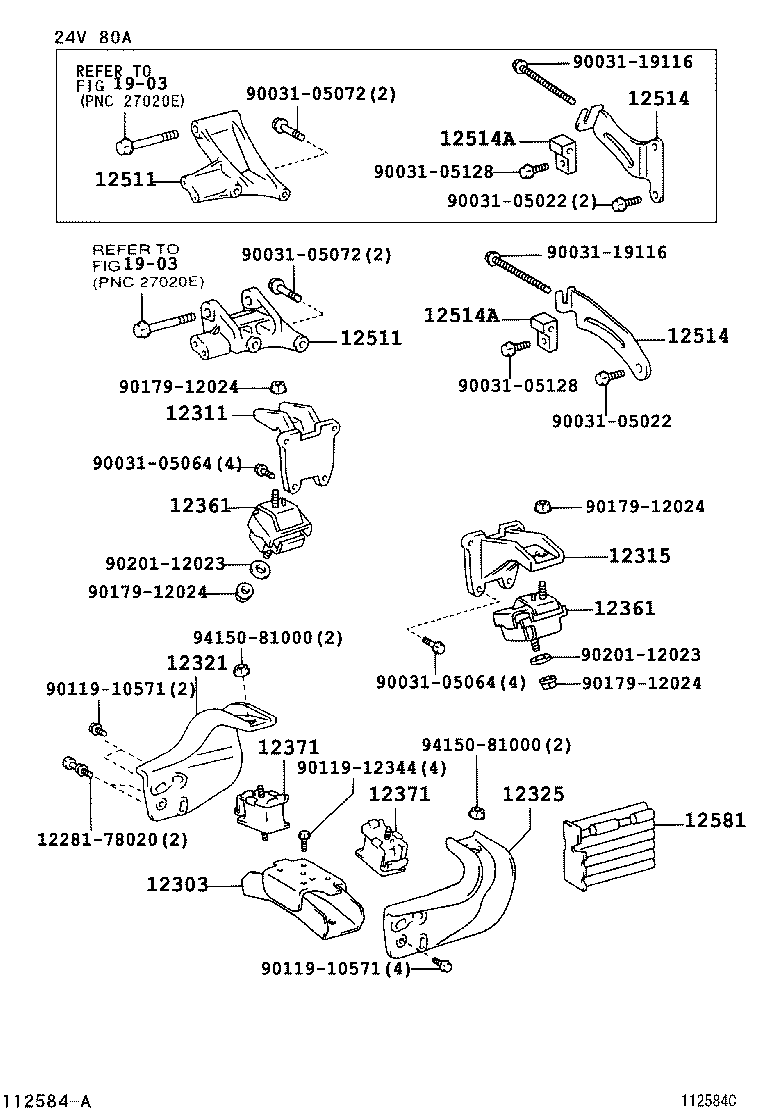

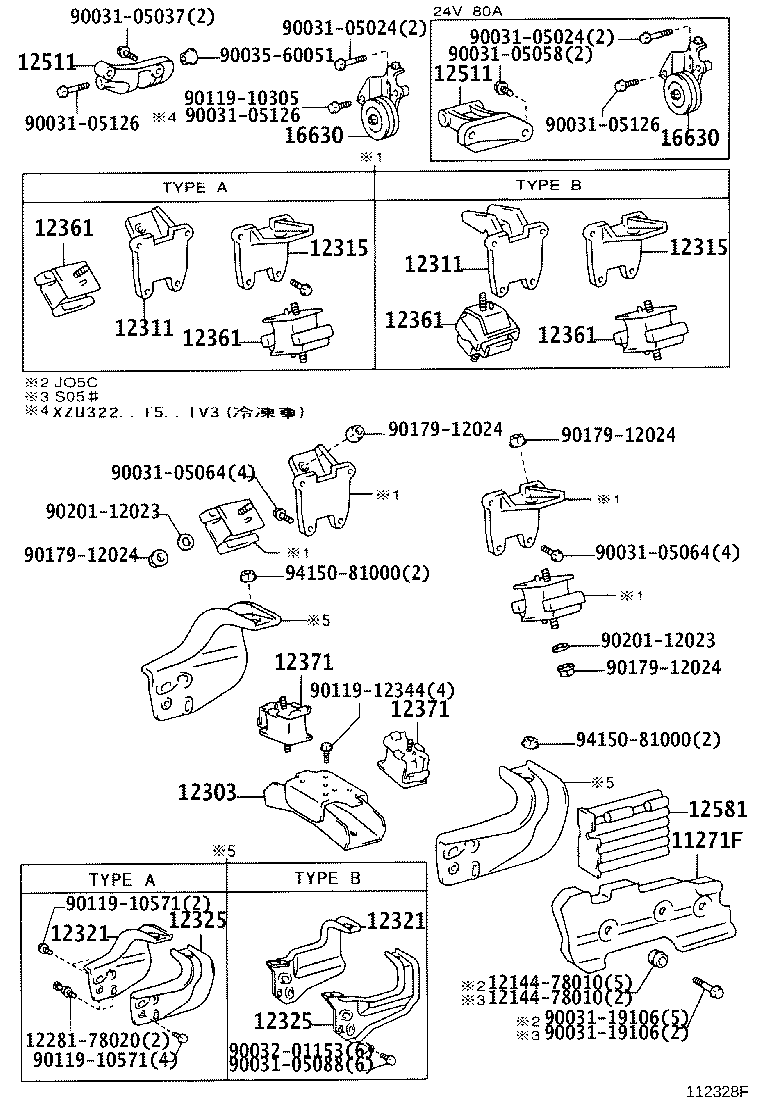

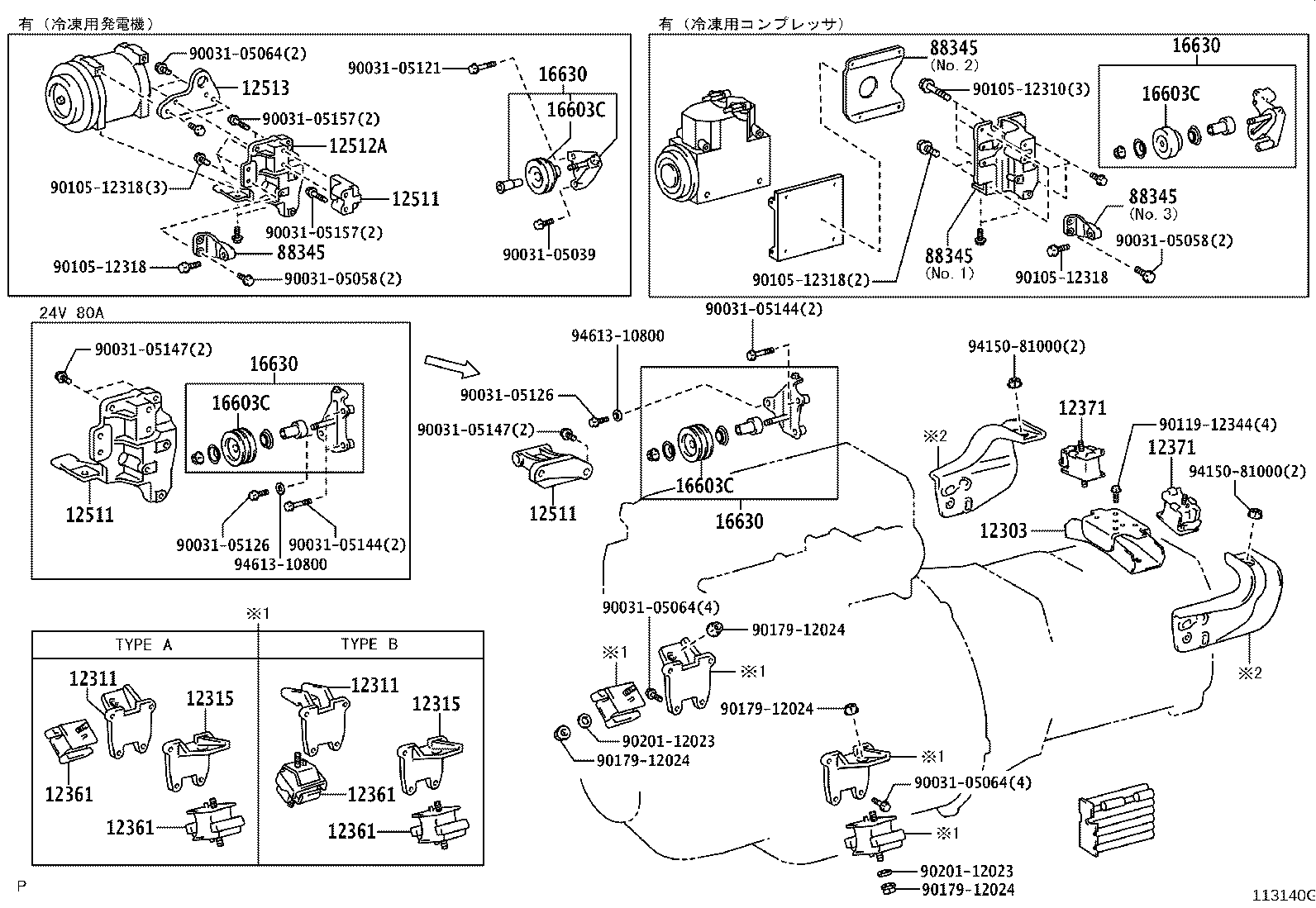

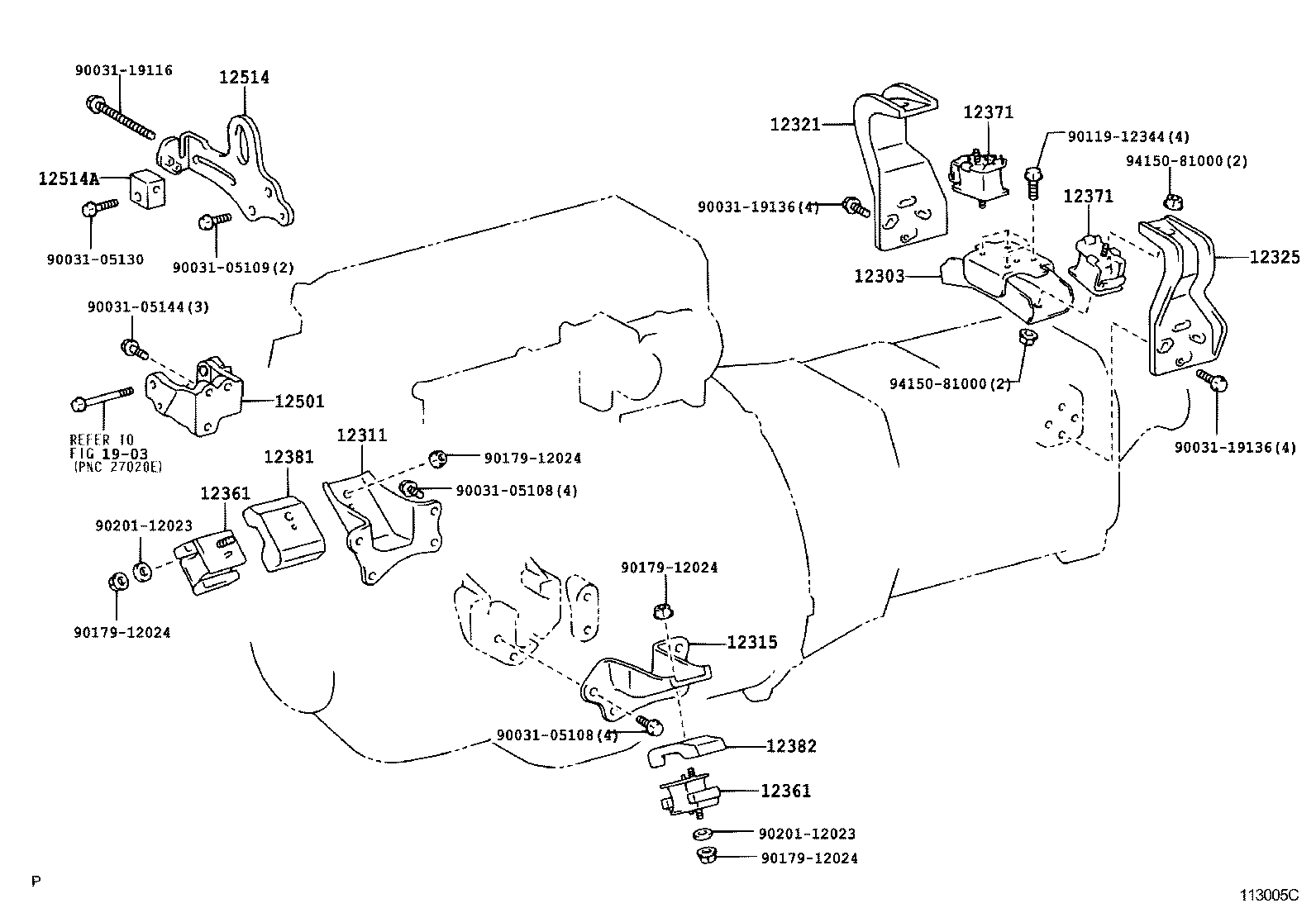

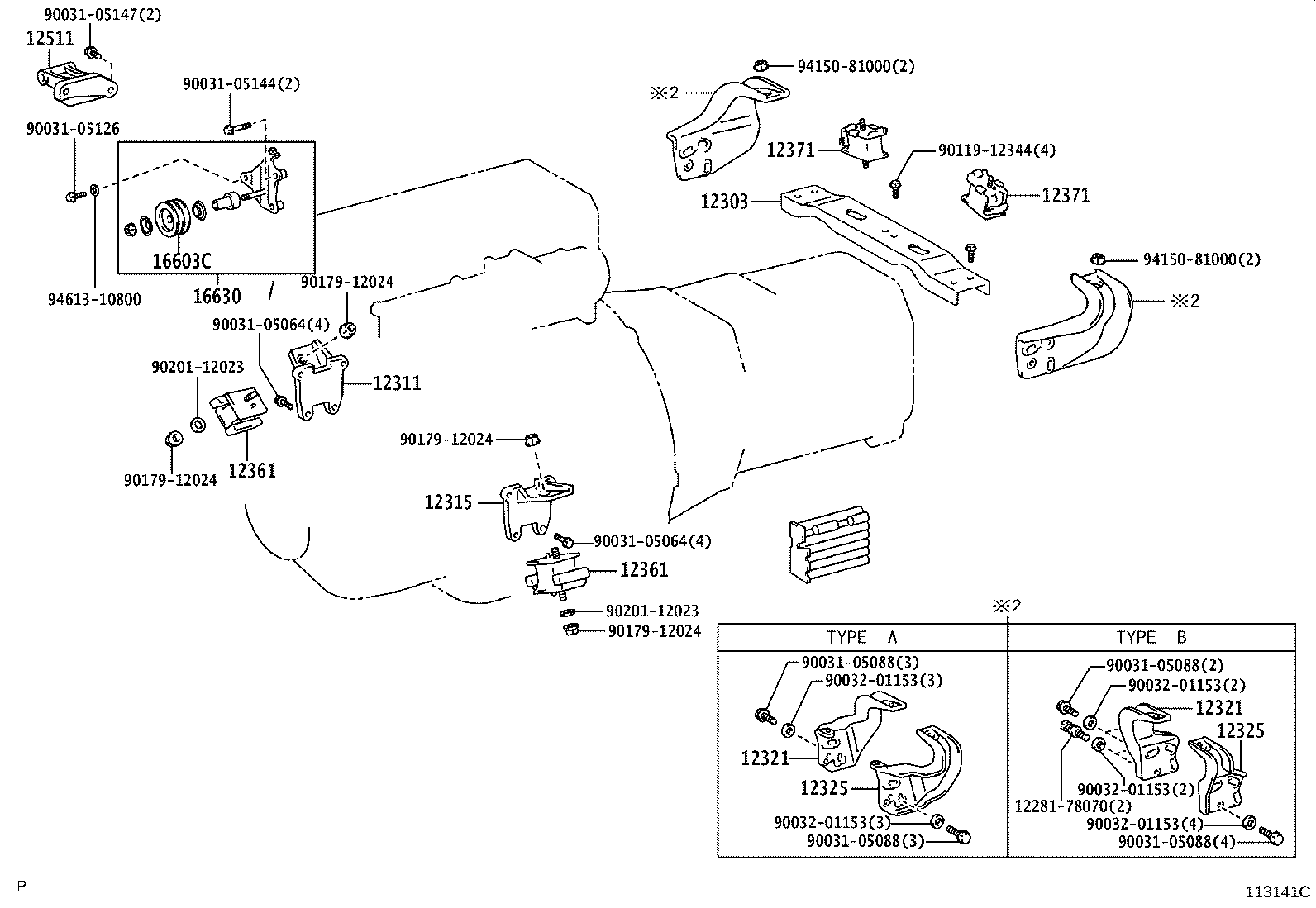

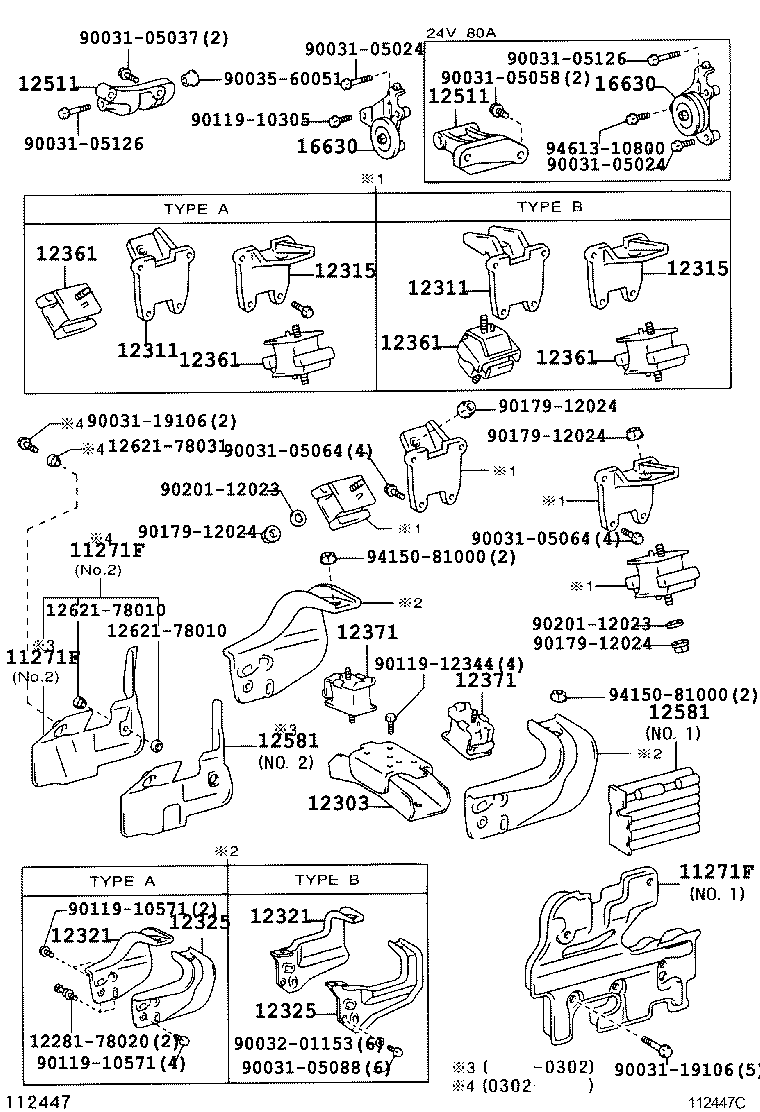

Figure 112817A 112817A 1999-05 → 2004-06 Figure 112841D 112841D 2003-06 → — Figure 111692E 111692E 2000-05 → — Figure 111391K 111391K 1999-05 → 2001-10 Figure 112328F 112328F 2001-10 → 2002-06 Figure 112434F 112434F 2002-06 → 2004-06 Figure 113140G 113140G 2004-06 → 2006-10 Figure 113317 113317 2004-06 → 2006-10 Figure 112447C 112447C 2002-06 → 2004-06 Figure 112373D 112373D 2001-10 → 2002-06 Figure 112583D 112583D 2002-06 → 2004-06 Figure 113141C 113141C 2004-06 → 2006-10 Figure 112183F 112183F 1999-07 → 2002-06 Figure 114845 114845 1999-08 → 2002-06 Figure 112584C 112584C 2002-06 → 2003-04 Figure 114846 114846 2002-06 → 2004-06 Figure 114844 114844 2003-04 → 2004-06 Figure 111704C 111704C 2000-05 → 2003-06 Figure 113005C 113005C 2003-10 → 2004-06 Figure 113138G 113138G 2004-06 → — Figure 113139C 113139C 2004-06 → —

Part groups

PNCDescription
11271F Cover, Cylinder Block Side
12303 Bracket Sub-assy, Engine Mounting, Rear
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12325 Bracket, Engine Mounting, NO.3
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12501 Bracket Sub-assy, Alternator
12511 Bracket, Alternator, NO.1
12512A Bracket, Alternator, NO.2
12513 Bracket, Alternator, NO.3
12514 Bar, Alternator Belt Adjusting
12514A Slider, Fan Belt Adjusting
12581 Insulator, Cylinder Block, NO.1
16603C Pulley Sub-assy, Idler
16630 Pulley Assy, Idler
16636C Shaft, Idler Pulley, NO.1
16639A Spacer, Idler Pulley
16649A Plate, Idler Pulley Cover
88345 Bracket, Compressor Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
