Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

18 part groups · 13 illustrations

Illustrations

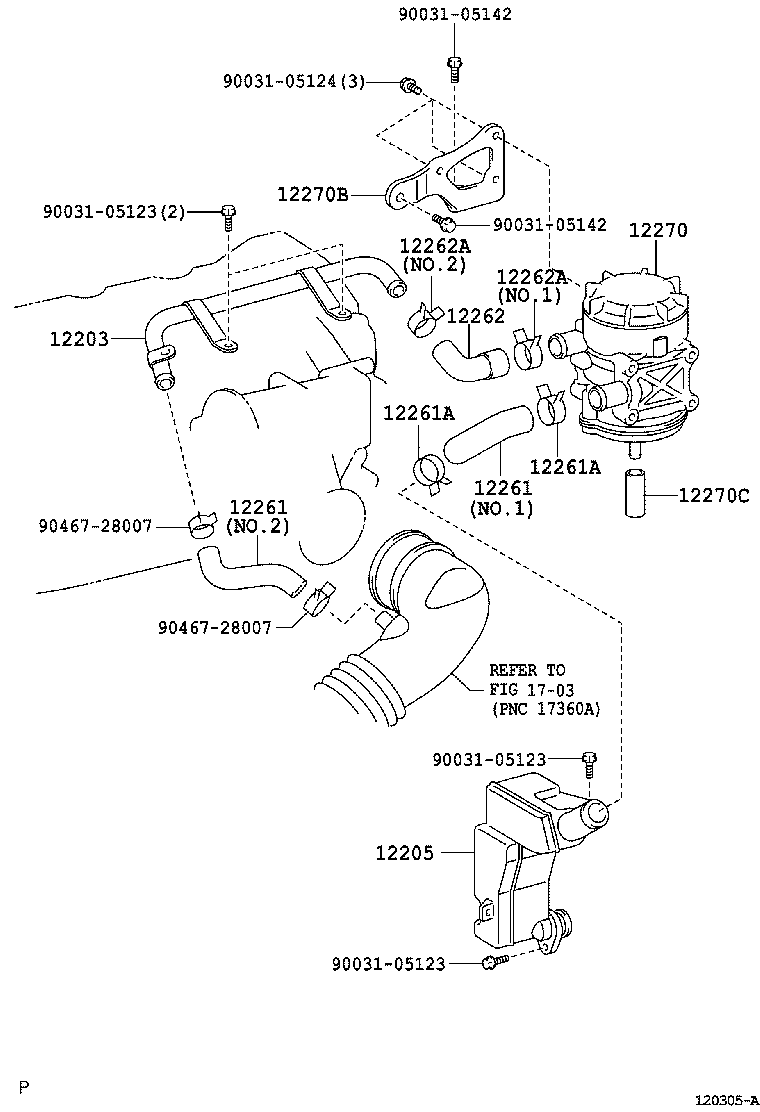

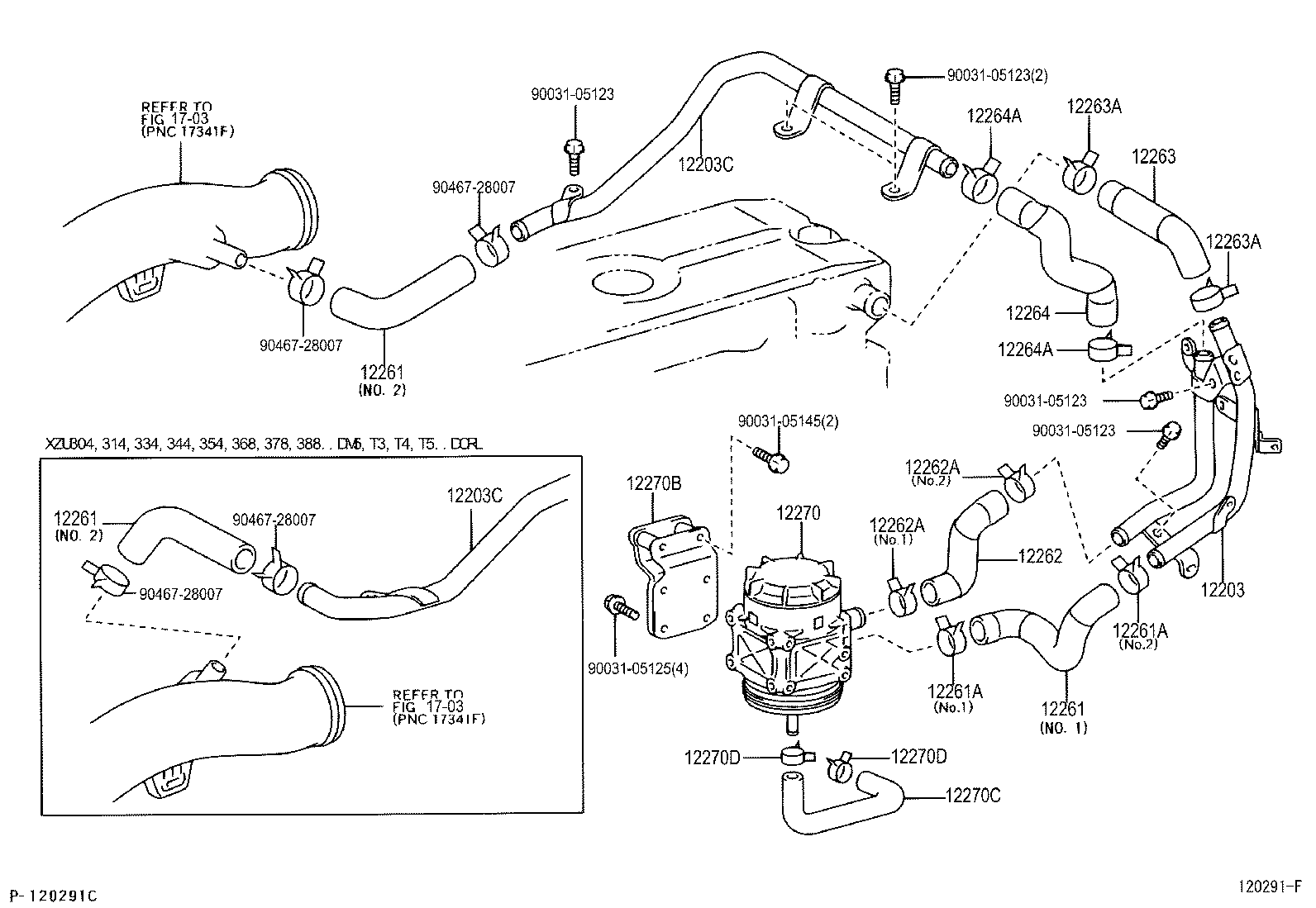

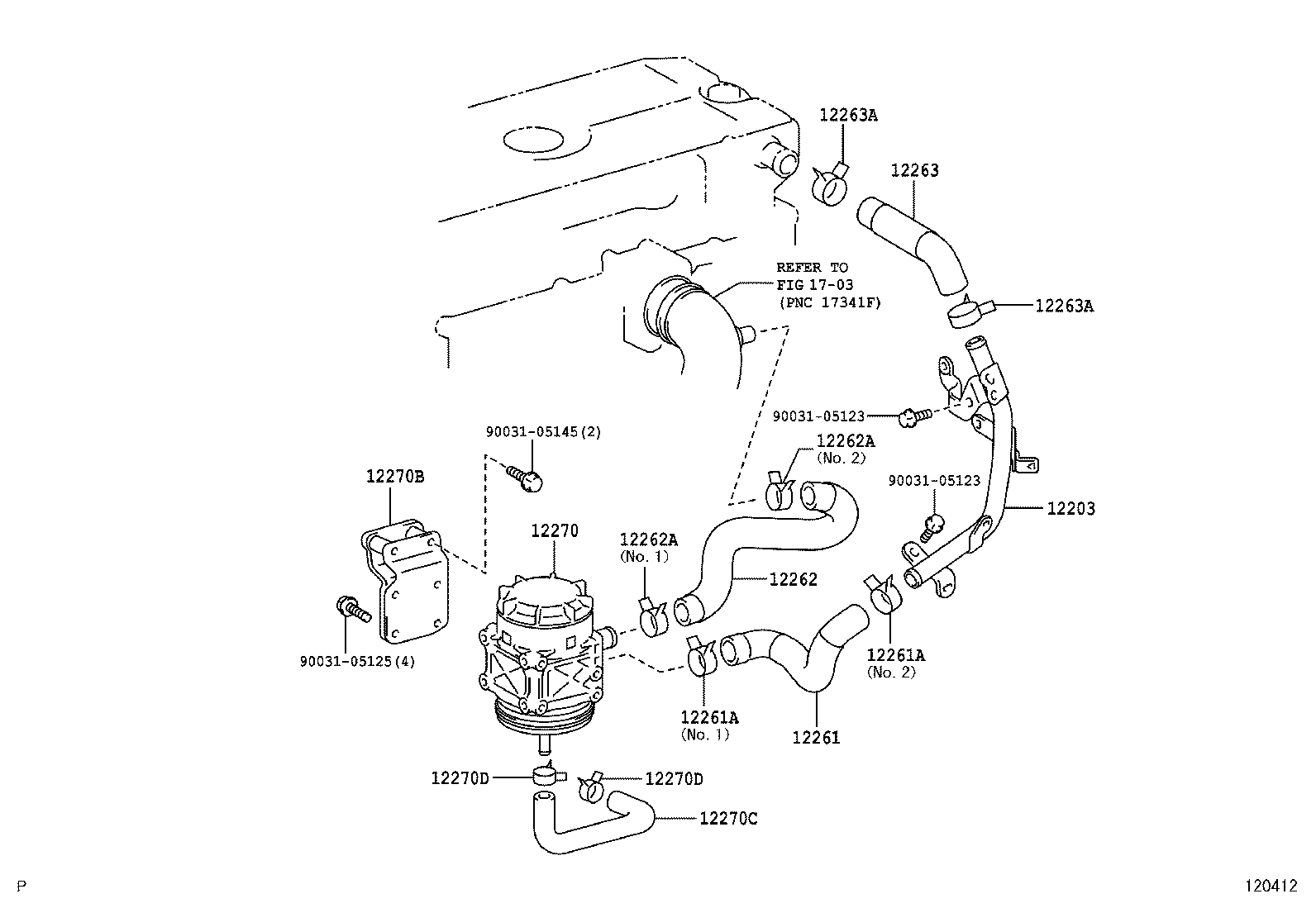

Figure 120105A 120105A 1999-05 → — Figure 120280 120280 2003-06 → — Figure 120137 120137 2000-05 → 2003-06 Figure 120282C 120282C 2003-06 → — Figure 120134 120134 2000-05 → — Figure 120289 120289 1999-05 → 2002-06 Figure 120289 120289 2002-06 → 2004-06 Figure 120290B 120290B 2002-06 → 2004-06 Figure 120290B 120290B 2002-06 → 2004-06 Figure 120305A 120305A 2004-06 → 2006-10 Figure 120140A 120140A 2000-05 → 2003-06 Figure 120291F 120291F 2003-10 → — Figure 120412 120412 2004-06 → 2006-10

Part groups

PNCDescription
12203 Pipe Sub-assy, Ventilation
12203C Pipe Sub-assy, Ventilation, NO.2
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12205 Case Sub-assy, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12264 Hose, Ventilation, NO.4
12264A Clip(FOR VENTILATION HOSE)
12270 Separator Assy, Oil
12270B Bracket(FOR OIL SEPARATOR)
12270C Hose, Oil(FOR OIL SEPARATOR)
12270D Clip(FOR OIL SEPARATOR HOSE)
12271 Screen, Oil Separator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
