Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

18 part groups · 6 illustrations

Illustrations

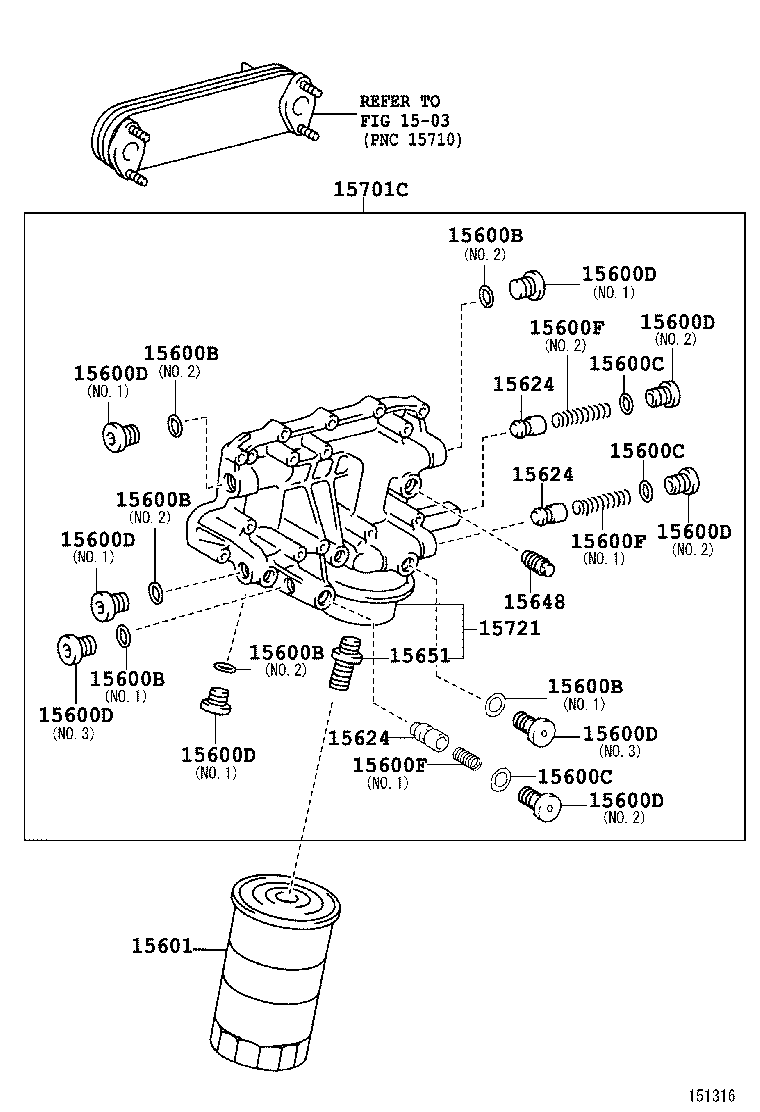

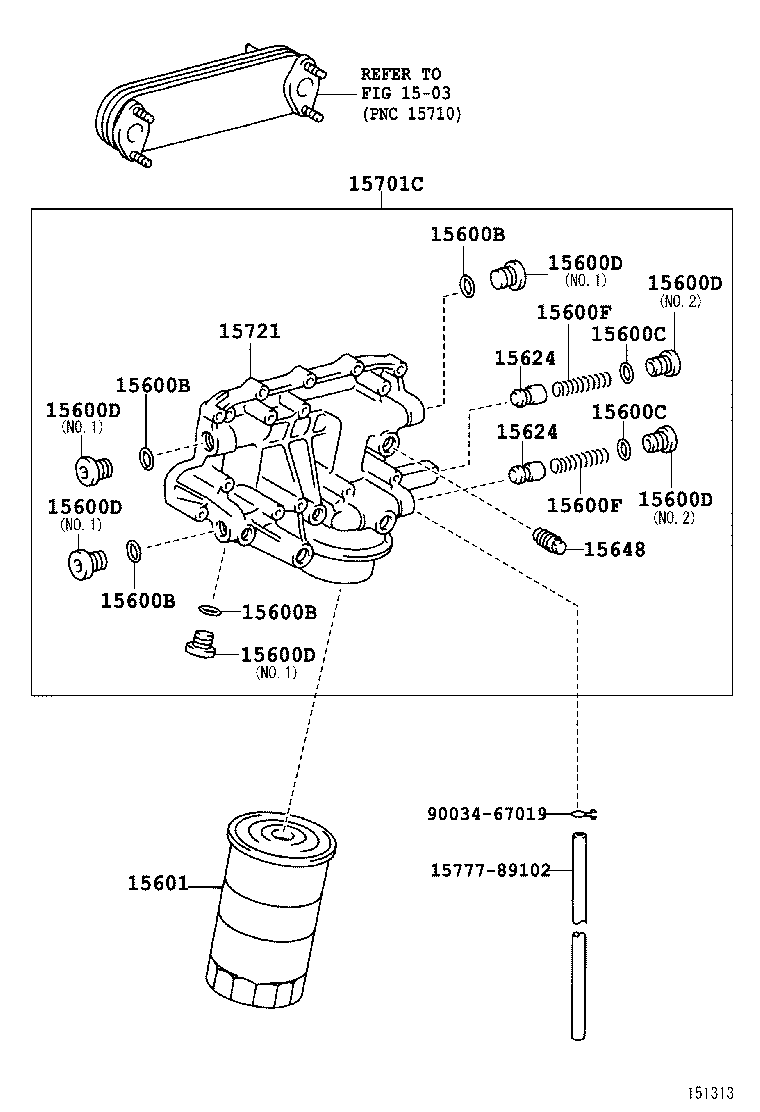

Figure 150322 150322 1999-05 → — Figure 150081 150081 2000-05 → — Figure 151313 151313 1999-05 → 2002-06 Figure 151316 151316 2002-06 → 2006-10 Figure 151318 151318 2000-05 → 2003-06 Figure 151312 151312 2003-10 → —

Part groups

PNCDescription
15194A Ring, O
15600A Union(FOR OIL FILTER)
15600B Ring, O, NO.1(FOR OIL FILTER)
15600C Ring, O, NO.2(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15609D Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
15609E Gasket, W/Head Straight Screw Plug
15624 Valve, Filter, NO.1
15648 Plug, Oil Filter Drain
15651 Bolt(FOR OIL FILTER GUIDE)
15691 Gasket, Oil Filter
15701C Cover Sub-assy, Oil Cooler
15721 Cover, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
