Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

137 part groups · 26 illustrations

Illustrations

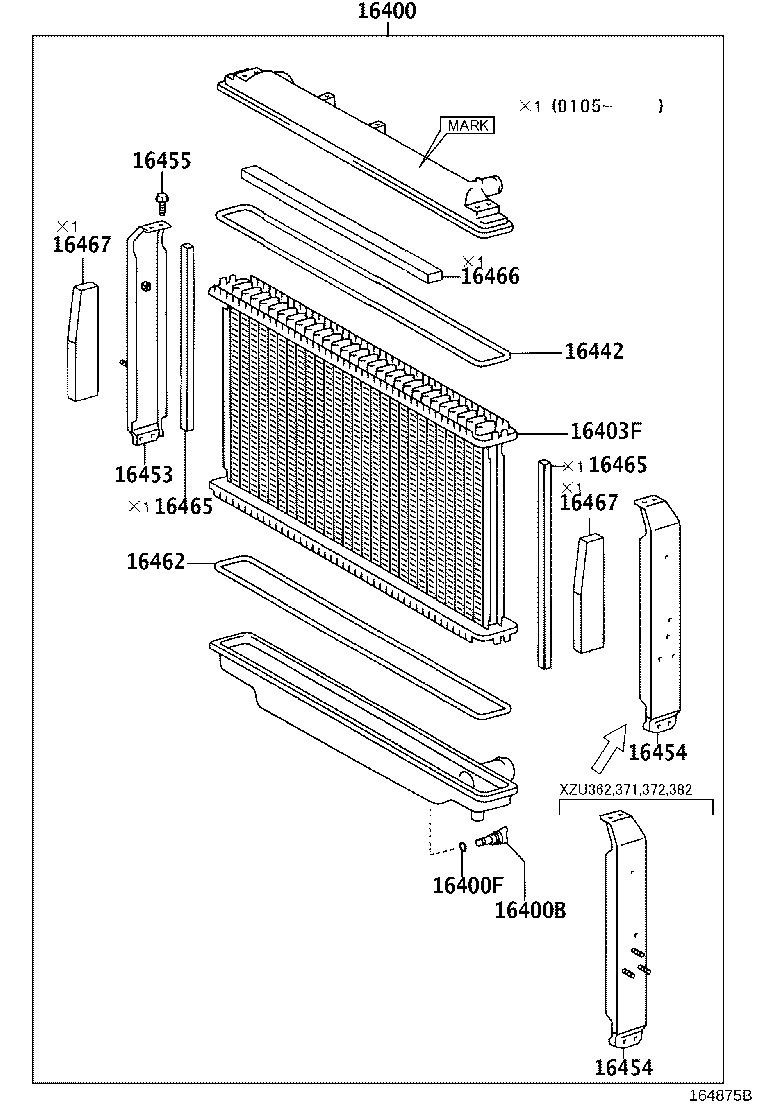

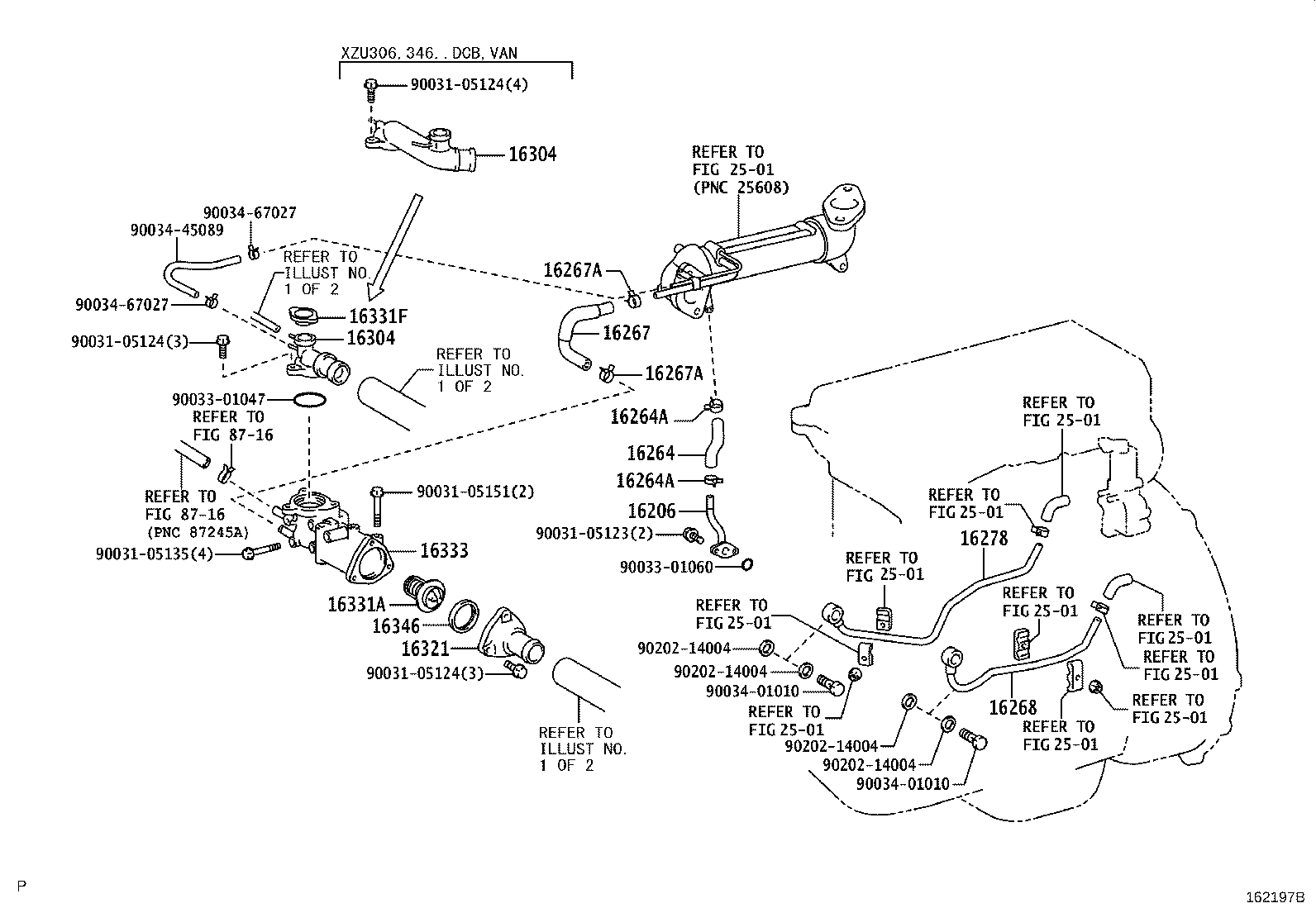

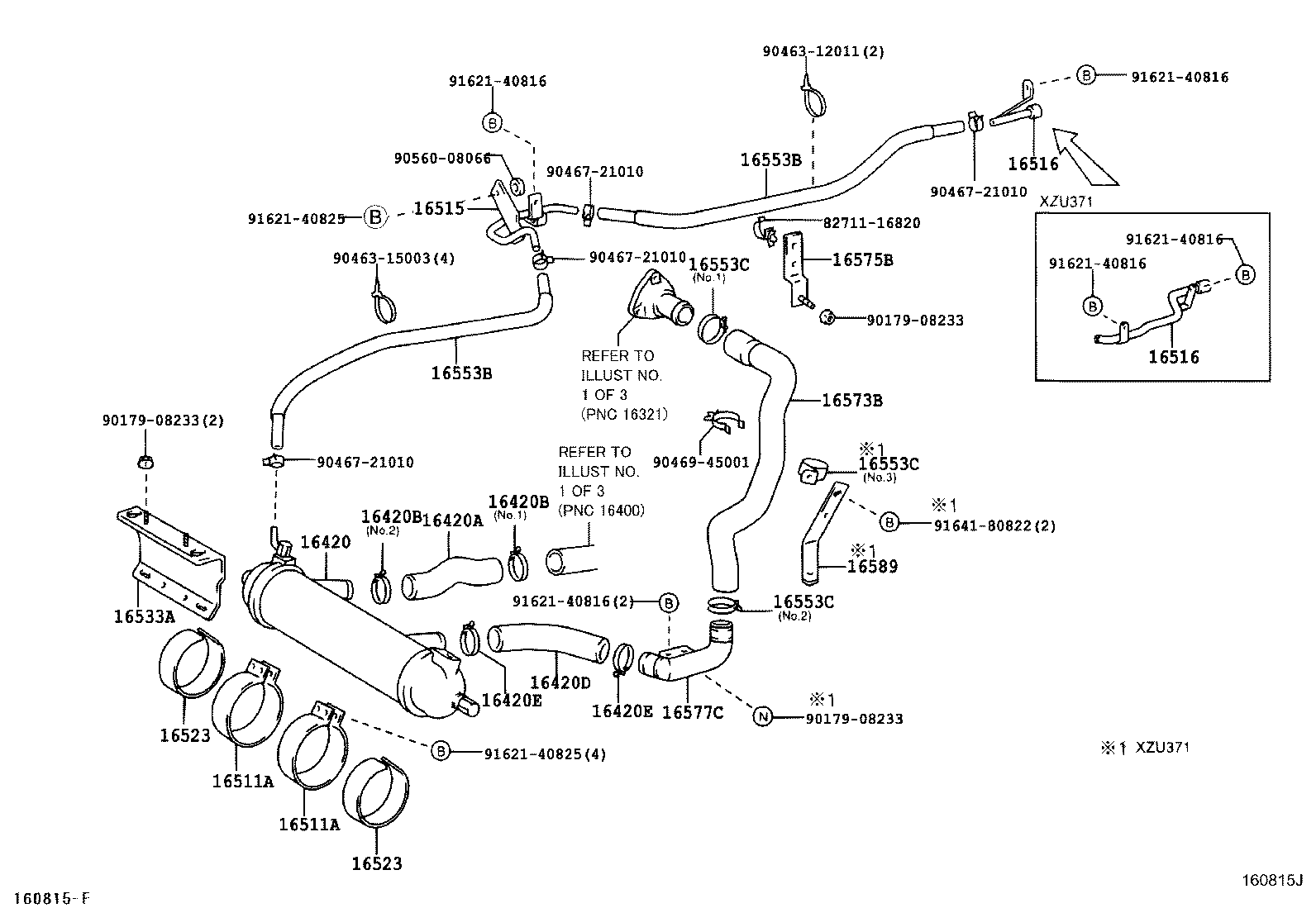

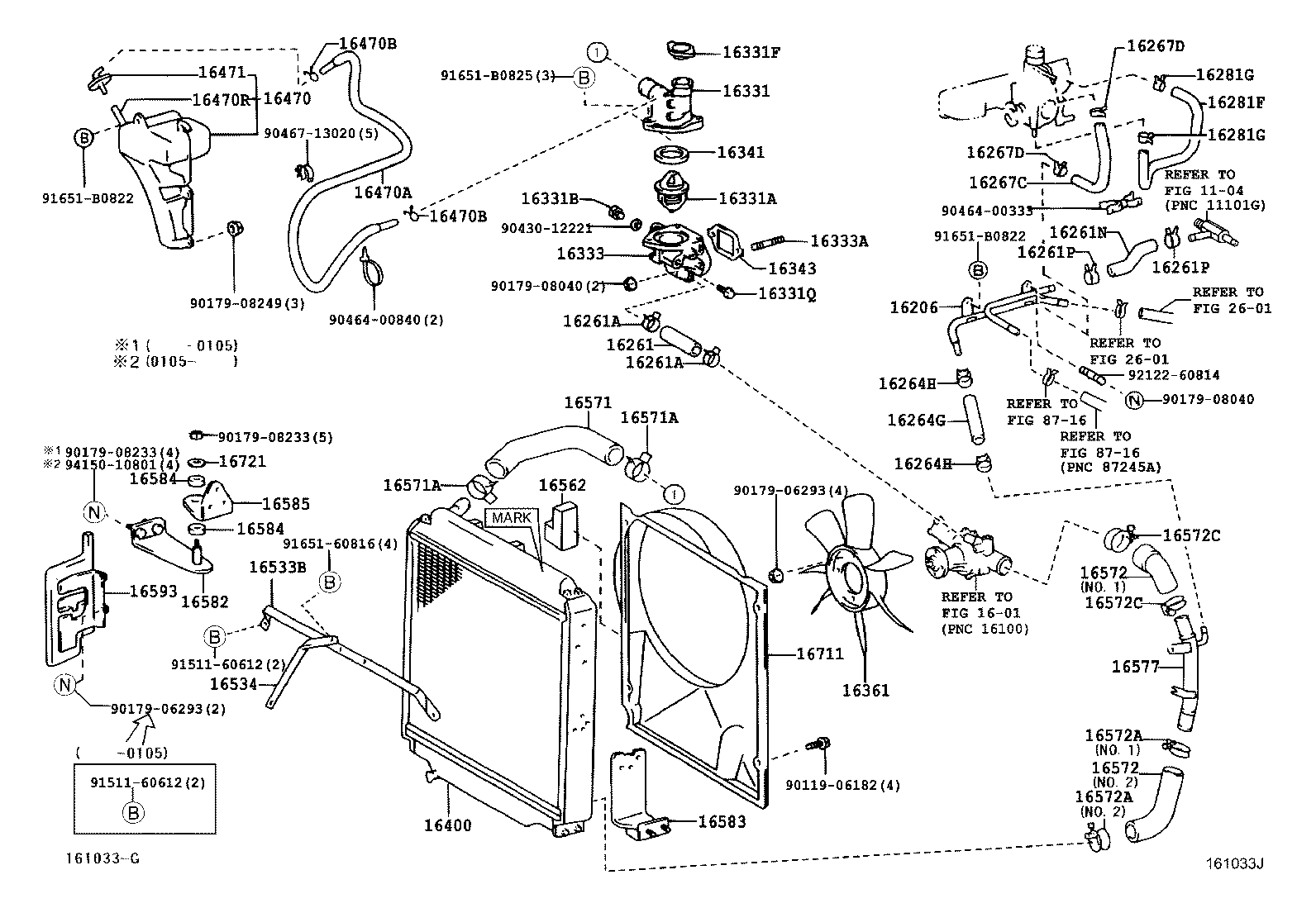

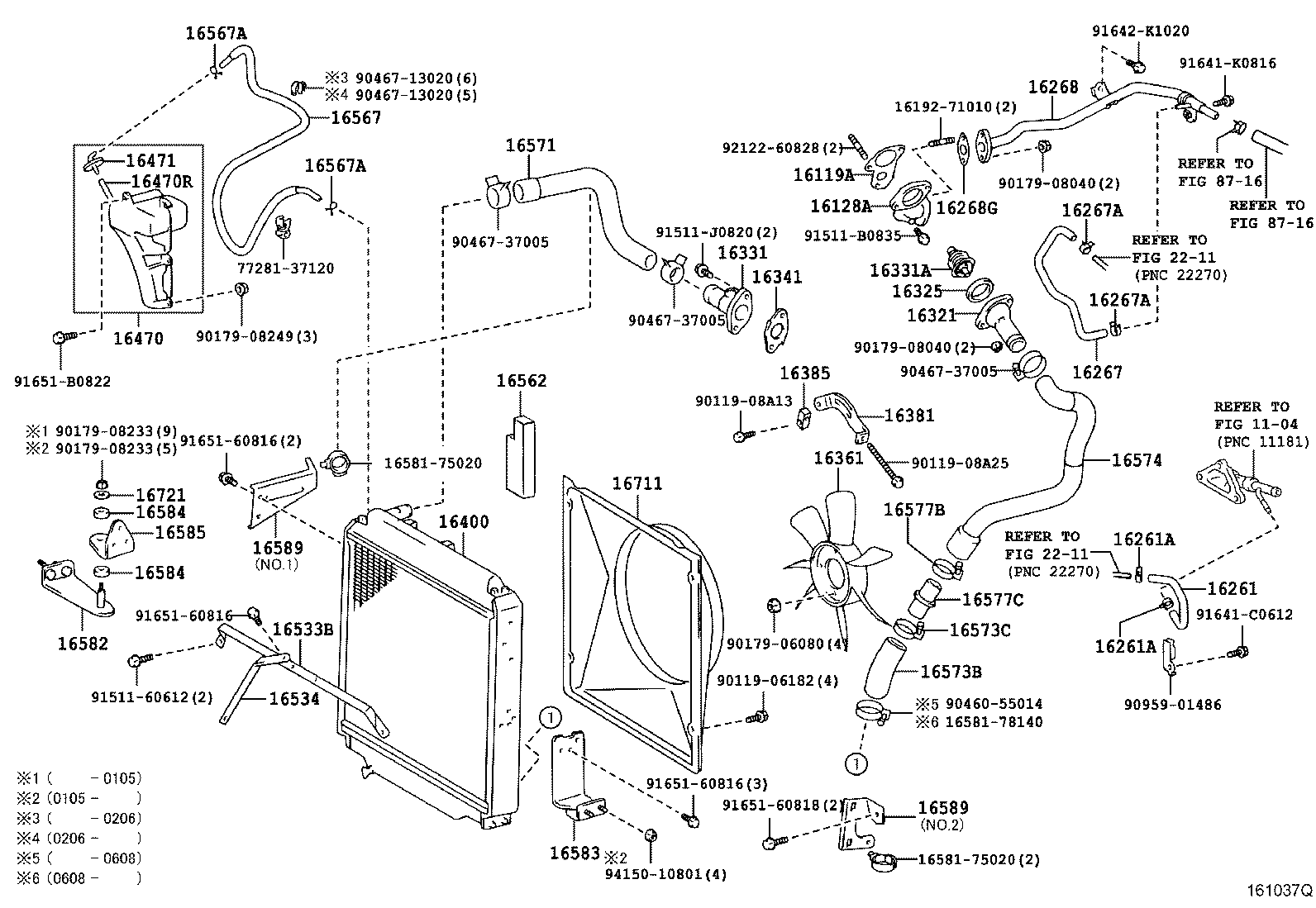

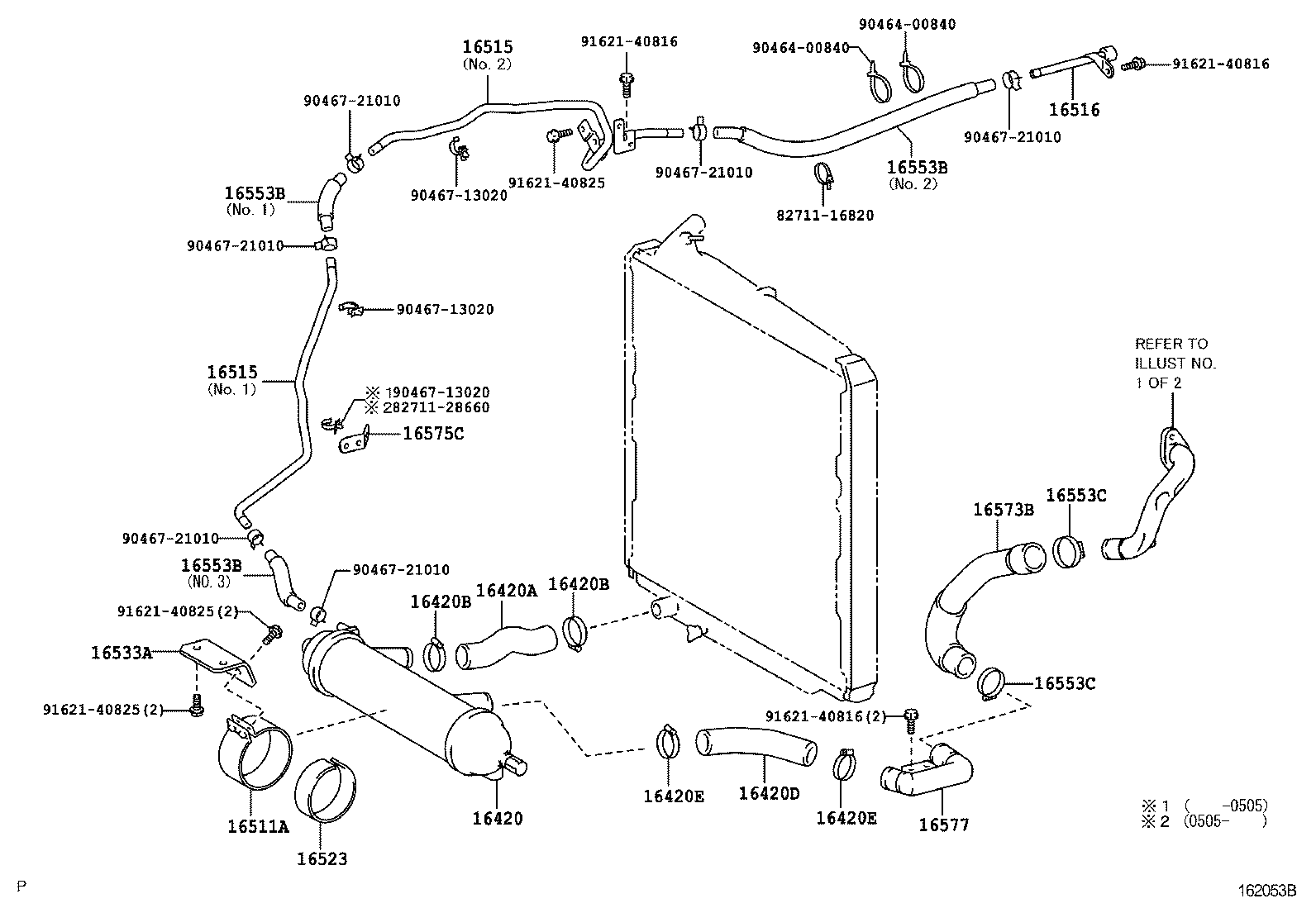

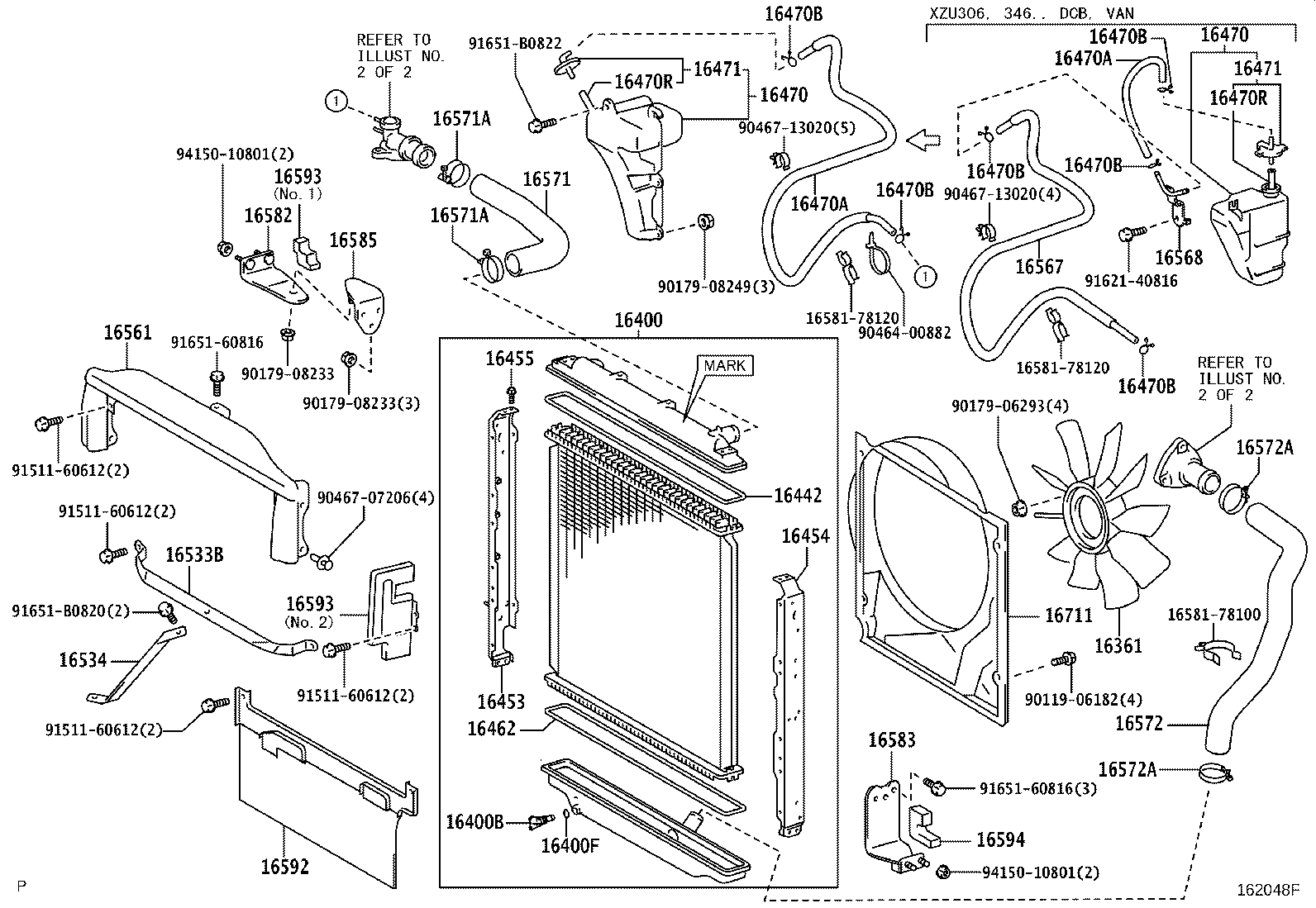

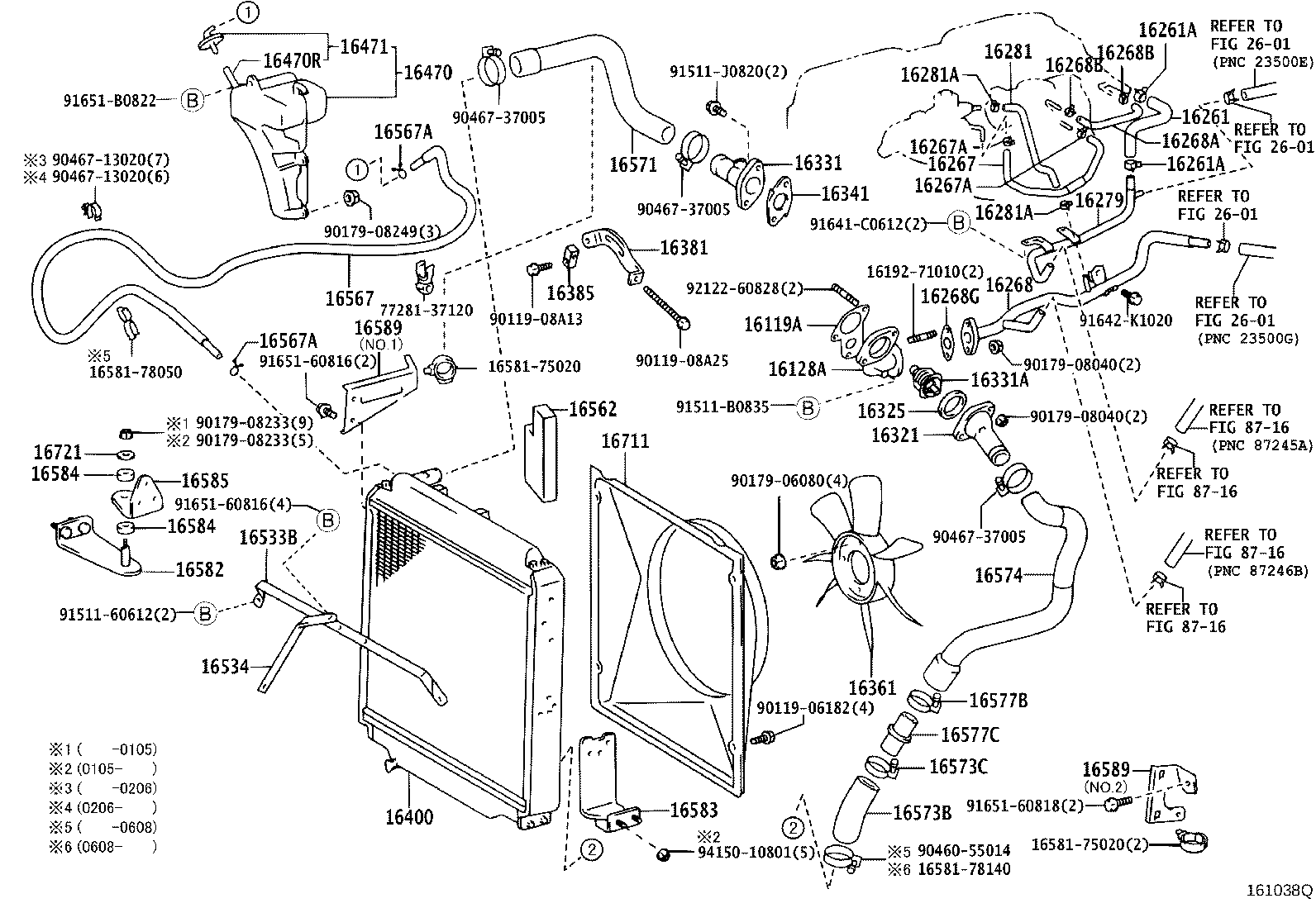

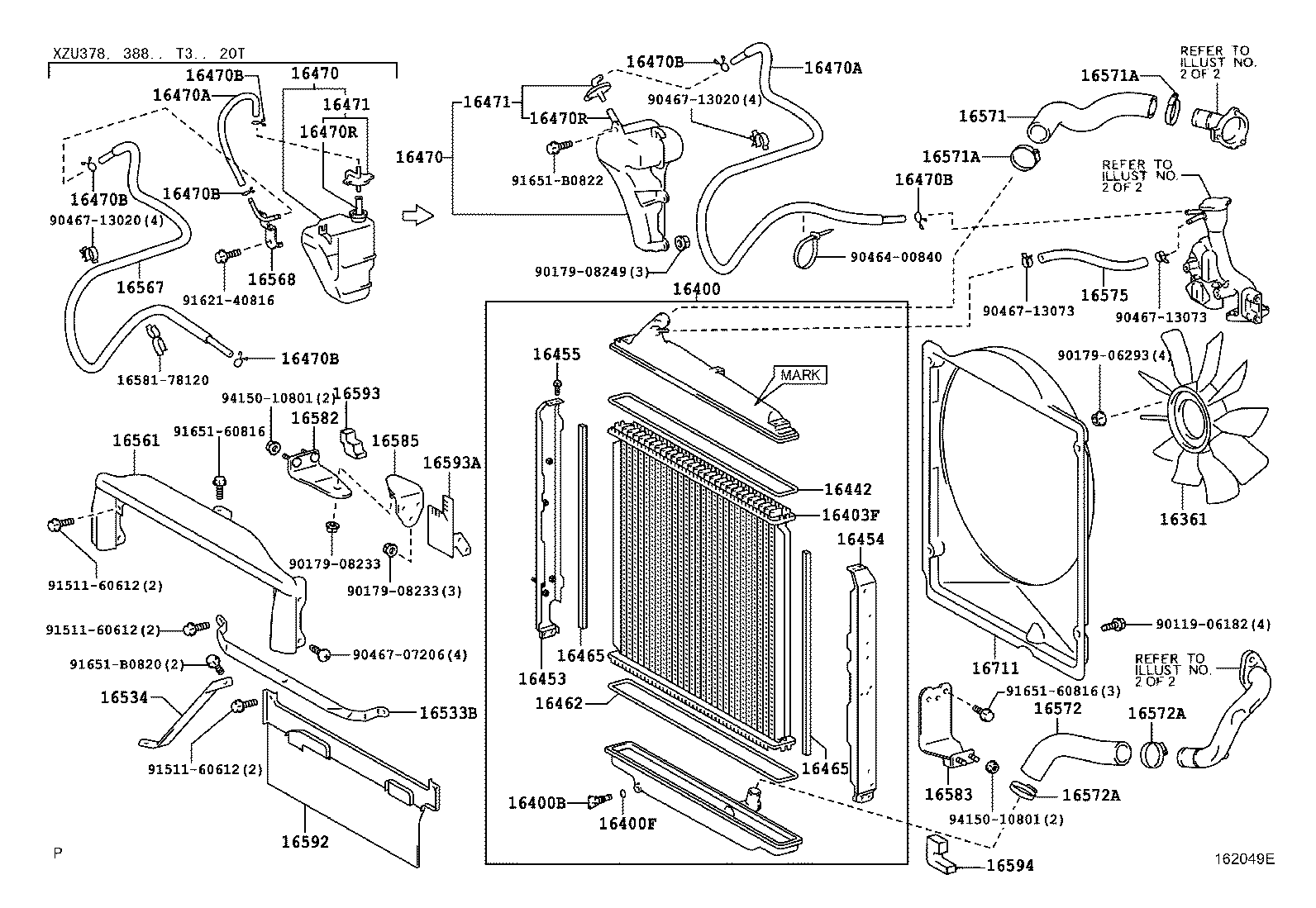

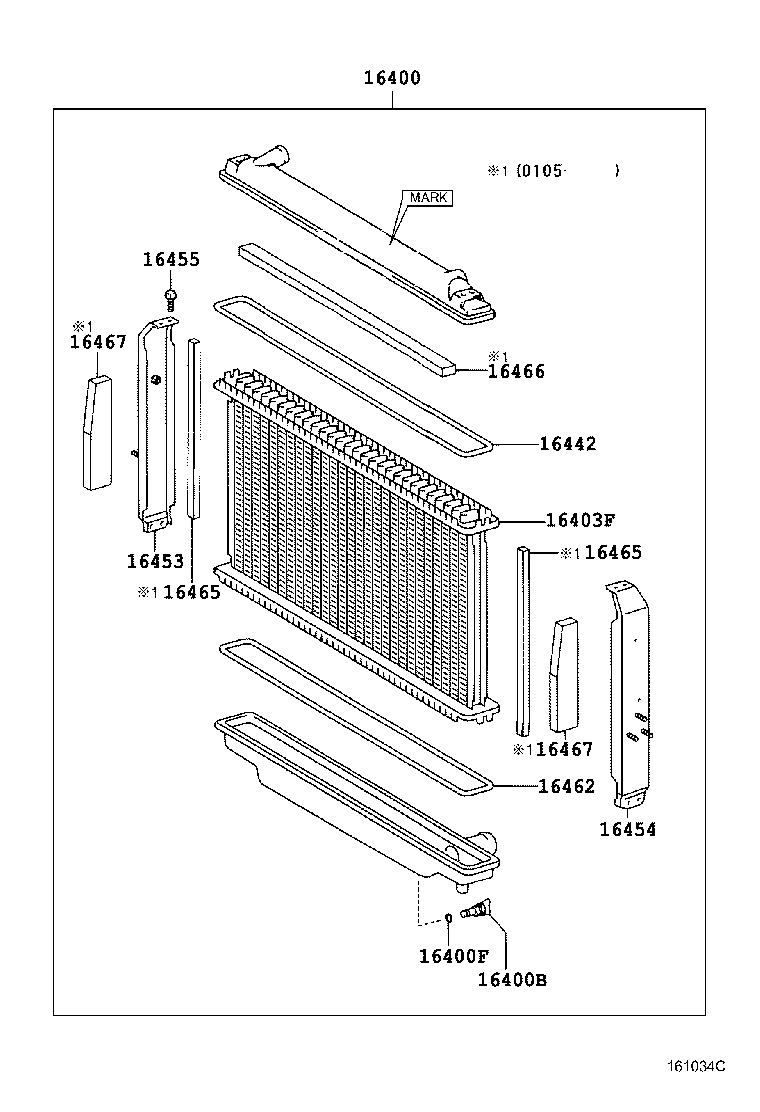

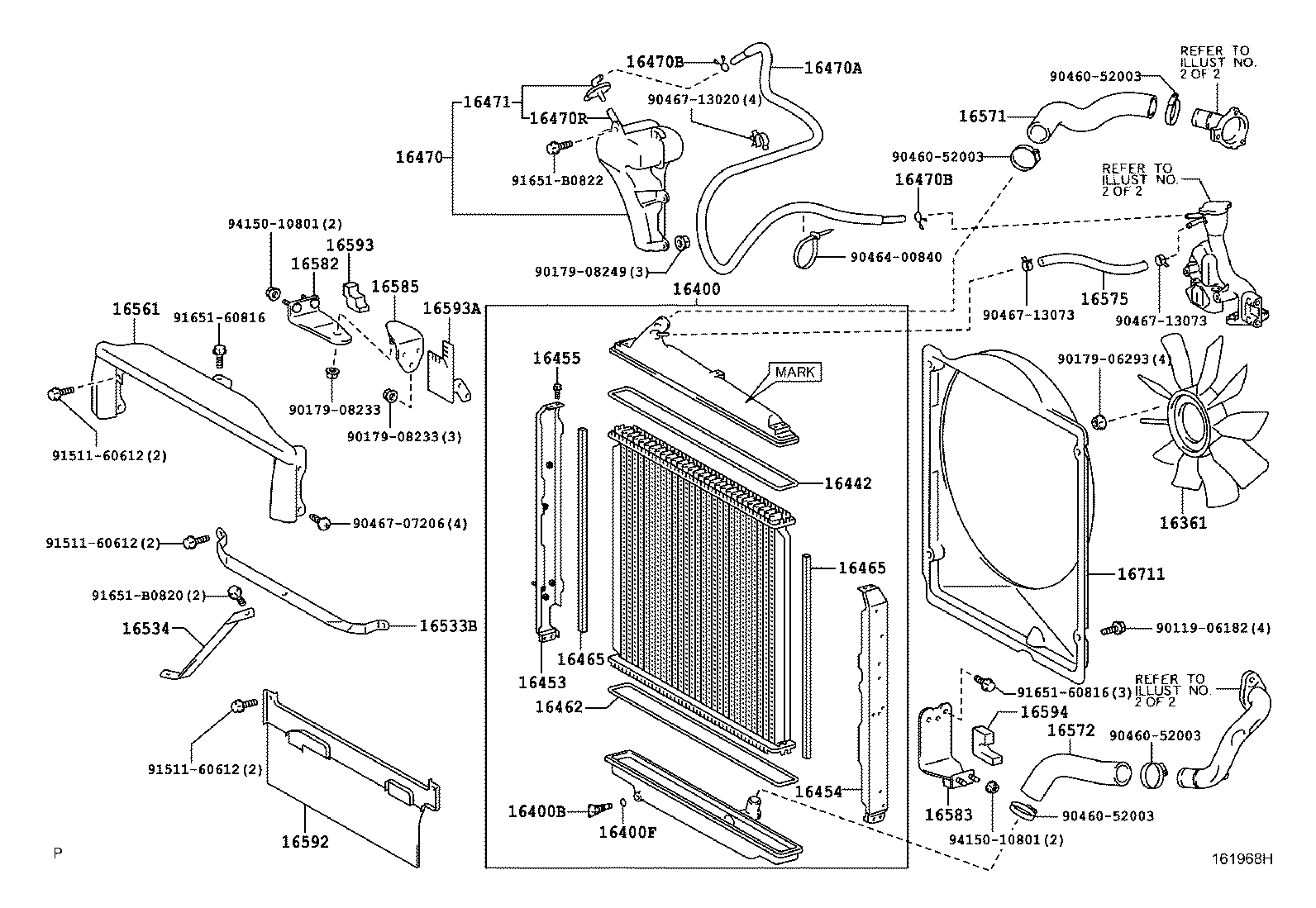

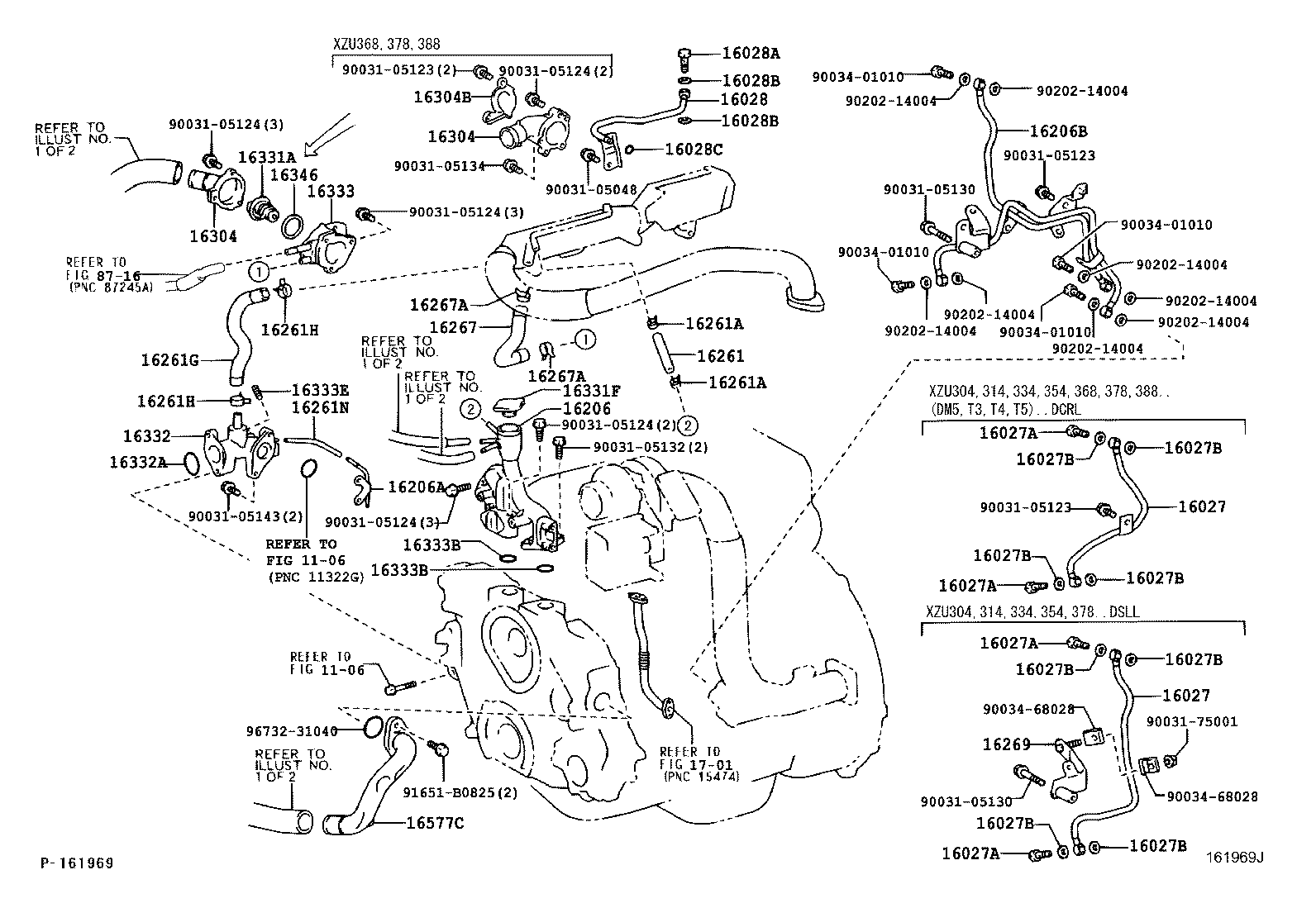

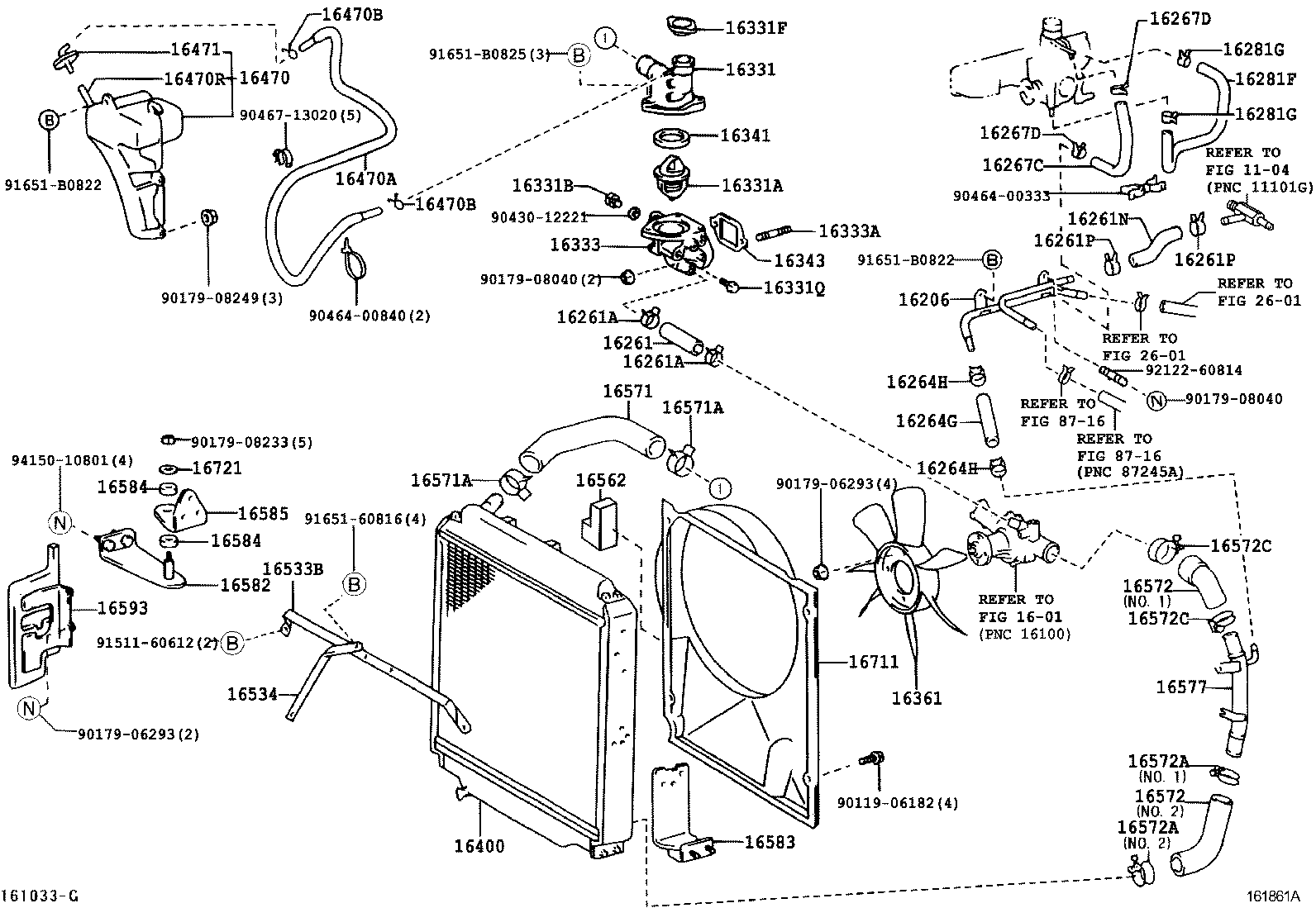

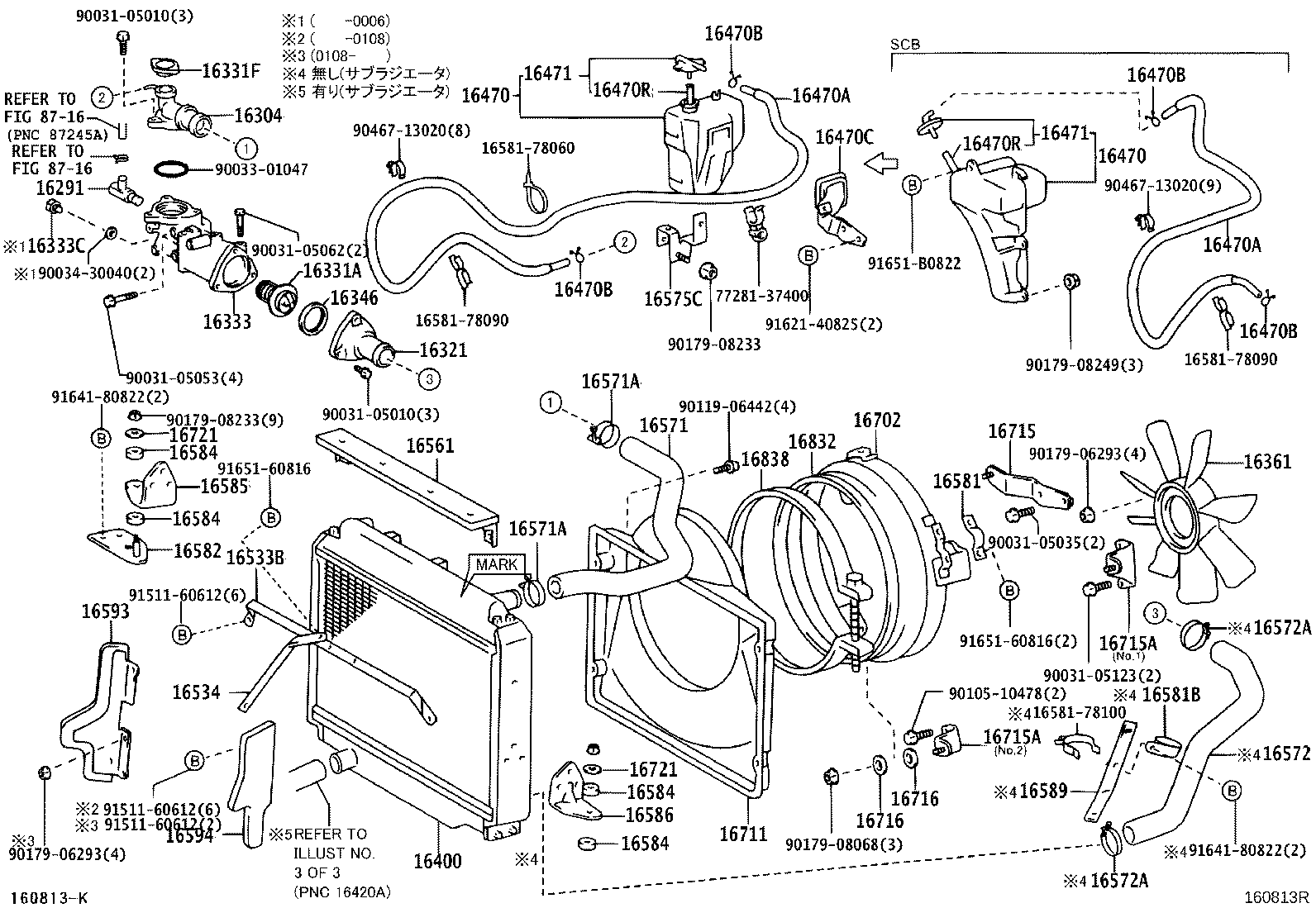

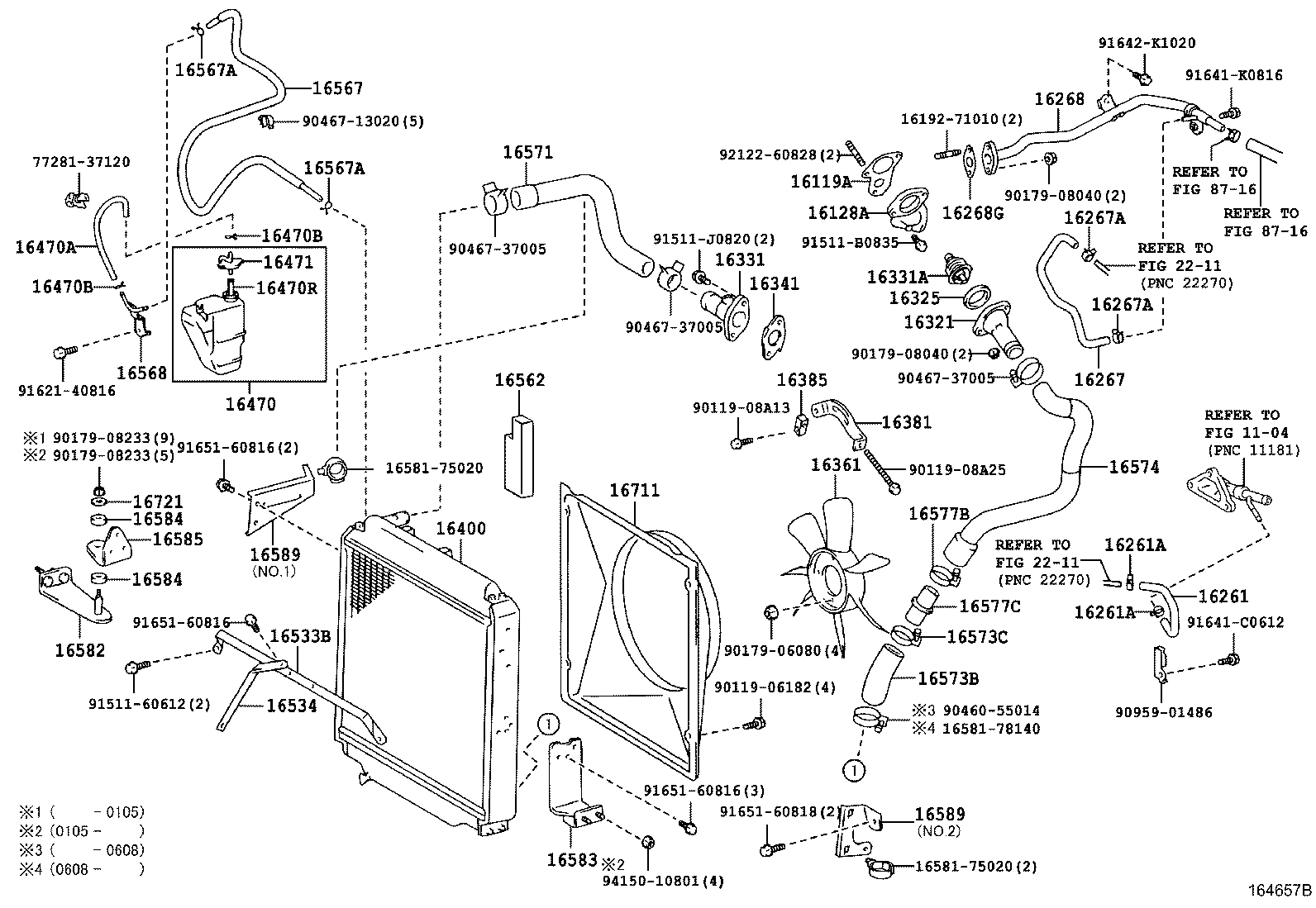

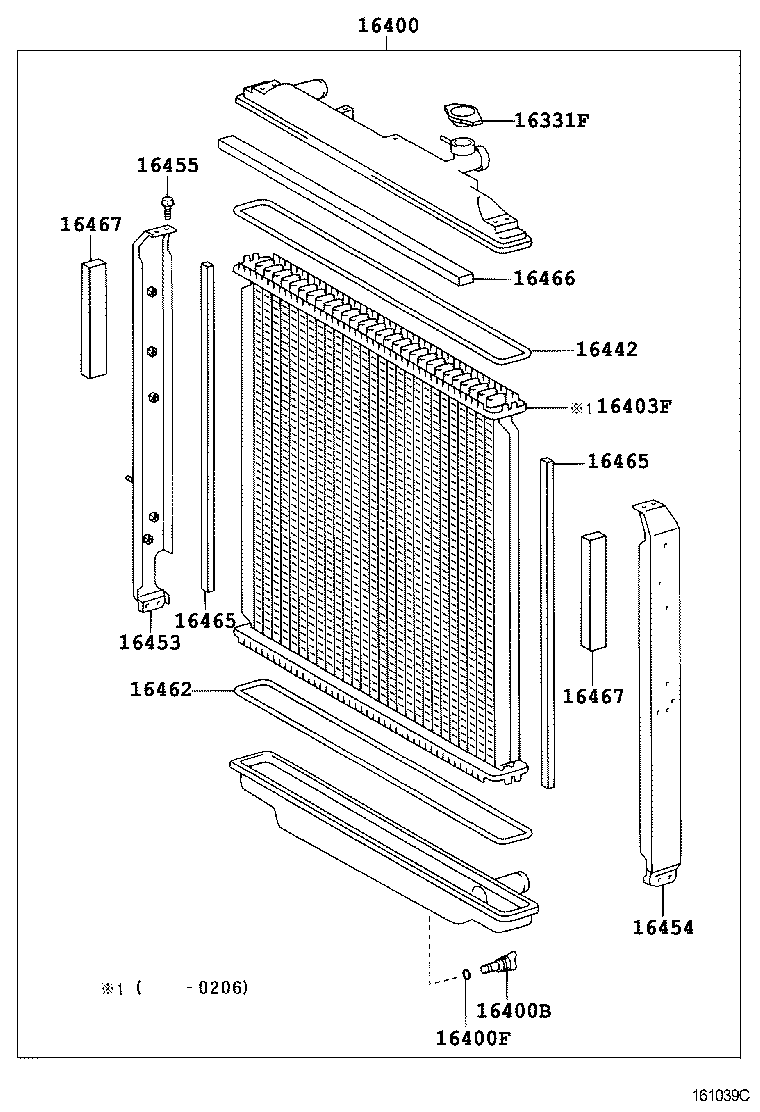

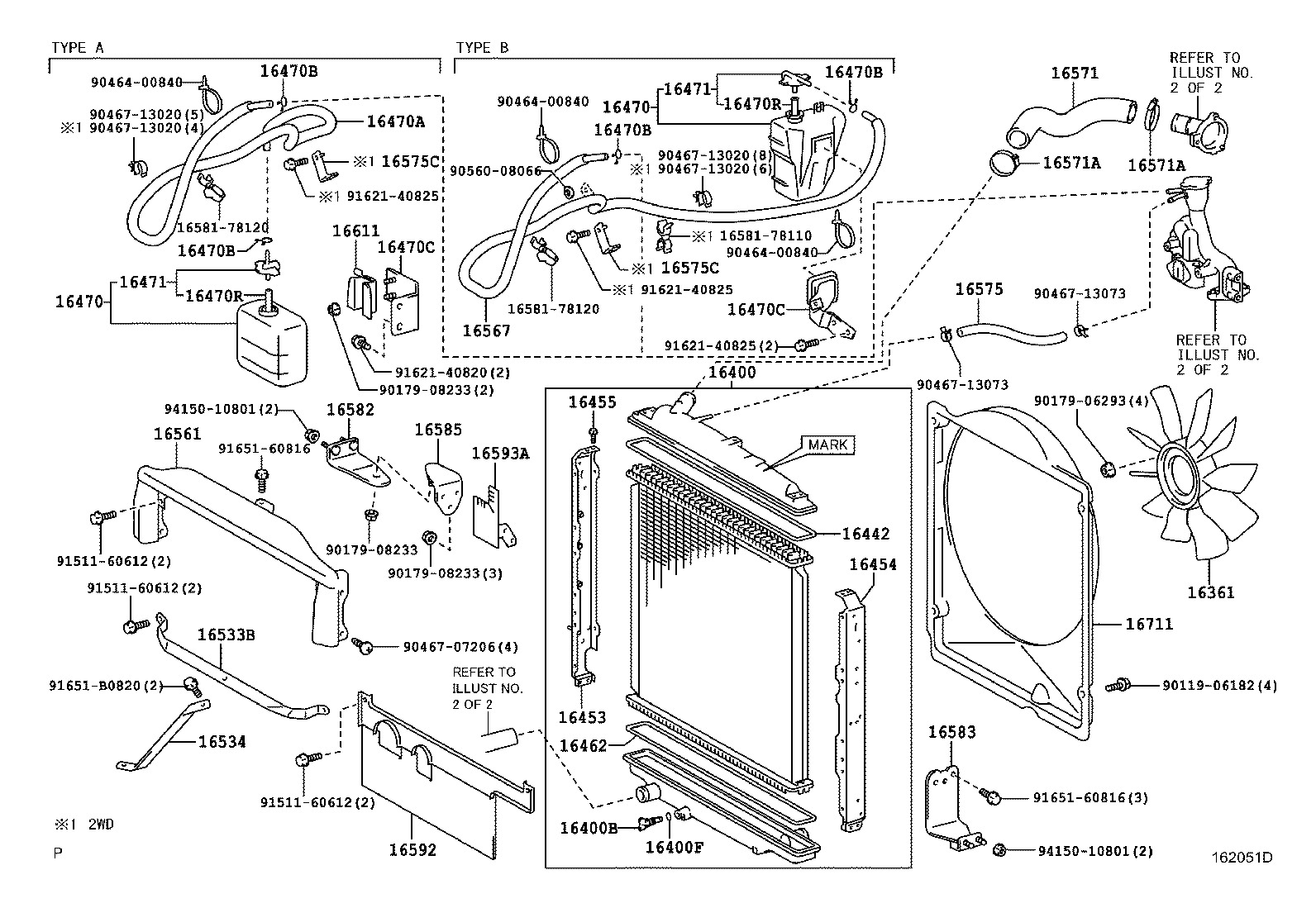

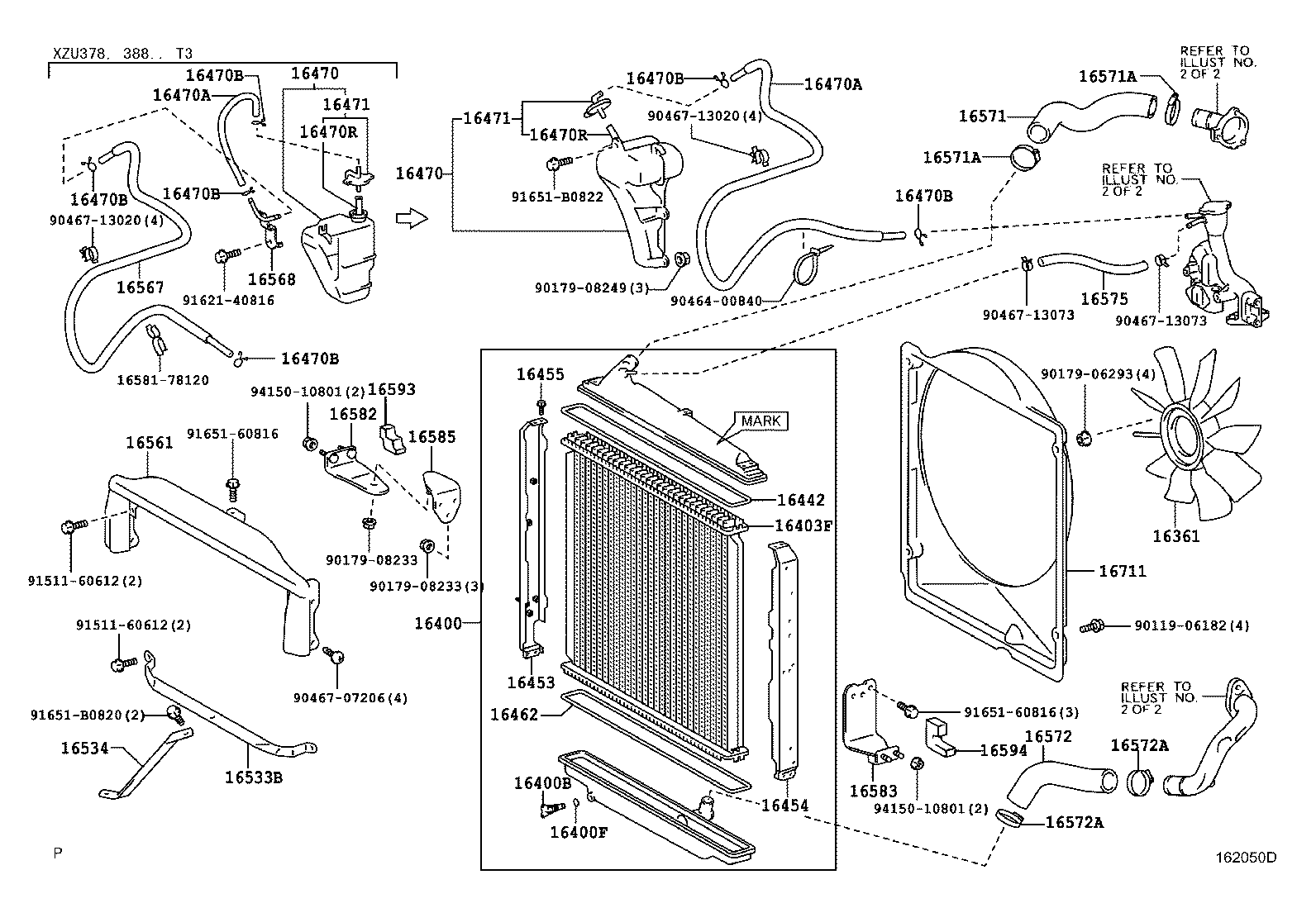

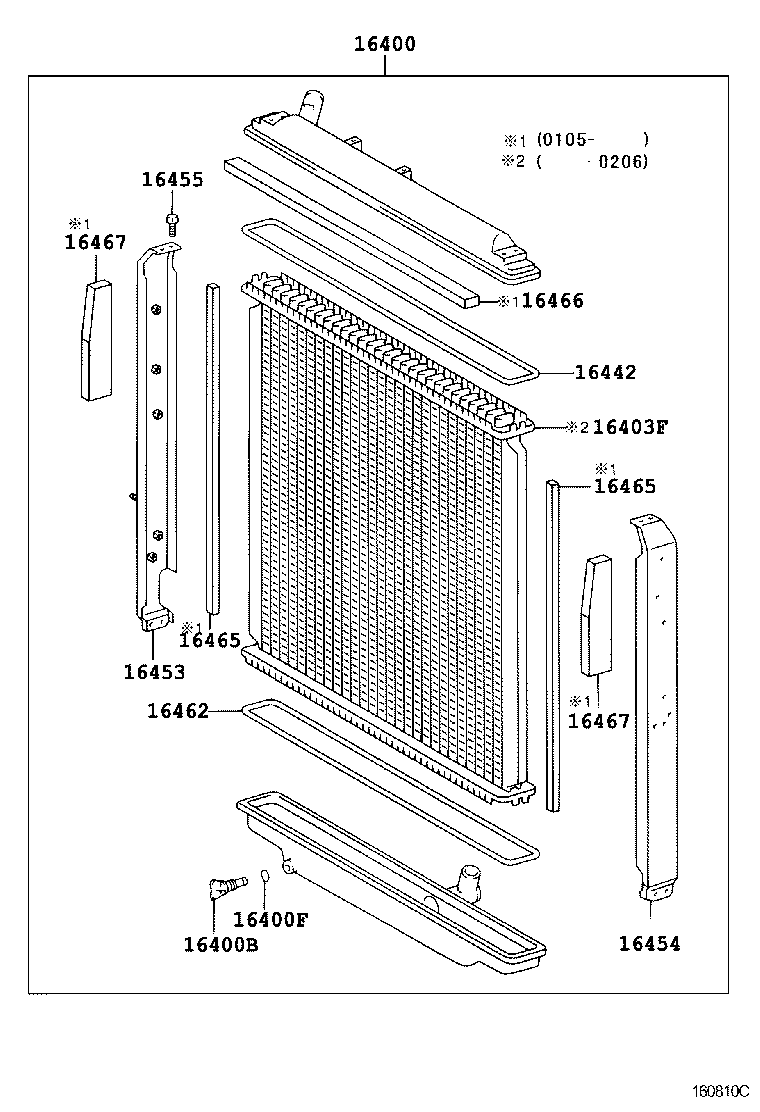

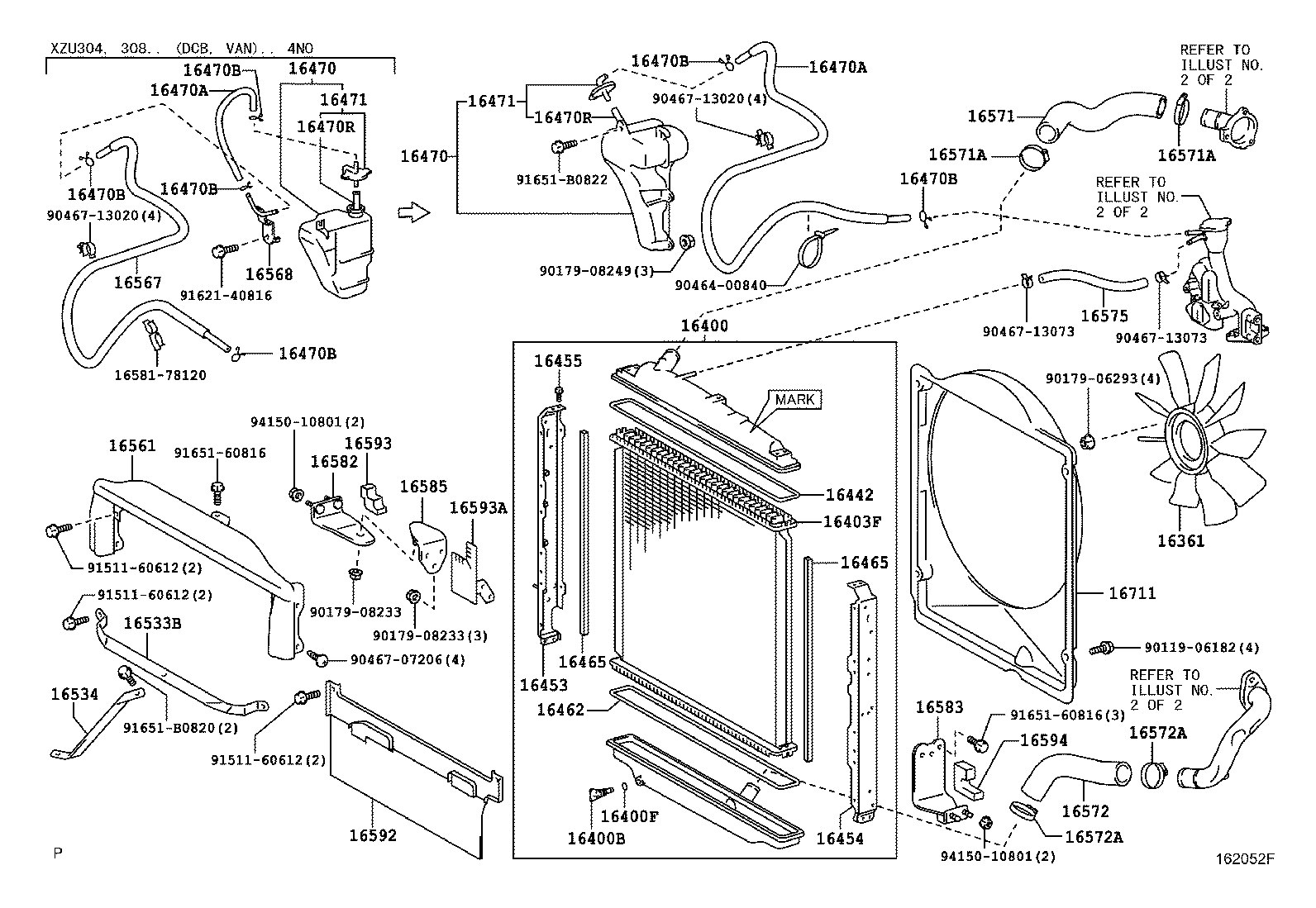

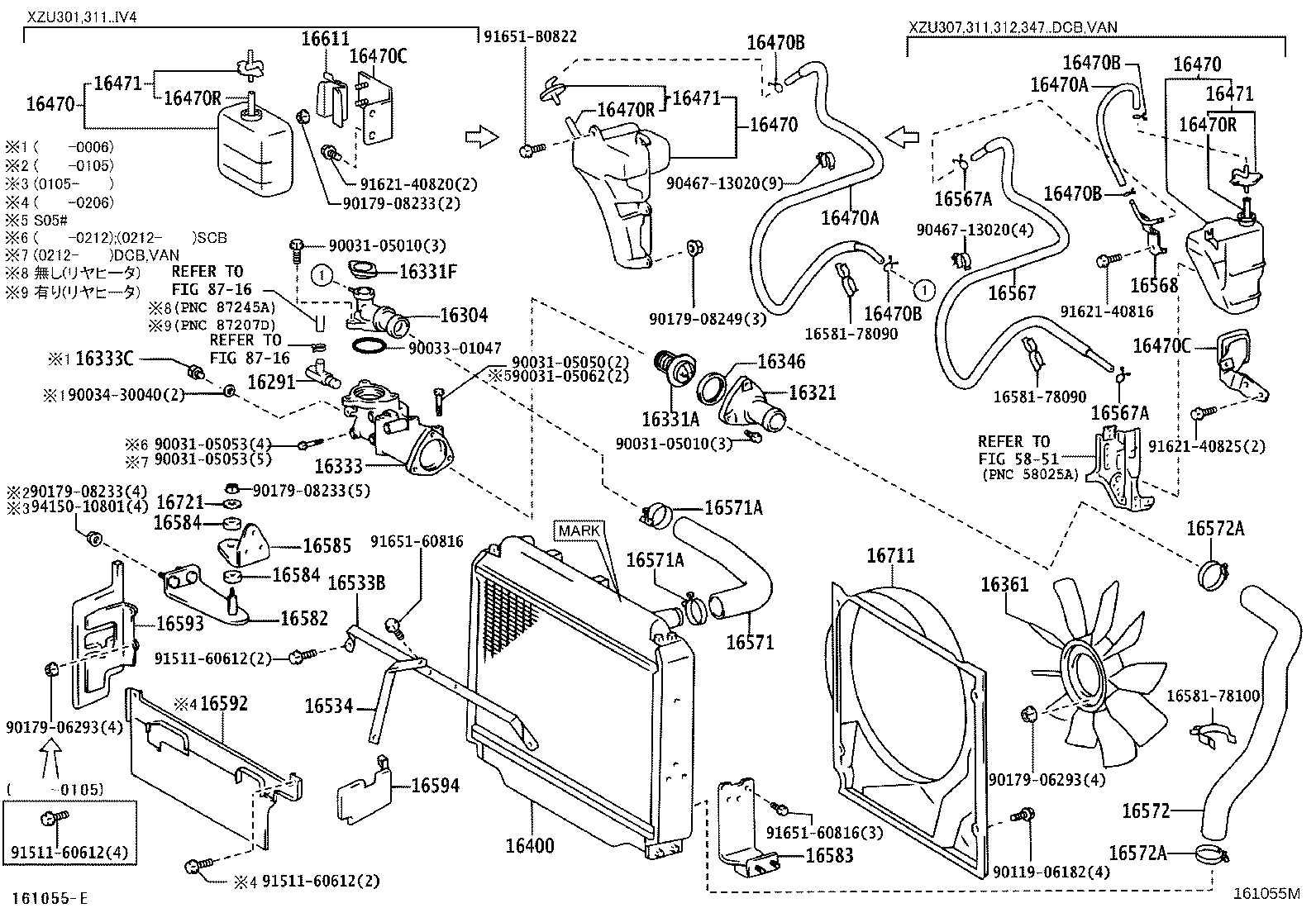

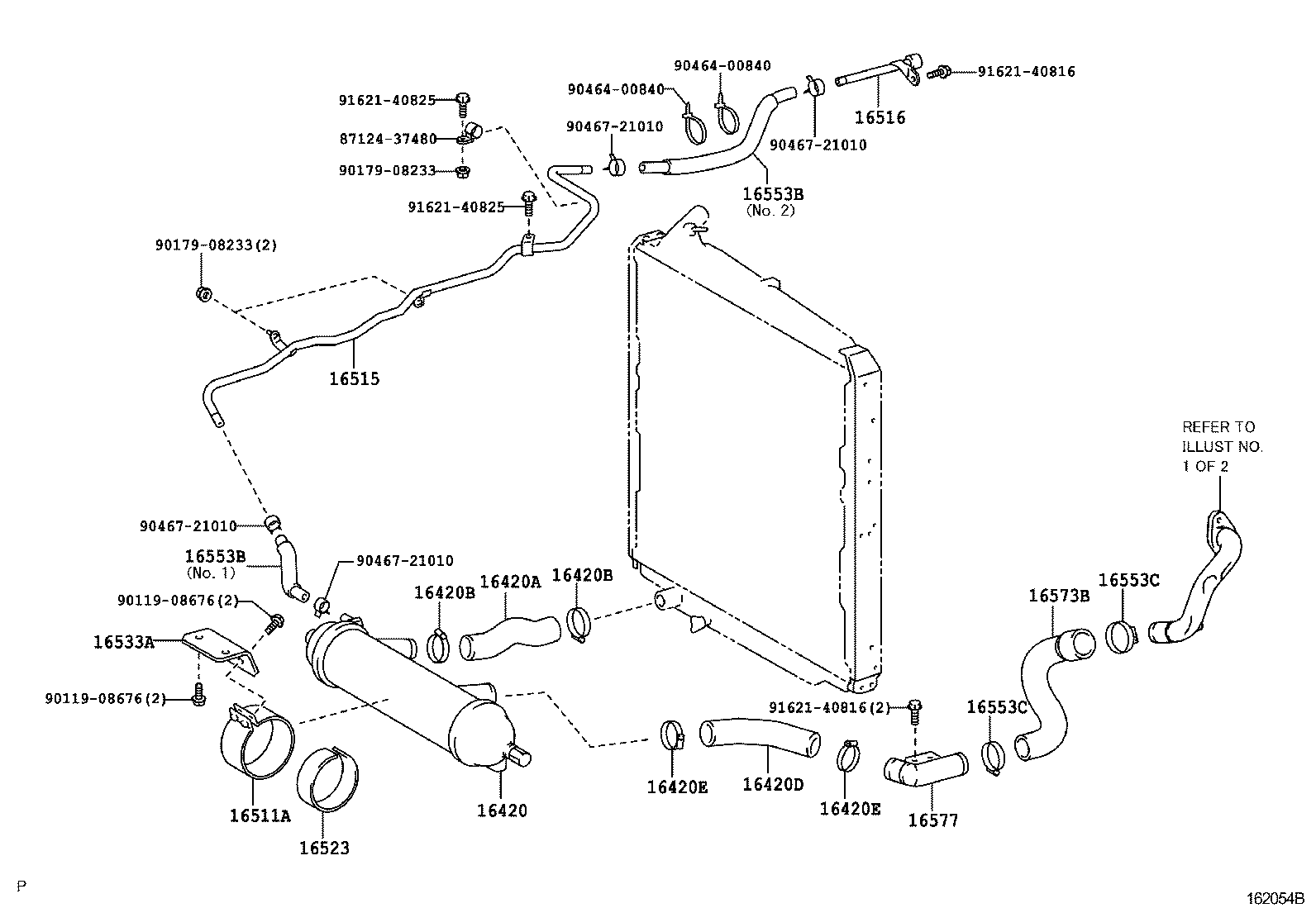

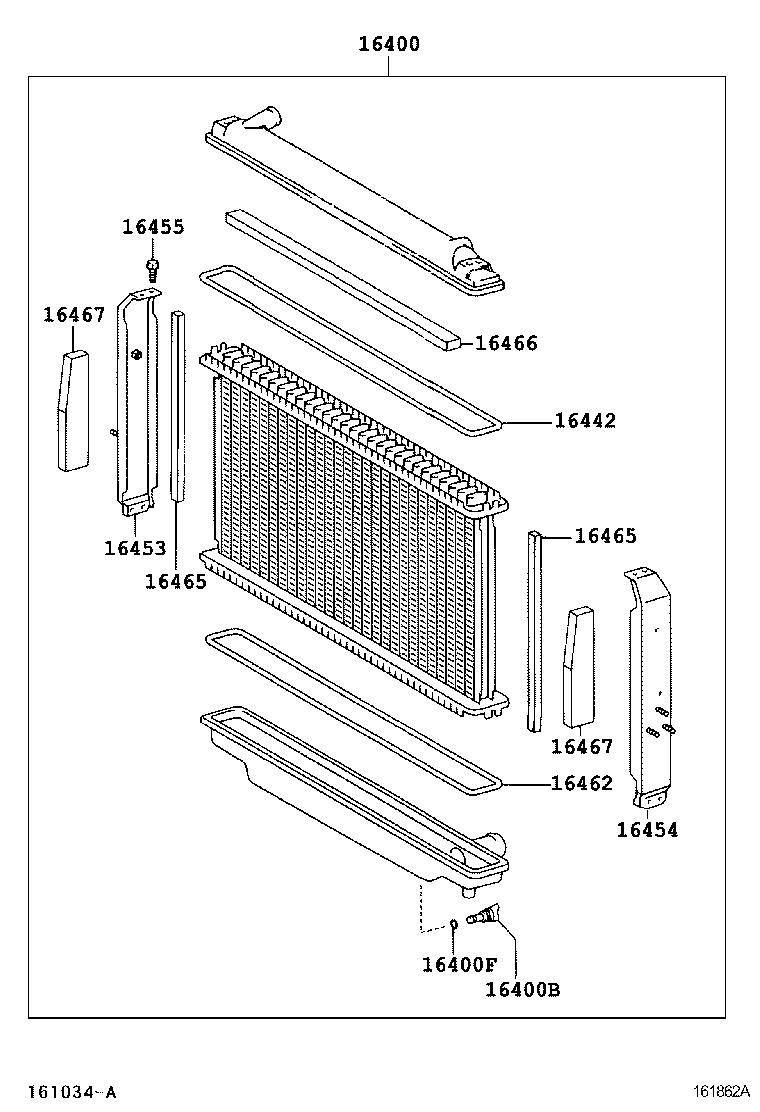

Figure 160809I 160809I 1999-05 → 2004-06 Figure 160810C 160810C 1999-05 → 2004-06 Figure 161861A 161861A 2003-06 → — Figure 161862A 161862A 2003-06 → — Figure 161037Q 161037Q 2000-05 → — Figure 164657B 164657B 2000-05 → — Figure 161038Q 161038Q 2000-05 → — Figure 161039C 161039C 2000-05 → — Figure 161055M 161055M 1999-05 → 2004-06 Figure 162048F 162048F 2004-06 → 2006-10 Figure 162197B 162197B 2004-06 → 2006-10 Figure 160813R 160813R 1999-07 → — Figure 164875B 164875B 1999-05 → — Figure 164875B 164875B 1999-05 → — Figure 164875B 164875B 1999-05 → — Figure 160815J 160815J 1999-08 → — Figure 161033J 161033J 2000-05 → — Figure 161034C 161034C 2000-05 → — Figure 161968I 161968I 2003-10 → 2004-06 Figure 162049E 162049E 2004-06 → 2006-10 Figure 162050D 162050D 2004-06 → 2006-10 Figure 162051D 162051D 2004-06 → 2006-10 Figure 162052F 162052F 2004-06 → — Figure 161969J 161969J 2003-10 → — Figure 162053B 162053B 2004-06 → 2006-10 Figure 162054B 162054B 2004-06 → 2006-10

Part groups

PNCDescription
16027 Pipe Sub-assy, Turbo Water, NO.1
16027A Bolt, Union(FOR TURBO WATER PIPE)
16027B Gasket(FOR TURBO WATER PIPE)
16028 Pipe Sub-assy, Turbo Water, NO.2
16028A Bolt, Union(FOR TURBO WATER PIPE NO.2)
16028B Gasket(FOR TURBO WATER PIPE NO.2)
16028C Ring, O(FOR TURBO WATER PIPE)
16119A Gasket, Thermostat Guide
16128A Plate, Water Pump Thermostat Guide
16206 Pipe Sub-assy, Water By-pass
16206A Pipe Sub-assy, Water By-pass, NO.2
16206B Pipe Sub-assy, Water By-pass, NO.3
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261N Hose, Water By-pass, NO.2
16261P Clip(FOR WATER BY-PASS HOSE NO.2)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264G Hose, Water By-pass, NO.3
16264H Clip(FOR WATER BY-PASS HOSE NO.3)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267C Hose, Water By-pass, NO.4
16267D Clip(FOR WATER BY-PASS HOSE NO.4)
16268 Pipe, Water By-pass, NO.1
16268A Hose(FOR WATER BY-PASS PIPE)
16268B Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE)
16268G Gasket(FOR WATER BY-PASS PIPE)
16269 Support, Water By-pass Pipe
16278 Pipe, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281F Hose, Water By-pass, NO.5
16281G Clip(FOR WATER BY-PASS HOSE NO.5)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16283C Clamp OR Clip(FOR WATER BY-PASS HOSE)
16291 Joint, Water Hose
16304 Outlet Sub-assy, Water
16304B Cover Sub-assy, Water Outlet
16321 Inlet, Water
16325 Gasket, Water Inlet Housing, NO.1
16331 Outlet, Water
16331A Thermostat
16331B Plug(FOR WATER OUTLET)
16331F Cap Sub-assy(FOR WATER OUTLET)
16331Q Plug(FOR WATER OUTLET)
16332 Pipe, Water Outlet, NO.1
16332A Ring, O(FOR WATER OUTLET PIPE)
16333 Housing, Water Outlet
16333A Bolt, Stud(FOR WATER OUTLET HOUSING)
16333B Ring, O(FOR WATER OUTLET HOUSING)
16333C Plug, W/Head Taper Screw
16333E Plug, Drain Cock
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16346 Gasket, Thermostat
16361 Fan
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16403F Core Sub-assy, Radiator
16420 Radiator Assy, Sub
16420A Hose, Sub Radiator, Inlet
16420B Clamp, Sub Radiator Inlet Hose
16420D Hose, Sub Radiator, NO.2
16420E Clamp OR Clip, Sub Radiator Hose
16442 Ring, O(FOR RADIATOR UPPER TANK)
16453 Plate, Radiator Side
16454 Plate, Radiator Side
16455 Bolt, Radiator Side Support Plate
16462 Ring, O(FOR RADIATOR LOWER TANK)
16465 Packing, Radiator
16466 Seal, Radiator
16467 Side Seal
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16470C Bracket(FOR RADIATOR RESERVE TANK)
16470R Hose, NO.2(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16511A Bracket, Sub-radiator
16515 Pipe, Sub Radiator, NO.1
16516 Pipe, Sub Radiator, NO.2
16523 Cushion, Sub-radiator Support
16533A Support, Sub-radiator
16533B Support, Radiator, NO.1
16534 Support, Radiator, NO.2
16553B Hose, Sub Radiator, NO.3
16553C Clamp, Hose
16561 Seal, Radiator TO Support, NO.1
16562 Seal, Radiator TO Support, NO.2
16567 Hose(FOR RADIATOR RESERVE TANK)
16567A Clip(FOR RADIATOR RESERVE TANK HOSE)
16568 Pipe, Radiator TO Reserve Tank
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572C Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2)
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16574 Hose, Radiator, NO.4
16575 Hose, Radiator, NO.5
16575B Bracket, Water Hose Clamp, NO.2
16575C Bracket, Water Hose Clamp, NO.1
16577 Pipe, Radiator, NO.7
16577B Clamp OR Clip, Hose(FOR RADIATOR PIPE)
16577C Pipe, Radiator
16581 Clamp, Hose(FOR WATER HOSE)
16581B Clamp, Hose(FOR RADIATOR HOSE)
16582 Bracket, Radiator, NO.1
16583 Bracket, Radiator, NO.2
16584 Insulator, Radiator Mounting
16585 Bracket, Radiator, NO.3
16586 Bracket, Radiator, NO.4
16589 Stay, Pipe Clamp
16592 Guide, Radiator Air, NO.3
16593 Guide, Radiator Air, NO.1
16593A Guide, Radiator Air, NO.1 RH
16594 Guide, Radiator Air, NO.2
16611 Bracket, Radiator Reserve Tank
16702 Shroud Sub-assy, Fan, NO.2
16711 Shroud, Fan
16715 Bracket, Fan Shroud
16715A Bracket, Fan Shroud, NO.2
16716 Cushion, Fan Shroud
16721 Plate, Holder
16832 Seal, Fan Shroud
16838 Clamp, Fan Shroud
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
