Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

V-belt

4 part groups · 2 illustrations

Illustrations

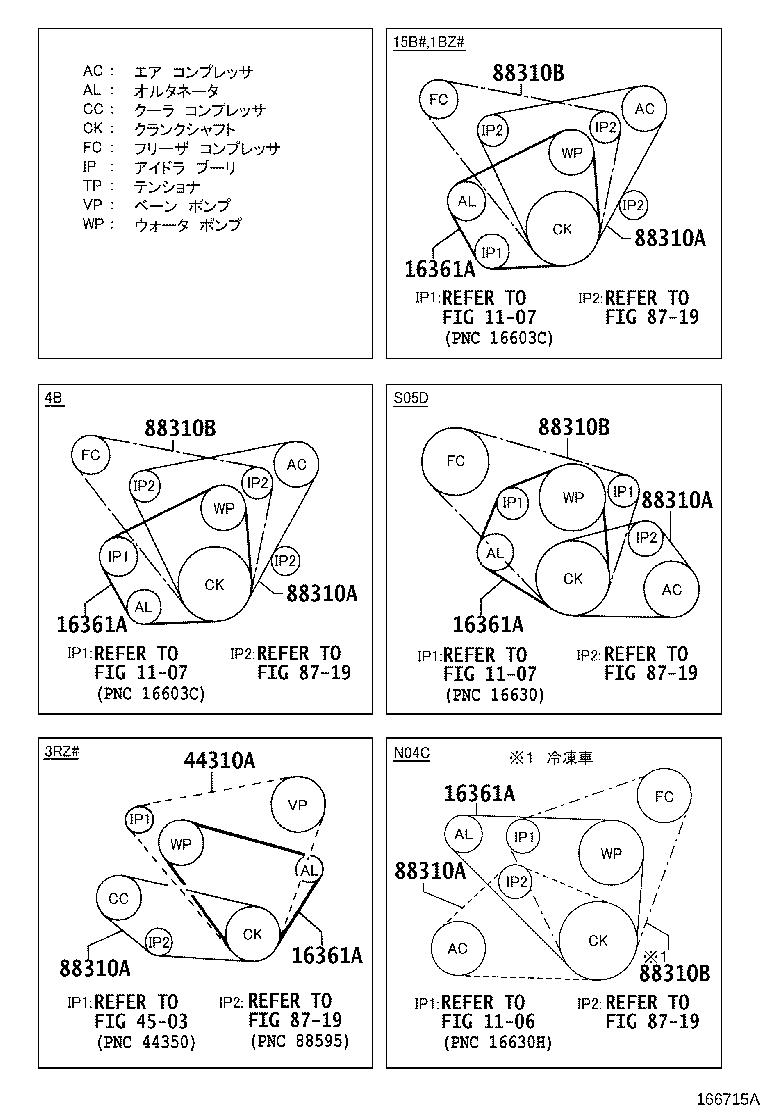

Figure 160808L 160808L 1999-05 → 2004-06 Figure 166715A 166715A 2004-06 → —

Part groups

PNCDescription
16361A Belt, V(FOR FAN & ALTERNATOR)
44310A Belt, V(FOR VANE PUMP)
88310A Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
88310B Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
