Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10

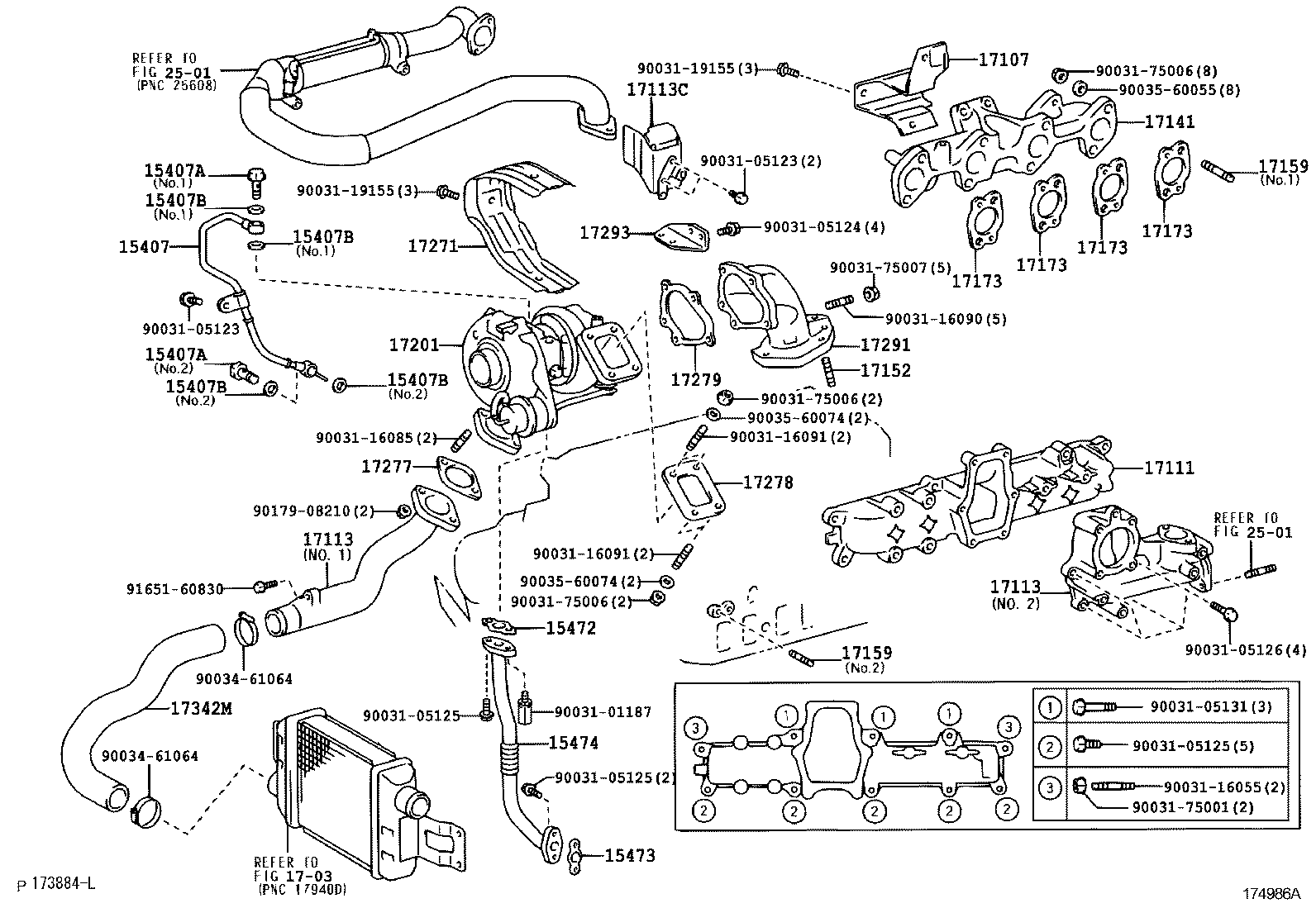

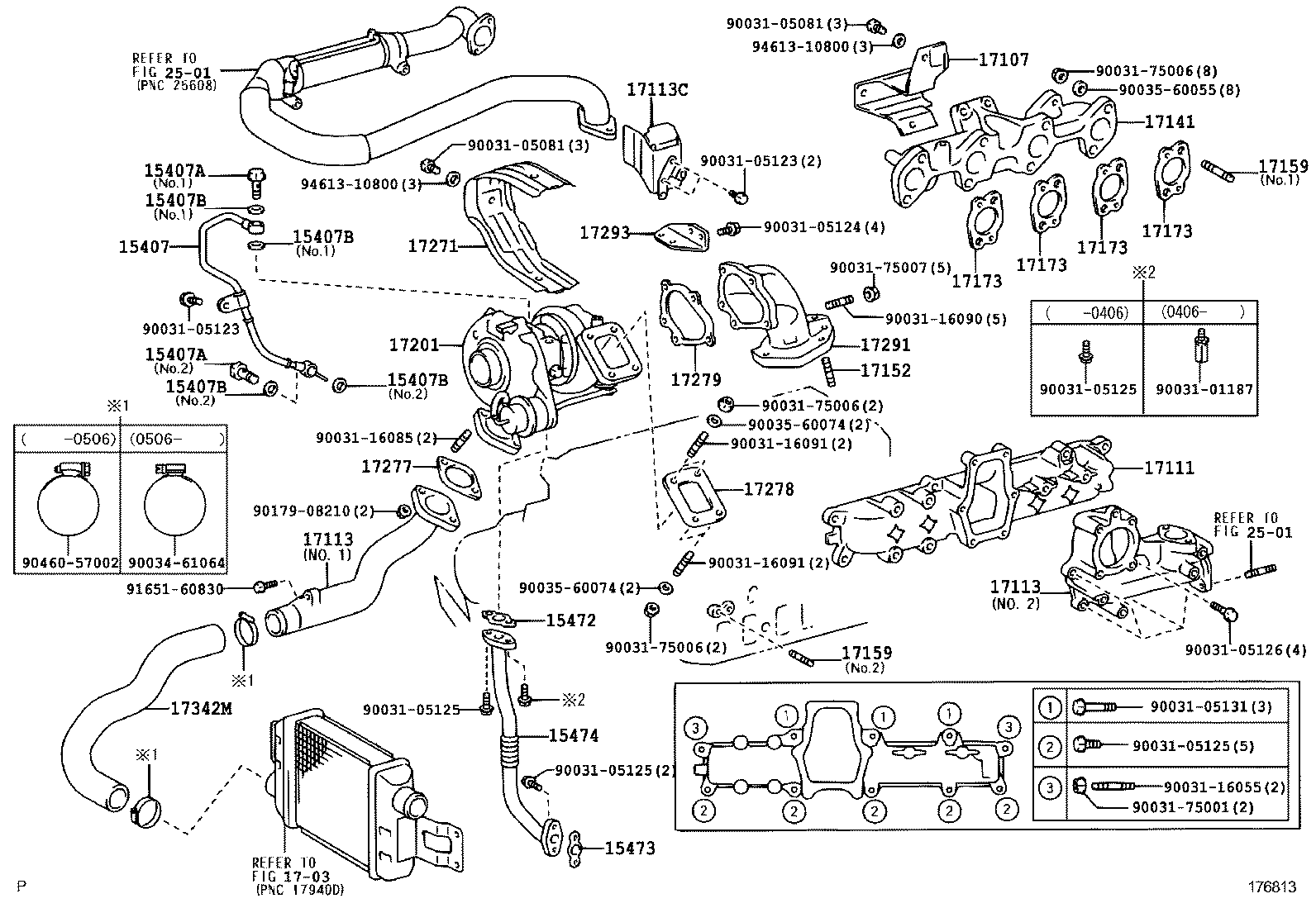

Manifold

42 part groups · 14 illustrations

PNC	Description
15407	Pipe Sub-assy, Turbo Oil Inlet
15407A	Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B	Gasket(FOR TURBO OIL INLET PIPE)
15472	Gasket, Turbo Oil Outlet, NO.1
15473	Gasket, Turbo Oil Outlet, NO.2
15474	Pipe, Turbo Oil Outlet
17107	Insulator Sub-assy, Exhaust Manifold Heat
17111	Manifold, Intake
17111A	Plug, NO.1
17111B	Plug, NO.2
17111S	Gasket(FOR MANIFOLD PLUG)
17111Z	Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17113	Pipe, Intake
17113C	Insulator, Intake Pipe
17118	Stay, Manifold
17125	Stay, Surge Tank, NO.1
17129A	Union, NO.1
17139	Stay, Manifold, NO.2
17141	Manifold, Exhaust
17141F	Gasket(FOR EXHAUST MANIFOLD PLATE)
17141K	Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17148	Plate, Exhaust Manifold(FOR EGR INLET)
17152	Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159	Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167	Insulator, Exhaust Manifold Heat, NO.1
17168	Insulator, Exhaust Manifold Heat, NO.2
17172	Gasket, Manifold TO Cylinder Head
17173	Gasket, Exhaust Manifold TO Head
17177	Gasket, Intake Manifold TO Head, NO.1
17201	Turbocharger Sub-assy
17271	Insulator, Turbo, NO.1
17277	Gasket, Compressor Outlet
17278	Gasket, Turbo TO Exhaust Manifold
17279	Gasket, Turbine Outlet Elbow
17291	Elbow, Turbine Outlet
17293	Stay, Turbocharger
17342M	Hose, Air, NO.2
17849A	Gasket, Intake Air Connector
17861F	Connector, Intake Air
25617C	Plate, Egr Hole Cover
25628B	Gasket, Egr Inlet
25861C	Bracket, Vacuum Switching Valve

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
