Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

57 part groups · 17 illustrations

Illustrations

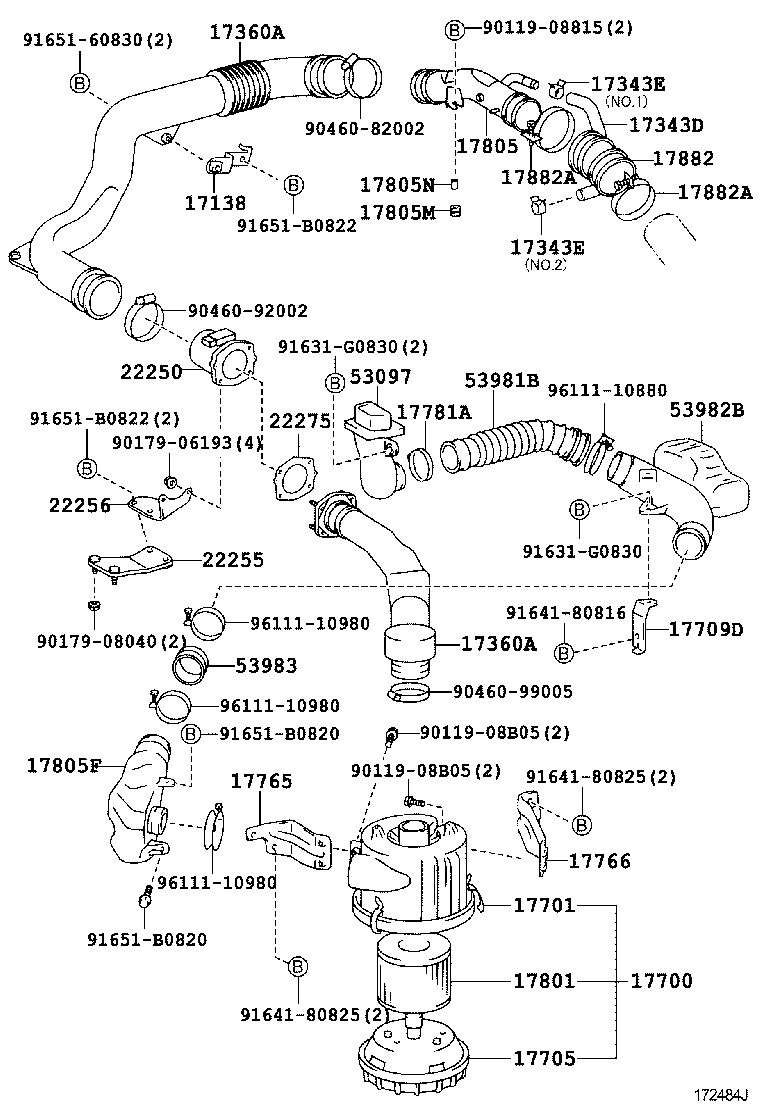

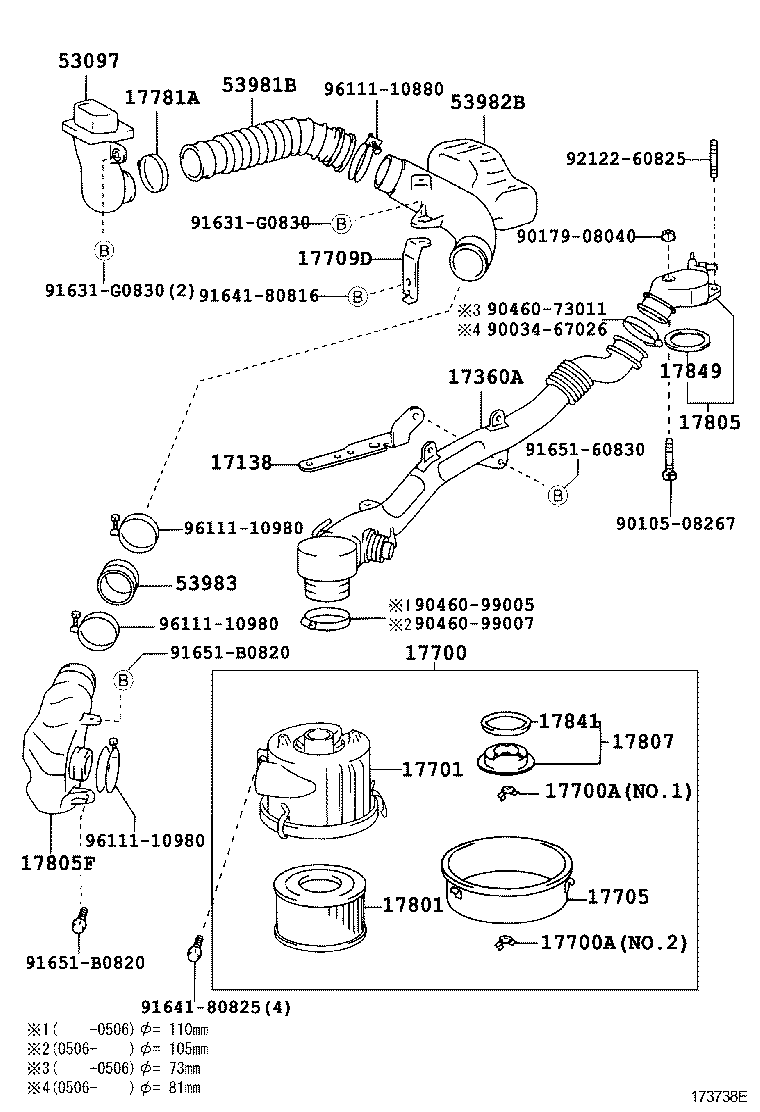

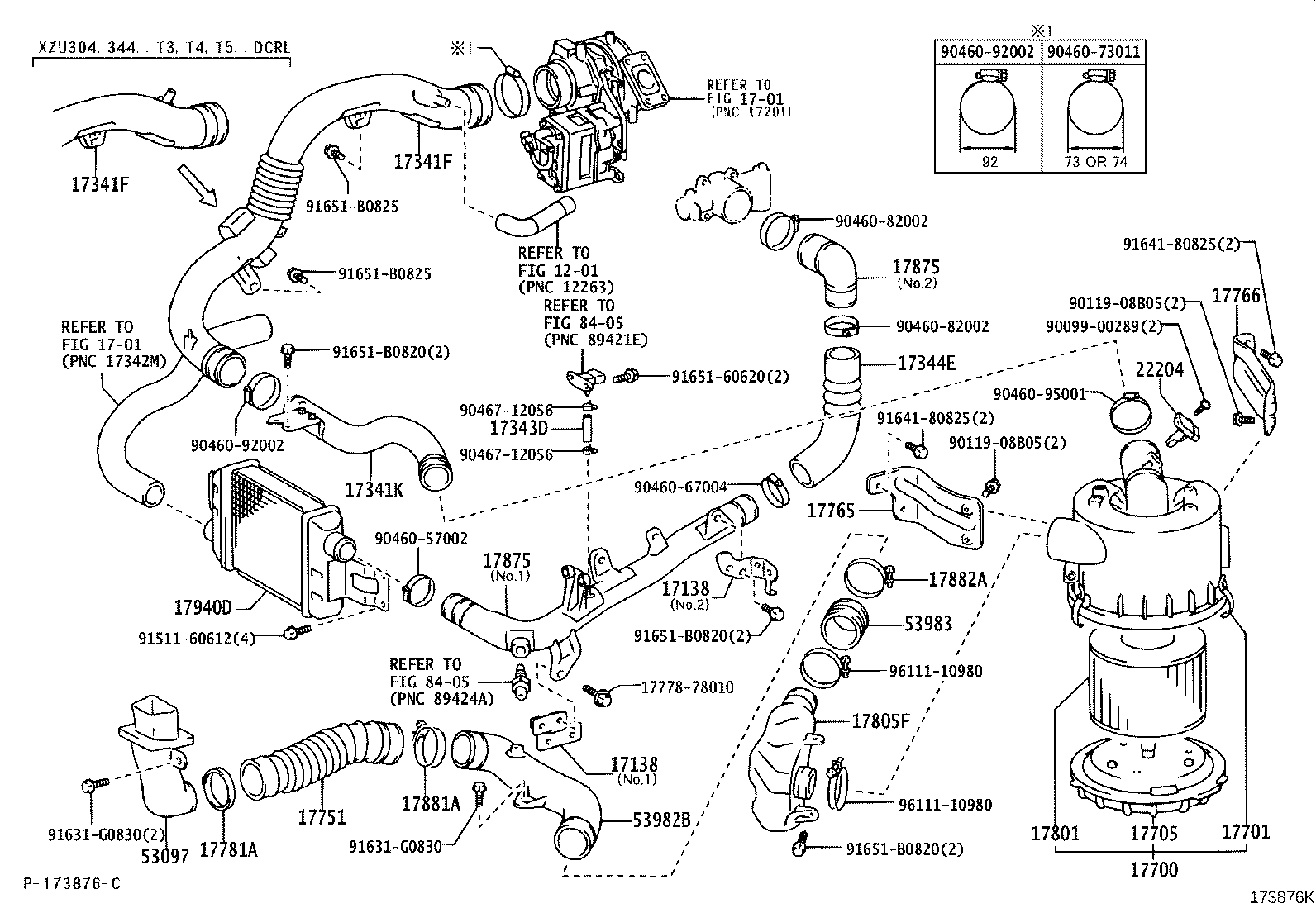

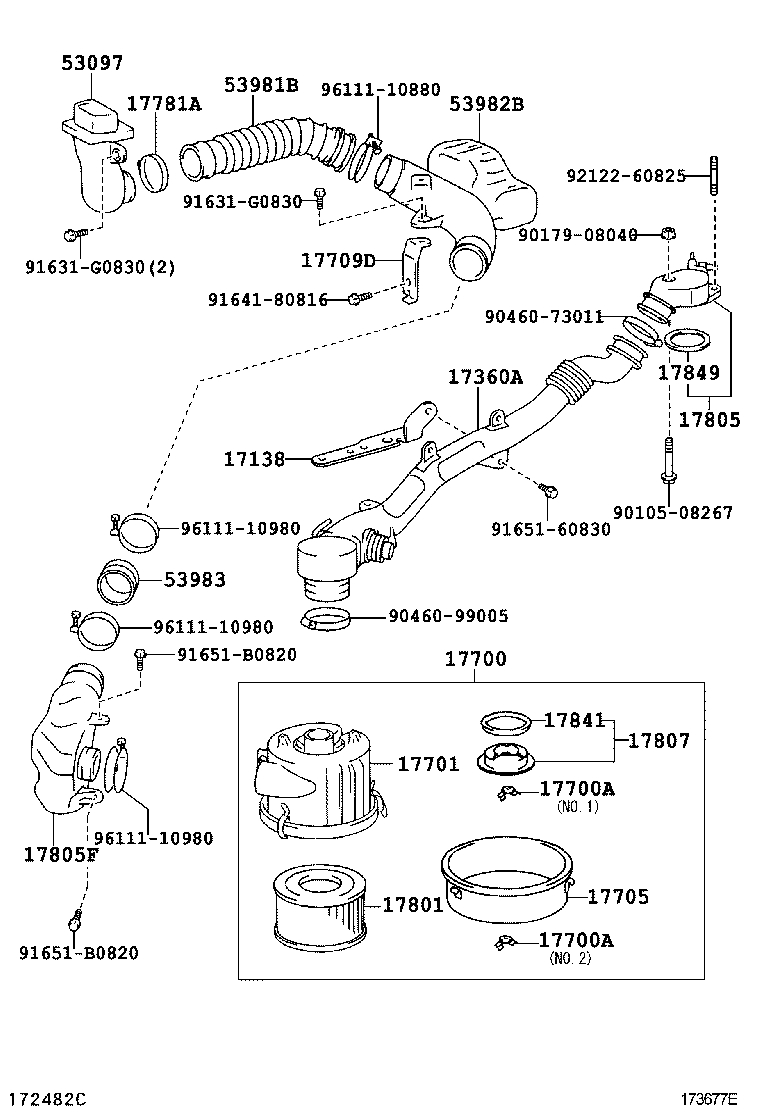

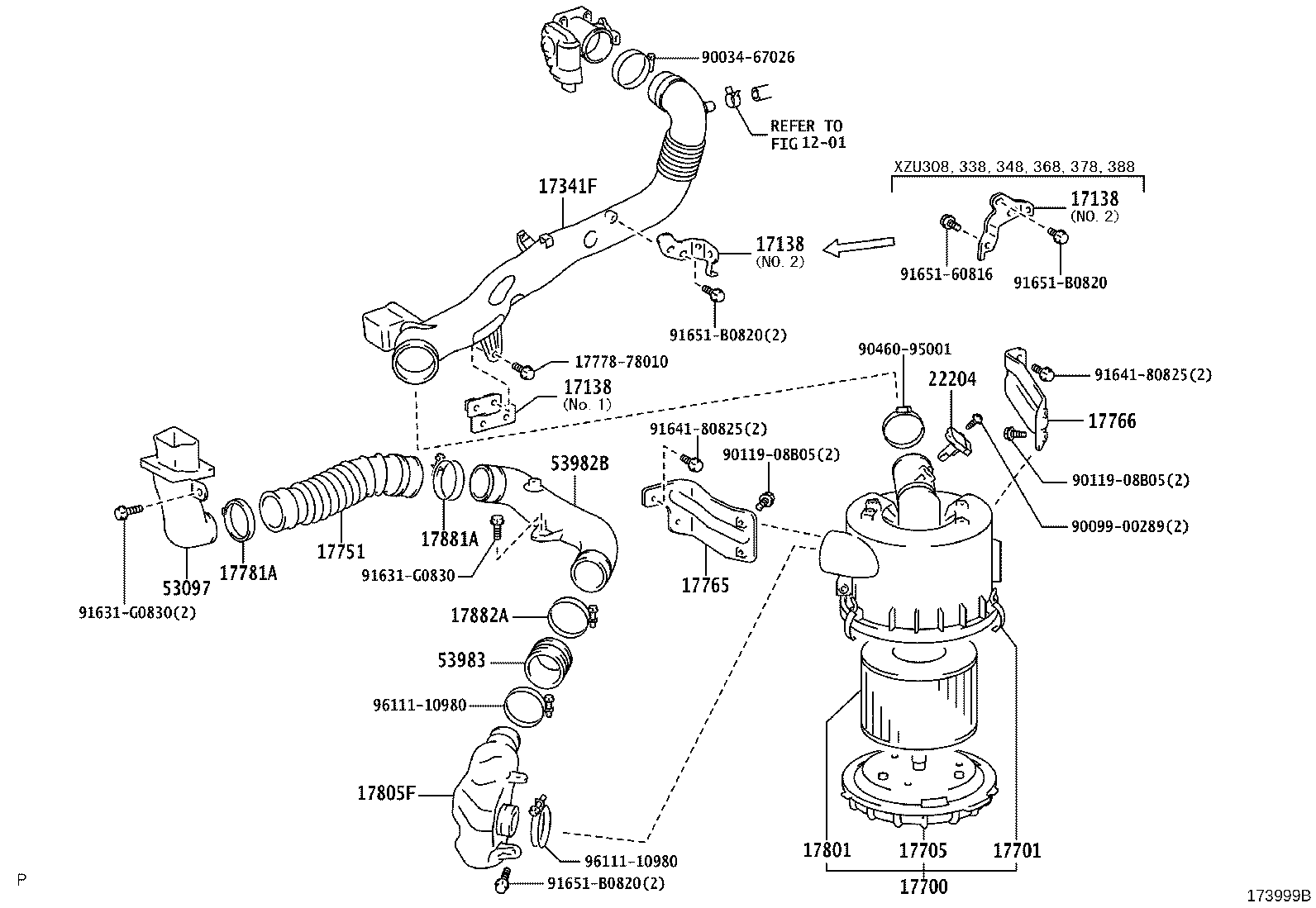

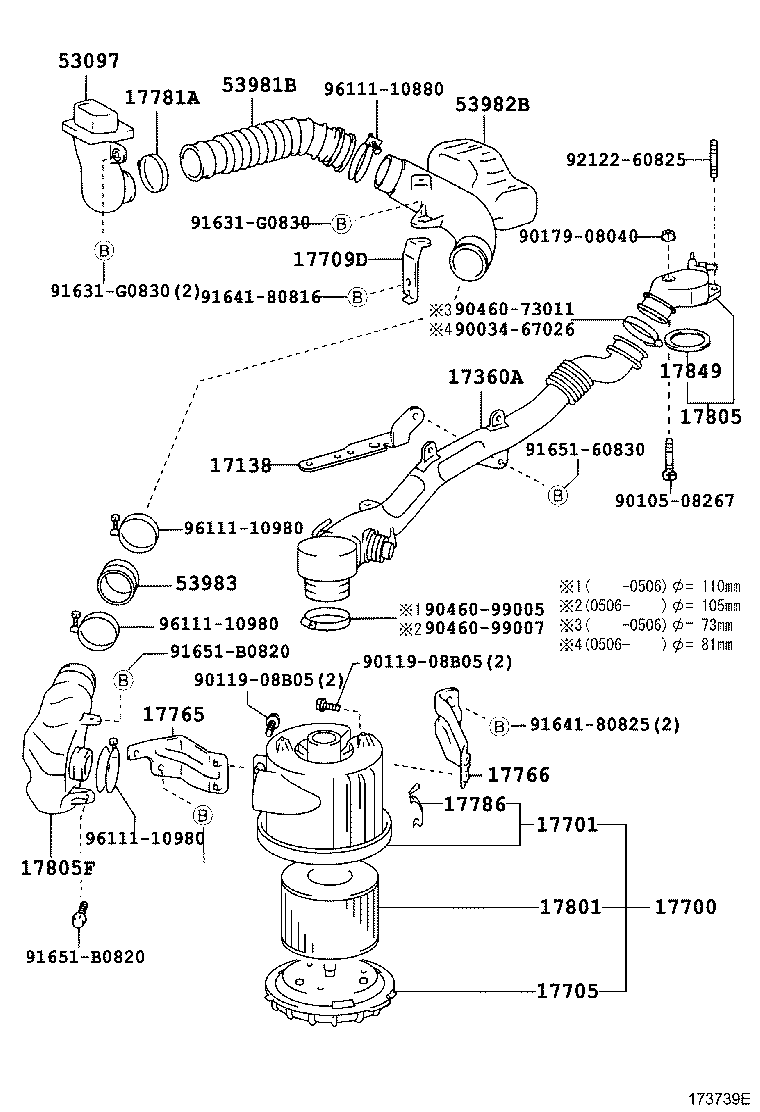

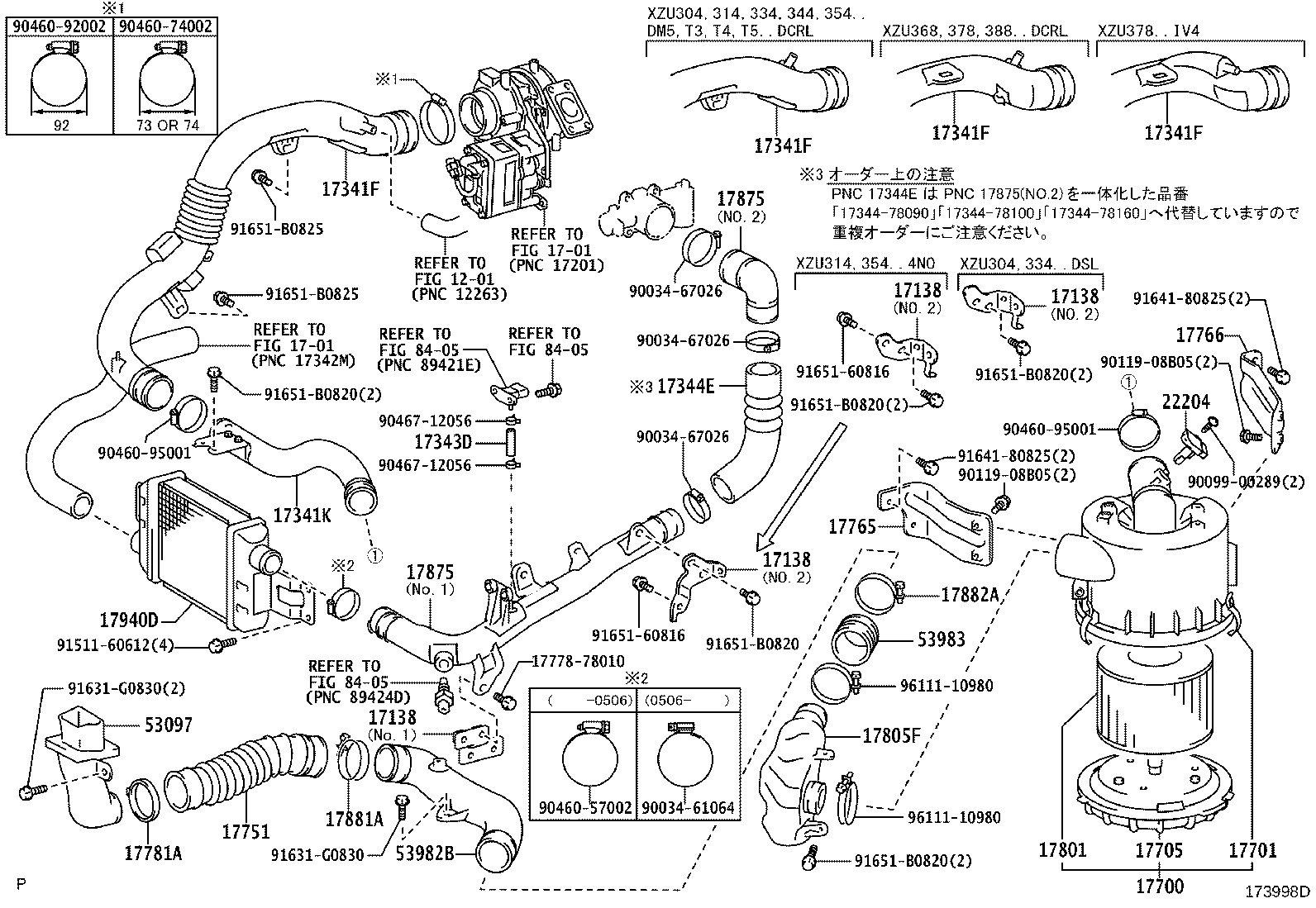

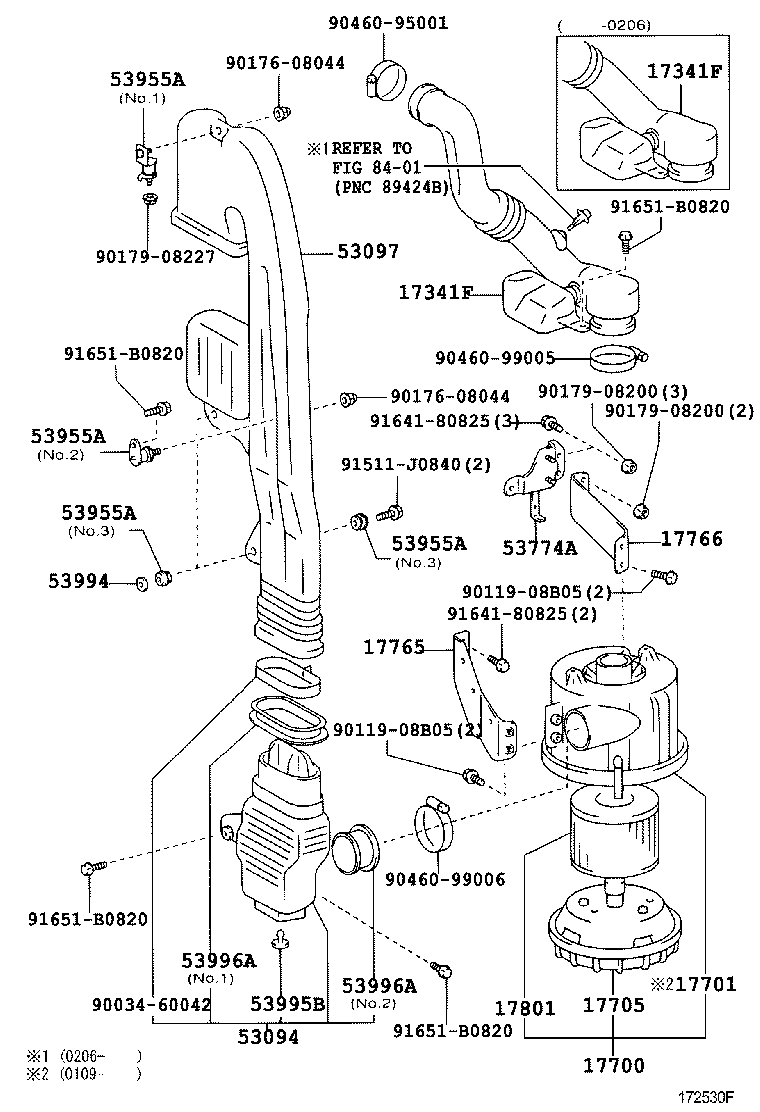

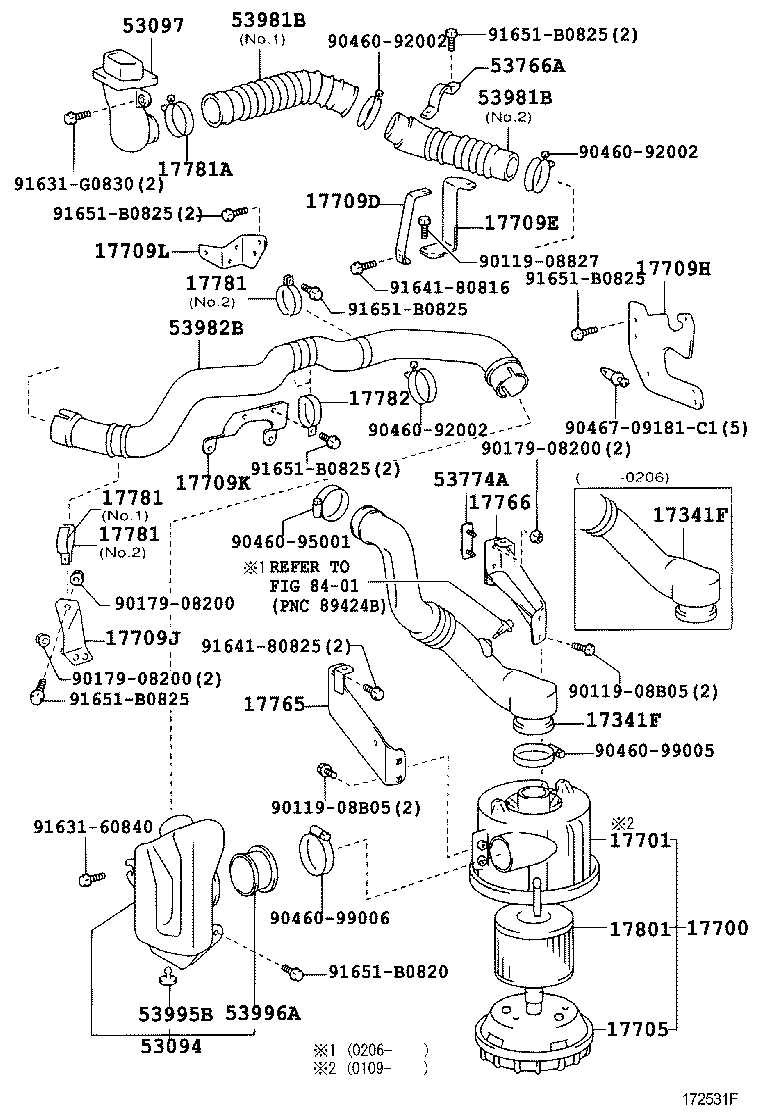

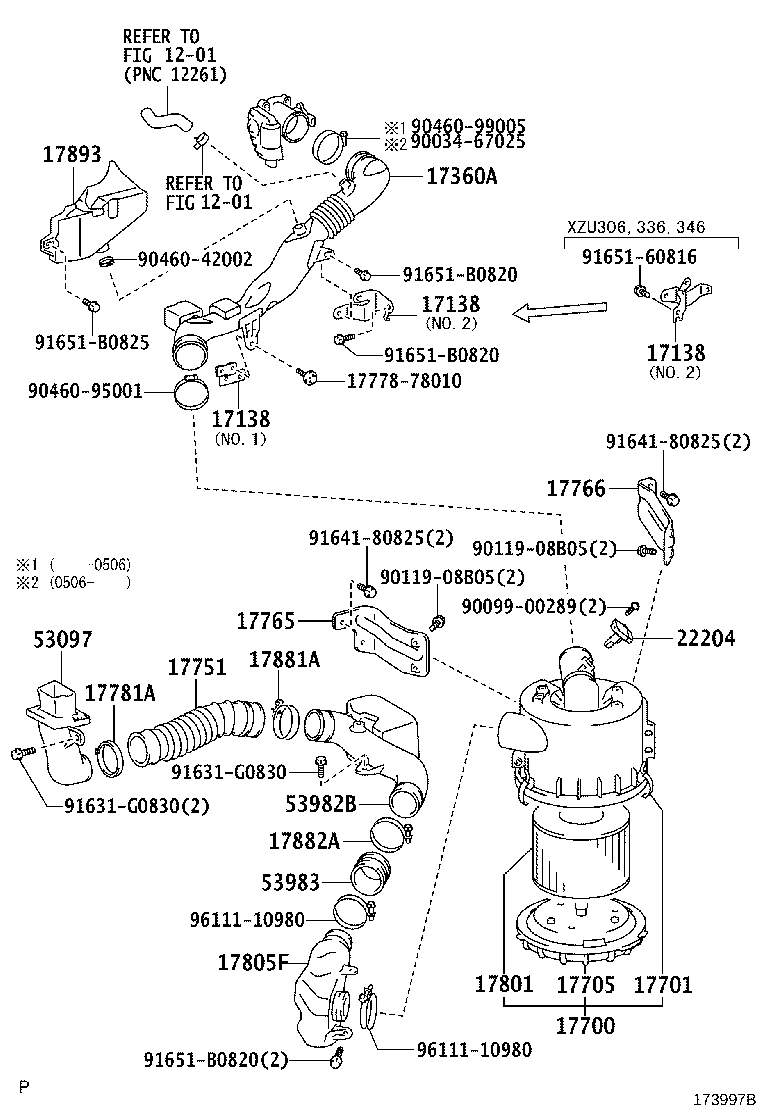

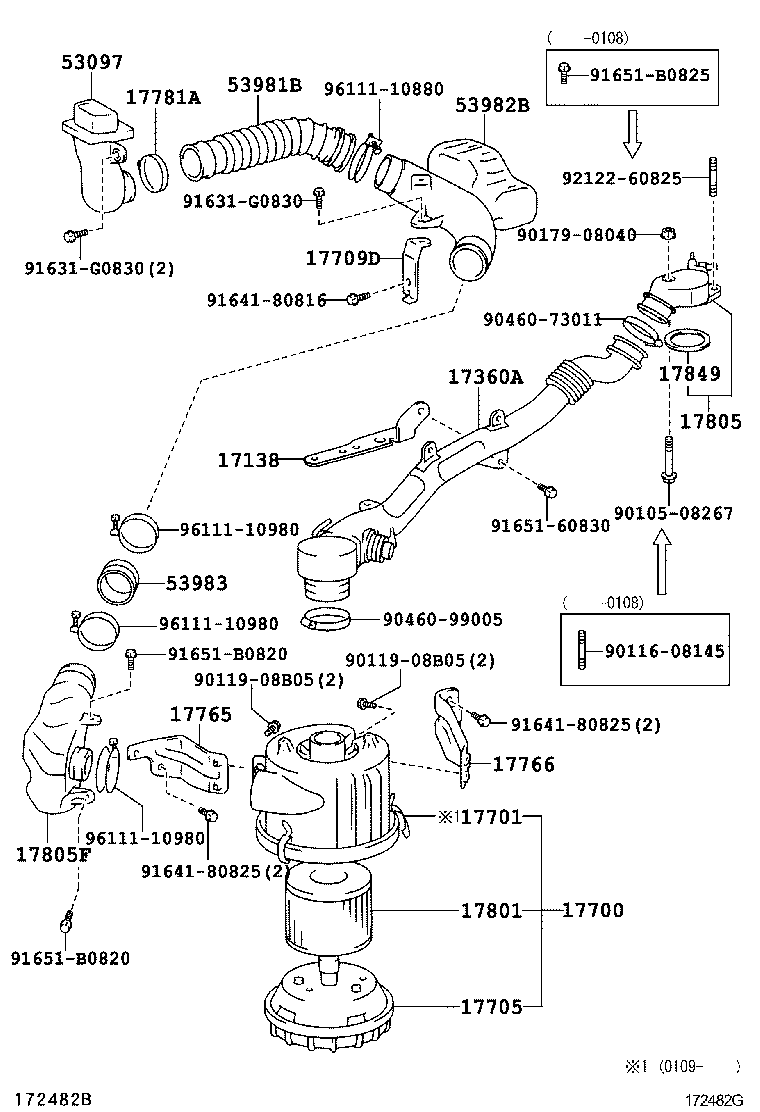

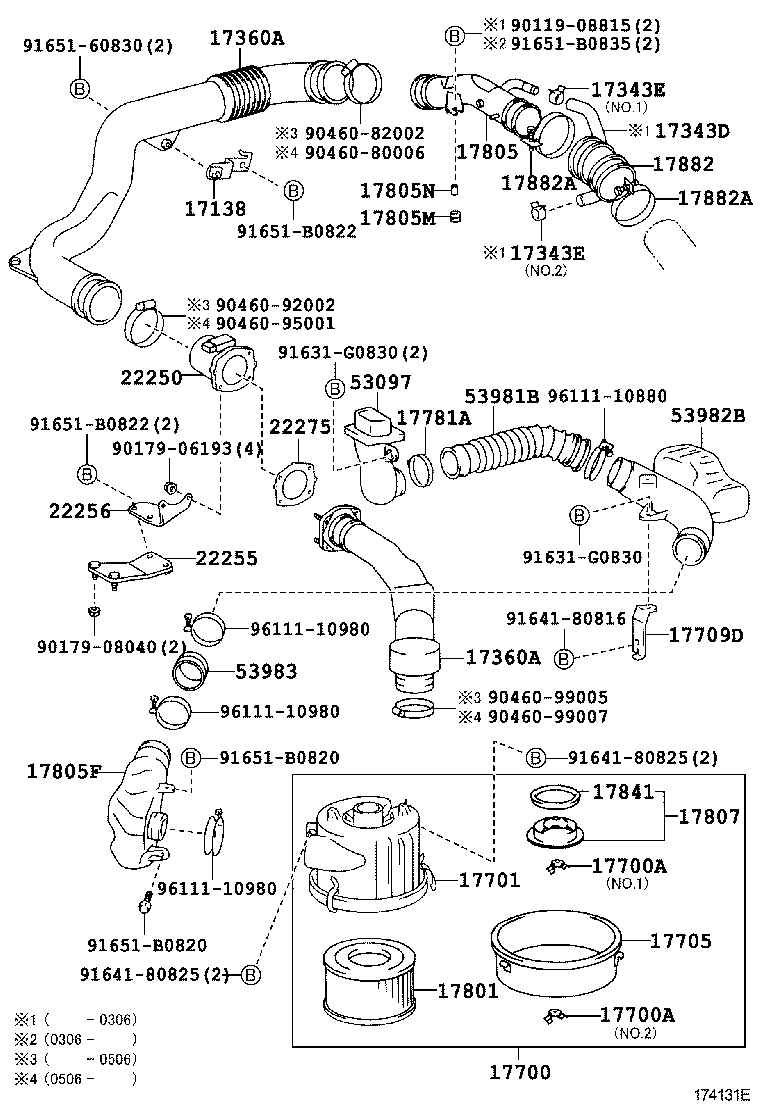

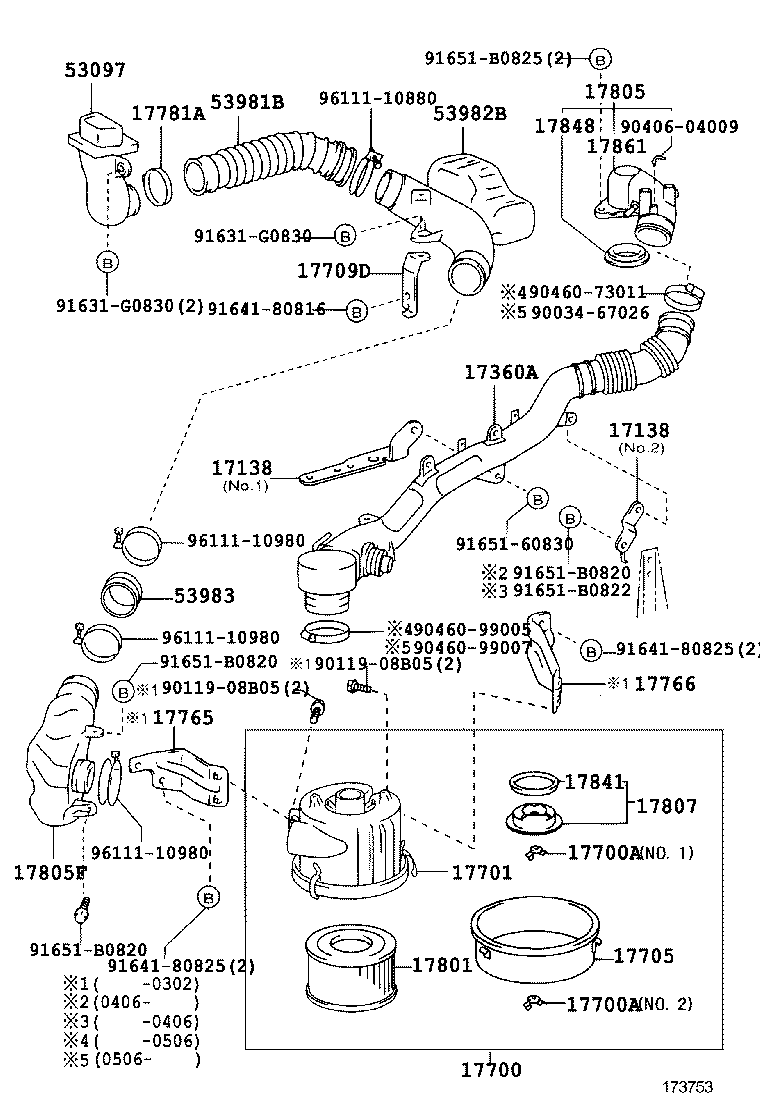

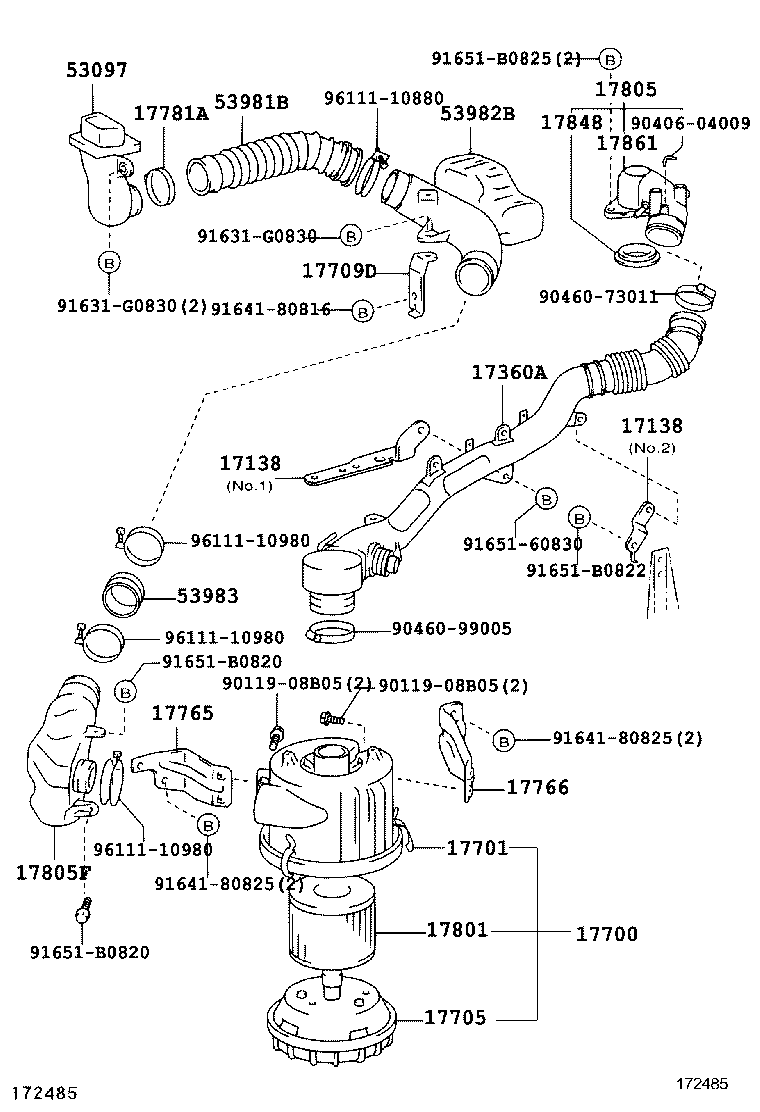

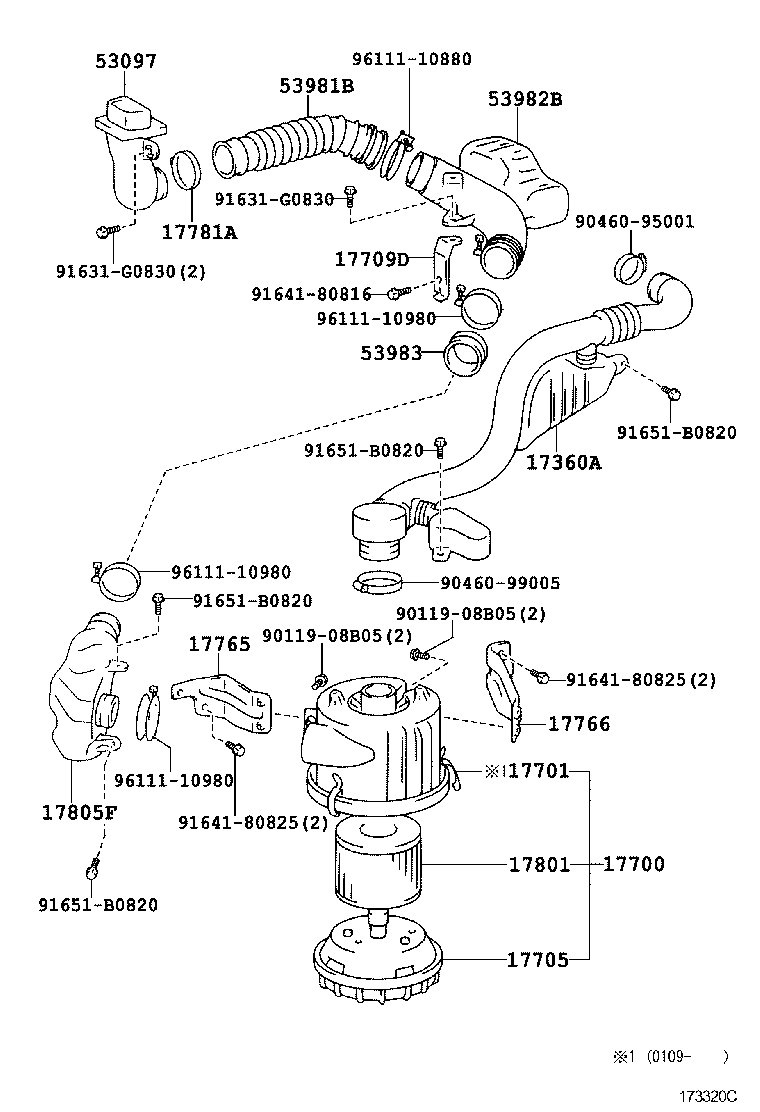

Figure 172028J 172028J 1999-05 → 2004-06 Figure 173738E 173738E 2003-06 → — Figure 173739E 173739E 2003-06 → — Figure 172484J 172484J 2000-05 → 2003-05 Figure 174131E 174131E 2003-05 → — Figure 172485F 172485F 2000-05 → 2002-12 Figure 173753H 173753H 2002-12 → — Figure 173320C 173320C 1999-05 → 2004-06 Figure 172530F 172530F 1999-07 → 2004-06 Figure 172531F 172531F 1999-08 → 2004-06 Figure 173997B 173997B 2004-06 → — Figure 172482G 172482G 2000-05 → 2003-02 Figure 172482G 172482G 2003-02 → — Figure 173677E 173677E 2003-02 → — Figure 173876K 173876K 2003-10 → 2004-06 Figure 173998D 173998D 2004-06 → — Figure 173999B 173999B 2004-06 → —

Part groups

PNCDescription
17138 Stay, Intake Pipe OR Hose
17341F Hose, Air, NO.1
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17344E Hose, Air, NO.4
17360A Tube Assy, Air
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17709D Bracket, Air Cleaner Inlet, NO.1
17709E Bracket, Air Cleaner Inlet, NO.2
17709H Pad, Air Cleaner Inlet, NO.1
17709J Bracket, Air Cleaner Inlet, NO.3
17709K Bracket, Air Cleaner Inlet, NO.4
17709L Bracket, Air Cleaner Inlet, NO.5
17751 Inlet, Air Cleaner, NO.1
17765 Stay, Air Cleaner, NO.1
17766 Stay, Air Cleaner, NO.2
17781 Seal, Air Cleaner Inlet
17781A Clamp, Hose
17782 Clamp, Air Cleaner Duct, NO.2
17786 Clamp, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17802A Bracket Sub-assy, Resonator
17805 Connector Sub-assy, Intake Air
17805F Resonator Sub-assy, Intake Air
17805M Cushion(FOR AIR CONNECTOR)
17805N Bush(FOR AIR CONNECTOR)
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17848 Gasket, Air Cleaner TO Carburetor
17849 Gasket, Intake Air Connector
17861 Connector, Intake Air
17875 Pipe, Intake Air Connector
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
22250 Meter Assy, Intake Air Flow
22255 Bracket, Air Flow Meter
22256 Bracket, Air Flow Meter, NO.2
22275 Gasket, Air Flow Meter
53094 Inlet, Air Cleaner Pipe, NO.3
53097 Inlet Sub-assy
53766A Bracket, Air Cleaner Inlet Pipe
53774A Bracket, Air Cleaner Mounting, NO.2
53955A Cushion, Air Cleaner Inlet NO.1
53981B Inlet, Air Cleaner Pipe, NO.1
53982B Inlet, Air Cleaner Pipe, NO.2
53983 Inlet, Air Cleaner Pipe, NO.3
53994 Retainer, Air Cleaner Inlet Pipe
53995B Plug, Air Cleaner Inlet
53996A Packing, Air Cleaner Inlet Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
