Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

30 part groups · 12 illustrations

Illustrations

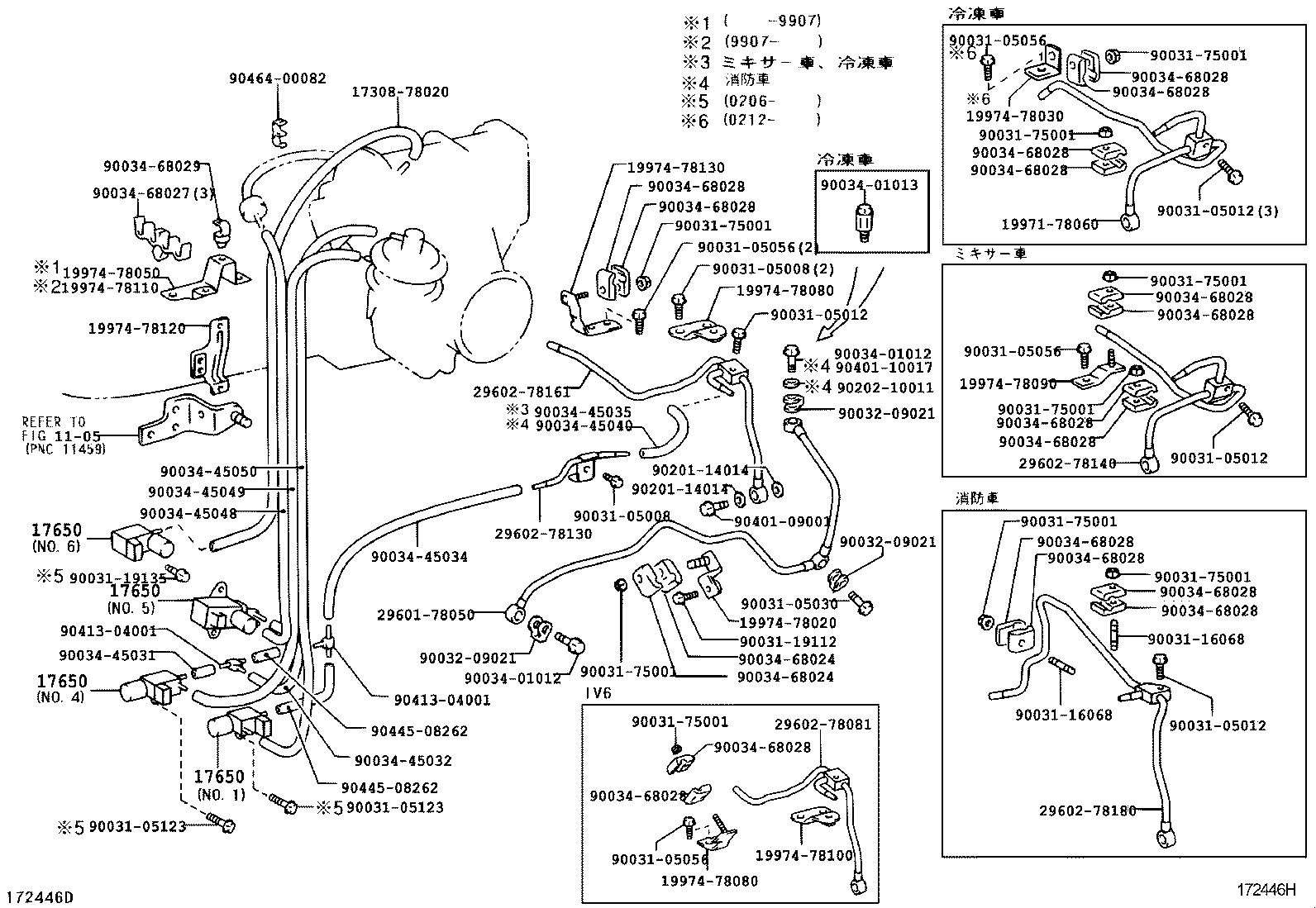

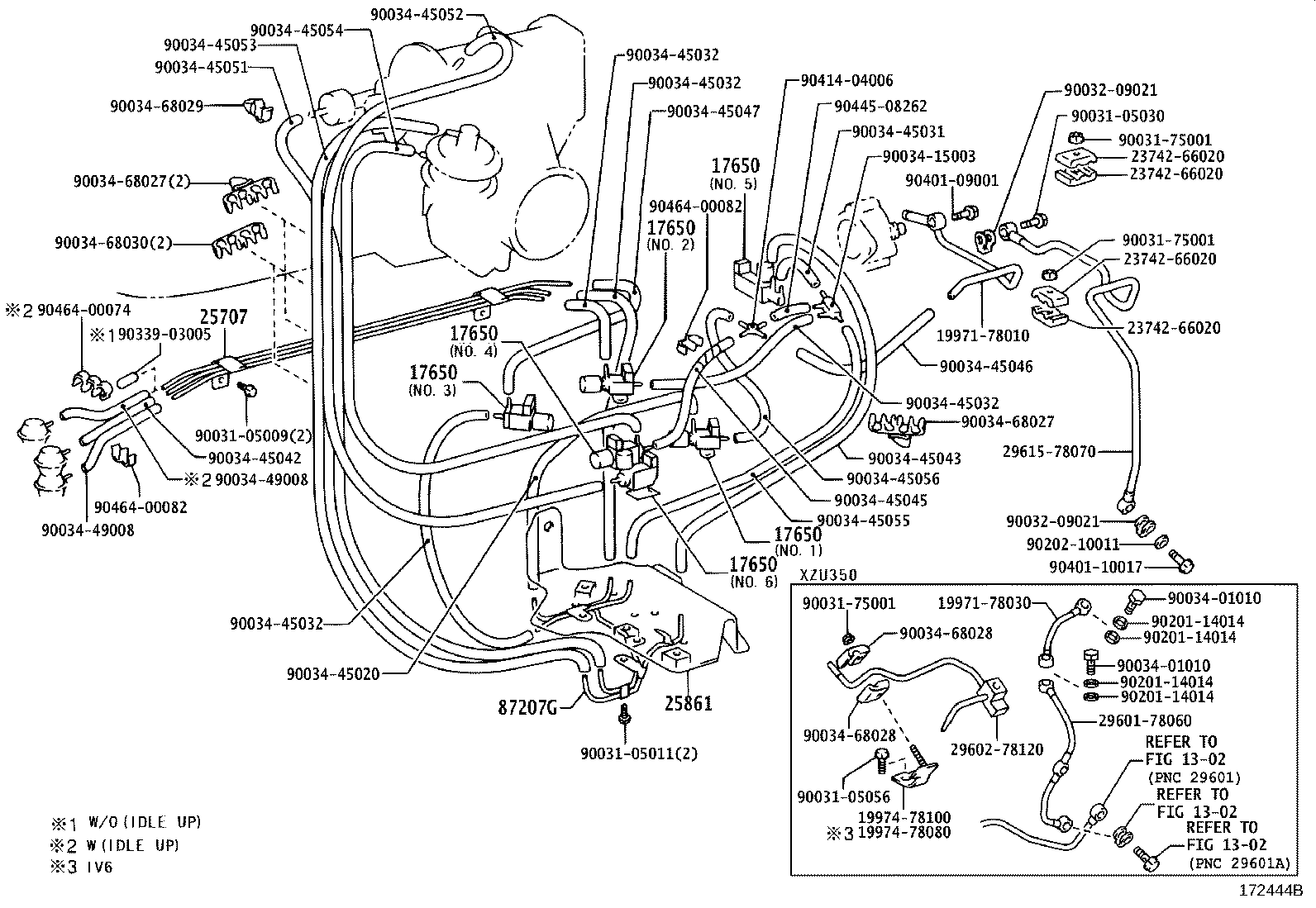

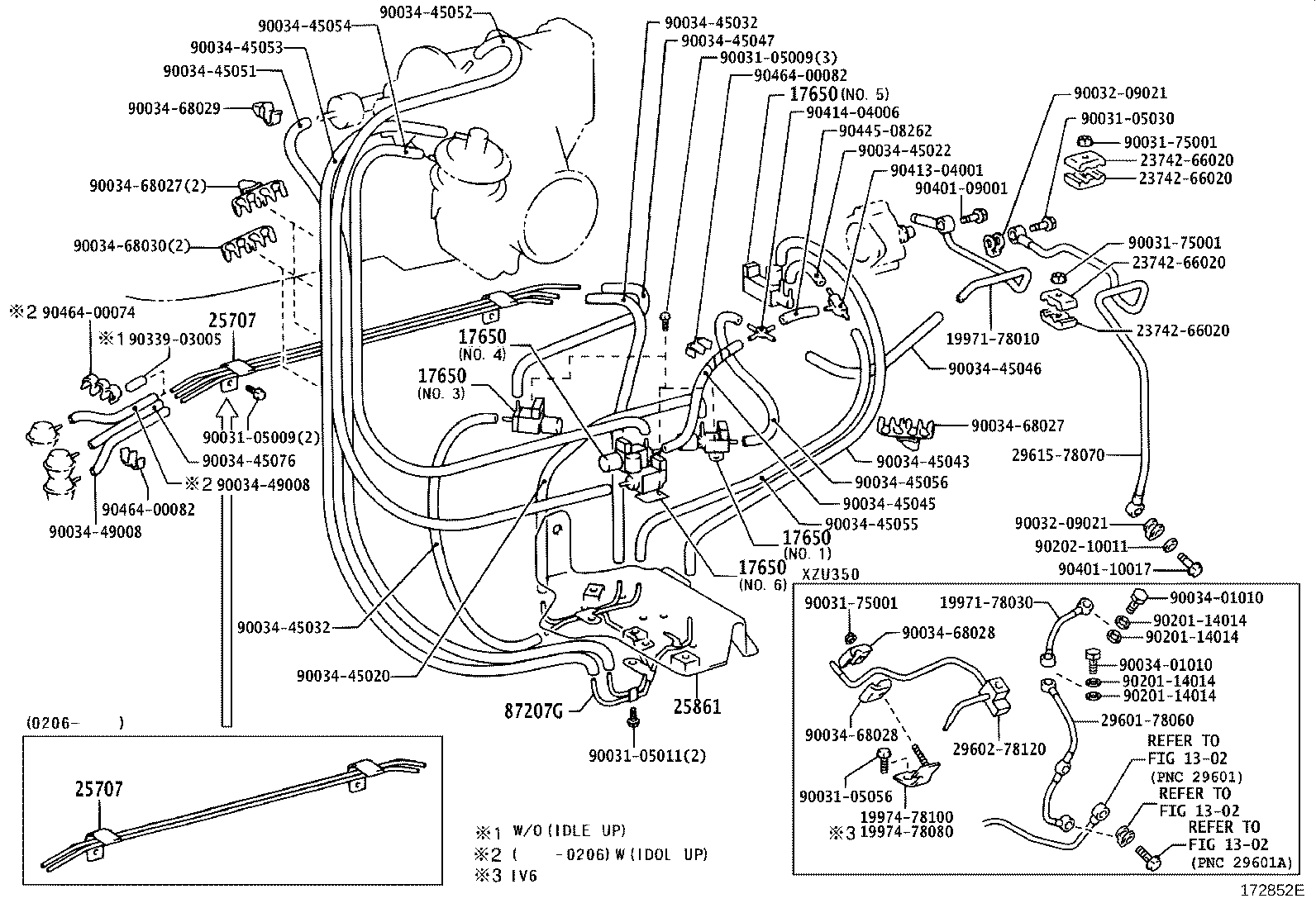

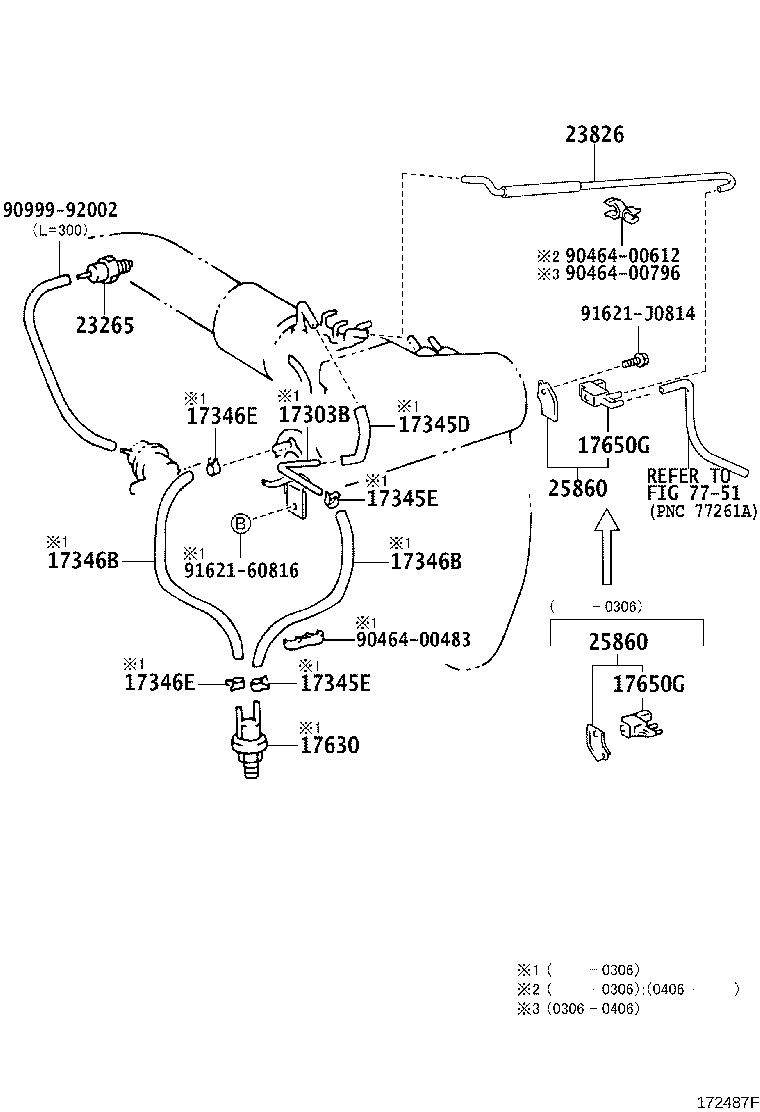

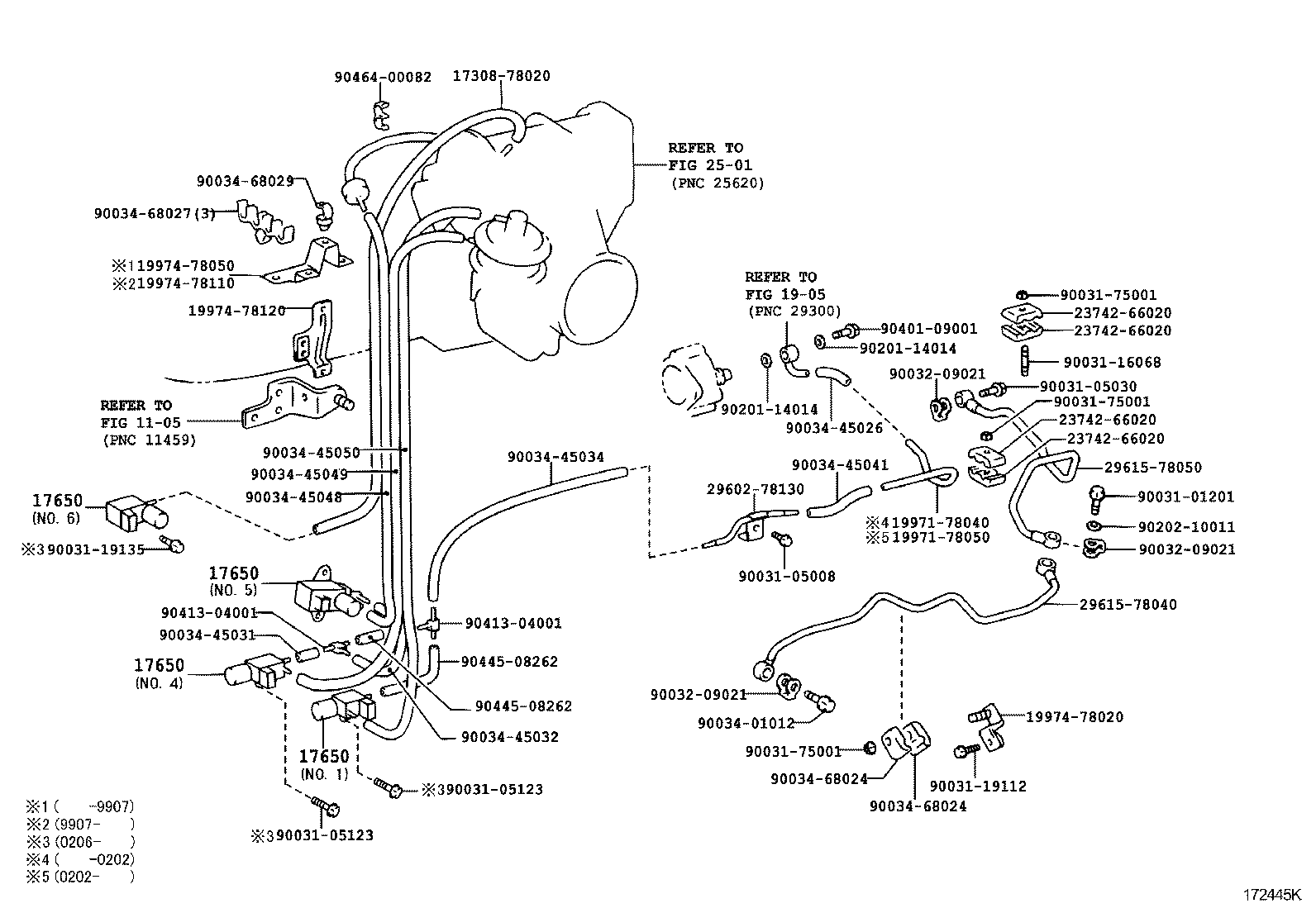

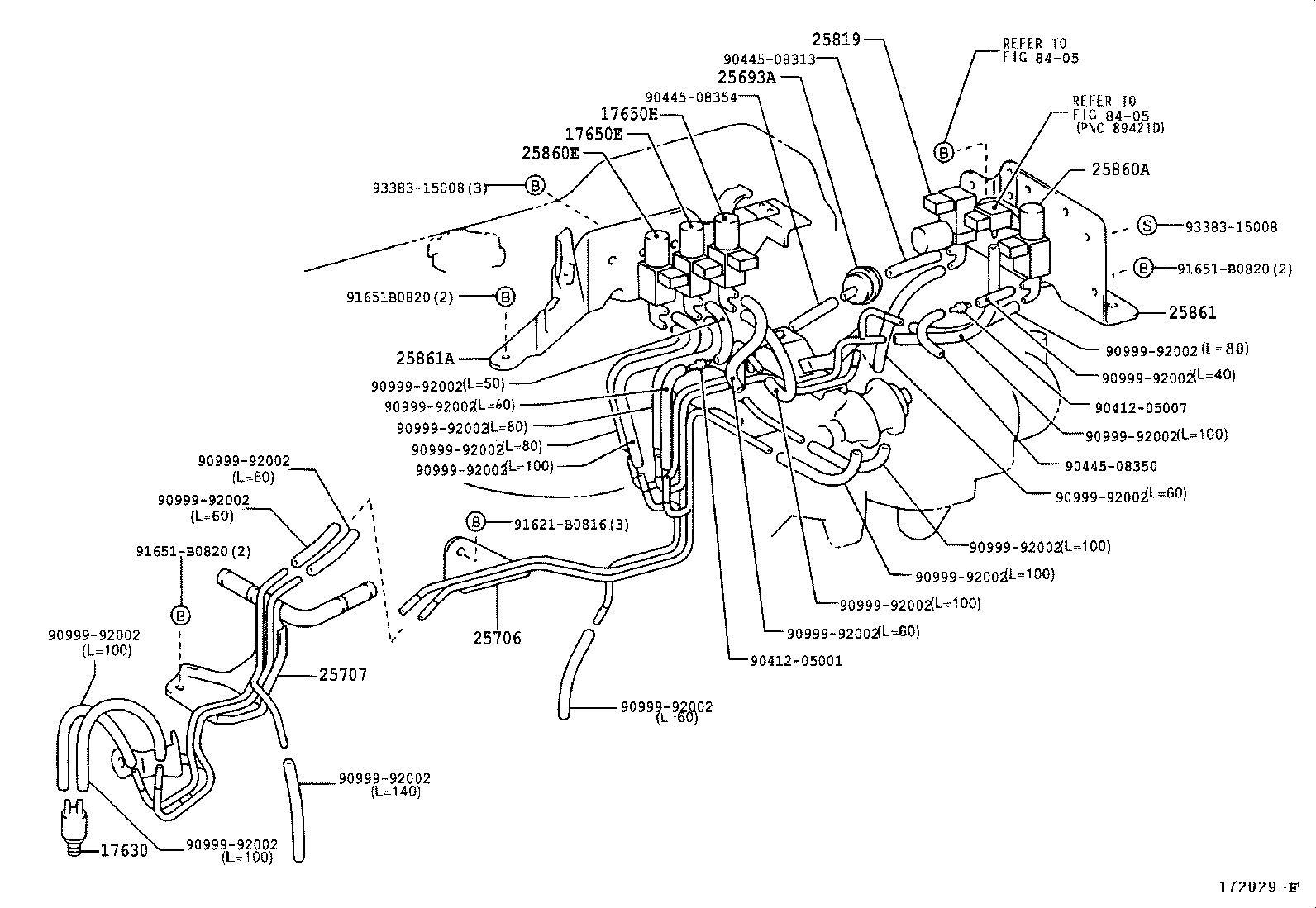

Figure 170020 170020 1999-05 → — Figure 172029F 172029F 1999-05 → — Figure 172483B 172483B 2003-06 → — Figure 172487F 172487F 2000-05 → — Figure 172473A 172473A 2000-05 → — Figure 172444B 172444B 1999-05 → 2000-06 Figure 172852E 172852E 2000-06 → — Figure 172445K 172445K 1999-05 → — Figure 172445K 172445K 1999-05 → — Figure 172445K 172445K 1999-05 → — Figure 172446H 172446H 1999-05 → — Figure 172483B 172483B 2000-05 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17345D Hose, Air, NO.5
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17346B Hose, Air, NO.6
17346E Clip(FOR AIR HOSE NO.6)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17650G Valve, Duty Vacuum Switching
17650H Valve, Vacuum Switching
17810A Filter Assy, Air
22233 Hose, Lpg Auxiliary Air Valve, NO.1
22233A Clip(FOR LPG AUXILIARY AIR VALVE NO.1)
22234 Hose, Lpg Auxiliary Air Valve, NO.2
22234A Clip(FOR LPG AUXILIARY AIR VALVE NO.2)
22270K Valve Assy, Lpg Idle Speed Control
22278A Gasket, Lpg Idle Speed Control Valve
23265 Filter, Gas, NO.1
23288 Jet, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
25693A Damper, Egr Vacuum Modulator
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25819 Valve Assy, Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860E Valve, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
25861A Bracket, Vacuum Switching Valve, NO.2
87207G Pipe Sub-assy, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
