Toyota Dyna/Toyoace
1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan
Discontinued model
Data version 2007-10

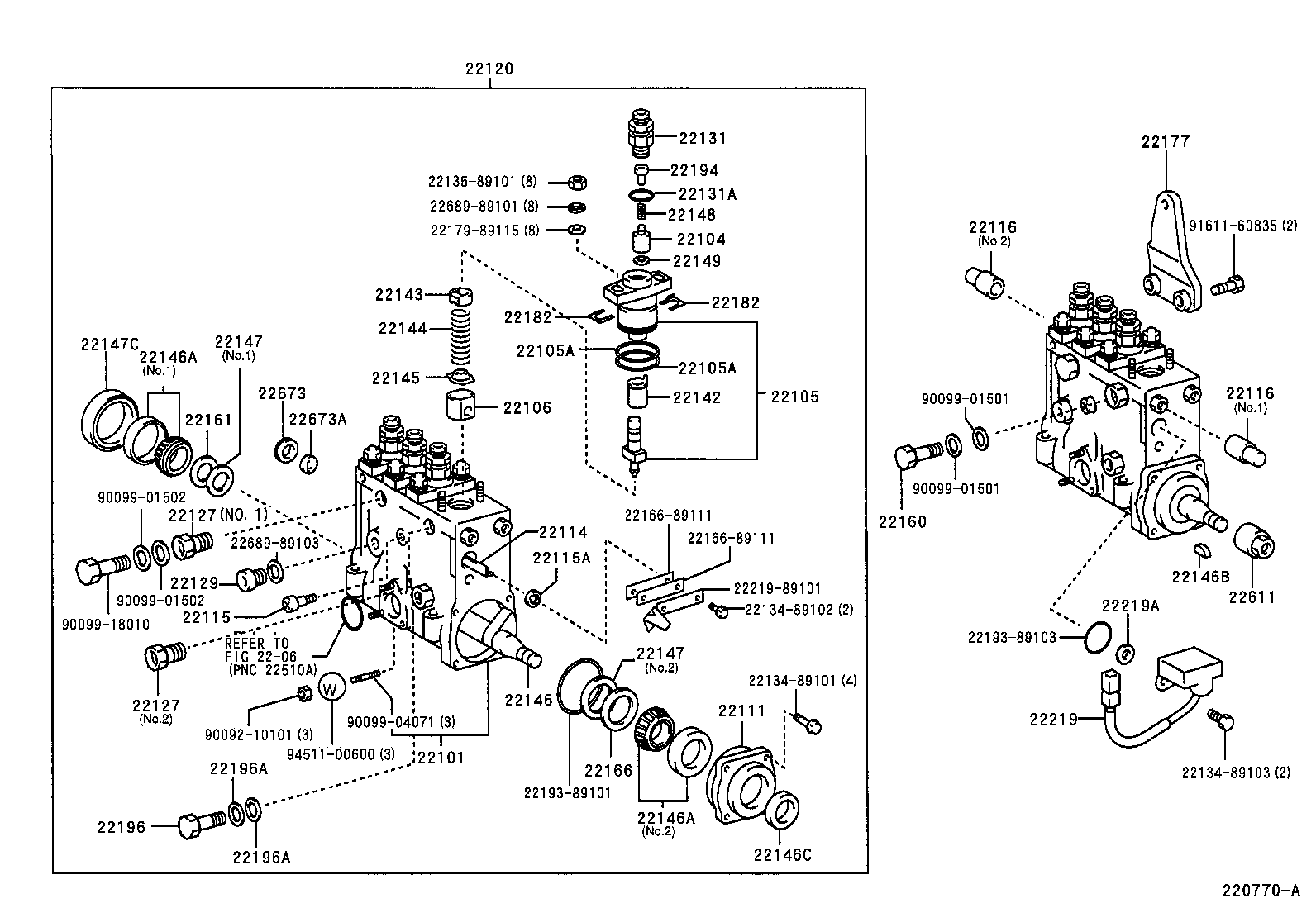

Injection Pump Body
41 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 22101 | Housing Sub-assy, Injection Pump |
| 22104 | Valve Sub-assy, Injection Pump Delivery |
| 22105 | Element Sub-assy, Injection Pump |
| 22105A | Ring, O(FOR PUMP ELEMENT) |
| 22106 | Tappet Sub-assy, Injection Pump |
| 22111 | Cover, Injection Pump Camshaft Bearing |
| 22114 | Rack, Control |
| 22115 | Screw, Rack Guide |
| 22115A | Bush, Screw |
| 22116 | Cover, Control Rack |
| 22120 | Body Assy,Injection |
| 22127 | Union, Injection Pump Fuel Inlet |
| 22129 | Plug, Screw |
| 22131 | Holder, Delivery Valve |
| 22131A | Ring, O(FOR DELIVERY VALVE HOLDER) |
| 22142 | Sleeve, Plunger Control |
| 22143 | Seat, Spring Upper |
| 22144 | Spring, Pump Plunger |
| 22145 | Seat, Spring, Lower |
| 22146 | Camshaft, Injection Pump |
| 22146A | Bearing(FOR INJECTION CAMSHAFT) |
| 22146B | Key(FOR INJECTION PUMP CAMSHAFT) |
| 22146C | Seal, Oil, Injection Pump Camshaft |
| 22147 | Ring, Camshaft Adjust |
| 22147C | Retainer, Bearing |
| 22148 | Spring, Delivery Valve |
| 22149 | Gasket, Delivery Valve |
| 22160 | Screw Sub-assy, Overflow |
| 22161 | Plate, Camshaft Shim |
| 22166 | Plate, Camshaft Shim |
| 22177 | Stay, Injection Pump Body |
| 22182 | Plate, Tappet Adjusting Shim |
| 22194 | Stopper, Delivery Valve |
| 22196 | Screw, Fuel Inlet Follow |
| 22196A | Washer(FOR INLET FOLLOW SCREW) |
| 22219 | Positioner, Injection Pump |
| 22219A | Ring, O(FOR INJECTION PUMP POSITIONER) |
| 22611 | Nut, Timer Round |
| 22673 | Bush, Driveshaft |
| 22673A | Bushing, Control Rack |
| 23010 | Valve Assy, Timing Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
