Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

15 part groups · 10 illustrations

Illustrations

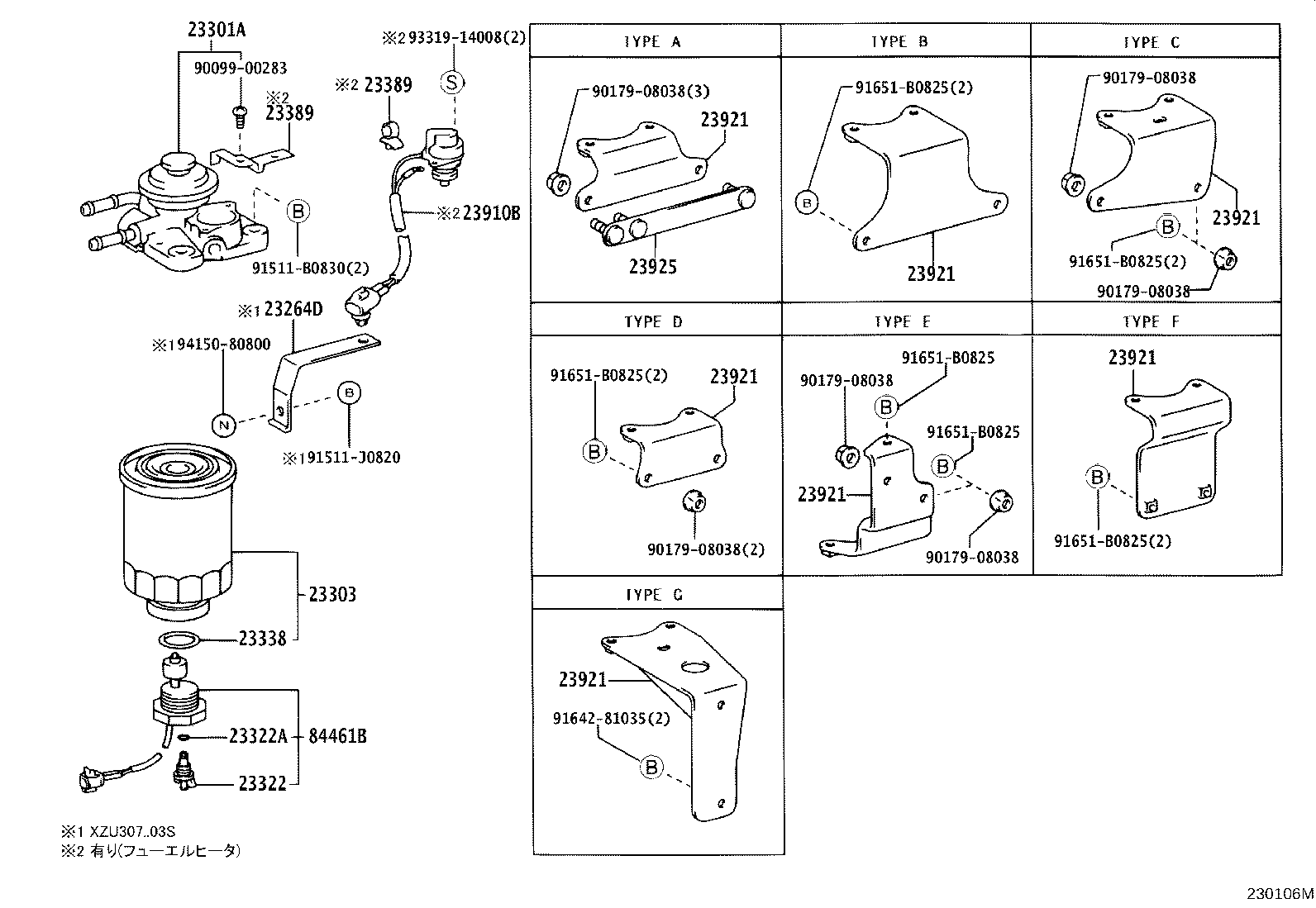

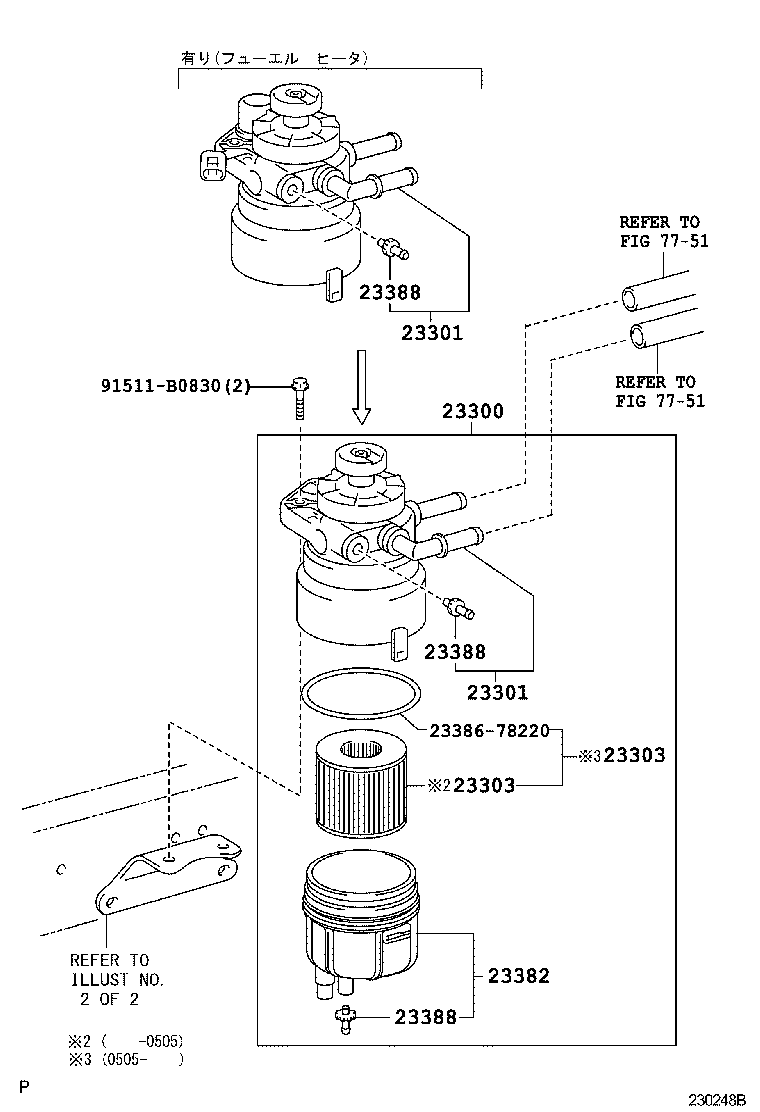

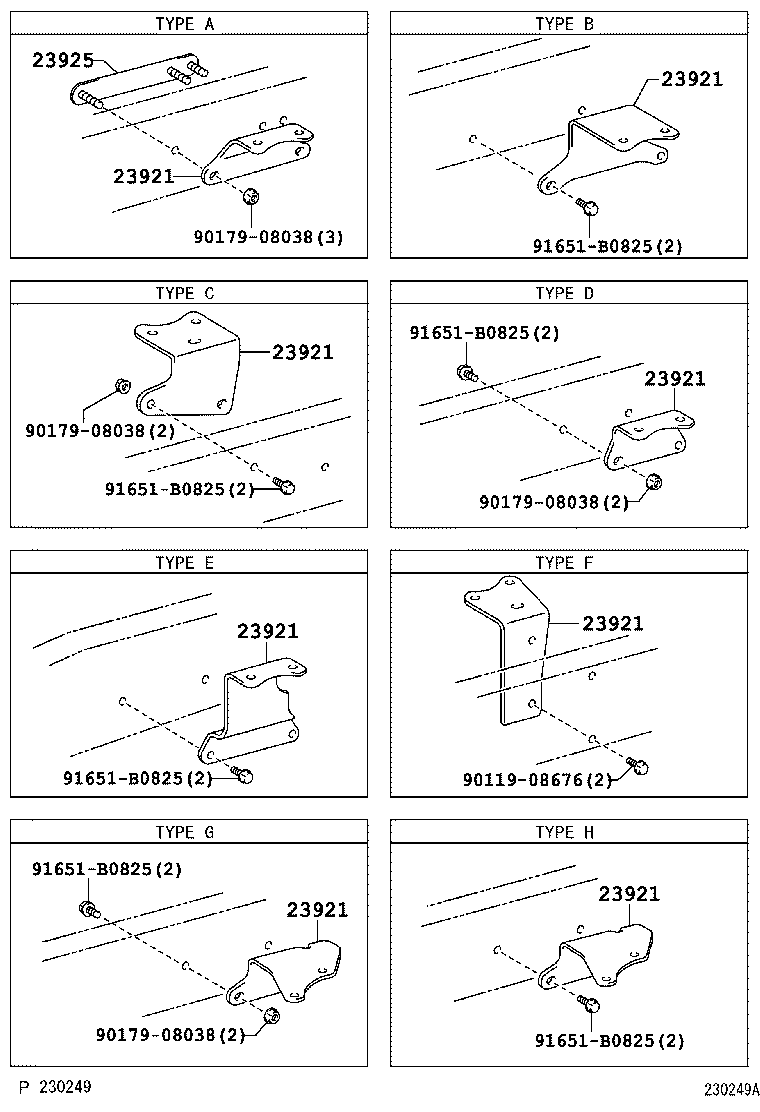

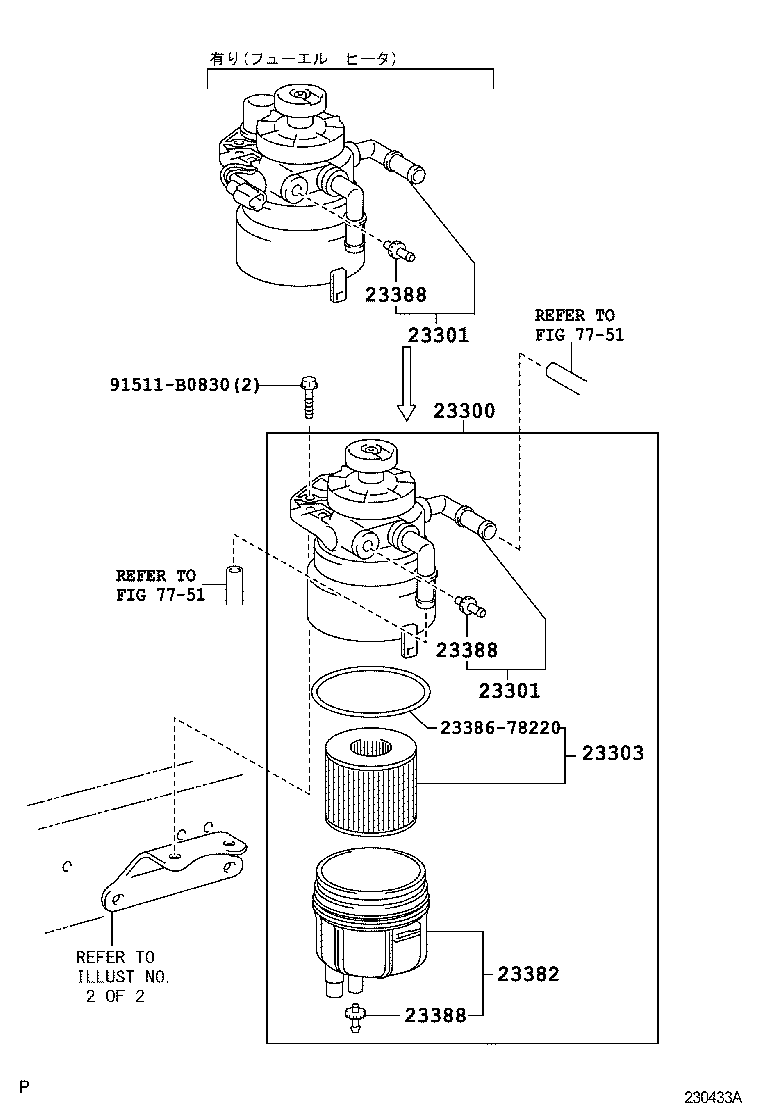

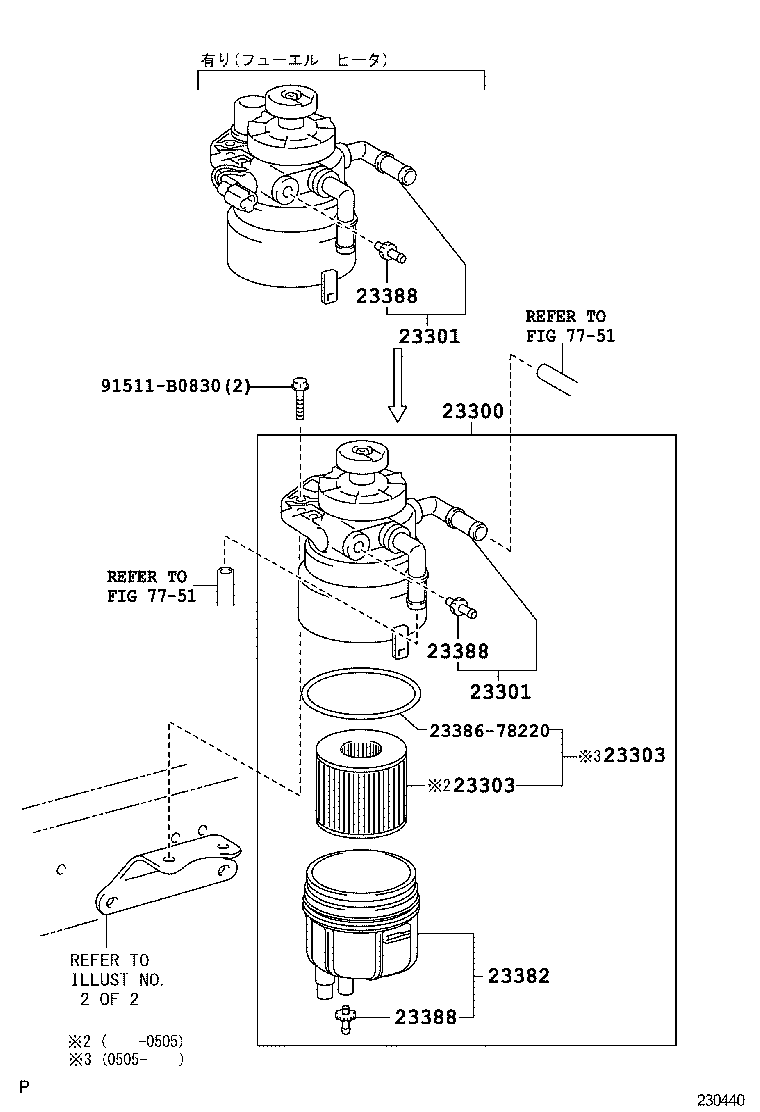

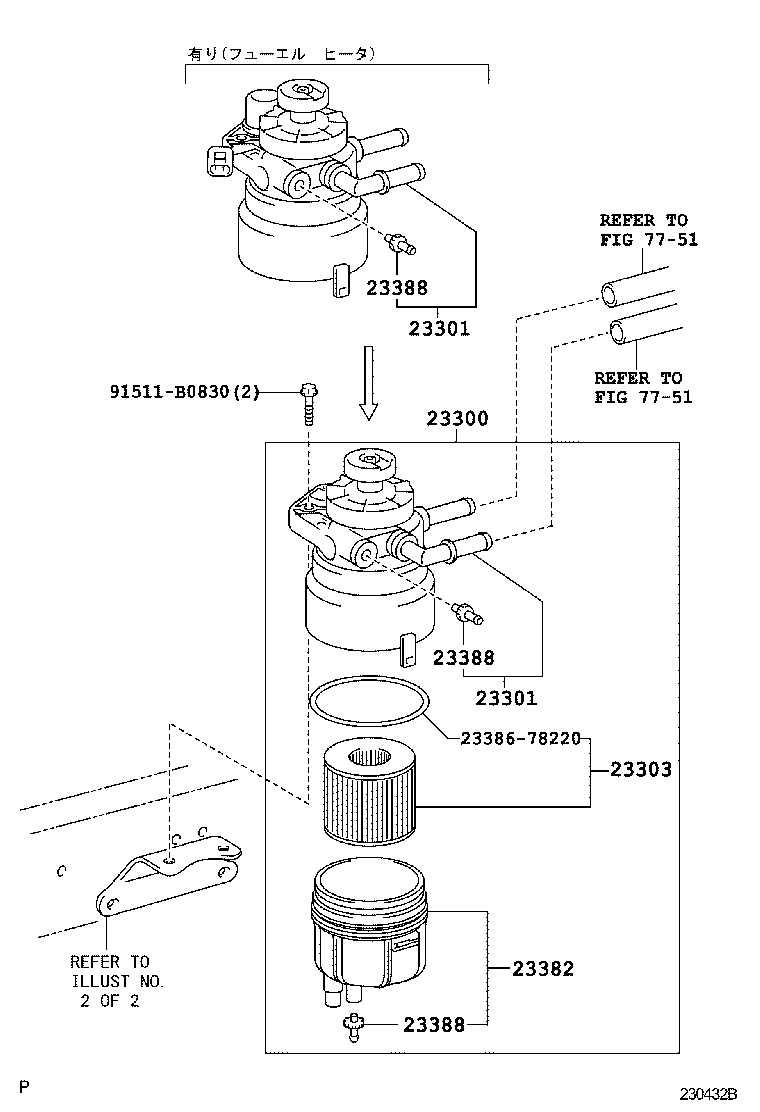

Figure 230104H 230104H 1999-05 → — Figure 230105E 230105E 1999-06 → 2004-06 Figure 230106M 230106M 1999-05 → 2004-06 Figure 230251 230251 2003-10 → 2004-06 Figure 230252 230252 2003-10 → 2004-06 Figure 230248B 230248B 2004-06 → 2005-12 Figure 230440 230440 2004-06 → 2005-12 Figure 230432B 230432B 2005-12 → 2007-05 Figure 230433A 230433A 2005-12 → 2006-10 Figure 230249A 230249A 2004-06 → 2007-05

Part groups

PNCDescription
23264D Bracket, Fuel Filter
23300 Filter Assy, Fuel
23301 Body Sub-assy, Fuel Filter
23301A Cap Assy, Fuel Filter
23303 Element Sub-assy, Fuel Filter
23322 Plug, Drain(FOR FUEL FILTER)
23322A Ring, O(FOR DRAIN PLUG)
23338 Gasket(FOR WARNING SWITCH)
23382 Case, Fuel Filter
23388 Plug, Fuel Filter Drain
23389 Clamp, Fuel Filter
23910B Heater Assy, Fuel
23921 Support, Fuel Filter
23925 Stay, Fuel Filter Support
84461B Switch, Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
