Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

18 part groups · 9 illustrations

Illustrations

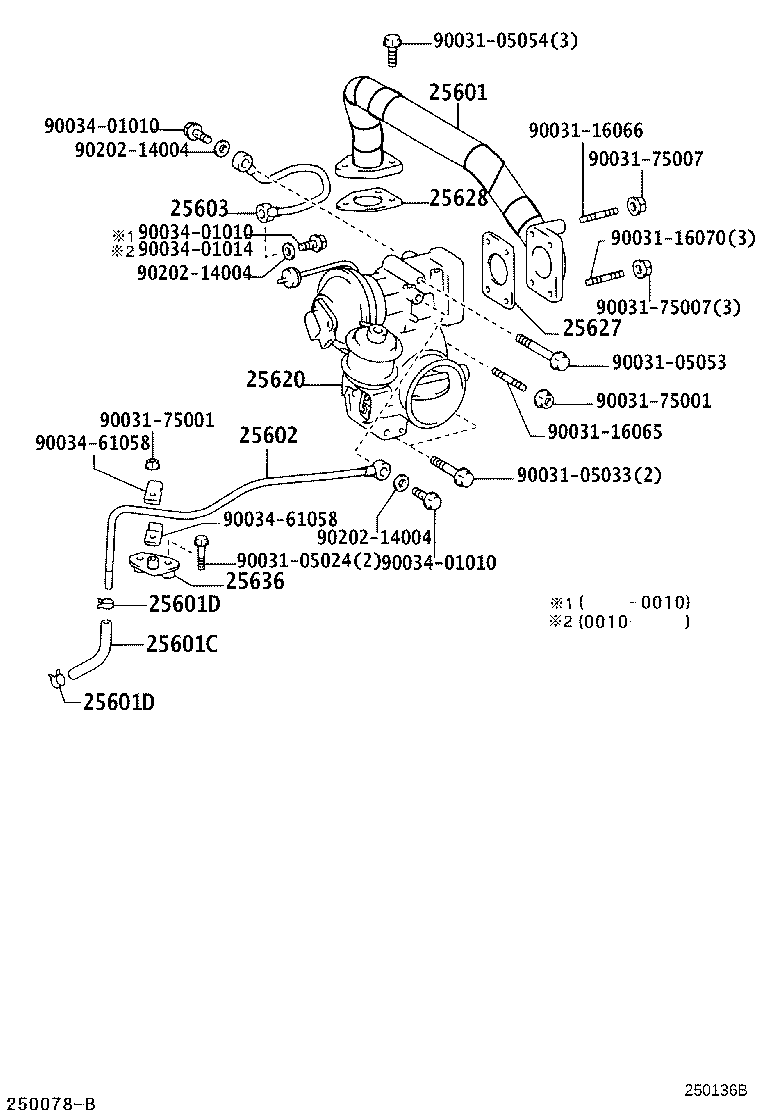

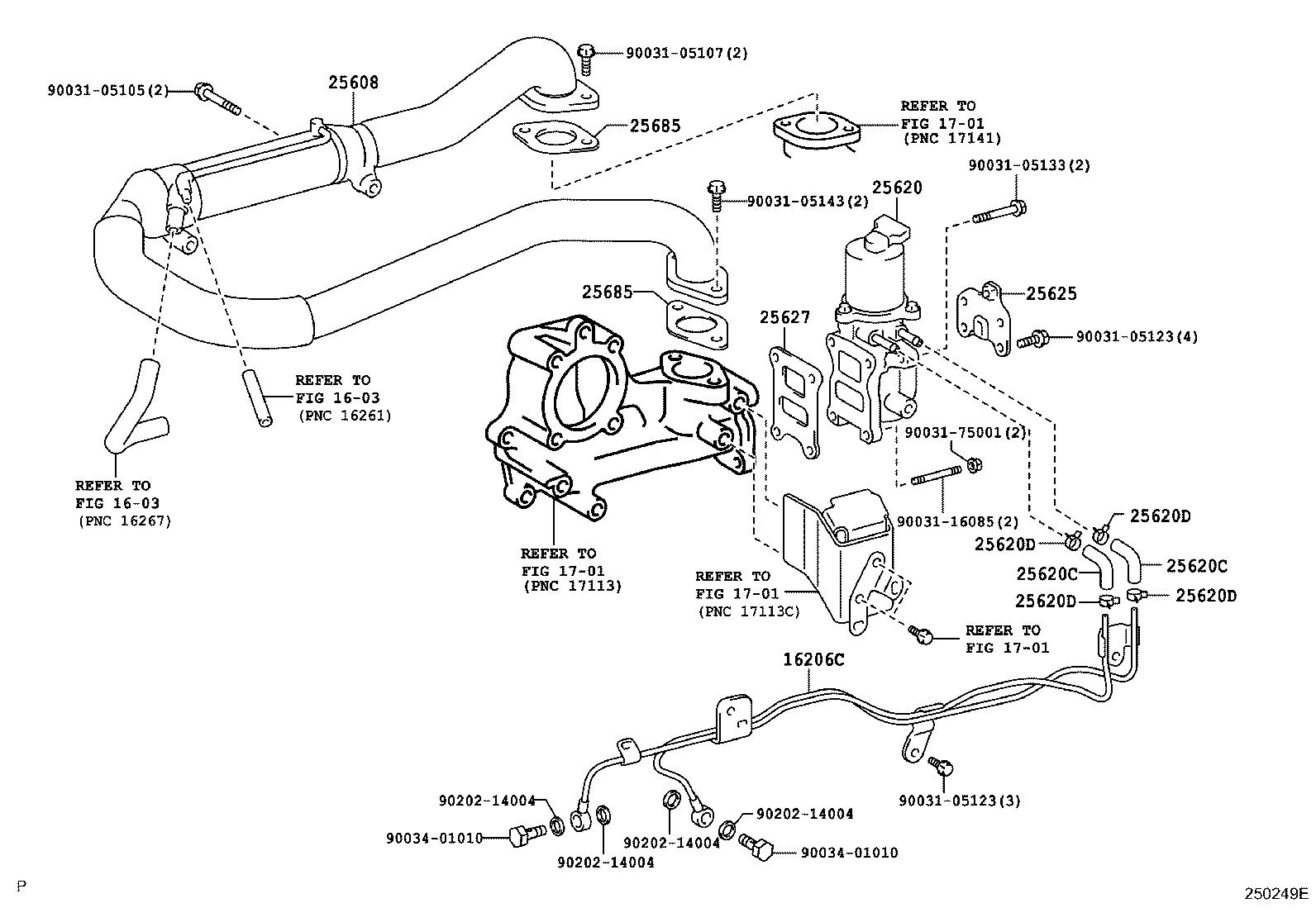

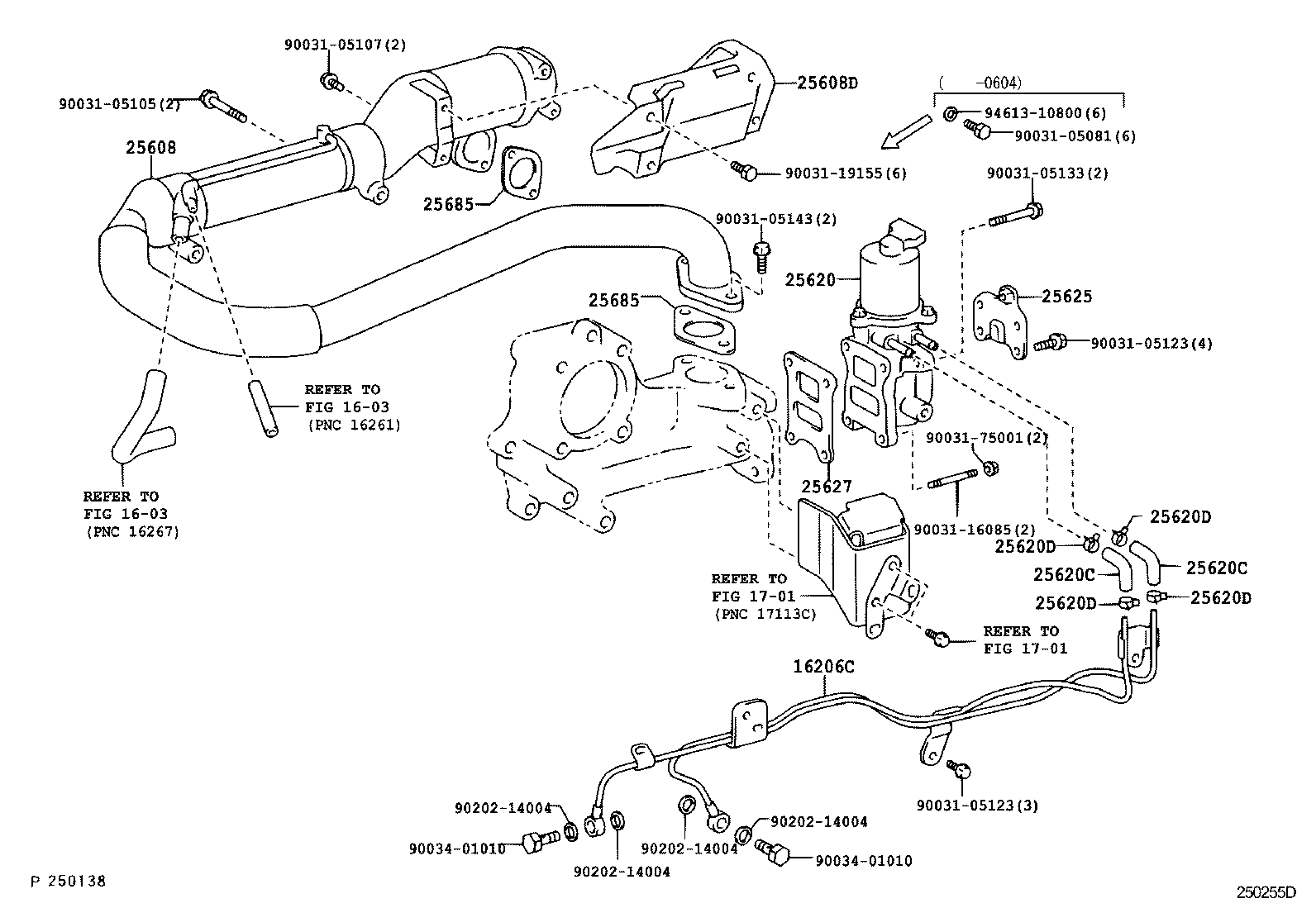

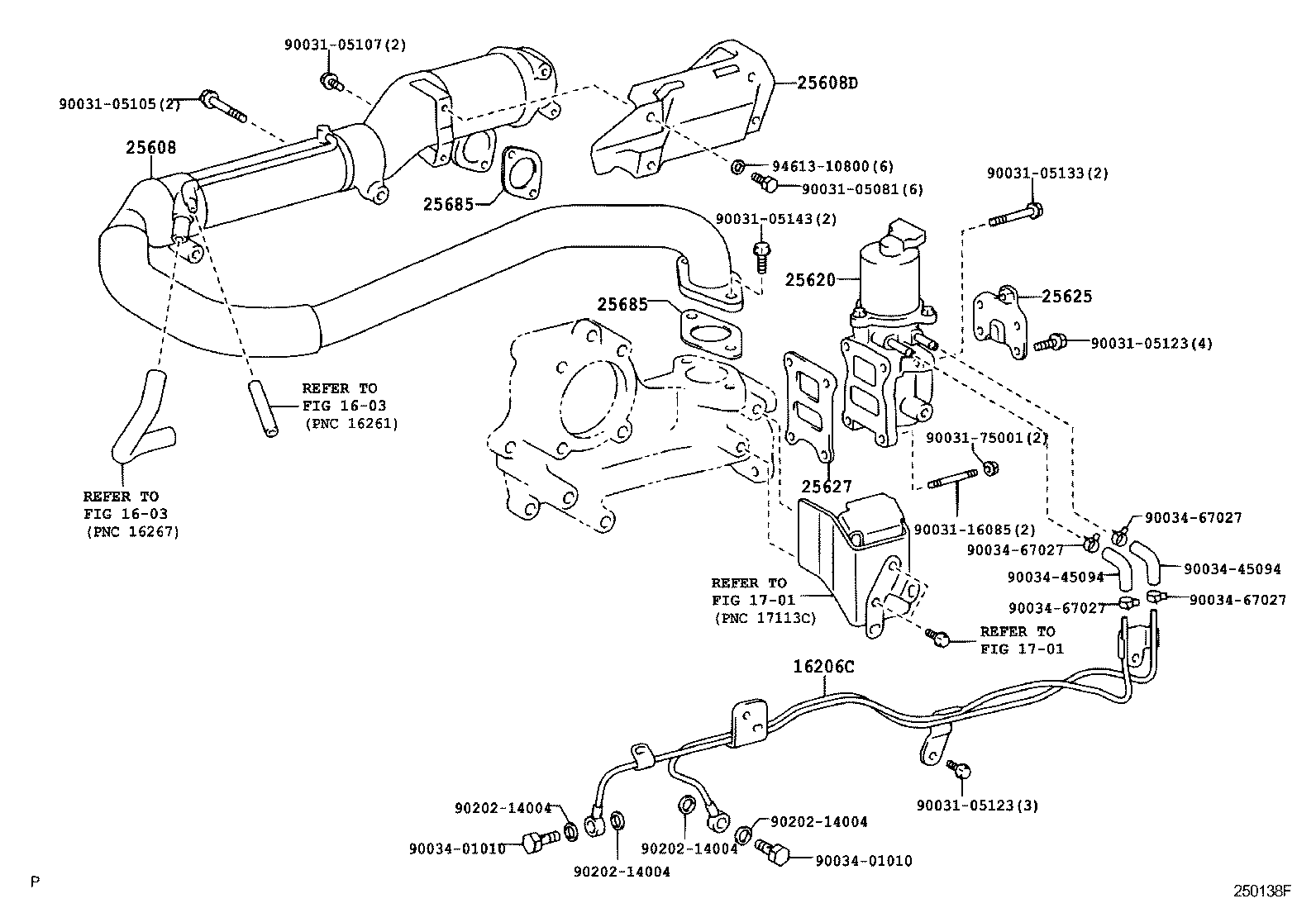

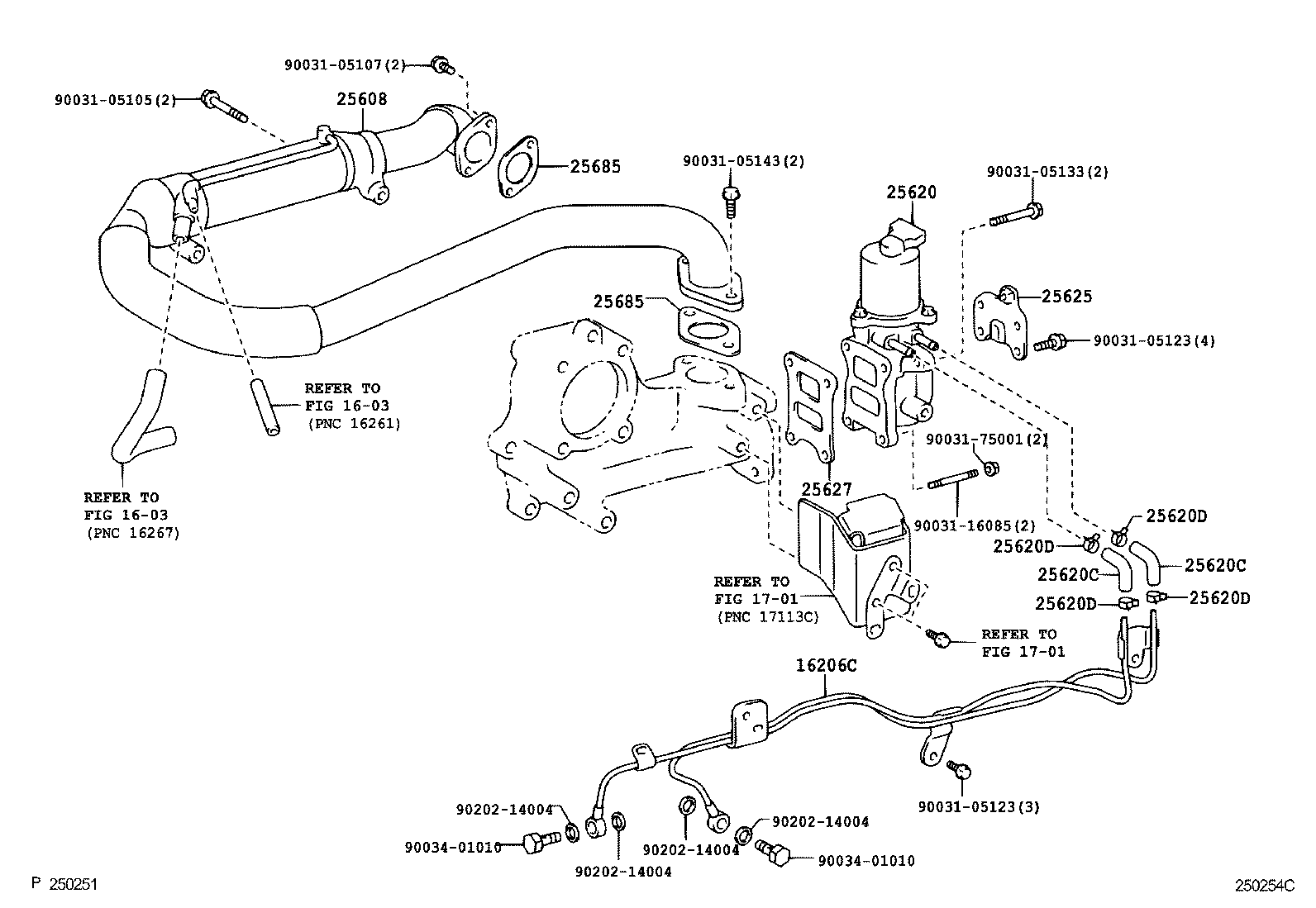

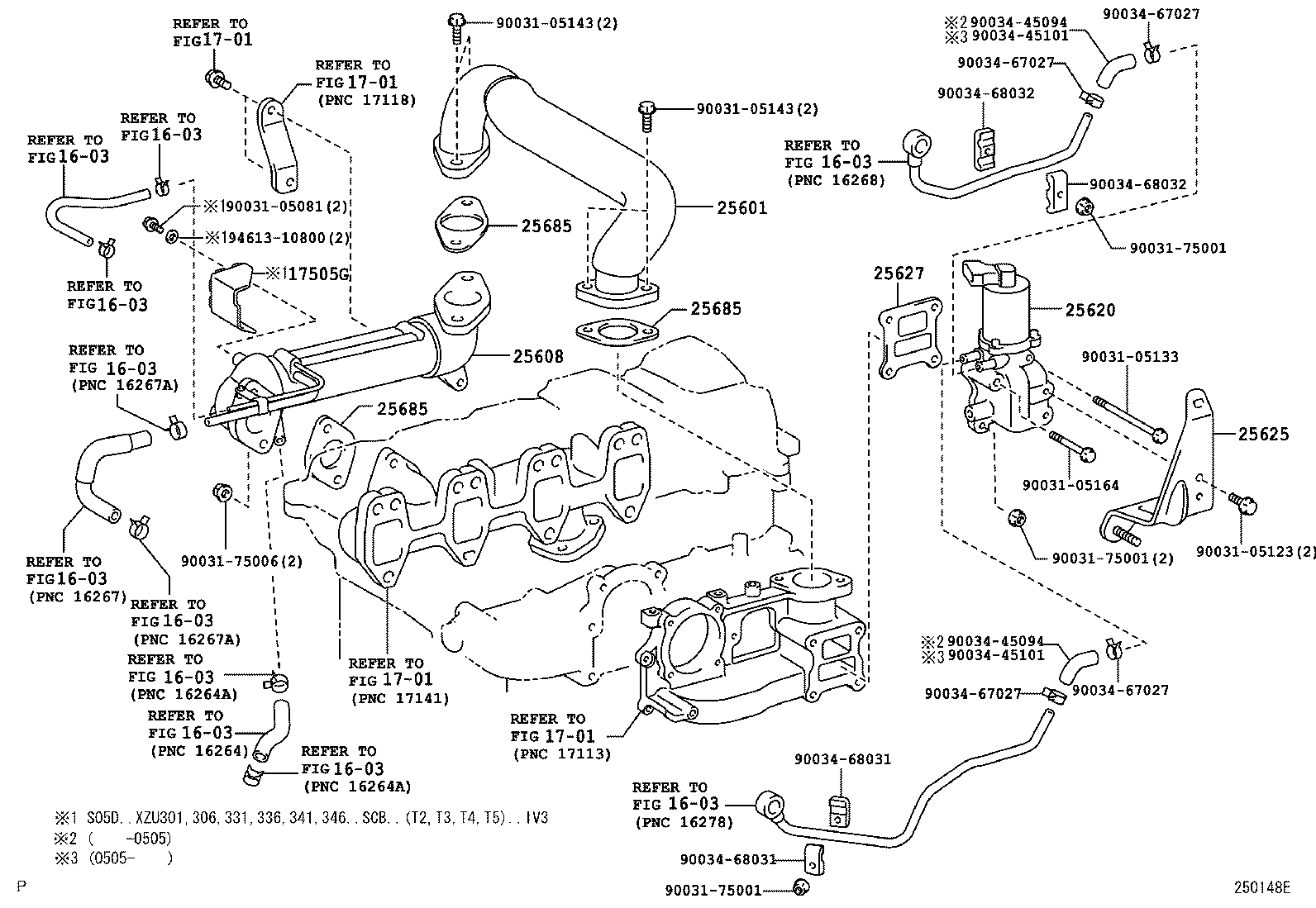

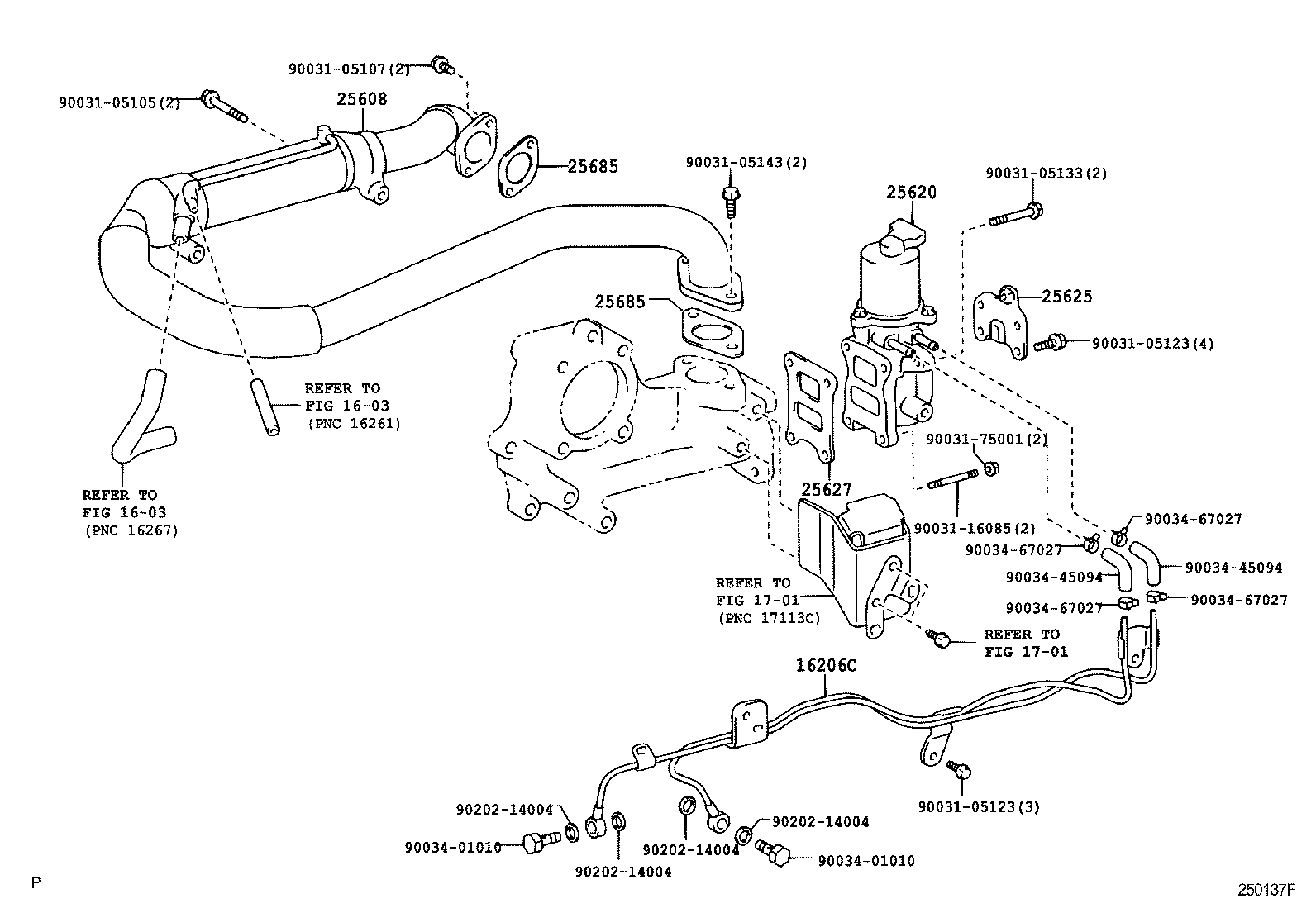

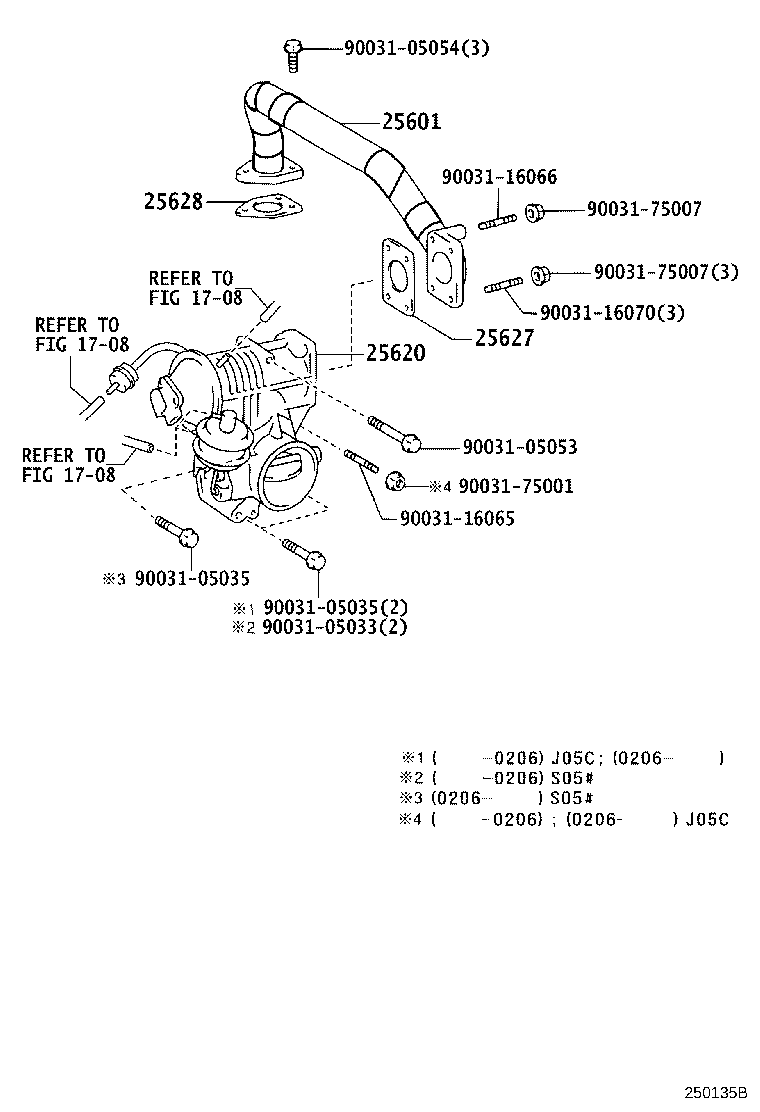

Figure 250114B 250114B 1999-05 → — Figure 250135B 250135B 1999-05 → 2004-06 Figure 250136B 250136B 2000-05 → 2004-06 Figure 250148E 250148E 2004-06 → 2006-10 Figure 250137F 250137F 2003-10 → 2004-06 Figure 250254C 250254C 2004-06 → 2006-10 Figure 250138F 250138F 2003-10 → 2004-06 Figure 250255D 250255D 2004-06 → — Figure 250249E 250249E 2004-06 → 2006-10

Part groups

PNCDescription
16206C Pipe Sub-assy, Water By-pass
17505G Insulator Sub-assy, Exhaust Pipe Heat NO.1
25601 Pipe Sub-assy, Egr, NO.1
25601C Hose(FOR EGR PIPE, NO.1)
25601D Clip OR Clamp(FOR EGR PIPE, NO.1)
25601J Gasket(FOR EGR PIPE, NO.1)
25602 Pipe Sub-assy, Egr, NO.2
25603 Pipe Sub-assy, Egr, NO.3
25608 Cooler Sub-assy, Egr
25608D Insulator Sub-assy(FOR EGR COOLER)
25620 Valve Assy, Egr
25620C Hose, Water By-pass, NO.1
25620D Clip(FOR WATER BY-PASS HOSE, NO.1)
25625 Bracket, Egr Valve
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25636 Bracket, Egr Pipe, NO.2
25685 Gasket, Egr Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
