Toyota Dyna/Toyoace
1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan
Discontinued model
Data version 2007-10

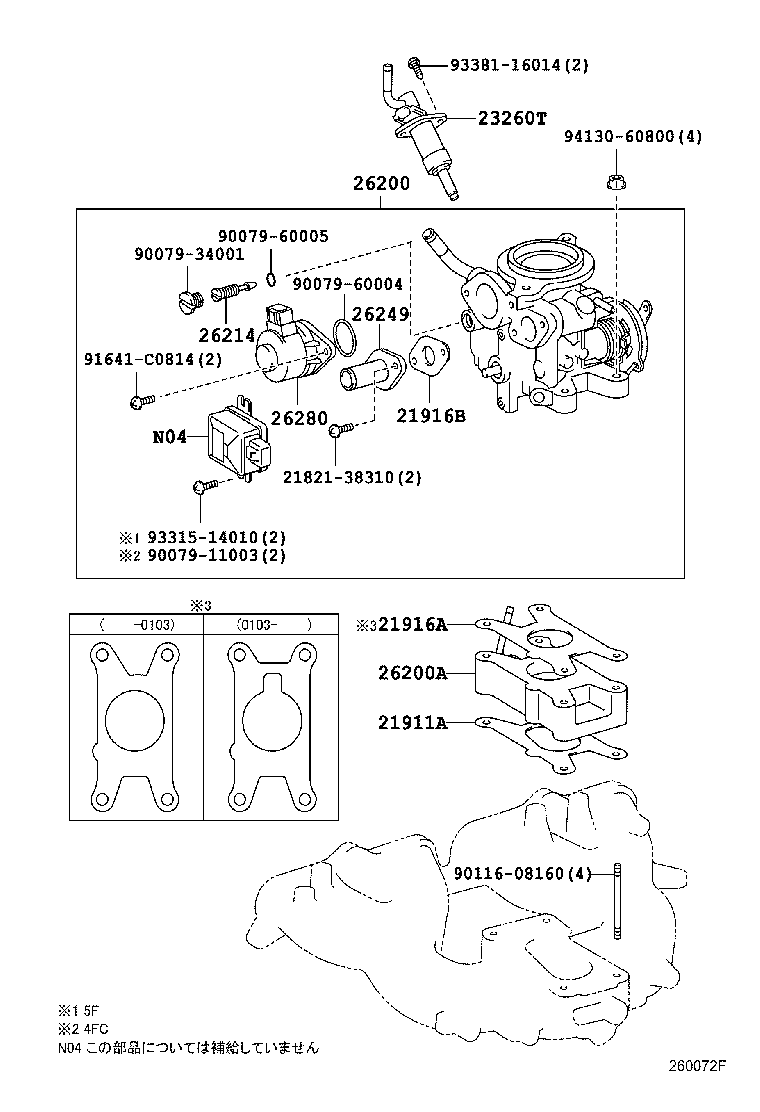

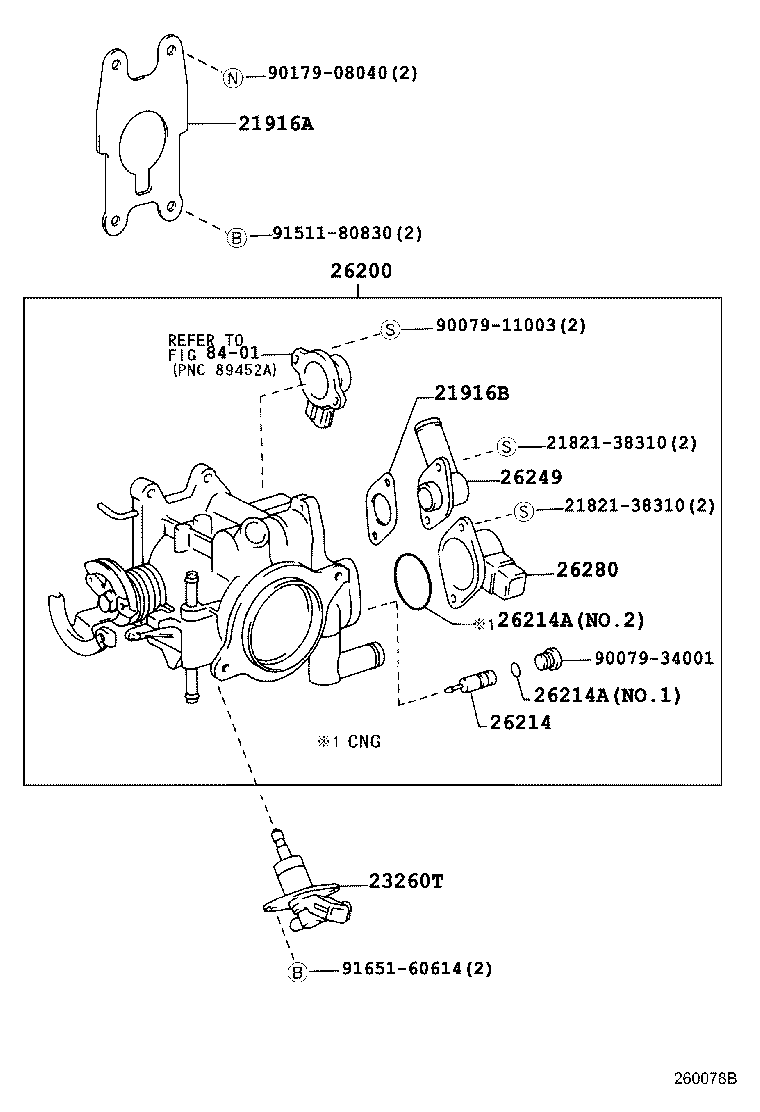

Lpg Carburetor
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 21911A | Gasket, Carburetor, NO.1 |
| 21916A | Gasket, Carburetor, NO.2 |
| 21916B | Gasket, Lpg Fuel Hose Union |
| 23260T | Injector Assy, Lpg |
| 26200 | Carburetor Assy, Lpg |
| 26200A | Insulator, Lpg Carburetor Heat |
| 26214 | Screw, Power Adjust |
| 26214A | Ring, O(FOR POWER ADJUST) |
| 26249 | Union, Fuel Hose(FOR LPG) |
| 26280 | Motor Assy, Air Fuel Ratio Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
