Toyota Dyna/Toyoace
1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan
Discontinued model
Data version 2007-10

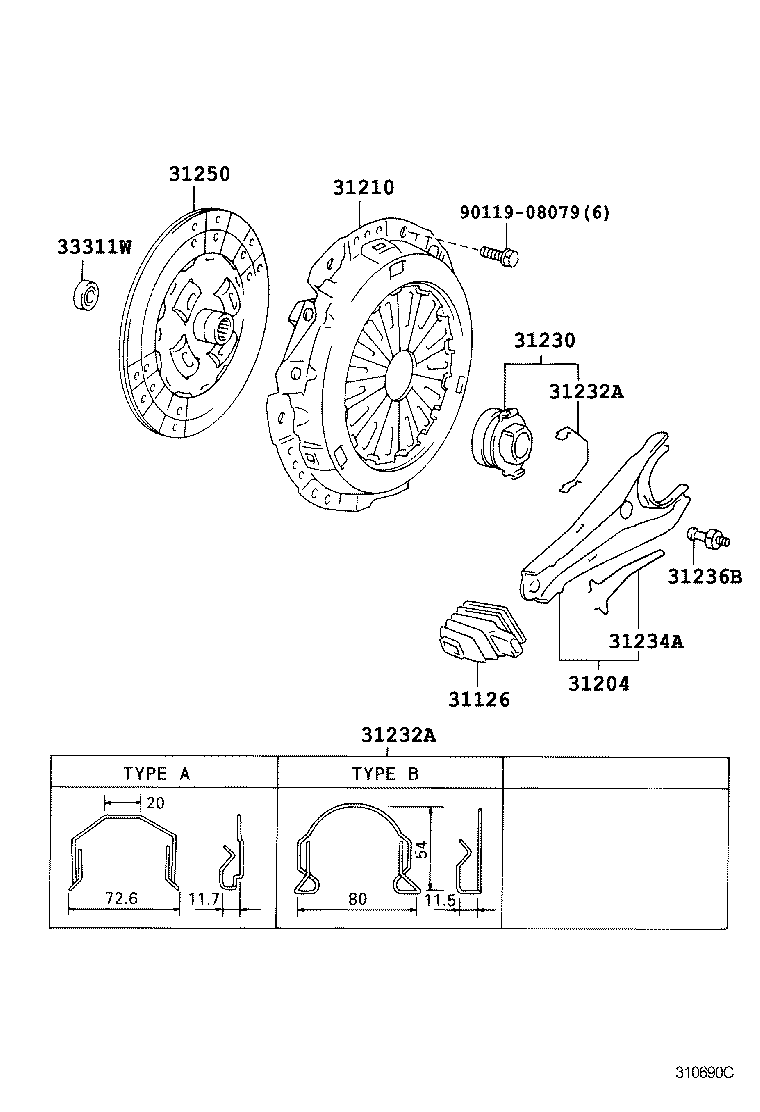

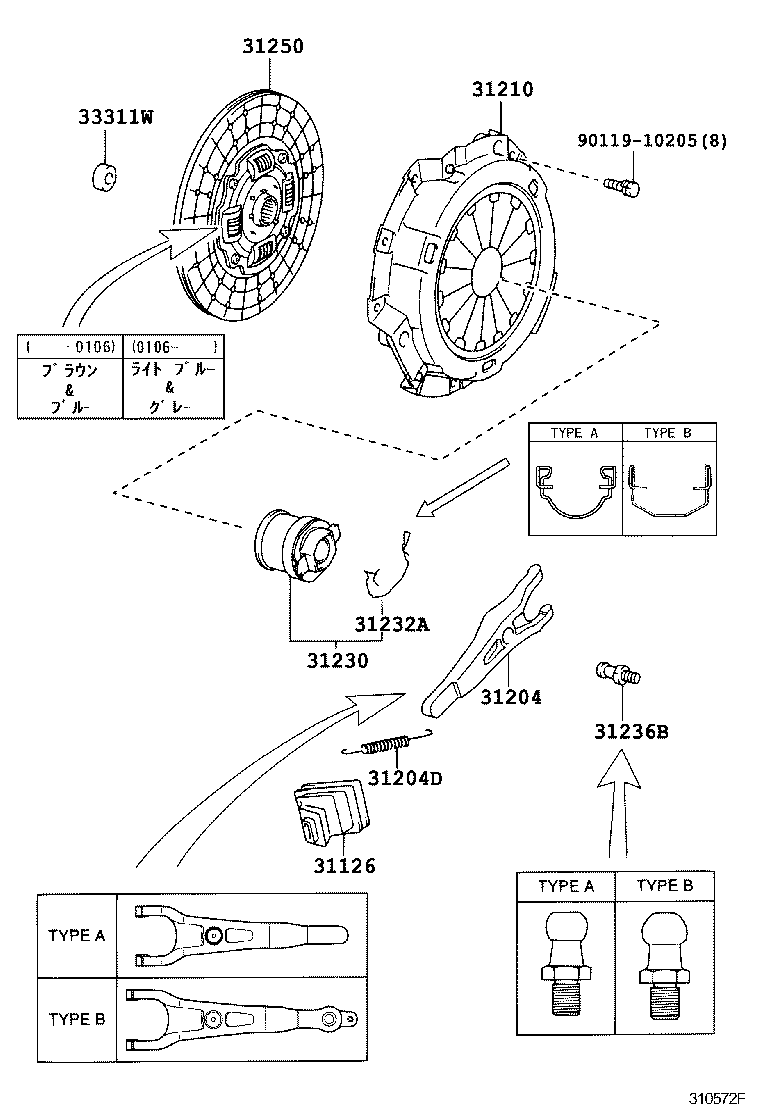

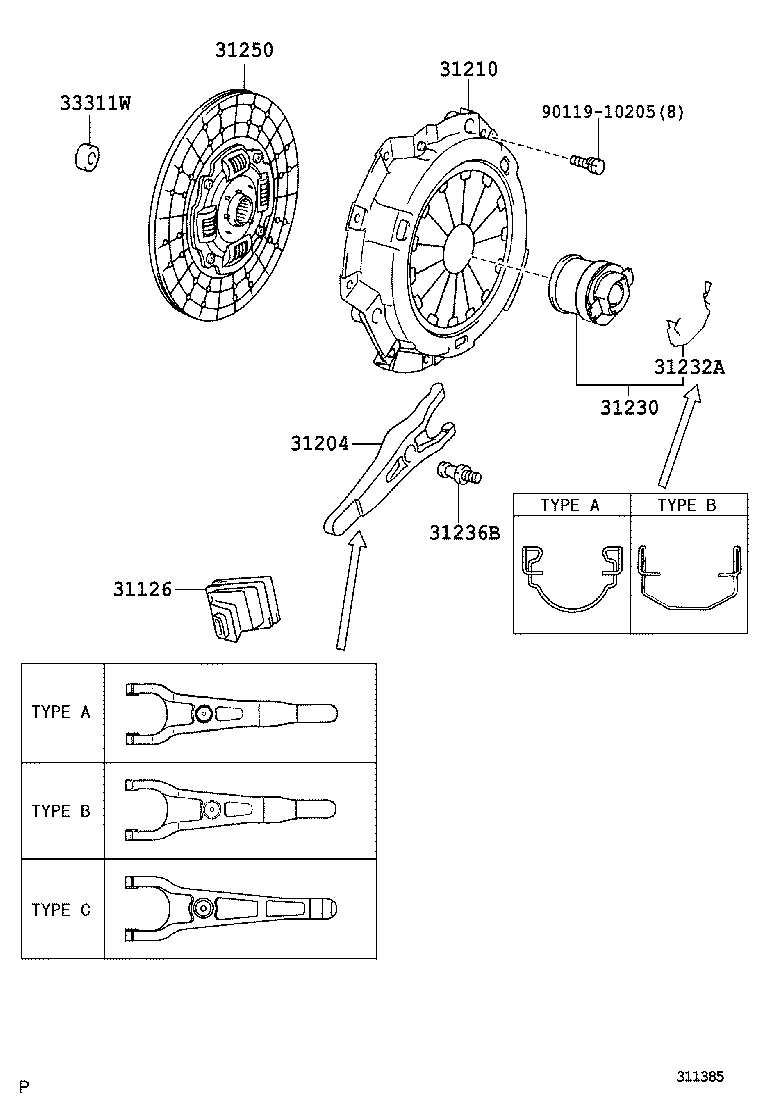

Clutch & Release Fork
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 31126 | Boot, Clutch Release Fork |
| 31204 | Fork Sub-assy, Clutch Release |
| 31204D | Spring(FOR CLUTCH RELEASE FORK) |
| 31210 | Cover Assy, Clutch |
| 31230 | Bearing Assy, Clutch Release |
| 31232A | Clip, Release Bearing Hub |
| 31234A | Spring, Release Fork Support |
| 31236B | Support, Release Fork |
| 31250 | Disc Assy, Clutch |
| 33311W | Bearing (FOR INPUT SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
