Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 9 illustrations

Illustrations

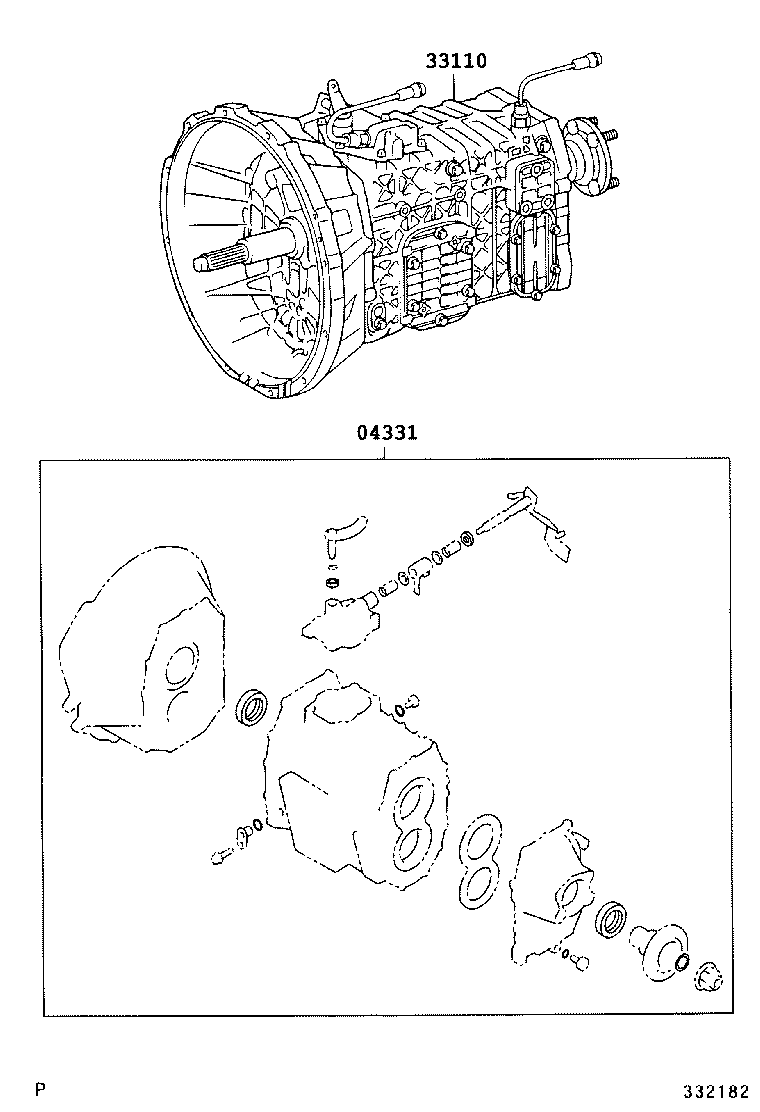

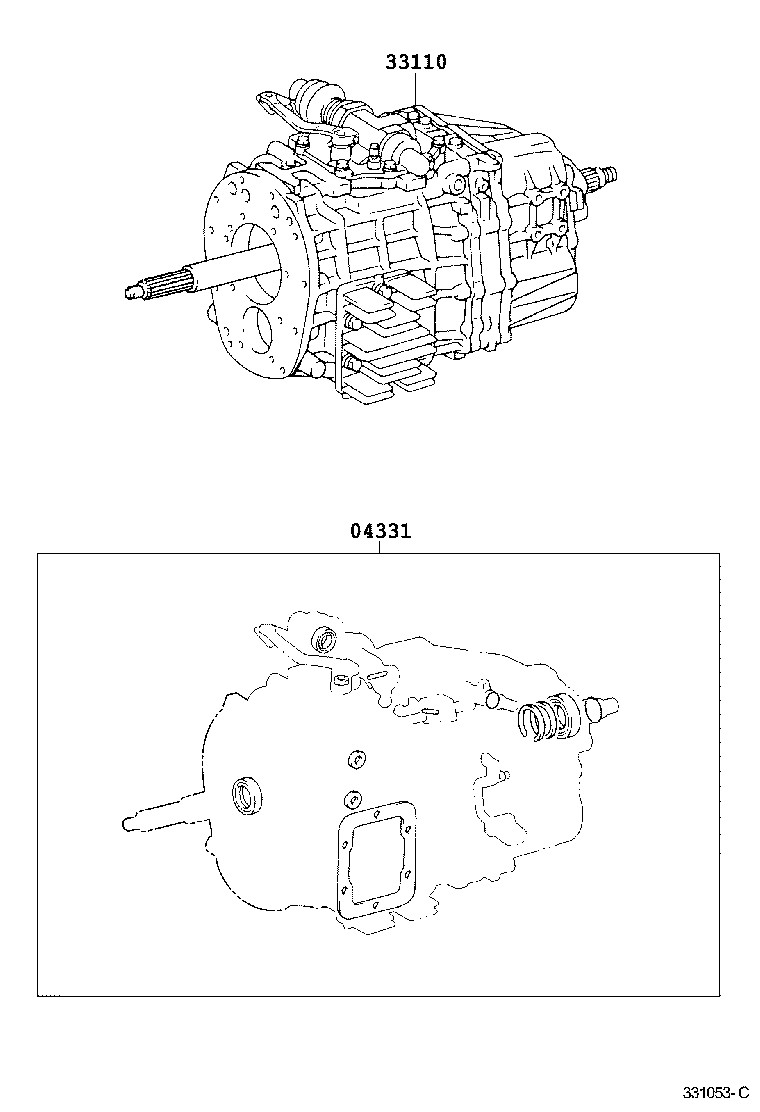

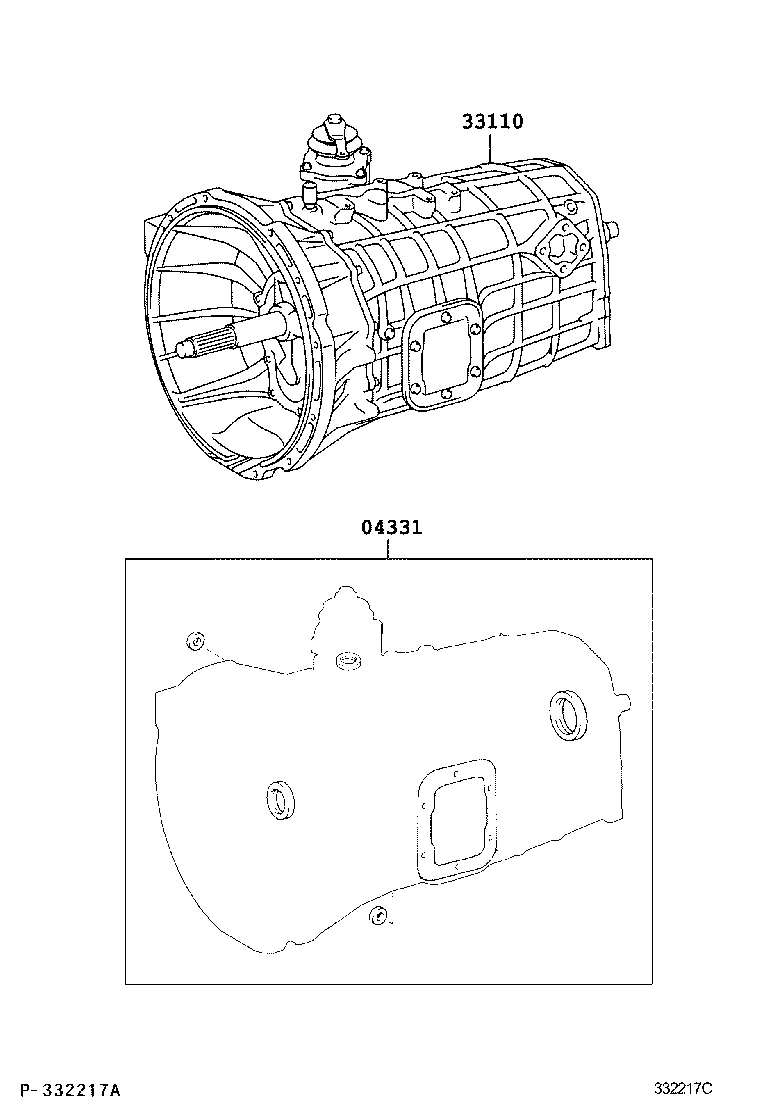

Figure 331052 331052 1999-05 → — Figure 331053C 331053C 1999-05 → — Figure 331053C 331053C 1999-05 → — Figure 331053C 331053C 1999-05 → — Figure 332182 332182 2002-06 → — Figure 332182 332182 2002-06 → — Figure 332182 332182 2004-06 → — Figure 332217C 332217C 2003-10 → — Figure 332217C 332217C 2003-10 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33110 Transmission Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
