Torque Converter, Front Oil Pump & Chain (ATM)

21 part groups · 3 illustrations

Illustrations

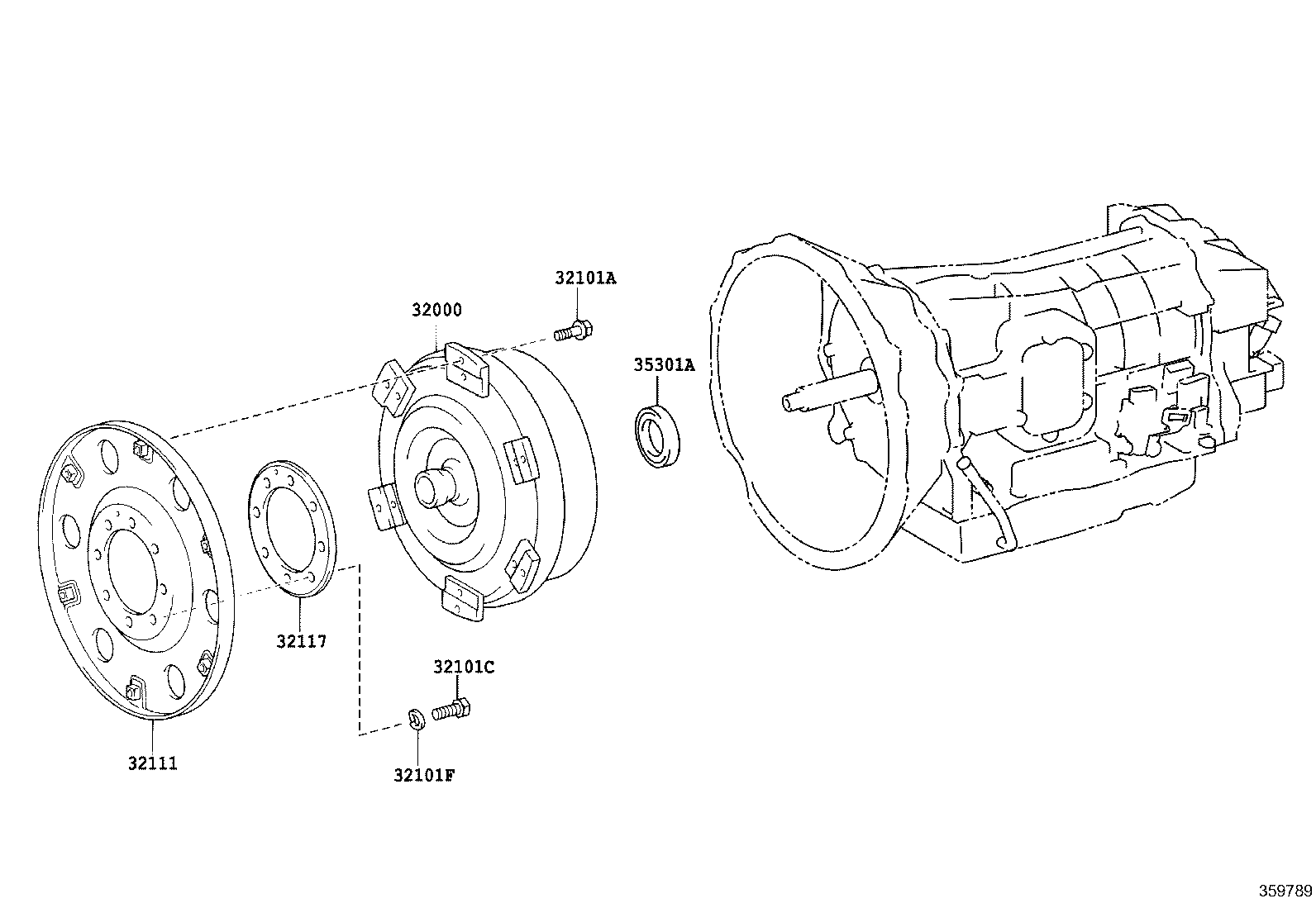

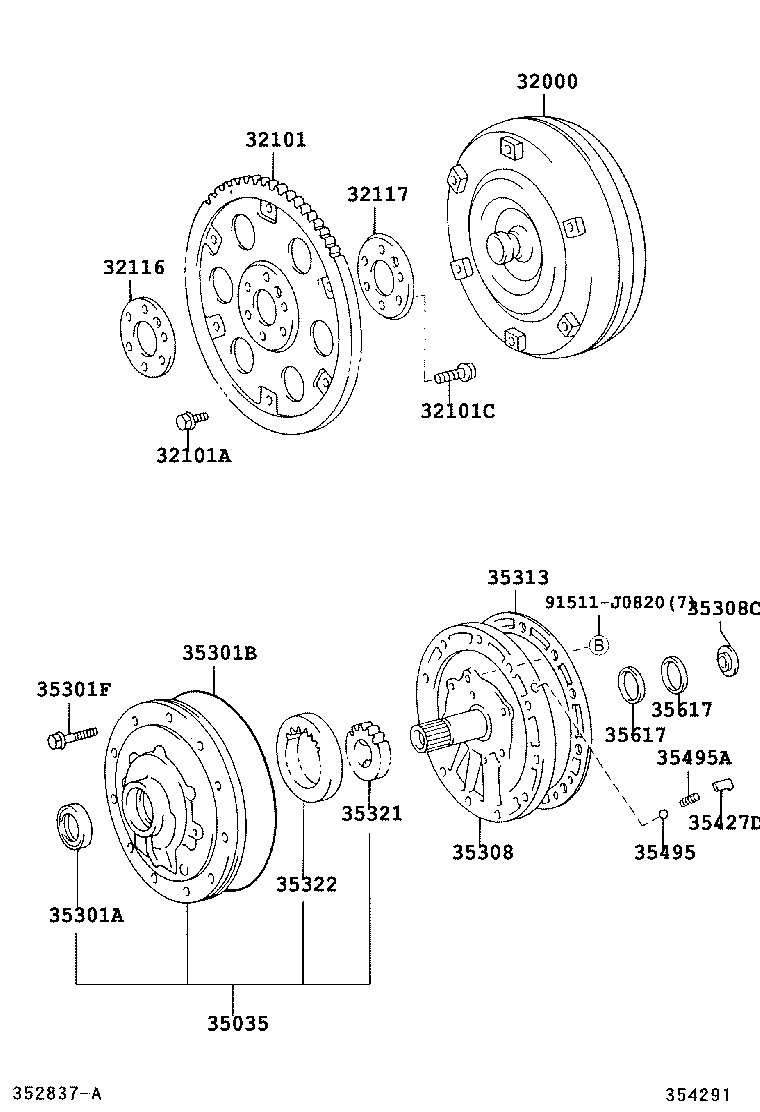

Figure 351891B 351891B 1999-05 → — Figure 354291 354291 2003-06 → — Figure 359789 359789 2004-06 → —

Part groups

PNCDescription
32000 Converter Assy, Torque
32101 Gear Sub-assy, Drive Plate & Ring
32101A Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
32101C Bolt, Hexagon(FOR DRIVE PLATE SETTING)
32101F Washer(FOR DRIVE PLATE & RING GEAR)
32111 Plate, Pump Impeller Drive
32116 Spacer, Drive Plate, Front
32117 Spacer, Drive Plate, Rear
35035 Body Sub-assy, FR Oil Pump & Gear
35301A Seal, Oil (FOR FRONT OIL PUMP)
35301B Ring, O (FOR FRONT OIL PUMP BODY)
35301F Bolt (FOR FRONT OIL PUMP SETTING)
35308 Cover Sub-assy, Front Oil Pump
35308C Race, Thrust Bearing (FOR FRONT OIL PUMP COVER)
35313 Gasket, Front Oil Pump Cover
35321 Gear, Front Oil Pump Drive
35322 Gear, Front Oil Pump Driven
35427D Seat, Check Valve Spring
35495 Ball, Check
35495A Spring, Compression (FOR CHECK BALL)
35617 Ring, Clutch Drum Oil Seal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
