Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10

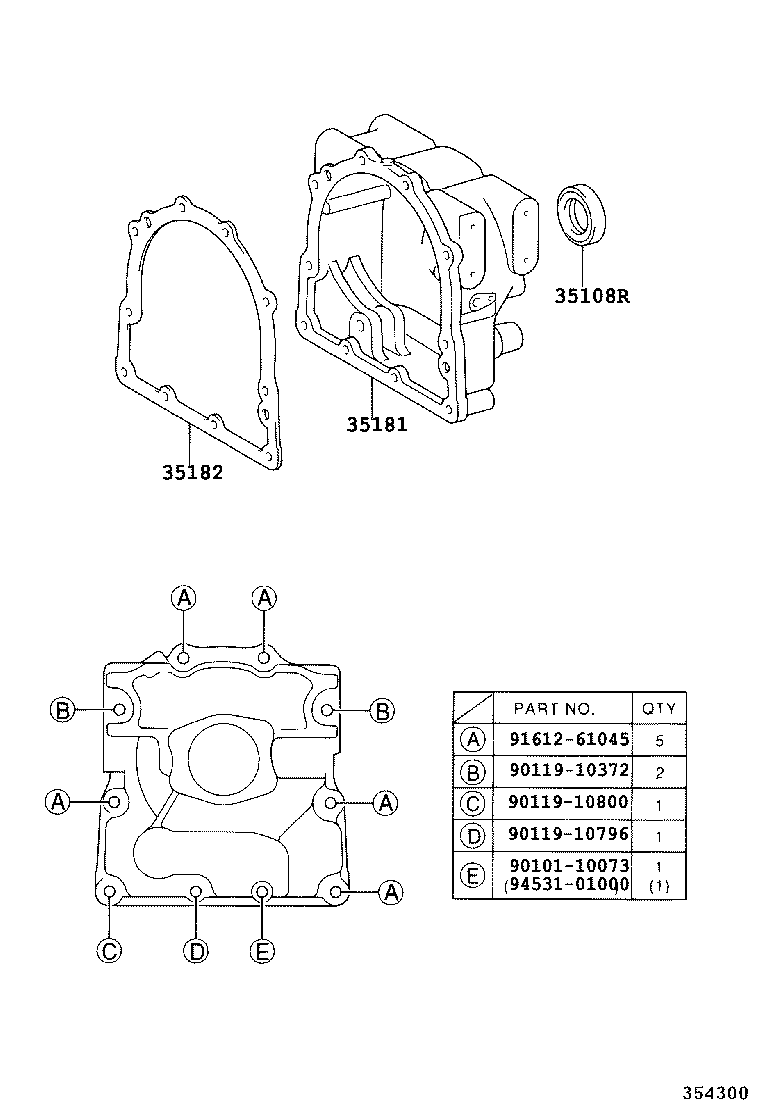

Extension Housing (ATM)

3 part groups · 2 illustrations

PNC	Description
35108R	Seal, Oil (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
35181	Housing, Extension (ATM)
35182	Gasket, Extension Housing (ATM)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
