Toyota Dyna/Toyoace
1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan
Discontinued model
Data version 2007-10
Valve Body & Oil Strainer (ATM)
37 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 34421 | Piston, Overdrive Brake Accumulator |
| 34421A | Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) |
| 34421B | Spring (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON) |
| 35112A | Cover, Front Clutch Accumulator |
| 35113 | Gasket, Front Clutch Accumlator, NO.2 |
| 35114 | Gasket, Front Clutch Accumlator, NO.1 |
| 35115 | Plate, Front Clutch Accumulator |

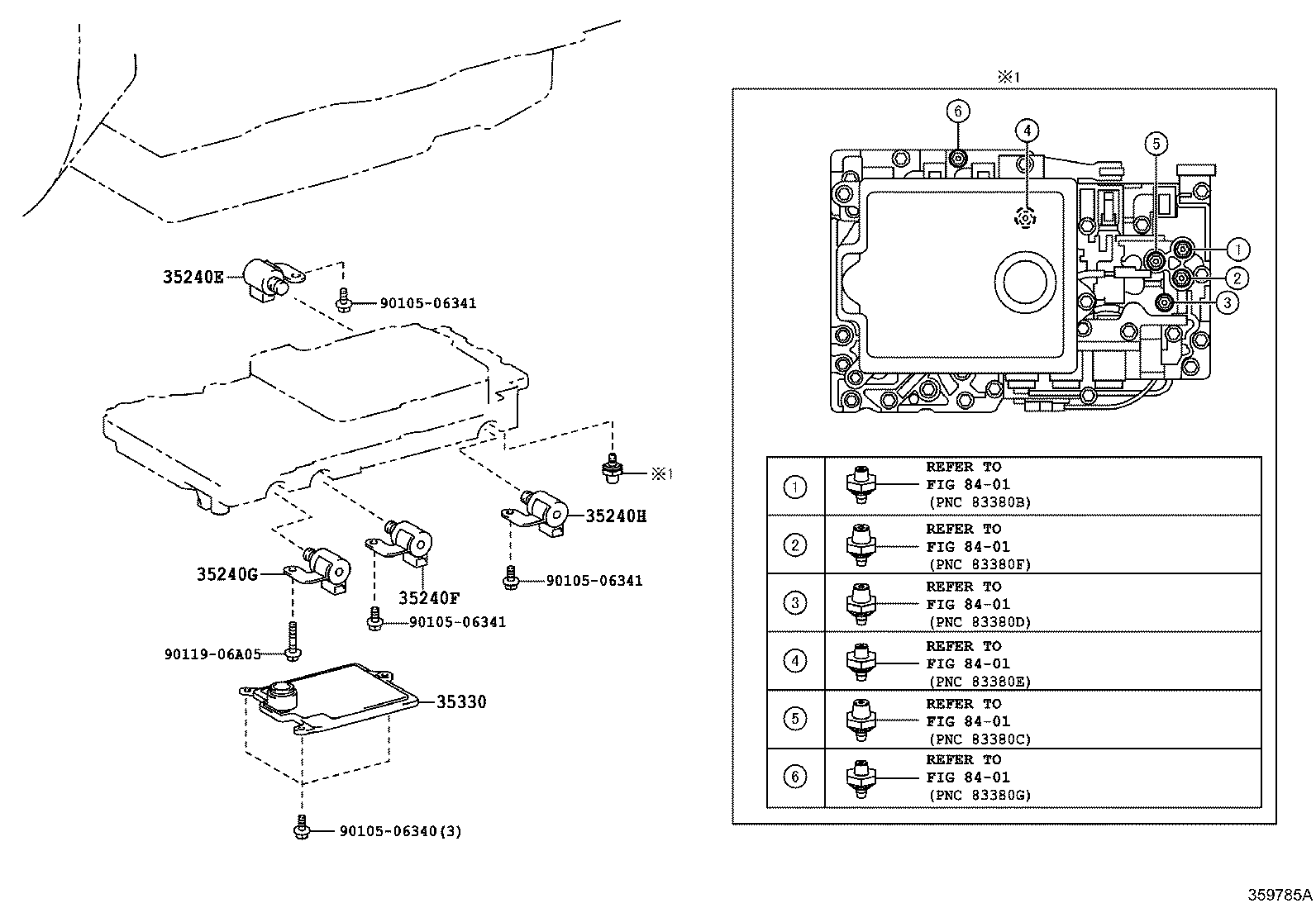

| 35240E | Valve, Solenoid(S1) |
| 35240F | Valve, Solenoid(S2) |
| 35240G | Valve, Solenoid(S3) |
| 35240H | Valve, Solenoid(S4) |
| 35261A | Cylinder, Throttle Pressure Accumulator |
| 35290 | Solenoid Assy, Line Pressure Control |
| 35330 | Strainer Assy, Valve Body Oil |
| 35339 | Gasket, Oil Strainer |
| 35410 | Body Assy, Transmission Valve |
| 35419H | Valve, Check, NO.5 |
| 35419J | Valve, Check, NO.6 |
| 35419K | Spring, Compression (FOR CHECK VALVE NO.2) |
| 35419L | Spring, Compression (FOR CHECK VALVE NO.3) |
| 35419M | Spring, Compression (FOR CHECK VALVE NO.4) |
| 35421F | Piston, Accumulator, NO.2 |
| 35421G | Spring, Compression (FOR ACCUMULATOR PISTON NO.2) |
| 35421H | Ring (FOR ACCUMULATOR PISTON NO.2) |
| 35424C | Piston, C-1 Accumulator |
| 35424D | Spring, Compression (FOR C-1 ACCUMULATOR PISTON) |
| 35424E | Ring, O (FOR C-1 ACCUMULATOR PISTON) |
| 35425A | Piston, C-2 Accumulator |
| 35425B | Spring, Compression (FOR C-2 ACCUMULATOR PISTON) |
| 35425C | Ring, O (FOR C-2 ACCUMULATOR PISTON) |
| 35893 | Gasket, Center Support Apply |

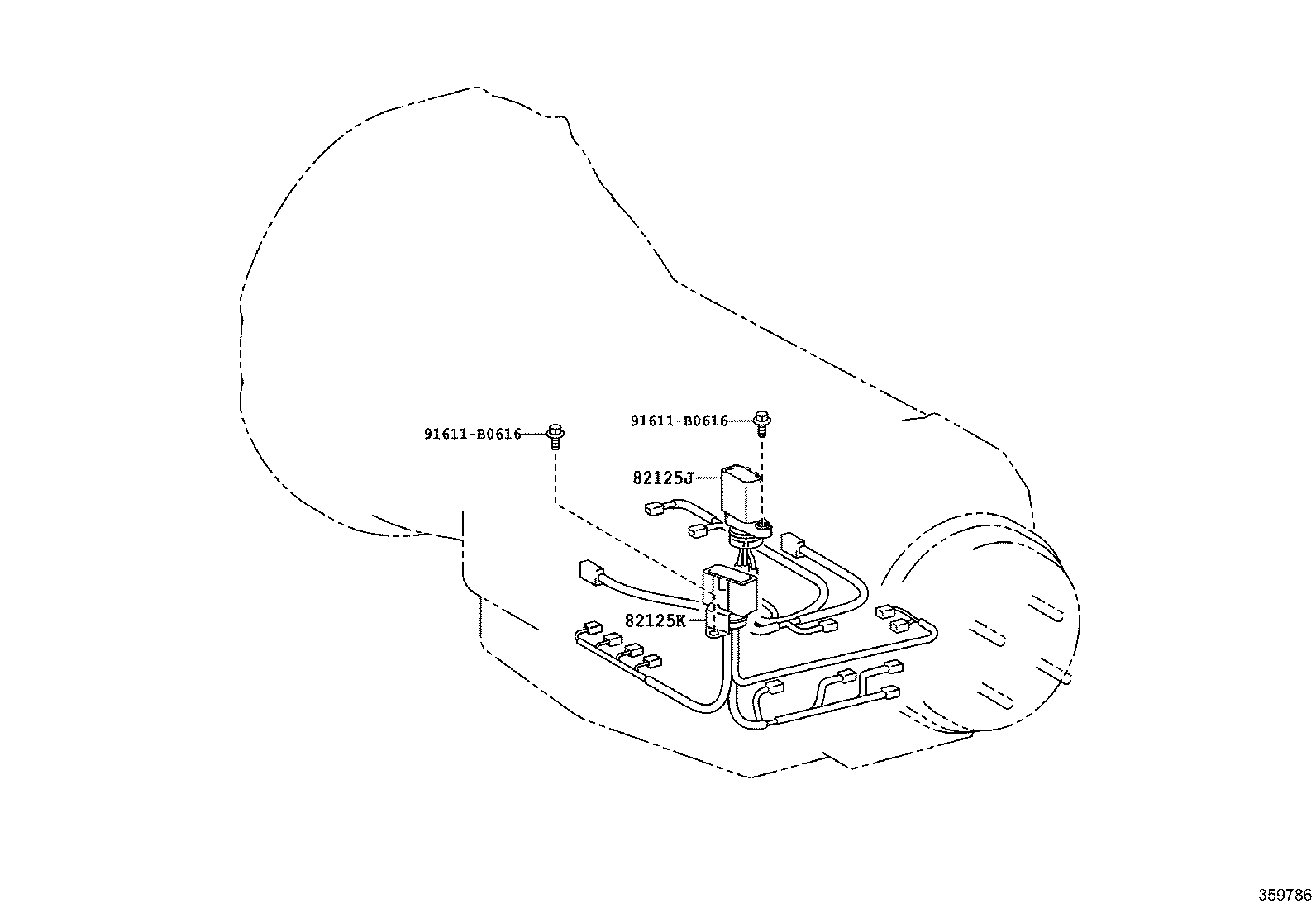

| 82125J | Wire, Transmission |
| 82125K | Wire, Transmission |
| 85420K | Solenoid Assy, Transmission |
| 85420L | Ring, O(FOR TRANSMISSION SOLENOID) |
| 85420N | Solenoid Assy, Transmission |
| 85420P | Solenoid Assy, Transmission |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
