Toyota Dyna/Toyoace
1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan
Discontinued model
Data version 2007-10

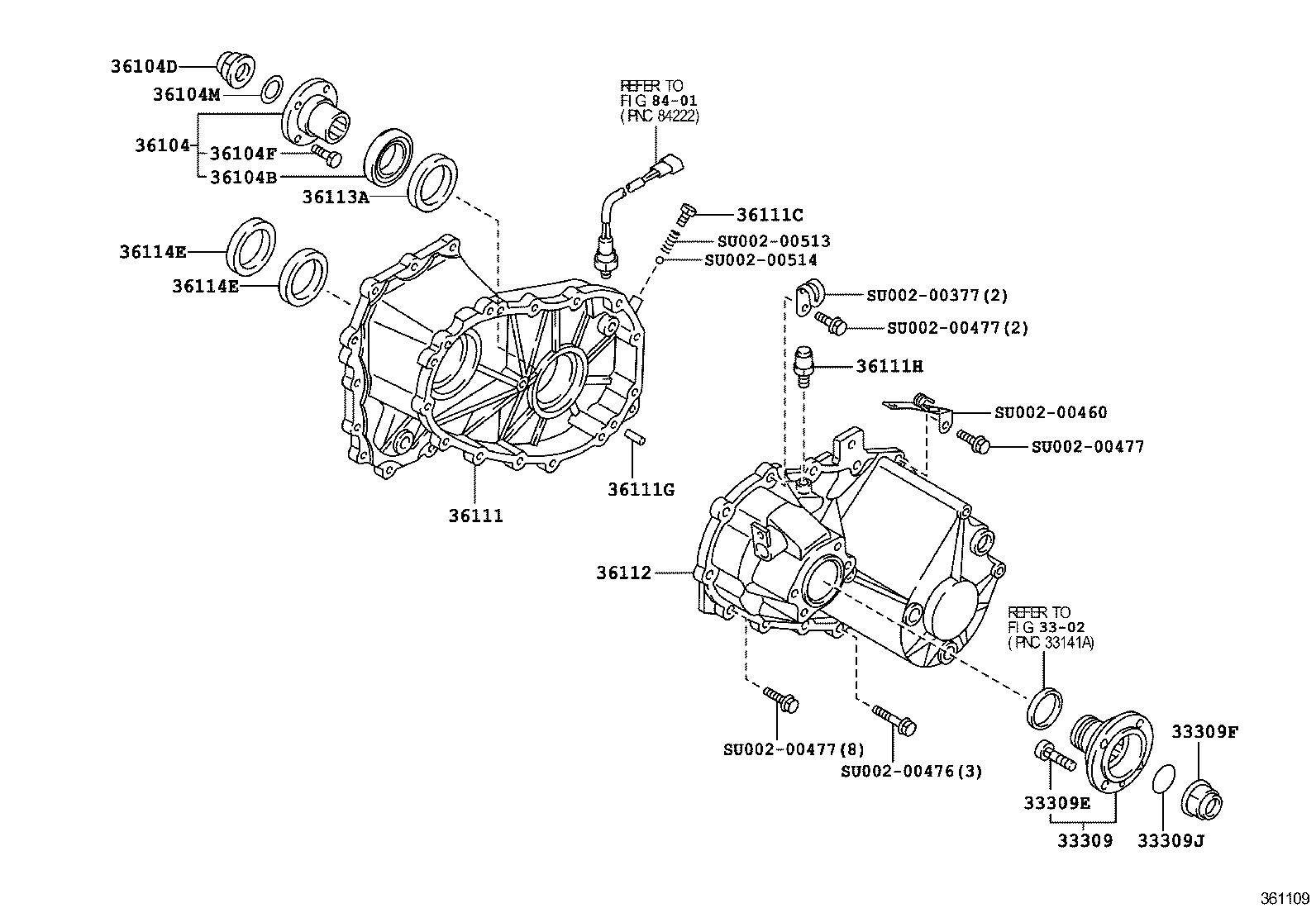

Transfer Case & Extension Housing
44 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33124E | Pipe, Oil Receiver(FOR TRANSFER) |
| 33309 | Flange Sub-assy, Transfer Output Shaft Companion |
| 33309A | Deflector, Dust |
| 33309B | Flange Sub-assy, Output Shaft Companion |
| 33309E | Bolt (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) |
| 33309F | Nut (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) |
| 33309J | Ring, O (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE NO.2) |
| 33449D | Magnet (FOR TRANSFER CASE) |
| 36104 | Flange, Companion (FOR TRANSFER OUTPUT SHAFT) |
| 36104B | Deflector, Dust (FOR TRANSFER OUTPUT SHAFT) |
| 36104D | Nut (FOR TRANSFER OUTPUT SHAFT) |
| 36104F | Bolt (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) |
| 36104M | Ring, O (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE NO.1) |
| 36109 | Housing Sub-assy, Transfer Extension |
| 36109C | Seal, Oil (TRANSFER EXTENSION REAR HOUSING SUB-ASSY) |
| 36111 | Case, Transfer |
| 36111B | Seal, Oil (FOR TRANSFER CASE) |
| 36111C | Plug (FOR TRANSFER CASE) |
| 36111F | Plug (FOR TRANSFER CASE) |
| 36111G | Pin, Straight (FOR TRANSFER CASE) |
| 36111H | Plug, Breather (FOR TRANSFER CASE) |
| 36112 | Case, Transfer, Rear |
| 36112D | Hose, NO.3 (FOR TRANSFER REAR CASE) |
| 36113A | Seal, Oil (FOR TRANSFER CASE RH) |
| 36113B | Ring, O (FOR TRANSFER CASE PLUG) |
| 36114B | Plug, NO.1 (FOR TRANSFER CASE) |
| 36114C | Gasket, NO.1 (FOR TRANSFER CASE) |
| 36114E | Seal, Oil (FOR TRANSFER CASE LH) |
| 36114F | Plug (FOR TRANSFER DRAIN) |
| 36114G | Gasket (FOR TRANSFER DRAIN PLUG) |
| 36115 | Housing, Transfer Extension |
| 36115C | Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING) |
| 36122 | Cover, Transfer Case, NO.2 |
| 36122B | Pin, Straight(FOR TRANSFER CASE COVER) |
| 36128B | Deflector, Breather Oil |
| 36129A | Tube, Transfer Oil |
| 36179 | Protector, Transfer Case Lower |
| 36182A | Cover, Transfer Oil Pump |
| 36183A | Plate, Transfer Oil Pump |
| 36184A | Separator, Transfer Oil |
| 36184B | Shaft, Transfer Oil Pump Drive |
| 36185B | Rotor, Transfer Oil Pump Drive |
| 36186A | Rotor, Transfer Oil Pump Driven |
| 36187A | Strainr, Transfer Oil, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
