Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Housing & Differential

53 part groups · 8 illustrations

Illustrations

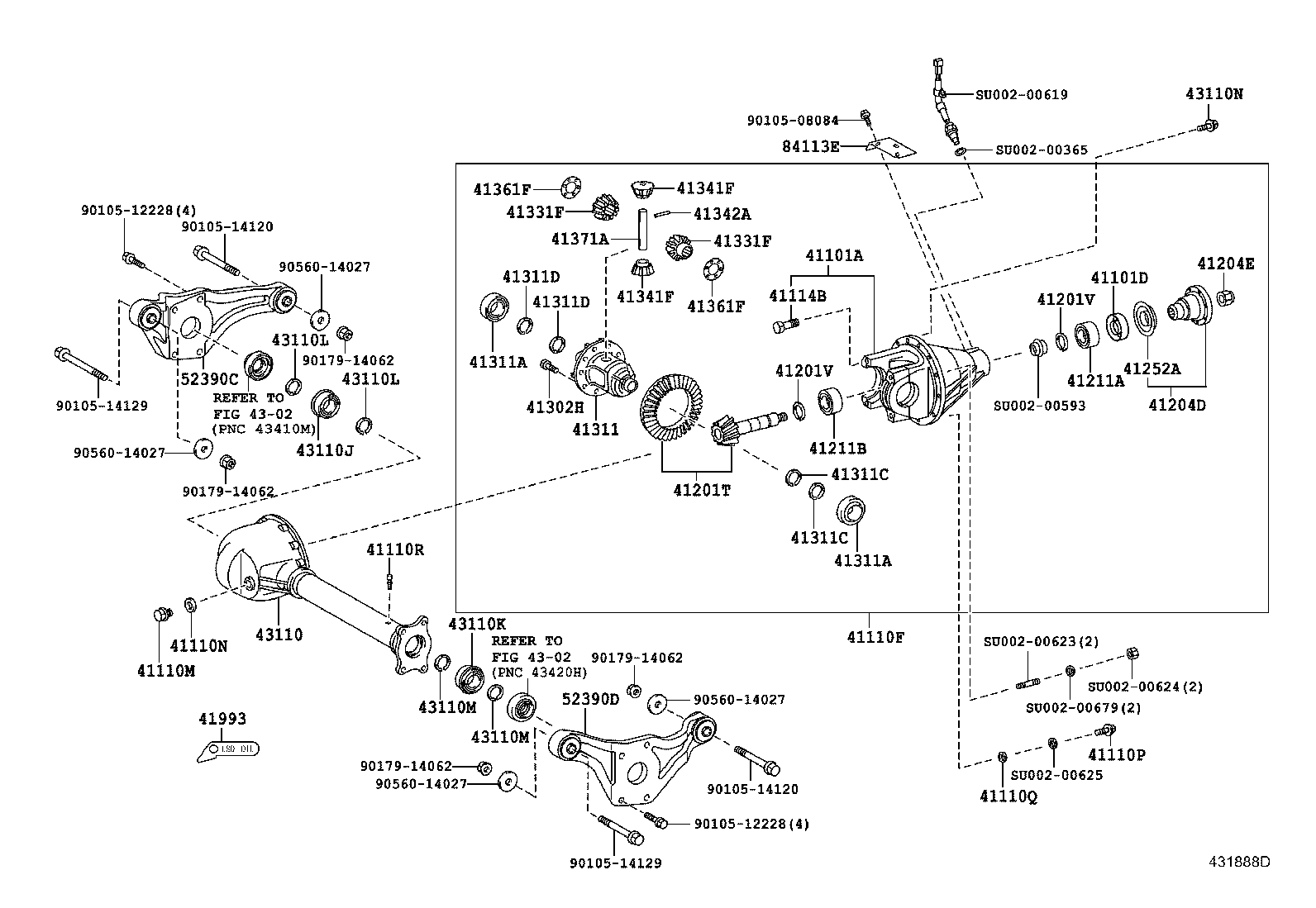

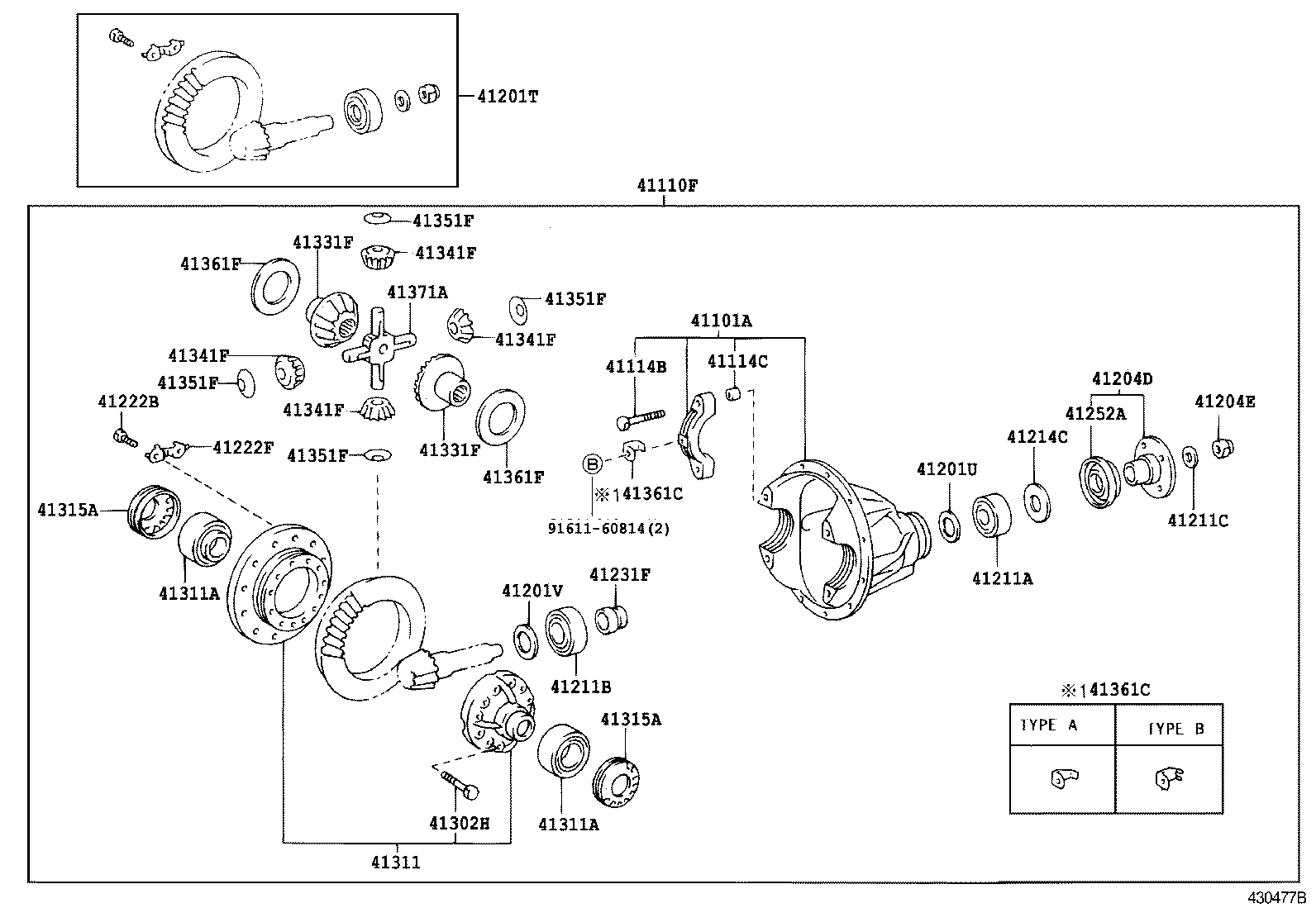

Figure 430477A 430477A 1999-07 → 2004-06 Figure 430477A 430477A 2001-08 → 2004-06 Figure 430477A 430477A 2002-06 → 2004-06 Figure 430476A 430476A 1999-07 → 2004-06 Figure 430477B 430477B 2002-06 → 2004-06 Figure 430477B 430477B 2002-10 → 2004-06 Figure 430477B 430477B 2003-06 → 2004-06 Figure 431888D 431888D 2004-06 → —

Part groups

PNCDescription
41101A Carrier Sub-assy, Differential, Front
41101D Seal, Oil (FOR FRONT DIFFERENTIAL CARRIER)
41110F Carrier Assy, Differential, Front
41110M Plug, Front Differential Filler
41110N Gasket, Front Differential Filler Plug
41110P Plug, Front Differential Drain
41110Q Gasket, Front Differential Drain Plug
41110R Plug, Breather (FOR FRONT DIFFERENTIAL)
41114B Bolt, Front Differential Bearing Cap
41114C Pin, Ring, Front Differential Bearing Cap Bolt
41201T Final Gear Kit, Differential, Front
41201U Shim (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST)
41201V Shim (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST)
41204D Flange Sub-assy, Front Drive Pinion Companion, Front
41204E Nut (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211A Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT)
41211B Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR)
41211C Gear, Differential Ring
41214C Slinger, Front Differential Drive Pinion Oil
41222B Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222F Plate, Fornt Differential Ring Gear Set Bolt Lock
41231F Spacer, Front Differential Drive Pinion Bearing
41252A Deflector, Dust (FOR FRONT DIFFERENTIAL)
41302H Bolt(FOR FRONT DIFFERENTIAL CASE)
41311 Case, Front Differential
41311A Bearing (FOR FRONT DIFFERENTIAL CASE)
41311C Shim (FOR FRONT DIFFERENTIAL CASE REAR)
41311D Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
41315A Nut, Front Differential Bearing Adjusting
41331F Gear, Front Differential Side
41341F Pinion, Front Differential
41342A Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351F Washer, Front Differential Pinion Thrust
41361C Lock, Front Differential Bearing Adjusting Nut
41361F Washer, Front Differential Side Gear Thrust, NO.1
41371A Spider, Front Differential
41993 Label, Differential Oil Information
43110 Housing Assy, Front Axle
43110A Plug Sub-assy, Drain
43110B Gasket, Drain
43110C Plug (FOR FRONT AXLE HOUSING)
43110D Gasket (FOR FRONT AXLE HOUSING PLUG)
43110E Plug, Breather (FOR FRONT AXLE HOUSING)
43110J Bearing, Front Axle Ball, RH
43110K Bearing, Front Axle Ball, LH
43110L Ring, Snap (FOR FRONT AXLE HOUSING, RH)
43110M Ring, Snap (FOR FRONT AXLE HOUSING, LH)
43110N Bolt (FOR FRONT AXLE HOUSING)
43600A Bolt, Stud (FOR FRONT AXLE DIFFERENTIAL CARRIER SETTING)
43611 Gasket, Front Axle Differential Carrier
52390C Support Assy, Front Differential, Rear, RH
52390D Support Assy, Front Differential, Rear, LH
84113E Bracket, Switch
