Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drum Brake Wheel Cylinder & Backing Plate

26 part groups · 2 illustrations

Illustrations

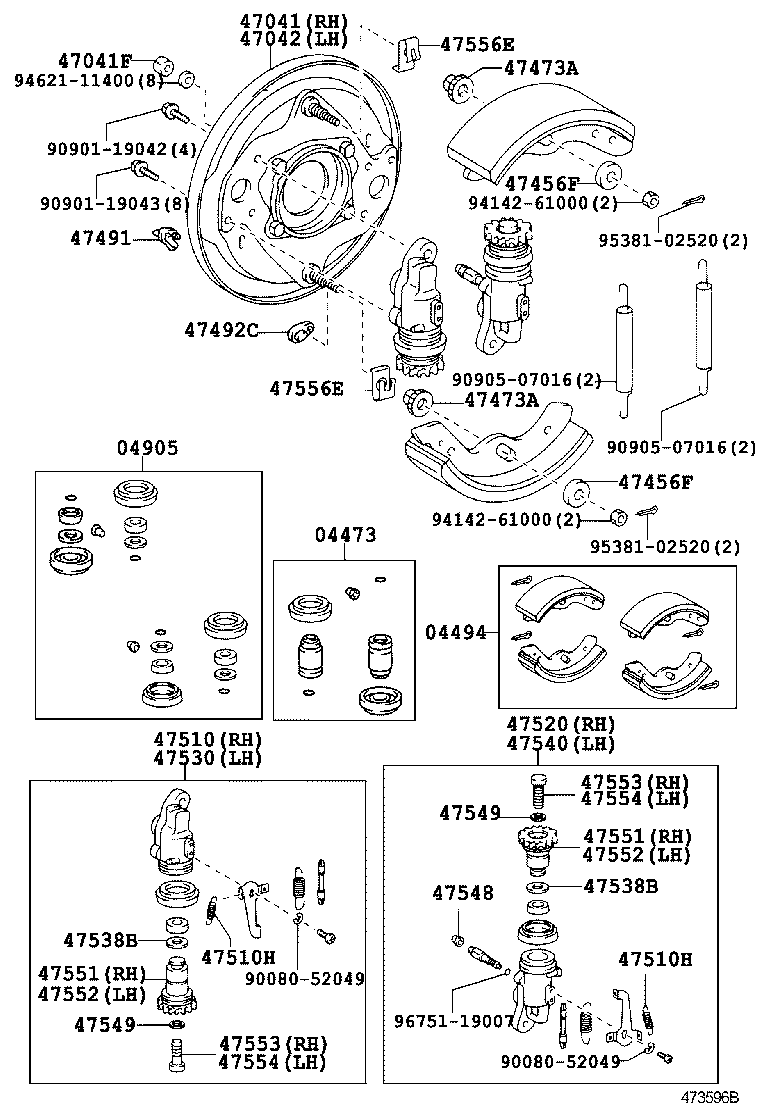

Figure 471479D 471479D 1999-06 → 2002-06 Figure 473596B 473596B 2002-06 → —

Part groups

PNCDescription
04473 Cylinder Kit, Front Wheel
04494 Shoe Kit, Front Brake
04905 Cup Kit, Front Wheel Cylinder
47041 Plate Sub-assy, Brake Backing, Front RH
47041F Nut(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)
47042 Plate Sub-assy, Brake Backing, Front LH
47456F Plate, Front Brake Shoe Guide
47473A Nut, Front Brake Shoe Adjusting
47491 Plug, Hole(FOR FRONT BRAKE)
47492C Plug, Hole(FOR FRONT BRAKE)
47510 Cylinder Assy, Front Wheel Brake, RH(FOR FRONT OR UPPER)
47510H Spring(FOR FRONT WHEEL CYLINDER PISTON SUB SPRING)
47520 Cylinder Assy, Front Wheel Brake, RH(FOR REAR OR LOWER)
47525 Pin, Wheel Cylinder Adjuster
47526 Ring, Automatic Adjuster
47530 Cylinder Assy, Front Wheel Brake, LH(FOR FRONT OR UPPER)
47538B Plate, Wheel Cylinder Ajuster Spring, FR
47540 Cylinder Assy, Front Wheel Brake, LH(FOR REAR OR LOWER)
47548 Cap, Bleeder Plug(FOR DRUM BRAKE, FRONT)
47549 Seat, Front Brake Automatic Adjust Nut
47551 Nut, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
47552 Nut, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
47553 Bolt, Front Wheel Cylinder Adjusting, RH(FOR FRONT BRAKE)
47554 Bolt, Front Wheel Cylinder Adjusting, LH(FOR FRONT BRAKE)
47556E Spring, Adjuster Lock(FOR FRONT BRAKE)
47777C Protector, Dust Boot
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
