Toyota Dyna/Toyoace

1999-05 → 2007-05 · chassis BU3##,BZU3##,RZU3##,XZU3## · catalogue 751170 · Japan

Discontinued model Data version 2007-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

39 part groups · 35 illustrations

Illustrations

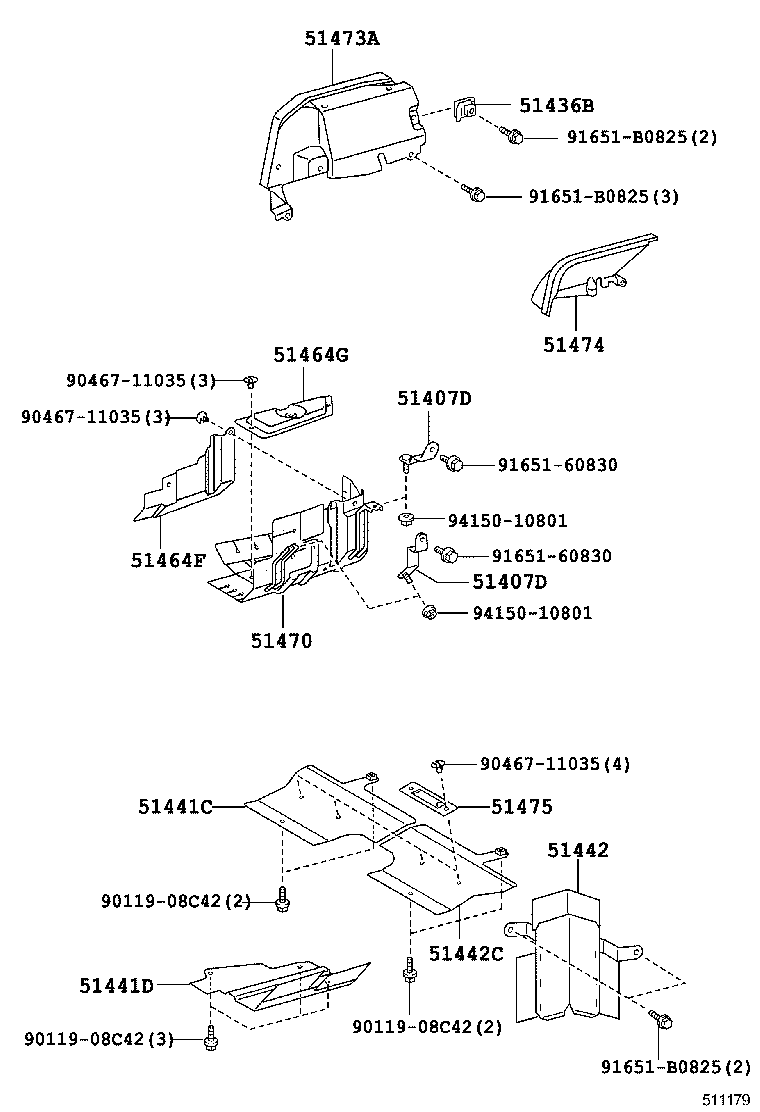

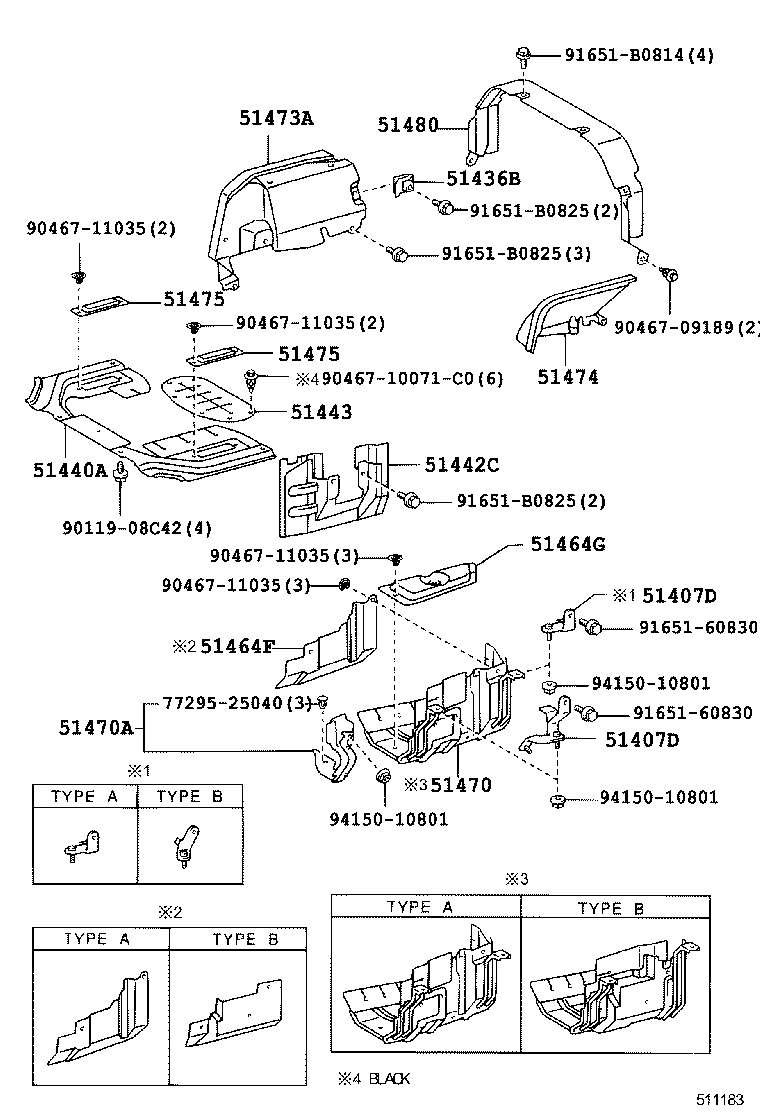

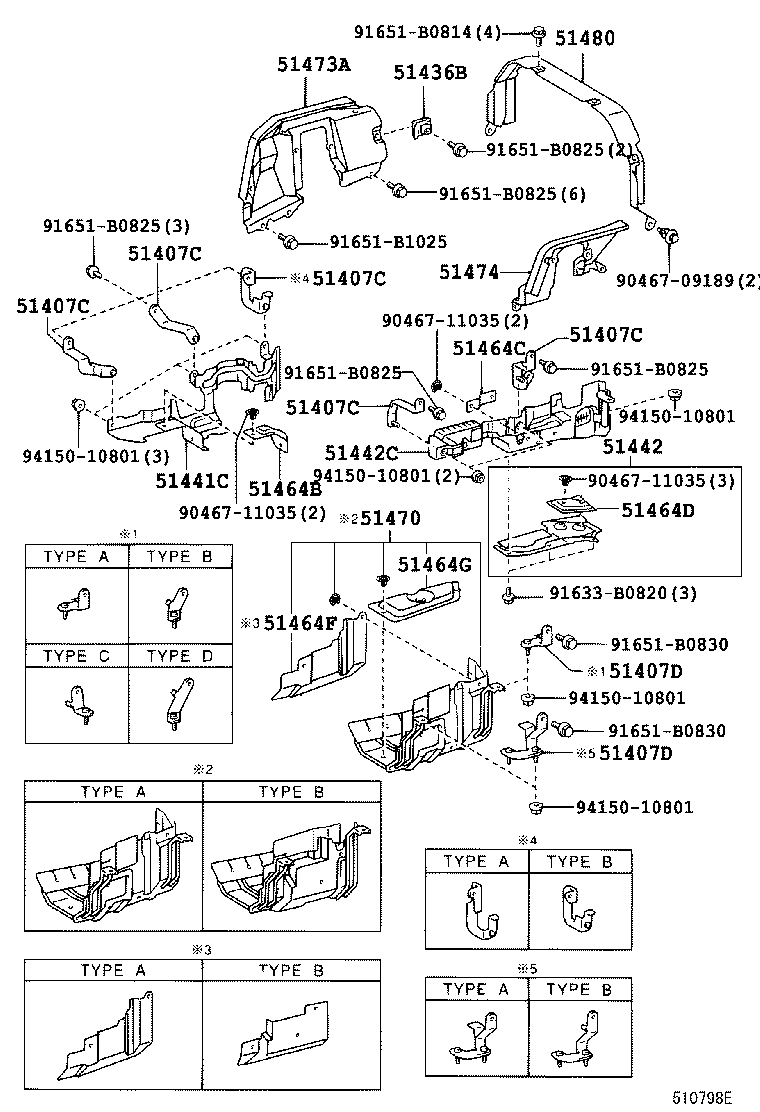

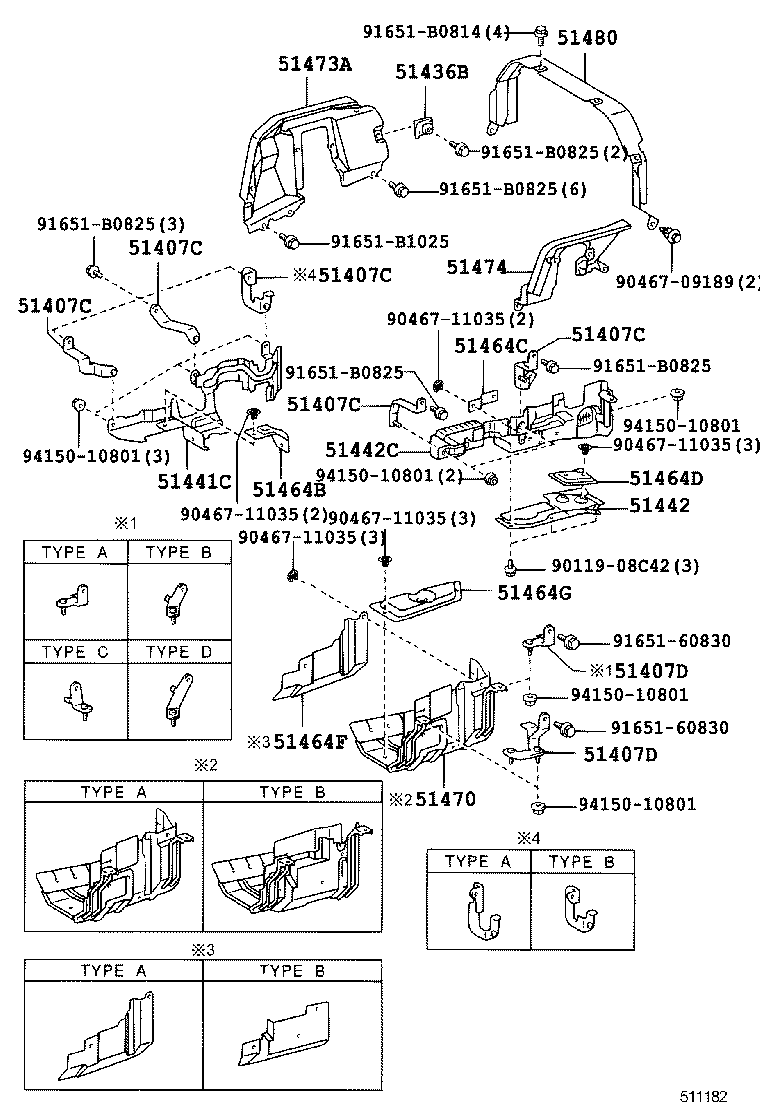

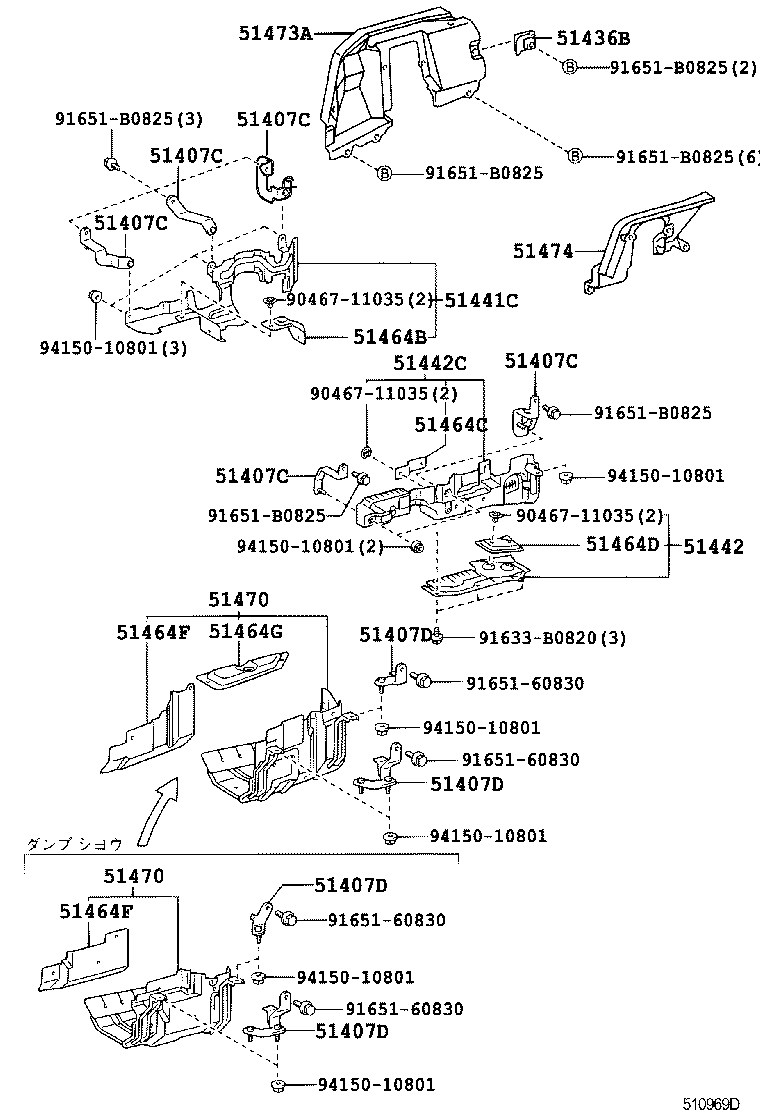

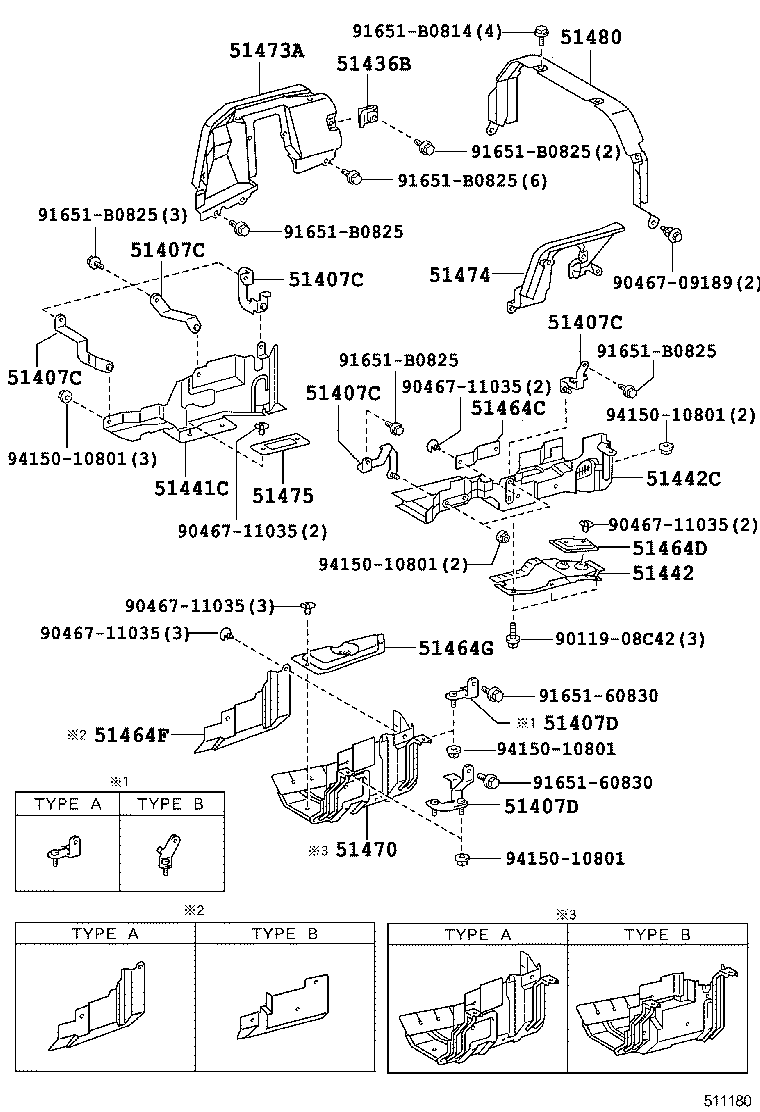

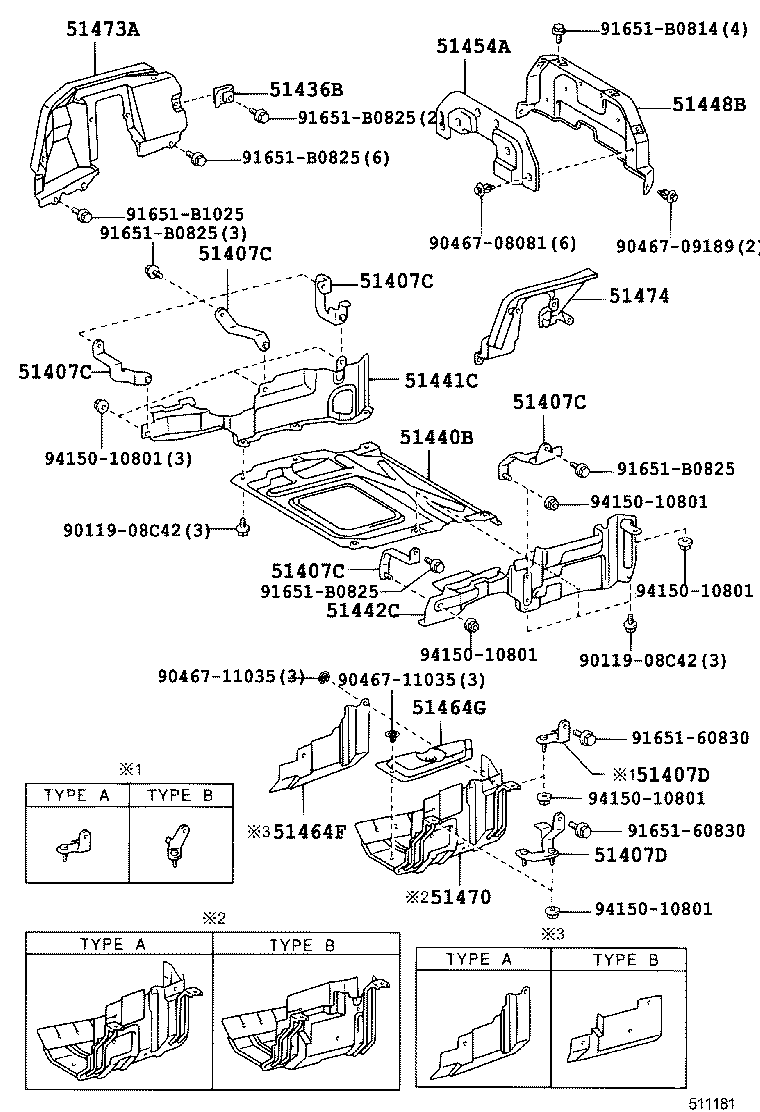

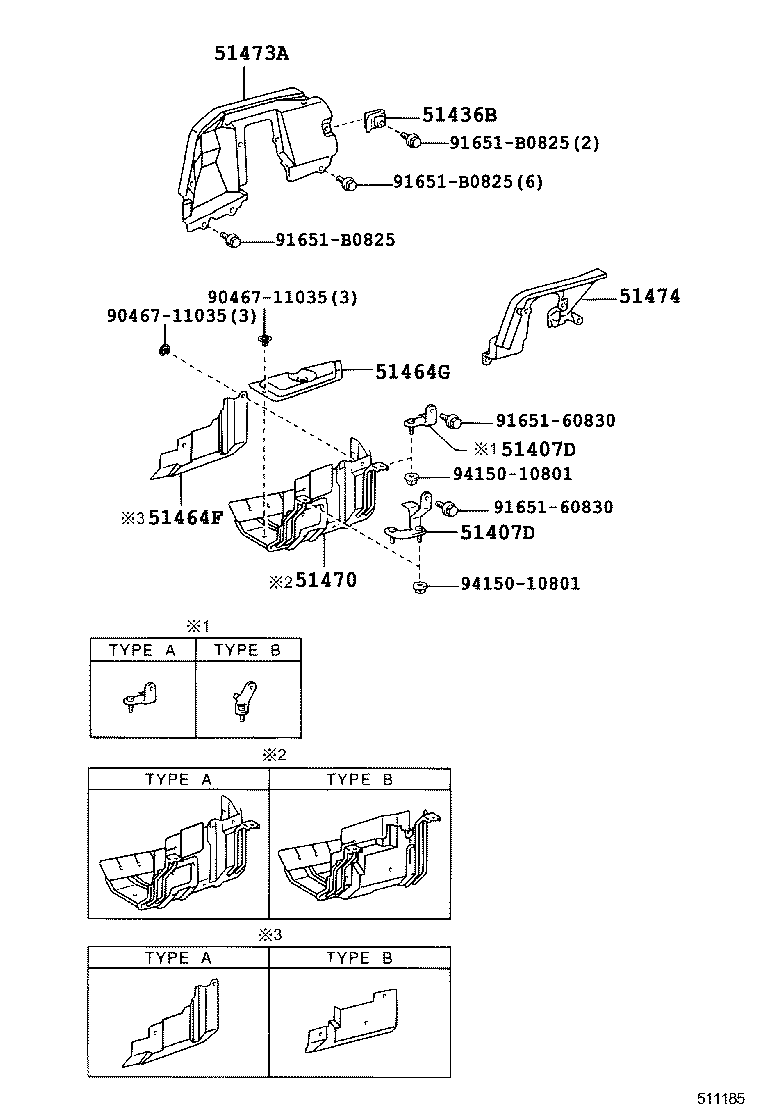

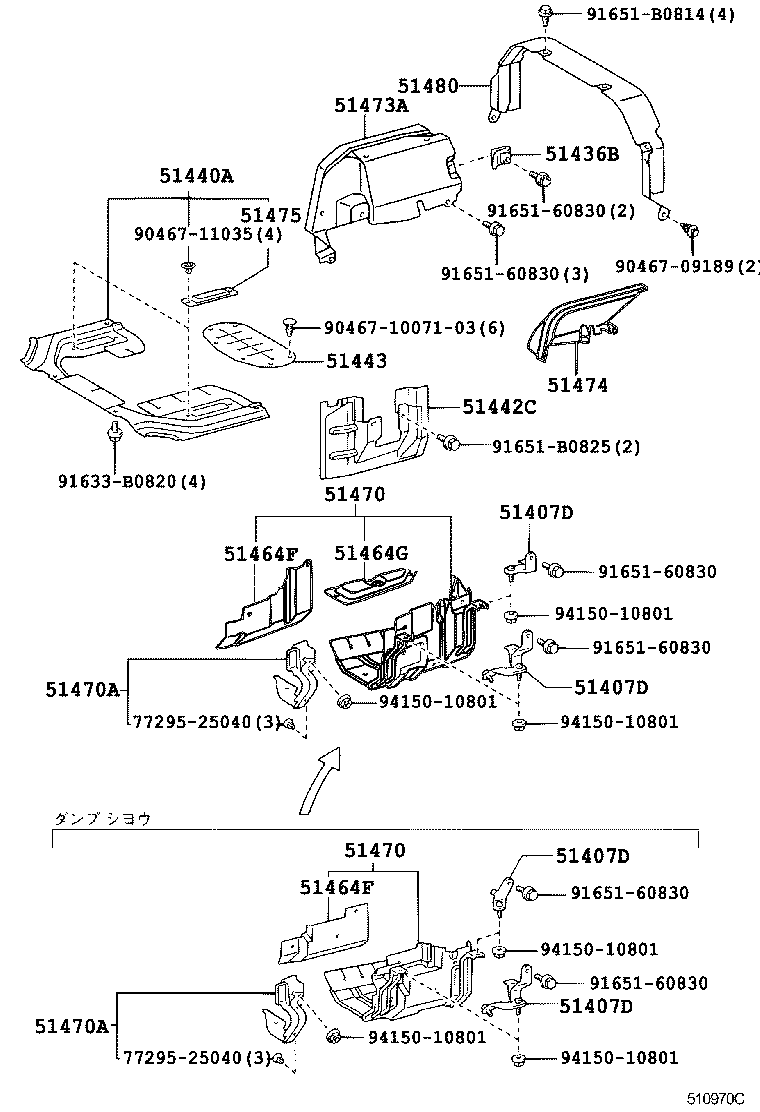

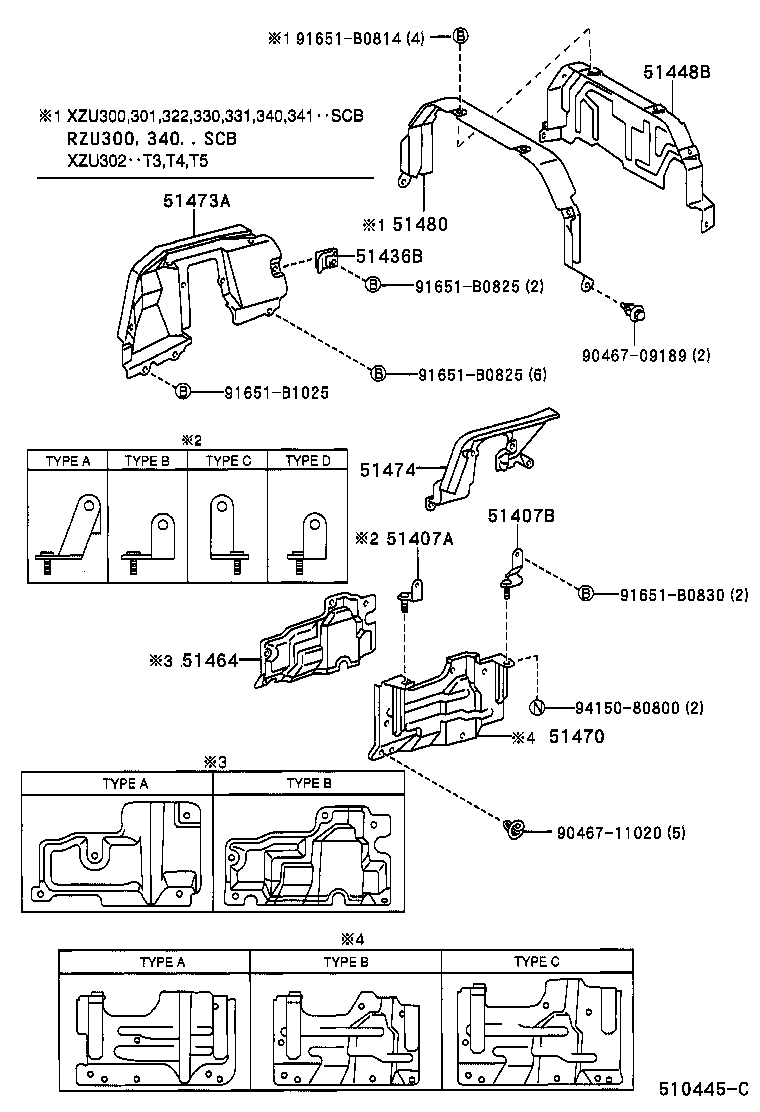

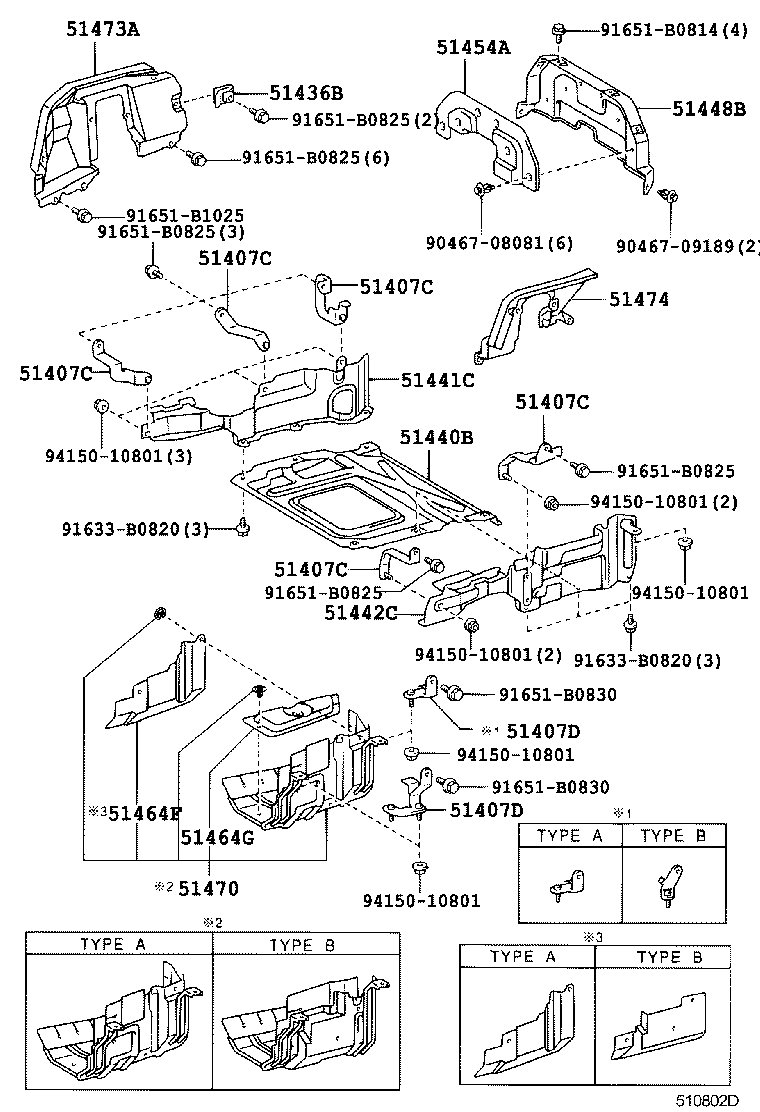

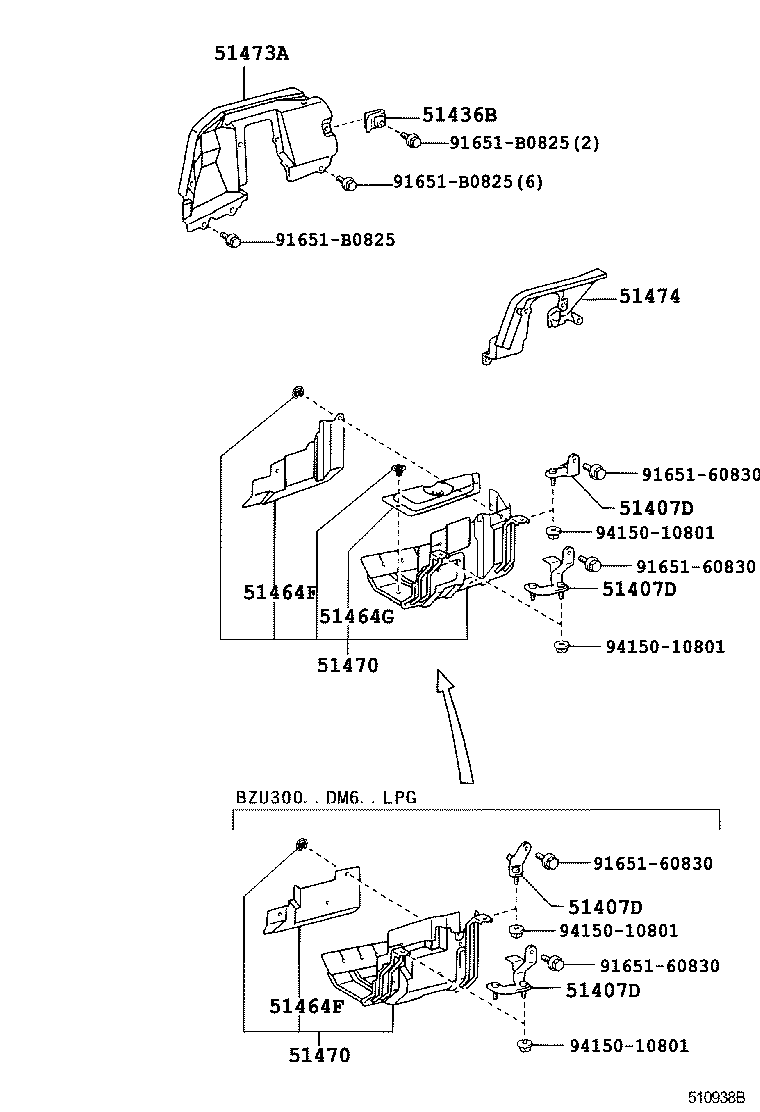

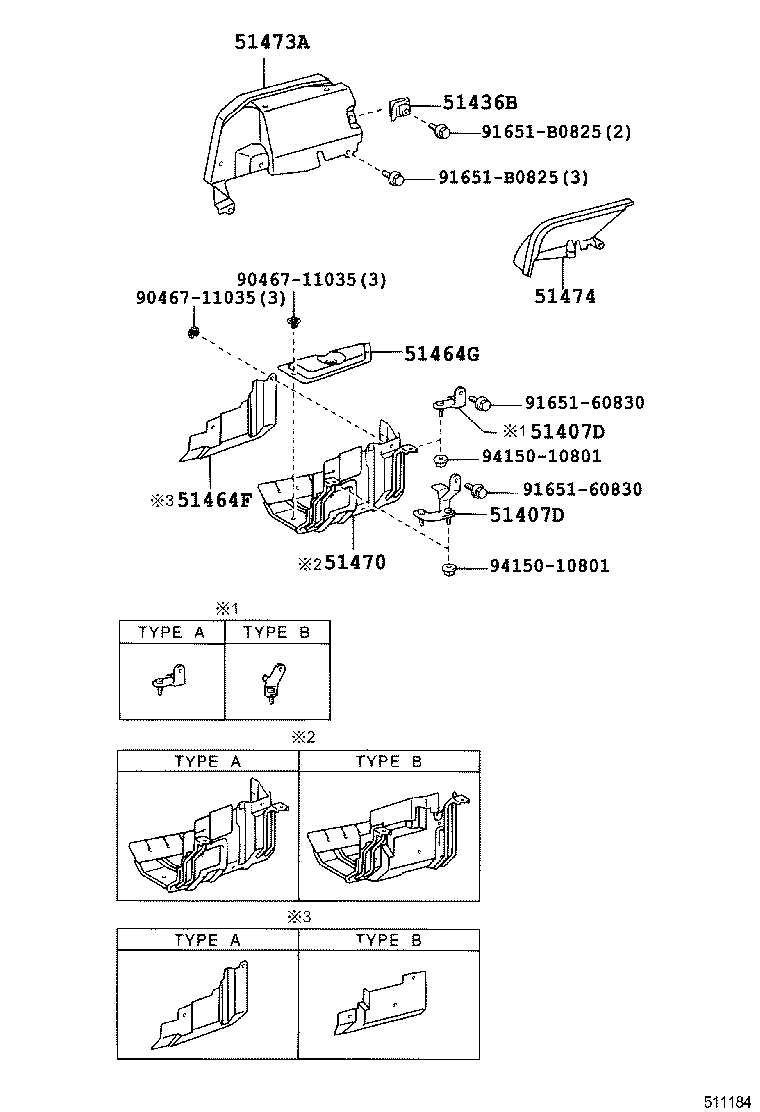

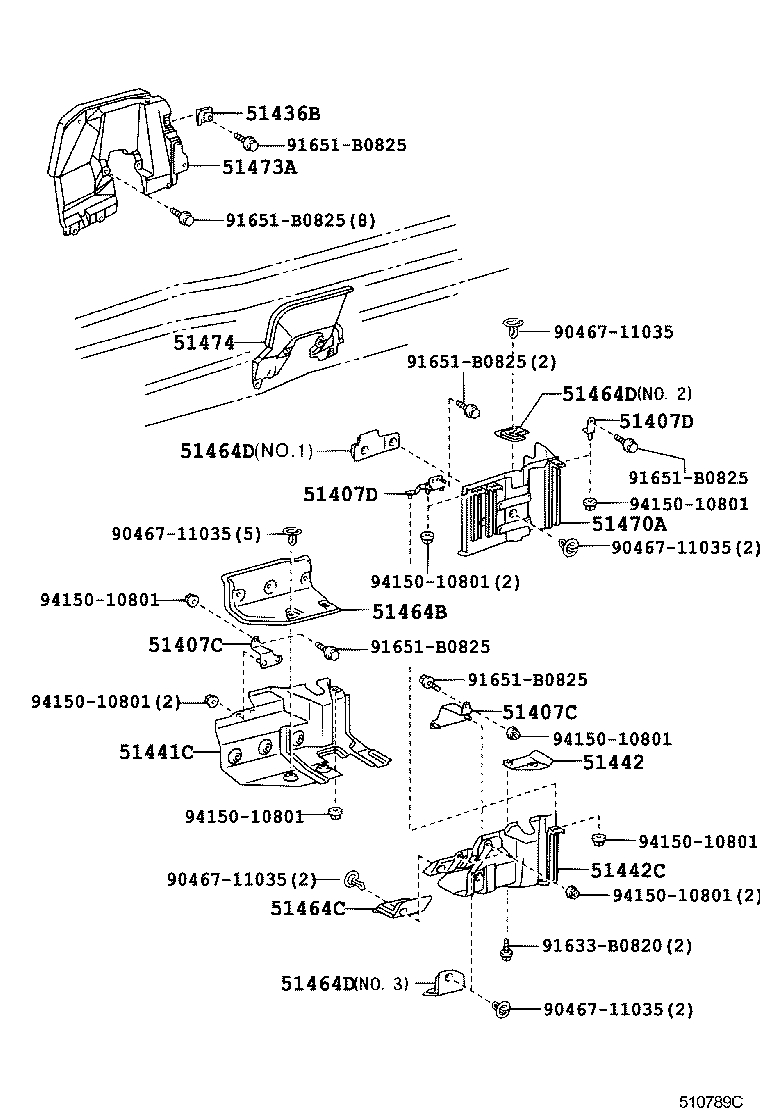

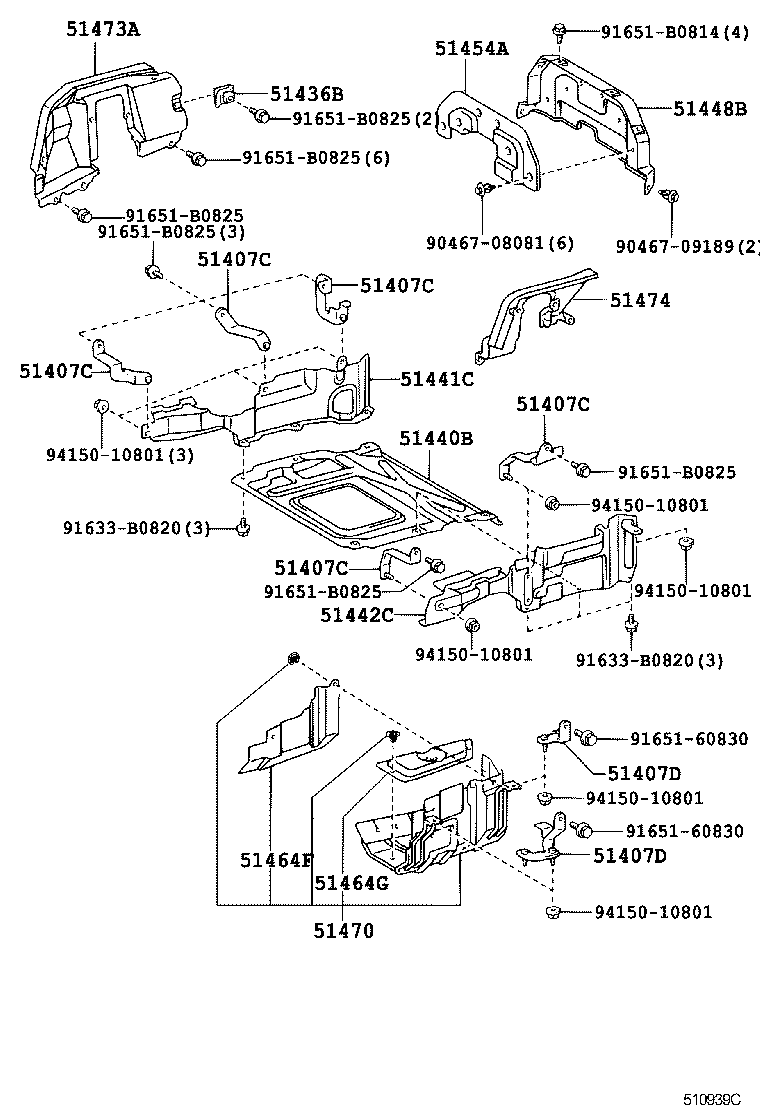

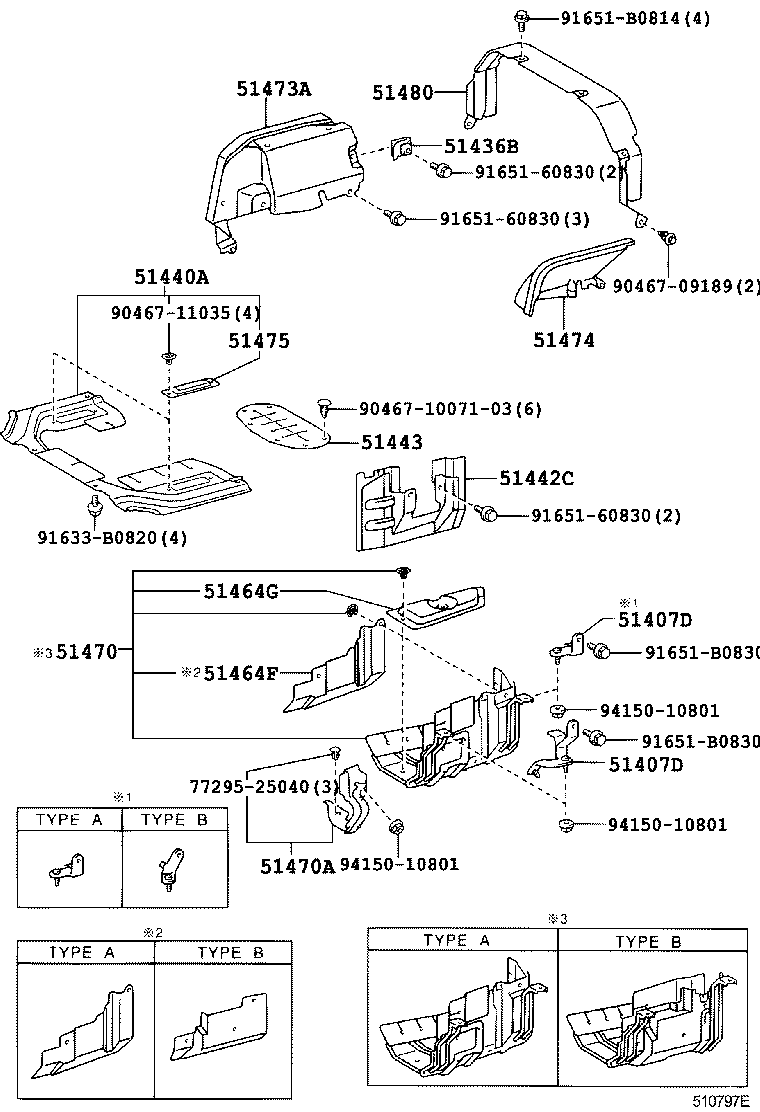

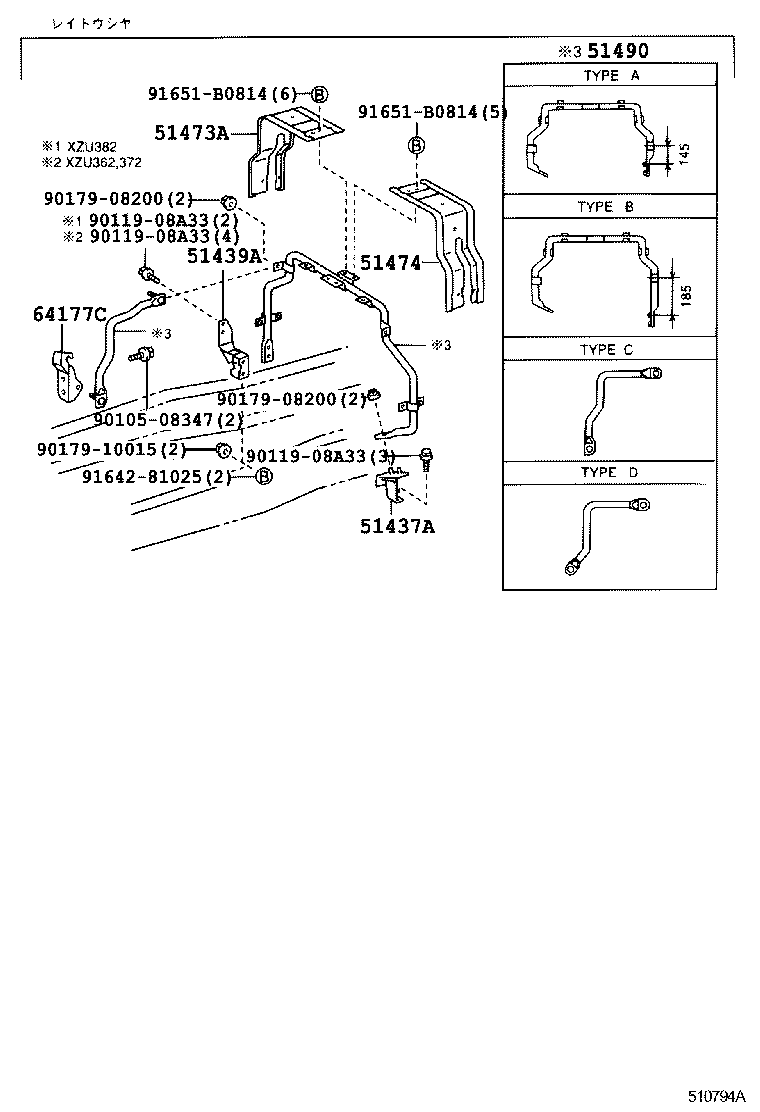

Figure 510444B 510444B 1999-05 → 2002-06 Figure 510445C 510445C 1999-05 → 2002-06 Figure 510445C 510445C 2002-09 → 2004-06 Figure 510443G 510443G 1999-07 → 2002-06 Figure 510794A 510794A 1999-07 → 2004-06 Figure 510462D 510462D 1999-05 → 2004-06 Figure 510462D 510462D 2002-06 → 2004-06 Figure 510462D 510462D 2003-06 → 2004-06 Figure 510462D 510462D 2004-06 → — Figure 510462D 510462D 2004-06 → — Figure 510463C 510463C 1999-05 → 2004-06 Figure 510463C 510463C 2004-06 → — Figure 510797E 510797E 2002-06 → 2004-06 Figure 510797E 510797E 2002-10 → 2004-06 Figure 510798E 510798E 2002-06 → 2004-06 Figure 510802D 510802D 2002-06 → 2002-09 Figure 510802D 510802D 2002-06 → 2004-06 Figure 510789C 510789C 2002-06 → 2004-06 Figure 510969D 510969D 2002-06 → 2004-06 Figure 510970C 510970C 2002-06 → 2004-06 Figure 510938B 510938B 2003-06 → 2004-06 Figure 510939C 510939C 2003-06 → 2004-06 Figure 510987C 510987C 2003-10 → 2004-06 Figure 510987C 510987C 2004-06 → — Figure 511179 511179 2004-06 → — Figure 511180 511180 2004-06 → — Figure 511181 511181 2004-06 → — Figure 511182 511182 2004-06 → — Figure 511183 511183 2004-06 → — Figure 511184 511184 2004-06 → — Figure 511185 511185 2004-06 → — Figure 511186 511186 2004-06 → — Figure 511188A 511188A 2004-06 → — Figure 510447I 510447I 1999-05 → 2004-06 Figure 510986D 510986D 2004-06 → —

Part groups

PNCDescription
51407A Cover Sub-assy, Engine Under, NO.3
51407B Bracket Sub-assy, Engine Under Cover
51407C Bracket Sub-assy, Engine Under Cover
51407D Bracket Sub-assy, Engine Under Cover
51436B Bracket, Engine Side Cover, NO.1 RH
51437A Bracket, Engine Side Cover, NO.1 LH
51439A Bracket, Engine Side Cover, NO.2 LH
51440A Cover Assy, Engine Under
51440B Cover Assy, Engine Front Under, Center
51441C Cover, Engine Under, RH
51441D Cover, Engine Under
51442 Cover, Engine Under, NO.2
51442C Cover, Engine Under, LH
51443 Cover, Engine Under, Rear RH
51448B Shutter, Engine Rear Side
51454A Silencer, Engine Rear Cover
51464 Silencer, Transmission Under, LH
51464B Silencer, Transmission Under
51464C Silencer, Transmission Under
51464D Silencer, Transmission Under
51464F Silencer, Transmission Under
51464G Silencer, Transmission Under
51470 Cover Assy, Transmission Under
51470A Cover Assy, Transmission Under, LH
51473A Cover Sub-assy, Engine Side, RH
51474 Cover Sub-assy, Engine Side, LH
51475 Silencer, Engine Under Cover, NO.5
51480 Shutter Assy, Engine Rear Side, RH
51490 Shutter Assy, Engine Rear Side, LH
51961C Hook, Front
51962 Hook, NO.2
51963B Hook, Transport, Front RH
51963E Stopper, Front Hook Wire
51964B Hook, Transport, Front LH
51968C Reinforcement, Rear Hook
53343B Bracket, Air Deflector, NO.1
53345C Bracket, Air Deflector, NO.2
55827A Duct, Ventilator Air Guide
64177C Stopper, Rear Mounting Bracket, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
